Netti III Comfort HD User manual

2018-08-MD0167 UK
NORWAY: Alu Rehab AS | Bedriftsvegen 23 | N-4353 Klepp stasjon | [e-mail] | Phone [phone]
DEN MARK: Alu Rehab ApS | Kløftehøj 8 | DK-8680 Ry | [e-mail] | Phone [phone]
Installation instruction
Universal device rack
Version 08-2018
for Netti III Comfort HD, Netti III Comfort XHD &
Netti Mini SW 35 cm

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 2 of 10

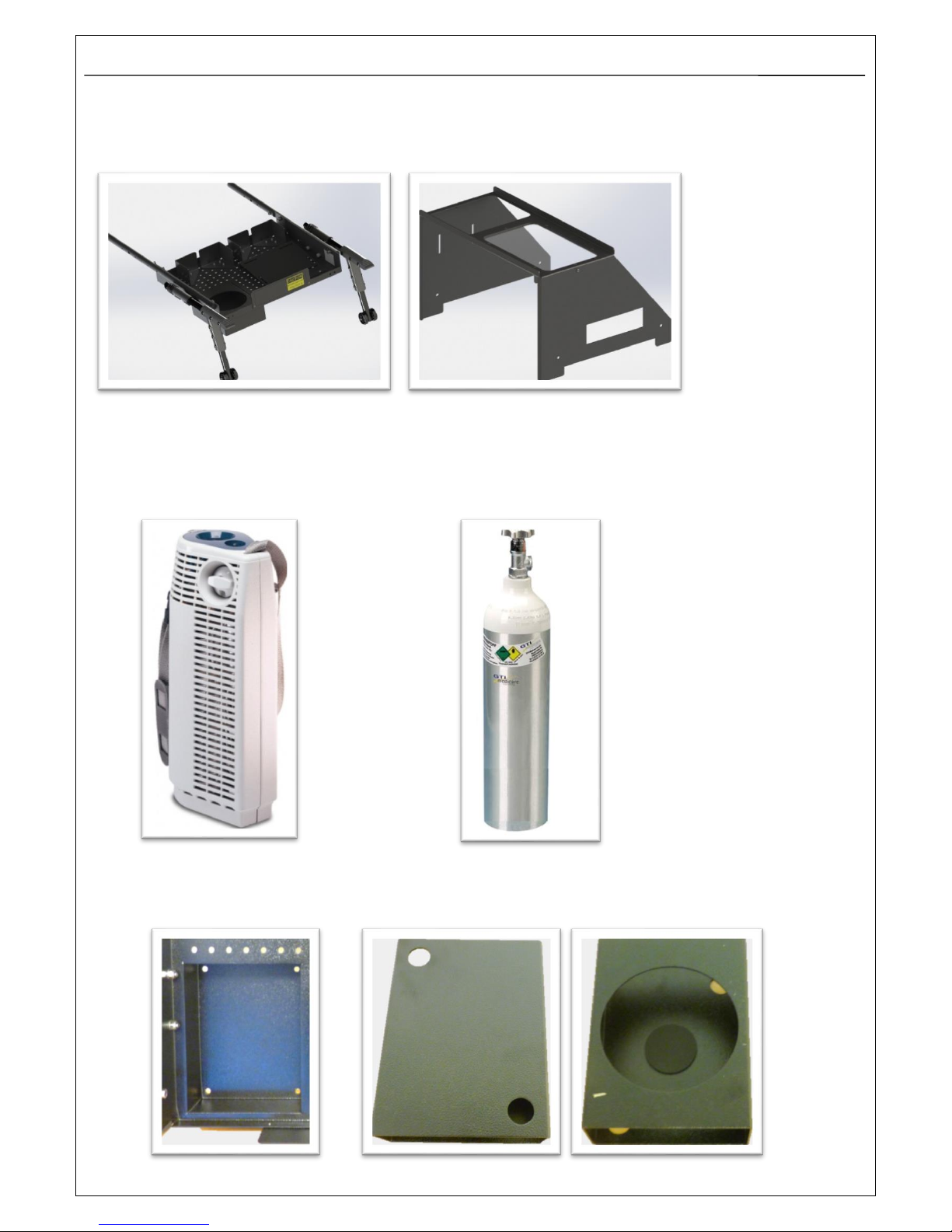

In December 2015 we have released a new version of our universal device rack
where we made some design changes.
The Universal device rack can now be used also for oxygen containers (LOX-System)
like we see here in picture 1.
The design change covers also the use of the bottle system (picture2)
New container system Bottle system
The hole to keep the oxygen devices in position is square and has a cover plate which can be turned with
180° to use both round and square devices.
Picture 1
Picture 2

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 3 of 10
Contents:
1. Introduction to the universal device rack and protective cover / second level
2. Assembling the mounting tubes to the frame
3. Positioning the support rackets
4. Installing the anti-tips - see warning
5. Adjusting the anti-tip supports
6. Installing the optional protective cover
7. Installing an oxygen cylinder
8. Images of a fully assembled universal device rack
9. Retrofitting a universal device rack to an existing Netti III

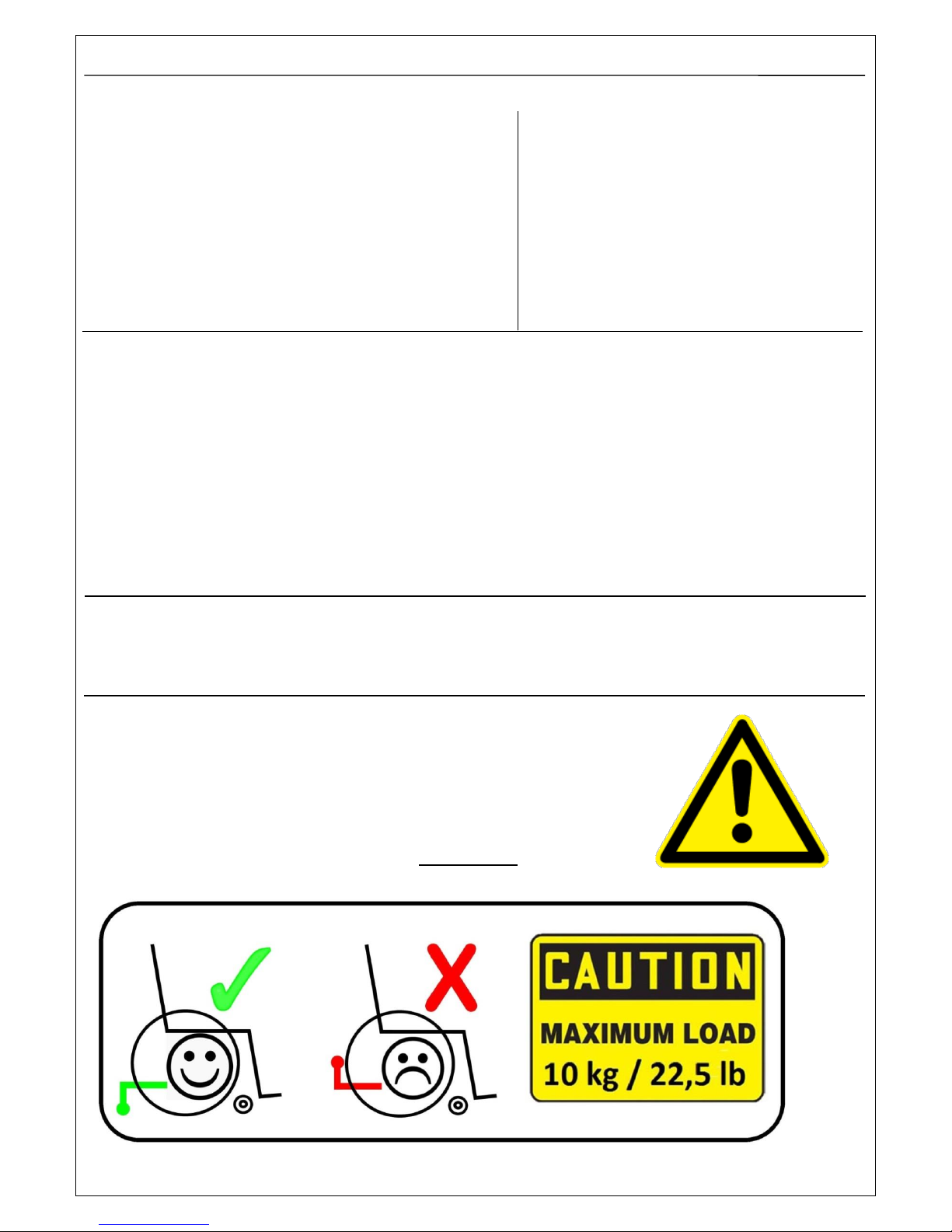

10. Dimensions and data
11. Basic configuration of the Netti III HD / XHD for use with the universal device rack
12. Maximum loads
13. Important notes for user and carers
14. Instructions and advice for use of a wheelchair together with the universal device rack
Warning: the anti-tips must be turned and locked downwards
whenever the rack is mounted on a wheelchair
Warning: the wheelchair with Universal device rack is NOT approved
for being used as a seat in a vehicle!
The following pictures in this manual showing the old type of the universal device rack.
The function and installation procedure remains the same after the design change.
The dimension after the design change have changed. Please have a look at page 9 to get the actual sizes.

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 4 of 10

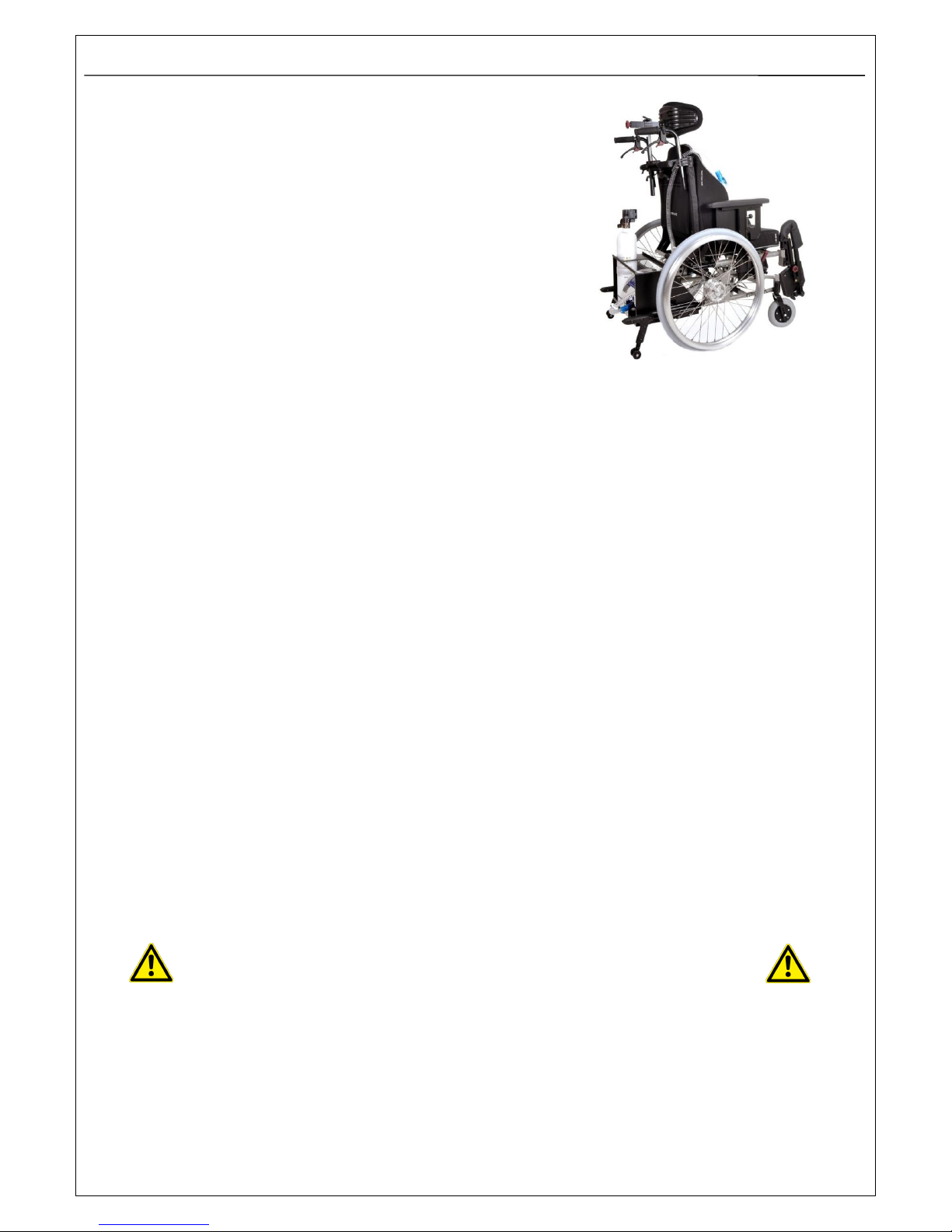

The universal device rack is supplied pre-assembled and ready to install on a Netti III Comfort HD /
Netti III Comfort XHD and Netti Mini SW 35 cm wheelchair. It is intended to carry medical equipment.
Before you start to install the rack please read these instructions carefully.
For mounting the universal rack on a Netti Mini SW 35 please read chapter 2.a.
After the rack has been installed this manual must be given to the wheelchair user. The user must be
warned of the risks of using this rack if the anti-tips are not turned downwards and locked into position.
If you have received this rack for retrofitting to an a wheelchair that is already in use you should first
read sections 9 and 11.

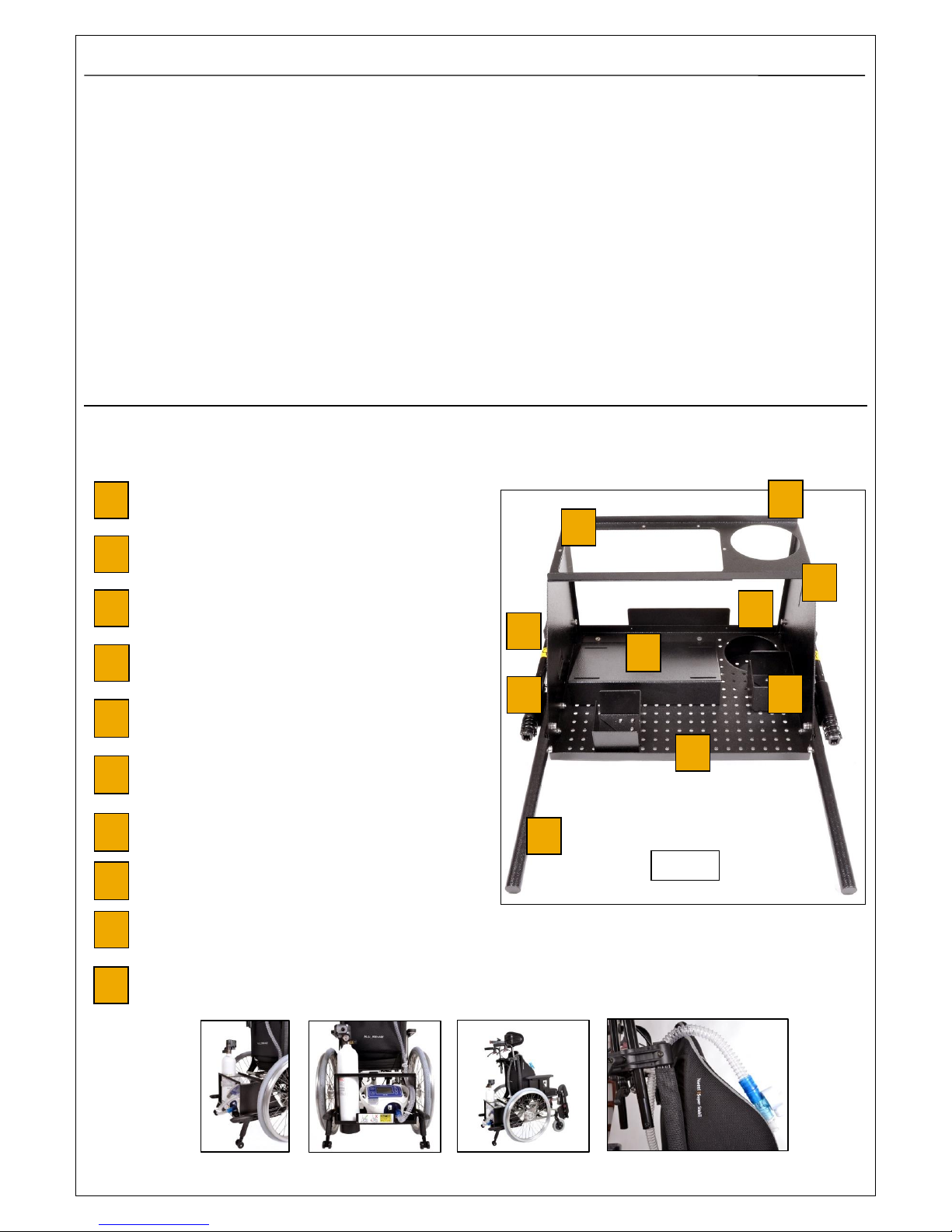

1. Introduction to the universal device rack and optional protective cover / second level:
Platform
Support tubes (for mounting to the wheelchair)
Anti -tip supports
Anti-tips
Set of 4 adjustable retaining brackets
Protective cover / second level
Inclined support plate for a respiratory device
Cut-out for oxygen cylinder
Oxygen cylinder holder
Inspection cut-out
A
E
B
C
D
Fig. 1
F
G
H
I
J
A
B
C
D
E
F
G
H
I
J

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 5 of 10

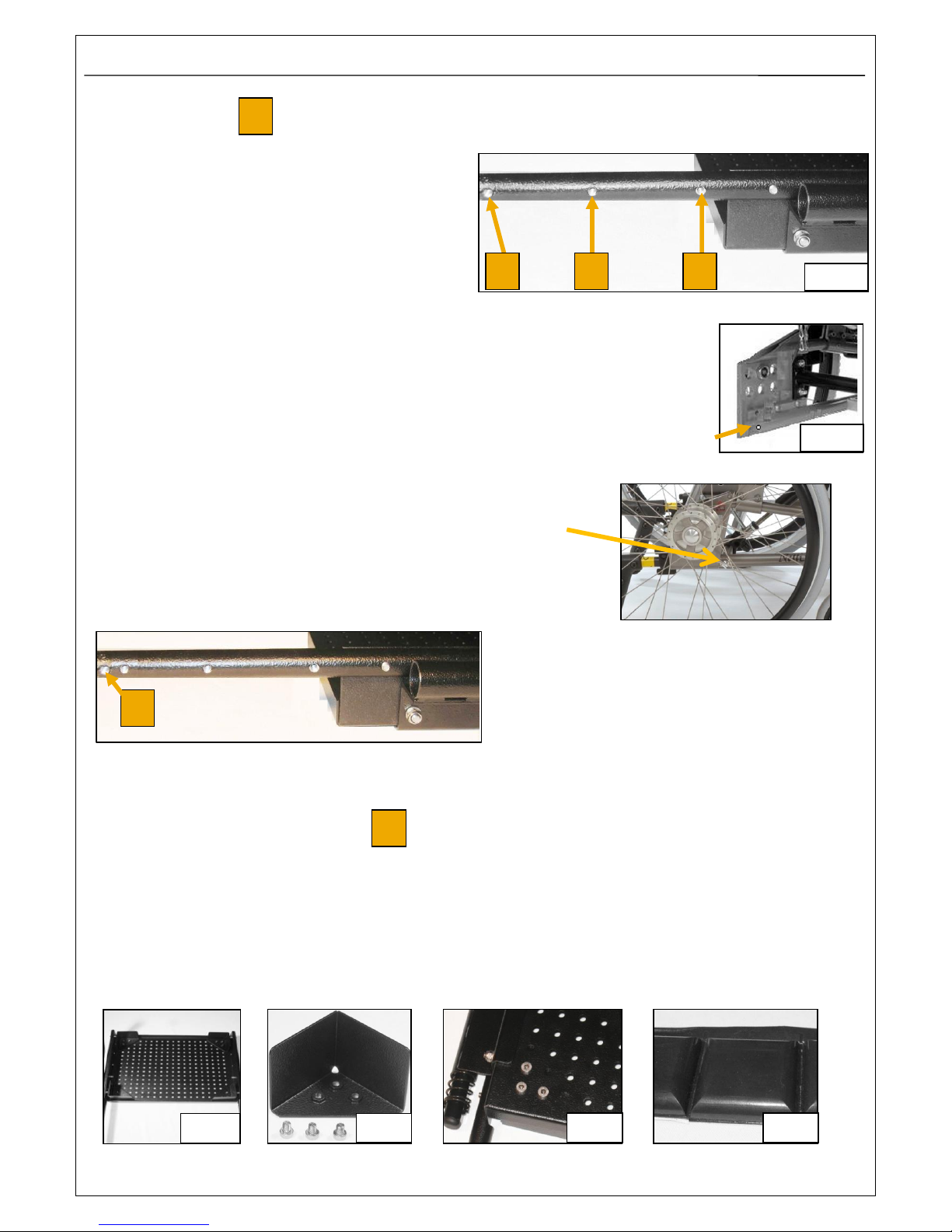

2. Support tubes
The support tubes have 3 alternative M5
mounting positions for different seat depths
(see Fig. 2)
Position 3 for seat depth: 50 –57.5 cm
Position 2: for seat depth: 45 –47.5 cm
Position 1: for seat depth: 40 –42.5 cm
Slide the left and right support tubes into the support sleeves on the wheelchair
frame for the standard anti-tips and secure them using the mounting holes shown
in Fig. 3 using the M5 screws provided.
M5 thread
2.a Installation on a Netti Mini SW 35
Unscrew and remove the screws shown in fig. 3 from the left and
right anti-tip support sleeves.
Slide the universal device rack’s support tubes into the
anti-tip sleeves up to position 4.
Secure the universal device rack using the screws you removed.
3. Positioning the retaining brackets
The platform (Fig. 4) allows the retaining brackets (Fig. 5) to be mounted in any position.
Undo the 3 screws holding each bracket, position the brackets to suit the device involved and screw them
into place, Fig. 6. Foam can be used to fill any gaps between the device and the brackets. The anti
vibration pads, Fig. 7, provided, can be fixed to the bottom of the device. An additional set of 4 retaining
brackets can be ordered under option number D42900.
B
E
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 3
3
2
1
Fig. 2
4

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 6 of 10

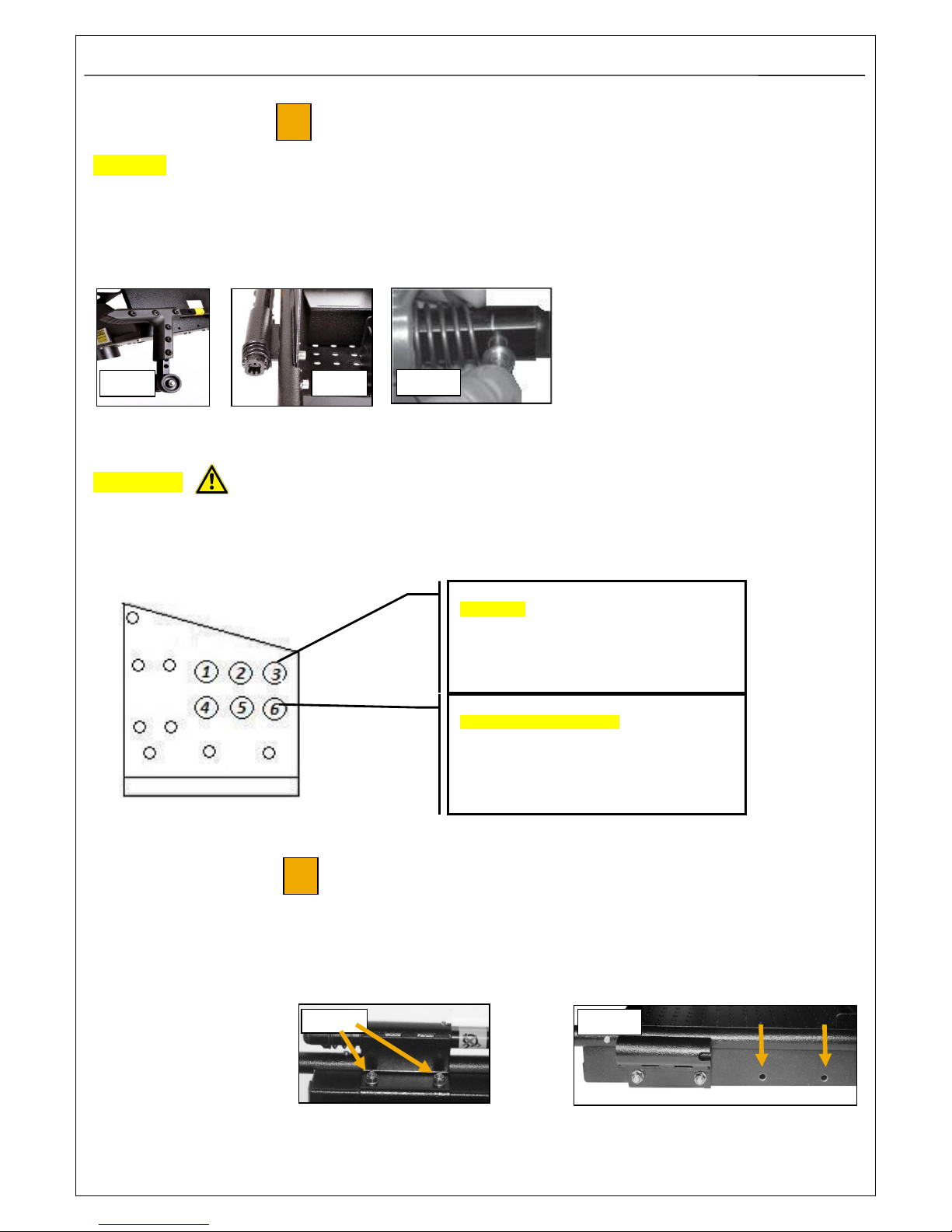

4. Installing the anti-tips
WARNING the anti-tips are mounted at the factory. They should not normally be removed.
If necessary, slide the anti-tips forward, Fig. 8 from the rear of the rack into the anti-tip supports Fig. 9.
Slide the springs provided Fig. 10 over the anti-tips. Compress each spring slightly and secure it by pushing
the pin provided through the hole. The anti-tips are now mounted securely.
WARNING:
If the seat height has been increased, (see diagram), the standard anti-tips must be replaced by extra-long
anti-tips –part # 25423
5. Adjusting the anti-tips
If required the anti-tips can be moved forward. This is done by changing the position of the anti-tip
supports. To do this unscrew, the M6 nuts that secure the anti-tip supports and remove the screws, Fig. 11.
Slide the anti-tip supports forward and insert the screws into the 2 empty fixing holes, Fig. 12. Using 2
new self-locking nuts, tighten the screws firmly.
D
C
Fig. 8
Fig. 9
Fig. 10
Fig. 12
Fig. 11
Positions 1, 2, 3 für 12“ - 20“ – 22“ - 24“ – 26“
for standard anti-tips as delivered
12“ H1 Seat height 48,5 cm
20“ H1 Seat height 40,5 cm
22“ H1 Seat height 43,5 cm
24“ H1 Seat height 46,0 cm
26“ H1 Seat height 48,5 cm
Loch 4, 5, 6 12“ - 20“ – 22“ - 24“ – 26“
Extra-long anti-tips part # 25423
12“ H2 Seat height 50,0 cm
20“ H2 Seat height 43,5 cm
22“ H2 Seat height 46,0 cm
24“ H2 Seat height 49,0 cm
26“ H2 Seat height 51,5 cm

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 7 of 10

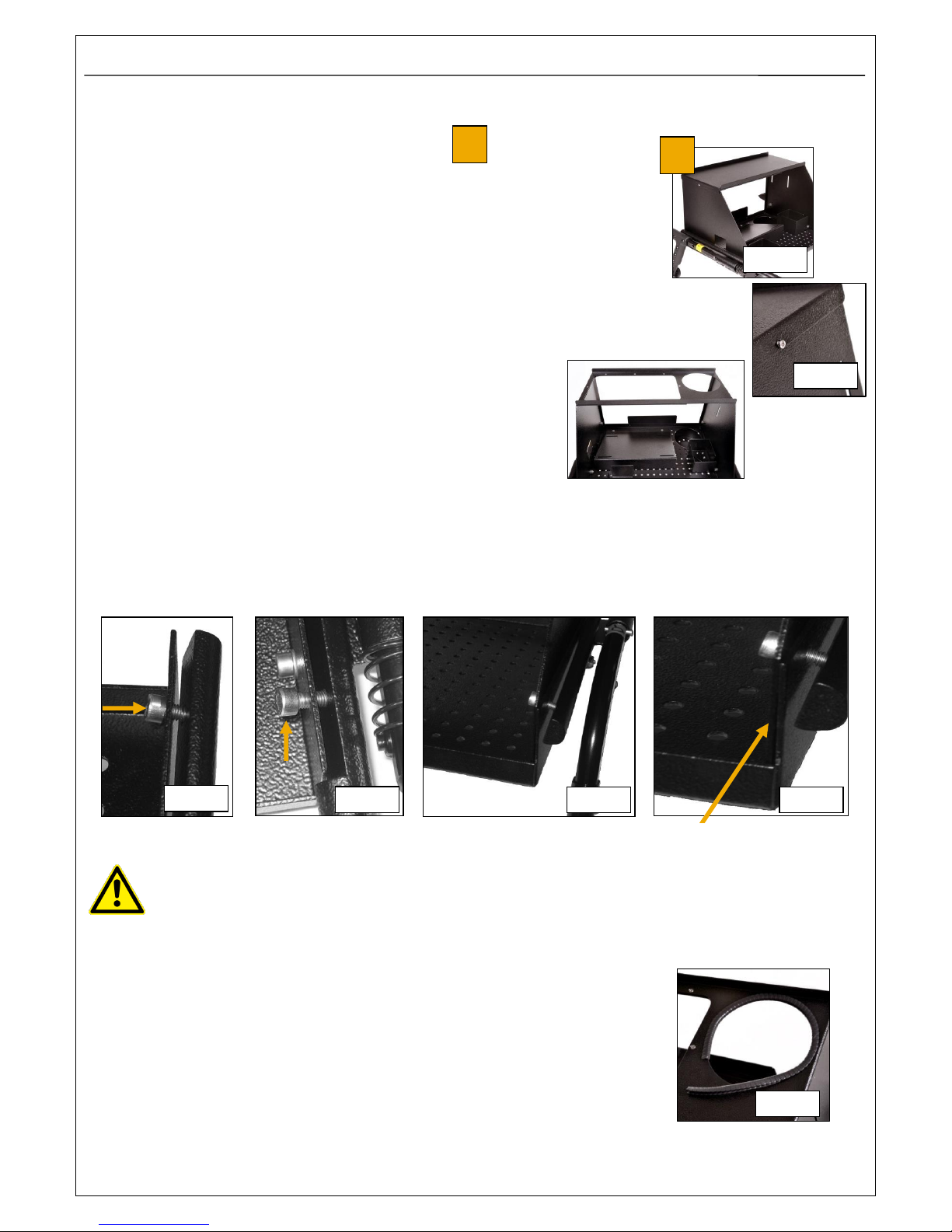

6. Installing the protective cover / second level
The protective cover is available as an option at additional cost.
The protective cover can be used as an upper platform (Fig. 13) can also be
used to support additional light-weight devices with a total weight of up to 4
kg.
2 cut-outs are available, one for inspection, the other for the oxygen cylinder.
Each cut-out has a plate that is secured by a side screw. You can remove the
plate if you remove the side screw (Fig. 14).
Unscrew the 2 nuts on the inside of the platform. There is one at the back, (Fig. 16) and one at the front
(Fig. 17). Pull the screws out. Place the protective cover on the platform so that the side panels are inside
the raised edges of the platform (Fig. 18 & 19) and the sloping edge of the protective cover faces the
wheelchair (Fig. 25). Screw the side panels together with the platform and the support tubes.
Warning do not exceed the maximum load on the protective
cover of 4kg
7. Installing an oxygen cylinder (requires the optional second level)
When fitted with the optional protective cover the universal device rack can
hold a standard 2 l oxygen cylinder.
Remove the plate from the round 119 mm cut-out in the protective cover
Fig14 & Fig. 20
Line the cut-out with the beading provided, see Figure 20.
This reduces the inner diameter to 115 mm.
Place the side panels of
the protective cover
inside the raised edges
of the platform
Fig. 16
Fig. 17
Fig. 19
Fig. 18
Fig. 13
F
F
Fig. 14
Fig. 20

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 8 of 10

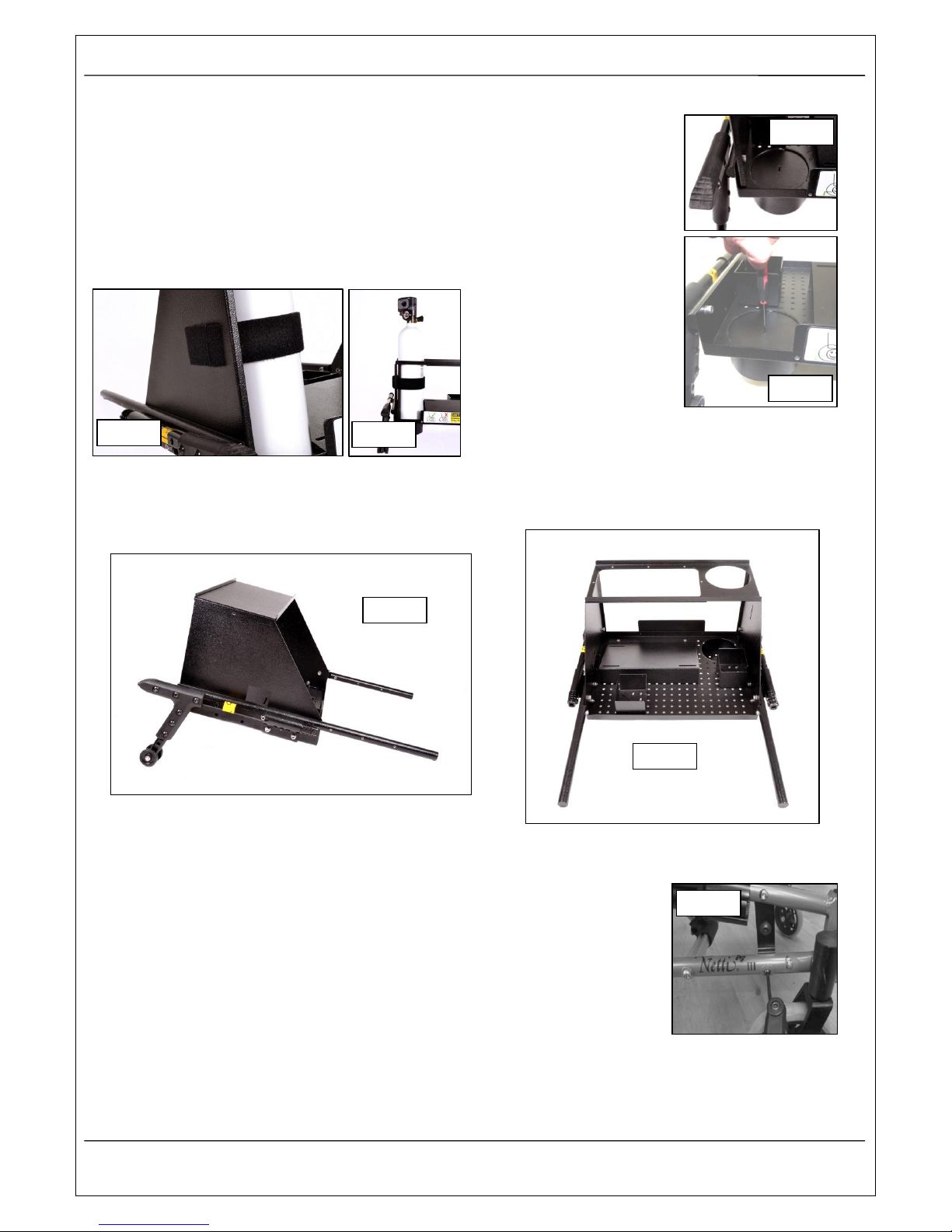

The platform has a circular 115 mm diameter holder that is protected by a
plate see Fig. 21.
Unscrew the screw in the centre of the plate, you can now remove the it.
You may need to prise plate out (fig. 22)
Put the oxygen bottle in the holder. Velcro strips are supplied to fasten it to
the slots in the side panels, figs 23 & 24
8. Images of a fully assembled universal device rack (Figs 25 & 26)
An optional set of 4 retaining brackets is available
9. Retrofitting a universal device rack to an existing Netti III HD/XHD
Remove the anti-tips:
Unscrew and remove the screw shown in Fig. 27 on the lower frame.
This frees the retaining spring inside the tube.
Now pull the entire anti-tip mechanism out of the back of the tube.
Put the screw back and tighten it and continue from section 2 of this
manual.
Fig. 25
Fig. 26
Fig. 27
Fig. 21
Fig. 22
Fig. 23
Fig. 24

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 9 of 10
10. Dimensions and data
11. Basic configuration of the Netti III HD / XHD for use with the universal device rack
The universal device rack is compatible with Netti III Comfort HD / Netti III Comfort XHD and Netti Mini SW
35 cm wheelchairs when equipped with the following accessories.
•Wheelbase extension
•2 reinforced wheels (not necessary for Netti Mini SW 35 cm)
•Seat tilt with 2 gas springs (not necessary for Netti Mini SW 35 cm)
12. Maximum load
Please note that the entire load on the wheelchair including the user, any accessories, the universal device
rack, and other equipment, must not exceed 160 kg (Netti Mini = 90 kg).
13. Important note
A copy of these installation and operating instructions must be given to the
user of the wheelchair and their carers.
Warning, make sure that the anti-tips are always swung downwards and
locked while the chair is being used.
The wheelchair with Universal device rack is not approved
for being used as a seat in a car.
Protective cover
Depth: 193 mm
Width: Seat width less 37mm
Height: 237 mm (free space)
Ready for a 2 l oxygen cylinder with a 115
mm diameter holder in platform and a cut-
out in protective cover or a LOX container.
Universal device rack
Depth: 348 mm
Width: Seat width less 36mm
Edge height of retaining brackets: 60 mm
Maximum load 10 kg
Material: Aluminum powder coated in black
Universal device racks and protective covers are available only for the following wheelchairs
Netti III HD in seat widths of 35, 38, 40, 43, 45, 50, 55, & 60 cm
Netti III XHD in seat widths of 50 & 75 cm and Netti Mini SW 35 cm

Installation instructions Universal Device Rack Netti III Comfort HD / XHD / Mini SW 35
MD 0167UK Installation instructions - Universal device rack 08-2018 My.Netti.com Page 10 of 10
14. Instructions for use of a wheelchair together with the universal device rack:
1. The wheelchair must be equipped with: wheelbase extension, 2 reinforced wheels and seat tilt with 2
gas springs. The maximum load including user, accessories, universal device rack, and other
equipment, must not exceed 160kg.
(Netti Mini must be equipped with frame extender = max. load 90 kg)
2. The anti-tips must always be swung downwards and locked to prevent the wheelchair tipping
backwards and causing injury to bystanders or damage to property. There is an increased risk of
tipping if nobody is sitting in the chair.
3. Do not push down on the anti-tips.
4. Avoid driving over kerbs or steps.
Make sure there are no kinks in any hoses , cables or other connections to the devices used on the
rack. Make sure all devices in the rack on or the protective cover are properly secured to prevent
them from moving and becoming damaged while the wheelchair is being used.
5. Make sure all devices and the connections to them are placed where they cannot collide with
external obstacles while the chair is being moved.
6. Do not exceed the maximum load of 10 kg on the universal device rack.
7. Cleaning: the universal device rack may be cleaned using a mild detergent and a soft cloth . Do not
use abrasive or aggressive cleaning materials.
8. Maintenance: regularly check that all the screws are tightened securely. If necessary contact your
special dealer for advice.
9. The wheelchair with Universal device carrier is not approved for being used as a seat in a vehicle.
Remove and secure the medical devices and the universal device carrier safely in the vehicle before
using the wheelchair as a seat in a vehicle.
10. Disclaimer: Alu Rehab is not liable for any damage or injury resulting from improper use of this
product.
11. Report any damage to the universal device rack or the wheelchair to your dealer or to Alu Rehab
Contact:
Alu Rehab AS | Bedriftsvegen 23 | 4353 Klepp stasjon | NORWAY
Alu Rehab ApS | Kløftehøj 8 | 8680 Ry | DENMARK
[e-mail]
www.my-netti.com
