Netti GRANDIS User manual

III HD
UM0119 UK 2021-03

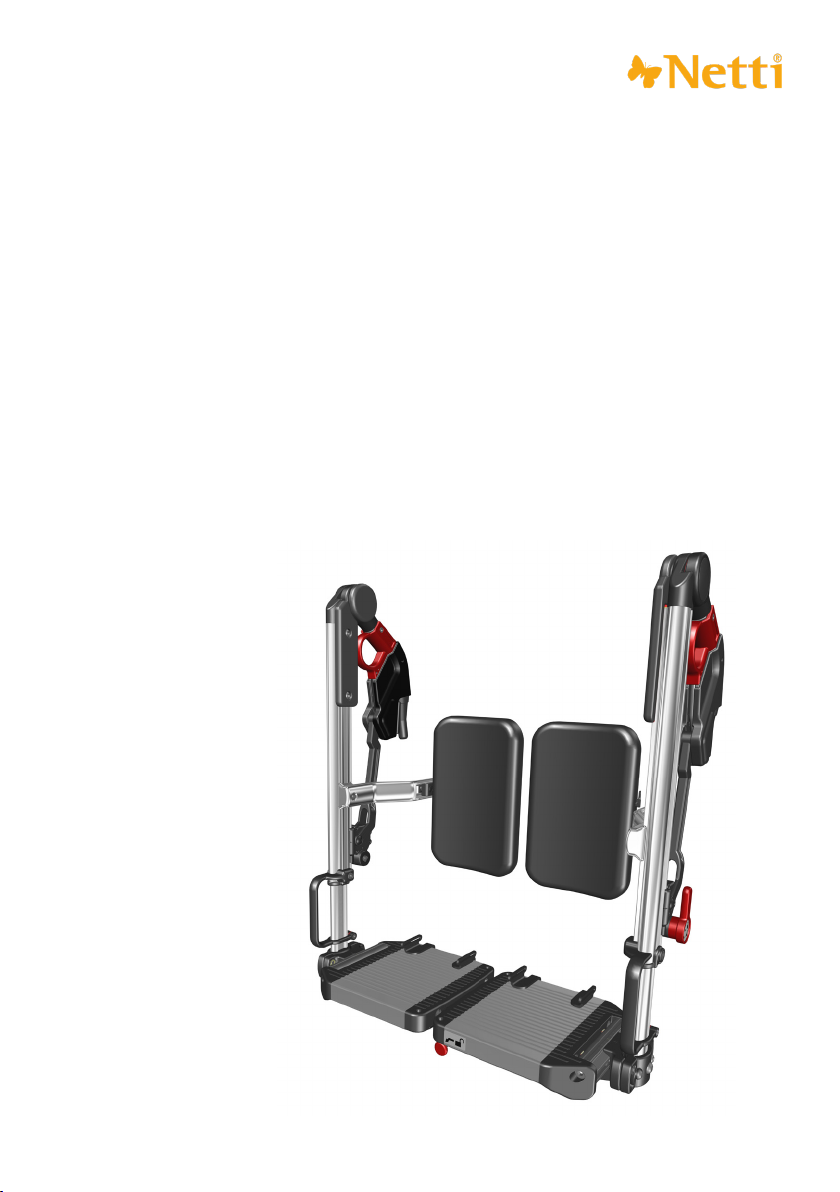

GRANDIS LEG SUPPORTS
ACCESSORIES
This product conforms to
2017/745/EU for medical products.
User Manual &
Mounting Description

2 My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03
CONTENTS
1. INTRODUCTION 4
IMPORTANT BENEFITS 4
HOW TO USE THIS MANUAL 5
NETTI GRANDIS ANGLE ADJUSTABLE LEG SUPPORT 5
2. ADJUSTING THE NETTI GRANDIS
LEG SUPPORT TO THE USER 6
INITIAL ADJUSTMENTS 6
SEAT DEPTH ADJUSTMENTS = BALANCING THE CHAIR 6
SEAT DEPTH ADJUSTMENTS IN THE BACK 7
SEAT DEPTH ADJUSTMENTS IN THE FRONT 7
SEAT ANGLE ADJUSTMENT 8
SEAT HEIGHT ADJUSTMENT 8
FOOT BOARD HEIGHT ADJUSTMENTS 8
AN ANGLE LIMITER 8
CALF SUPPORT HEIGHT ADJUSTMENT 9
CALF SUPPORT DEPTH ADJUSTEMENT 9
CALF SUPPORT DEPTH SCALE 9
CALF SUPPORT ROTATION 10
CALF SUPPORT UPHOLSTERY 10
KNEE UPHOLSTERY 10
FOOT PLATE ANGLE ADJUSTMENTS 11
FOOT PLATE DEPTH ADJUSTMENTS 11
POSITIONING THE FOOT PLATE LOCK 11
FOOT PLATE LOCK 12
ANKLE HUGGERS AND SHOE SHELLS 13
LIFTING HANDLE 14
EXTENSION PIECE ADJUSTMENTS 14
LEG SUPPORT LOCK 14
EXTENSION PIECE ADJUSTMENTS II  LEG SUPPORT FITTING 14

3
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com
3. EVERYDAY USE OF NETTI GRANDIS
ANGLE ADJUSTABLE LEG SUPPORTS 15
MOUNT THE LEG SUPPORTS 15
REMOVE THE LEG SUPPORT 15
OPERATING THE FOOT PLATE LOCK 16
LEG SUPPORTS ANGLE ADJUSTMENTS 17
4. TRANSPORT 18
5. MAINTENANCE 18
6. TROUBLESHOOTING 18
7. TESTS & WARRANTY 19

4 My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03

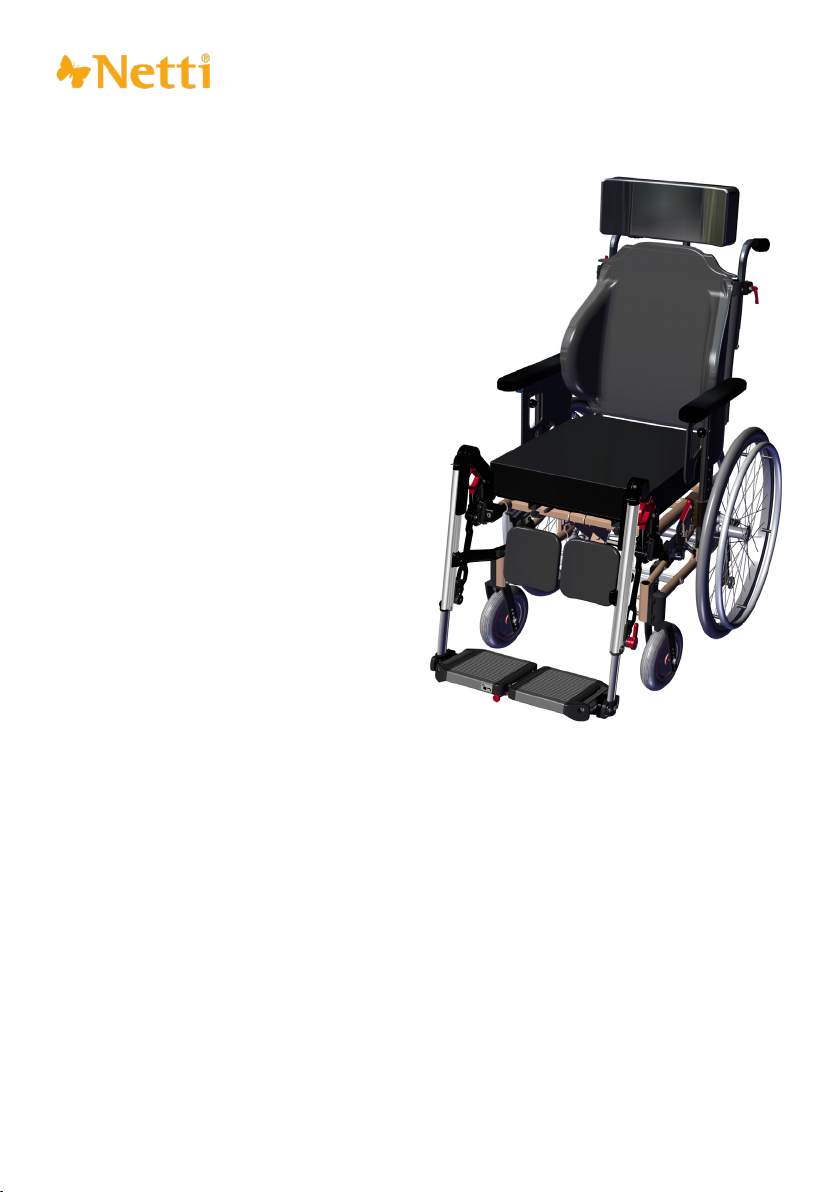

1. INTRODUCTION
The Netti Grandis leg supports are developed
providing long term wheelchair users the optimal
leg support and also easy handling of the leg
support for user and attendants.
The leg supports can be adjusted in a multitude
of ways allowing individual congurations and
adjustments.
The handling of the Netti Grandis leg support is
developed to be intuitive and light. Knowing that
the leg supports are the most handled components
of the wheelchair, we have taken great care to make
the handling easy.
We have developed a series of Netti Grandis leg
supports models for dierent needs, all to be
handled in practical the same manner.
IMPORTANT BENEFITS
• The leg supports will help the user to get and
keep a good sitting position with good pressure
distribution.
• The user will have less discomfort with correct
adjusted leg supports.
• Tilt and recline functions can be used without the
legs loosing contact with the leg supports due to
the functional pivot centre being aligned with the
knee joint.
• The Netti Grandis leg supports are slim to give
extra space for legs and feet.
• They can be adjusted from vertical to more than
horizontal angle.
• Scales on several adjustment features make it easy
to dene and register the user conguration.
• They are well rounded with no sharp edges.
• The leg supports Grandis are light weighted.
• They have easy to operate locks securing extra
stability in use.

5
inf[email protected]m
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com
The following symbols are used
to point out important points:
Symbol of forbidden actions.
No warranty can be claimed whenever
these actions are implemented.
Symbol of warning.
Whenever this symbol is used,
caution has to be taken.
Symbol for important information.
Symbol for useful tips.
Symbol for tools.

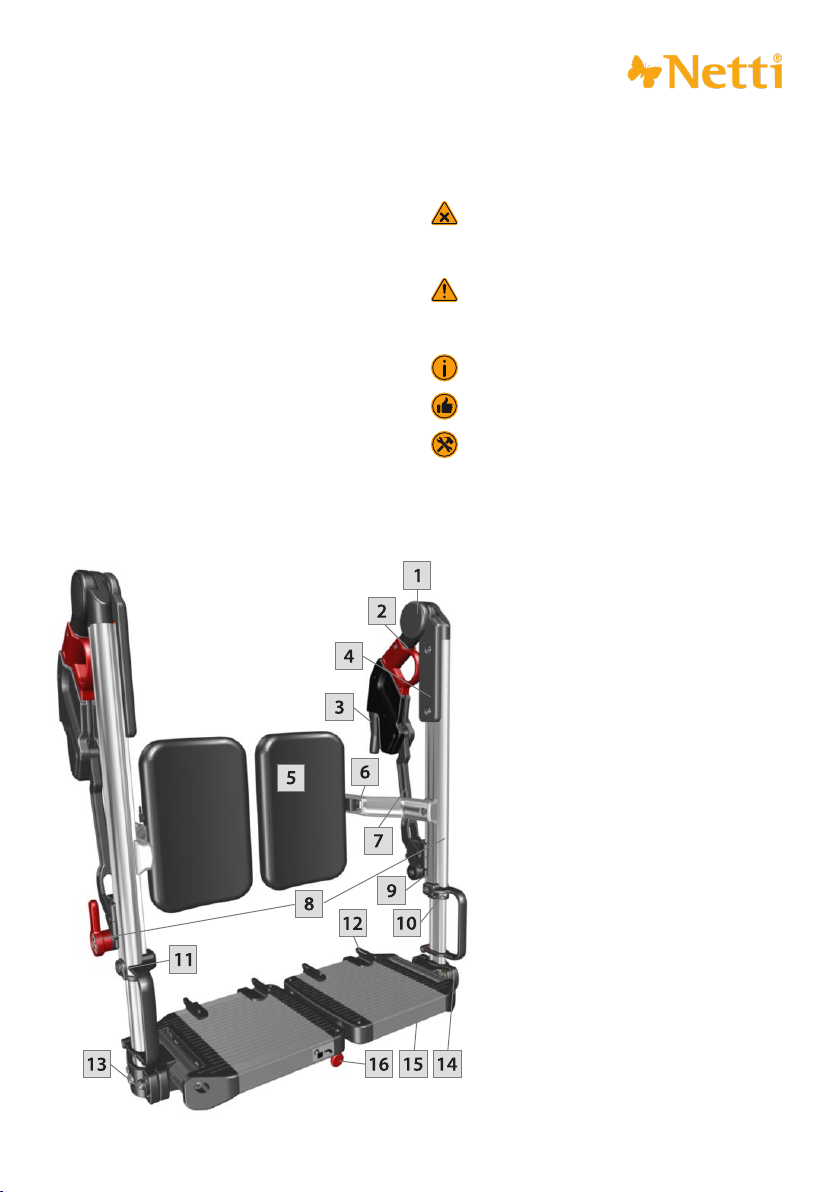

1 Leg support knee pivot cover
2 Leg support lock
3 Leg support bolt
4 Leg support knee upholstery
5 Calf support plate
6 Calf supports arm
7 Angle adjustable arm
8 Angle adjustable lock
9 Angle adjustable limiter
10 Lifting handle
11 Height adjustment screw
12 Ankle hugger bracket
13 Foot plate angle adjustment
14 Foot plate depth adjustment
15 Foot plate
16 Foot plate lock
NETTI GRANDIS LEG SUPPORT FAMILY:
• Netti Grandis angle adjustable leg supports
• Netti Grandis amputation leg support
• Netti Grandis foot box
• Netti Grandis xed leg support
Please study this manual to get the information of
how to do the adjustments and how to operate the
leg supports in daily use.
HOW TO USE THIS MANUAL
This manual focuses on the adjustments and use
of the Netti Grandis angle adjustable leg support.
It is to be used together with the user manual of
the wheelchair where they are installed, for general
information.
NETTI GRANDIS ANGLE ADJUSTABLE
LEG SUPPORT

6
F
My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03
The seat depth can be adjusted in several
locations and directions:
The chair-back hinge can be repositioned to
adjust seat depth backwards.
Extension pieces allow for increasing the seat
depth in the front.
Consider the wheelchair balance. See further
information to seat depth adjustment on the
next page and in wheelchair user manuals.
2. ADJUSTING THE
NETTI GRANDIS
LEG SUPPORT
TO THE USER
To achieve the best support and also the most easy
handling it is vital to do the proper and accurate rst
time seating adjustments.
INITIAL ADJUSTMENTS

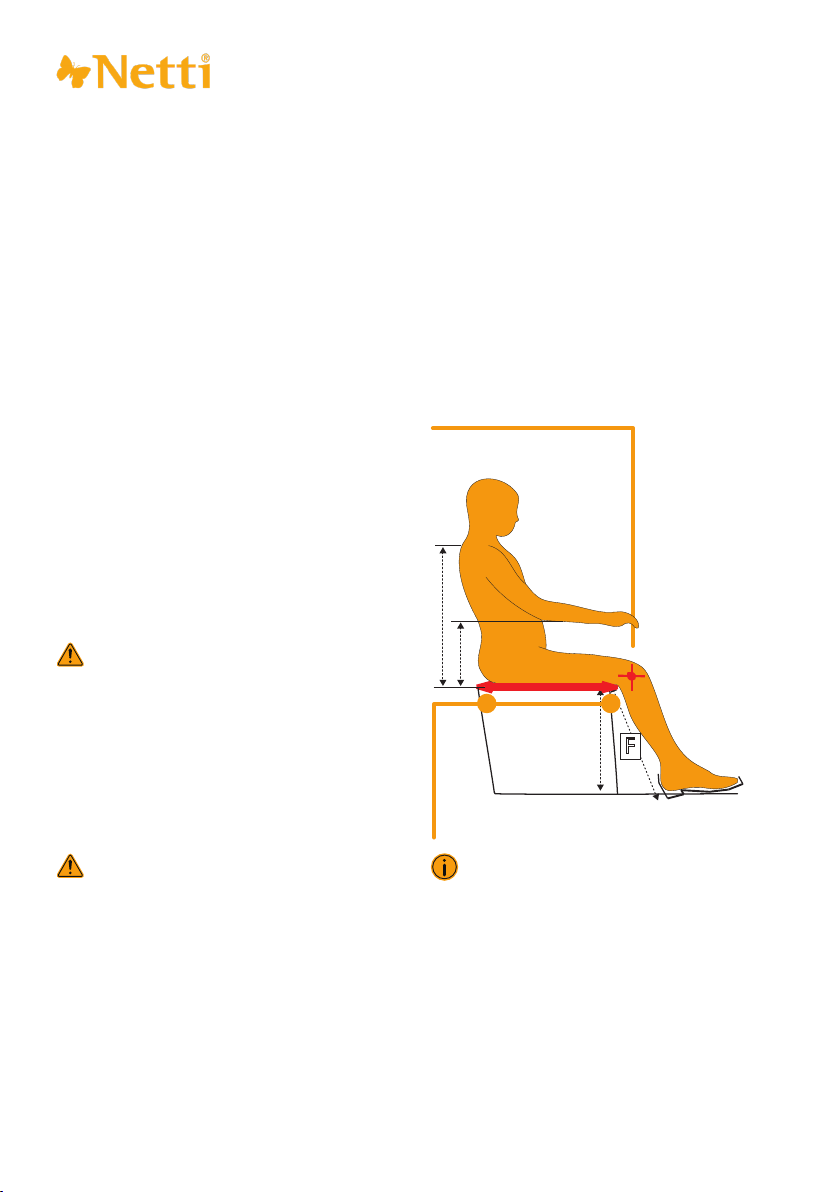

Start with normal relaxed seating position.
The aim is to have the centre of the users knee joint
aligned with the centre of the leg support knee
rotation centre – while the user at the same time is
having good back support of his lower back – even
when the leg support angle is changed.
With this in mind start with:
SEAT DEPTH ADJUSTMENTS =
BALANCING THE CHAIR
It is vital to adjust the seat depth correct.
Adjustments to the seat depth change the
centre of gravity which eects the balance of
the wheelchair. Centre of gravity too far back
= the wheelchair tips easily backwards.
Centre of gravity too much forwards brings
too much weight to the front castors and it is
very heavy to drive and steer the wheelchair.
Proper adjusted seat provide stability and
good manoeuvrability of the wheelchair.
Correct seat depth:
Loosen the Velcro straps of the back support.
Check that the user is getting into the chair
rmly. Adjust the back support by pulling
the straps of the Velcro. The knees of the
user should align with the joint of the leg
support both in height and in depth –
with 2 nger widths distance between seat
of the users leg.

7
inf[email protected]m
inf[email protected]m
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com

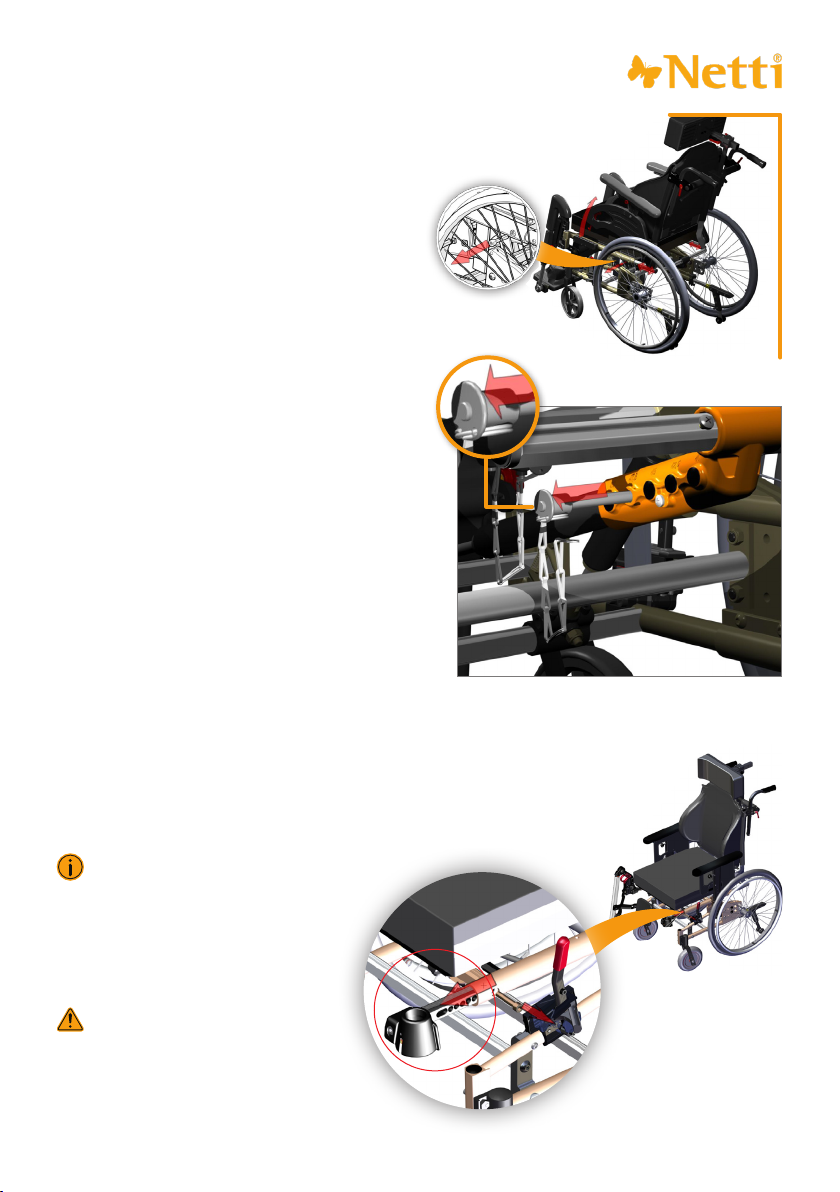

SEAT DEPTH ADJUSTMENTS
IN THE BACK:
By moving the back brackets followed by adjusting
the back cylinder head. When the chair is equipped
with a main wheel larger than 16” remove the main
wheels rst.
Back hinge adjustment:
• Remove the screws on each side which are holding
the back hinge.
• Pull the bracket on each side back or push it
forward to desired position before the screws are
xed again.
Recline cylinder head position:
• Remove the QR bolt holding the recline cylinder
head.
• Reposition it in the corresponding number hole as
the previously adjusted chair back bracket.
• This will also have inuence on the chair back
angle.
By choosing another hole you can change the angle
of the back support which means that the back angle
or hip angle will be more open or more closed.
SEAT DEPTH ADJUSTMENTS
IN THE FRONT:
are done by adjusting the extension pieces where the
leg supports are mounted. The extension pieces are
adjusted by removing the screws holding them and
pulling the extension pieces out to desired position.
The aim is to have the centre of the users
knee joint aligned with the center of the
leg support rotation centre – while the
user at the same time is having good
back support of his lower back –
also when the leg support angle is
changed.
Always do seat depth adjustment
both in front and back to balance the
chair.

8
inf[email protected]m
My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03
SEAT ANGLE ADJUSTMENT
The seat angle can be adjusted at any time by the
use of the tilt handles.
SEAT HEIGHT ADJUSTMENT
• The seat height must always be seen
together with the leg support length. Please
nd the description of seat height
adjustment in the wheelchair manual.
• The leg support length must be adjusted
to t the user lower leg length. The seat
height must be adjusted to have 20 – 30 mm
minimum distance between foot boards and the
oor when the leg supports have correct length.
FOOT BOARD HEIGHT ADJUSTMENTS
Adjust the length of the leg support according to
the leg length F (pg. 5) measured by 90° bent knee
– measured from underside thigh to underside of
shoe heel.
Loosen the screw holding the vertical inner
aluminum prol – 2 turns – and pull or push to
desired length.
Do not unscrew completely to avoid tricky
mounting.
Tighten well at desired height.
Make sure there are minimum 20 – 30 mm
free space under the foot plates to go clear
oor obstacles – minimum 30 – 40 mm when
driving outside.
A scale on the inside of the inner vertical
aluminum prole allows easy height
registration and equal adjustment on both
leg supports.
AN ANGLE LIMITER
on the outer leg support prole can be
moved to adjust the most downward angel
the user shall get. Loosen the screw and
push the limiter to desired position before
tightening.

9
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com
CALF SUPPORT HEIGHT ADJUSTMENT
Loosen the screw on the inside of the calf support
arm and push the calf support to a height where
the calf gets most support. They should in addition
to supporting the calf, also help prevent the feet
sliding backwards from the footboard.
CALF SUPPORT DEPTH ADJUSTEMENT
• Loosen the screw holding the calf support pad
on the side and adjust the depth.
• Position the calf pad backwards or forwards
till it barely touches the user’s calf with his /
her feet resting on the footboard.
• The feet should stay on the middle of the
footboard giving most support to the feet.
CALF SUPPORT DEPTH SCALE
On the calf support arm there is a scale that
makes it easy to register and to adjust both
calf supports to the same depth.

10 My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03
CALF SUPPORT ROTATION
The calf support rotation limiter allows for the calf
support to follow the calf without unintentionally
rotating too far.
CALF SUPPORT UPHOLSTERY
The thin and ergonomically shaped calf support
pads allows for maximum free space for the legs and
calfs.
There are calf support upholstery pads available as
accessory when required.
KNEE UPHOLSTERY
Netti GRANDIS leg support can be equipped with PU
soft pads for knee pivot joint and knee upholstery.
The soft knee pivot joint pad is clipped to the leg
support.
The soft knee PU upholstery pad is xed to the
vertical leg support prole by 2 screws xing to the
2 square nuts sliding in the vertical prole.

11
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com

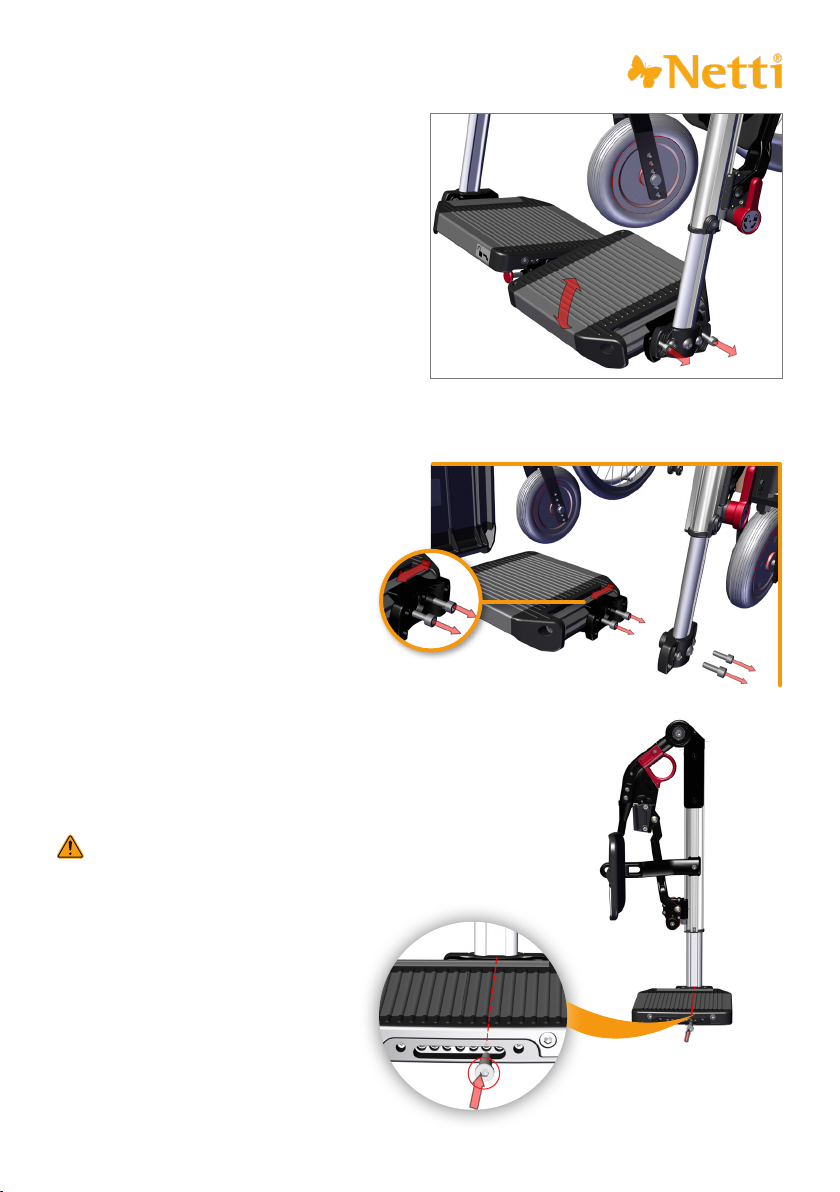

FOOT PLATE ANGLE ADJUSTMENTS
• Loosen the 2 screws on the outside of the foot
plate bracket and tilt the foot plate to desired
angle.
• Tighten well. The foot plate shall give stable
support to the hole foot of the user.
• If you need to tilt in opposite direction: unscrew
the 2 screws and move the nuts in the backside
to the other 2 holes available and x the screws
again. This will give a negative foot plate tilt.
FOOT PLATE DEPTH ADJUSTMENTS
• Unscrew the 2 screws for foot plate angle
adjustment and remove the complete foot plate
from the bracket.
• Loosen the 2 inner screws now visible on the
foot plate bracket and move the foot plate
forwards or backwards to required depth.
• Tighten the screws and mount the foot
plate back to the bracket it was xed
to before. +/– 30 mm on each foot plate is
available.
POSITIONING THE FOOT PLATE LOCK
If you have adjusted the foot plate depth, or
have adjusted the leg support extensions
pieces to dierent depths, the foot plate lock
needs to be repositioned.
The foot plate lock and the foot plate lock
bolt has to align with the centre line
between the 2 footplate brackets.

12 My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03
FOOT PLATE LOCK
The foot plate lock is mounted
with 2 screws to the foot plate.
The centre of the lock must
be aligned with the centre
line here marked red dotted.
Dependent on where the
lock is mounted, the lock
pin must be adjusted in the
length.
• The front button of the pin shall
be positioned just behind the
foot plate front.
• Unscrew the screw holding the
pin and adjust the length.
• Fix the screw tightly – the screw
hits a screw hole when you can
see one hole on each side of
bracket where the screw sits.

13
inf[email protected]m
inf[email protected]m
inf[email protected]m
inf[email protected]m
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com
ANKLE HUGGERS AND SHOE SHELLS
helps to keep the feet on the leg support
not letting them slide of the foot plate.
The ankle huggers are mounted to the
foot plates, xing the ankle hugger
brackets 88658 on the underside
of the foot plate – in the prole slots.
Mounting ankle hugger brackets
to the foot plate: Insert square nut
into slot and x the bracket as shown:
Ankle hugger
to be threaded as
shown in drawing.
Ankle hugger
brackets
88658 – 2 pc for
each foot plate.

14 My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03

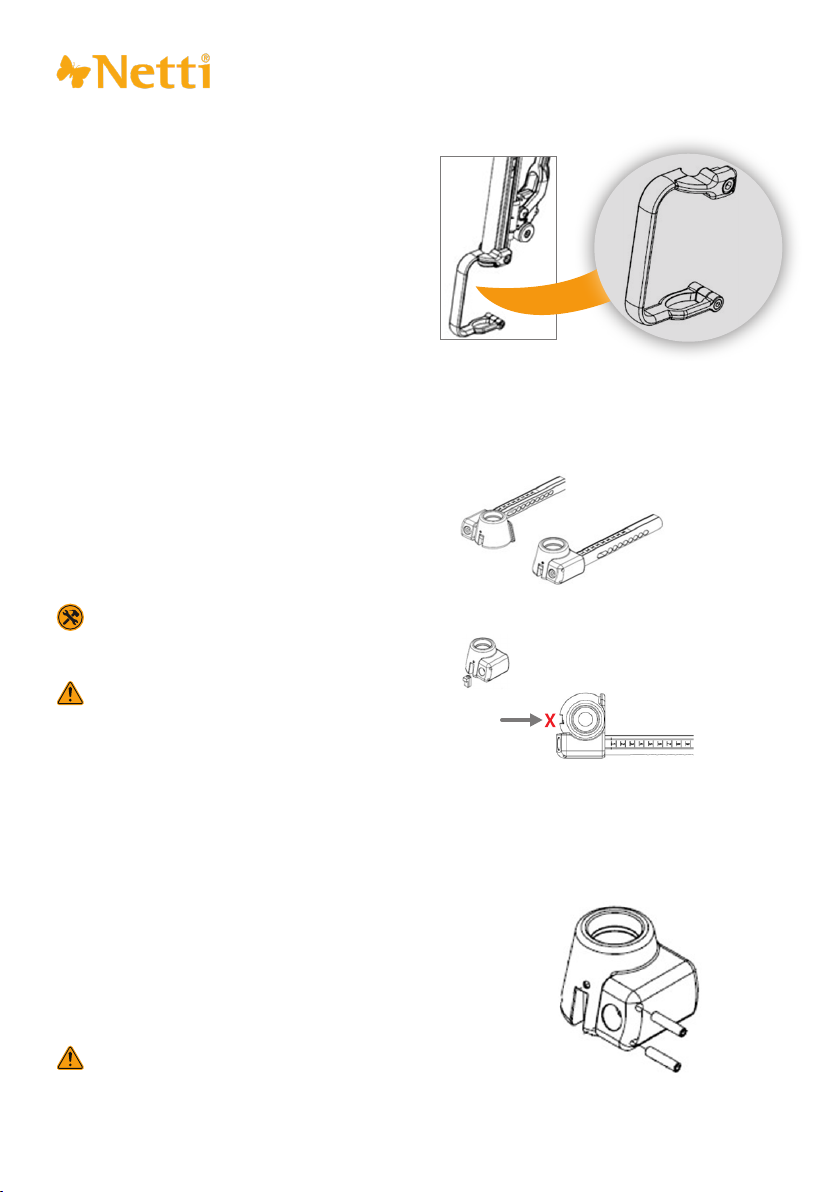

LIFTING HANDLE
You can adjust the height of the lifting handle by
losing the screw at the inside of the leg support.
Adjust the handle to the maximum downwards
in case the user has a lower leg length between
460 – 640 mm.
Adjust the handle to the maximum upwards
in case the user has a lower leg length between
360 – 460 mm.
EXTENSION PIECE ADJUSTMENTS
At the extension pieces are two areas where you
can adjust the exact leg support connectivity:
LEG SUPPORT LOCK
At the front end you will nd a cylinder you need
to adjust to assure the lock of the leg support
in the extension piece conical socket.
Use an Allen-key No. 3 to screw the bolt of
the cylinder at the bottom side (see X in
picture) to the most upwards position.
Test the lock function by inserting the leg
support to the extension piece and swing the
leg support inwards. If you can hear a“Click”
and the leg support cannot be moved, the
leg support is locked. If not, please adjust the
screw until the lock function is working
properly.
EXTENSION PIECE ADJUSTMENTS II 
LEG SUPPORT FITTING
Inside of each extension piece there are 2 set screws.
With an Allen-Key No. 2,5 you can adjust the play of
the leg support by unscrewing them a little. Adjust
both screws to a position where the leg support
will have no side movement when it is locked in the
conical extension piece.
Please note: if the screws have been
unscrewed too far the leg supports will not
lock.

15
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com
3. EVERYDAY USE OF
NETTI GRANDIS
ANGLE ADJUSTABLE
LEG SUPPORTS

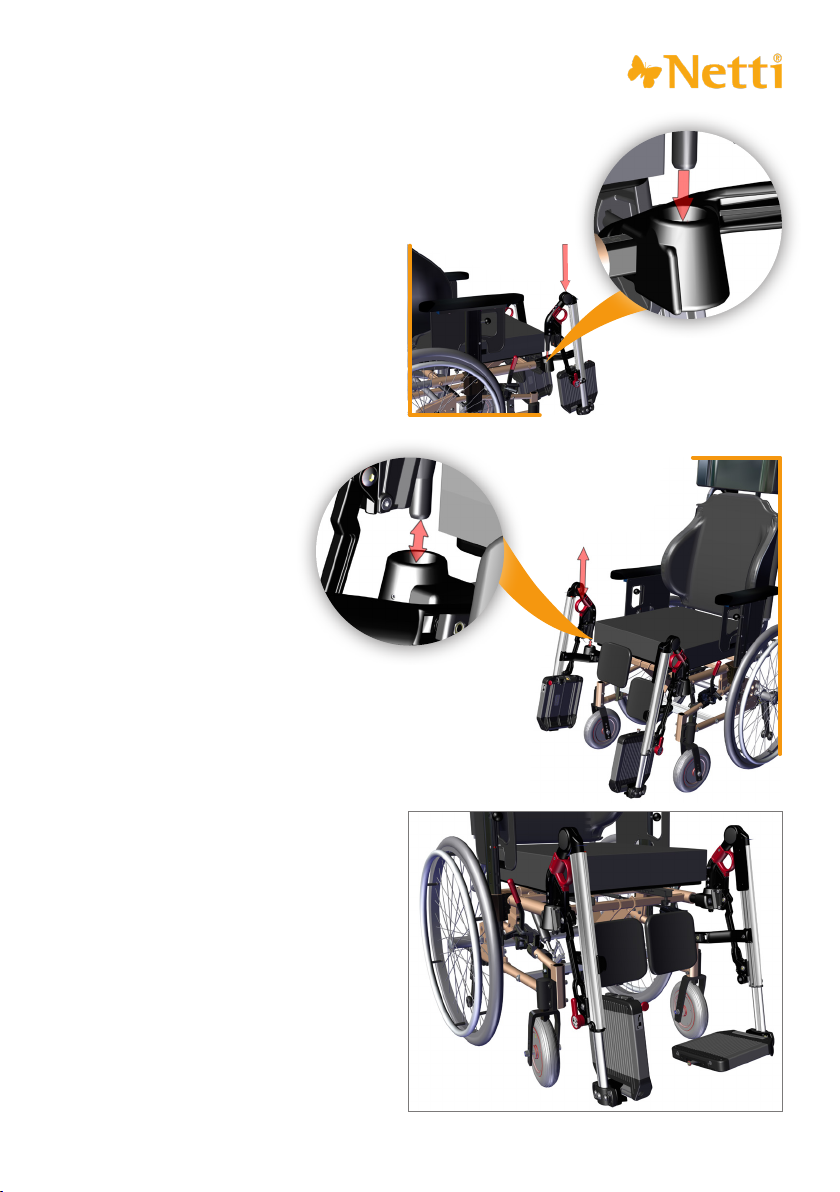

MOUNT THE LEG SUPPORTS
to the wheelchair by inserting the leg support
bolt into the conic shaped holder on the
wheelchair. It clicks into position and is xed.
REMOVE THE LEG SUPPORT
by gripping through the round red release
lock handle and lift the leg support straight up.
With the foot plates folded up,
there is free space for transfers.
The foot plates folds down from the left and
are locked to each other with the foot plate lock;
this gives a sturdy platform for the feet.

16 My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03

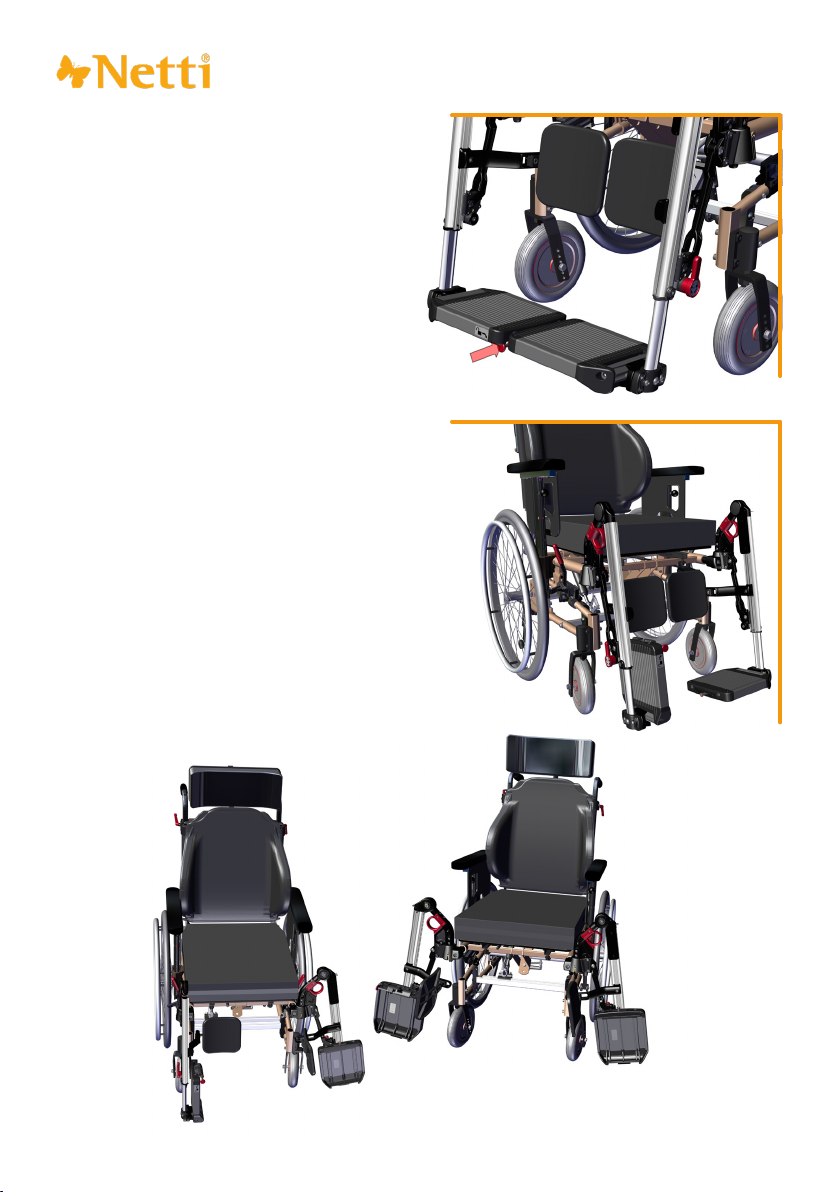

OPERATING THE FOOT PLATE LOCK
The one hand foot plate lock is operated by pushing
the lock button with the right hand thumb while
holding under the foot plate with the other ngers.
The right foot plates unlocks and can be folded up
while you can use your left hand to lift the right leg
of the user.
The foot plates also locks into upright position.
The leg supports can swing 90 degrees outwards
and gives free space without being removed. Simply
pull the leg support lock – the red cicular grip – and
swing the leg support outwards. It clicks into lock
when you swing in back to forward direction.

17
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com

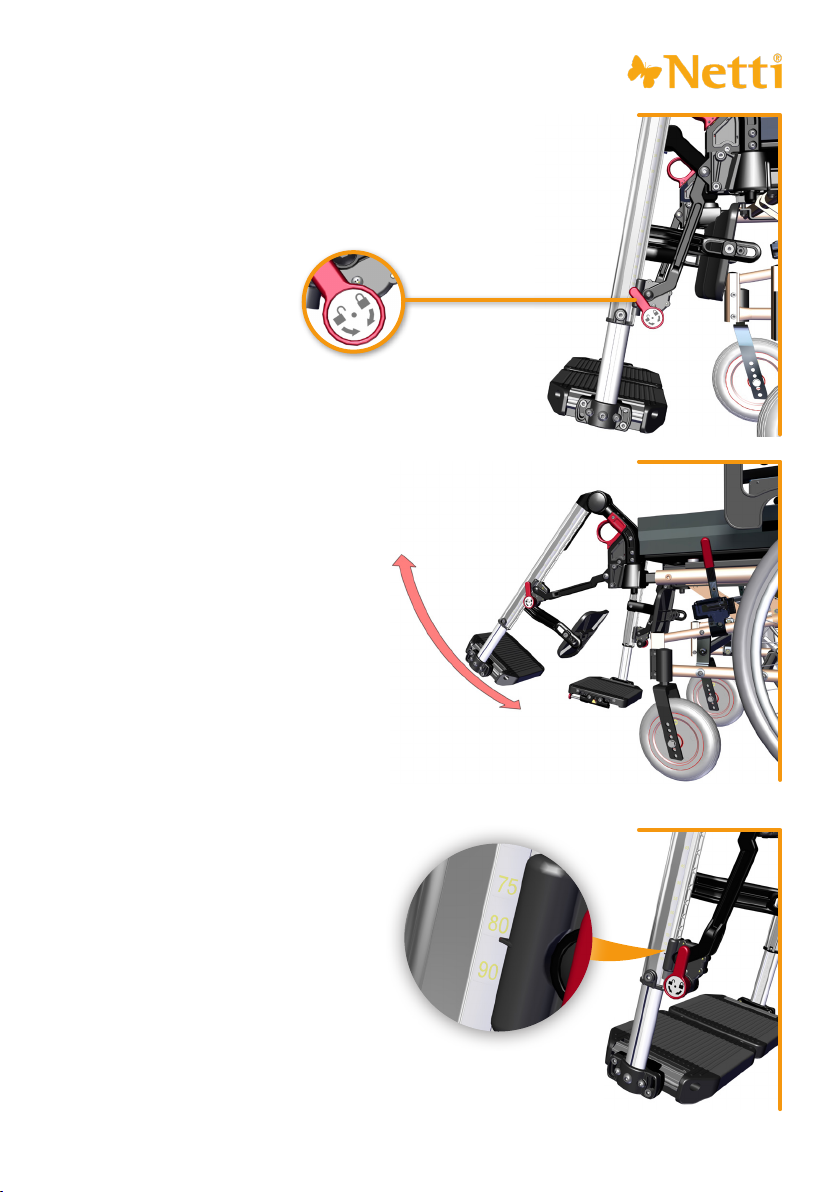

LEG SUPPORTS ANGLE ADJUSTMENTS
The one hand angle lock on the side of the leg
supports is opened by turning it forwards as shown.
It will stay in this position and you are free to swing
the leg support to required angle before you push
the lock and it clicks into rmly held position.
On the outer aluminium prole there is a scale that
shows which leg support angle you have chosen.
The leg support angle is locked when the lock
handle is parallel to the aluminium prole.

18 My-Netti.com
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03
4. TRANSPORT
Wheelchairs with Netti Grandis angle adjustable leg
supports can be used as seat in a car if the wheelchair
itself has been tested and approved to ISO 7176-19.
Please follow the description for xing the chair and the
user as described in the User Manual for the wheelchair.
The Netti Grandis leg support has to be locked
when the wheelchair is used as a seat in a car.
Never lift the wheelchair holding on to the
leg supports.
DRIVING A WHEELCHAIR
Pay attention not to hit into obstacles with the
wheelchair and the leg supports as this may
harm and hurt the user. It may also damage the
wheelchair and the leg supports.
5. MAINTENANCE
Follow the wheelchair maintenance description
in the wheelchair User Manual and pay special
attention to tightening all screws and inspecting
all joints regularly.
6. TROUBLESHOOTING
Please study the recommendations in the User
Manual for the Netti wheelchair where the Netti
Grandis angle adjustable leg support are used.

19
Model: Netti GRANDIS LEG SUPPORTS
Language: English Version: 2021-03 My-Netti.com
7. TESTS & WARRANTY
Netti Grandis leg supports have been tested
on several dierent Netti wheelchairs - both
crash tests according to ISO 7176-19 and
durability tests according to wheelchair manual
wheelchair standard EN 12183.
Netti Grandis leg supports are manufactured
following the Alu Rehab quality system
according to ISO 13485.
The guarantee claims stated in the User Manual
for the wheelchair also applies for Netti Grandis
angle adjustable leg support.
Contact your local dealer if you have questions
regarding Netti Grandis angle adjustable
leg support or other Netti products.
Updated data about the wheelchairs and
accessories are found on
www.My-Netti.com

My-Netti.com
Distributor
Alu Rehab ApS
Kløftehøj 8
DK-8680 Ry
Denmark
[e-mail]
T: [phone]
F: [phone]
my-netti.dk
Distributor
MDH Sp. zo.o.
ul. W. Tymienieckiego 22/24
90-349 tódz
Poland
[email protected]
T: [phone]
my-netti.com
Alu Rehab AS
Bedriftsvegen 23
N-4353 Klepp Stasjon
Norway
[e-mail]
T: [phone]
my-netti.no
Distributor
Meyra GmbH
Meyra-Ring 2
D-32689 Kalletal
Germany
[e-mail]
T: [phone]
F: [phone]
my-netti.de
Manufacturer:
