NeuraLabel 600e User manual

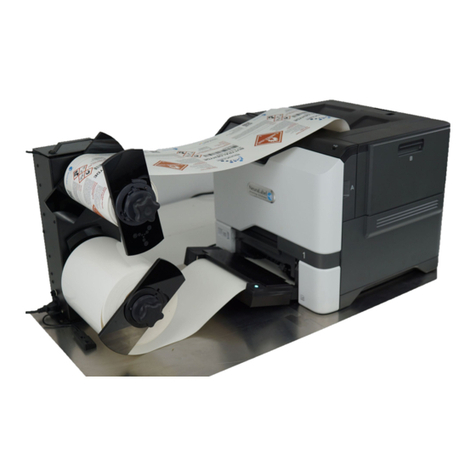

NeuraLabel 600e Roll Unit
Installation and Quick Start Guide
1

2

What’s In The Box*
Reference
ARewinder Baseplate
BUnwinder Baseplate
CUnwinder
DRewinder
EFront Guide
FRear Guide
GTower Alignment Screw
HPan Head Screw
ICountersunk Screw
JAC Power Adapter
KWasher
3
*Note: You should receive a total of three boxes.
K
Washer x4

You Will Also Need
Philips Screw Driver600e Power Cable
NeuraLabel 600e CFA
(Continuous Feeder Attachment)
NeuraLabel 600e Printer
4
5 Foot (1.5M) Sturdy Table near Network and 3 Power Outlets

Before You Begin
If a NeuraLabel 600e Printer and CFA are already installed:
Power off the NeuraLabel 600e using the shutdown menu on the printer and turn the
power switch to off.
Unplug the power cable from the printer.
Unplug the CFA from the printer.
Unmount the CFA from the printer.
Caution! Installing the NeuraLabel 600e Roll Unit while the printer is powered on may
damage the printer and CFA.
Caution! Unplugging the CFA while the printer is powered on may damage the printer.
5

Baseplate Assembly
For this step, you will need parts A, B, E, F, H (x4), I (x4), and a Philips screw driver.
Figure 1 Figure 2
Align the Unwinder and Rewinder Baseplates on aflat stable surface, as shown in Figure 1.
Align the Front and Rear Guides with the screw holes on the baseplates, as shown in Figure 2.
Use the Countersunk Screws to secure the Front Guide and the Pan Head Screws to secure the
Rear Guide.
6
A
B
I
E
F
H

Rewinder
Unwinder
Unwinder and Rewinder Placement
Align Unwinder and Rewinder with baseplate and Tower Alignment Screws, as shown in
Figure 3.
Figure 3
For this step you will need parts C, D, G (x4) and K (x4).
7
C
DG
K

Printer Placement
For this step you will need a NeuraLabel 600e Printer.
Figure 4 Figure 5
Use two people to place the NeuraLabel 600ePrinter on the NeuraLabel 600eRoll Unit, as shown
in Figure 4. Figure 5shows the proper placement of the NeuraLabel 600eprinter.Note that the
assembled system requires about 60 inches of clearance.
Unwinder
Rewinder
8

CFA Installation
For this step you will need a NeuraLabel 600e CFA.
Figure 6
The NeuraLabel 600eCFA hooks onto the mounting hardware of the NeuraLabel 600eprinter.
The left hook on the NeuraLabel 600eCFA fits in between the alignment hooks on the mounting
hardware.Refer to Figure 6for detail.
9

Connect CFA to Printer
Figure 7
10
Caution! Ensure that the Printer power is OFF before plugging in your CFA.

Connect AC Adapters to Unwinder and Rewinder
Figure 8
For this step, you will need part J.
11
x2

Connect Printer to Power
Figure 9
You may now power on the NeuraLabel 600e Printer and Roll Unit.
Caution! Do not unplug CFA while the printer is on. Doing so may damage your printer.
12

Figure 13
Set up Unwinder with Rolled Media*
13
Figure 12
Slide on Rolled Media and Flange.
Loosen Unwinder Hub by rotating knob
counterclockwise.
Slide Flange off Unwinder Hub.
Retighten Unwinder Hub.
Figure 10
*The 600e Roll to Roll System is compatible with up to 11” Diameter Rolls.
Figure 11

Figure 15
Set up Rewinder with Core
14
Figure 14
Figure 16
Figure 17
Slide on Core and Flange.
Loosen Rewinder Hub by rotating knob
counterclockwise.
Slide Flange off Rewinder Hub.
Retighten Rewinder Hub.
Warning: Cores come in many sizes. Ensure media fits easily on core before tightening.

Load Media into CFA
Figure 18
Weave Media underneath
Unwinder Tension Arm.
Figure 19
Load Media into the CFA.
15
Note: Holding Tension arm at highest position stops the rotation and allows
for easy media loading.

Adjust Unwinder position
Adjust Unwinder position to center paper path in CFA as needed.
Rewinder position can be adjusted in this same manner.
16
Figure 20

Adjust Rewinder Arm to “Ready” Position
Figure 21
Default Position
Figure 22
Ready Position
17

Prepare Rewinder Core
Figure 23
Place double-sided tape at top of Rewinder Flange as shown. Or use single-sided tape
when attaching media.
18

Please make sure Roll Units
are turned on and review
the following instructions
before starting your print.
19

Paste Printed Media to Rewinder Core
Figure 24
As media comes out of printer, weave under Rewinder Tension Arm
and press to tape on core. Or tape down with single-sided tape.
20
