New Air AH-470 User manual

Flat Panel Micathermic
Space Heater
AH-470
OWNERS MANUAL
Read and save these instructions.
.

2
http://www.NewAir.com
A Name You Can Trust
Trust has to be earned and we will earn yours. Customer happiness is
the focus of our business.
From the factory to the warehouse, from the sales floor to your home,
the whole NewAir family promises to provide you with innovative
products, exceptional service, and support when you need it the most.
Count on NewAir.
As a proud NewAir owner, welcome to our family. There are no robots
here, real people shipped your product and real people are here to help
you.
Thank you for your purchase and remember NewAir, A Name You Can
Trust.
Call us today at 855-963-9247
Or email [e-mail]
For future reference, we recommend you attach a copy of your sales receipt
here and record the following information. You will need this information if it
becomes necessary to contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________
Serial Number: ___________________________________
Model Number: ___________________________________
Connect with us online.

3
A NAME YOU CAN TRUST
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Before First Use......................................................................................................... 4
Safety Information & Warnings ............................................................................... 4
Parts List .................................................................................................................... 7
Assembly Instructions .............................................................................................. 8
Positioning of the Heater ......................................................................................... 8
Use & Operation ....................................................................................................... 9
To Set the Thermostat ................................................................................... 10
To Set the Timer .............................................................................................10
Safety Features ....................................................................................................... 10
Overheat Protection.......................................................................................10
Safety Cut-Out Switch ....................................................................................11
Cleaning & Maintenance ........................................................................................ 11
Storage ............................................................................................................11
Troubleshooting...................................................................................................... 12
Limited Manufacturer’s Warranty......................................................................... 14
SPECIFICATIONS
MODEL NO.
AH-470
VOLTAGE
120 Volts
CURRENT
12.5 Amps
FREQUENCY
60Hz
POWER CONSUMPTION:
1500 Watts
TEMPERATURE RANGE:
32- 97F
BTU:
5120 BTUs
Commented [m1]: Double Check

4
http://www.NewAir.com
BEFORE FIRST USE
Read and follow all the instructions below even if you feel you are
familiar with the appliance.
Remove the packing and make sure that the appliance is intact. If in
doubt do not use the appliance and contact the place of purchase.
Do not leave packaging materials such as bags and staples within
reach of children.
Dispose of packaging carefully and with consideration for the
environment.
It is ideal to retain the appliance carton for seasonal storage.
For your convenience, record the date you received the appliance on
the warranty page of these instructions, and attach your proof of
purchase. Retain this information in the event that warranty service is
required.
SAFETY INFORMATION & WARNINGS
When using any electrical appliance, basic safety precautions
must be followed in order to reduce the risk of fire, electrical
shock and/or injury to persons or property. Be sure to read all
instructions before using this appliance and observe the
following safety tips:
Location and Grill Safety:
The appliance must not be located immediately below or in front of a
socket- outlet.
To avoid overheating, keep airflow grilles clear of dust and hair build
up, especially if you have indoor pets.
Do not cover or restrict airflow to the inlet or outlet grilles in any
manner as the appliance may overheat and become a fire risk.
Do not cover grilles, block entry or exits of airflow by placing the
appliance against any surface. Keep all objects at least 1 meter from
the front, side and rear of the appliance.
Commented [m2]: There are extra spaces everywhere - please
go through and remove them.

5
A NAME YOU CAN TRUST
Do not locate in areas of high foot traffic, ensure the power cord and
heater are in view to avoid accidents.
This appliance heats up when in use. To avoid burns, do not touch the
front of the appliance or any of the grilles or vents.
Keep away from water:
Do not operate in bathrooms, laundry areas or similar moist indoor
locations.
Never position the appliance where it may fall into a bath or other
water container.
Do not immerse in liquid or use the appliance near water as this could
create an electrical shock hazard.
If the appliance accidentally comes into contact with water switch off
the power supply, do not touch the appliance.
Do not operate the appliance with wet hands.
Operation:
Do not connect the appliance to the main power supply until
completely assembled and adjusted.
This appliance is not intended for outdoor use.
This appliance is intended for light domestic use and not for heavy
duty commercial or industrial use.
Do not operate in areas where gasoline, paint or other flammable
liquids are used or stored.
Always operate upright, on a flat surface only.
CAUTION: This product is NOT suitable to be used on long pile
carpets.
Plug and Cord Safety:
Unroll the cord before operating. Operating with a coiled cord may
cause overheating and fire risk.
The use of an extension cord with this appliance is not recommended.

6
http://www.NewAir.com
Do not remove the plug from the power socket until the appliance
has been switched off.
Always hold the plug when removing it from the wall, do not pull the
cord.
Always unplug the appliance when it is not in use.
Do not allow the cord to come into contact with the appliance
surface during operation.
Do not run the cord under carpeting, mats or rugs, etc. Arrange the
cord away from traffic areas so that it will not be tripped over.
Do not twist, kink or wrap the cord around the appliance as this may
cause the insulation to weaken and split.
Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or has been dropped or damaged in any
manner. Return to a qualified electrical person for service or repair.
Other Tips:
Use only the voltage specified on the rating label of the appliance.
Before moving the appliance, switch off the appliance by unplugging it
from the wall and allowing it to cool.
Do not use the appliance to dry clothes.
Do not insert or allow foreign objects or metal utensils into any
ventilation or exhaust openings as this may cause an electric shock,
fire or damage to the appliance.
Not intended for use by children:
This appliance is not intended for use by young children or infirm
persons without supervision.
Do not use this appliance with any type of external timer.
Never remove the cover of the appliance –in case of a fault contact a
qualified service person.
Use this appliance only as described in this manual.
Any other use is not recommended by the manufacturer and may
cause fire, electric shock or injury.

7
A NAME YOU CAN TRUST

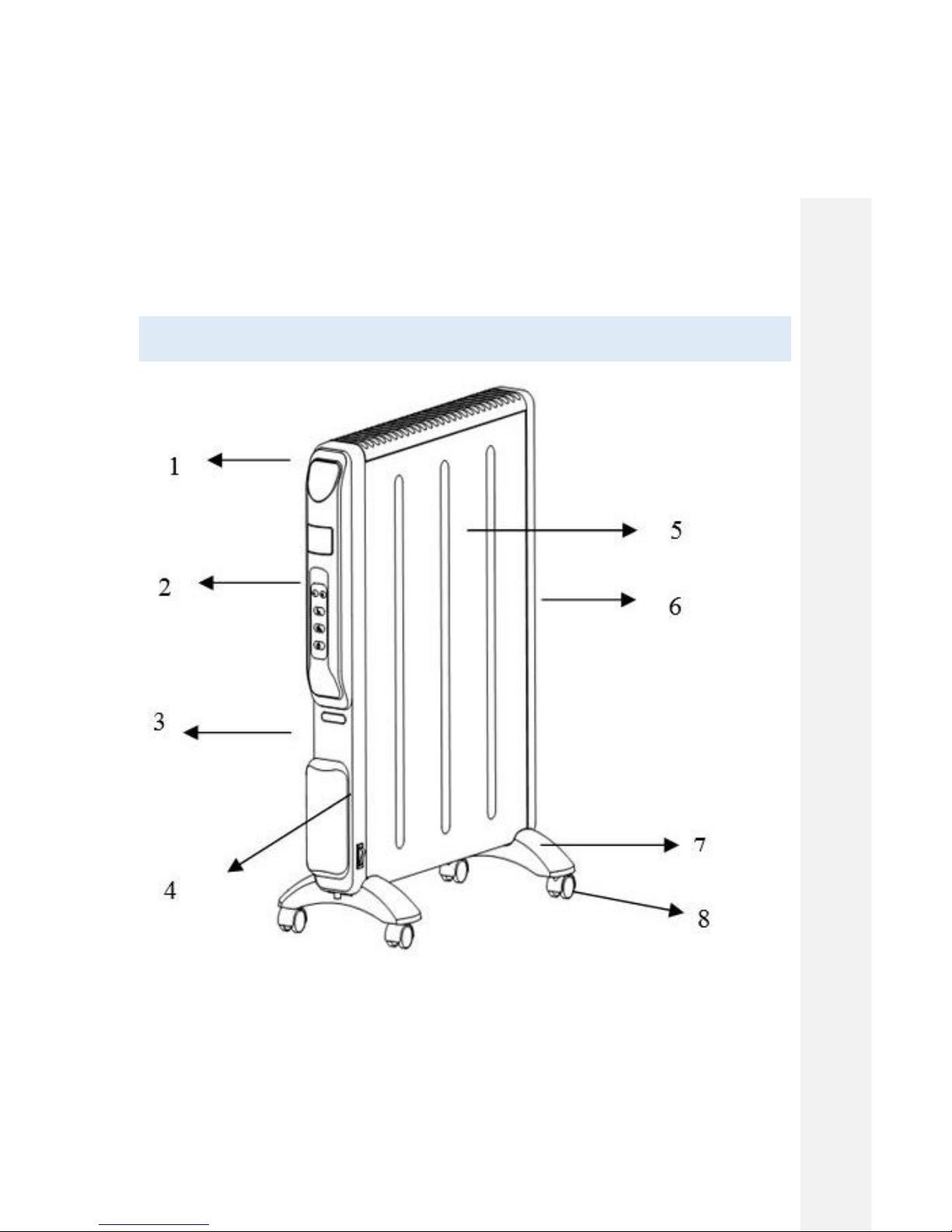

PARTS LIST
1. LOGO Plate
2. Control
3. Storage location of
plug cord
4. Manual-reset rocker
switch
5. Mesh
6. Plastic frame
7. Feet base
8. Casters

8
http://www.NewAir.com
ASSEMBLY INSTRUCTIONS
1. Position the heater carefully upside down.
2. Place the wheels to the hole, then screw in center round hole of foot
base and screw in tightly with a screwdriver.
3. Repeat for other leg
4. Turn the heater the right way up.
POSITIONING OF THE HEATER
The heater should only be operated at a minimum distance of 1 meter from
any wall or other object. Position the air flow in order to optimize the heating
of the room.

9
A NAME YOU CAN TRUST

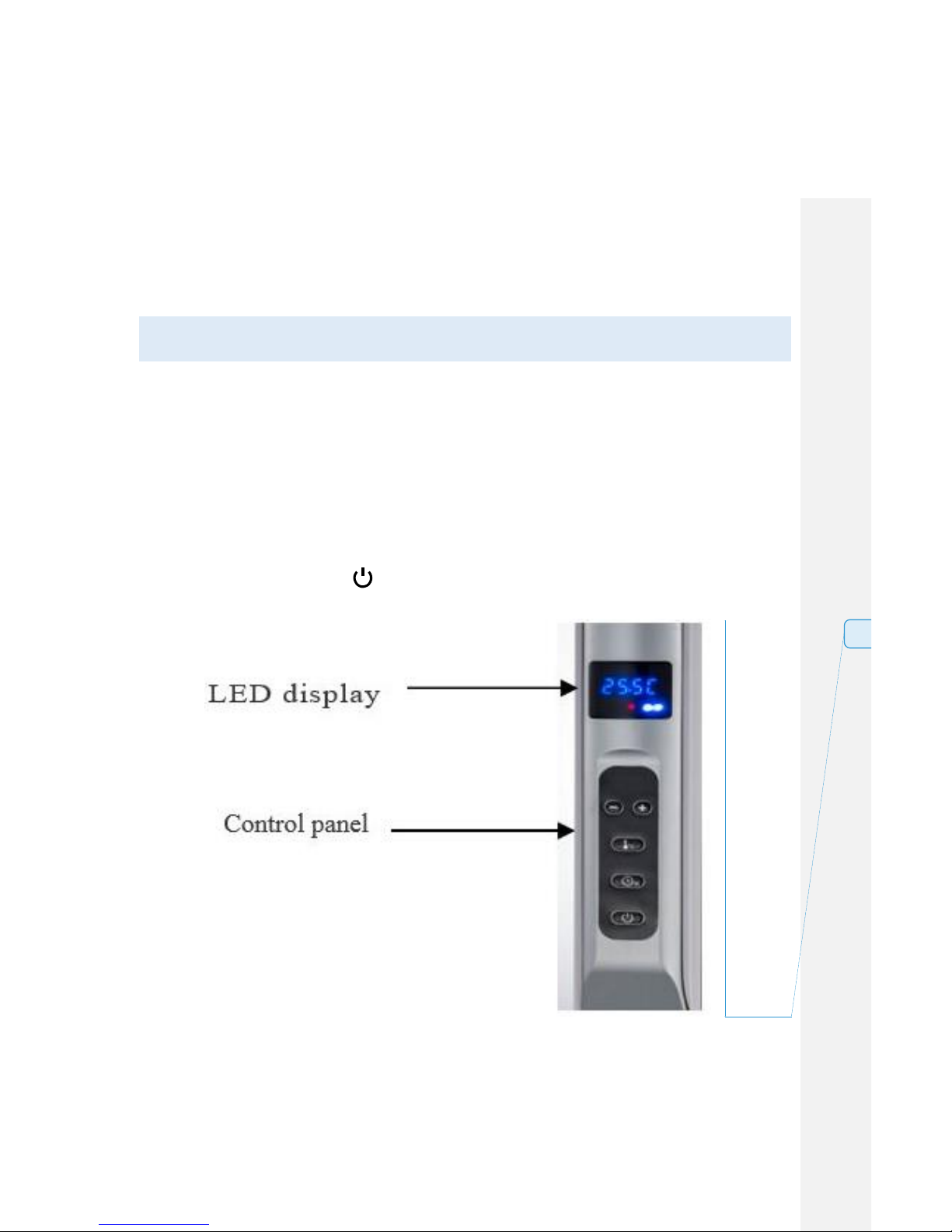

USE & OPERATION
NOTE: When operated for the first time a slight odor may be emitted for a few
minutes. This is harmless and occurs with most appliances as slight traces of
dust or lubricants may have collected during the manufacturing process.
Turn on the rocker switch at the side of the appliance adjacent to the
main cable entry.
The display will light briefly.
Press the button to switch the appliance ON.
The digital display will display the room temperature.
The + / - button can be used to select full power or half power. This is
indicated by the segments to the right of the flame symbol.
Commented [m3]: Does not point to the correct areas

10
http://www.NewAir.com
TO SET THE THERMOSTAT
Press the button, then press the + or -buttons to change the target
temperature. The thermometer symbol will illuminate, and the digital display
will flash, showing the target temperature. After 5 seconds the display will stop
flashing and return to displaying the room temperature. It can be set from 32F
- 97F
TO SET THE TIMER
Press the button. The clock symbol will illuminate. Then use the
+/- buttons to set the number of hours for which the heater is to run
before automatically switching off. It can be set from 0.5-18 hours.
Unplug the appliance when not in use. The cable can be wrapped
around the plastic cable storage location on the front panel.
The heater operates when both the power switch and thermostat
function are activated.
The red indicator light will turn on and will be on as long as the plug is
in the socket, even if the appliance does not operate.
To switch the heater off fully, press the button.
SAFETY FEATURES
OVERHEAT PROTECTION
This heater is protected with an over-heat protection mechanism that
switches it off automatically if it over-heats.
Overheating can be caused by obstruction to the air intakes on the
back of the heater or the grill on the front.
If this occurs please disconnect the heater from the power supply and
allow it to cool for 30 minutes. Remove any obstruction and turn the
heater back on.
The heater should operate normally.
Should the problem persist, contact your nearest service center.

11
A NAME YOU CAN TRUST
SAFETY TIP-OVER SWITCH
The heater is fitted with a safety tip-over switch to turn the heater off
if it is knocked over.
If the heater is knocked over and the tip-over switch activates, turn
the heater off at the power outlet and take EXTREME care when
standing the heater upright as it will still be hot.
Inspect the heater for damage, especially the heating elements and
supply cord.
If any damage is visible, do not operate the heater.
CLEANING & MAINTENANCE
IMPORTANT: Turn off the heater. Switch off the power switch and disconnect
the heater from the power socket. Wait for the heater to be completely cool
before cleaning.
Vacuum clean air vents and grilles to remove dust from these areas.
To remove dust on external surfaces, wipe the heater with a damp
(not wet) lint-free cloth rinsed in hot soapy water only.
Do not use any harsh detergent or abrasive cleaners.
Do not spray with liquids or submerge in liquids or water.
Do not attempt to clean the interior of the heater.
Do not attempt to open the heater casing at any time.
STORAGE
Store the heater carefully in a dust-free area during the off season. It is ideal to
store the heater in the carton it was supplied in. Neatly wrap the cord of the
heater to prevent damage to the cord.
Commented [m4]: Fonts look off - please ensure consistent
font throughout text

12
http://www.NewAir.com
TROUBLESHOOTING
Problem
Possible Causes
Solution
Unit is not
heating.
Overheat protection has
temporarily deactivated
the heater.
Turn the heater off; unplug it
and allow it to cool. Inspect
and remove any objects on or
adjacent to the heater. Wait 30
minutes before plugging unit
back in.
Room temperature has
been warmed up to
thermostat setting.
To increase the room
temperature, adjust
thermostat using the
appropriate buttons to a higher
setting.
Heater is not plugged
into a 120 volt
grounded
outlet/receptacle.
Ensure unit is turned OFF. Plug
unit in to correct power outlet
and attempt to turn on again.
Breaker/Fuse has been
tripped.
Check your electrical box to
confirm the breaker has not
been tripped. This may occur if
the receptacle is shared by
other high consumption
appliances.

13
A NAME YOU CAN TRUST
Problem
Possible Causes
Solution
The heater
is producing
a burning
smell.
A drop of oil fell on the
heating coil during the
manufacturing process.
It will quickly evaporate and
should not occur again. Ensure
room in which heater is
situated is well ventilated.
Ensure there are no
combustible materials
within 3 feet (0.9
meters) surrounding the
heater.
Check for and remove any
combustible items from the
heater.
Ensure a minimum
clearance of 5.5 inches
(14 cm) from both sides
and rear of heater to
adjacent walls.
Reposition the heater so there
is enough space around the
heater to the adjacent walls.
Please do not attempt to open or repair the heater yourself.
Doing so could cause damage or personal injury.

14
http://www.NewAir.com
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year from the
original date of purchase, the manufacturer will repair or replace any parts of this
appliance that prove to be defective in materials and workmanship, provided the
appliance has been used under normal operating conditions as intended by the
manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective due to
materials or workmanship will be repaired or replaced, at the manufacturer’s discretion,
at no charge to the original purchaser. The purchaser will be responsible for any
removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
Power failure
Damage in transit or when moving the appliance
Improper power supply such as low voltage, defective household wiring or
inadequate fuses
Accident, alteration, misuse or abuse of the appliance such as using non-
approved accessories, inadequate air circulation in the room or abnormal
operating conditions (extreme temperatures)
Use in commercial or industrial applications
Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes,
floods, etc.
Use of force or damage caused by external influences
Partially or completely dismantled appliances
Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with purchase
date available. Once confirmed that your appliance is eligible for warranty service, all
repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be
responsible for any removal or transportation costs. Replacement parts and/or units will
be new, re-manufactured or refurbished and is subject to the manufacturer’s discretion.
For technical support and warranty service, please email [e-mail].
