New Air QuietHeat15B User manual

Portable Ceramic Space
Heater
QuietHeat15B (Black)
OWNERS MANUAL
Read and save these instructions.
.

2
http://www.NewAir.com
A Name You Can Trust
Trust should be earned and we will earn yours. Customer happiness is the focus
of our business.
From the factory to the warehouse, from the sales floor to your home, the
whole NewAir family promises to provide you with innovative products,
exceptional service, and support when you need it the most.
Count on NewAir.
As a proud NewAir owner, welcome to our family. There are no robots here,
real people shipped your product and real people are here to help you.
Contact Us:
For questions regarding your product, please contact us at:
Call:
1-855-963-9247
Email:
[email protected]
Online:
www.newair.com
Connect with Us:
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa
For future reference, we recommend you attach a copy of your sales receipt here
and record the following information. You will need this information if it
becomes necessary to contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________
Serial Number: ___________________________________
Model Number: ___________________________________

3
A Name You Can Trust
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Specifications ....................................................................................................... 3
Register Your Product Online............................................................................... 4
Safety Information & Warnings ........................................................................... 5
Safety Warnings And Precautions........................................................................ 6
Parts List............................................................................................................. 10
Features ............................................................................................................. 10
Operating Instructions ....................................................................................... 11
Operation Panel ................................................................................................. 11
Remote Control Panel And Battery.................................................................... 11
Button Functions................................................................................................ 12
Maintenance And Cleaning................................................................................ 16
Electrical Schematic Diagram............................................................................. 16
Limited Manufacturer’s Warranty ..................................................................... 17
SPECIFICATIONS
MODEL NO:
Quietheat15B
COLOR:
Black
PRODUCT DIMENSIONS:
13.86” x 7.2” x 13.7”
VOLTAGE:
120V
FREQUENCY:
60Hz
POWER:
1000W/1500W
NOISE LEVEL (DB):
≤45dB
CERTIFICATIONS:
ETL
WARRANTY:
1 Year Manufacturer’s Warranty

4
http://www.NewAir.com
REGISTER YOUR PRODUC T ONLINE
Register Your NewAir Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more
accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for NewAir promotions and offers
Registering your product information online is safe & secure and takes less
than 2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
Register.NewAir.com

5
A Name You Can Trust
SAFETY INFORMATION & WARNINGS
These instructions are not meant to cover every possible condition
and situation that may occur. Please read all instructions before
using this evaporative cooler. Failure to carefully read all
instructions may result in possible electric shock or fire hazard,
and will void the manufacturer’s warranty.
Read all instructions carefully, even if you are quite familiar with the
appliance.
•Children that are eight years old or older and persons with reduced
physical, sensory, or mental capabilities, or lack of experience and
knowledge can use this appliance, if they have been given supervision or
instruction concerning the use of the appliance in a safe way and
understand the hazards involved. Children should not play with the
appliance.
•Children should not do cleaning and user maintenance without
supervision.
•Children less than three years old should be kept away from the space
heater, if not continuously supervised.
•Children from eight years of age or older can only turn the appliance
on/off, in instances where it has been placed or installed in its
predetermined normal operating position and the children have been
given supervision or instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children should not be responsible for the plugging, regulating, and
cleaning the appliance, or performing user maintenance.
•Some parts of this product may become very hot and cause
burns. Particular attention should be given when children
and vulnerable people are operating the machine.
•If the supply cord is damaged, the manufacturer to avoid a hazard must
replace it.
•WARNING: To avoid overheating, do not cover the heater.
•The heater must be located immediately after an oulet or a socket.
•Do not use this heater close to a bathtub, shower, or a swimming pool.
SAVE THESE INSTRUCTIONS!

6
http://www.NewAir.com
SAFETY WARNINGS AND PRECAUTIONS
In order to use the product more conveniently and avoid any danger caused by
the misuse, please pay a close attention to the notices instructed by signs
hereinafter, and read the instructions carefully.
SYMBOL INTRODUCTION
WARNINGS AND PRECAUTIONS

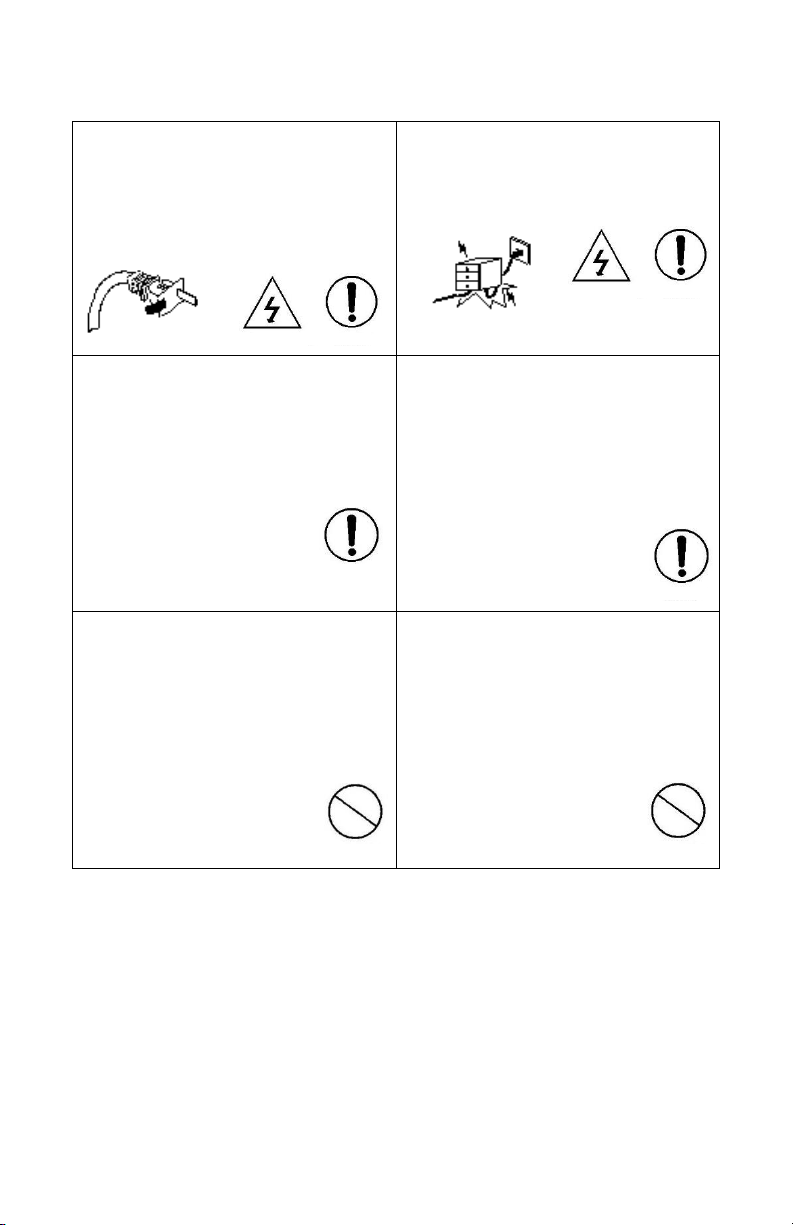

•With any indication of malfunction,
contact the service center for
repairs. Do not attempt to
disassemble the product or replace
faulty parts with unauthorized
components because it will damage
the unit.
•Do not handle the plug or product
with wet hands because it may cause
electric shock.
Action is prohibited at all costs
Follow exactly as instructed
Refusing to follow these instructions can
cause serious injury to the user

7
A Name You Can Trust

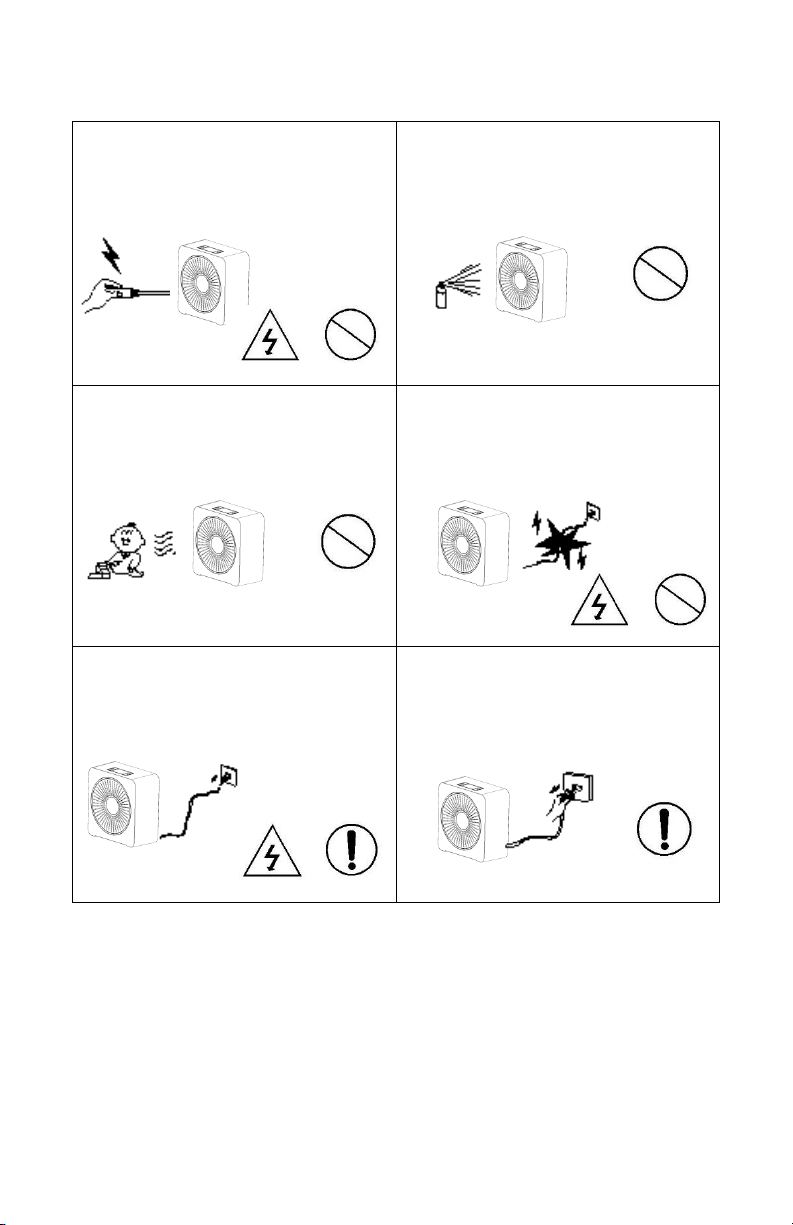

•Do not put sticks, metal, or other
objects into the outlet because it
will cause a “short circuit,” or even
damage the device.
•Do not use pesticides, or other
flammable sprays, around this
product because it will damage the
device.
•Do not face the wind outlet to a
baby directly for a long time
because it is hazardous to the
baby’s health.
•Do not pull the wires when
unplugging the power cord plug
because it will damage the wire, or
cause a malfunction.
•Make sure there are no abnormal
items in the wire, and the plug is
well plugged in, otherwise it will
cause a malfunction of the device.
•When there is an unusual smell, or
an unusual sound from the device,
stop operating the device and
unplug it.

8
http://www.NewAir.com
•Do not break the power cord, or
you may risk an electric shock,
short circuit, or a fire outbreak.
Please contact the service center
for repairs
•Do not fold the power cord, or
place heavy objects on it, because
it can cause the device to
malfunction.
•Switch off the device and unplug
the power cord when not in use for
a long time.
•Precaution should be observed
when operating around a child, or
an animal.
•Use a power outlet that meets
inspection requirements, and
makes sure the carrying capacity of
the socket is less than 10A/220V.
•Ensure the power supply
voltage is consistent with
the specified voltage in the
machine (AC 220V).
•Make sure of the service voltage
when relocating.
•Using the device around the tub,
sprinkler, or swimming pool is not
advisable.
•Using the device directly
below the power outlet is
not advisable.
•Do not use the device close to the
walls, curtains, or other
combustible materials to avoid the
risk of a fire outbreak.
•To avoid overheating, do not cover
the device with a heater.
•Never place any objects in
the device

9
A Name You Can Trust
WARNINGS AND PRECAUTIONS
1. Do not place any objects such as furniture, papers, clothes, and curtains in
front of the heater. There must be at least 3 feet of space between any
object and the front of the heater. Keep anything away from the sides and
rear when the heater is working.
2. Do not place the heater near a bed, because objects such as pillows or
blankets can fall off the bed and be ignited by the heater.
3. Always unplug the heater when not in use.
4. Do not operate the heater if the supplied wire and/or plug are damaged.
5. To disconnect the heater, turns controls off and then remove the plug
from the outlet.
6. Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock, fire, or damage the heater.
7. To prevent a possible fire outbreak, do not block air intakes or exhaust in
any manner. Do not use on soft surfaces, like a bed, where openings may
become blocked.
8. A heater has hot, arcing or sparking parts inside. Do not use it in areas
where gasoline, paint, or flammable liquids are used or stored.
9. Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury
to persons.
10. Always plug heaters directly into a wall outlet/receptacle. Never use with
an extension cord or relocatable power tap (outlet/power strip)

10
http://www.NewAir.com
PARTS LIST
1. Front shell
6. Electronic buttons
2. Mesh grill support
7. Remote control
3. Mesh grill
8. Back Cover
4. CD stripe
9. Power cord
5. Display
10. Air inlet
FEATURES
1. It is a ceramic heating element that changes power automatically
according to the variation of the ambient temperature
2. High and low heating power
3. Small and exquisite machine body with handle making it easy to carry
4. A dismountable dust filter structure that thoroughly filters the dust in the
air
5. An automatic wing outlet with a soft wind that heats evenly
6. Uses a shaded pole motor and tubular wind wheel, which makes the
device function with high thermal efficiency and low noise
7. Safety features such as, double overheating protection and tip over safety
protection
8. Convenient operation with infrared remote control
9. ECO function, to save energy

11
A Name You Can Trust
OPERATING INSTRUCTIO NS
Take the space ceramic heater out of the package. Ensure that you receive all
the items with your unit as mentioned in the parts list section. Carefully place
the space ceramic heater on a stable surface/floor and make sure the control
display is facing upward.

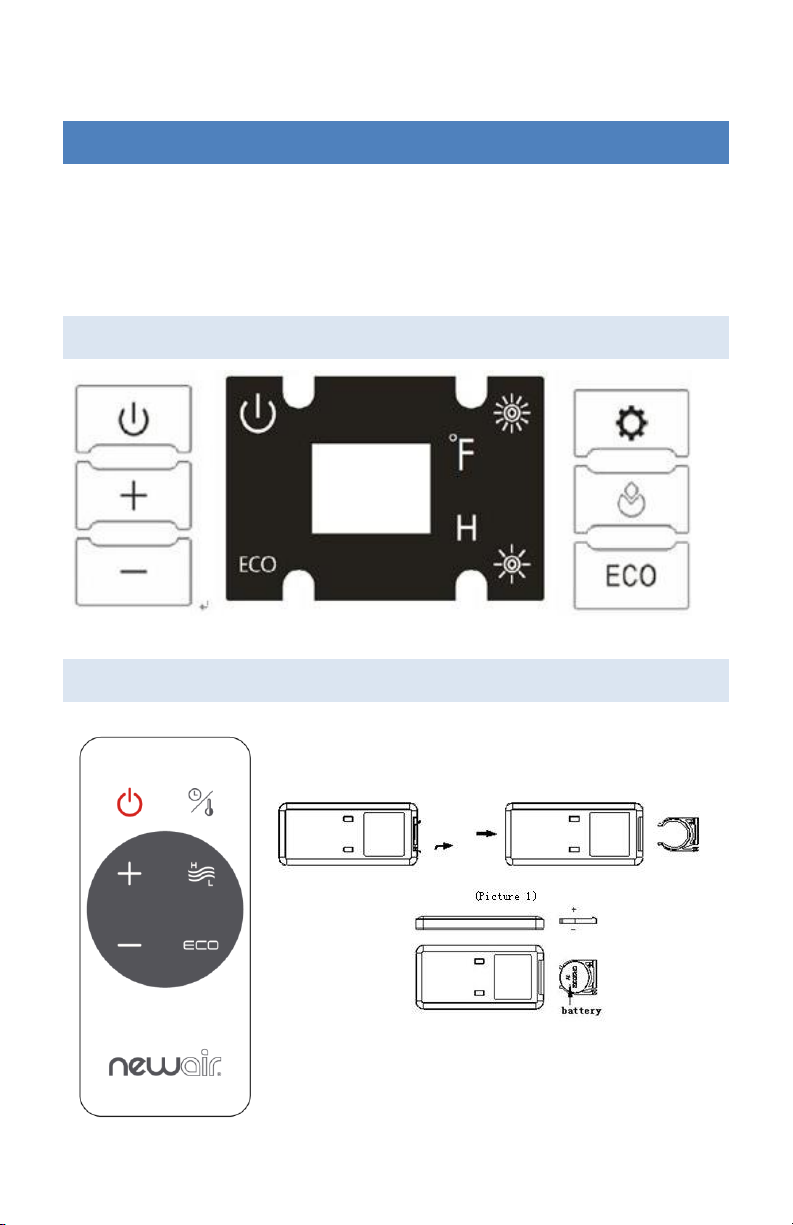

OPERATION PANEL
REMOTE CONTROL PANEL AND BATTERY

12
http://www.NewAir.com
BUTTON FUNCTIONS
1. Check and make sure the plug voltage is by 120V, then plug in.
2. When plugged in, the buzzer will beep, and the heater will enter the standby
mode, the power indicator will be on, and all other functions on display will
be off.
3. When on standby mode, all keys will be invalid, except the key. Press
the key and the device will start working. To turn the machine off, press
the power botton again and the device will start a countdown and switch
off. The default setting after it is turned on is shown below:
a. The indicates the low heating power
b. The displays the default termperature
4. Once the unit is on and showing the default settings, press the key to
shift from low heating power to high heating power. If you press it again, it
will go back to the lower heating power.
a. When the unit is operating at low heating power, the low heating power
indicator will show on the display and the high heating power
indicator will not.
b. When the unit is operating at high heating power, the high heating
power indicator will show on the display and the low heating power
indicator will not.
5. After deciding the desired heating power (low) or (high), the timer
and temperature can be set. The key let you control the timer and
temperature on the unit. Once the timer and temperature are set, the
desired heating power will remain at the desired heating power in the
previous step. If the heating power needs to be changed from low to high or
high to low just press the key once.
a. By pressing the key once, the LED light will start flickering (It will go
to the default standby mode in five seconds) at this time you will be

13
A Name You Can Trust
able to set the timer between 0-12 hours by pressing on the (to
increase time) or (to decrease time).
i. The time will be added or subtracted by one hour with every press,
when you press the or key, and the press length is more
than two seconds.
ii. You can reset the time by pressing the key once and the timer
starts flickering, then press the or key and the timer that
you set will take effect.
b. By pressing the key twice, the temperature indicator key will
show and the LED light will start flickering (It takes five seconds for it to
go to the default standby mode) at this time you will be able to set the
temperature anywhere between 41 oF - 95 oF by pressing the (to
increase the temperature) or (to decrease the temperature).
i. The temperature will be add or subtract 1oF with every press when
you press the or key, and the press length is more than two
seconds.
ii. You can reset the temperature by pressing the key twice, then
press the or key and to set the timer.
NOTE: If there is no response to the keys after five seconds, or other keys are
pressed, except the , , or keys, the digital tube will display the
temperature being set right away.
c. After turning on the machine, the temperature function will be
activated within ten seconds. After ten seconds, if the temperature is
above the set temperature (+ 5oF), the space heater will be turned off
and the heating power wattage will not be displayed. The fan will turn
off after ten seconds (if previously turned on), then display the set
temperature. If the temperature is below the set temperature (-5oF),
the space heater and fan will restart (if the fan is already running, then
within the ten seconds delay time, the fan will continue to work), and
the heating power wattage will be displayed.

14
http://www.NewAir.com
6. When setting the time and temperature at the same time, timing and the
room temperature display interactively at intervals of thirty seconds.
Meaning the timer display will show for thirty seconds and the temperature
display will be off. Then the temperature display will show for thirty seconds
and the timer display will be off. When the timing is not set, only the setting
temperature will display.
ECO MODE
When the space heater is on, press the key to shift the product into the
ECO mode. The indicator will switch to the default temperature between
64oF to 75oF. The PCT will stop working when the temperature is higher than
75oF. At the same time, the fan will stop working after rotating for ten seconds
with high speed. The fan will work with high speed when the temperature is
lower than 64oF. The fan will work with low speed when the temperature is
between 64oF and 75oF.
FAN COOLING FUNCTION
The fan will start to work when the heating power fan starts to work and the
fan will continue to function for ten seconds after the heating power fan stops
working. The numbers 10, 9, 8, 7, … 0 will be displayed. During this ten seconds
after shutting down the machine, the fan and the heating power fan will turn
off at the same time.
CONTINUOUS ELECTRIC MEMORY FUNCTION
1. Under standby mode, press the key and the unit will keep working with
the same status as the last setting, except the timing function.
2. The machine will work in a continuous mode after one minute and the
brightness of the display section should be reduced to one-third of the
normal brightness, solving the problem of the LED-lamp shining in the night.
It will restore the brightness after operation.

15
A Name You Can Trust
3. When the machine is tipped over during operation, the heating power stops
and the wind wheel will work for ten seconds and stop. The machine will
then go into the standby mode.

16
http://www.NewAir.com
MAINTENANCE AND CLEANING
1. Before cleaning, unplug the device and make sure the heater cools off.
2. Use a soft cloth to wipe the dust on the heater. If the surface is too dirty, it
is better to clean it with warm water, mixed with a neutral detergent.
3. Do not use gasoline, thinner, and any other solvents that may easily damage
the surface.
4. Cool and dry the heater before packing, and place it in a dry and well-
ventilated place.
ELECTRICAL SCHEMATIC DIAGRAM

17
A Name You Can Trust
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
•Power failure
•Damage in transit or when moving the appliance
•Improper power supply such as low voltage, defective household wiring or
inadequate fuses
•Accident, alteration, misuse or abuse of the appliance such as using non-
approved accessories, inadequate air circulation in the room or abnormal
operating conditions (extreme temperatures)
•Use in commercial or industrial applications
•Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
•Use of force or damage caused by external influences
•Adjustments to temperature by removal of sticker and/or screw
•Partially or completely dismantled appliances
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a NewAir™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email suppo[email protected].
