New Air AH-480 User manual

Manual v1.2
Panel Convection Heater
AH-480
OWNER’S MANUAL
Read and save these instructions.

2
newair.com
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Register Your Product Online............................................................................... 3
Safety Information & Warnings ........................................................................... 4
Product Features.................................................................................................. 9
Assembly & Installation ..................................................................................... 11
Operating Instructions ....................................................................................... 13
Cleaning & Maintenance.................................................................................... 14
Limited Manufacturer’s Warranty ..................................................................... 15
SPECIFICATIONS
MODEL NO.
AH-480
VOLTAGE:
120V~
F
REQUENCY
:
60Hz
POWER:
1500W
D
IMENSIONS
:
Width: 18.9 in
Depth: 11.6 in (w/stand); 4.2 in (w/o stand)
Height: 28.4 in (w/stand); 26.7 in (w/o stand)
Weight: 10.3 lbs
HEATING AREA:
160 sq ft.
TIP-OVER PROTECTION:
Yes

3
REGISTER YOUR PRODUCT ONLINE
Register Your NewAir Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Troubleshoot, diagnose, and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates, and recall notifications
Special Promotions
Opt-in for NewAir promotions and offers
Registering your product information online is safe & secure and takes less
than 2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, which is located on the manufacturer’s
nameplate on the rear of the unit. You will need this information if it becomes
necessary to contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

4
newair.com
SAFETY INFORMATION & WARNINGS
When using any electrical appliance, basic safety precautions must
be followed to reduce the risk of fire, electrical shock and/or injury
to persons or property. Read all instructions before using this
heater and observe the following safety tips:
•This appliance is for household use only. Please use a suitable
power source (120V~/60Hz).
•Never immerse the appliance in water or other liquids.
•Do not use the appliance in direct sunshine. Do not use outdoors.
•Please turn off the appliance when not in use as it may otherwise result in
danger.
•Please turn off the appliance and remove plug from outlet when unattended as
it may otherwise result in danger.
•Keep the appliance away from children. The appliance is not to be used by
persons (including children) with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should not be allowed to play with the
appliance.
•This appliance can be used by children from 8 years old and above and persons
with reduced physical, sensory, or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning safe
use of the appliance and they understand the hazards involved. Children should
not play with the appliance. Cleaning and user maintenance should not be done
by children without supervision.
•Children of less than 3 years should be kept away unless continuously
supervised.
•Children aged from 3 years and less than 8 years should only switch on/off the
appliance provided that it has been placed or installed in its intended normal
operating position, and they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years should not plug in,
regulate, clean the appliance or perform user maintenance.
•Upon any indication of damage or malfunction, please stop using the appliance
immediately to prevent hazards. Take it to an authorized service center for
repair. Do not attempt to repair or change any parts by yourself.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to prevent hazards.
•Please turn off and unplug the appliance before cleaning or maintenance.

5
•Clean the surface of the appliance with a dry cloth. Do not use corrosive
detergent or solvent to clean. Do not submerge the appliance with water.
•Please turn off and unplug the appliance when not in use. Make sure the power
is off before pulling out the plug and do not pull the cord.
•When the appliance is not in use for a prolonged period, please turn it off,
unplug it, pack it well, and store it in a dry, cool place.
•Do not place flammable and explosive objects near or around the appliance,
and do not use the appliance in an environment full of flammable gas. Keep
away from any fire and heat sources.
•Please put the power cord in a place that will not cause individuals to trip over
the appliance.
•Do not put any objects on the appliance and position the appliance immediately
below a socket-outlet.
•Do not touch the front panel when operating.
•Please keep the back and front panels unblocked to minimize the risk of fire or
malfunction.
•Do not let the power cord touch or come near the front panel. It will damage
the insulation layer of the wires.
•Ensure no water leaks into the appliance in order to avoid electric shock. Do not
put flammable objects or wet clothes on the front panel in order to avoid short
circuit or fire.
•Please do not place the either side of the panel near curtains or walls when in
operation because these will block the flow of air and cause a fire. The
appliance should be installed at a minimum distance of 4 inches from the wall
or other obstacles.
•Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause electric shock or fire, or damage the heater.
•Please do not insert any objects into the either side of the panel, in order to
avoid electric shock.
•After a period of operation, abnormal noise and uneven air volume may appear
because of dust blocking the airflow. This will disappear after cleaning the back
net.
•Do not use an extension cord to operate the heater.
•Connect to properly grounded outlets only.
•The heater is to be installed so that switches and other controls cannot be
touched by a person in the bath or shower.
•Do not cover the appliance with anything, especially flammable materials, such
as clothes or paper.
•In order to prevent hazards due to the inadvertent resetting of the thermal
cutout, this appliance must not be supplied through an external switching
device, such as a timer, programmer, separate remote-control system or
connected to a circuit that is regularly switched on and off by the utility.

6
newair.com
•Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
•This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. If provided, use handles when moving this heater. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes, and curtains at
least 3 feet (0.9 m) from the front of the heater and keep them away from the
sides and rear.
•Extreme caution is necessary when any heater is used by or near children or
invalids and whenever the heater is left operating and unattended.
•This heater is not intended for use in bathrooms, laundry areas and similar
indoor locations. Never locate heater where it may fall into a bathtub or other
water container.
•Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury to
persons.
•To prevent a possible fire, do not block air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where openings may become blocked.
•Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
•CAUTION – High temperature, keep electrical cords, drapery, and other
furnishings at least 3 feet (0.9 m) from the front of the heater and away from
the side and rear.
•ATTENTION —à haute température, garder les cordons électriques, des
rideaux, et autres meubles au moins 3 pieds (0 ,9m) du devant de l’appareil et
à partir du côté et à l’arrière.
•CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT AND FULLY INSERT
•ATTENTION : POUR éVITER LES CHOCS éLECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.
•SAVE THESE INSTRUCTIONS

7
SAFETY PRECAUTIONS
When using any electrical appliance, basic safety precautions must be followed
in order to reduce the risk of fire, electrical shock and/or injury to persons or
property. Be sure to read all instructions before using this appliance and
observe the following safety tips:
Should the product stop working, please contact
NewAir for assistance. Please do not attempt to
repair it yourself.
Taking it apart or making any changes to the product
or its circuitry may lead to further hazard.
Do not handle the plug with wet
hands. It may cause electric shock.
Do not insert sticks, metal or other
objects into the outlet. It will cause
a short circuit or even damage the
device.
Do not use pesticides or other
flammable sprays around the
product. It will damage the device.
Do not face the front panel directly
toward small children for extended
periods of time.
Do not pull on the power cord to
unplug it from the outlet. It will
damage the power cord or lead to
electrical leakage.

8
newair.com
Ensure the plug is not in contact
with anything else and plug it in
fully
, or it may lead to a short circuit.
If there is a strange smell or sound,
immediately unplug the cord from
the wall.
If the power cord is damaged, please do not use it. It
can lead to power creepage, or short circuit and
potentially cause a fire.
If the supply cord is damaged, do not attempt to
repair
it. Please contact NewAir for diagnosis and
replacement.
Do not fold the power cord or
place heavy objects on it.
Electrical shock can be caused.
If you won’t be using the product for an extended period, please
turn off the machine and pull out the plug from the outlet.
Follow the requirements of the power outlet when using the
device. The outlet bearing capacity must not be less than
15A/125V.
Ensure the voltage on the unit by checking the rated label (AC
120V).
When moving the unit, make sure the new outlet is also rated
to work with the same voltage.
The heater must not be located immediately below or next to a
wall outlet.
When using the product, do not place it up against a wall, as it
could cause overheating and potentially a fire.
Do not cover any part of the heater while operating.

9
PRODUCT FEATURES
PRODUCT DIAGRAM
1. Heater base
2. Front panel
3. Rotary knob for power
4. Rotary knob for
temperature
5. Power cord
6. Wall-mounting bracket
7. Back panel
8. Power cord holder
9. Casters
CONTROL PANEL:
FEATURES:
OFF
LOW
HIGH

10
newair.com
1. Mica heating plate with high heating efficiency.
2. Overheat and tip-over protection: Thermal fuse, NTC, and tip-over switch
have been added to make the product safer.
3. Thermostat control: Conveniently allows you to set the product to the
temperature you need.
4. Low noise when working.
5. Wall-mounted bracket and wheels allow the unit to be used anywhere.

11
ASSEMBLY & INSTALLATION

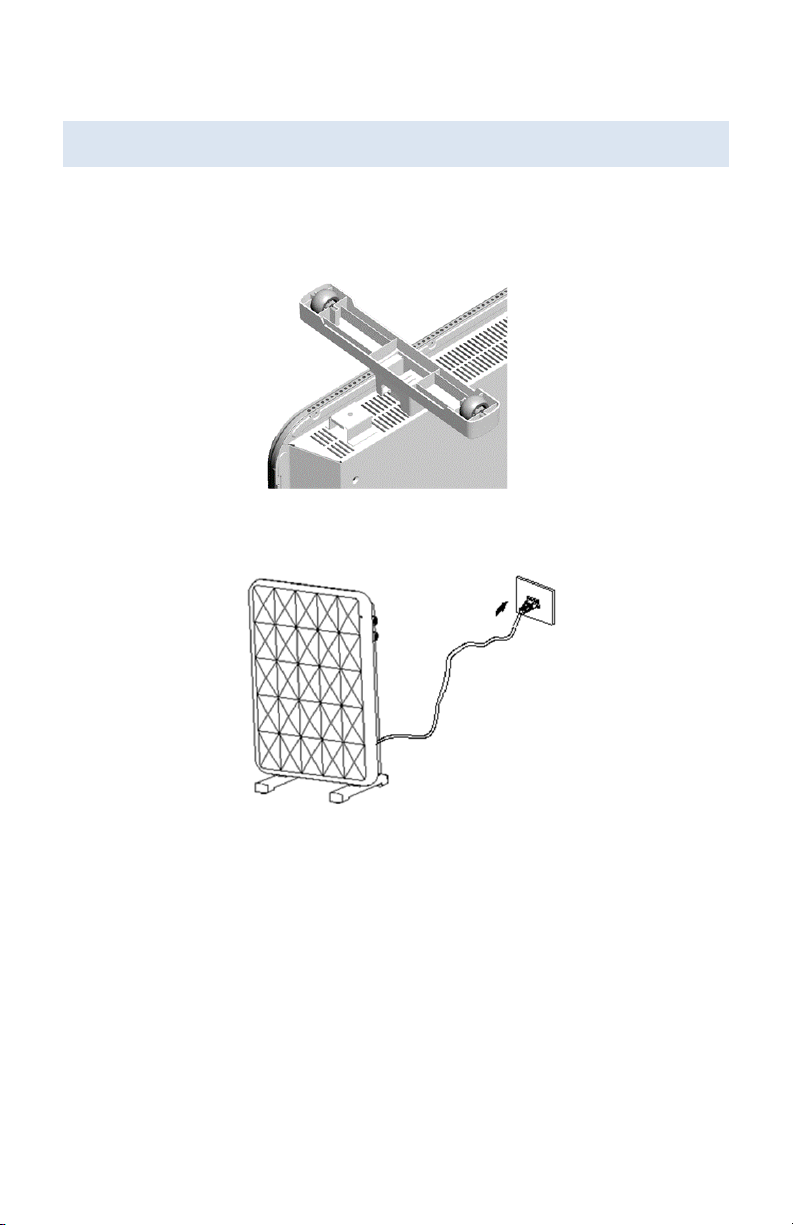

1. Open the packaging and remove the parts. Confirm the product and parts
are in good condition.
2. Attach the two base pieces to the bottom of the heater panel with the
provided screws.
3. Connect the cord to an appropriate outlet. If there is power coming to the
unit, the orange LED will be on, and the heater will be in standby mode.
4. Install the heater on your wall:
•To install it on the wall, remove the two base pieces if they are already
attached.
•Make sure there is room for 12 inches of space on the top and bottom of
the unit, and at least 8 inches of space on both sides.

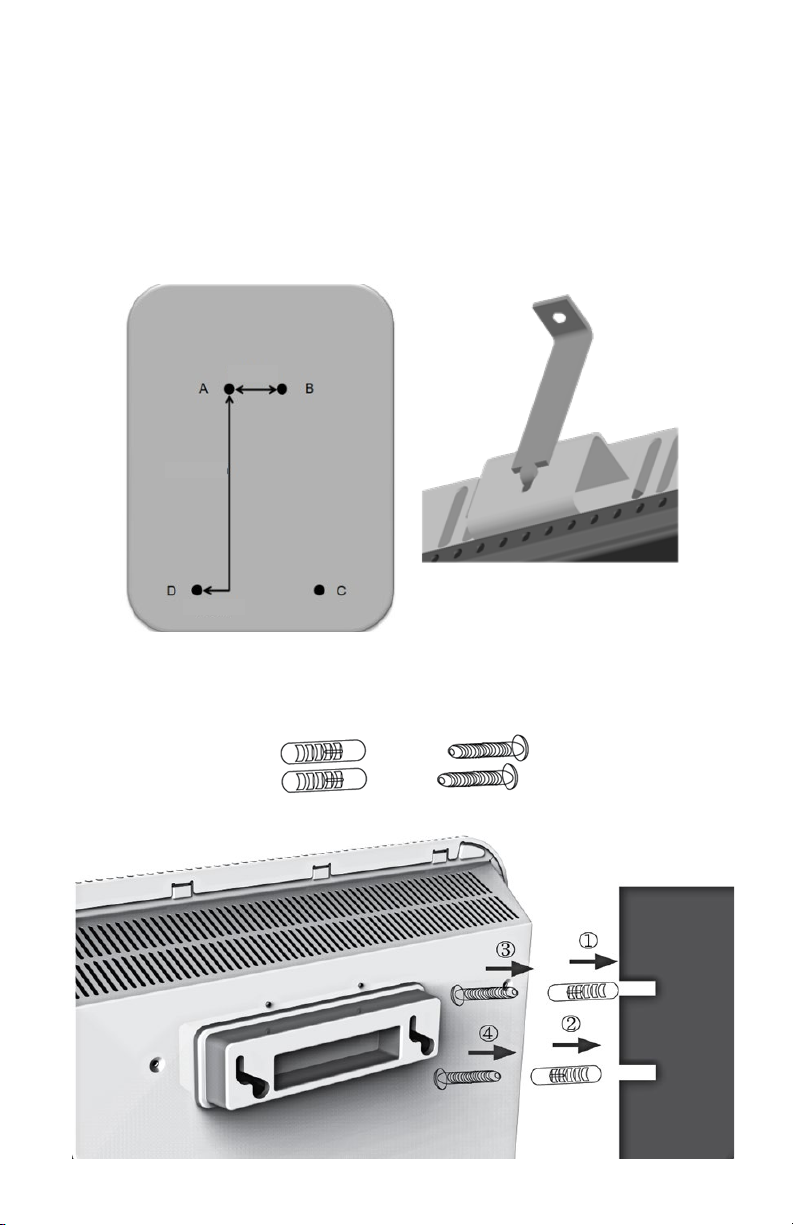

•Drill three holes – (A), (B), (C or D) in Fig. 5 – into the wall to allow for
insertion of drywall anchors. The diameter of each hole should be
slightly less than the width of the anchors, about 0.2 inches. The
distance between the holes should meet the requirements shown in
Fig.5 (next page)
•Insert the wall anchors into the three holes.

12
newair.com
•Insert the screws into the anchors (A & B below). Make sure the screws
are not entirely screwed into the wall. Leave a gap of about 0.2 inches to
hang the heater onto as shown in the image below.
•Install the bracket onto the heater as shown in Fig.6. Insert a screw into
the hole of the bracket and fix the screw into the rubber plug (hole C or
hole D)
Drywall Anchors Screws
Fig.5 Hole Positions
Fig.6 Lower Bracket
3 in
22.9 in
5.1 in

13
OPERATING INSTRUCTIONS
•In standby mode, turn the power switch to “Low” or “High.” Next, turn the
temperature setting switch to max. The heater will start to work its magic.
•When the power switch is “Low,” the power is 750W.
•When turned to “High,” the power is 1500W.
•Turn the power switch to the original position and the heater will stop.

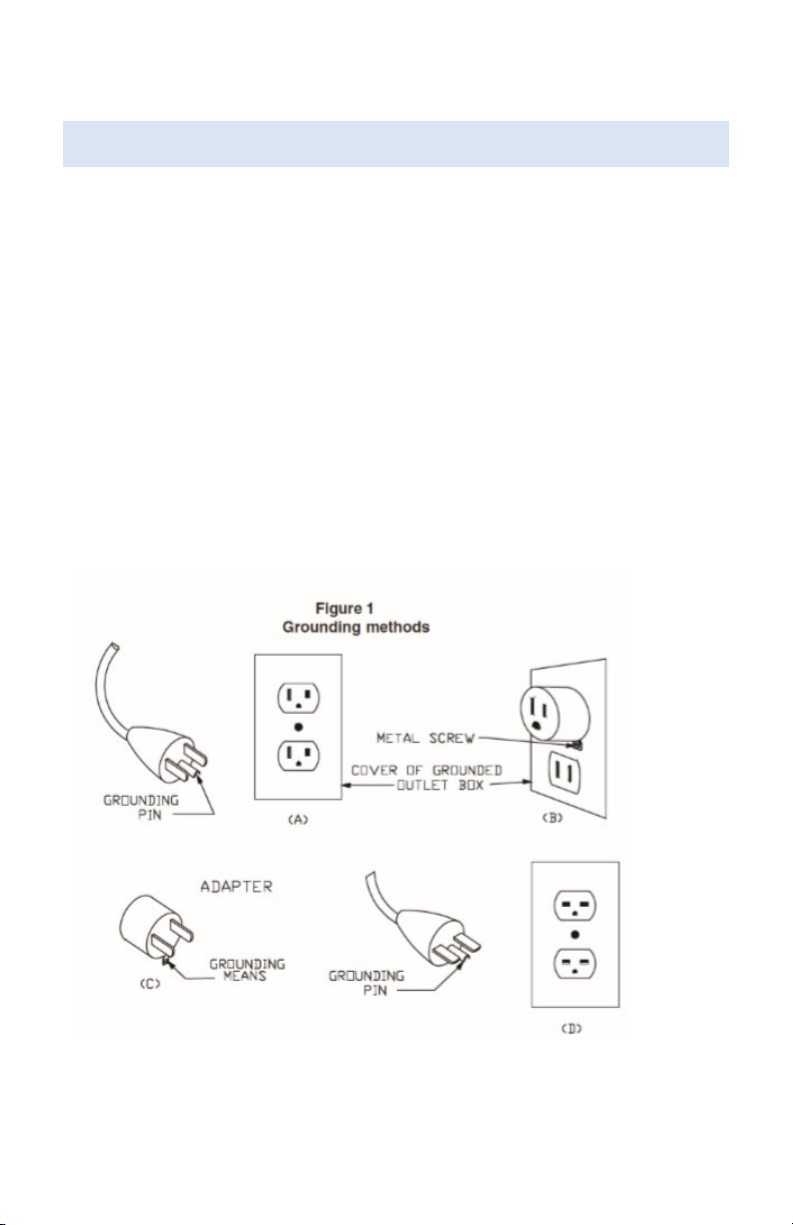

This heater is for use with a 120V outlet. The cord has a plug as shown at A in
Figure 1. An adapter (as shown in figure C) can be used for connecting three-
blade grounding-type plugs to two-slot outlets. The green grounding lug
extending from the adapter must be connected to a permanent ground such as
a properly grounded outlet box. The adapter should not be used if a three-slot
grounded outlet is available. (WARNING: Do not use an adapter for any two-
slot outlet that is not built into the wall, such as a two-prong extension cord.)

14
newair.com
CLEANING & MAINTENANCE
CLEANING YOUR HEATER
Ensure that the device is switched off before cleaning or maintenance.
•Before doing any maintenance, pull the plug out of the wall outlet, and make
sure the heater has become cool.
•Use a soft cloth to wipe the dust on the heater’s surface. If the surface is too
dirty, it is better to wipe it with the water lower than 50°C (122 °F) mixed
with neutral detergent.
•Don’t use gasoline, thinner and any other chemicals on the unit as they can
easily damage the surface.
•Please dry the heater before storing it. To dry it, place it in a dry and
ventilated area.

15
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if the damage is caused by any of the following:
•Power failure
•Damage in transit or when moving the appliance
•Improper power supply such as low voltage, defective household
wiring or inadequate fuses
•Accident, alteration, misuse, or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
•Use in commercial or industrial applications
•Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
•Use of force or damage caused by external influences
•Partially or completely dismantled appliances
•Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
the purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a NewAir™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, remanufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email [e-mail]
