PRODUCT SPECIFICATIONS
Model No.:
Quietheat15
Voltage:
120V
Frequency:
60Hz
Power:
1000W/1500W
Noise Level:
≤45dB
Dimensions:
13.5” x 6” x 13.75”
Certifications:
ETL

4
http://www.NewAir.com
INTRODUCTION
Thank you for your belief and support as you choose our latest designed multifunctional,
luxurious space ceramic heater. Please read the following instructions carefully before
using the device and keep this user manual for future reference.
We believe our product will bring your life convenience and great enjoyment.
PRODUCT FEATURES
Its ceramic heating element that changes the power automatically according to
the variation of the ambient temperature
High and low heating power
Small and exquisite machine body with handle making it easy to carry
A dismountable dust filter structure that fully filters the dust in the air
An automatic wing outlet with a soft wind that heats evenly
Uses a shaded pole motor and tubular wind wheel, which makes the device
function with high thermal efficiency and low noise
Safety features such as, double overheating protection and tip over safety
protection
Convenient operation with infrared remote control
ECO function, to save energy

5
A Name You Can Trust
IMPORTANT SAFETY INFORMATION
WARNING: These instructions are not meant to cover every possible
condition and situation that may occur. Please read all instructions
before using this space ceramic heater. Failure to carefully read all
instructions may result in possible electric shock or fire hazard, and
will void the manufacturer’s warranty.
FOR YOUR SAFETY
Read all instructions carefully, even if you are quite familiar with the appliance.
1. This appliance can be used by children that are eight years old or older and
persons with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.
2. Cleaning and user maintenance should not be done by children without
supervision.
3. Children less than three years old should be kept away from space heater,
unless continuously supervised.
4. Children that are eight years old or older should only switch the appliance on/off,
in instances that it has been placed or installed in its’ intended normal operating
position and the children have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the hazards involved.
5. Children should not plug in, regulate, and clean the appliance, or perform user
maintenance.
6. Some parts of this product can become very hot and cause burns.
Particular attention should be given when children and vulnerable
people are present.
7. If the supply cord is damaged, it must be replaced by the manufacturer in order
to avoid a hazard.
8. WARNING: In order to avoid overheating, do not cover the heater.
9. The heater must not be located immediately by a socket or outlet.
10. Do not use this heater in the immediate surroundings of a bathtub, shower, or a
swimming pool.
SAVE THESE INSTRUCTIONS

6
http://www.NewAir.com

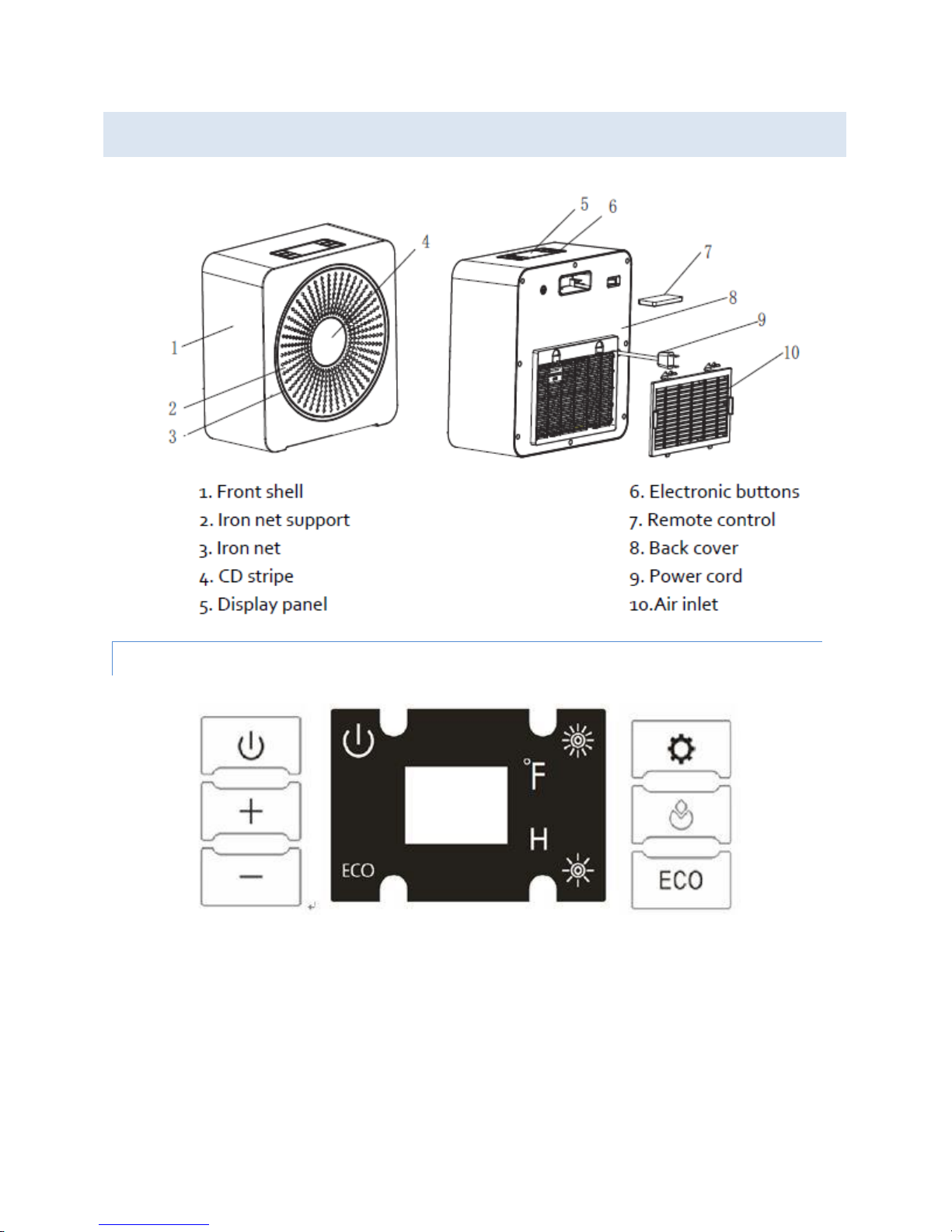

PARTS LIST
OPERATION PANEL

7
A Name You Can Trust
DISPLAY PANEL
REMOTE CONTROL PANEL
REMOTE CONTROL BATTERY

8
http://www.NewAir.com
OPERATING INSTRUCTIONS
Take the space ceramic heater out of the package. Ensure you have received all
items with your unit as mentioned in the parts list section. Carefully place the space
ceramic heater on a stable floor and make sure the control display is facing upward.
BUTTON FUNCTIONS
1. Check and make sure the plug voltage is in accordance with 120V, then plug in.
2. When plugged in, the buzzer will beep and the heater will enter the standby
mode, the power indicator is on, and all other functions on the display are off.
3. During standby mode, all keys are invalid, except the key. Press the
key and the device will start working. To turn off, press it again and the device
will start a countdown and turn off. The default setting after it is turned on is
shown below:
a. The indicates the low heating power
b. The displays the default termperature
4. Once the unit is on and is showing the default settings, press the key to
shift from low heating power to high heating power. If you press it again, it will go
back to low heating power.
a. When the unit is operating at low heating power, the low heating power
indicator will show on the display and the high heating power
indicator will not.
b. When the unit is operating at high heating power, the high heating power
indicator will show on the display and the low heating power indicator
will not.
5. After deciding the desired heating power (low) or (high), the timer and
temperature can be set. The key lets you control the timer and temperature
on the unit. Once the timer and temperature are set, the desired heating power

9
A Name You Can Trust
will remain at the desired heating power in the previous step. If the heating power
needs to be changed from low to high or high to low just press the key
once.
a. By pressing the key once, the LED light will start flickering (you have
five seconds before it defaults to standby mode) at this time you will be
able to set the timer between 0-12 hours by pressing on the (to
increase time) or (to decrease time).
i. The time will be added or subtracted by one hour with every press
when you press the or key, and the press length is more
than two seconds.
ii. You can reset the time only when pressing the key once and
the timer starts flickering press the or key and the timer
that you have set will take effect at once.
b. By pressing the key twice, the temperature indicator key will
show and the LED light will start flickering (you have five seconds before
it defaults to standby mode) at this time you will be able to set the
temperature anywhere between 41 oF - 95 oF by pressing on the (to
increase temperature) or (to decrease temperature).
i. The temperature will be added or subtracted 1oF every press when
you press the or key, and the press length is more than
two seconds.
ii. You can reset the temperature only when pressing the key
twice and the temperature flickering press the or key and
the timer that you have set will take effect at once.
NOTE: If there is no operation to the keys after five seconds, or other keys are pressed,
except the , , or keys, the digital tube will display the temperature being
set right away.

10
http://www.NewAir.com
c. After turning on the machine, the temperature function will be activated
within ten seconds. After ten seconds, if the temperature is above the set
temperature (+ 5oF), the space heater will be turned off and the heating
power wattage will not be displayed. The fan will turn off after ten seconds
(if previously turned on), then display the set temperature. If the
temperature is below the set temperature (-5oF), the space heater and fan
will restart (if the fan is already running, then within the ten seconds delay
time, the fan will continue to work), and the heating power wattage will be
displayed.
6. When setting the time and temperature at the same time, timing and the room
temperature display interactively at intervals of thirty seconds. Meaning the timer
display will show for thirty seconds and the temperature display will be off. Then
the temperature display will show for thirty seconds and the timer display will be
off. When the timing is not set, only the setting temperature will display.
ECO MODE
When the space heater is on, press the key to shift the product into ECO mode.
The indicator will switch to the default temperature between 64oF to 75oF. The
PCT will stop working when the temperature is higher than 75oF. At the same time, the
fan will stop working after rotating for ten seconds with the high speed. The fan will
work with high speed when the temperature is lower than 64oF. The fan will work with
low speed when the temperature is between 64oF and 75oF.
FAN COOLING FUNCTION
The fan will start to work when the heating power fan starts to work and the fan will
continue to function for ten seconds after the heating power fan stops working. The
numbers 10, 9, 8, 7, … 0 will be displayed. During this ten seconds after shutting down
the machine, the fan and the heating power fan will turn off at the same time.
CONTINUOUS ELECTRIC MEMORY FUNCTION
1. Under standby mode, press the key and the unit will keep working the
same status as the last setting, except the timing function.

11
A Name You Can Trust
2. The machine will work in a continuous mode after one minute and the brightness
of the display section should be reduced to one-third of the normal brightness,
solving the problem of the LED lamp shining in the night. It will restore the
brightness after operation.
3. When the machine is tipped over during operation, the heating power stops and
the wind wheel will work for ten seconds and stop. The machine will enter
standby mode.
SAFETY WARNINGS AND PRECAUTIONS
In order to use the product more conveniently and avoid any danger caused by misuse,
please pay close attention to the notices instructed by signs hereinafter and read the
instructions carefully.
SYMBOL INTRODUCTION
Something that may result in severe damage to the
units or your life.
Some actions that are absolutely prohibited.
The content or actions that must be executed
absolutely as it is said.
WARNINGS AND PRECAUTIONS
With any indication of malfunction, contact the service center for repairs. Do not
attempt to disassemble the product or replace faulty parts with unauthorized
components because it will damage the unit.

12
http://www.NewAir.com
Do not handle the plug or product with wet hands because it may cause electric shock.
Do not put sticks, metal, or other objects into the outlet because it will cause short
circuit, or even damage to the device.
Do not use pesticides, or other flammable sprays, around this product because it will
damage the device.
Do not face the wind outlet to a baby directly for a long time because it is hazardous to
the baby’s health.
Do not pull the wires when unplugging the power cord plug because it will damage the
wire, or make creepage.
Make sure there are no abnormal items in the wire, and the plug is absolutely plugged
in, otherwise it will cause creepage.
When there is an unusual smell, or an unusual sound from the device, stop operating
the device and unplug it.

13
A Name You Can Trust
Do not break the power cord, or it can result in creepage, short circuit, or fire. Please
contact the service center for repairs.
Do not fold the power cord, or place heavy objects on it because it can cause creepage.
Power off the device and unplug the power cord when not using it for a
long time.
You should avoid using the device if there is any child, or animal, or
disabled person who lacks self-control.
Use a power outlet that meets inspection requirements and makes sure
the carrying capacity of the socket is less than 10A/220V.
Ensure the power supply voltage is consistent with the specified voltage in
the machine (AC 220V).
Make sure of the service voltage when relocating.
Using the device around the tub, sprinkler, or swimming pool is forbidden.
Using the device directly below the power outlet is forbidden.
Do not use the device close to walls, curtains, or other combustible
materials because it may cause a fire.
To avoid overheating, do not cover the device with the heater.
Never place any objects in the device

14
http://www.NewAir.com
REDUCE THE RISK OF FIRE
1. Do not place any objects such as furniture, papers, clothes, and curtains in front
of the heater. There must be at least 3 feet of space between items and the front
of the heater. Keep anything away from the sides and rear when the heater is
plugged in.
2. Do not place the heater near a bed because objects such as pillows or blankets
can fall off the bed and be ignited by the heater.
3. Always unplug the heater when not in use.
4. Do not operate the heater if the supplied wire and/or plug is damaged.
5. To disconnect heater, turn controls off and then remove the plug from the outlet.
6. Do not insert or allow foreign objects to enter any ventilation or exhaust opening
as this may cause an electric shock or fire, or damage the heater.
7. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where openings may become blocked.
8. A heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are used or stored.
9. Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury to
persons.
10.Always plug heaters directly into a wall outlet/receptacle. Never use with an
extension cord or relocatable power tap (outlet/power strip).
MAINTENANCE AND CLEANING
1. Before cleaning, unplug and make sure the heater cools off.
2. Use a soft cloth to wipe the dust on the heater’s surface. If the surface is too
dirty, it is better to wipe it with warm water, mixed with a neutral detergent.

15
A Name You Can Trust
3. Do not use gasoline, thinner, and any others which may easily damage the
surface.
4. Cool and dry the heater before packing and place it in a dry and ventilated place.
Filter Net The Back Cover
ELECTRICAL SCHEMATIC DIAGRAM

16
http://www.NewAir.com
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year from the
original date of purchase, the manufacturer will repair or replace any parts of this
appliance that prove to be defective in materials and workmanship, provided the
appliance has been used under normal operating conditions as intended by the
manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective due to
materials or workmanship will be repaired or replaced, at the manufacturer’s discretion,
at no charge to the original purchaser. The purchaser will be responsible for any
removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
Power failure
Damage in transit or when moving the appliance
Improper power supply such as low voltage, defective household wiring or
inadequate fuses
Accident, alteration, misuse or abuse of the appliance such as using non-
approved accessories, inadequate air circulation in the room or abnormal
operating conditions (extreme temperatures)
Use in commercial or industrial applications
Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes,
floods, etc.
Use of force or damage caused by external influences
Partially or completely dismantled appliances
Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with purchase
date available. Once confirmed that your appliance is eligible for warranty service, all
repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be
responsible for any removal or transportation costs. Replacement parts and/or units will
be new, re-manufactured or refurbished and is subject to the manufacturer’s discretion.
For technical support and warranty service, please email [email protected].
