Nibe AG-WT10 series User manual

User manual
AG-WT10
Indoor unit air/air heat pump
UHB GB 1516-1
331557

Table of Contents
31 Important information
3Installation data
4Safety information
5Serial number
6AG-WT10 – an excellent choice
7Safety instructions
8Recovery
102 Design
123 Remote control
12Before use
14Overview
16Function without remote control
174 Function modes
17Cooling
18Heating
19Automatic mode heat/cooling
21Dehumidification
22Ventilation
22Function in the event of power cut
235 Operating program
23Air ioniser
23Night program/energy saving
24High power-program
25iFEEL/iFEEL C
266 Fan and air flow setting
26Selecting fan speed
27Airflow control
297 Clock and timer
29Setting the clock
29Setting the timer
30Timer 1 hour
1AG-WT10Table of Contents |

31Vacation timer
328 Care and maintenance
32Regular checks
32Housing and grille
33Air filter
35Advice for maximum comfort and lowest energy consumption
369 Disturbances in comfort
36Troubleshooting
38Fault codes
40Index
AG-WT10Chapter |2

1 Important information
Installation data
AG-WT10Indoor unit
Model designation
Serial number (S/N)
Installation date
Installer
AG-AA10Outdoor unit
Model designation
Serial number (S/N)
Installation date
Installer
Serial number must always be given
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
3AG-WT10Chapter 1 | Important information

Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2015.
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should
observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
The CE marking means that NIBE ensures that the product meets all regu-
lations that are placed on it based on relevant EU directives. The CE mark
is obligatory for most products sold in the EU, regardless where they are
made.
AG-WT10Chapter 1 | Important information4

Serial number
The serial number can be found to the left, under the indoor unit.
Serial number
Caution
Always give the product's serial number (14 digits) when reporting a
fault.
5AG-WT10Chapter 1 | Important information

AG-WT10 – an excellent choice
AG-WT10 is part of a complete, modern heat pump system that offers ef-
fective technical energy saving and reduced carbon dioxide emissions. The
integrated control system in the indoor unit gives safe and economical
climate control.
The heat is retrieved from the outdoor air by means of an outdoor unit
(AG-AA10), where the refrigerant, which circulates in a closed system,
transfers the heat from the heat source (the outdoor air) to the indoor
unit (AG-WT10).
Excellent properties for AG-WT10:
■iFEEL
The iFEEL function has been developed to obtain the best possible
comfort. The iFEEL function uses the remote control's integrated tem-
perature sensor to adjust the room temperature based on where the
remote control is in the room. For best results the remote control should
be positioned so that the communication line between the remote
control and indoor unit is as direct as possible.
■Inverter controlled compressor
The heat pump has an inverter controlled compressor that automatically
adapts itself optimally and economically to your home's energy require-
ment.
■Air ioniser
AG-WT10 is equipped with an air ioniser that effectively prevents bad
air and eliminates bacteria and microorganisms.
■Night program
With the night program, the temperature and fan speed are adjusted
to save energy without affecting the comfort of the premises.
■High power
With the High Power function activated, the climate unit works at the
maximum cooling or heating power.
AG-WT10Chapter 1 | Important information6

Safety instructions
Read this instruction manual carefully before using the climate unit. In the
event of doubt or problems please consult your dealer.
This climate unit has been designed to create ideal climate conditions in
your room. Only use the unit for this purpose and as described in this
manual.
NOTE
■Avoid the use and storage of flammable liquids near the climate unit.
■Never install electric equipment that does not have IPX1 protection
(protection against vertical water drops), under the unit.
■Do not switch the climate unit on or off using the main switch. Always
use the ON/OFF button on the remote control or the function selector
on the unit.
■Do not allow children to play with the climate unit.
■Do not cool the room too much if there are young children or disabled
people in the room.
■The climate unit is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of exper-
ience or knowledge, unless they have been instructed by, or are under
the supervision of, a person who is responsible for the safety of the
climate unit when it is in use.
The manufacturer assumes no liability, if safety the standards or protection
preventive measures are not complied with.
7AG-WT10Chapter 1 | Important information

Recovery
Information about correct recycling of the product in accord-
ance with the EU directive 2012/19/EU
Do not dispose of used units with normal household waste.
It must be disposed of at a special waste station or dealer who provides
this type of service.
Separate waste sorting of an electrical and electronic device makes it
possible to prevent adverse effects on the environment and human health,
which may occur from inappropriate waste sorting and this also makes it
possible to reuse and recycle the material, which leads to a considerable
saving of energy and resources.
To emphasize the need for waste sorting and separate handling of these
units, there is a symbol of a crossed-out waste bin on the product.
Improper disposal of the product by the user results in administrative
penalties in accordance with current legislation.
AG-WT10Chapter 1 | Important information8

Information about handling used batteries in accordance
with the EU directive 2006/66/EC
Do not dispose of used batteries with household waste.
They must be disposed of at a special waste station or at a dealer who
provides this type of service.
Separate disposal of batteries makes it possible to prevent adverse effects
on the environment and human health, which may occur from inappropri-
ate waste handling and this also makes it possible to reuse and recycle
the material, which leads to a considerable saving of energy and resources.
To emphasize the need for waste sorting and separate handling of batter-
ies, there is a symbol of a crossed-out waste bin on the product.
Improper disposal of the product by the user results in administrative
penalties in accordance with current legislation.
9AG-WT10Chapter 1 | Important information

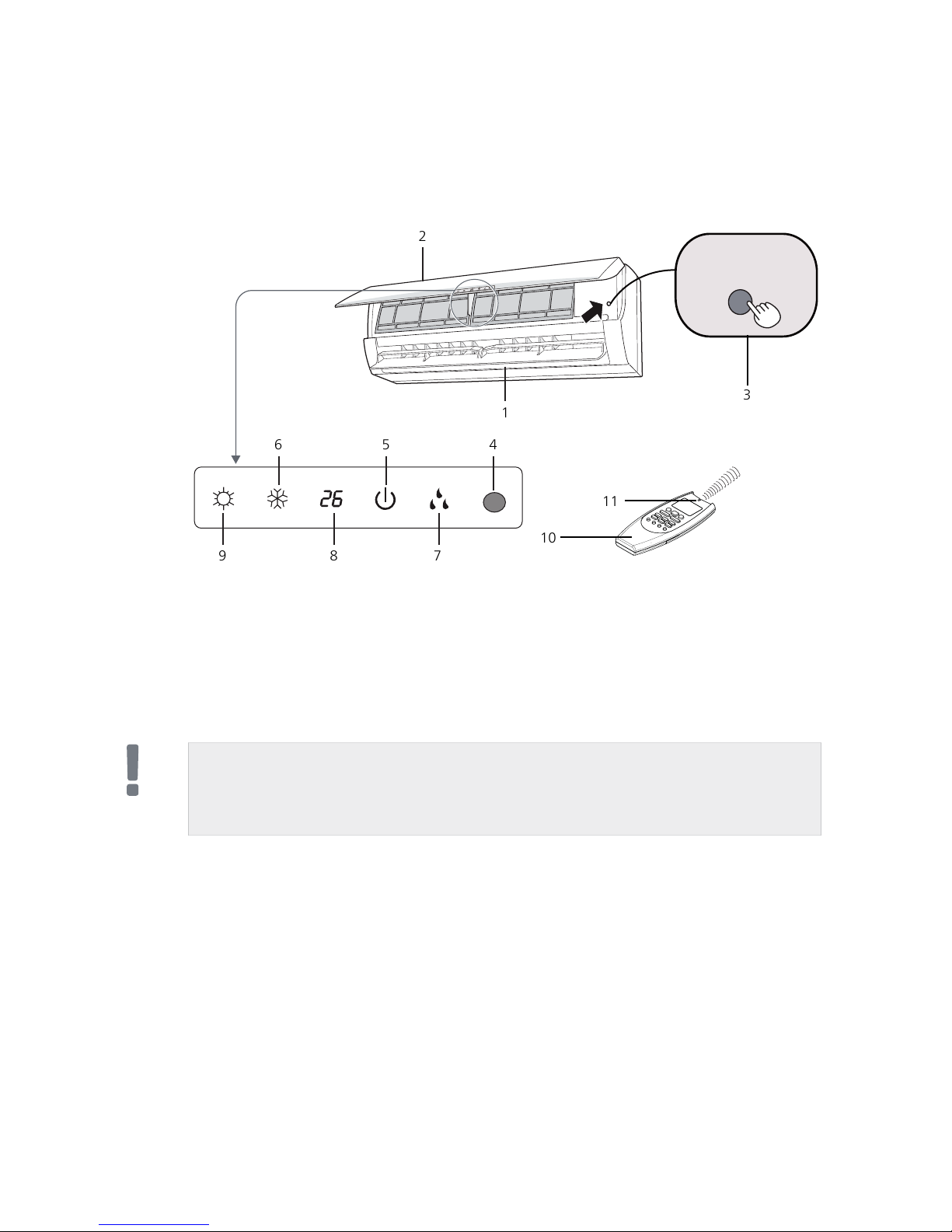

2 Design
1
2
3
456
789
11
10
1. Air outlet: The outlet spreads the treated air in the premises.
2. Air intake: The room air is drawn in and passes through the filter that
eliminates the dust.

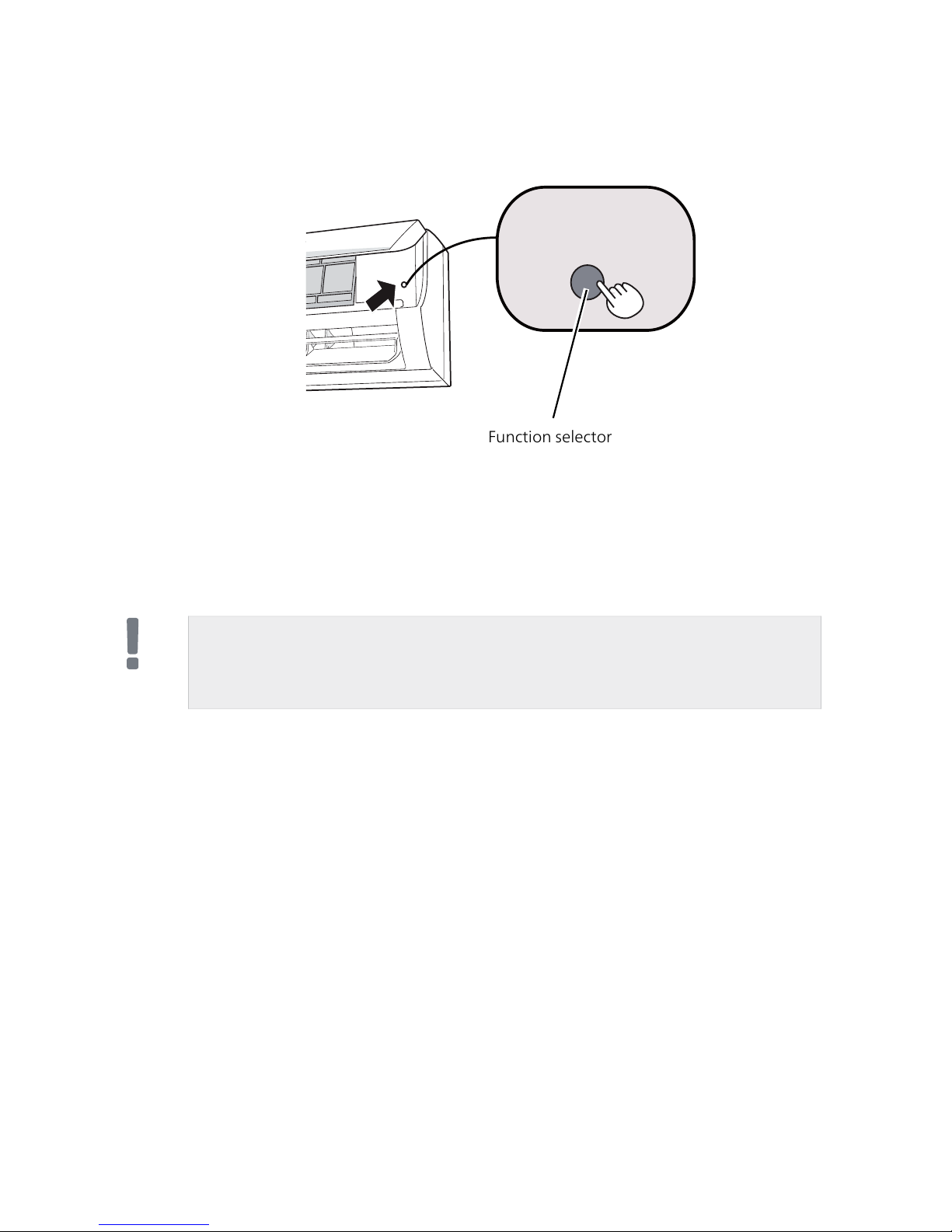

3. Function selector: Press this button to toggle from one function to
another (OFF, COOL and HEAT).
NOTE
The OFF position does not cut the mains supply. Use the main switch to
cut the power supply to the unit.
4. Receiver: It receives signals sent from the remote control.
5. Function lamp: It illuminates when the unit is working (green lamp)
and when it is in standby mode (red lamp).
6. Cooling lamp: Illuminates when the climate unit is in cooling mode.
7. Dehumidification lamp: Illuminates when the climate unit is in dehu-
midifying mode.
8. Display for room temperature and malfunctions: Indicates the
room temperature or any malfunction error codes (see table AUTO-
MATIC FAULT TRACING).
Each time the display sends a new set point value, this is shown for a
few seconds and it then returns to showing the current temperature.
9. Heating lamp: llluminates when the climate unit is in heating mode.
AG-WT10Chapter 2 | Design10

10. Remote control
11. Dehumidification lamp: Illuminates when the climate unit is in dehu-
midifying mode.
TIP
The climate unit can be set so that all indicator lamps are always off,
even during operation. Perform the following on the remote control:
■Select Air ioniser ( ) OFF.
■At the same time, press and for five seconds. Repeat the
procedure to reset to normal mode.
In all fault situations, as read by the climate unit's fault detection system,
the indicator lights activate, even if they are set to be off, according to
the fault to be indicated. See section "Fault codes" on page 38 for more
information.
11AG-WT10Chapter 2 | Design

3 Remote control
Before use
■Remove the cover from the back of the remote control and check that
the four microswitches have been set as in the figure below:
Microswitch
NOTE
The remote control is set with default code 1 and does not usually have
to be changed.
If more than one unit is installed in the same room, code the units 1 - 4
with the remote control (see the procedure in the installer manual).
■Insert two AAA 1.5 V-DC alkaline batteries and follow the polarity indic-
ated on the remote control. The time indicator on the display flashes.
■Press the ST button and set the time. The remote control is now ready
for use.
The batteries last longer than six months depending on how often the
remote control is used. Remove the batteries if the remote control is not
used for long periods of time (longer than one month). Replace the bat-
teries when the indicator lamp for data transfer ( ) on the remote
control flashes or when the climate unit does not respond to the remote
control command.
The remote control batteries contain hazardous substances. When they
reach the end of their life, they must be disposed of in accordance with
applicable legislation.
AG-WT10Chapter 3 | Remote control12

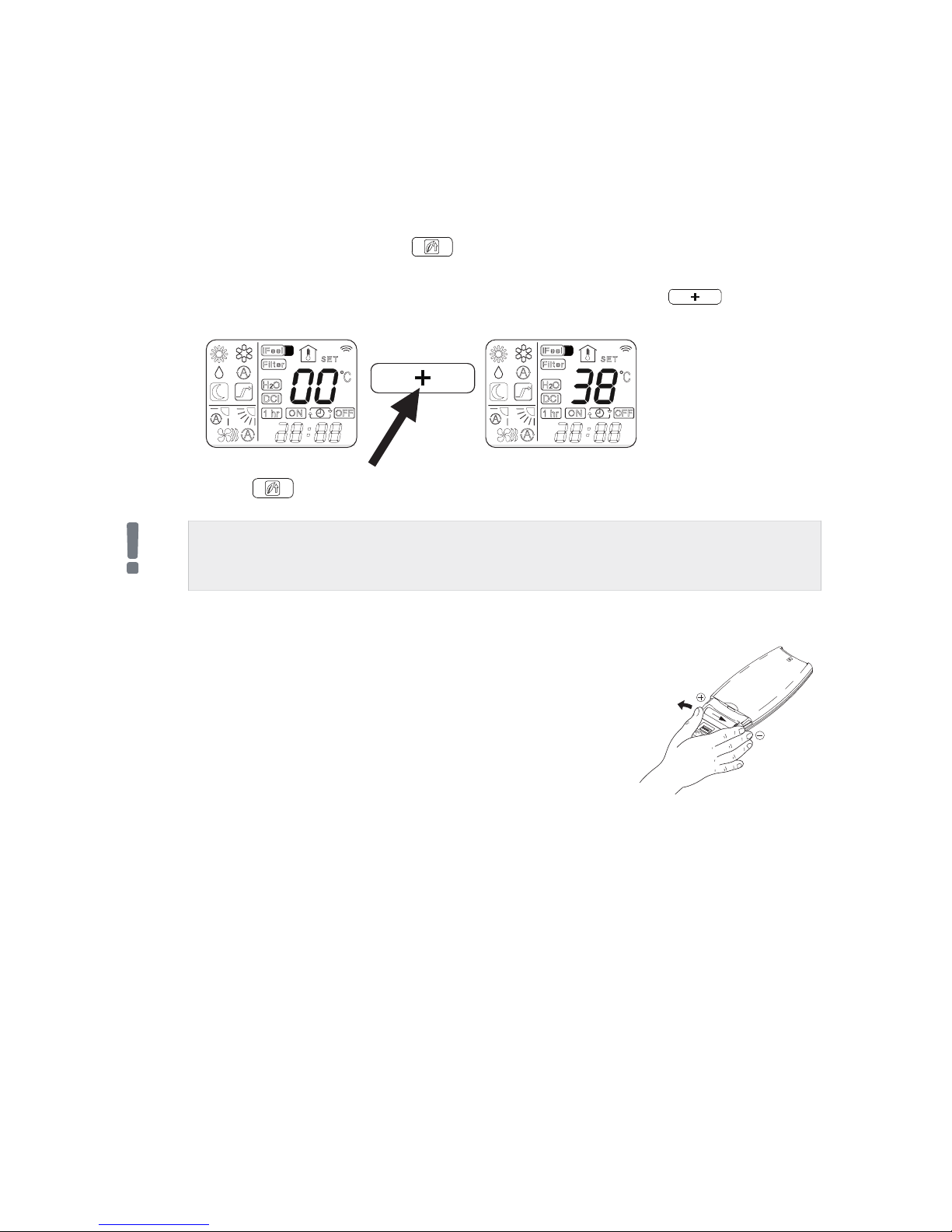

Setting transfer frequency
The unit's receiver receives signals on the frequency 38 kHz. The remote
control, which is supplied with the unit, must be set to transfer the signals
to the same frequency as the receiver. Carry out the following:
■Insert the batteries into the battery compartment.
■Hold the menu button ( ) in for at least 7 seconds (until the ”menu”
function opens).
■The display now shows 00. To select frequency, press repeatedly
until the number "38" appears on the display.
CC
■Hold in again for at least 7 seconds, to exit the menu.
NOTE
This action must be repeated every time the batteries are replaced.
Removing batteries
■Remove the cover.
■Slide the battery to the negative terminal and pull
it out from the positive terminal's side (as illustrated
in the figure).
■Remove the other battery in the same way.
13AG-WT10Chapter 3 | Remote control

Overview
C
A
D
E
F
C
M
K
J
I
H
G
L
B
Temperature sensor
Function selector
Temperature
Air deflector
Fan speed
Night program/
energy saving
IR transmitter
On/Off button
Air ioniser/Menu
Sensor selector iFEEL
Display
High power function
Timer and
time settings
Temperature sensor
AA sensor inside the remote control that reads off the room temperature.
Function selector
BChange the climate unit's function using these buttons.
Temperature
CThe temperature buttons are used to increase/reduce the temperature.
Air deflector
DUse the air deflector to adjust the air distribution.
AG-WT10Chapter 3 | Remote control14

Fan speed
The fan button is used to toggle the fan speed between:
■Automatic fan speed.
■Low fan speed.
■Medium fan speed.
■High fan speed.
E
Night program/energy saving
Press this button to select the "Night program/ECO" function. Read
more about the function on page 23.
F
IR transmitter
The IR transmitters transmit the command to the climate unit's receiver.
G
Display
The display shows operating information when the remote control is
on.
H
On/Off button
Starts or stop the climate unit.
I
Sensor selector iFEEL
Use iFEEL to adjust the room temperature according to the remote
control position. Read more on page 25.
J
Air ioniser/menu
The air ioniser button is used to:
■Activate the function "Air ioniser.
■Enter the menu functions.
K
High power function
The High power function maximises the climate unit's heating or
cooling power. Read more on page 24.
L
Timer and time settings
Use these buttons to change the timer and time settings.
M
15AG-WT10Chapter 3 | Remote control

Function without remote control
Function selector
If the remote control does not work or is missing, use the function selector
as follows:
Stationary climate unit
If you want to start the climate unit, press the function selector to select
the desired mode (COOL or HEAT).
NOTE
The climate unit starts with the fan at HIGH speed. The temperature is
set to 25 °C for the cooling mode and to 21 °C for heating.
Climate unit in operation.
If you want to stop the climate unit, press the function selector until the
unit switches to standby-mode (red function lamp).
AG-WT10Chapter 3 | Remote control16

4 Function modes

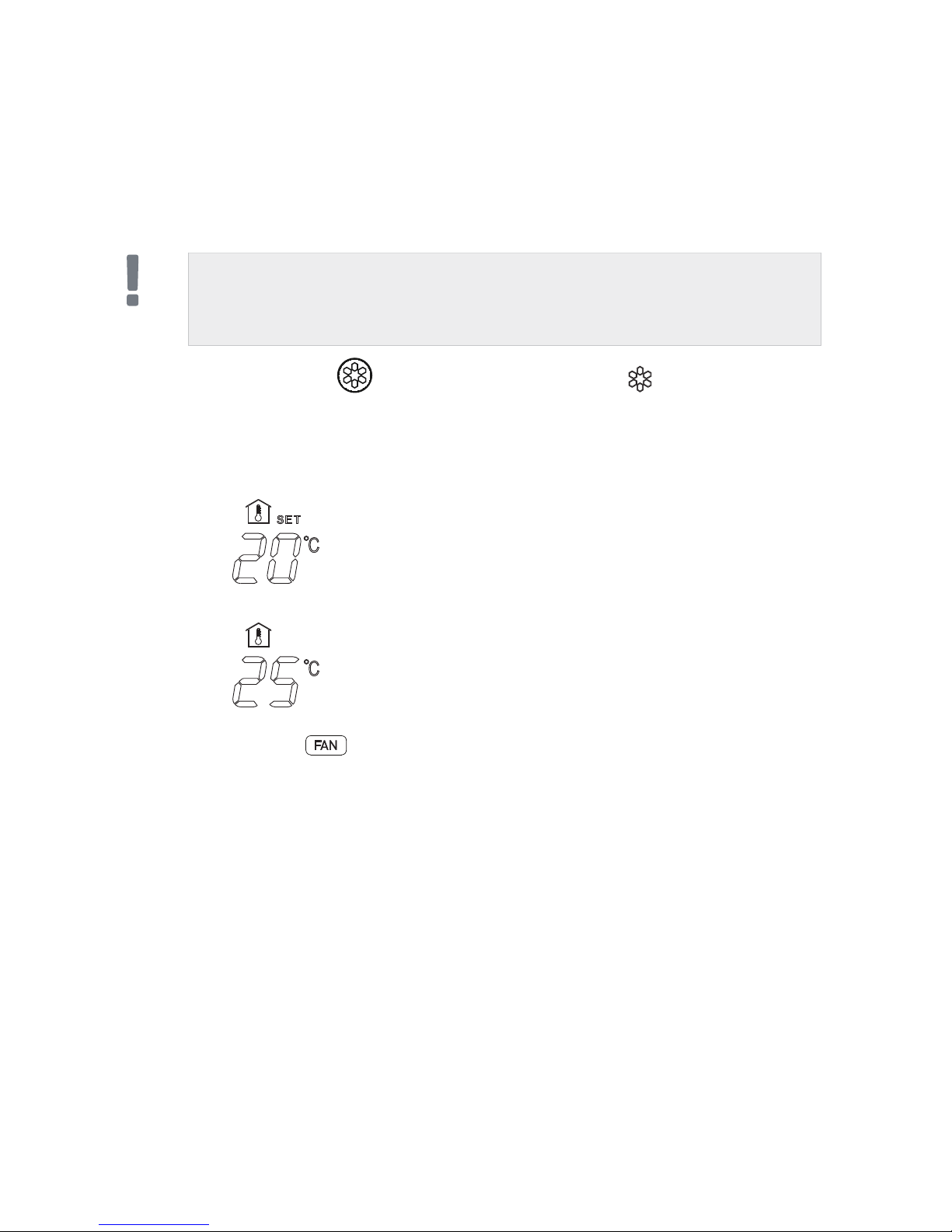

Cooling
NOTE
Check that the unit is connected to the mains supply and that the func-
tion lamp is lit.
1. Press button until the symbol for cooling ( ) appears on the
display.
2. Press the +/- button (temperature selection) to set the desired temper-
ature (the setting range can be set between 10 °C and 32 °C).
The display indicates the selected temperature value.
Once five minutes have passed after setting the desired
temperature, the display resumes to showing the room
temperature.
3. Press the button to set the fan speed.
17AG-WT10Chapter 4 | Function modes

Heating
1. Press button until the symbol for heating ( ) appears on the
display. If the symbol lights continuously the fan stops at the achieved,
desired temperature. If it flashes, the fan is running even after the
desired temperature has been reached.
2. Press the +/- button (temperature selection) to set the desired temper-
ature (the setting range can be set between 10 °C and 32 °C).
The display indicates the selected temperature value.
Once five minutes have passed after setting the desired
temperature, the display resumes to showing the room
temperature.
3. Press the button to set the fan speed.
NOTE
After the heating function is activated, the fan stops. This is because the
”Prevention of cold air” function is active and activates the fan's normal
function, only after the indoor unit's heat exchanger is sufficiently warm.
During this period the function lamp stays lit (red lamp).
Defrosting the outdoor unit's heat exchanger
When the outdoor temperature drops below zero on the external heat
exchanger, ice builds-up that reduces the heating output. When this occurs,
a function activates that defrosts the heat exchanger. In these operating
conditions, the internal fan stops. The heating function resumes after a
few minutes, depending on the room and outdoor temperature.
AG-WT10Chapter 4 | Function modes18
