Nibe AMS 10 User manual

User manual
LEK
LEK
LEK
LEK
UN
AMS 10
AMS 10-6 / 10-8 / 10-12 / 10-16
Air/water heat pump
UHB EN 1746-1
331961

Table of Contents
41 Important information
4Installation data
5Safety information
7Service code and serial number
8AMS 10 – An excellent choice
102 The heat pump – the heart of the house
10Heat pump function
12Contact with AMS 10
13Maintenance of AMS 10
183 Disturbances in comfort
18Troubleshooting
194 Technical data
205 Glossary
24Item register
27Contact information
3AMS 10Table of Contents |

1 Important information
Installation data
AMS 10Product
Serial number
Service code
Installation date
Installer
Always specify the service code and serial number
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
AMS 10Chapter 1 | Important information4

Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. The product
is intended for use by experts or trained users in shops,
hotels, light industry, farming and similar environ-
ments.
Children must be instructed/supervised to ensure that
they do not play with the appliance.
Do not allow children to clean or maintain the appli-
ance unsupervised.
This is an original manual. It may not be translated
without the approval of NIBE.
Rights to make any design or technical modifications
are reserved.
©NIBE 2017.
NOTE
AMS 10 must be installed via an isolator switch with
a minimum breaking gap of 3 mm.
NOTE
If the supply cable is damaged, only NIBE, its service
representative or similar authorised person may re-
place it to prevent any danger and damage.
5AMS 10Chapter 1 | Important information

Symbols
NOTE
This symbol indicates danger to person or machine .
Caution
This symbol indicates important information about what you should
observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
The CE mark is obligatory for most products sold in the EU, regardless
of where they are made.
CE
Classification of enclosure of electro-technical equipment.IP21
Danger to person or machine.
!
Read the User Manual.
AMS 10Chapter 1 | Important information6

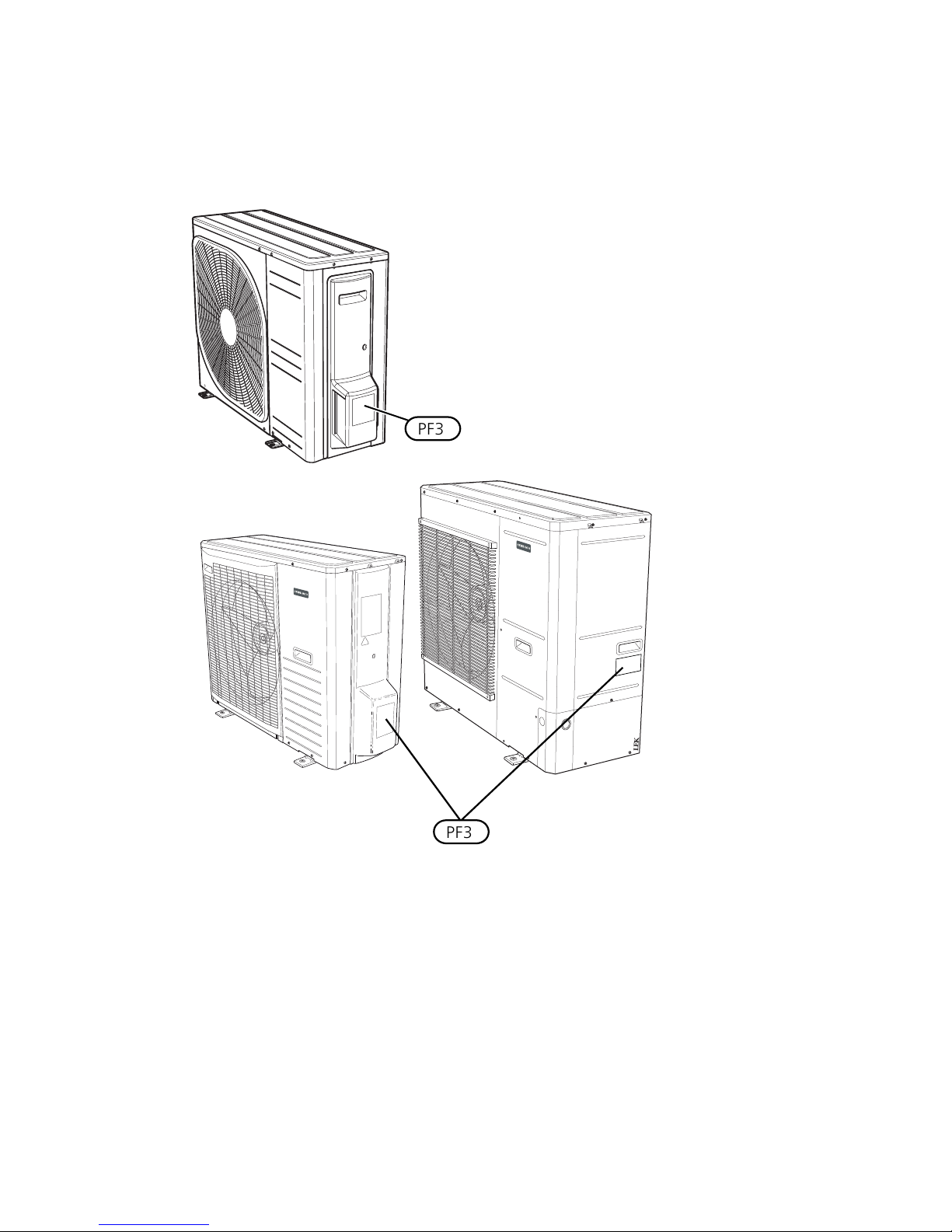

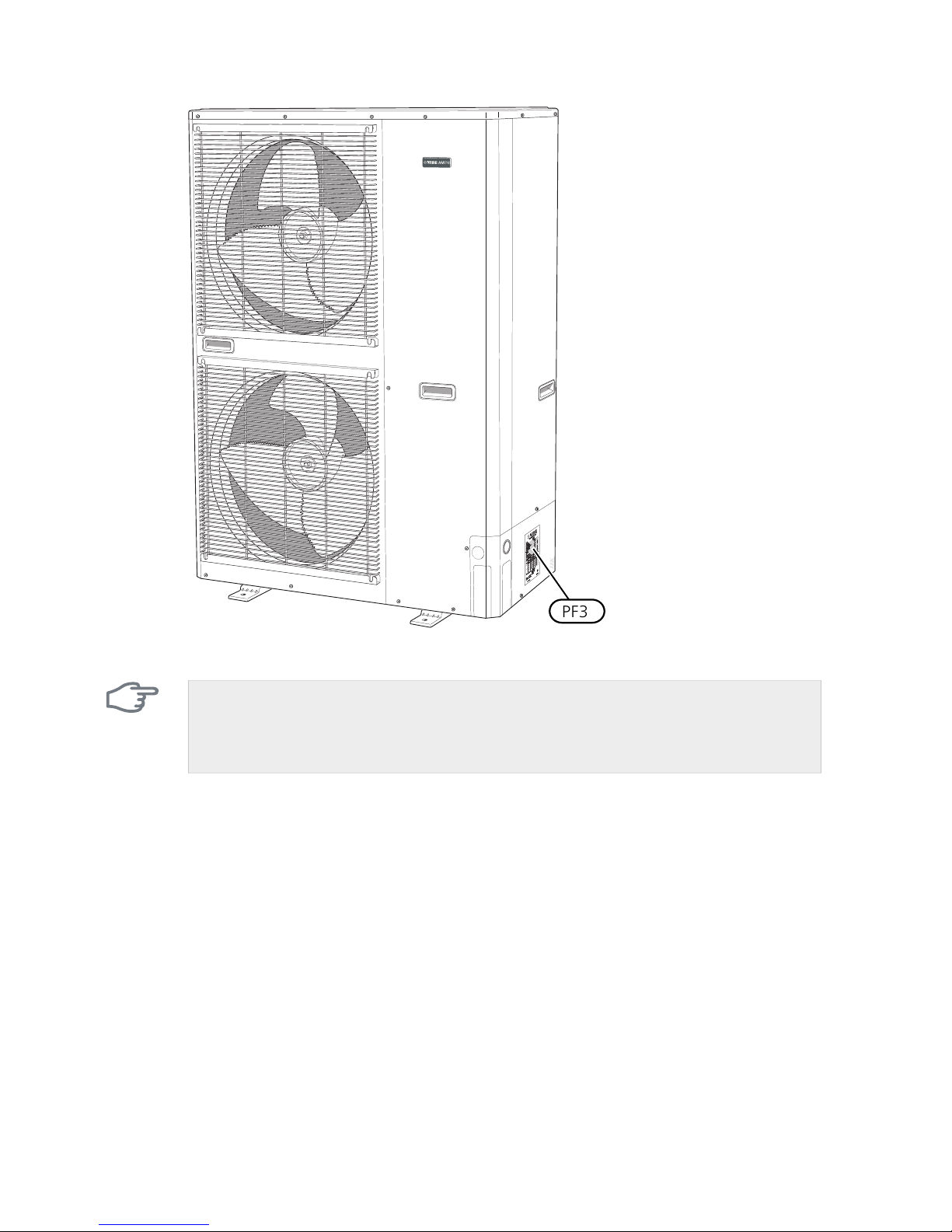

Service code and serial number
You can find the service code and the serial number (PF3) on the right-
hand side of AMS 10.
PF3
LEK
PF3
7AMS 10Chapter 1 | Important information

LEK
PF3
Caution
You need the product’s service code and serial number for servicing and
support.

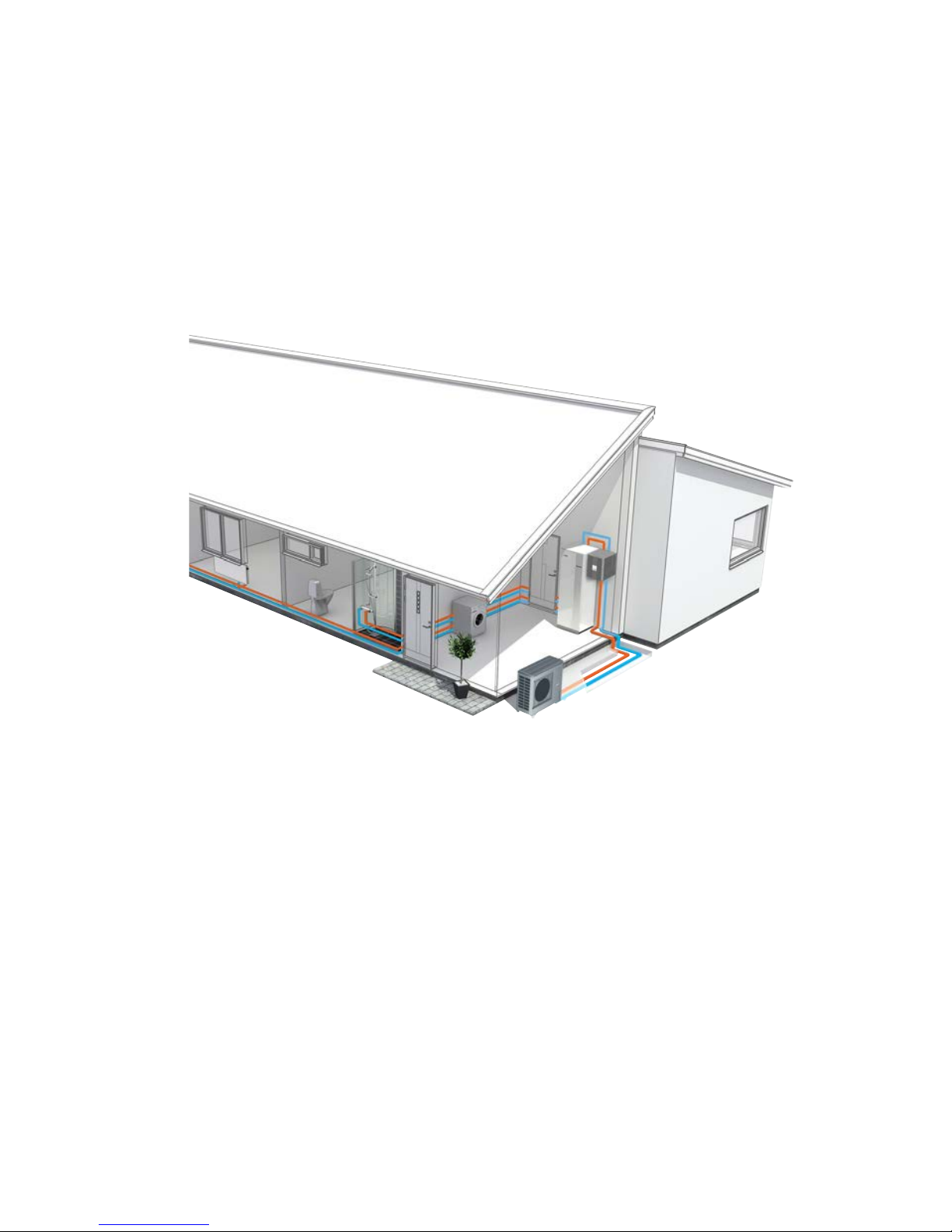

AMS 10 – An excellent choice
AMS 10 together with SPLIT box HBS 05 and indoor module (VVM) or
control module (SMO) is an air/water heat pump system, specially de-
veloped for the Nordic climate, which utilises the outdoor air as its energy
source.
AMS 10 together with a SPLIT box HBS 05 is intended for connection to
water-borne heating systems and can both heat hot water effectively at
high outdoor temperatures and provide high capacity to the heating sys-
tem at low outdoor temperatures.
Excellent properties for AMS 10:
■Efficient twin rotary compressor
Efficient twin rotary compressor that operates at temperatures down
to -20 °C.
AMS 10Chapter 1 | Important information8

■Intelligent control via indoor module VVM or control module SMO
AMS 10 together with SPLIT box HBS 05, is connected to the indoor
module NIBE VVM with intelligent control or the control module SMO
for optimum control of the heat pump.
■Fan
AMS 10 has automatic capacity regulation of the fan.
■Long service life
The material has been chosen for a long service life and good durability.
■Many possibilities
AMS 10 together with SPLIT box HBS 05 is intended to be combined
with NIBE indoor module VVM / NIBE control module SMO. There is a
wide range of system solutions and accessories for all of our indoor
modules and control modules.
■Silent operation
AMS 10 has a silent operation function that allows scheduling when
AMS 10 must operate at an even quieter noise level.
9AMS 10Chapter 1 | Important information

2 The heat pump – the heart of
the house

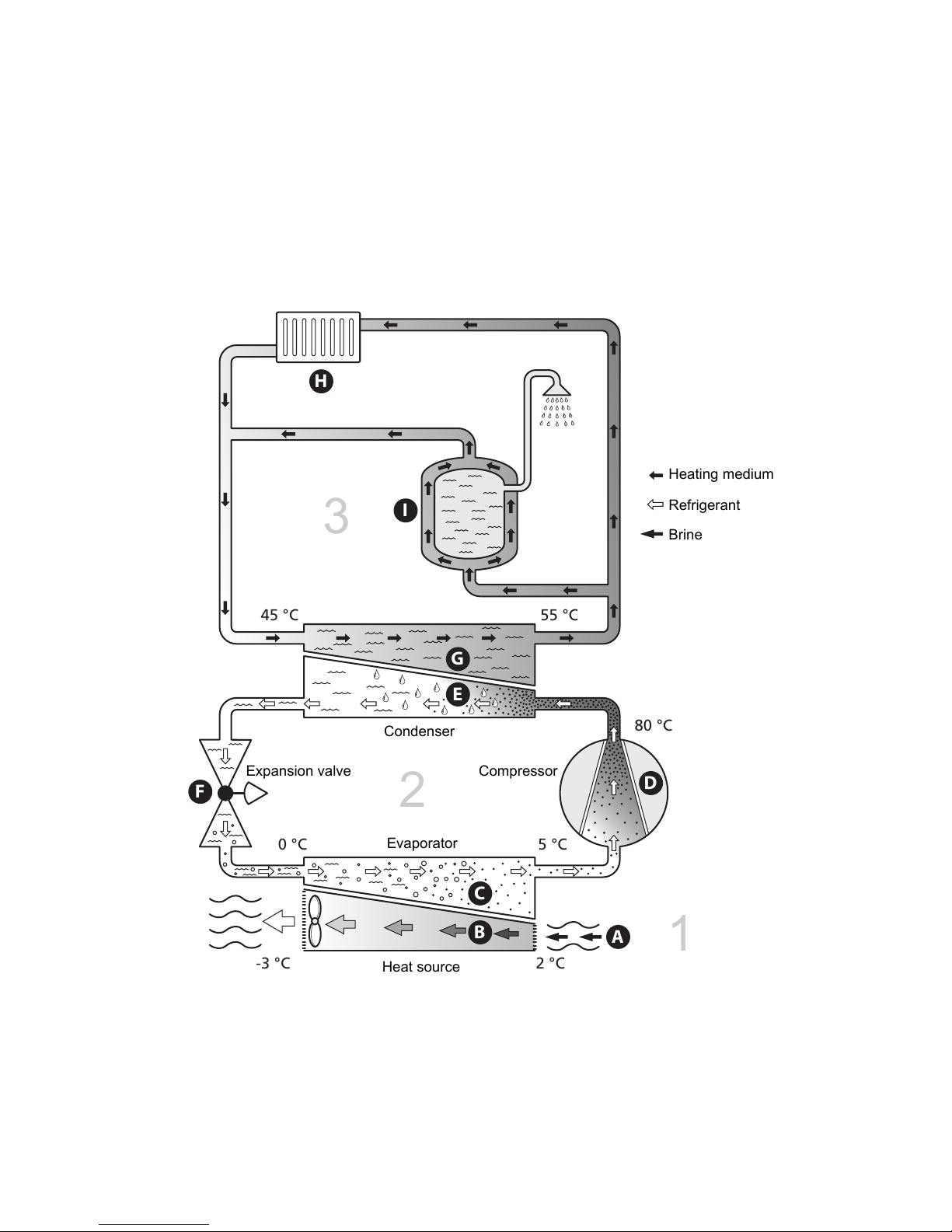

Heat pump function
Värmebärare
Köldmedium
Uteluft
Förångare
Kondensor 80 °C
2 °C-3 °C
5 °C0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
Heating medium
Värmebärare
Köldmedium
Köldbärare
Värmekälla
Förångare
Kondensor 100 °C
0 °C-3 °C
-2 °C
50 °C40 °C
Expansionsventil Kompressor
A
D
F
H
B
C
E
G
Brine
Refrigerant
Evaporator
Condenser
Expansion valve Compressor
Heat source 1
2
3
The temperatures are only examples and may vary between different installations and
time of year.
AMS 10Chapter 2 | The heat pump – the heart of the house10

An air/water-heat pump can use the outdoor air to heat up a home. The
conversion of the outdoor air's energy to residential heating occurs in
three different circuits. In the brine circuit (1), free heat energy is retrieved
from the surroundings and transported to the heat pump. The heat pump
increases the retrieved heat's low temperature to a high temperature in
the refrigerant circuit, (2). The heat is then distributed around the building
by the heating medium circuit (3).
Outdoor air
The outdoor air is sucked into the heat pump.
A
The fan then routes the air to the heat pump’s evaporator. Here, the air
releases the heating energy to the refrigerant and the air's temperature
drops. The cold air is then blown out of the heat pump.
B
Refrigerant circuit
A gas circulates in a closed system in the heat pump, a refrigerant, which
also passes the evaporator. The refrigerant has a very low boiling point. In
the evaporator the refrigerant receives the heat energy from the outdoor
air and starts to boil.
C
The gas that is produced during boiling is routed into an electrically
powered compressor. When the gas is compressed, the pressure increases
and the gas's temperature increases considerably, from 5 °C to approx. 80
°C.
D
From the compressor, gas is forced into a heat exchanger, condenser,
where it releases heat energy to the heating system in the house,
whereupon the gas is cooled and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve,
where the pressure drops so that the refrigerant returns to its original
temperature. The refrigerant has now completed a full cycle. It is routed
to the evaporator again and the process is repeated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved
by the climate system's water, heating medium, which is heated to 55 °C
(supply temperature).
G
The heating medium circulates in a closed system and transports the heated
water's heating energy to the house water heater and radiators/heating
coils.
H
The temperatures are only examples and may vary between different installations and
time of year.
11AMS 10Chapter 2 | The heat pump – the heart of the house

Contact with AMS 10
AMS 10 is controlled in various ways depending on your system. Your
contact with the heat pump takes place via SPLIT box (HBS 05) and your
indoor module (VVM) or control module (SMO). See relevant manual for
more information.
During installation, the installation engineer adjusts the necessary settings
for the heat pump in the indoor module or control module, so that the
heat pump works optimally in your system.
AMS 10Chapter 2 | The heat pump – the heart of the house12

Maintenance of AMS 10
Regular checks
Your SPLIT box only requires minimal maintenance. The condensation
hose should be checked to ensure that condensation can run out to a
drain. If there is any suspicion of leakage, pipe connections on AMS 10
should be checked.
NOTE
Insufficient oversight can cause serious damage to AMS 10 which is not
covered by the guarantee.
Checking grilles and bottom panel on AMS 10
Check that the inlet grille is not clogged by leaves, snow or anything else
regularly throughout the year.
You should be vigilant during windy conditions and/or in the event of
snow as the grilles can become blocked.
Also check that the drain holes in the bottom panel (three) are free from
dirt and leaves.
Regularly check that condensation is routed away correctly through the
condensation pipe. Ask your installer for assistance if required.
13AMS 10Chapter 2 | The heat pump – the heart of the house

Keep free of snow and ice
LEK
LEK
LEK
LEK
Prevent snow from building up and covering the grilles and drain holes on AMS 10.
LEK
LEK
LEK
LEK
Keep free of snow and/or ice.
AMS 10Chapter 2 | The heat pump – the heart of the house14

Cleaning the outer casing
If necessary the outer casing can be cleaned using a damp cloth.
Care must be exercised so that the heat pump is not scratched when
cleaning. Avoid spraying water into the grilles or the sides so that water
penetrates into AMS 10. Prevent AMS 10 coming into contact with alkaline
cleaning agents.
Silent mode
The heat pump can be set to "silent mode", which reduces the heat pump's
noise level. The function is useful when AMS 10 must be placed in noise
sensitive areas. The function should only be used for limited periods as
AMS 10 may not reach its dimensioned output.
Saving tips
Your heat pump installation produces heat and cooling and/or hot water.
This occurs via the control settings you made.
Factors that affect the energy consumption are, for example, indoor tem-
perature, hot water consumption, the insulation level of the house and
whether the house has many large window surfaces. The position of the
house, e.g. wind exposure is also an affecting factor.
Also remember:
■Open the thermostat valves completely (except in the rooms that are to
be kept cooler for various reasons, e.g. bedrooms). The thermostats slow
the flow in the heating system, which the heat pump wants to com-
pensate with increased temperatures. It then works harder and consumes
more electrical energy.
■Reduce or adjust the settings for heating in any external control systems.
Power consumption
Energiförbrukning fördelat över året
jan feb mars april maj juni juli aug sep okt nov dec
Månad
% av årsförbrukningen
0%
5%
10%
15%
20%
25%
The air/water heat pump's energy distribution spread across the year
Month
Jan Feb Mar April May June July Aug Sep Oct Nov Dec
% of annual
consumption
15AMS 10Chapter 2 | The heat pump – the heart of the house

Increasing the indoor temperature one degree increases power consump-
tion by approx. 5%.
Domestic electricity
In the past it has been calculated that an average Swedish household has
an approximate annual consumption of 5000 kWh domestic electri-
city/year. In today's society it is usually between 6000-12000 kWh/year.
Approx.
annual
con-
sump-
tion
(kWh)
Normal Output
(W)
Equipment
StandbyOpera-
tion
3802200TV (Operation: 5 h/day, Standby: 19 h/day)
901011Digital box (Operation: 5 h/day, Standby:
19 h/day)
45515DVD (Operation: 2 h/week)
672160TV games console (Operation: 6 h/week)
50140Radio/stereo (Operation: 3 h/day)
1202100Computer incl. screen (Operation: 3 h/day,
standby 21 h/day)
175-60Bulb (Operation 8 h/day)
58-20Spot light, Halogen (Operation 8 h/day)
165-100Cooling (Operation: 24 h/day)
380-120Freezer (Operation: 24 h/day)
365-1500Stove, hob (Operation: 40 min/day)
310-3000Stove, oven (Operation: 2 h/week)
730-2000Dishwasher, cold water connection (Opera-
tion 1 time/day)
730-2000Washing machine (Operation: 1 times/day)
730-2000Tumble drier (Operation: 1 times/day)
100-1000Vacuum cleaner (Operation: 2 h/week)
50-400Engine block heater (Operation: 1 h/day, 4
months a year)
100-800Passenger compartment heater (Operation:
1 h/day, 4 months a year)
These values are approximate example values.
AMS 10Chapter 2 | The heat pump – the heart of the house16

Example: A family with 2 children live in a house with 1 flat-screen TV, 1
digital box, 1 DVD player, 1 TV games console, 2 computers, 3 stereos, 2
bulbs in the WC, 2 bulbs in the bathroom, 4 bulbs in the kitchen, 3 bulbs
outside, a washing machine, tumble drier, fridge, freezer, oven, vacuum
cleaner, engine block heater = 6240 kWh domestic electricity/year
Energy meter
Check the accommodation's energy meter regularly, preferably once a
month. This will indicate any changes in power consumption.
Newly built houses usually have twin energy meters, use the difference to
calculate your domestic electricity.
New builds
Newly built houses undergo a drying out process for a year. The house
can then consume significantly more energy than it would thereafter.
After 1-2 years the heating curve should be adjusted again, as well as the
offset heating curve and the building's thermostat valves, because the
heating system, as a rule, requires a lower temperature once the drying
process is complete.
17AMS 10Chapter 2 | The heat pump – the heart of the house

3 Disturbances in comfort
Troubleshooting
NOTE
Work behind covers secured by screws may only be carried out by, or
under the supervision of, a qualified installation engineer.
NOTE
AMS 10 communicates all alarms to the indoor module/control module
(VVM / SMO).
Basic actions
■Make sure that the air flow to AMS 10 is not blocked by foreign objects.
■Check that AMS 10 does not have any external damage.
Ice build-up in the fan, grille and/or fan cone on AMS 10
Contact your installer!
Large amount of water below AMS 10
Check that the water drainage via the condensation pipe (KVR 10) is
working.
AMS 10Chapter 3 | Disturbances in comfort18

4 Technical data
Detailed technical specifications for this product can be found in the in-
stallation manual (www.nibe.eu).
19AMS 10Chapter 4 | Technical data

5 Glossary
Additional heat
The additional heat is the heat produced in addition to the heat supplied
by the compressor in your heat pump. Additional heaters can be for ex-
ample, immersion heater, electric heater, solar power system,
gas/oil/pellet/wood burner or district heating.
Ambient temperature sensor
A sensor that is located outdoors on or close to the heat pump. This sensor
tells the heat pump how hot it is where the sensor is located.
Balance temperature
The balance temperature is the outdoor temperature when the heat
pump’s stated output is equal to the building’s output requirement. This
means that the heat pump covers the whole building’s output requirement
down to this temperature.
Charge coil
A charge coil heats the domestic hot water (tap water) in the water heater
with heating water (heating medium) from AMS 10.
Charge pump
See "Circulation pump".
Circulation pump
Pump that circulates liquid in a pipe system.
Climate system
Climate systems can also be called heating systems. The building is heated
using radiators, under floor coils or convector fans.
Coil tank
A heater with a coil in it. The water in the coil heats the water in the
heater.
Compressor
Compresses the gas state refrigerant. When the refrigerant is compressed,
the pressure and the temperature increase.
AMS 10Chapter 5 | Glossary20
