Nibe VVM 310 EMK User guide

Installer manual
APH
NIBE VVM 310
EMK
Indoor module
IHB EN 1750-8
231175

Quick guide
Navigation
Ok button (confirm/select)
Back button (back/undo/exit)
Control knob (move/increase/reduce)
A detailed explanation of the button functions can be found on page 42.
How to scroll through menus and make different settings is described on page 43.
Set the indoor climate
2X
MY INSTALLATION
INDOOR CLIMATE HOT WATER
INFO
The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode
in the main menu.
Increase hot water volume
2X
1X INDOOR CLIMATE HOT WATER
MY INSTALLATION INFO
To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet) and
then press the OK button twice.

Table of Contents
41 Important information
4Safety information
72 Delivery and handling
7Transport
7Assembly
7Supplied components
8Removing the covers
93 Indoor module's design
9Component locationVVM 310
10List of components
114 Pipe connections
11General pipe connections

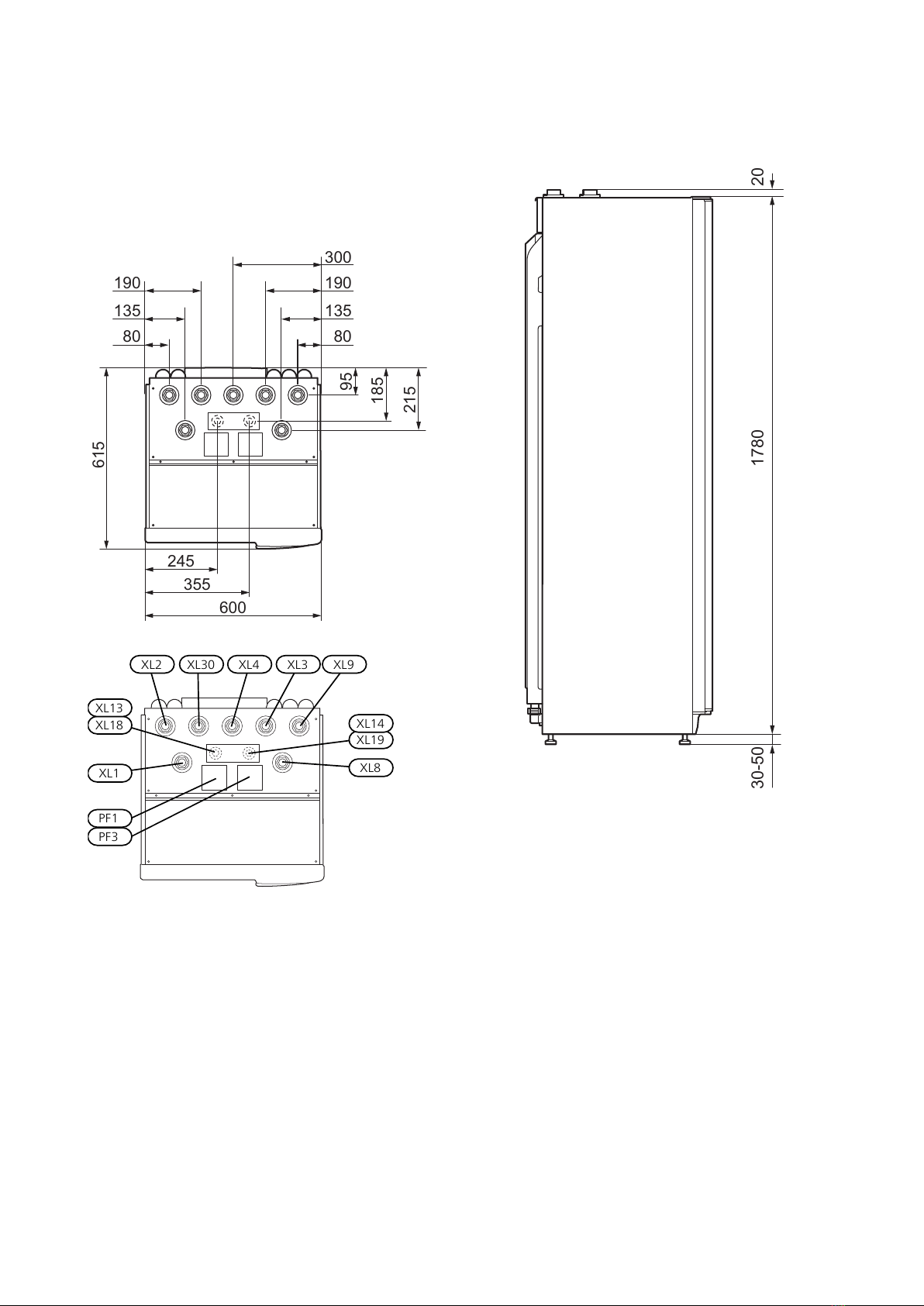

13Dimensions and pipe connections

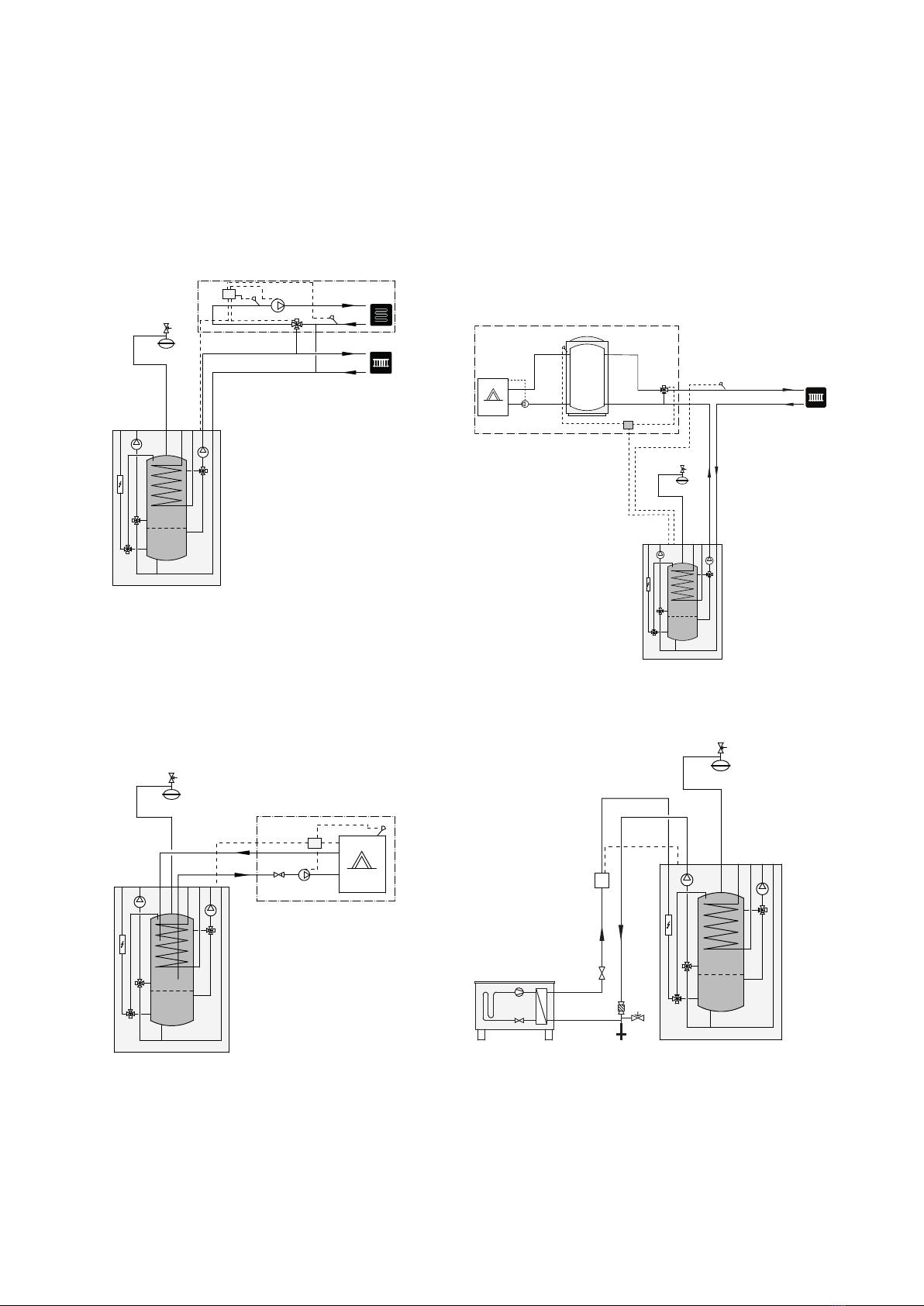

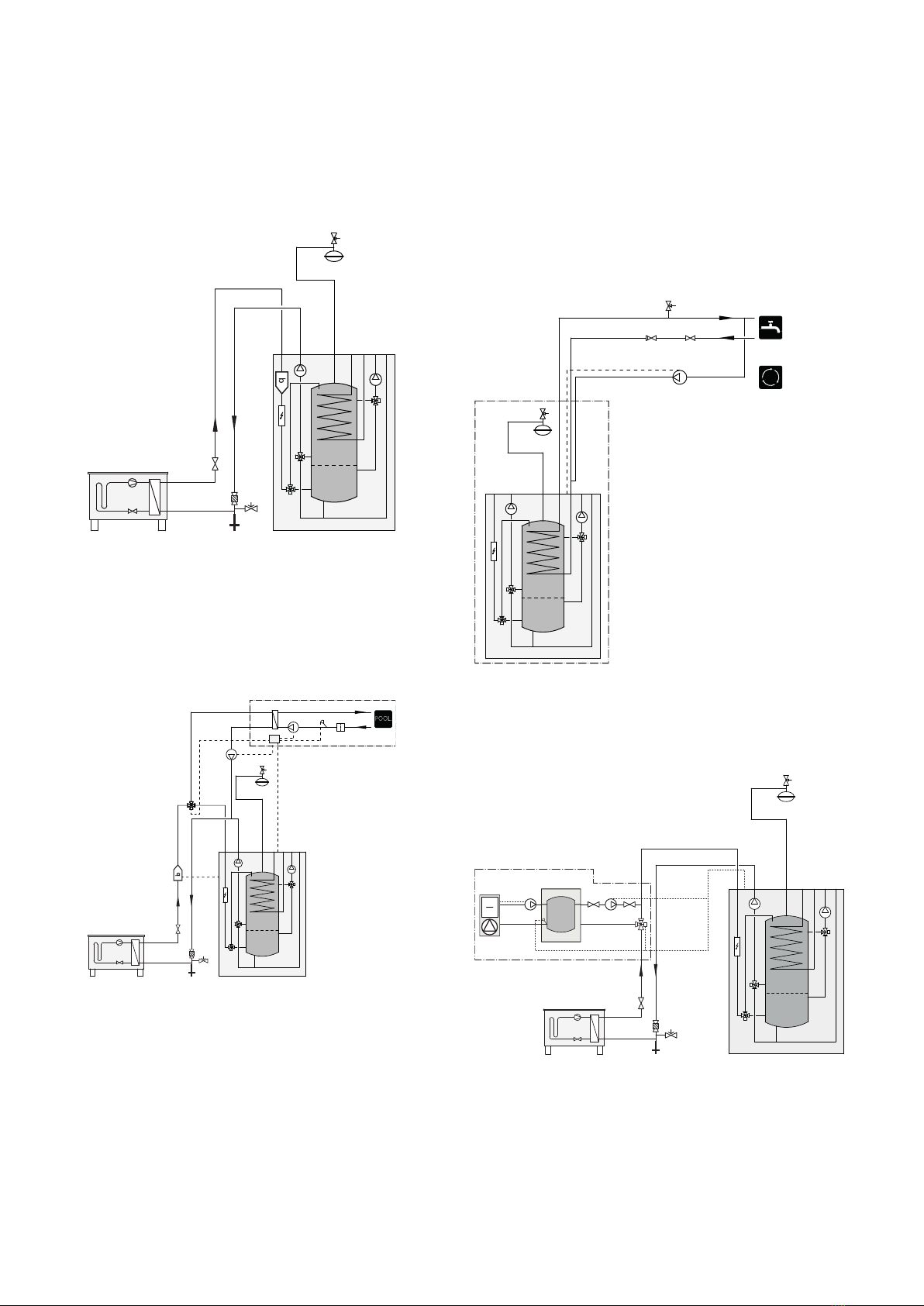

14Installation alternative
245 Electrical connections
24General
27Connections
29Settings
31Optional connections
35Connecting accessories
366 Commissioning and adjusting
36Preparations
36Filling and venting
36Start-up and inspection
39Setting the cooling/heating curve
40Setting hot water circulation
40Pool
40SG Ready
427 Control - Introduction
42Display unit
43Menu system
468 Control - Menus
46Menu 1 - INDOOR CLIMATE
47Menu 2 - HOT WATER
47Menu 3 - INFO
48Menu 4 - MY SYSTEM
49Menu 5 - SERVICE
589 Service
58Service actions
6110 Disturbances in comfort
61Info-menu indoor module
61Troubleshooting
6311 Accessories
6512 Technical data
65Dimensions and setting-out coordinates
66Hot water capacity
67Technical specifications
69Electrical wiring diagram, 3x400 V
74Item register
79Contact information
3Table of Contents |NIBE VVM 310

Safety information
This manual describes installation and service procedures
for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and under-
stand the hazards involved. Children shall
not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2017.
MinMaxSystem
pressure
0.01 MPa
(0.1 bar)
0.3 MPa
(3 bar)
Heating
medium
0.01 MPa
(0.1 bar)
1.0 MPa
(10 bar)
Domestic
water
NOTE
Water may drip from the safety
valve's overflow pipe, so this pipe
must be inclined along its entire
length to prevent water pockets. It
must also be frost-proof. The over-
flow pipe must be visible and its
outlet must be open.
NOTE
VVM 310 must be installed with a
disconnection option on the supply
cable. Minimum cable area must be
sized according to the fuse rating
used. All installations must be car-
ried out in accordance with current
norms and directives.
Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should observe when maintain-
ing your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE mark is obligatory for most products sold
in the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical
equipment.
IP21
Danger to person or machine.
!
Read the User Manual.
NIBE VVM 310Chapter 1 | Important information4
1 Important information

Serial number
You can find the serial number both halfway up the
product, to the right at the bottom of the front cover,
as well as in menu 3.1.
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type of
service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current legis-
lation.
5Chapter 1 | Important informationNIBE VVM 310

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
Heating medium (page 16)
System flushed
System vented
Expansion vessel
Particle filter
Safety valve
Shut off valves
Boiler pressure
Connected according to outline diagram
Hot water (page 16)
Shut off valves
Mixing valve
Safety valve
Electricity (page 24)
Connected communication
Circuit fuses
Fuses, indoor module
Fuses property
Outside sensor
Room sensor
Current sensor
Safety breaker
Earth circuit-breaker
Setting of emergency mode thermostat
Miscellaneous
Docked to
NIBE VVM 310Chapter 1 | Important information6

Transport
VVM 310 should be transported and stored vertically in
a dry place. However, the VVM 310 may be carefully laid
on its back when being moved into a building.
Assembly
■Position VVM 310 on a firm base that can take the
weight. Use the product's adjustable feet to obtain a
horizontal and stable set-up.
30 - 50 mm
30 - 50 mm
15 - 40 mm
20-55 mm
■As water can exit the safety valve* for hot water, when
connected to VVM 310, the space where VVM 310 is
located must be provided with a floor drain.
*Not enclosed.
Installation area
Leave a free space of 800 mm in front of the product.
All service on VVM 310 can be carried out from the front.
800
NOTE
Leave 10 – 25 mm free space between the in-
door module and the wall behind for routing
of cables and pipes.
Supplied components
Room sensorOutside sensor
LEK
LEK
LEK
Current sensor
Location
The kit of supplied items is placed on top of the product.
7Chapter 2 | Delivery and handlingNIBE VVM 310
2 Delivery and handling

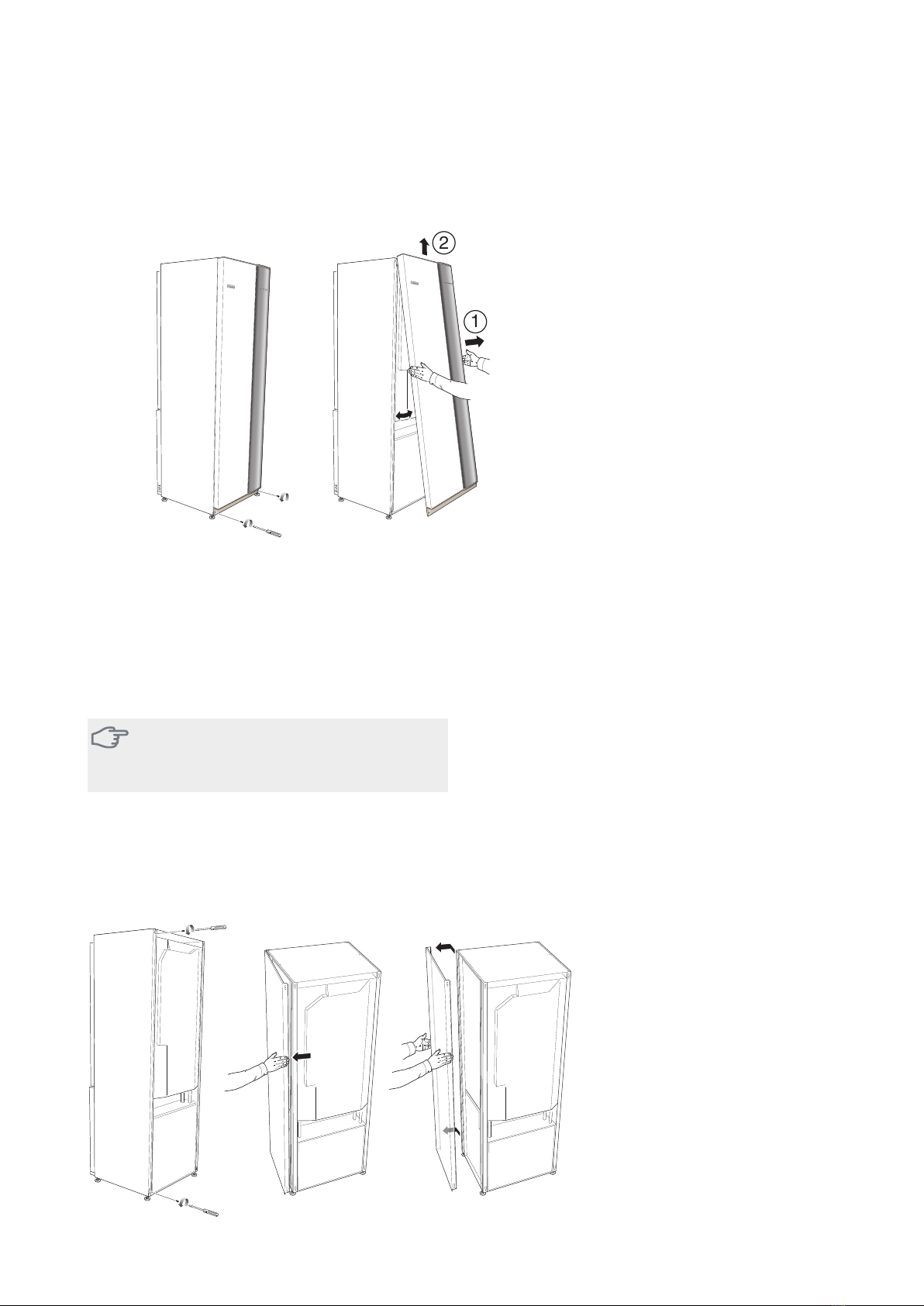

Removing the covers
Front cover
1
2
LEK
LEK
LEK
LEK
LEK
1. Remove the screws from the lower edge of the front
panel.
2. Lift the panel out at the bottom edge and up.
Side covers
The side covers can be removed to facilitate the installa-
tion.
Caution
50 mm space required to remove the side
panels.
1. Remove the screws from the upper and lower edges.
2. Twist the cover slightly outward.
3. Move the hatch backwards and slightly to the side.
4. Pull the cover to one side.
5. Pull the hatch forwards.
LEK
LEK
LEK
NIBE VVM 310Chapter 2 | Delivery and handling8

Component locationVVM 310
Wilo
Wilo
VVM 310
VVM 310
AA3
QM1
EB1
FD1
FA1
PF3
PF1
GP1
QM20
AA2
UB1
AA4-XJ4
AA4-XJ3
GP12
BT63
UB2
BF1*
BT6
BT54
XL30
AA7
XL18
XL3XL4
XL8
XL19
QN11
AA1-X3
BT30
AA1-X1
AA1-X7
AA1-S2
AA1
AA3-X4
BP5 QN35
UB1
UB2
K1
PF3
XL1
XL2
BT3
BT2
AA4
W130
SF1
QN10
BT7
XL9
PF1
PF4
*Applies to VVM 310 EMK. Available as accessory EMK 310 for other markets.
9Chapter 3 | Indoor module's designNIBE VVM 310
3 Indoor module's design

List of components
Pipe connections
Connection, heating medium supply line G20 int.XL1
Connection, heating medium return line G20 int.XL2
Connection, cold water G20 int.XL3
Connection, hot water G20 int.XL4
Connection, docking from heat pump G20 int.XL8
Connection, docking to heat pump G20 int.XL9
Connection, docking in high temp Ø22 mmXL18
Connection, docking out high temp Ø22 mmXL19
Connection, expansion tank G20 int.XL30
HVAC components
Circulation pumpGP1
Charge pumpGP12
Drain valve, climate systemQM1
Mixing valve, additionQN11
Venting, climate systemQM20
Reversing valve, climate system/water heating,
flow line
QN10
Reversing valve, climate system/water heating,
return line
QN35
Sensors etc.
Manometer, heating systemBP5
Temperature sensor, heating medium flow (not
visible in image)
BT2
Temperature sensor, heating medium return (not
visible in image)
BT3
Temperature sensor, hot water, chargingBT6
Temperature sensor, hot water, topBT7
Thermostat, standby modeBT30
Temperature sensor, external dockingBT54
Temperature sensor, heating medium supply after
immersion heater
BT63
Electrical components
Immersion heater cardAA1
AA1-S2 Switch (DIP switch) on circuit board
AA1-X1 Terminal block incoming
AA1-X3 Terminal block, immersion heater
AA1-X7 Terminal block, immersion heater
Base cardAA2
Input circuit boardAA3
AA3-X4 Terminal block, current sensors
Display unitAA4
AA4-XJ3 USB socket
AA4-XJ4 Service socket
Extra relay circuit boardAA7
Energy meterBF1*
Immersion heaterEB1
Miniature circuit-breakerFA1
Temperature limiterFD1
Auxiliary relay, emergency mode.K1
SwitchSF1
Network cable for NIBE UplinkTM W130
Miscellaneous
Rating platePF1
Serial number platePF3
Sign, pipe connectionsPF4
Cable glandUB1
Cable glandUB2
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
*Applies to VVM 310 EMK. Available as accessory EMK 310 for other markets.
NIBE VVM 310Chapter 3 | Indoor module's design10

General pipe connections
Pipe installation must be carried out in accordance with
current norms and directives.
VVM 310 together with a compatible air/water heat
pump (See page 14) make up a complete installation for
heating and hot water.
The system requires the radiator circuit to be designed
for a low temperature heating medium. At lowest dimen-
sioned outdoor temperature, the highest recommended
temperatures are 55 °C on the supply line and 45 °C on
the return line, but VVM 310 can handle up to 65 °C.
NOTE
Equip the product with a safety valve on both
the boiler side and hot water coil.
Overflow water from the safety valve goes via an over-
flow cup to a drain so that hot water splashes cannot
cause injury. The entire length of the overflow water
pipe must be inclined to prevent water pockets, and
must also be frost-proof. The mouth of the overflow
water pipe must be visible and not located close to
electrical components.
NIBE recommends installing VVM 310 as close to the
heat pump as possible for optimum comfort. For further
information about the location of different components,
see section "Installation alternatives" in this manual.
Caution
Ensure that incoming water is clean. When us-
ing a private well, it may be necessary to sup-
plement with an extra water filter.
NOTE
Any high points in the climate system, must be
equipped with air vents.
NOTE
The pipe systems need to be flushed out before
the indoor module is connected so that any
debris cannot damage component parts.
NOTE
Switch (SF1) must not be moved to "" or " "
until VVM 310 has been filled with water.
Otherwise the temperature limiter, thermostat
and the immersion heater etc can be damaged.

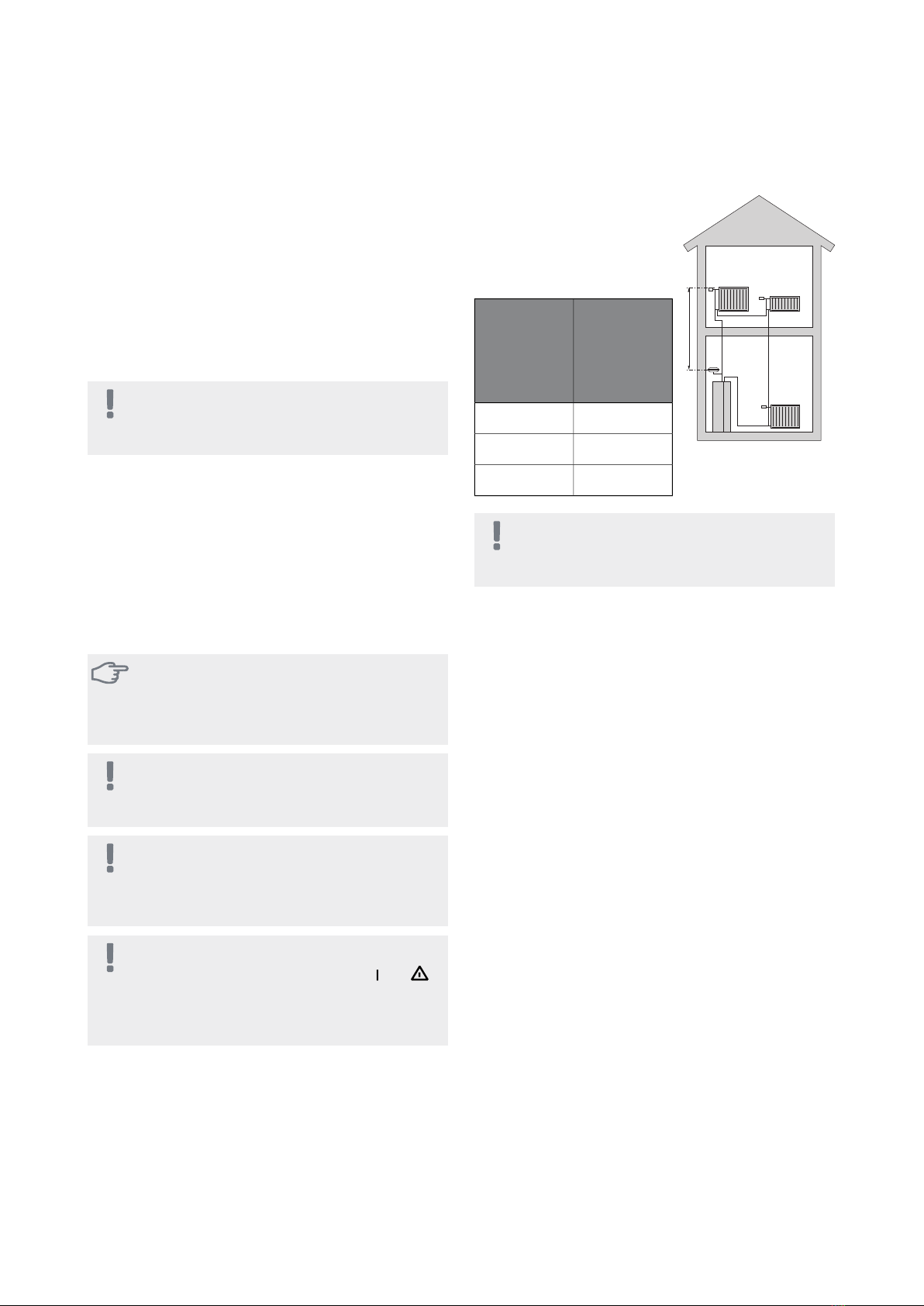

Boiler and radiator volumes
H
Internal volume in VVM 310 for
calculating expansion vessel is
250 l. The expansion vessel's
volume must be at least 5 % of
the system's total volume.
Example table
Volume (l)
expansion
vessel
Total volume
(l) (indoor
module and
climate sys-
tem)
25500
35700
501,000
NOTE
Expansion vessel not supplied with the product.
Equip the product with an expansion vessel.
The pre-pressure of the pressure expansion vessel must
be dimensioned according to the maximum height (H)
between the vessel and the highest positioned radiator,
see figure. A pre-pressure of 0.5 bar (5 mvp) means a
maximum permitted height difference of 5 m.
If the standard initial pressure in the pressure vessel is
not high enough it can be increased by filling via the
valve in the expansion vessel. The expansion vessel's
standard initial pressure must be entered in the check
list on page 6.
Any change in the initial pressure affects the ability of
the expansion vessel to handle the expansion of the
water.
11Chapter 4 | Pipe connectionsNIBE VVM 310
4 Pipe connections

System diagram
VVM 310 consists of hot water coil for hot water heating,
immersion heater, circulation pumps, buffer vessel and
control system. VVM 310 connects to the climate system.
VVM 310 is designed for connection and communication
with a compatible NIBE air/water heat pump, see page
14, which together make up a complete heating install-
ation.
When it is cold outdoors, the air/water heat pump works
with VVM 310, and if the outdoor air temperature falls
below the heat pump stop temperature, all heating is
carried out by VVM 310.
-EB15-FL2
-EB15
-CM1
-EB15
-FL1
-QM40-RM1
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
Symbol key
MeaningSymbol
Venting valve
Shut-off valve
Tapping valve
Non-return valve
Filterball
Trim valve
Shunt / shuttle valve
Safety valve
Filterball
Thermometer
T
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
Particle filter
Fan
Flow meter EMK 310
Compressor
Heat exchanger
Radiator system
Domestic hot water
Under floor heating systems
NIBE VVM 310Chapter 4 | Pipe connections12

Dimensions and pipe
connections
20
1780
560
600
355
245
615
95
185
215
30-50
80
135
190
80
135
190
300
XL1
XL30XL2
XL18
XL3XL4 XL9
XL8
XL19
PF1
PF3
XL13
XL14
20
1780
560
600
355
245
615
95
185
215
30-50
80
135
190
80
135
190
300
Pipe connections
Connection, heating medium supply line G20 int.XL1
Connection, heating medium return line G20 int.XL2
Connection, cold water G20 int.XL3
Connection, hot water G20 int.XL4
Connection, docking in heating medium G20 int.XL8
Connection, docking out heating medium G20
int.
XL9
Connection, solar heating system supply line Ø22
mm
XL13
Connection, solar heating system return line Ø22
mm
XL14
Connection, docking in high temp Ø22 mmXL18
Connection, docking out high temp Ø22 mmXL19
Connection, expansion tank G20 int.XL30
13Chapter 4 | Pipe connectionsNIBE VVM 310

Installation alternative
Compatible NIBE air/water heat pumps
Compatible NIBE air/water heat pump must be equipped
with a control board with display that has a software
version indicated in the following list as a minimum. The
control board version is displayed in the heat pump’s
display at start-up.
Software versionProduct
118F2020
55F2025
55F2026
all versionsF2030
all versionsF2040
all versionsF2120
all versionsNIBE SPLIT HBS 05:
AMS 10-6 + HBS 05-6
AMS 10-8 + HBS 05-12
AMS 10-12 + HBS 05-12
AMS 10-16 + HBS 05-16
VVM 310 can be connected to extra water heater, see
below.
Further option information is available at nibe.eu and in
the respective assembly instructions for the accessories
used. See page 63 for the list of the accessories that can
be used with VVM 310.

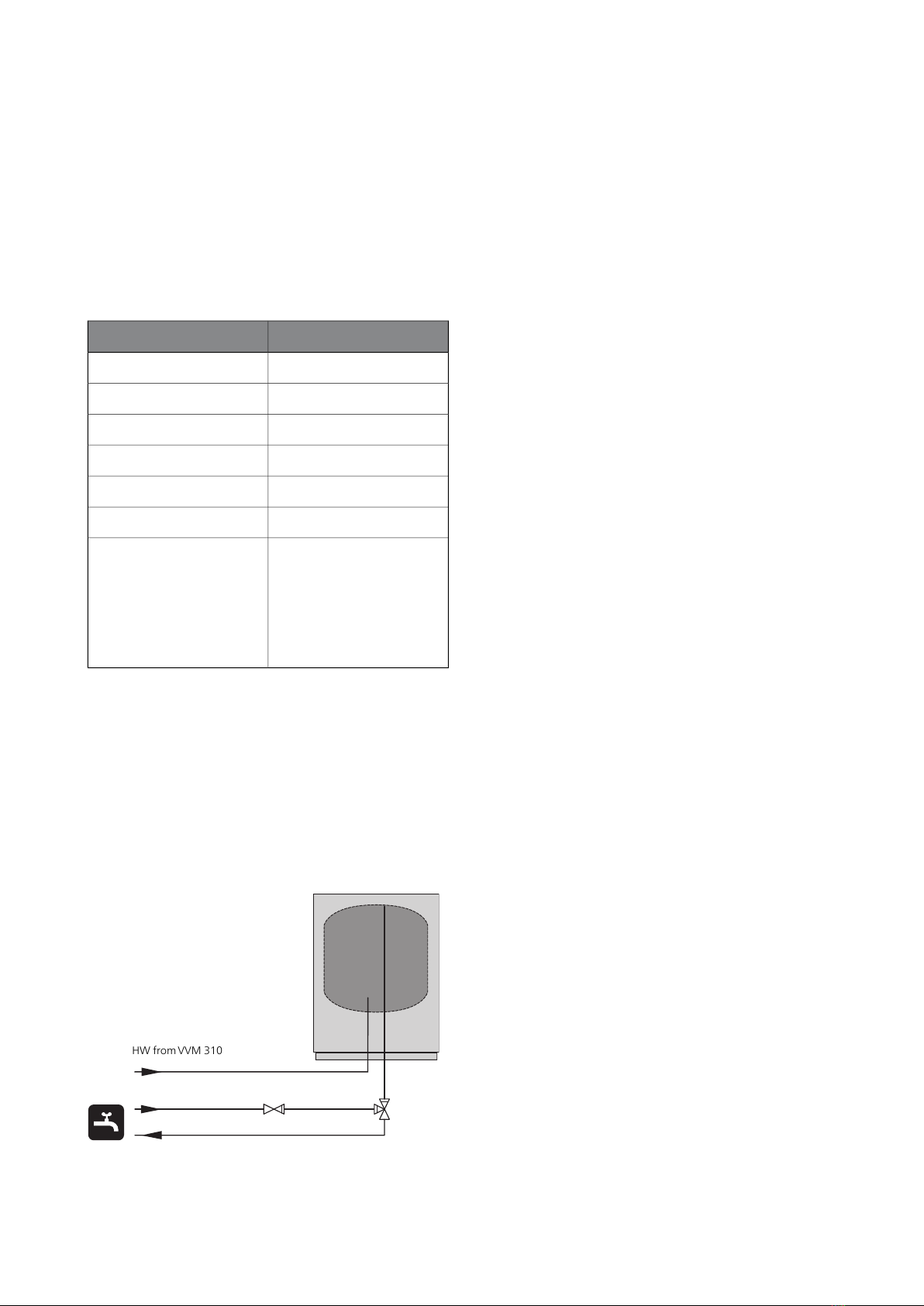

Extra hot water heaters
Water heater with immersion heater
If it is possible to use a water heater with an immersion
heater, connect it as illustrated below.
HW fromVVM 310
NIBE VVM 310Chapter 4 | Pipe connections14

Explanation
Exhaust air heat pump F135AZ10
Particle filterHQ1
Shut-off valveQM42
Shut-off valveQM43
Shut-off valveQM44
Non-return valveRM1
Pool kitCL11
Unit boxAA25
Temperature sensor, poolBT51
Exchanger, poolEP5
Pool, pumpGP9
Charge pumpGP12
Particle filterHQ4
Three way valve, poolQN19
VVM 310EB15
Energy meterBF1*
Expansion vessel closed, heating mediumCM1
Safety valve, heating mediumFL2
Connection, heating medium, flow 1XL1
Connection, heating medium, return 1XL2
Connection, cold waterXL3
Connection, hot waterXL4
Connection, docking, from heat pumpXL8
Connection, docking, to heat pumpXL9
Connection, solar heating system, supplyXL13
Connection, solar heating system, returnXL14
Connection, docking in high tempXL18
Connection, docking out high tempXL19
Connection, accessory, outXL39
Heat pumpEB101
Safety valveFL10
Tapping valveQM1
Shut-off valveQM40
FilterballQZ2
External heat source (Oil, gas, pellets or wood
fired boiler with shunt valve)
EM1
Unit box with accessory cardAA25
Temperature sensor, boilerBT52
Accumulator tankCP2
Charge pump, external heat sourceGP15
Non-return valveRM1
Climate system 2EP21
Unit box with accessory cardAA25
Temperature sensor, heating medium, flowBT2
Temperature sensor, heating medium, returnBT3
Circulation pump, heating medium, lower shuntGP20
Shunt valveQN25
Solar kitEP30
Unit box with accessory cardAA25
Temperature sensor, solar panelBT53
Expansion vesselCM5
Solar panelEP8
Pump station SPS 10, SPS20GP30
Active cooling module ACS 310EQ1
Unit box with accessory cardAA25
Temperature sensor, cooling, supply lineBT64
Single jacket accumulator tank, coolingCP10
Charge pumpGP12
Circulation pump, coolingGP13
Three way valve cooling/heatingQN12
Pump station SPS 10, SPS 20GP30
Safety valve, solarFL4
Pump, solarGP4
Shut-off valveQM43
Shut-off valveQM44
Shut-off valveQM45
Non-return valveRM3
Non-return valveRM4
Hot water circulation
Safety valve, hot waterFL1
Circulation pump, Hot waterGP11
Shut-off valveQM40
Non-return valveRM1
Miscel-
laneous
Flow sensor EMK 310BF1
Flow sensor EMK 300BF2
Expansion vessel closed, heating mediumCM1
Electric heater ELKEB1
Exchanger, poolEP5
Safety valve, heating mediumFL2
Pump, solarGP4
*Energy meter (BF1) included in VVM 310 EMK.
15Chapter 4 | Pipe connectionsNIBE VVM 310

Connecting to heat pump
You can find a list of compatible air/water heat pumps
on page 14.
VVM 310 is not equipped with shut off valves; these must
be installed outside the indoor module to facilitate any
future servicing.
-EB15-FL2
-EB15
-CM1
-EB15
-XL8
-XL9
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
Connection during use without heat pump
Connect the pipe for docking in from the heat pump
(XL8) with the pipe out to the heat pump XL9.
-EB15-FL2
-EB15
-CM1
-EB15
-XL8 -XL9
Connecting cold and hot water
A mixer valve must be installed if the factory setting is
changed so that the temperature can exceed 60 °C. Na-
tional regulations must be observed. The setting is made
in menu 5.1.1 (See page 50).
-EB15-FL2
-XL4
-XL3
-EB15
-CM1
-EB15
-FL1
-QM40-RM1
Connecting the climate system
When connecting to a system with thermostats on all
radiators/underfloor heating coils, a relief valve must be
fitted, or a thermostat must be removed to ensure suffi-
cient flow.
-EB15-FL2
-EB15
-CM1
-EB15
-XL1
-XL2
NIBE VVM 310Chapter 4 | Pipe connections16

Two or more climate systems
When more than one climate system is to be heated, the
following connection can be used.
The ECS 40/ECS 41. accessory is required for this connec-
tion.
-EB15-FL2
-EB15
-EB15
-CM1 -XL1
-XL2
-GP20
-BT3
-BT2
-QN25
-EP21
-AA25
Connection of external heat source
For connection of an external energy source directly to
the internal volume in VVM 310, suitable when the en-
ergy source has a small volume, such as a boiler without
an accumulator tank or an electric heater. This docking
uses the energy source for both heating and hot water.
For connection, the DEH 310 accessory is required, see
“Accessories” on page 63. With such docking, the “prior-
itised additional heat” function can be used.
-EB15-FL2
-EB15
-CM1
-EB15
-XL18
-XL19
-BT52
-EM1
-AA25
-EM1
-GP15
-RM1
Connection of shunt-controlled additional
heat
For connection of an external energy source solely to
the heating system, suitable when the energy source has
a large volume, such as a wood boiler with an accumu-
lator tank. This connection uses the accessory AXC 40.
With such docking, the “prioritised additional heat”
function can be used.
-FL2
-CM1
-EB15 -XL2 -XL1
-QN11 -BT25
-AA25
-CP2
-EM1
-GP15
-BT52
-EM1
Connection of extra electrical addition
For connection of extra electrical addition, in one step,
in event of a stoppage because of cold outdoor air.
-EB15-FL2
-EB15
-CM1
-EB15
-XL8
-XL9
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
-EB15-EB1
17Chapter 4 | Pipe connectionsNIBE VVM 310

Connecting EMK 310
Installing energy measurement kit EMK 310* (BF1) to
VVM 310.
-EB15-FL2
-EB15
-CM1
-EB15
-XL8
-XL9
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
-EB15
-BF1
*Energy meter (BF1) included in VVM 310 EMK. Available as access-
ory EMK 310 for other markets.
Connecting EMK 300
Connecting energy measurement kit EMK 300 (BF2) to
VVM 310. EMK 300 is connected between the air/water
heat pump and VVM 310, although before the first ac-
cessory. This accessory is used if energy measurement of
pool or cooling in a 4-pipe system is required.
-EB15
-FL2
-EB15
-CM1
-EB15
-XL8
-XL9
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
-EB15-BF2
-GP9 -BT51 -HQ4
-EP5
-AA25
-CL11
-CL11-QN19
-CL11
-GP12
Connecting hot water circulation
To reduce the risk of bacterial growth in systems with
hot water circulation, the temperature of the circulating
water should not fall below 50 °C. There should not be
any non-circulatory hot water pipes. Adjust the hot water
system so that the temperature does not fall below 50 °C
at the ends of the system.
-FL2
-CM1
-EB15
-EB15
-FL1
-QM40-RM1
-GP11
XL3
XL4
Connection of integrated cooling in 4-pipe
system
Connection of integrated cooling in 4-pipe system via
AUX in VVM 310.
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
-EB15-FL2
-EB15
-CM1
-EB15
-EQ1
-GP13
-CP10
-BT64 -QM42 -QM41
-GP12
-QN12
NIBE VVM 310Chapter 4 | Pipe connections18

Connecting ACS 310
For connection of active cooling, ACS 310, see "Accessor-
ies" on page 63.
-EB15-FL2
-EB15
-CM1
-EB15
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
-CP10
-BT64 -QN12
-AA25
-EQ1
-GP13
-GP12
-QM41
-QM42
Connecting to solar installation
For connection to solar installation, the SCA 35 accessory is required, see "Accessories" on page 63.
T PT
-FL2
-CM1
-XL13
-XL14
-EB15
-EB15
-EB15
-EP30
-BT53
-EP8
-AA5
-GP30
-RM4
-GP4 -EP5
-RM3
-GP4
-CM5
-FL4
-OM44
-OM43
-OM45
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
19Chapter 4 | Pipe connectionsNIBE VVM 310

Connecting pool
Charging of the pool is controlled by the pool sensor. In the case of low pool temperatures, the reversing valve reverses
direction and opens towards the pool exchanger. The POOL 310 accessory is required for this connection.
-EB15
-FL2
-EB15
-CM1
-EB15
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
-GP9 -BT51 -HQ4
-EP5
-AA25
-CL11
-CL11-QN19
-CL11
-GP12
NIBE VVM 310Chapter 4 | Pipe connections20
