In order to get the ultimate benefit from your VEDEX 1000 wood-fired boiler, you should read
through this Installation and Maintenance Instruction.
VEDEX 1000 is intended for connection to home heating systems or similar. VEDEX 1000 is a
quality product offering a long service-life and safe operation.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been gi-
ven supervision or instruction concerning use of the appliance by a person responsible for their
safety.
General
Installation data
To be filled in when the boiler has been installed
Installation date
Manufacturing number
Plumber

3VEDEX 1000
For Home Owners
General
Product description
VEDEX 1000 is an induced-draught boiler with efficient
smoulder combustion. Max. wood length is 0.4 m. The
boiler is designed to be connected to accumulator tanks
with integrated water heater for heating domestic hot
water.
When lighting, the boiler water is partially heated by the
fire and partly by the flue gas ducts.
Max. output during wood burning operation is approx. 25
kW. Average output during wood burning operation is ap-
prox. 18 kW.
Area of use
VEDEX 1000 is intended for heating houses and other
smaller buildings.
Heating
Hot water is taken from the top of the boiler and routed to
the accumulator tanks. Return water from the accumula-
tor tanks is lead via a charger pack to the bottom of the
boiler. The hot water is led from the accumulator tanks to
the radiator circuit via a shunt valve(SV1), where the desired
temperature to the radiators is maintained by mixing the
hot boiler water with the cold water that returns from the
radiator circuit.
EXP AV
LV
SÄV
AV TG
AV
MV
CP2
SV1
SV2
T
TT
VVB
ACCUACCU
ELK
RC
AV
AVTAVT
AV
CP1 AV
AVT
BV
System diagram
Component key
AV Shutoff valve
AVT Drain valve
BV Check valve
CP1 Charge pump
CP2 Circulation pump
ELK Electrical cassette/immersion heater
EXP Expansion tank
LV Venting valve
MV Motor valve
RC Control box
SV1 Shunt valve
SV2 Mixer valve
SÄV Safety valve
TG Temperature sensor
VVB Hot water heater
The outline diagram shows components that
are not included in standard deliveries.
Hot water heating
Hot water heating requires an accumulator tank with dou-
ble jacket or coil.
The hot water capacity is determined by the choice of cyl-
inder size or the length of coil.

4VEDEX 1000
For Home Owners
Front panel
Charge thermometer (19)
This thermostat starts and stops the charge pump at the
set value.
Switch (45)
Charge pump, on and off.
Boiler temperature gauge (40)
The operating temperature of the boiler is indicated on the
gauge which is graded 0–120°C. It shows the temperature
of the boiler water level with the flow line connection.
Boiler pressure gauge (42)
The boiler’s pressure is displayed here. The gauge is graded
0–4 bar with a red mark at 1.5 bar.
Max. permitted pressure is 1.5 bar at 100°C.
For a closed system, the operating pressure varies during
operation depending on the installation’s varying tempera-
ture.
Direct damper (5)
Controlling smoulder combustion.
Pressed in position causes over combustion (start position).
Pulled out position causes smoulder combustion (normal
operating position).
115,0
164,0
208,0
369,5
187,5
375,0
48,0
5,515,0
11,0
12,0
11,0
107,2
157,0
10,515,0
97,8
23,2
Ø 52,8
53,5
Hål ø36
Slitsad baksida
Hål 11,5x29
HålHål
OLD
Switch
Charge thermometer Boiler temperature gauge
Boiler pressure gauge
Direct damper
Front panel

5VEDEX 1000
For Home Owners
Wood firing
General instructions
The wood is placed on the ceramic grate. Suitable wood
size is 0.3-0.4 m. To facilitate starting the boiler open the
direct damper (5) (pressed in position), this gives a shorter
smoke by-pass.
The combustion process works by reverse combustion.
The air in the boiler enters through the damper (61)
and is pushed down to the lower part of the fire where
combustion is concentrated. The combustion gases are
drawn through the ceramic grate down into the sec-
ondary chamber. The ceramic inserts cause the tempera-
ture to increase to almost 900 °C. More oxygen is supplied
through the secondary damper and is mixed well, thanks
to the turbulent flow, with the hot gases in the secondary
combustion chamber where full combustion is achieved.
Then these pass into the generously sized heat retaining
surfaces. The convection part is equipped with removable
turbulators.
Type of wood, quality and moisture content are determin-
ing factors regarding lighting and fuel consumption. Dry
wood can have a moisture content of 15–25%. If the
moisture content increases to 30%, wood consumption
becomes 10% greater.
The heating value for softwood is about 1000–1300 kWh/
m3. The heating value for hardwood is about 1100-1500
kWh/m3
Extremely dry wood usually produces a large fire where
unusually large amounts of gases are created, resulting in
uneven combustion. To prevent this type of problem, it is
recommended to use hard wood or a mixture of woods
with a moisture content of about 18–20%. Carpentry off
cuts should not be used.
When the wood starts to burn it breaks up, whereupon
combustible gases are created. These burn at tempera-
tures between 300–900°C. The gases make up 3/4 of the
wood’s energy content, the rest is in the created charcoal,
which also eventually burns.
Adjusting the draught regulator
Remove the front panel between the doors by pulling it
straight out. The regulator is installed so that the lever
presses the damper. The door should be closed at the
desired boiler temperature. If, for example, 85 °C is de-
sired, the boiler is fired to that temperature, whereupon
the lever is adjusted so that the damper is closed when the
knob is set to position 4. If a lower or greater temperature
is required, turn the knob to the relevant setting. Moving
between each marking on the knob changes the tempera-
ture by about 7 °C.
LEK
LEK
LEK
LEK
It is important that sufficient secondary air is supplied so
that the gases burn off completely.
Lighting for the first time
It is important that lighting is carried out carefully in a new
boiler so that any remaining crystallisation water in the ce-
ramics is condensed slowly to prevent cracking.
Before inserting wood
Check that the boiler and other heating systems are filled
with water. Flue gas thermometer (accessory) should be
installed in the flue pipe.
The turbulators should not be installed during the first few
lightings. This is to increase the flue gas temperature and
produce a better chimney draught until the boiler is lit and
going.
Wood firing

6VEDEX 1000
For Home Owners
Starting smoulder combustion
Open the damper door (61).■
Close the combustion chamber door (68).■
Add wood and■ pull out the direct damper (5) fully to
the smoulder combustion position.
Adjust the draught regulator (85).■
(see Adjusting the draught regulator)
Charge and circulation pump
If a charge or circulation pump is not in operation for an
extended period of time, it should be started anyway so
that it does not jam.
Commissioning
Open the direct damper (5), pressed in position.■
Open the combustion chamber door (68) fully.■
Open the filler door (65).■
When starting with a cold smoke duct, first light a■
few pieces of screwed up newspaper to increase the
chimney draught.
Insert the screwed up newspaper and then finely
■
chopped kindling wood.
Light and close the filler door (65).
■
Allow the fire to catch for about 5 minutes and then■
check that the flue gas temperature rises to a max. of
350°C.
95
94
84 23
28
68
64
97
65
97
66
22
82
18
33
82
22
96
64
85
28
65
5
85
Samma bild med färre pos. nummer
61
68
61
103
100
42
40
45
19
5

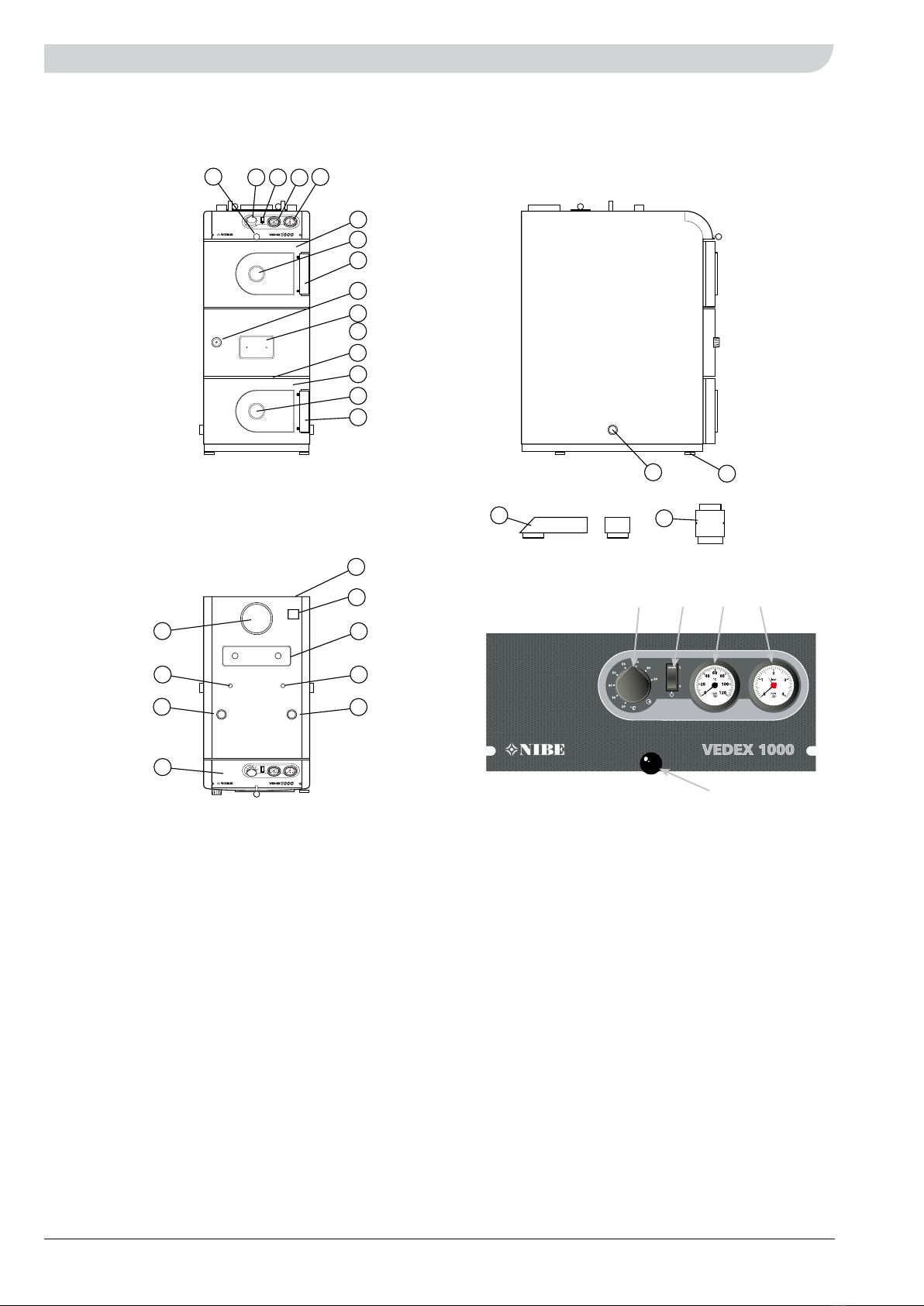

Wood firing
To achieve a good start with a good bed
of embers, the boiler temperature should
increase approximately 20 °C from the start
temperature.
Note!
5
85
61
65
28
68

7VEDEX 1000
For Home Owners
”Rules of thumb” when lighting wood
The draught in the chimney is of extreme importance.■
It must be controlled to a minimum of 20 Pa, hot
chimney.
Light using hard or mixed wood (stored indoors). See
■
lighting wood ”General instructions”.
The size of the logs must correspond to the size of the
■
fireplace.
Stack the wood as well as possible.
There must be a sufficient supply of air.
■
Secondary air must be supplied in sufficient amounts.■
Corresponding to the amount of fuel.
Ensure that the fire temperature increases quickly.
■
Ensure that the grate is not blocked. ”Poke and stir”■
the fire before adding more wood.
Open the direct damper before opening the filler
■
door.
Open the direct door in stages.
■
Do not throw the wood in (this can damage the ce-■
ramics).
Wood firing
Sweeping
The sweeping carried out by a chimney sweep includes
all flue gas routes from the hearth to the top of the chim-
ney. You can check the boiler’s fire-affected surfaces and
flue gas ducts yourself to determine how often the boiler
should be swept.
Gas, which contains tar substances, builds up in the wood
magazine. These substances condense on the walls of the
wood magazine and are later burned off. This means that
the walls of the wood magazine do not usually have to be
cleaned. The convection part is cleaned by removing the
top soot door (66), pulling up the turbulator and brushing
clean. This should be done a few times between chimney
sweep visits.
For optimum combustion and efficiency the boiler’s sec-
ondary combustion chamber should be cleaned after
about 15 additions of wood. The compartment is cleaned
from the front via the lower door by pulling out the flame
trough and brushing. Take care to remove any burnt on
ash remains in the trough.
Also see ”For the chimney sweep”, under ”Sweeping” .
Ash can still contain glowing embers after
a long time. Therefore, always use a non-
inflammable container when emptying ash
and soot.
Note!

8VEDEX 1000
For Home Owners
Causes and corrective action in the event of malfunctions
Low hot water capacity
Too small external water heater.■
Abnormally large hot water outlet in relation to the■
external water heater’s volume.
Mixer valve set too low (if applicable).
■
Closed or throttled shut-off valves for the water heater.■
Helping the circulation pump to start
Switching off the circulation pump.■
Remove the protective hood and slacken off the vent-■
ing screw. Hold a cloth around the screwdriver blade
as a certain amount of water may run out.
Insert a screwdriver and turn the pump rotor.
■
Screw in the venting screw.■
Start the circulation pump and check its function.■
Secure the protective hood in place.■
It is usually easier to aid the circulation pump to start if it
is off. If helping the circulation pump to start when off, be
prepared for the screwdriver to jerk when the pump starts.
Low room temperature
Incorrectly set shunt valve (during manual shunting).■
Air in boiler or radiator system.■
Closed valve in the radiator circuit.■
Switched off or jammed external circulation pump,■
see section ”Helping the circulation pump to start".
High room temperature
Incorrectly set shunt valve (during manual shunting).■
LEK
Skyddshuv Luftningsskruv
16
If the cause of the operating disturbance cannot be localised and remedied by means of
the above, an installation engineer should be called.
Protective hood Venting screw
Causes and corrective actions

9VEDEX 1000
For the Installer
General information for the installer
Boiler room
The boiler room must be built in accordance with applica-
ble building regulations.
Provision for good air supply. The boiler room’s air intake
must be as large as the smoke pipe duct.
Chimney
VEDEX 1000 has a vertical flue pipe connection with an
external diameter of 133 mm.
Different chimney heights are required depending on ver-
sion. In addition, a number of other factors, for example,
wind and terrain conditions, nearby buildings etc, can
affect the draught conditions of the chimney. Minimum
chimney draught for satisfactory wood lighting is 20 Pa.
If the draught is less than 15 Pa a flue gas fan should be
installed.
The following table showing several different versions of
chimney is a recommendation, however, the aforemen-
tioned factors must also be taken into consideration.
Draught regulator
VEDEX 1000 is supplied with a draught regulator, which
is installed to the left between the soot door and the filler
door.
Set according to the instructions. (see Adjusting the
draught regulator). The regulator does not usually have to
be inspected thereafter.
The sensor is easy to replace without having to remove the
draught regulator from the boiler.
Ceramic kit
1. Front ceramic grate
Part No. 434 636
2. Rear ceramic grate
Part No. 434 637
3. Firewall
Part No. 619 769
4. Bottom stone
Part No. 434 635
5. Bottom insulation
Part No. 425 030
Material Area Minimum height
Steel pipe Ø 130 mm 6.0 m
Steel pipe Ø 150 mm 5.0 m
Brick 140 x 140 mm 6.5 m
Brick 140 x 260 mm 5.0 m
LEK
12
3
4
5

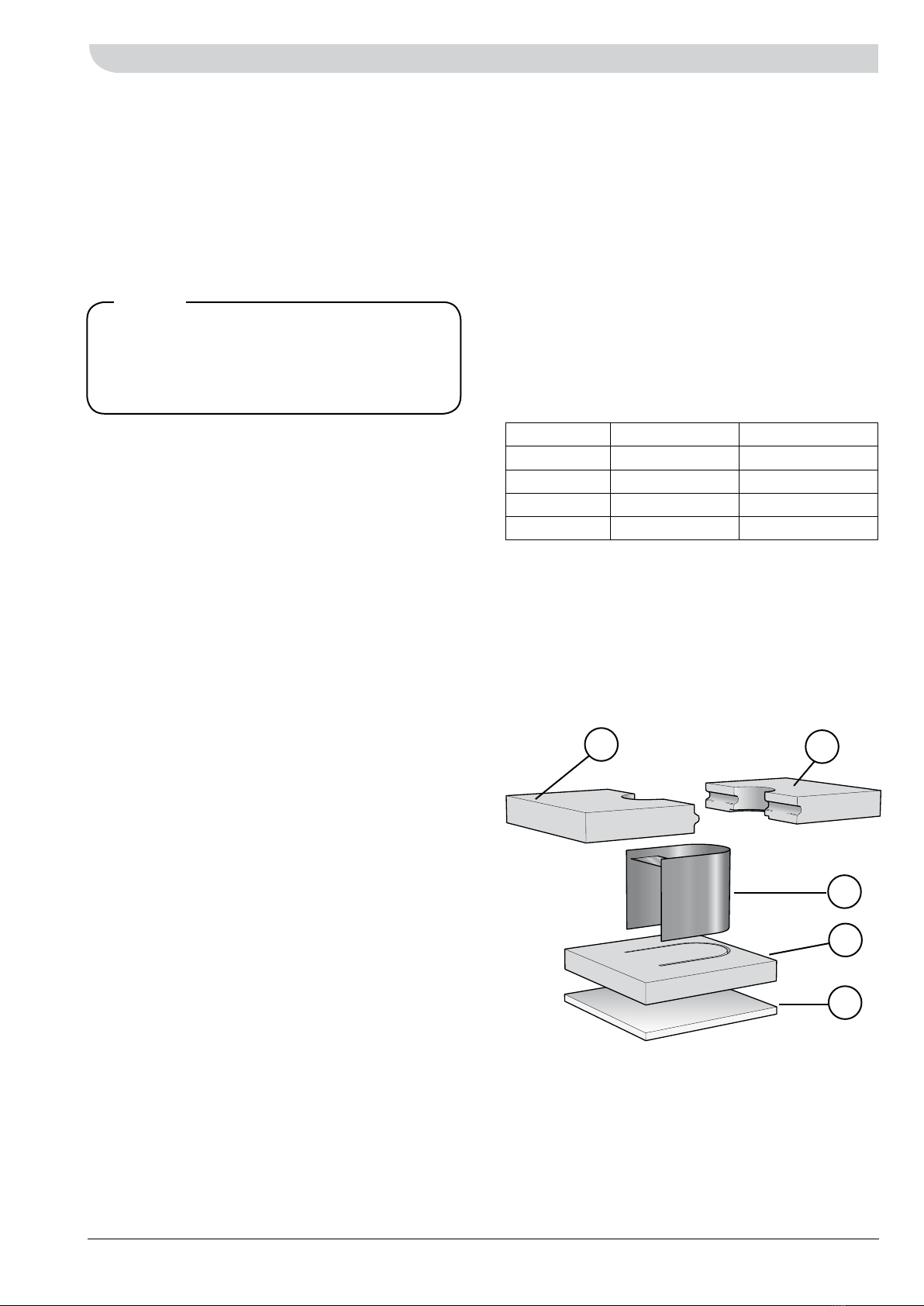

Installing ceramic grates
Place the ceramic inserts in through the ash box in the fol-
lowing order and remove in the opposite.
Bottom insulation
■
Bottom stone■
Firewall■
Rear ceramic grate■
Front ceramic grate■
Ensure that sweeping can be carried out in
accordance with the applicable regulations.
If in doubt, contact a chimney sweep.
Note!
General information for the installer

10 VEDEX 1000
For the Installer
General information for the installer

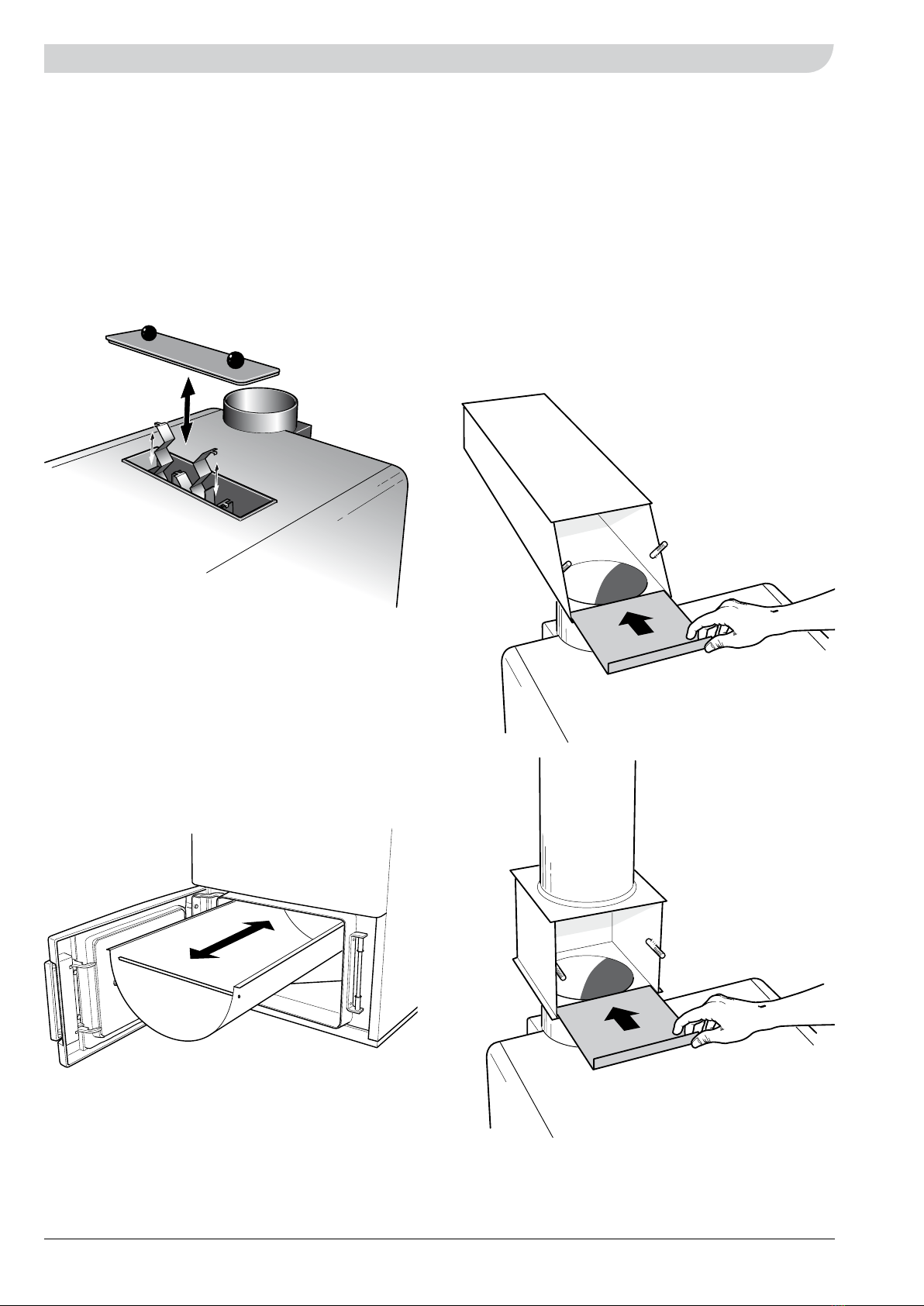

Remove the turbulators in number order until the flue gas
temperature in the chimney is correct.
Assembly
VEDEX 1000 has inlets for primary and secondary air on
the front of the boiler. Therefore, always leave a space of
at least a metre from combustible material. In unfavour-
able cases “puffs” from combustion can discharge sparks.
Turbulators
Four turbulators supplied with boiler. These are located in
the ducts in the boiler’s convection part as illustrated. The
turbulators effect the turbulence of the flue gases, which
means that a greater amount of energy is transferred to
the boiler water. The temperature in certain chimneys may
become so low that there may be a risk of condensation
build-up in the smoke duct. To increase the temperature in
the chimney the turbulators can be removed, one at a time
as illustrated. For each turbulator that is removed, the flue
gas temperature rises from the boiler by 15–25°C.
3142
LEK
The flue gas temperature must not drop
below 65 °C 0.5 m below chimney opening.
Note!

11VEDEX 1000
For the Installer
Pipe installation
Connection
The pipe installation must be carried out in accordance
with applicable heating and hot water norms. Internal sup-
port bushes should be fitted when a steel pipe or annealed
copper pipe is used.
The overflow pipe from any of the safety valves must be
routed to a floor drain to prevent hot water splashes when
checking the valves or when bleeding the boiler. The outlet
of the overflow pipe should be visible.
If the heating installation has an open expansion tank, the
distance between the highest radiator and the expansion
tank must not be less than 2.5 m.
Filling
Fill the boiler using a fixed filler line to one of the expan-
sion connections or a hose in the drain valve.
Draining
Drain by connecting a hose to the drain valve. The con-
nection dimension of the valve is R 15 (1/2”) ext. and is
recommended to be installed on an accumulator tank or a
T-pipe on the return to the boiler. The drain valve is sup-
plied.
Cooling coil
VEDEX 1000 is equipped with a cooling coil (22) for con-
nection to a temperature limiting valve. Refer to the manu-
facturer’s instructions when installing.
Min 2,5 m
If filling via the radiator circuit, the
shunt valve must be in a central position.
Otherwise there is a risk of cracking one of
the radiators.
WARNING!
!
The pipe work must be flushed before the
boiler is connected, so that any contami-
nants do not damage the component parts.
Note!
Pipe installation

12 VEDEX 1000
For the Installer
Docking
General
When docking the accumulator tank to VEDEX 1000 it can
be useful to use one of the material kits available on the
market for accumulator docking.
For optimum function, the accumulator’s charger pack
must produce 65 °C in return temperature to the bottom
of the boiler.
The following section describes the principle of such a
connection.
Docking with thermal or electronic valve
EXP AV
LV
SÄV
AV TG
AV
MV
CP2
SV1
SV2
T
TT
VVB
ACCUACCU
ELK
RC
AV
AVTAVT
AV
CP1 AV
AVT
BV
Component key
AV Shutoff valve
AVT Drain valve
BV Check valve
CP1 Charge pump
CP2 Circulation pump
ELK Electrical cassette/immersion heater
EXP Expansion tank
LV Venting valve
MV Motor valve
RC Control box
SV1 Shunt valve
SV2 Mixer valve
SÄV Safety valve
TG Temperature sensor
VVB Hot water heater
When the boiler’s temperature exceeds the set charge
temperature on the control unit (at, for example, 65 °C)
the charge pump starts, which then transfers heat from
the boiler to the accumulator. The electronic charge con-
trol ensures that the water temperature to the bottom of
the boiler does not drop too much that there is a risk of
condensation.
Charger pack 2 is recommended for this connection.
Docking

13VEDEX 1000
For the Installer
Connection
Fuse the boiler with a fuse of a max. of 10 A. The con-
nection cable is prepared for connection to separate main
power switch or to wall socket 1 x 230 V.
Connect the charge pump to socket (9) on the reverse of
the boiler.
Electrical function
Switch (45) set to position ”0” means that the charge
pump is off.
Position ”1” is the normal operating position.
Charge thermostat (19) only controls the charge pump.
Electrical circuit diagram
Electrical installation
4519
Charge pump
Electrical installation and service must be
carried out under the supervision of a quali-
fied electrician.
Electrical installation and wiring must be
carried out in accordance with the stipula-
tions in force.
Note!
Electrical installation

14 VEDEX 1000
For the Installer
5 Direct damper
9 Terminal block, electrical connection
18 Cable entry
19 Charge thermometer
22 Cooling coil Ø 15 ext.
23 Adjustable feet (20-40 mm)
28 Primary air intake
33 Front panel
40 Boiler temperature gauge
42 Boiler pressure gauge
45 Switch, charge pump
61 Damper
64 Sight glass
Technical specifications
95
94
84 23
28
68
64
97
65
97
66
22
82
18
33
82
22
96
64
85
28
65
5
85
Samma bild med färre pos. nummer
61
68
61
103
100
42
40
45
19
5
115,0
164,0
208,0
369,5
187,5
375,0
48,0
5,515,0
11,0
12,0
11,0
107,2
157,0
10,515,0
97,8
23,2
Ø 52,8
53,5
Hål ø36
Slitsad baksida
Hål 11,5x29
HålHål
OLD
19 45 40 42
5
65 Filler door
66 Soot door for convection part
68 Combustion chamber door
82 Expansion connection R25 int.
84 Return connection, or drain connection R25 int.
85 Draught regulator
94 Angled flue pipe, (standard)
95 Vertical flue pipe (accessory)
96 Flue pipe connection Ø 133 ext
97 Door handle
100 Secondary air intake
103 Serial number
List of components
Technical specifications

15VEDEX 1000
For the Installer
Technical specifications
Main dimensions
515
380
95
115
78
450
Ø133 utv.
225
830
1017
90
20-40
1043
390
R25 inv.
R25 inv.
R25 inv.
R25 inv.
Ø15 utv.

16 VEDEX 1000
For the Installer
Technical specifications
Enclosed kit
1 x Soot brush
1 x Soot brush shaft
1 x Ash scraper
1 x Drain valve
1 x Ash shovel
1 x Soot door with gasket
1 x Angled flue pipe
4 x Turbulators
1 x Cover
1 x Installation and Maintenance Instructions
LEK
LEK
Vertical flue pipe
For vertical chimney connections this unit is used for the
vertical flue pipe (95) instead of the supplied angled flue
pipe. Damper suitable for angled flue pipe and vertical flue
pipe.
Upper connector Ø int. 160 mm
Ø ext. 168 mm
Lower connector Ø int. 139 mm
RSK No. 621 07 37
Part no. 089 159
Flue pipe extension for vertical flue pipe
Round flue pipe extension for vertical flue pipe.
Ø int. 125 mm
Ø ext. 133 mm
collar Ø int. 139 mm
Length without collar 750 mm
RSK No. 621 07 39
Part no. 089 850
Flue pipe extension for angled flue pipe
Rectangular flue pipe extension for angled flue pipe.
Dim ext. 180 x 123 mm
Length 750 mm
RSK No. 621 07 40
Part no. 089 732
LEK
LEK
Other accessories
Insulated accumulator tank with 120 litres storage tank
and 380 litres accumulator volume
Part no. 089 870
Insulated accumulator tank 500 litres
Part no. 089 871
6 kW immersion heater
RSK no. 695 20 71
Part no. 418 641
Junction box for immersion heater
RSK no. 695 22 38
Part no. 418 644
Flue gas thermometer
Part no. 42 40 04
Charger pack
Our charger pack is recommended for optimum system
function.
Contents of charger pack 2 (Part no. 089 873)
Only for use with VEDEX 1000
1 x non-return valve connection 25
1 x 3-way motor valve connection 25
1 x temperature sensor, 60–90 °C
1 x electronic control unit
1 x charge pump, 6 mvp with shutoff valves
1 x shunt valve for the heating system connection 25
1 x circulation pump for heating system, 6 mvp with
shutoff valves
2 x ball valves connection 25
2 x shutoff valves 1/2”
1 x 6 kW immersion heater with control
1 x cold and hot water armature assembly
Damper
For installation on the boiler’s flue pipe. Suitable for angled
flue pipe and vertical flue pipe.
Part No. 089 864
RSK no. 621 07 41
LEK
LEK
LEK
X

17VEDEX 1000
For the Installer
Height (increases 20 – 40 mm for adjustable feet) 1,015 mm
Width 450 mm
Depth 830 mm
Weight 230 kg
Boiler water volume 55 litres
Voltage 230 V
Average output during wood lighting 18 kW
Max available output when lighting wood 25 kW
Wood magazine volume 75 litres
Wood magazine width 300 mm
Wood magazine depth 420 mm
Filler door width 300 mm
Filler door height 250 mm
Max. permitted total current for connected units 10 A
Max. operating pressure/design pressure boiler 150/1.5 kPa/bar
Wood length 0.4 m
Draught requirement 20 Pa
Max. pellet output 25 kW
Part No. 089 836
Technical specifications
Technical specifications

18 VEDEX 1000
For the chimney sweep
Sweeping
Open the combustion chamber door (68).■
Pull out the flame trough.■
Empty the trough and clean the ash out. Take care to■
remove any burnt on ash remains in the trough.
Clean the chamber.
■
Position the trough in place and close the door.■
Sweeping description
Remove the cover from the mounting points in the■
boiler.
Lift out the turbulators from the convection part.
■
Sweep the convection part.■
Reinstall the turbulators.■
Reinstall the soot door.■
Sweeping
LEK
13 4
56
2
LEK
Cover plate
To prevent soot from getting into the flue gas fan when
sweeping, use the supplied cover plate as follows:
Remove the soot door.
■
Insert the cover plate over the hole as illustrated.■
Reinstall the soot door to prevent soot exiting when■
sweeping.
Do not forget to remove the cover plate when sweep-
■
ing is complete.
LEK
LEK
LEK
LEK
