Nibe EVC 13 User manual

LEK
2
1
bar
3
04
20 100
40 80
60
°C
0 120
R
MOS GB 0527-1 511291
EVC 13
INSTALLATION AND MAINTENANCE INSTRUCTIONS
EVC 13

LEK
LEK
LEK
LEK
1
2

Contents
EVC 13
1
General
Concise product description ................................ 2
Setting table ........................................................ 2
System description
General .................................................................. 3
Principle of operation ............................................ 3
Front panel
Front panel .......................................................... 4
Settings
Heating control system ........................................ 6
Default setting ...................................................... 6
Changing the room temperature .......................... 7
Offset heating curve -2 .......................................... 8
Offset heating curve 0 ............................................ 8
Offset heating curve +2 .......................................... 8
Setting according to the diagram .......................... 8
Clock
Setting the time .................................................... 9
Programming the timer ........................................ 9
Night change ........................................................ 9
Monitoring and maintenance
Max thermostat .................................................. 10
Tariff control (extra option) ................................ 10
Safety valve ........................................................ 10
Pressure gauge .................................................. 10
Temperature gauge ............................................ 10
Control fuse ........................................................ 10
Causes and dealing with malfunctions
Low room temperature ........................................ 11
No hot water ........................................................ 11
High room temperature ........................................ 11
Standby mode ...................................................... 11
Resetting the temperature limiter ........................ 12
Helping the circulation pump to start .................... 12
Pipe installation
Transport and installation .................................... 13
Connections ........................................................ 13
Waste water pipe ................................................ 13
Filling valve .......................................................... 13
Tapping valve ...................................................... 13
Circulation pump .................................................. 13
Pump and pressure drop diagrams ...................... 13
Expansion vessel ................................................ 14
Max. radiator volume ............................................ 14
Pressure controlled bypass valve ........................ 14
Draining the boiler water ...................................... 14
Electrical installation
Connection .......................................................... 15
Cable entries ........................................................ 15
Switch .................................................................. 15
Returning output/Self test .................................. 16
Output control immersion heater ........................ 16
Centralised load control/Load monitor .............. 16
Max thermostat/Temperature limitation ................ 17
Temperature limiter .............................................. 17
Outside sensor .................................................... 17
Boiler/Flow sensor ................................................ 17
Temperature sensor data...................................... 17
Commissioning and adjusting
Filling .................................................................... 18
Venting ................................................................ 18
Readjustment ...................................................... 18
Electrical circuit diagram
Electrical circuit diagram - standard design ........ 19
Component placement
Component placement ........................................ 20
List of components/Technical data
List of components .............................................. 21
Dimensions
Dimensions and setting-out coordinates .............. 22
Measuring principle .............................................. 22
Accessories
Fuse and tariff kits for the power supply
of an external electrical hot water heater .......... 23
Room sensor ........................................................ 23
Technical specifications
Technical specifications ...................................... 24
Enclosed kits ........................................................ 24

General2
EVC 13
In order to get the ultimate benefit from your EVC 13 we
recommend that you read through this Installation and
Maintenance Instruction. EVC 13 is intended for houses
with water based heating.
The electric boiler is installed horizontally, suitably on
an electric water heater in a “cabinet model” design, for
example, NIBE COMPACT. The electric boiler is pre-
pared for centralised load control, has an integrated
load monitor and an accessory is available for tariff
control of an electric water heater, which can be pow-
ered directly from the boiler. The controls are collected
and well-arranged on the front panel.
EVC 13 is a swedish made high quality electric boiler of-
fering a long life span and safe operation.
LEK
2
1
bar
3
04
20 100
40 80
60
°C
0 120
Installation date
Installer
“Load limitation” setting
“Fuse size” (load monitor) setting
“Max thermostat” setting
“Temperature limitation” setting
“Heating curve selection” setting
“Offset heating curve” setting
Completed when the boiler is installed
The serial number (103), should always be stated with all
correspondence with NIBE.
089 ___________
Date______________ Signed____________________________

System description 3
GT1 Outdoor sensor
GT2 Boiler/flow sensor
SÄV Safety valve boiler
EXP Expansion vessel
AV1 Tapping valve
AV2 * Shut-off valve radiator circuit
flow
AV3 * Shut-off valve radiator circuit
return
AV4 Filling valve
AV7 Pressure controlled bypass
valve
CP Circulation pump
EP Immersion heater
RC Automatic heating control
system
UR Timer
K2 * Contactor tariff control of the
electric water heater
BR * Tariff control bypass
SÄK * Miniature circuit-breaker group
RAD * Radiator circuit
*Not included in the standard
delivery
Principle of operation
EVC 13 has an outdoor temperature controlled boiler
temperature which is why a shunt valve is not re-
quired. The outside temperature sensor is supplied.
The output is connected and disconnected with the
help of two contactors and two relays. EVC 13 has an
integrated circulation pump, expansion vessel, safety
valve, tapping valve, load monitor and an input for
centralised load control. Current regulations require
the heating installation to be inspected before it is
commissioned. The inspection must be carried out by
a suitably qualified person and should be document-
ed. The above applies to electric boilers with a closed
expansion vessel. The installation must be inspected
again if the boiler or the expansion vessel are re-
placed.
RAD*
P
GT1
SÄV GT2
CP
RC
Till VVB
EXP
AV1
AV3*
AV2*
EP
UR
Matning
EVC 13
Från tariffur
K2* BR*
SÄK*
Utrustning för matning av yttre elvattenvärmare (tillbehör)
AV7
AV4
General
EVC 13
From the tariff timer.
Equipment for powering an external electrical hot
water heater (accessory).
Supply

Front panel4
EVC 13
Clock
Heating curve
selection
Offset heating
curve
Night change
Fuse
Selector
D
a
y
15
12
24
21
618
R
3
9
15
ON O F F
2
1bar 3
04
20 100
40 80
60
°C
0 120
Boiler temperature
Switch
Boiler
pressure
Indicator lamps

Front panel
EVC 13
5
Offset heating curve
The setting control is used to increase or de-
crease the heating, see the section “Settings”
- “Changing the room temperature”.
Heating curve selection
The setting is dependent on the geographical
location and the type of heating system. See
the section “Settings” - “Default setting” for the
correct setting.
Night change
This control is used to change the heating dur-
ing a specific period of the day. The change is
enabled and disabled according to the times
set on the clock, also see “Selector”.
Indicator lamps
■The top lamp is on when the immersion
heater is connected.
■The lower lamp is on:
– When the electrical output is limited
due to an overloaded main fuse.
– The first two hours after the start of
the boiler.
– When centralised load control is
activated, if fitted.
■Alternately flashing lamps indicate that the
outdoor sensor is not connected correctly
(short-circuited cable or breakage).
Clock
The clock is used to manually set the times for
enabling and disabling the selected “Night
change”, also see under “Selector”.
Fuse
Fuse (2.5 A) for control and the circulation
pump.
Selector
Selector switch with three positions.
Permanent day
Night change not active
Auto mode.
Timer controlled night change.
Permanent night
Night change permanently active.

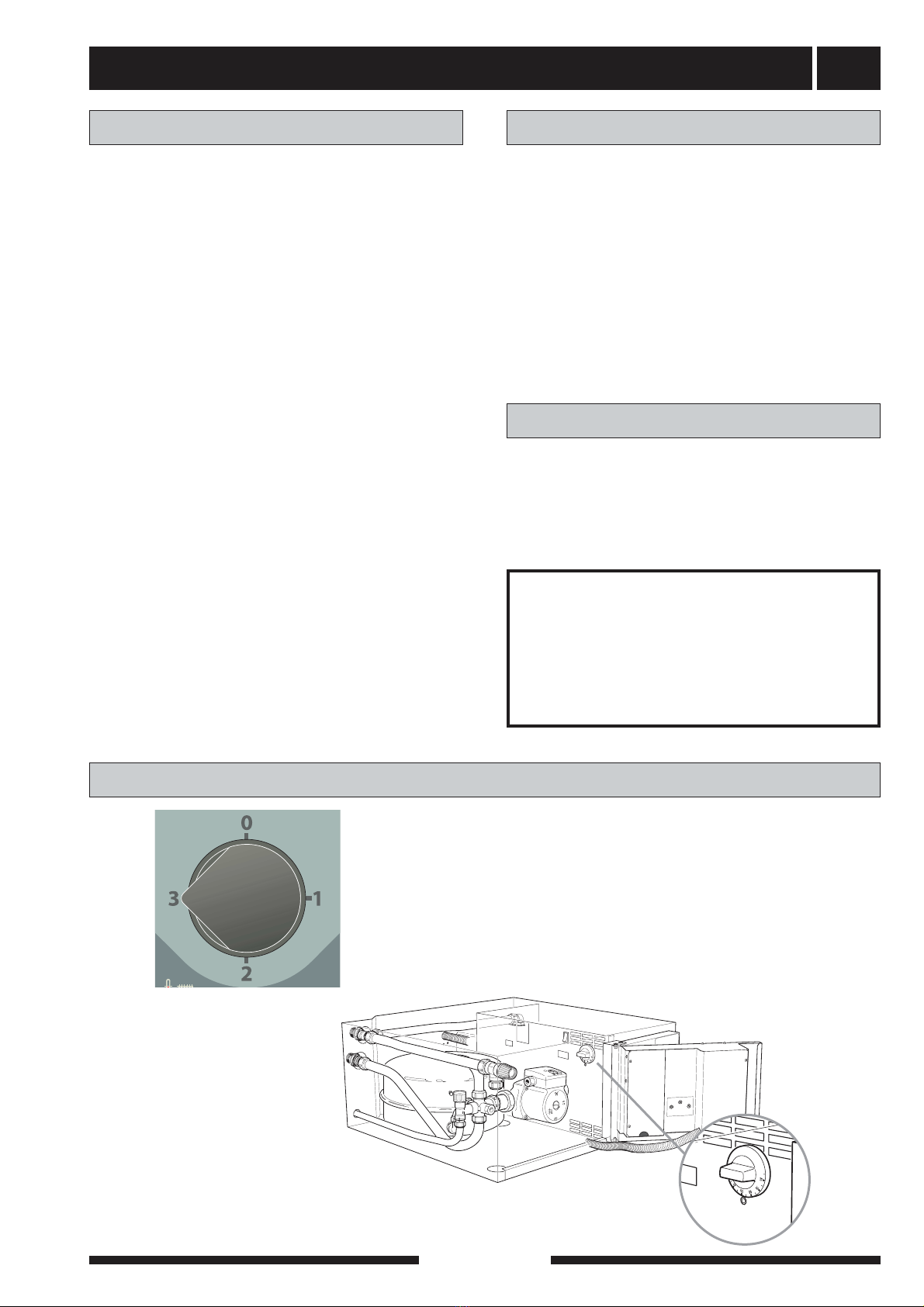

Switch
with 4 positions.
0 The boiler is completely switched off.
1 Summer mode
Only the clock and any tariff control of the
hot water heater are operational.
2 Heating mode
Normal operating mode, all functions con-
nected.
3 Standby mode
This position is used in the event of operat-
ing disturbances. The boiler/ flow tempera-
ture is then regulated by “Max thermostat”.
The circulation pump and immersion heater
are operational. The immersion heater is
limited to 6 kW.
A connected hot water heater is voltage fed.

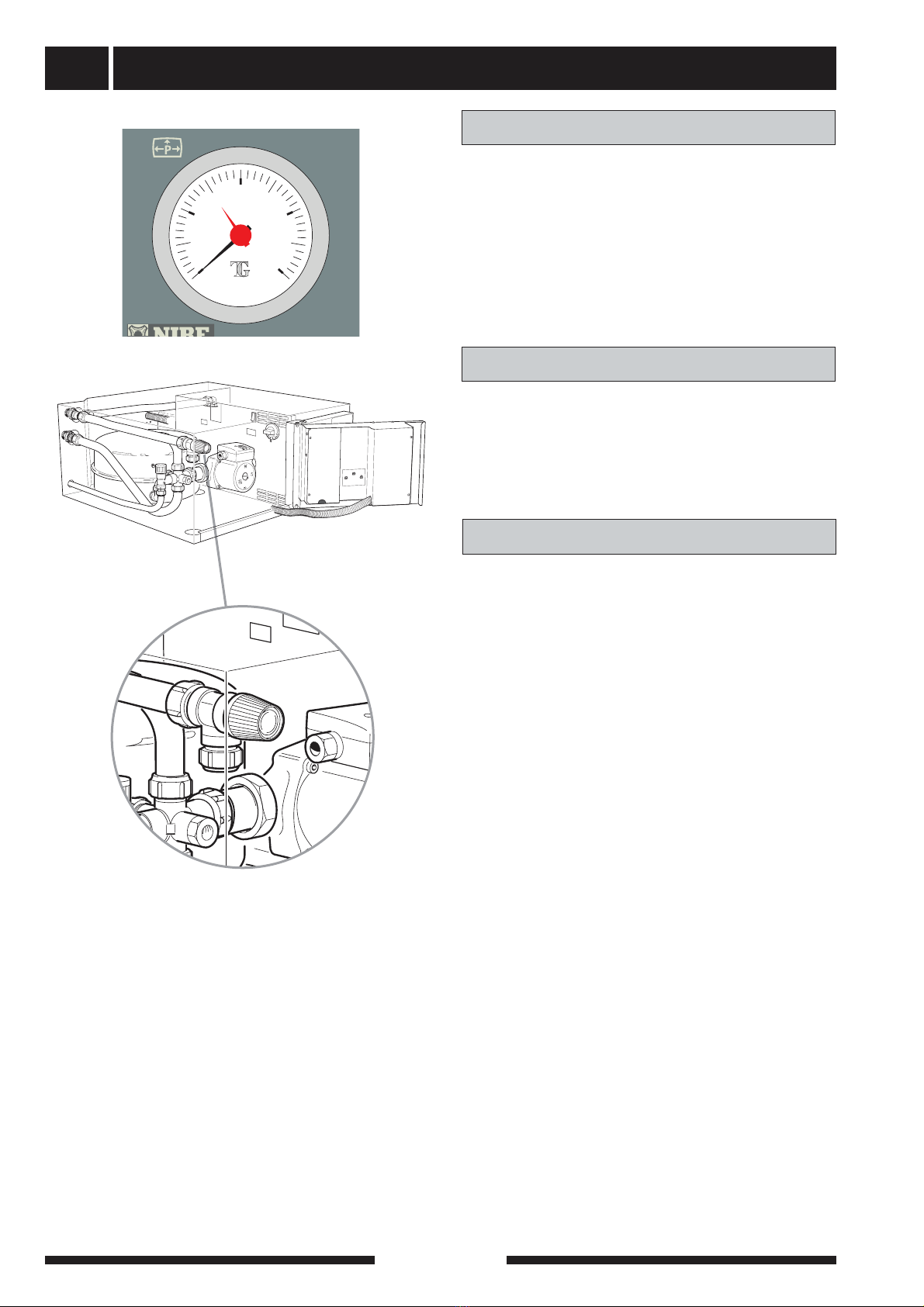

Boiler temperature
The gauge shows the current boiler tempera-
ture, which is the same as the flow temperature.
Boiler pressure
The system/boiler pressure is shown here.
Gauge graduation is 0 - 4 bar. Normal pressure
is 0.5 - 1.5 bar.

Settings6
EVC 13
The indoor temperature depends on several factors.
During the hot season, solar radiation and heat given
off by people and equipment are sufficient to keep the
house warm. When it gets colder outside, the heating
system must be started. The colder its gets, the hotter
the radiators must be.
This adjustment is made automatically, however the
basic settings must first be made on the boiler (see
below).
The basic heating is set with the Heating curve selec-
tion knob and with the Offset heating curve knob.
If you do not know the correct settings use the basic da-
ta from the map opposite. If the required room tempera-
ture is not obtained, readjustment may be necessary.
NOTE! Wait one day between settings so that the tem-
peratures have time to stabilise.
Readjustment of basic settings.
Cold weather conditions
If the room temperature is low, increase the heating
curve selection setting by one step.
If the room temperature is high, reduce the heating
curve selection setting by one step.
Warm weather conditions
If the room temperature is low, turn the Offset heat-
ing curve knob one step clockwise.
If the room temperature is high, turn the Offset heat-
ing curve knob one step anticlockwise.
Default setting
Heating control system
Heating curve
selection
Offset heating
curve
Night change

Settings
EVC 13
7
Changing the room temperature manually.
If you want to temporarily or permanently lower or
raise the indoor temperature relative to the previously
set temperature, turn the
“Offset heating curve” knob
anticlockwise or clockwise. One scale marking corre-
sponds to a change of about one degree in the room
temperature.
Timer controlled change in the room temperature.
The “Night change” knob is used when you would like
to lower or increase the room temperature during spe-
cific periods of the day. In the home position this knob
should be set to 0. A change of one scale marking cor-
responds to approximately a 1 degree change in the
room temperature. The change is active during the pe-
riods set on the clock (see section “Clock” -
“Programming the timer”).
NOTE! An increase in the room temperature may be
inhibited by the radiator or floor heating thermostats, if
so these must be turned up.
Changing the room
temperature

Settings8
EVC 13
The heating control system on EVC 13 is controlled by
the outside temperature. This means that the boiler
temperature and with that also the flow temperature is
regulated in relation to the current outdoor tempera-
ture.
The relationship between outside temperature and
flow temperature is set with the “Heating curve selec-
tion” and “Offset heating curve” knobs.
First select “Offset heating curve”. A suitable value for
floor heating is -1 and for radiator systems -2.
In the diagram you then use the dimensioned outdoor
temperature for the area and the dimensioned supply
temperature of the heating system as a basis. The
heating control system's curve slope can be read
where these two values meet.
30
40
50
60
80
°C
FRAMLEDNINGSTEMPERATUR
- 40 °C
UTETEMPERATUR
- 10
0
10 - 20 - 30
15 14 13
11
10
9
8
7
6
5
4
3
2
1
VÄRMEKURVA
- 5
+ 5
FÖRSKJUTNING VÄRMEKURVA
70
16171819 12
30
40
50
60
80
°C
FRAMLEDNINGSTEMPERATUR
- 40 °C
UTETEMPERATUR
- 10
0
10 - 20 - 30
15 14 13 12 11
10
9
8
7
6
5
4
3
2
1
VÄRMEKURVA
- 5
+ 5
FÖRSKJUTNING VÄRMEKURVA
70
16171819
30
40
50
60
80
°C
FRAMLEDNINGSTEMPERATUR
- 40 °C
UTETEMPERATUR
- 10
0
10 - 20 - 30
15 14 13 12 11 10
9
8
7
6
5
4
3
2
1
VÄRMEKURVA
- 5
+ 5
FÖRSKJUTNING VÄRMEKURVA
70
16171819
Offset heating curve 0
Offset heating curve -2 Setting according to the
diagram
Offset heating curve +2
Selection,
heating curve
Offset heating
curve
Heating curve
Heating curve
Heating curve
Offset heating curve Outside temperature
Offset heating curve Outside temperature
Offset heating curve Outside temperature
SUPPLY TEMPERATURESUPPLY TEMPERATURE SUPPLY TEMPERATURE
