Nibe VEDEX 3300 User manual

MOS GB 0733-1
VEDEX 3300
M10528
INSTALLATION AND MAINTENANCE INSTRUCTIONS
VEDEX 3300
LEK

1VEDEX 3300
For Home Owners
Installation data __________________________________ 2
System diagram ___________________________________ 3
Area of use ______________________________________ 3
Product description ________________________________ 3
Hot water heating _________________________________ 3
Abbreviations _____________________________________ 3
Heating __________________________________________ 3
Settings, instructions and maintenance
Charge and circulation pump _______________________ 5
Sweeping ________________________________________ 5
General instructions________________________________ 6
Primary air control _________________________________ 6
Boiler default settings ______________________________ 6
Firing wood
Lighting instructions _______________________________ 7
Adding wood _____________________________________ 7
Readjustment _____________________________________ 7
Contents
For the Installer
General information for the installer
Boiler room_______________________________________ 8
Chimney _________________________________________ 8
Assembly_________________________________________ 8
Turbulators _______________________________________ 8
Installing ceramics _________________________________ 9
Pre-installed ceramic kit ____________________________ 9
Ceramic grate_____________________________________ 9
Flame trough _____________________________________ 9
Pipe installation
Connection______________________________________ 10
Flue gas thermometer _____________________________ 10
Filling___________________________________________ 10
Draining ________________________________________ 10
Cooling coil _____________________________________ 10
Environmentally approved _________________________ 10
Docking to the accumulator
Docking to thermal outlet with several tanks and open
expansion tank___________________________________ 11
Docking to several tanks with thermal or electronic
charge control and open expansion tank _____________ 11
Abbreviations ____________________________________ 11
Electrical installation
Connection______________________________________ 12
Electrical circuit diagram ___________________________ 12
Electrical function ________________________________ 12
Reconnection ____________________________________ 12
Technical specifications
Dimensions______________________________________ 13
Measuring principle_______________________________ 13
Component location, boiler section__________________ 14
Component location, front panel ___________________ 14
List of components _______________________________ 15
Enclosed kit _____________________________________ 16
Accessories ______________________________________ 16
Technical specifications ____________________________ 17
For the chimney sweep
Sweeping
Sweeping description _____________________________ 18
Fan ____________________________________________ 18
Cover plate______________________________________ 19

2VEDEX 3300
For Home Owners
General
Thank you for relying on NIBE to supply your boiler and congratulations on choos-
ing VEDEX 3300, a high quality firewood boiler with a long service life, developed
and manufactured in Sweden for Swedish conditions.
In order to get the ultimate benefit from VEDEX 3300 you should read through
these Installation and Maintenance Instructions. The numbers in brackets refer to
the section “Component locations”.
The boiler is designed for houses with water borne heating and is environmentally
approved for accumulator tank firing.
This appliance is not intended for use by persons (including children) with redu-
ced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appli-
ance by a person responsible for their safety.
Installation data
To be filled in when the boiler has been installed
Installation date
Manufacturing number
Plumber

3VEDEX 3300
For Home Owners
General
Area of use
NIBE VEDEX 3300 is intended for heating domestic houses
and other buildings.
The boiler is environmentally approved for wood firing to
the accumulator tank. VEDEX 3300 can be set for pellet
firing.
Product description
VEDEX 3300 is a wood-fired boiler with induction flue gas
fan. Max. wood length is 0.5 m. The boiler is designed to
be connected to an external water heater for heating do-
mestic hot water.
When firing, the boiler water is partially heated by the
hearth and partly by the flue gas ducts.
Average output during wood burning operation is approx.
35kW (max. output is approx. 40kW).
Hot water heating
An accumulator tank with integrated water heater or coil
is needed for hot water heating.
The hot water capacity is determined by the choice of wa-
ter heater size or the length of coil.
Abbreviations
HW Hot water
CW Cold water
SÄV Safety valve
AV Shut-off valve
WH Water heater
EX Expansion vessel
SV1 Shunt valve
SV2 Mixer valve
CP1 Charge pump
CP2 External circulation pump
RAD Radiator circuit
LD1 Charger pack
Heating
Hot water is taken from the top of the boiler and routed
to the accumulators. Return water from the accumula-
tor tanks is lead via a charger pack to the bottom of the
boiler. The hot water is led from the accumulators to the
radiator circuit via a shunt valve (SV1), where the desired
temperature to the radiators is maintained by mixing the
hot accumulator water with the cooled return water from
the radiator circuit.
System diagram
The outline diagram shows components that
are not included in standard deliveries.
EXP AV
LV
SÄV
AV
AV T
AV T
TG
AV BV
MV
CP2
SV1
SV2
T
T T
VVB
ACCUACCU
T
ACCU
ELK
RC
AV
AV T AVT AVT
AV
AV
CP1
AV
EXP AV
LV
SÄV
AV TG AV BV
MV
CP2
SV1
SV2
T
TT
VVB
ACCUACCU
ELK
RC
AV
AV TAVT
AV
CP1AV

4VEDEX 3300
For Home Owners
General
Indicator lamp for operation
When the green light comes on, the flue gas thermostat’s
set temperature has been reached.
Flue gas thermostat
This thermostat starts and stops fans and any charge
pumps during lighting and extinguishing phases. The
thermostat is delivered connected for charge control by
thermal valve. i.e. the flue gas thermostat only starts and
stops the flue gas fan. To prevent stationary losses via
VEDEX 3300, reconnection to charge control without
thermal valve is recommended. The flue gas thermostat,
together with the boiler thermostat, then starts and stops
the charge pump.
Max. thermostat
This thermostat stops the fan when the boiler temperature
exceeds the set value.
Charge thermostat
Thisthermostat starts and stops the charge pump at the
set value.
115,0
164,0
267,6
327,0
208,0
345,3
369,5
375,0
48,0
5,5
11,0
11,0
10,5
79,4
107,2
157,0
97,8
23,2
Ø 52,8
53,5
3 st hål ø36
Hål ø6
Hål 11,5x29
HålHål
20 100
40 80
60
0 120
2
1bar 3
04
20 100
40 80
60
0 120
2
1bar 3
04
OLD
Indicator lamp
for operation
Control switch
Flue gas thermostat
Max. thermostat
Charge thermostat Boiler temperature gauge
Boiler pressure gauge
Control switch
Operating current, on and off.
Boiler temperature gauge
The operating temperature of the boiler is indicated on the
gauge which is graduated 0–120°C. It shows the tempera-
ture of the boiler water level with the flow line connection.
Boiler pressure gauge
The boiler’s pressure is displayed here. The gauge is gradu-
ated 0 - 4 bar with a red mark at 1.5 bar.
Max. permitted pressure is 1.5 bar at 100°C.
For a closed system, the operating pressure varies during
operation depending on the installation’s varying tempera-
ture.

5VEDEX 3300
For Home Owners
Settings, instructions and maintenance
Sweeping
The sweeping carried out by a chimney sweep includes
all flue gas routes from the hearth to the top of the chim-
ney. You can check the boiler’s fire-affected surfaces and
flue gas ducts yourself to determine how often the boiler
should be swept.
Gas, which contains tar substances, builds up in the wood
magazine. These substances condense on the walls of the
wood magazine and are later burned off. This means that
the walls of the wood magazine do not usually have to be
cleaned. The convection part is cleaned by removing the
top soot door (66), pulling up the turbulator and brushing
clean. This should be done a few times between chimney
sweep visits.
For optimum combustion and efficiency the boiler’s sec-
ondary combustion chamber should be cleaned after
about 15 additions of wood. The compartment is cleaned
from the front via the lower door by pulling out the flame
trough and brushing. Take care to remove any burnt on
ash remains in the trough.
Also see ”For the chimney sweep”, under ”Sweeping” .
Charge and circulation pump
If a charge or circulation pump is not in operation for en
extended period of time, it should be started from time to
time so that it does not jam.
Ash can still contain glowing embers after
a long time. Therefore, always use a non-
inflammable container when emptying ash
and soot.
Note!
Settings, instructions and maintenance

6VEDEX 3300
For Home Owners
För konsumentbroschyr
Förvärmd
primärluft
Termisk
returanslutning
Sekundärluft
Ställbara
luftventiler
Värmeupp–
tagande flänsar
med turbulatorer
Returanslutning
Askrumslucka
med inspektionsglas
Keramikroster
Ventil för
primärluft
Påfyllningslucka
Primärluft
Styrpanel
Vattenkyld botten
Flambalja för
slutförbränning
Hetvattenretur
HetvattenuttagRökgasstyrd sugfläkt
Kylslinga
Settings, instructions and maintenance
General instructions
The way the wood is chopped, its type and moisture con-
tent are all determining factors that affect the function
and efficiency of the boiler.
Adjust the size of the wood to fit the hearth. Suitable
length of chopped wood for VEDEX 3300 is 0.5m.
The wood is placed on the ceramic grate.
The combustion process works by reverse combustion
where the combustion gases are forced down through the
grate by an induction fan. The fan is controlled by the flue
gas temperature. A damper ensures that a self induced
draught does not occur when the fan is off.
The fan works at two speeds which means that the high-
est speed occurs when adding wood and normal speed
during operation.
A tilting smoke stop prevents blow back.
Always use dry wood. Wood with a high moisture content
reduces the combustion temperature and causes increased
amounts of environmentally harmful emissions as well as
reducing efficiency.
Extremely dry wood can cause a large fire which can
create large amounts of gas. In addition, there is a risk
of flashover, which in turn causes irregular combustion.
Carpentry off cuts can be used but should be mixed with
other wood. All wood over 10 cm must be chopped. Only
use untreated and clean wood.
Combustible gases are created as the wood heats up.
These burn at temperatures between 300 - 900°C. The
gases make up 75% of the wood’s energy content, the
rest is in the created charcoal, which also eventually burns.
Final combustion occurs in the compartment under the
grate after the supply of secondary air.
Primary air control
The control damper on the front of the boiler is used to
distribute the air supply to the hearth.
In the left position the air supply is from the top of the
■
combustion chamber.
In the right-hand position, the air supply is from the
■
lower part just above the ceramic grate in the hearth.
In the central position the air is distributed equally from
■
both inlets.
Fluegas thermostat
This thermostat senses the flue gas tempera-
ture. When the temperature has been reached
and the filler door closed, the fan resumes
normal speed. When firing is ended and the
flue gas temperature has dropped, the fan is
stopped by the thermostat.
Max.thermostat
This thermostat stops the fan when the boiler
water temperature is too high.
Charge thermostat
This thermostat starts the charge pump at the
set boiler water temperature.
Before adding the first pieces of wood, check
that the boiler and the heating system are filled with wa-
ter, and that the flue gas thermometer is installed in the
flue pipe. Then make settings as follows.
Set the flue gas thermostat to position:
■
Set the max. thermostat to 90 °C.■
Set the charge thermostat to 70 °C.■
Adjust the primary air damper as follows.■
1 Hard and mixed wood
Adjust the damper to the right.
2 Softwood
Adjust the damper to the left.
For a newly installed boiler, new adjustments should be
made if combustion is not efficient and poor or if another
type of wood is used. Also see section “Wood firing”.
20 100
40 80
60
0 120
2
1bar 3
0 4
2
1bar 3
04
T G
20 100
40 80
60
°C
0 120
T G
1
0
R
VEDEX 3000
°C
°C
°C20
30
40
70
80
90
50
60
°C
20
30
40
70
80
80
90
50
60 P
T
T
T
P
T
T
T
T
T

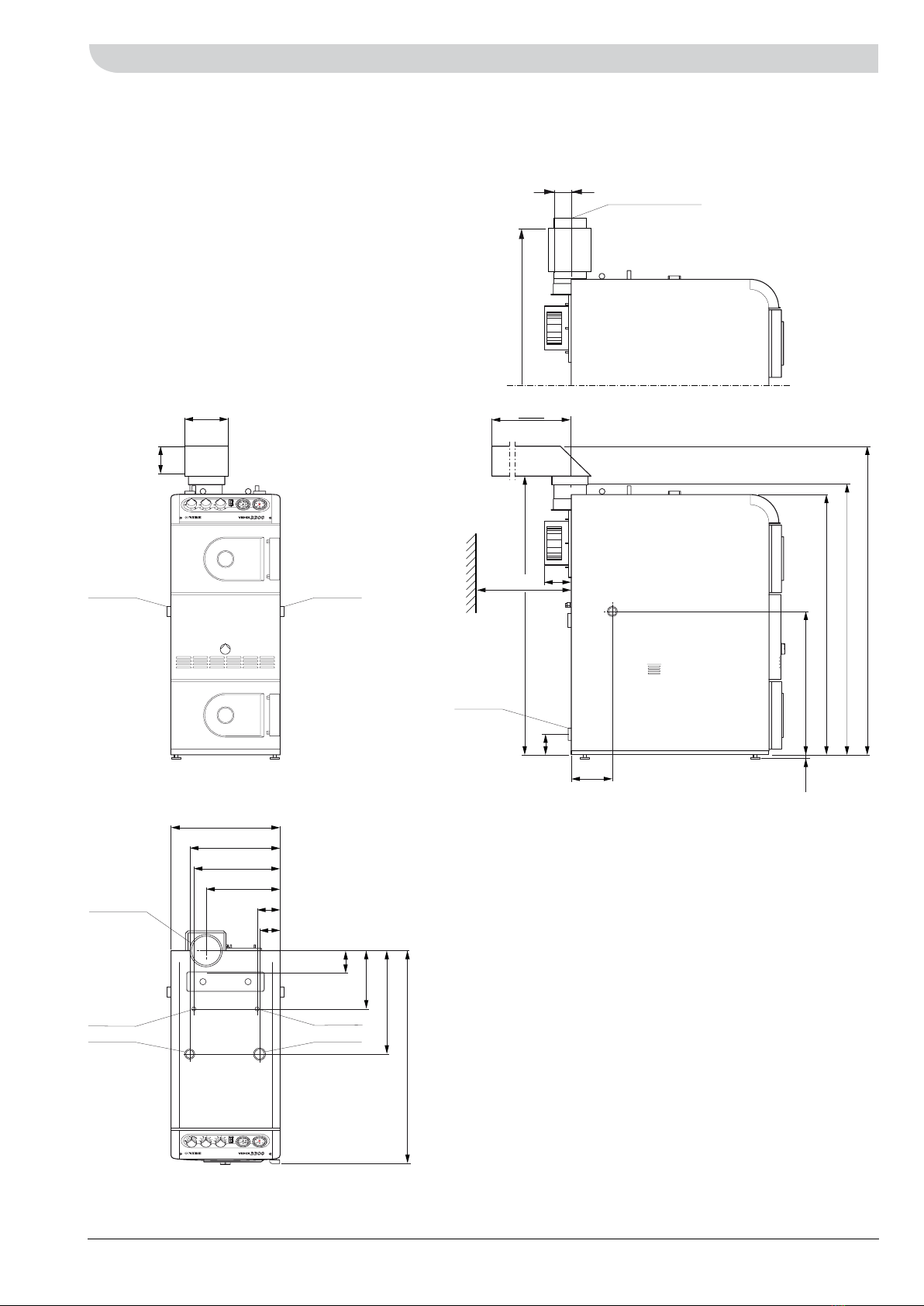

Boiler default settings
The instrument panel contains three thermostats.
115,0
164,0
267,6
327,0
208,0
345,3
369,5
375,0
48,0
5,5
11,0
11,0
10,5
79,4
107,2
157,0
97,8
23,2
Ø 52,8
53,5
3 st hål ø36
Hål ø6
Hål 11,5x29
HålHål
20 100
40 80
60
0 120
2
1bar 3
04
20 100
40 80
60
0 120
2
1bar 3
04
OLD
115,0
164,0
267,6
327,0
208,0
345,3
369,5
375,0
48,0
5,5
11,0
11,0
10,5
79,4
107,2
157,0
97,8
23,2
Ø 52,8
53,5
3 st hål ø36
Hål ø6
Hål 11,5x29
HålHål
20 100
40 80
60
0 120
2
1bar 3
04
20 100
40 80
60
0 120
2
1bar 3
04
OLD
115,0
164,0
267,6
327,0
208,0
345,3
369,5
375,0
48,0
5,5
11,0
11,0
10,5
79,4
107,2
157,0
97,8
23,2
Ø 52,8
53,5
3 st hål ø36
Hål ø6
Hål 11,5x29
HålHål
20 100
40 80
60
0 120
2
1bar 3
04
20 100
40 80
60
0 120
2
1bar 3
04
OLD
115,0
164,0
267,6
327,0
208,0
345,3
369,5
375,0
48,0
5,5
11,0
11,0
10,5
79,4
107,2
157,0
97,8
23,2
Ø 52,8
53,5
3 st hål ø36
Hål ø6
Hål 11,5x29
HålHål
20 100
40 80
60
0 120
2
1bar 3
04
20 100
40 80
60
0 120
2
1bar 3
04
OLD
Höger Vänster

7VEDEX 3300
For Home Owners
Wood firing
Lighting instructions
It is important that initial firing is carried out carefully in a
new boiler so that any remaining crystallisation water in
the ceramics is condensed slowly to prevent cracking.
Add approximately 4 kg of finely chopped kindling
■
wood and then tightly screwed up newspapers on top.
Light the newspaper and leave the filler door ajar.
Wait until the wood has caught fire properly (flue gas
■
temperature approximately 130 – 150°C) and the
green light comes on.
Close the door and let the fire burn to a bed of em-
■
bers, approximately 30 – 45 minutes depending on the
amount of wood.
Once a bed of embers has been created, more wood
■
can be added.
Check that the flue gas temperature rises, this is a sign
■
that combustion has started.
The boiler is now in normal operating mode.
Add more wood when a bed of embers remains at the
■
bottom of the hearth.
Adding wood
Add wood via the filler door. When this door is opened, a
microswitch is affected, which, in, turn increases the speed
of the fan.
It is important that the amount of fuel is adjusted accord-
ing to the temperature levels in the accumulator system so
that it does not become overcharged.
Even out the embers before adding more wood. Then
close the filler door. The speed of the fan is now slowed
and normal operation resumed.
VEDEX 3300 is designed for 0.5
m long pieces of wood. Stack
the wood well when adding.
Start by laying three logs as
marked in the image. Position
the logs so that they do not ob-
struct the grate hole. If shorter
pieces of wood are used, stack
these over the grate hole to-
wards the rear wall.
When the wood in the boiler has been burned and the
■
flue gas temperature drops to 80 – 85 °C, and a mini-
mal bed of embers remains, the green light should go
out, if not, readjust the flue gas thermo-
stat.
It is now set and should not need further
adjustment. At the next firing procedure,
the green light automatically comes on
when the flue gas temperature has reached approxi-
mately 80 – 85°C.
Readjustment
The flame can be checked through the sight glass af-
ter about 30 minutes operation. The colour of the flame
should then be yellow with a light blue tint.
The following points should be observed for VEDEX 3300
to perform optimally:
Follow the lighting procedure by checking the flue gas
■
temperature.
The fan should never stop during the firing cycle.
■
When the accumulator is fully charged, there should■
no longer be any wood in the wood magazine.
Never open the combustion chamber door during op-
■
eration.
The combustion of wood can vary depending on its
■
moisture content and type as well as on the position of
the primary air damper.
If the wood is not fed downwards and the flue gas
temperature is low, this may be due to an insufficient
amount of air being drawn in through the primary air
ducts. Adjust the damper to the left.
If the wood burns as in
case (A), the air supply is
too great from the top and
too low from the middle.
If the wood burns as in
case (A), the air supply is
too great from the middle
and too low from the top.
The correct air flow as per
case (C) gives the most ef-
ficient combustion.
It is not necessary to adjust the primary air damper if
any of cases fallen (A) and (B) occur on the odd occa-
sion.
A
B
C
20 100
40 80
60
0 120
2
1bar 3
0 4
12
3
Wood firing

8VEDEX 3300
For the Installer
Assembly
VEDEX 3300 has inlets for primary air at the front and
secondary air on the sides of the boiler. Therefore, always
leave a space of at least a metre from combustible mate-
rial. In unfavourable cases “puffs” from combustion can
discharge sparks.
Turbulators
Six turbulators are supplied with boiler. These are located
in the ducts in the boiler’s convection part as illustrated.
The turbulators affect the turbulence of the flue gases,
which means that a greater amount of energy is trans-
ferred to the boiler water. The temperature in certain
chimneys may become so low that there may be a risk
of condensation build-up in the smoke duct. To increase
the temperature in the chimney the turbulators can be
removed, one at a time as illustrated. For each turbulator
that is removed, the flue gas temperature rises from the
boiler by 15 - 25°C.
Remove the turbulators in number order until the flue gas
temperature in the chimney is correct.
LEK
13 4
56
2
General information for the installer
13 4
56
2
66
Boiler room
The boiler room must be built in accordance with applica-
ble building regulations.
Provision for good air supply. The boiler room’s air intake
must be as large as the smoke pipe duct.
Chimney
VEDEX 3300 has a vertical flue pipe connection with an
external diameter of 133 mm. Angled flue pipe supplied as
standard.
Different chimney heights are required depending on ver-
sion. In addition, a number of other factors, for example,
wind and terrain conditions, nearby buildings etc, can
affect the draught conditions of the chimney. Minimum
chimney draught for satisfactory wood firing is 15 Pa.
The following table showing several different versions of
chimney is a recommendation, however, the aforemen-
tioned factors must also be taken into consideration.
Material Area Minimum
height
Steel pipe Ø 125 mm 5.0 m
Brick 140 x 140 mm 5.0 m
Many older boilers have the flue duct located down below
and will have been connected to the chimney near to the
floor. If the new boiler is to be connected higher up on the
chimney the lower non-active part of the chimney pipe
should be filled with sand or similar.
EX
Minimum 5 m
vid vedeldning
Fyllning
Undertryck i skorstens-
anslutningen minimum
1,5 mmVP (15Pa).
Ensure that sweeping can be carried out in
accordance with the applicable regulations.
If in doubt, contact a chimney sweep.
Note!
The flue gas temperature must not drop
below 65°C 0.5 m below chimney opening.
Note!
General information for the installer
Minimum 5m
during wood firing
Chimney connection
vacuum minimum
1.5 mmVP (15Pa).
Filling

9VEDEX 3300
For the Installer
General information for the installer
98
E
C
B
F
D
A

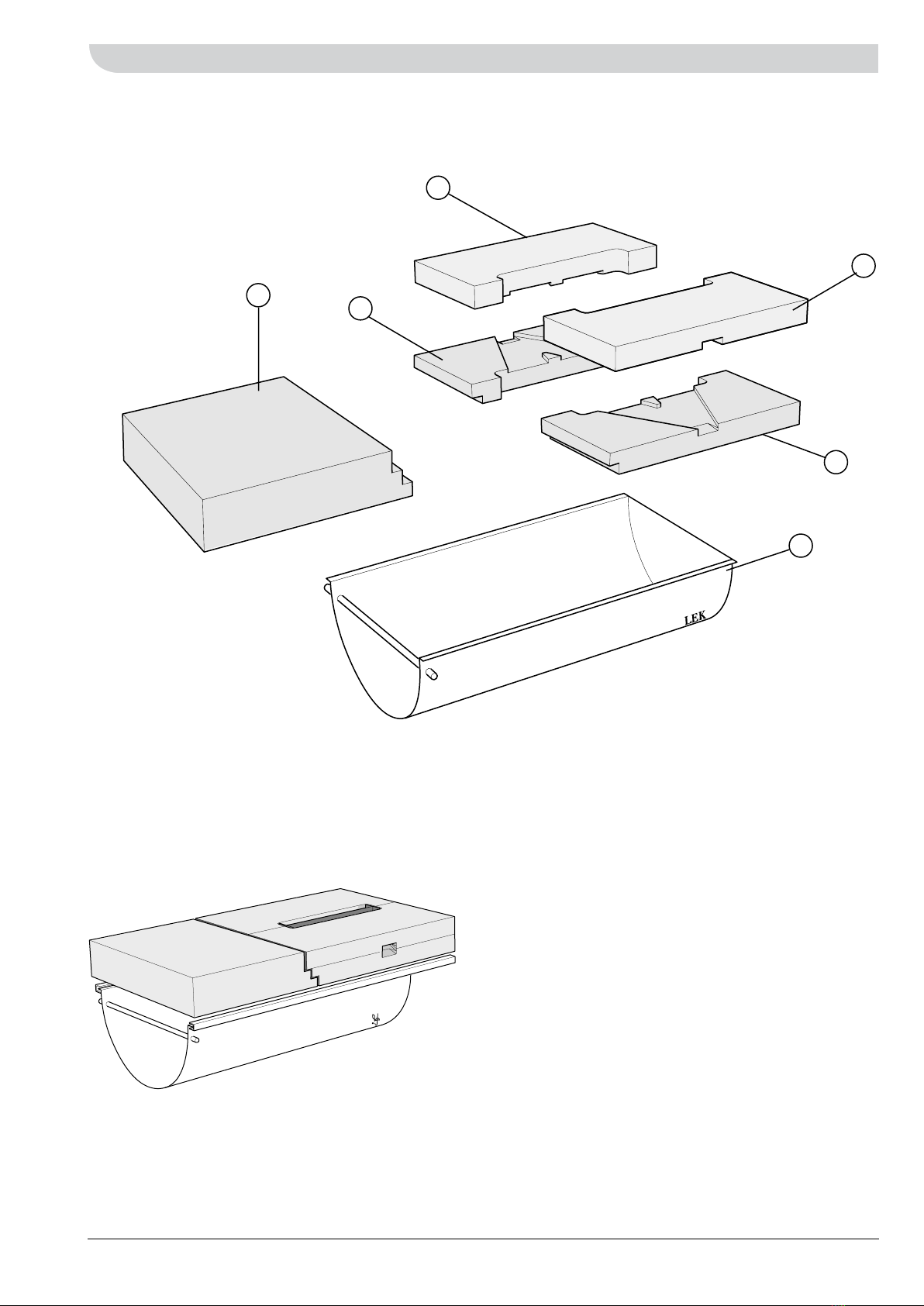

Installing ceramics
Pre-installed ceramic kit Ceramic grate
Place the ceramic inserts in through the filler door. First
position the front stone (B). Then position the rear stones
(C) and (D) followed by stones (E) and (F).

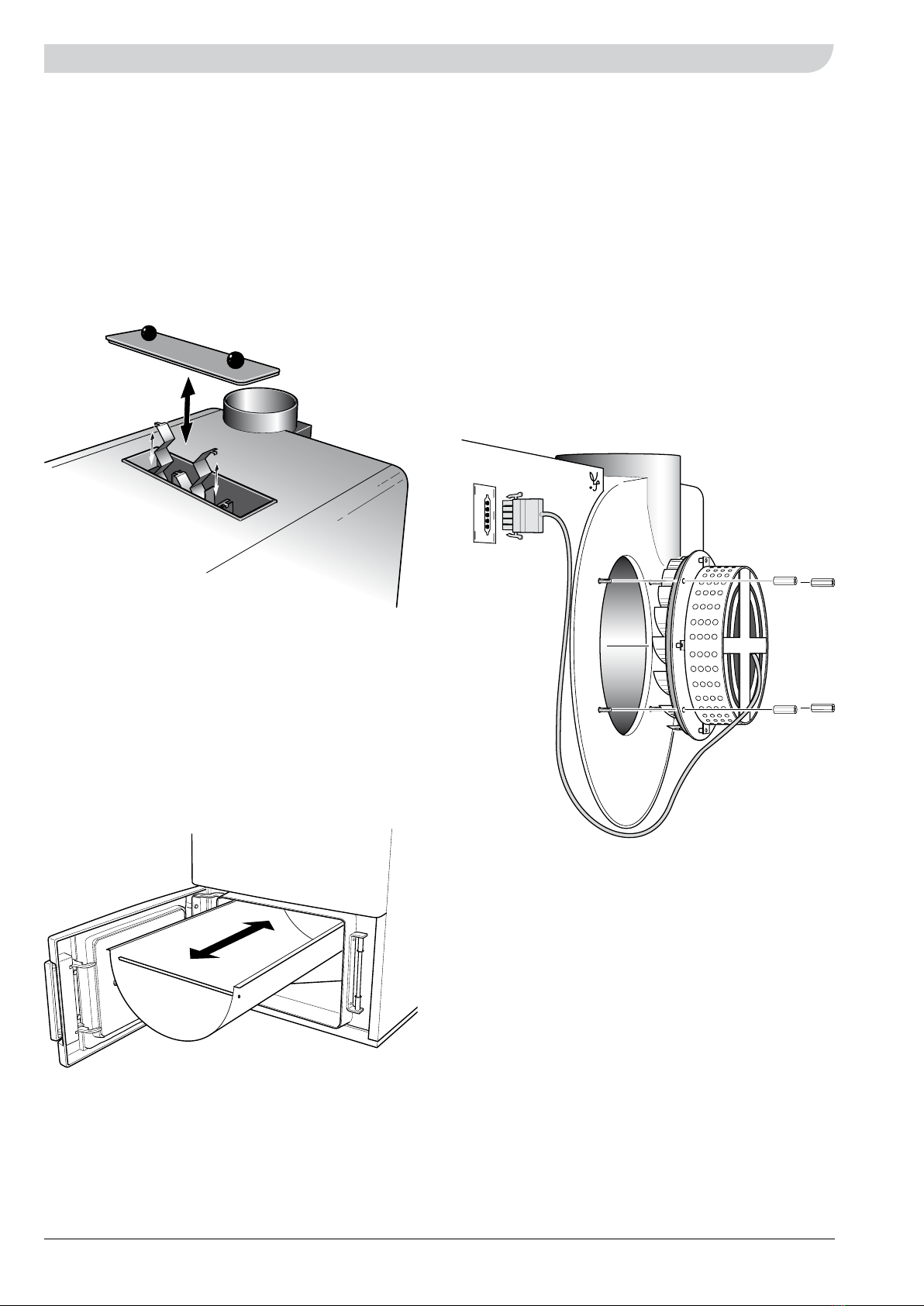

Flame trough
Open the combustion chamber door. Slide in the flame
trough (A) on its guides under the ceramic grate.
Note! The trough must be slid all the way into the cham-
ber.

10 VEDEX 3300
For the Installer
Pipe installation
Connection
The pipe installation must be carried out in accordance
with current norms. Internal support bushes should be fit-
ted when a steel pipe or annealed copper pipe is used.
The overflow pipe from any of the safety valves must be
routed to a floor drain to prevent hot water splashes when
checking the valves or when bleeding the boiler. The outlet
of the overflow pipe should be visible.
If the heating installation has an open expansion tank, the
distance between the highest radiator and the expansion
tank must not be less than 2.5 m.
Min 2,5 m
The pipe work must be flushed before the
boiler is connected, so that any contami-
nants do not damage the component parts.
Note!
Flue gas thermometer
VEDEX 3300 is supplied with an enclosed flue gas ther-
mometer which must be installed in the flue gas door
outlet.
Filling
Fill the boiler with water using a fixed filler line to one of
the expansion connections or a hose in the drain valve.
If filling via the radiator circuit, the
shunt valve must be in a central position.
Otherwise there is a risk of cracking one of
the radiators.
WARNING!
!
Draining
The drain valve is installed next to connection (84). Drain
by connecting a hose to the drain valve.
Cooling coil
VEDEX 3300 is supplied with cooling coil (22) for connec-
tion to a temperature limiting valve. Refer to the manufac-
turer’s instructions when installing.
Environmentally friendly approved
To meet the environmentally approved requirements dur-
ing wood firing an accumulator tank of at least 1000 litres
must be installed with the boiler.
Pipe installation

11VEDEX 3300
For the Installer
Docking to the accumulator
Abbreviations
EXP AV
LV
SÄV
AV
AV T
AV T
TG
AV BV
MV
CP2
SV1
SV2
T
T T
VVB
ACCUACCU
T
ACCU
ELK
RC
AV
AV T A V T AV T
AV
AV
CP1
AV
EXP AV
LV
SÄV
AV TG AV BV
MV
CP2
SV1
SV2
T
TT
VVB
ACCUACCU
ELK
RC
AV
AV TAVT
AV
CP1AV
Docking to several tanks with thermal or electronic charge control and open expansion tank
When the boiler’s temperature exceeds the set charge
temperature (for example, 75°C) the charge pump starts,
which then transfers heat from the boiler to the accumula-
tor. The electronic charge control ensures that the water
temperature to the bottom of the boiler does not drop so
much that there is a risk of condensation.
Charger pack 2 is recommended for this connection.
Docking to thermal outlet with several tanks and open expansion tank
Note! Reconnection is required in the electrical panel for this type of docking. See ”Electrical installation” – ”Reconnection”.
When the boiler’s temperature and flue gas temperature
exceeds the set temperature on the relevant thermostat,
the charge pump starts, which then transfers heat from
the boiler to the accumulator tanks. Once all the wood
has been burned and the flue gas temperature drops, the
charge pump stops automatically.
The return line that is connected to the special thermal
outlet distributes the return temperature in the boiler in
such a way as to eliminate the risk of condensation.
Charger pack 1 is recommended for this connection.
BV
AV
SÄV
VVB *
EXP
BV AV AV
CP1
CP2
SV1
SV2
T
T T
VVB
ACCU ACCU
ELK
AV T A V T
EXP AV
LV
SÄV
CP2
SV1
SV2
T
T T
VVB
ACCUACCU
T
ACCU
ELK
AV
AV T A V T AV T
AV
AV
CP1
BV
AV AV
AV Shut-off valve
BV Check valve
CP1 Charge pump
CP2 Circulation pump
ELK Electrical cassette/immersion heater
EXP Expansion tank
LV Venting valve
MV Motor valve
RC Control box
SV1 Shunt valve
SV2 Mixer valve
SÄV Safety valve
TG Temperature sensor
VVB Hot water heater
Docking to the accumulator

12 VEDEX 3300
For the Installer
Electrical installation
Connection
The boiler must be connected under the supervision of an
authorised electrician. The connection cable for electrical
connection is on the reverse of the boiler. There is a con-
nection area for electrical connection behind the front
panel (33).
The charge pump is powered from the electrical socket on
the reverse of the boiler, max. total current output is 10 A.
Min cable area 1.5 mm2.
Electrical function
Switch (45) set to position ”0” means that the boiler is off.
Position ”1” is the normal operating position.
The flue gas thermostat (2) controls the boiler fan, and, at
reconnection, also the charge pump.
Electrical circuit diagram
Electrical installation
Laddpump
Max. thermostat (3) only controls the boiler’s fan and
charge thermostat (19) only controls the external charge
pump.
When the green light comes on, the flue gas thermostat’s
set temperature has been reached.
Reconnection
The thermostat is delivered connected for charge control
by thermal valve. i.e. the flue gas thermostat only starts
and stops the flue gas fan.
To prevent stationary losses via VEDEX 3300, reconnection
to charge control without thermal valve is recommended.
The flue gas thermostat, together with the boiler thermo-
stat, then starts and stops the charge pump.
Reconnection must be carried out when docking to ther-
mal outlet. Carry out reconnection by moving cable 09
from terminal 12 to terminal 11 on terminal block -X9.
Charge pump

13VEDEX 3300
For the Installer
425
240
95
95
85
355
Ø133 utv.
305
880
1070
590
85
20-40
1115
1150
170
R32 inv.
Ø125 – 159 inv.Ø125 – 159 inv.
R25 inv.
R32 inv.
Ø15 utv.
R25 inv.
Ø15 utv.
370
450
R25 inv. min 250
515
180
125
425
240
95
95
85
355
Ø133 utv.
305
880
1070
590
85
20-40
1115
1275
1150
170
R32 inv.
R25 inv.
R32 inv.
Ø15 utv.
R25 inv.
Ø15 utv.
370
450
R25 inv. min 300
515
180
125
1275
125
Minsta avstånd
till vägg: 250 mm
Minsta avstånd
till vägg: 300 mm
125
45
19
342
40
2
36
83
22
22
66
96
83
66
96
33
81
82
33
81
82
100
84
100
84
18
20
20
18
10
10
95
95
94 94
11
68
64
23
97
65
27
97
64
65
27
97
64
28
11
68
64
23
97
28
70
1320
70
1320
Används i PBD p g a platsbrist
Technical specifications
Technical specifications
Dimensions
Minimum distance
to the wall: 300 mm

14 VEDEX 3300
For the Installer
115,0
164,0
267,6
327,0
208,0
345,3
369,5
375,0
48,0
5,5
11,0
11,0
10,5
79,4
107,2
157,0
97,8
23,2
Ø 52,8
53,5
3 st hål ø36
Hål ø6
Hål 11,5x29
HålHål
20 100
40 80
60
0 120
2
1bar 3
04
20 100
40 80
60
0 120
2
1bar 3
04
OLD
Technical specifications
45 4240336 192
Component location, boiler section
Component location, front panel
425
240
95
95
85
355
Ø133 utv.
305
880
1070
590
85
20-40
1115
1150
170
R32 inv.
Ø125 – 159 inv.Ø125 – 159 inv.
R25 inv.
R32 inv.
Ø15 utv.
R25 inv.
Ø15 utv.
370
450
R25 inv. min 250
515
180
125
425
240
95
95
85
355
Ø133 utv.
305
880
1070
590
85
20-40
1115
1275
1150
170
R32 inv.
R25 inv.
R32 inv.
Ø15 utv.
R25 inv.
Ø15 utv.
370
450
R25 inv. min 300
515
180
125
1275
125
Minsta avstånd
till vägg: 250 mm
Minsta avstånd
till vägg: 300 mm
125
45
19
342
40
2
36
83
22
22
66
96
83
66
96
33
81
82
33
81
82
100
84
100
84
18
20
20
18
10
10
95
95
94 94
11
68
64
23
97
65
27
97
64
65
27
97
64
28
11
68
64
23
97
28
70
1320
70
1320
Används i PBD p g a platsbrist
425
240
95
95
85
355
Ø133 utv.
305
880
1070
590
85
20-40
1115
1150
170
R32 inv.
Ø125 – 159 inv.Ø125 – 159 inv.
R25 inv.
R32 inv.
Ø15 utv.
R25 inv.
Ø15 utv.
370
450
R25 inv. min 250
515
180
125
425
240
95
95
85
355
Ø133 utv.
305
880
1070
590
85
20-40
1115
1275
1150
170
R32 inv.
R25 inv.
R32 inv.
Ø15 utv.
R25 inv.
Ø15 utv.
370
450
R25 inv. min 300
515
180
125
1275
125
Minsta avstånd
till vägg: 250 mm
Minsta avstånd
till vägg: 300 mm
125
45
19
342
40
2
36
83
22
22
66
96
83
66
96
33
81
82
33
81
82
100
84
100
84
18
20
20
18
10
10
95
95
94 94
11
68
64
23
97
65
27
97
64
65
27
97
64
28
11
68
64
23
97
28
70
1320
70
1320
Används i PBD p g a platsbrist

15VEDEX 3300
For the Installer
Technical specifications
List of components
2 Flue gas thermostat
3 Max. thermostat
10 Fan
11 Adjusting primary air
18 Connection cable electricity
19 Charge thermostat
20 Electrical socket for charge pump
22 Cooling coil Ø 15 ext.
23 Adjustable feet (20 – 40 mm)
27 Microswitch
28 Primary air inlet
33 Front panel
36 Indicator lamp, operation
40 Thermometer
42 Manometer
45 Control switch
64 Sight glass
65 Filler door
66 Soot door for convection part
68 Combustion door
81 Flow line R32 int.
82 Expansion connection R25 int.
83 Return connection, thermal R25 int.
84 Return connection, or drain connection R32 int.
94 Angled flue pipe, (standard)
95 Vertical flue pipe, (accessory)
96 Flue pipe connection Ø 133 ext.
97 Door handle
98 Fan transformer
99 Fan capacitor
100 Secondary air inlet (Min 0.5m from combustible material on both sides)

16 VEDEX 3300
For the Installer
Technical specifications
Enclosed kit
1 x Soot brush
1 x Soot brush shaft
1 x Ash scraper
1 x Tapping valve
1 x Ash shovel
1 x Flue gas thermometer
1 x Soot door with gasket
1 x Angled flue pipe
6 x Turbulators
1 x Soot panel
1 x Installation and Maintenance Instructions
Flue pipe extension for angled flue pipe
Rectangular flue pipe extension for angled flue pipe.
Dim ext. 180 x 123 mm
Length 750 mm
RSK No. 621 07 40

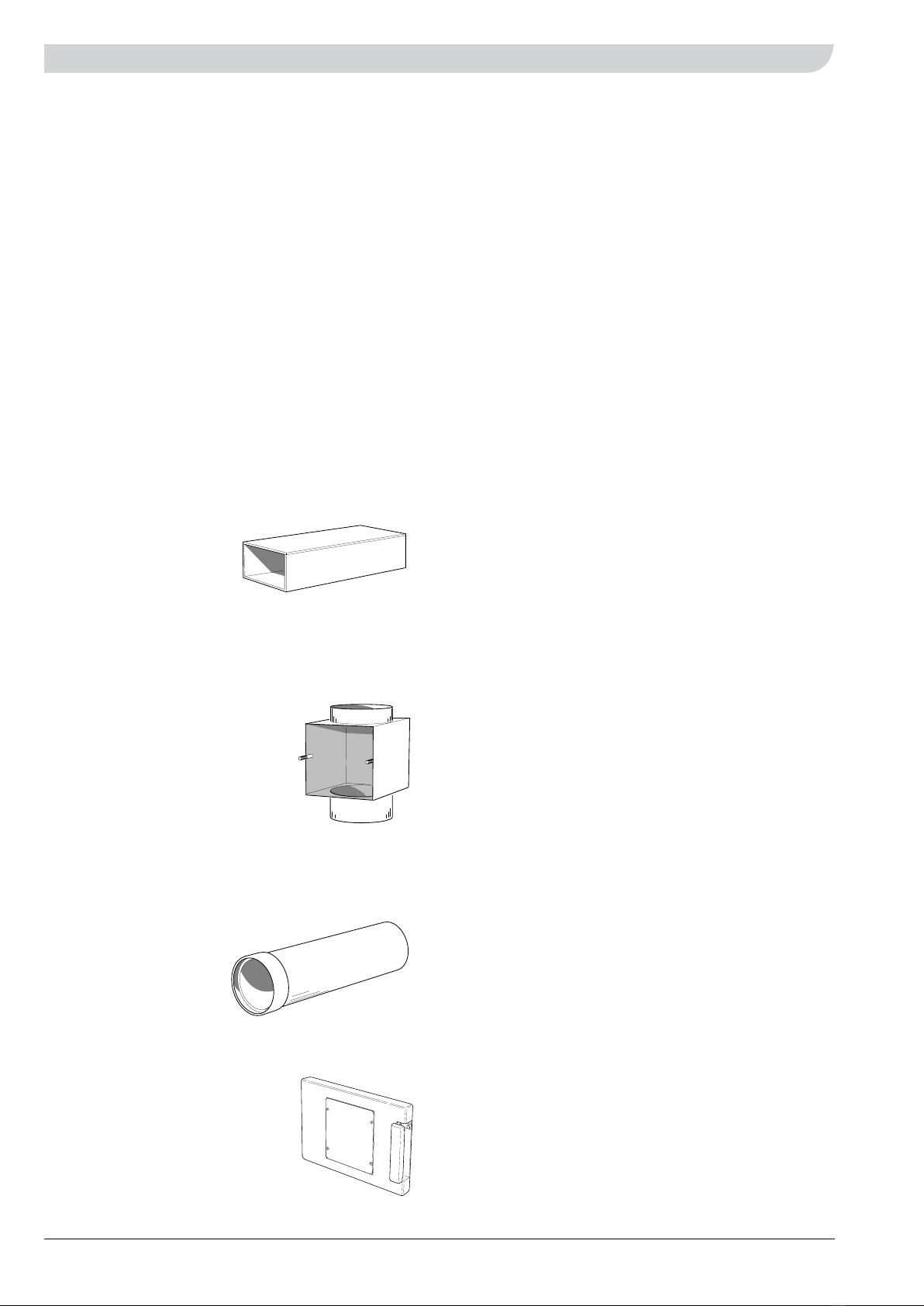

Vertical flue pipe
For vertical chimney connections this unit is used for the
vertical flue pipe instead of the supplied angled flue pipe.
Collar Ø int. 159 mm
Lower connector Ø int. 139 mm
Ø ext. 144 mm
RSK No. 621 07 37
Flue pipe extension for vertical flue pipe
Round flue pipe extension for vertical flue pipe.
Ø int. 125 mm
Ø ext. 133 mm
Length 750 mm
RSK No. 621 07 39
Accessories
LEK
LEK
LEK
Charger pack 1 (Part no. 089 872)
Contents:
1 x non-return valve connection 25
1 x charge pump, 6 mvp with shutoff valves
1 x shunt valve for heating system connection 25
1 x circulation pump for heating system, 6 mvp with shut-
off valves
2 x ball valves connection 25
2 x shutoff valves 1/2”
1 x 6 kW immersion heater with control
1 x cold and hot water armature assembly
Charger pack 2 (Part no. 089 873)
Contents:
1 x non-return valve connection 25
1 x 3-way motor valve connection 25
1 x temperature sensor, 60 - 90 °C
1 x electronic control box
1 x charge pump, 6 mvp with shutoff valves
1 x shunt valve for heating system connection 25
1 x circulation pump for heating system, 6 mvp with shut-
off valves
2 x ball valves connection 25
2 x shutoff valves 1/2”
1 x 6 kW immersion heater with control
1 x cold and hot water armature assembly
Pellet combustion door
Designed to replace the combustion chamber.
Enclosed:
1 x cover for fan outlet
2 x cover discs for secondary air inlet
Part no. 089 878
LEK

17VEDEX 3300
For the Installer
Technical specifications
Technical specifications
Height 1 070 mm (increases 15 – 40 mm for adjustable feet)
Width 450 mm
Depth 880 mm
Weight 290 kg
Boiler water volume 65 litres
Voltage 230 V
Average output during wood firing 33 kW
Wood magazine volume 95 litres
Wood magazine width 300 mm
Wood magazine depth 550 mm
Filler door width 300 mm
Filler door height 250 mm
Max. permitted total current for connected
units
10 A
Max. operating pressure/design pressure boiler 150/1,5 kPa/bar
Wood length 0,5 m
Fan 115 W
RSK number 620 13 94

18 VEDEX 3300
For the chimney sweep
Sweeping
Open the combustion chamber door (68).■
Pull out the flame trough.■
Empty the trough and clean the ash out. Take care to■
remove any burnt on ash remains in the trough.
Clean the chamber.
■
Position the trough in place and close the door.■
Fan
The fan is a central part of VEDEX 3300 and should be
treated with care. The fan should be removed and cleaned
about twice a year for optimum function and a long serv-
ice life.
Check that the boiler is off and that no embers are in
■
the combustion chamber.
Disconnect the fan from the electrical socket on the
■
boiler.
Remove the long nuts securing the fan to the boiler.
■
Clean the fan blades carefully to prevent deforming■
them.
Reinstall the fan and connect the electrical cable.
■
Sweeping description
Remove the cover from the mounting points in the■
boiler.
Lift out the turbulators from the convection part.
■
Sweep the convection part.■
Reinstall the turbulators.■
Reinstall the soot door.■
Sweeping
LEK
13 4
56
2
LEK
E
E
