1NIBE VVM 300
User guide
General
Principle of operation ______________________________ 3
System diagram ___________________________________ 3
Abbreviations _____________________________________ 3
Front panel
Pressure gauge____________________________________ 4
Switch ___________________________________________ 4
Display___________________________________________ 4
Offset heating curve _______________________________ 5
Right keypad _____________________________________ 5
Left keypad_______________________________________ 5
Room temperature
Heating control system _____________________________ 6
Default setting ____________________________________ 6
Changing the room temperature manually ____________ 6
Basic values for the automatic heating control__________ 7
Setting with diagrams ______________________________ 8
Maintenance routines
Checking the safety valves __________________________ 9
Pressure gauge____________________________________ 9
Low temperature or a lack of hot water ______________ 10
High hot water temperature________________________ 10
Low room temperature ____________________________ 10
High room temperature ___________________________ 10
Switch position “ ” __________________________ 10
Alarm/alarm outputs ______________________________ 11
Resetting the temperature limiter ___________________ 13
Helping the circulation pump to start ________________ 13
Resetting the miniature circuit breakers ______________ 13
Installation
General information for the installer
Transport and storage _____________________________ 14
Maximum boiler and radiator volumes _______________ 14
Erecting the heat pump ___________________________ 14
Inspection of the installation _______________________ 14
Electric boiler mode_______________________________ 14
Pipe connections
General _________________________________________ 15
Pipe connection of the heating system and hot water __ 15
Draining the heating system________________________ 16
Capacity diagram, heating medium pump ____________ 16
Capacity diagram, charge pump ____________________ 16
Contents
Emptying the hot water heater _____________________ 16
Pipe connection between VVM 300 and FIGHTER 2020_ 17
Docking
General _________________________________________ 18
VVM 300 docked to FIGHTER 2020 _________________ 18
Electrical connections
Connection______________________________________ 19
Access to the lower electrical connections ____________ 19
Modular cable between VVM 300 and FIGHTER 2020 __ 20
Power rating as set at the factory ___________________ 21
Resetting the temperature limiter ___________________ 21
Max boiler temperature ___________________________ 21
Max phase current________________________________ 21
Connecting the outside sensor______________________ 21
Centralised load control/Tariff ______________________ 22
Load monitor ____________________________________ 22
External contacts _________________________________ 23
Disconnecting the charge pump ____________________ 23
Commissioning and adjusting
Preparations _____________________________________ 24
Filling the hot water heater and the heating system ____ 24
Venting the heating system ________________________ 24
Commissioning FIGHTER 2020 and VVM 300 _________ 25
Commissioning VVM 300 without FIGHTER 2020______ 25
Readjustment ____________________________________ 25
Miscellaneous
Control
General _________________________________________ 26
Key lock ________________________________________ 26
Quick movement _________________________________ 26
Changing parameters _____________________________ 27
Example ________________________________________ 27
Menu explanation _______________________________ 32
Electrical circuit diagram
Sensor placement ________________________________ 49
Temperature sensor data___________________________ 49
Technical specifications
Component locations _____________________________ 50
List of components _______________________________ 51
Dimensions and setting-out coordinates______________ 52
Accessories ______________________________________ 53
Technical specifications ____________________________ 54
Enclosed kit _____________________________________ 54

2NIBE VVM 300
General
In order to get the ultimate benefit from hot water module NIBE SMO 300 you
should read through these Installation and Maintenance Instructions.
VVM 300 supplies the house with hot water and heating and controls
FIGHTER 2020 optimally.
The intelligent controls ensure that VVM 300 always works as efficiently as
possible.
VVM 300 is a Swedish manufactured quality product with a long service life.
To be filled in when the product has been installed
The serial number (103), must always be stated with all correspondence with
NIBE.
069_ _ _ _ _ _ _ _ _ _ _
Installation date
Installer
Chosen max output, immersion heater
Circulation pump setting (16), heating medium
Menu setting 2.1, “Heat curve”
Setting Offset heating curve
Date__________________________ Sign___________________________

3NIBE VVM 300
User guide
General
Principle of operation
VVM 300 is an electric boiler designed for houses with wa-
ter borne heating. It consists of a double jacketed pressure
vessel, two immersion heaters and advanced controls.
The total water volume is 280 litres, of which 125 litres are
in the double jacketed space and 155 litres in the heater.
The hot water heater has a copper lining to protect against
corrosion. The immersion heaters are in the double jacket.
The immersion heaters have a max output of 13.5 kW
with option of setting lower outputs. The factory setting is
9.0 kW.
The charge pump in VVM 300 is speed controlled and ad-
justs the charge flow automatically.
VVM 300 is equipped with climate controlled automatic
by-passes to maintain the correct temperature for the
heating system. This temperature is determined by the ac-
tual outdoor temperature and selected basic settings.
VVM 300 is designed for connection and communication
with FIGHTER 2020. Sizes 8 and 10 can be connected.
FIGHTER 2020 and VVM 300 together make up a com-
plete heating plant.
FIGHTER 2020 covers the entire heating and hot water
requirement until the output requirement of the house
exceeds the specified heat pump output. In the tempera-
ture zone between balance temperature and stop tem-
perature, FIGHTER 2020 works together with VVM 300. If
the outdoor air temperature drops down to a level below
the stop temperature for FIGHTER 2020, all heating occurs
with VVM 300.
Abbreviations
AV Shut-off valve
FG Flow line sensor
RG Return line sensor
RC Control valve
SF Particle filter (Included in FIGHTER 2020)
SÄV Safety valve
UG Outside sensor

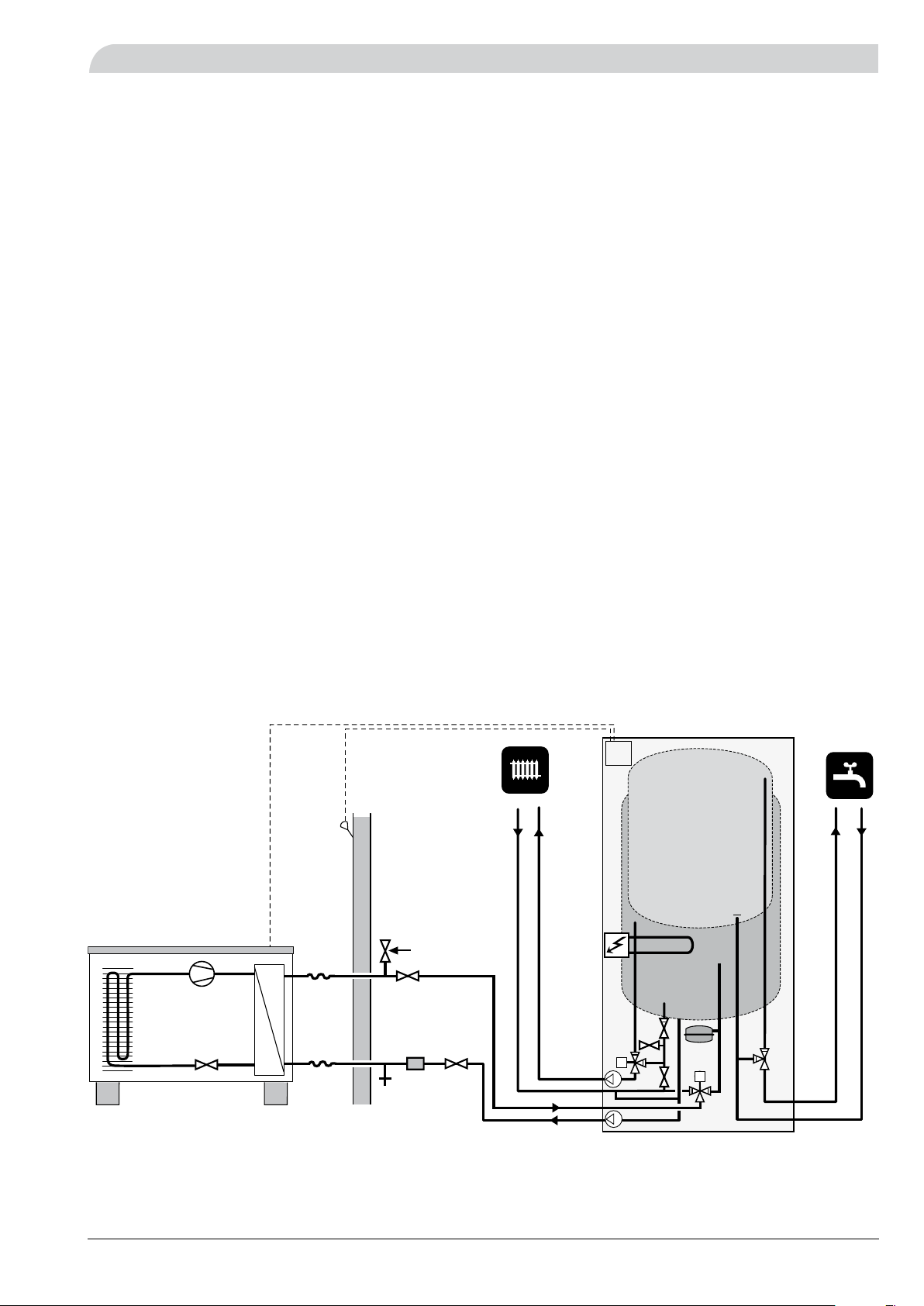

System diagram
The heating medium side and the hot water side must be
fitted with the necessary safety equipment in accordance
with the applicable regulations.
NOTE! This is an outline diagram. Actual installations must
be planned according to applicable standards.
FIGHTER 2020
VVM 300
AV
AV
SÄV
SF
RC
TV
UG
FIGHTER 2020
VVM 300
RC
52
63
44
44
76
99
21
15

4NIBE VVM 300
User guide
GB
DK
DK
2
1bar3
04
2
1bar3
04
2
1bar3
04
2
1bar3
04
ABABABI II III
54.1°C
Varmvattentemp.
1.0 13.43
ABABABI II III
54.1°C
Varmtvandstemp.
1.0 13.43
ABABABI II III
54.1°C
Hotwatertemp.
1.0 13.43
ABABABI II III
54.1°C
Brauchwassertemp.
1.0 13.43
DE
Front panel
Front panel

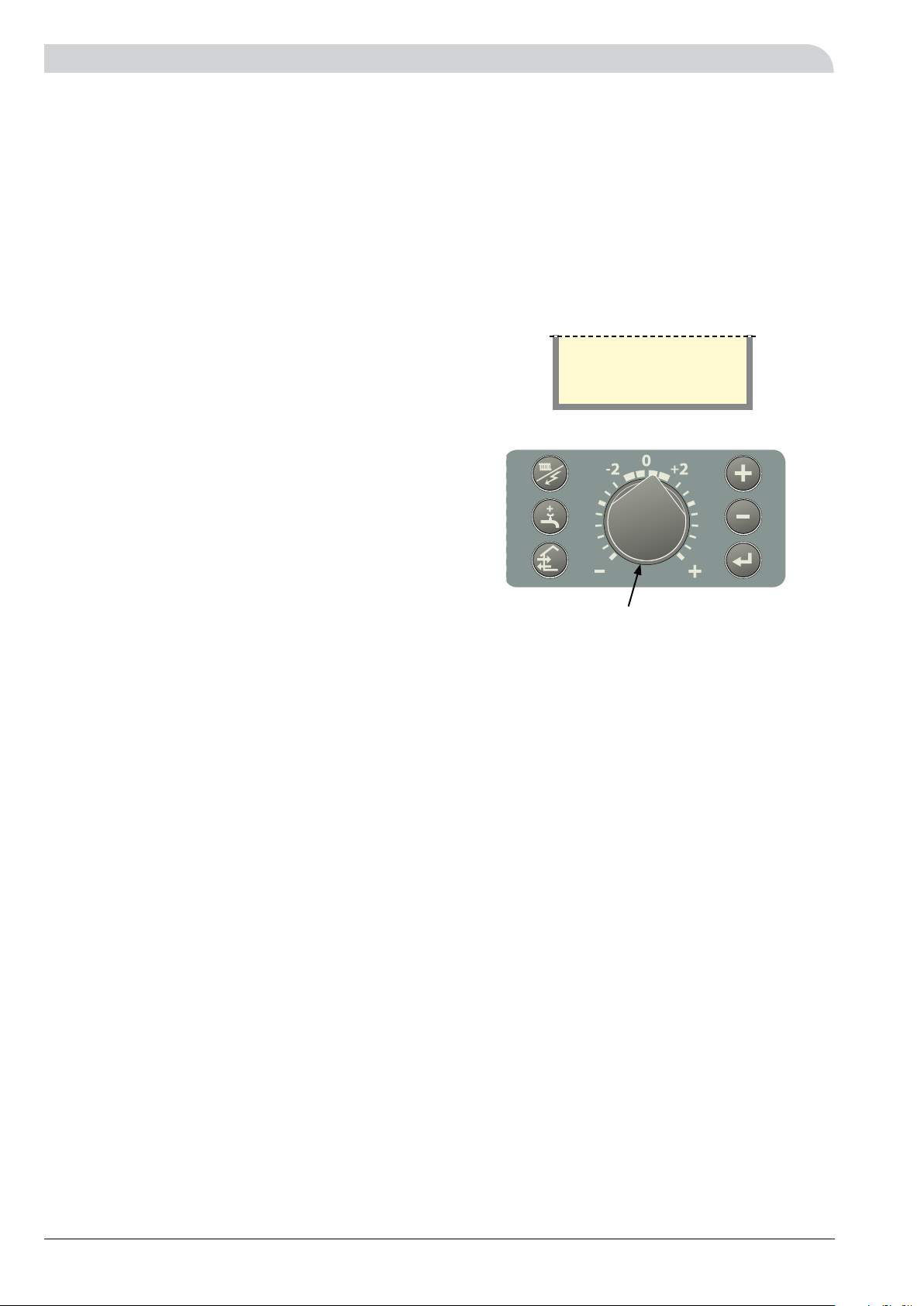

Display
Right keypadLeft keypad
Offset heating
curve
with three positions 1–0–:
1Normal mode. All control functions connected.
0The boiler is completely switched off.
Standby mode. This mode is used in the event
of operating disturbances. The immersion
heater output is limited to 6 kW, the circula-
tion pump (16) and charge pump (40) operate
continuously.
Compressor symbol
Atogether with compressor symbol, is displayed
when fan step 1 is in operation.
Btogether with compressor symbol, is displayed
when fan step 2 is in operation.
The compressor symbol alone indicates that the
compressor is to start, but is locked due to start
conditions in the FIGHTER 2020 not being met in-
ternally, e.g. time conditions.
Addition. heat symbol
Indicates when the additional heater is connected.
The line indicates which power step/steps are cur-
rently connected.
I3 kW additional power is connected.
II 4.5 kW additional power is connected.
III 6 kW additional power is connected.

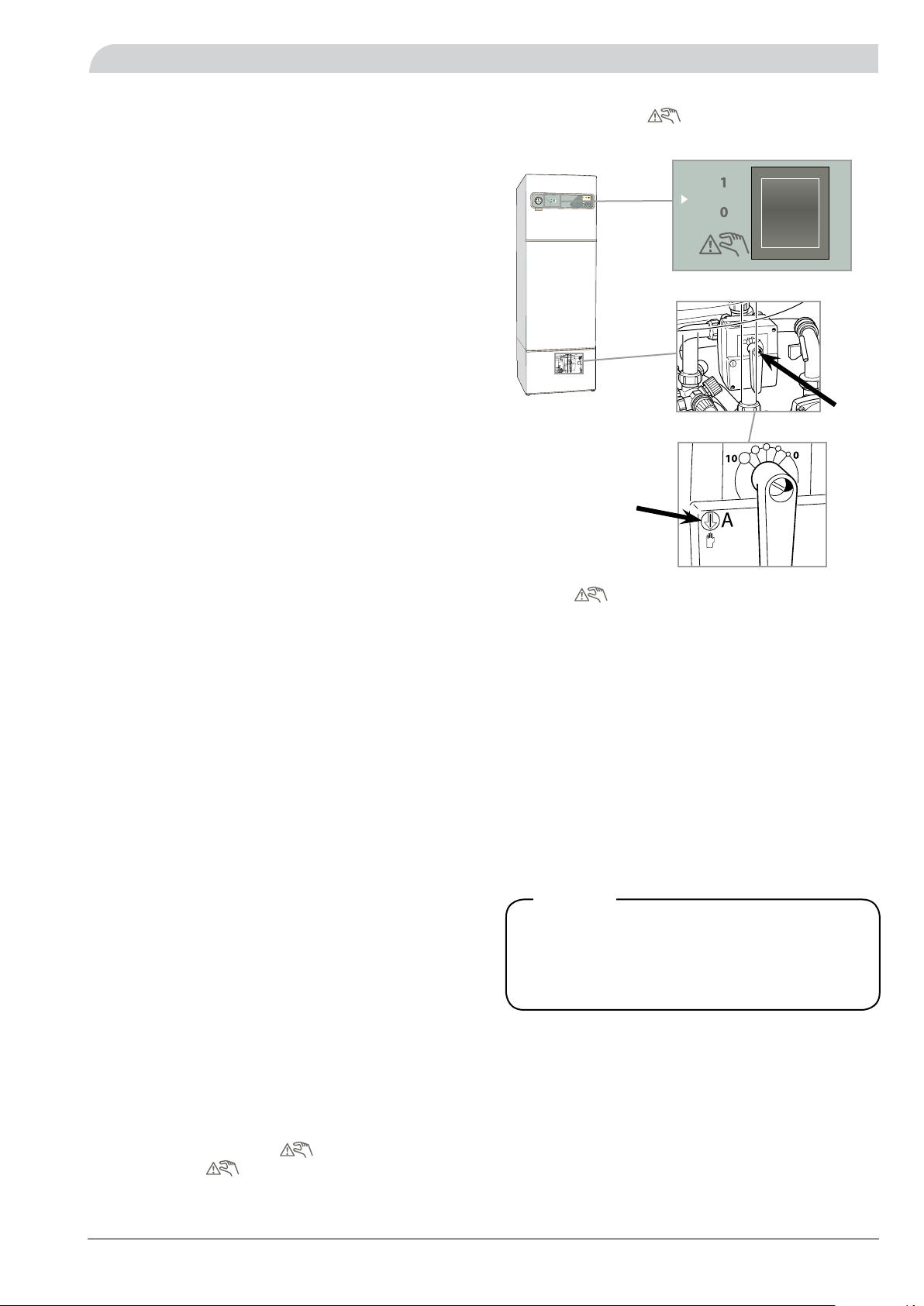

Switch
Hot water symbol
Indicates when the “Extra hot water” function is
active.
A is shown when 3 hour temperature increase is
activated
B is shown when a time based temperature increase
is activated, for example periodic.
Circulation pump symbol
Shown when the circulation pump in the heating
system is in operation.
Heating system symbol
Shown when house heating with heat pump is in
progress.
Defrosting symbol
Indicates when FIGHTER 2020 defrosting is in
progress.
Display
First row:
Switch
Pressure gauge
The radiator circuit pressure is displayed here.
Gauge graduation is 0 – 4 bar. Normal pressure is
0.5 – 1.5 bar when the system is closed.
Pressure gauge
2
1bar 3
04
T G
+2
0
-2
1
R
0
A BABABI II III I II I II
29,0
95,0 8,5
55,0
69,1
81,4
82,8
93,7
110,0
28,5
56,0
83,5
473,0
525,0
339,0
