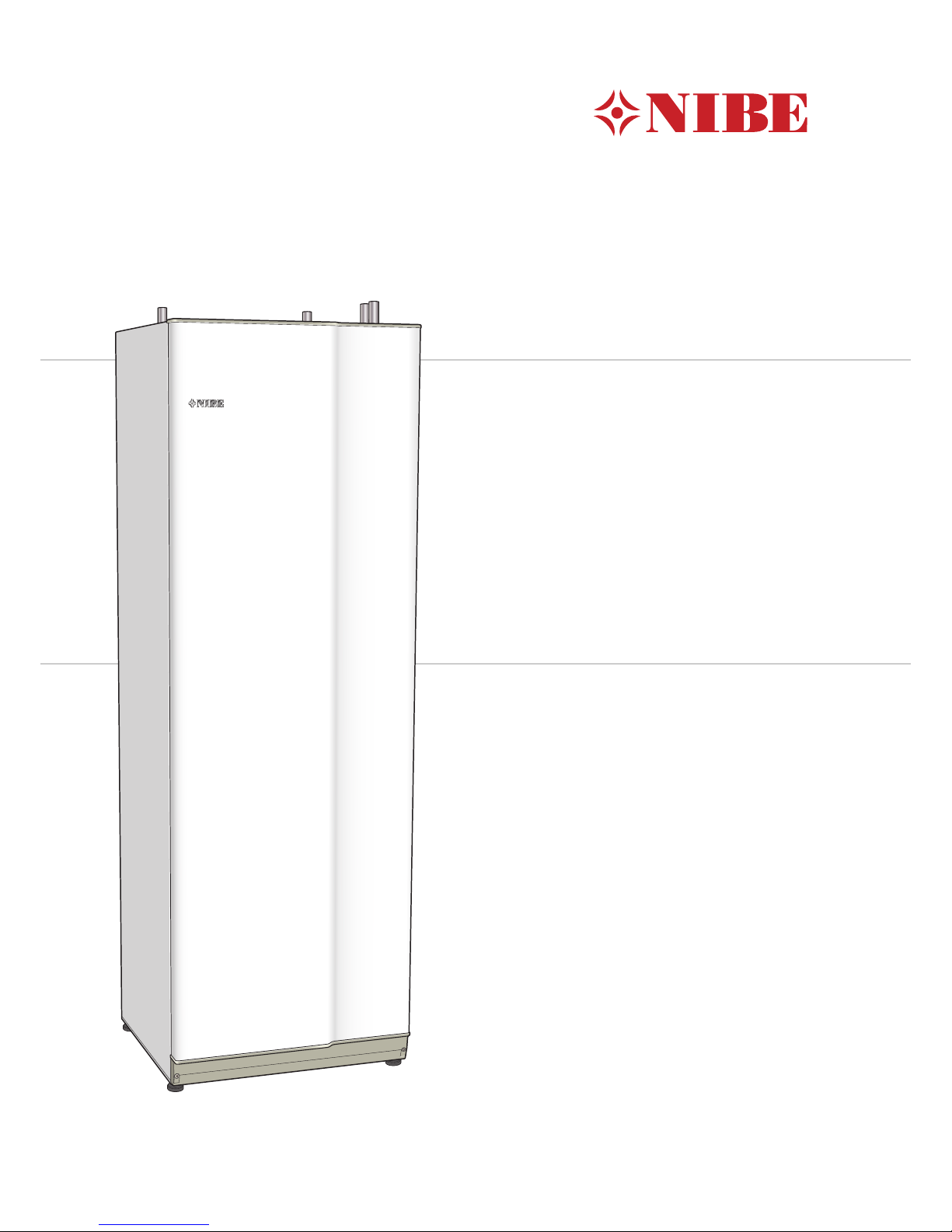

Nibe AHPS 10-300 User guide

Installer manual
AHP/AHPS
Accumulator tank
IHB GB 1544-4
231351

Table of Contents
31 Important information
3Safety information
62 Delivery and handling
6Transport
6Assembly
6Supplied components
7Removing the covers
83 Accumulator tank design
104 Pipe connections
10General
11Dimensions and pipe connections
12Heat pump
12Sun
12Cold and hot water
13AHP and AHPS
13Installation alternative
155 Electrical installation
15Sensors
166 Commissioning and adjusting
16Filling and venting
17Start-up and inspection
187 Service
18Service actions
198 Technical data
19Dimensions and setting-out coordinates
20Technical specifications
22Energy labelling
23Index
AHP/AHPSChapter |2

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2015.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Serial number
Serial number
600
600
30
60
205
480
25
390
25-50 1475
80100
560 440
Caution
Always give the product's serial number when
reporting a fault.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type
of service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current
legislation.
Country specific information
Installer manual
This installer manual must be left with the customer.
3Chapter 1 | Important informationAHP/AHPS
1 Important information

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person.
DateSignatureNotesDescription
✔
Heat pump (page 12)
Shut off valves
Expansion vessel
Safety valve
Hot water (page 12)
Shut off valves
Mixing valve
Safety valve
Cold water (page 12)
Shut off valves
Non-return valve
Electricity (page 15)
Sensors
AHP/AHPSChapter 1 | Important information4

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik c/o ait Schweiz AG, Industriepark, CH-6246 AltishofenCH
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: [email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR
Tel : [phone] Fax : [phone] E-mail: [email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: [email protected].uk www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
5Chapter 1 | Important informationAHP/AHPS

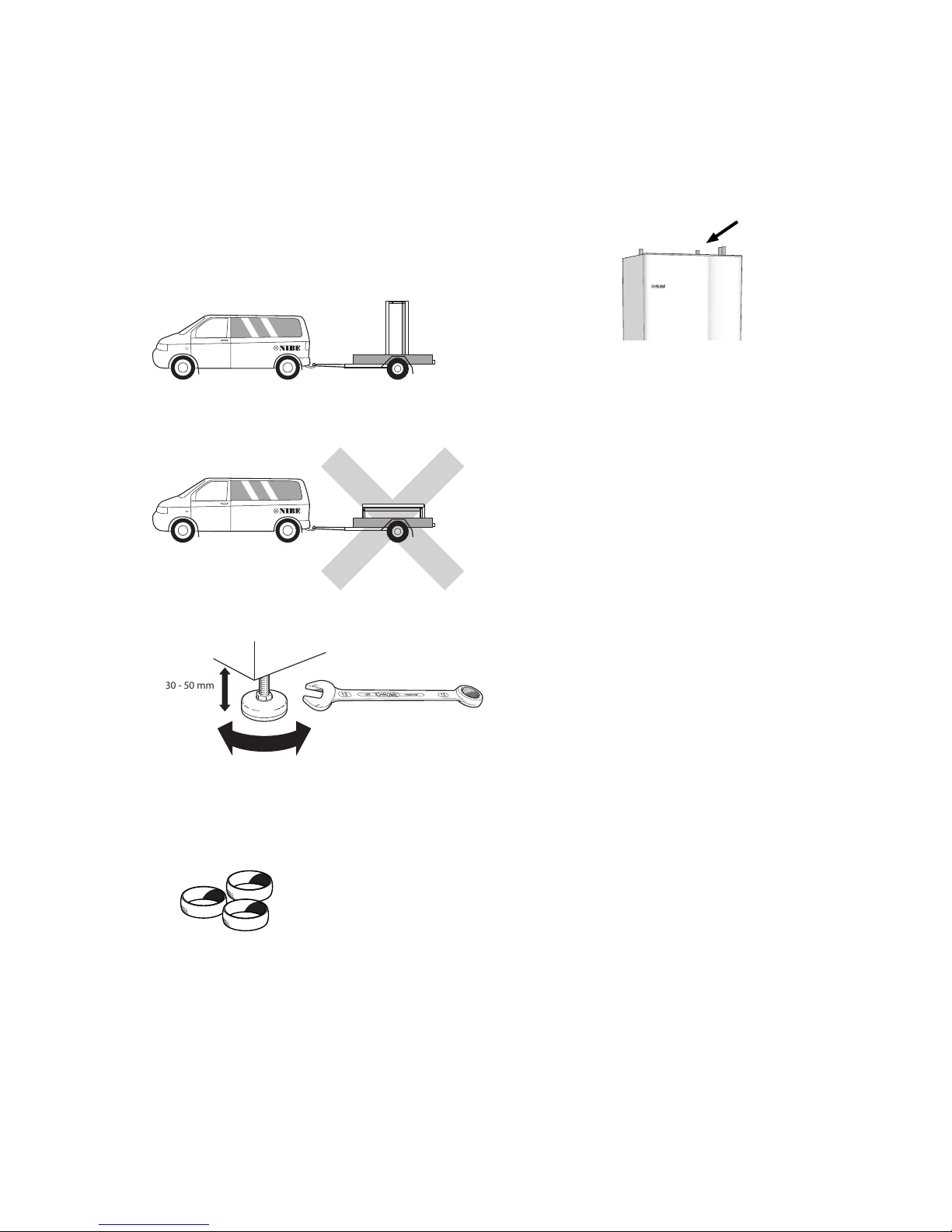

Transport
However. the AHP/AHPS may be carefully laid on its
back when being moved into a building. The centre of
gravity is in the upper part.
AHP/AHPS should be transported and stored vertically
in a dry place. However, the AHP/AHPS may be carefully
laid on its back when being moved into a building.
R
0
+2
0
-2
1
R
0
HMflow 49(50)°C
Hotwater
51°C
+2
0
-2
1
R
0
HMflow
49(50)°C
Hotwater
51°C
R
0
Assembly
■
30 - 50 mm
30 - 50 mm
15 - 40 mm
■The area where AHP/AHPS is located must be
equipped with floor drainage.
Supplied components
3 x compression rings
Location
The kit of supplied items is placed on top of the
product.
AHP/AHPSChapter 2 | Delivery and handling6
2 Delivery and handling

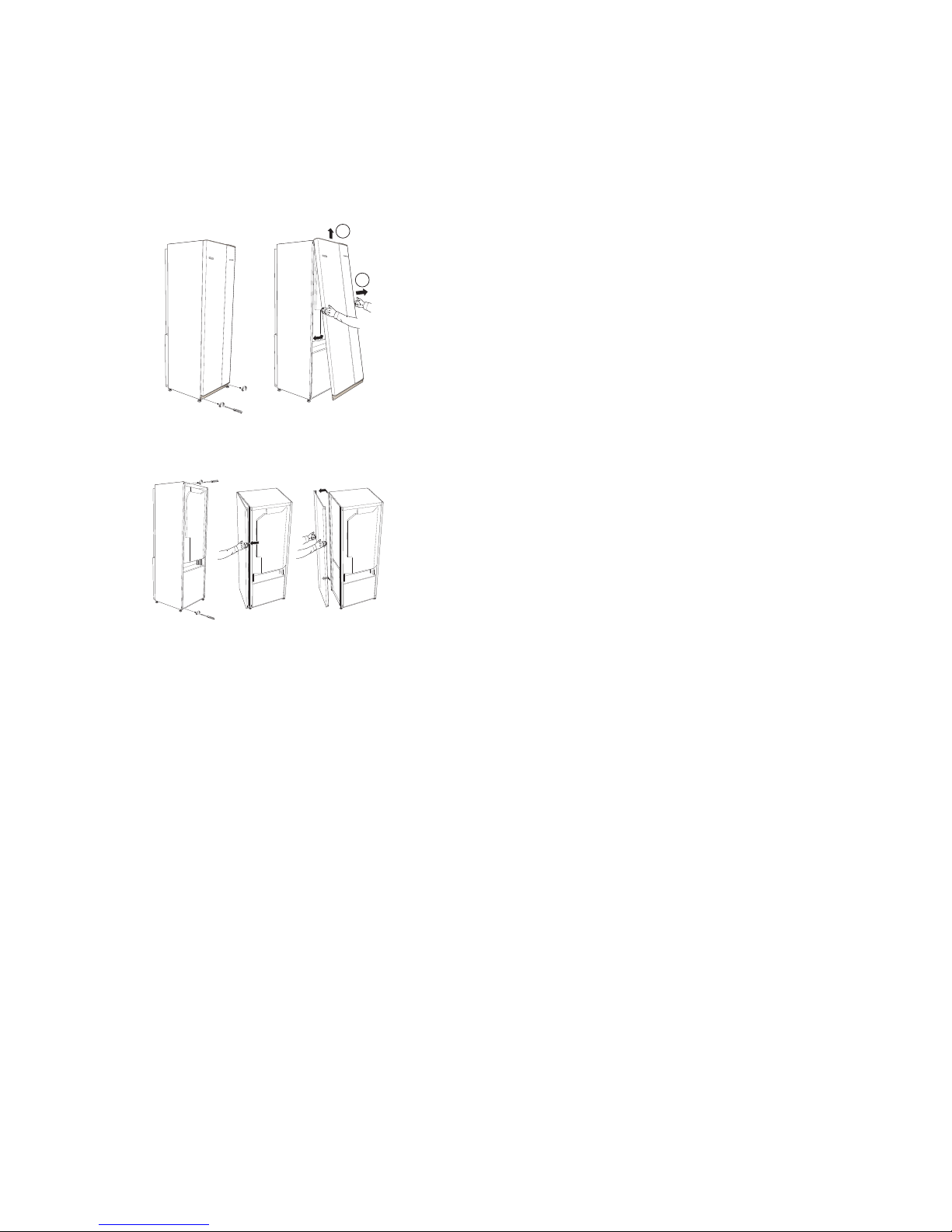

Removing the covers
Front cover
1
2
LEK
LEK
1. Remove the screws from the lower edge of the
front cover.
2. Lift the cover out at the bottom edge and up.
LEK
LEK
LEK
The side covers can be removed to facilitate the install-
ation.
1. Remove the screws from the upper and lower
edges.
2. Twist the cover slightly outward.
3. Move the hatch backwards and slightly to the side.
4. Pull the cover to one side.
5. Pull the hatch forwards.
7Chapter 2 | Delivery and handlingAHP/AHPS

LEK
LEK
LEK
LEK
XL8 XL4 XL3 XL9 XL5
UA1
FR1
UA2
PF1
XL8 XL4 XL3 XL9
UA1
Sv PDB
UA2
Givarkabeldragning
Denna bild används för ?
PF3
AHP AHPS
UL UL
UA2 UA2
UA3
UA1 UA1
XL3XL4XL18
PF1
XL19
XL18XL13 XL14XL45 XL46 XL47
PF1
XL19QM1
XL45
AHP/AHPSChapter 3 | Accumulator tank design8
3 Accumulator tank design

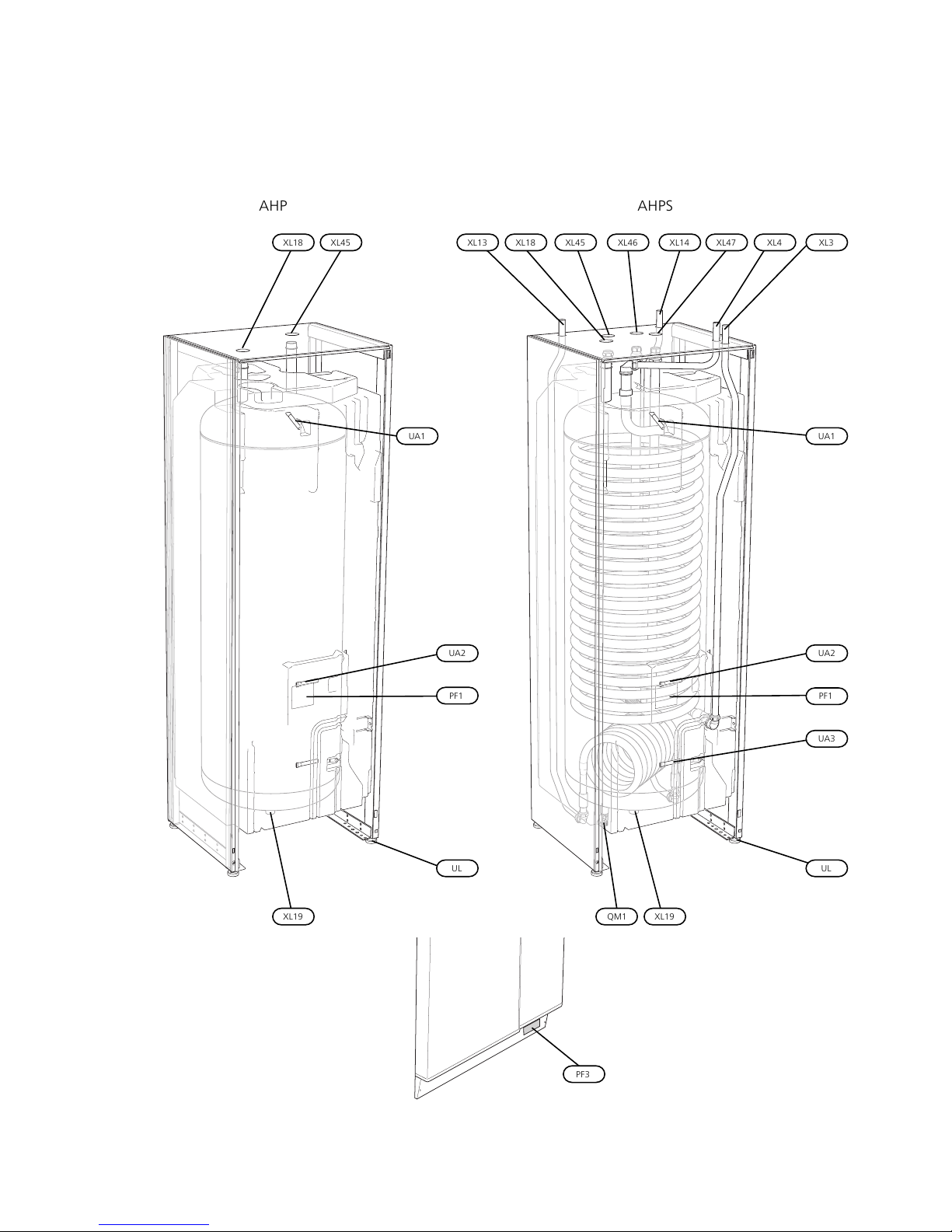

Pipe connections
Connection, cold waterXL3
Connection, hot waterXL4
Connection, supply line (from solar heating sys-
tem) (Only AHPS)
XL13
Connection, return line (to solar heating system)
(Only AHPS)
XL14
Docking connection, supply line high temperat-
ure (from external heat source)
XL18
Docking connection, return line high temperat-
ure (to external heat source)
XL19
Docking connection, level 1XL45
Docking connection, level 2 (only AHPS)XL46
Docking connection, level 3 (only AHPS)XL47
HVAC components
Drain valve, heating medium (only AHPS)QM1
Submerged tube for hot water sensorUA1
Submerged tube for hot water sensorUA2
Submerged tube for solar sensor (only AHPS)UA3
Miscellaneous
Rating platePF1
Serial number platePF3
Adjustable feetUL
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
*or another external heat source
9Chapter 3 | Accumulator tank designAHP/AHPS

General
Pipe installation must be carried out in accordance with
current norms and directives.
Internal support bushes should be fitted when a plastic
or annealed copper pipe is used. The accumulator tank
must be fitted with the requisite valves, such as a safety
valve, shut-off valve and non-return valve. An overflow
pipe should be routed from the safety valve to an ap-
propriate drain. The overflow pipe must be the same
size as the safety valve. Route the overflow pipe from
the safety valve enclosed along its entire length and
ensure that it is frost proof. The mouth of the overflow
pipe must be visible and not placed close to electrical
components.
Maximum boiler and radiator volumes
For installation in pressurized systems, the system must
be equipped with a pressure expansion vessel pre-
pressurised to 0.5 bar (5 mvp).
Internal volume in AHPS for calculating expansion
vessel is 270 l. The expansion vessel's volume must be
at least 10 % of the system's total volume.
Example table
Volume (l) expansion
vessel
Total volume (l) (accumu-
lator tank and radiator
system)
50500
70700
1001000
NOTE
Expansion vessel not supplied with the
product. Equip the product with an expansion
vessel.
The initial pressure of the pressure expansion vessel
must be dimensioned according to the maximum
height (H) between the vessel and the highest posi-
tioned radiator. A pre-pressure of 0.5 bar (5 mvp)
means a maximum permitted height difference of 5
m.
If the pre-pressure in the pressure vessel is not high
enough it can be increased by adding air via the valve
in the expansion vessel. The expansion vessel's pre-
pressure must be entered in the check list on page 4.
Any change in the pre-pressure affects the ability of
the expansion vessel to handle the expansion of the
water.

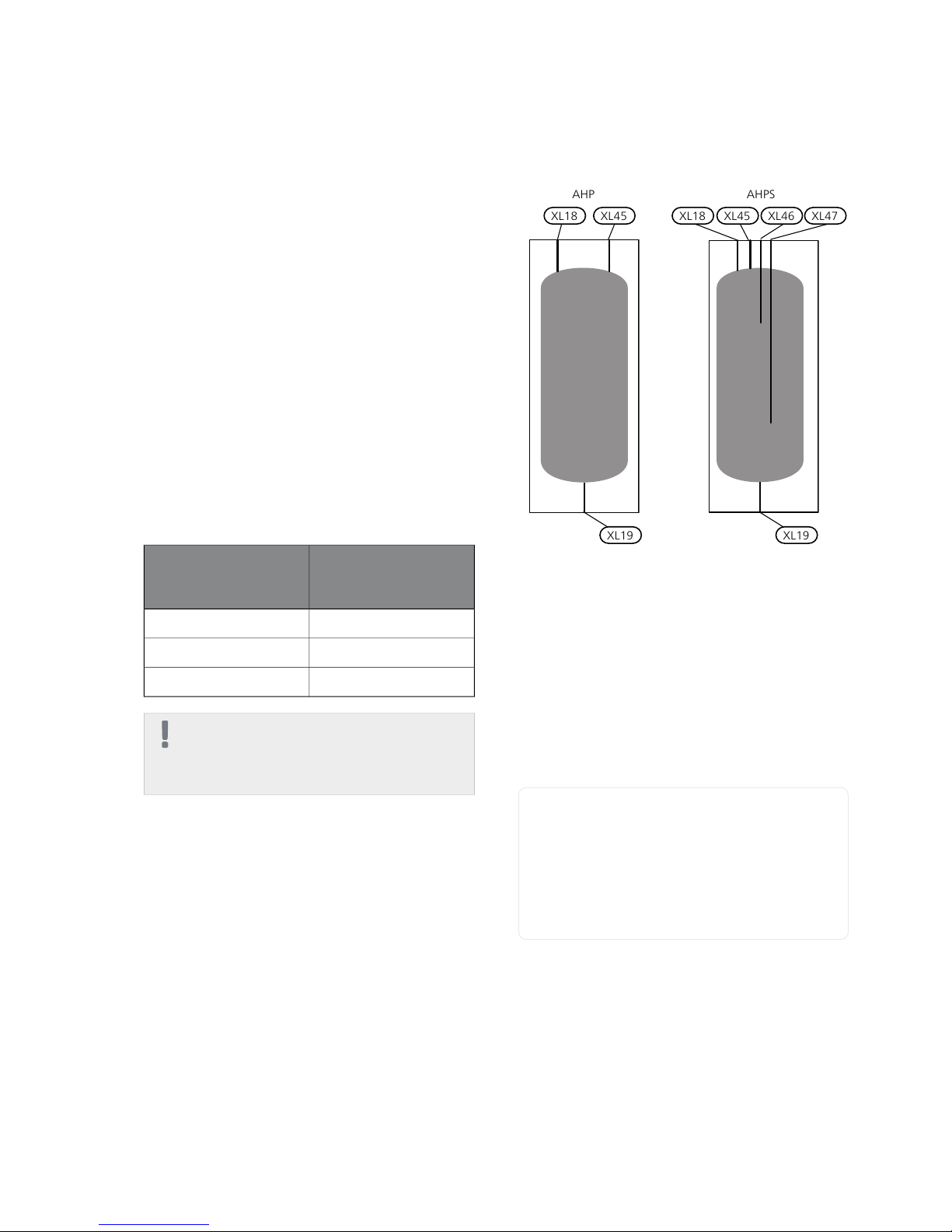

System diagram
XL19
XL18 XL45 XL46 XL47XL18
XL19
AHP AHPS
XL45
AHP
AHP consists of a vessel with accumulated volume. AHP
connected to AHPS.
AHPS
AHPS consists of a vessel with a number of connections,
which makes it possible to dock the accumulator tank
to external units. By using the different levels in the
tank, heat can be retrieved and supplied to the tank in
several versions. Use for example level 2 and 3 to re-
trieve solar heat to heat a pool. The heat between level
2 and the top of the tank is then intended to preheat
the hot water to the heat pump.

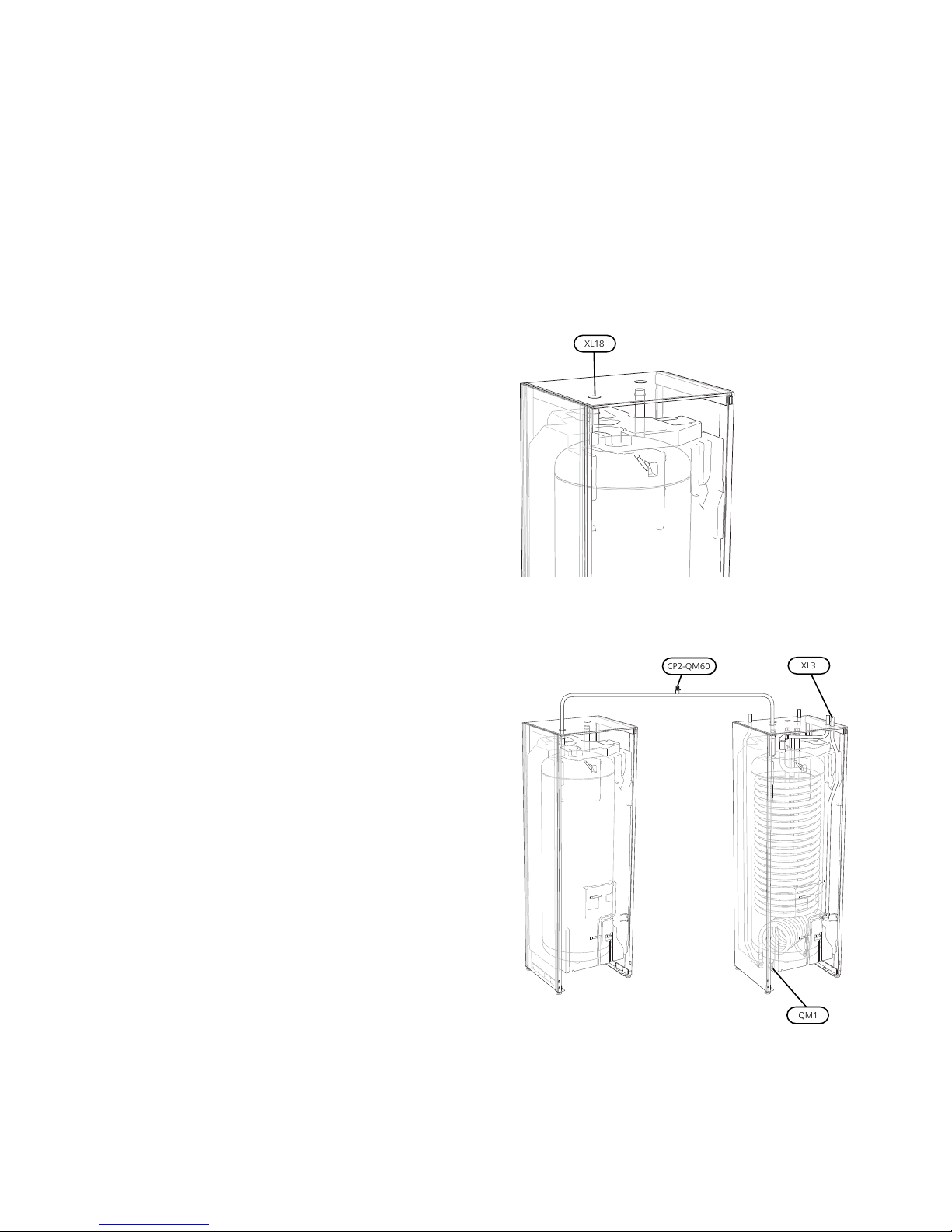

Docking connection, supply line high temper-
ature (from external heat source)
XL 18
Docking connection, return line high temper-
ature (to external heat source)
XL 19
Docking connection, level 1XL 45
Docking connection, level 2XL 46
Docking connection, level 3XL 47
AHP/AHPSChapter 4 | Pipe connections10
4 Pipe connections

Dimensions and pipe connec-
tions
AHP
XL18 XL19XL45
595
560
600
440
1800
190
270
195
225
300300
290
595
560
600
440
1800
190
270
195
225
300300
290
Connection AHP
ext.G25XL18 Docking connection, supply line
high temperature
ext.G25XL19 Docking connection, return line
high temperature
ext.G25XL45 Docking connection, level 1
AHPS
XL45XL13 XL47
XL46 XL14
XL4 XL3XL18
XL19
QM1
1800
595
190
110
110
105
180
225
270
80
560
600
300300
290
440
60
55
37055
195
245
245
1800
595
190
110
110
105
180
225
270
80
560
600
300300
290
440
60
55
37055
195
245
245
Connection AHPS
ext.G20QM1 Draining valve
22mmXL3 Cold water Ø
22mmXL4 Hot water Ø
22mmXL13 Solar flow line Ø
22mmXL14 Solar return line Ø
ext.G25XL18 Docking connection, supply line
high temperature
ext.G25XL19 Docking connection, return line
high temperature
22mmXL45 Docking connection, level 1
22mmXL46 Docking connection, level 2
22mmXL47 Docking connection, level 3
11Chapter 4 | Pipe connectionsAHP/AHPS

Heat pump

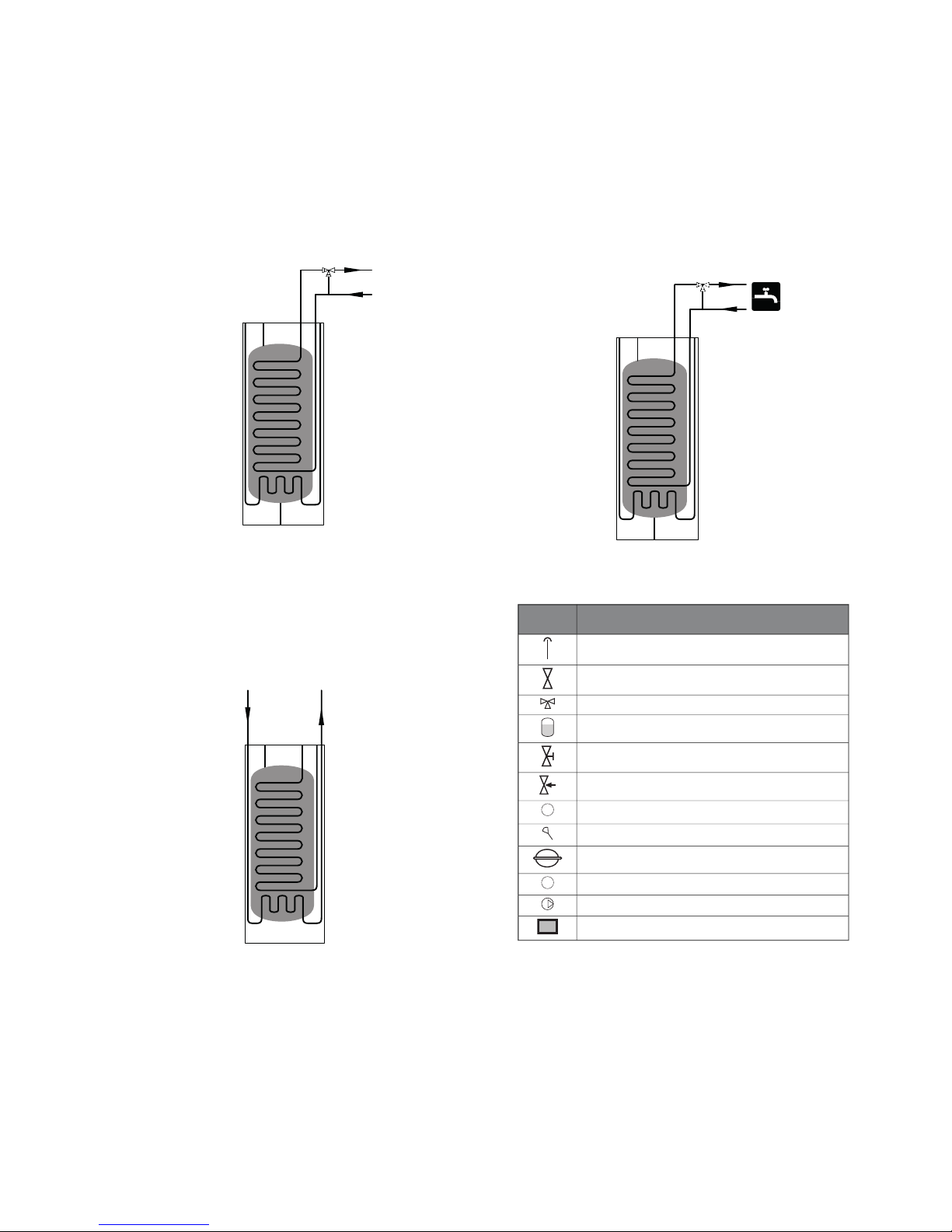

Connecting to heat pump
Domestic water is preheated in AHP/AHPS.
Sun
Connecting to solar heating system
The solar heating system's supply and return are con-
nected to AHPS.
Cold and hot water
Connecting cold and hot water
There must be a mixer valve if the temperature can
exceed 60 °C.
Symbol key
MeaningSymbol
Venting valve
Shut-off valve
Mixing valve
Level vessel
Control valve
Safety valve
Thermometer
T
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
AHP/AHPSChapter 4 | Pipe connections12

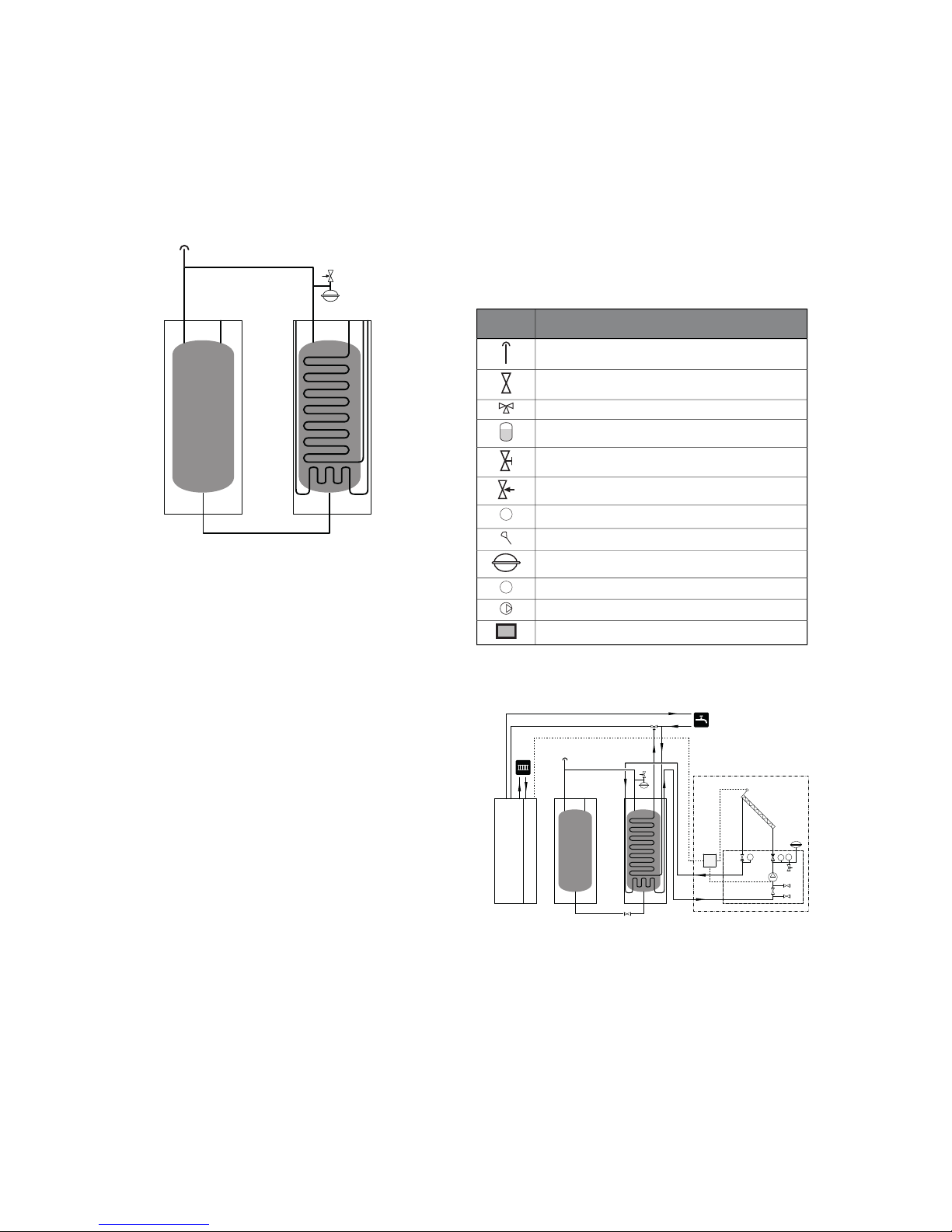

AHP and AHPS
Connecting two tanks
Extended volume for connecting several solar panels.
Installation alternative
AHP/AHPS can be connected in several different ways,
one of which is shown here.
Further option information is available at www.nibe.eu
and in the respective assembly instructions for the heat
sources used.
Symbol key
MeaningSymbol
Venting valve
Shut-off valve
Mixing valve
Level vessel
Control valve
Safety valve
Thermometer
T
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
To solar heating
AHPS can be docked to solar heating system.
-FL2
-CM1
-CP1
-CP2
-QM60
-CP2
-BT53
-EP8
-AA25
-CM5
-GP4
-QM41
-RM2
-QM42
-QM40
T P
-FL4
-RM1 T
-GP30
-RM1
-EP30
-EB100
13Chapter 4 | Pipe connectionsAHP/AHPS

As a buffer vessel for heating system
AHP can be docked as a buffer vessel for the heating
system, when the system volume is not sufficient, or to
reduce heat spikes.
-CP1
-CP2
-QM60
-EB100
To ground source heat pump
AHP/AHPS can be docked with another heat source,
for example NIBE F1245.
-FL2
-CM1
-CP1
-QM60
-CP2
-EB100
To pellet boiler
M
M
AHP/AHPSChapter 4 | Pipe connections14

NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Electrical installation and wiring
must be carried out in accordance with the
stipulations in force.
Sensors
AHP/AHPS can be supplemented with up to two hot
water sensors. These are placed in the submerged tube
for hot water sensor (UA1) and (UA2).
AHPS can also be supplemented with a solar sensor.
This is placed in the submerged tube for solar sensor
(UA3).
Use the sensors provided with the heat pump (or other
heat source). When no heat sensors have been
provided these must be ordered from the manufacturer
of the heat source.
UA1
UA2
UA3
The figure shows AHPS.
15Chapter 5 | Electrical installationAHP/AHPS
5 Electrical installation

Filling and venting
Filling the hot water coil (AHPS)
1. Open a hot water tap in the house.
2. Fill the hot water coil through the cold water con-
nection (XL3).
3. When the water that comes out of the hot water
tap it is no longer mixed with air, the hot water coil
is full and the tap can be closed.
Filling the solar coil (AHPS)
Fill the solar coil through the filling connection in the
solar panel unit.
There must be water in the solar coil and the vessel
before the solar panel unit is operated.
Filling the vessel
1. Open the externally mounted vent valve
(CP2-QM60).
2. Fill the vessel in AHPS through the drain valve
(QM1).
3. When the water that exits the vent valve
(CP2-QM60) is not mixed with air, the vessel is full.
4. Close the vent valve (CP2-QM60).
5. AHP filled indirectly when AHPS is filled.
Venting
For installations with several AHP/AHPS it is important
to vent the connection between the tanks.
1. Vent through the externally mounted vent valve
(CP2-QM 60) .
2. Keep topping up and venting until all air has been
removed and the pressure is correct.
AHP
XL18
AHPS
QM1
XL3
CP2-QM60
AHP/AHPSChapter 6 | Commissioning and adjusting16
6 Commissioning and adjusting

Start-up and inspection

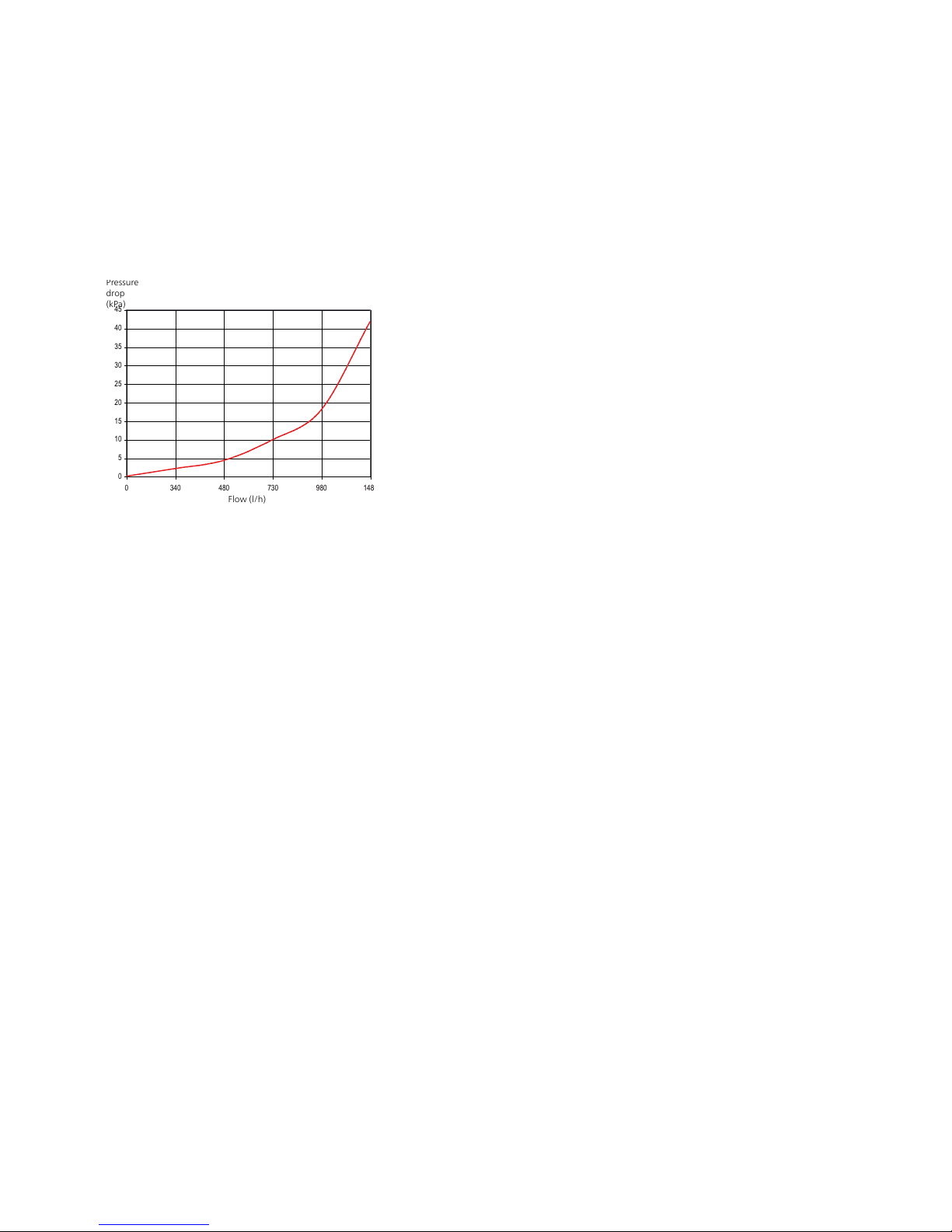

Pressure drop diagram, solar coil
Connection, flow line solar heating system (XL13) and
connection, return line solar heating system (XL14).
AHPS
Pressure
drop
(kPa)
Flow (l/h)
0
5
10
15
20
25
30
35
40
45
0 340 480 730 980 1480
0
mvpkPa
340 480 730
0
l/h980
10
40
20
Tryckfall
Fl de
1480
30
0
1
4
2
3
0
mwkkPa
340 480 730
0
l/h980
10
40
20
Drukverlies
Debeit
Holland
1480
30
0
1
4
2
3
17Chapter 6 | Commissioning and adjustingAHP/AHPS

Service actions
Safety valve
The hot water coil's externally mounted safety valve
sometimes releases a little water after hot water usage.
This is because the cold water, which enters the hot
water coil, expands when heated causing the pressure
to rise and the safety valve to open.
The function of the safety valve must be checked regu-
larly. Perform checks as follows:
1. Open the valve.
2. Check that water flows through the valve.
3. Close the valve.
TIP
The safety valve is not supplied with the accu-
mulator tank. Contact your installer if you are
unsure how one checks the valve.
Emptying
AHP: The vessel is drained via docking connection
(XL19) in AHP.
AHPS: Empty the vessel via the drain valve (QM1).
AHP and AHPS: The vessel is drained via the drain valve
(QM1) in AHPS, in those cases AHP and AHPS are con-
nected.
The hot water coil in AHPS is emptied through the si-
phon (with hose) in the cold water connection (XL3).
Drain the solar coil through the siphon (with hose) on
the connection, return to solar heating system (XL14).
AHP
XL19
AHPS
QM1
XL14 XL3
AHP/AHPSChapter 7 | Service18
7 Service

Dimensions and setting-out coordinates
AHPS
AHP
595
560
600
440
1800
190
270
195
225
300300
290
595
560
600
440
1800
190
270
195
225
300300
290
595
560
600
440
1800
190
270
195
225
300300
290
1800
595
190
110
110
105
180
225
270
80
560
600
300300
290
440
60
55
37055
195
245
245
1800
595
190
110
110
105
180
225
270
80
560
600
300300
290
440
60
55
37055
195
245
245
1800
595
190
110
110
105
180
225
270
80
560
600
300300
290
440
60
55
37055
195
245
245
595
560
600
440
1800
190
270
195
225
300300
290
1800
595
190
110
110
105
180
225
270
80
560
600
300300
290
440
60
55
37055
195
245
245
19Chapter 8 | Technical dataAHP/AHPS
8 Technical data

Technical specifications

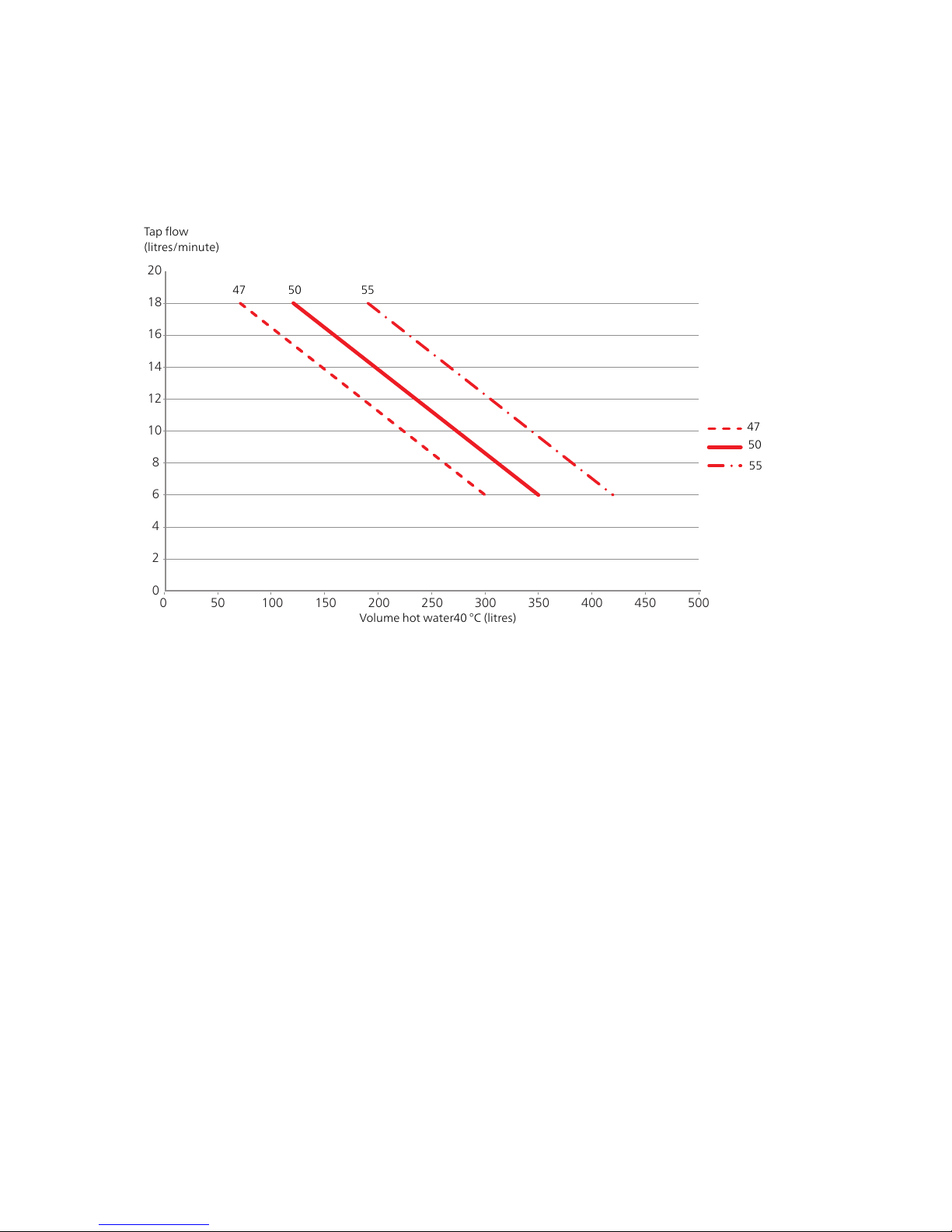

Hot water capacity AHPS
0
2
4
6
8
10
12
14
16
18
20
0 50 100 150 200 250 300 350 400 450 500
Tappflöde (l/m)
Volym varmvatten (liter)
Varmvattenkapacitet VVM310
Ekonomi
Ekonomi
Normal
Normal
Lyx
Lyx
Volume hot water40 °C (litres)
Tap flow
(litres/minute)
47
50
55
47 50 55
AHP/AHPSChapter 8 | Technical data20
