Nice Mighty Mule MM271 User manual

MM271
Installation Manual
Horizontal Support
Gate Swings Evenly and Freely
Hung Firmly and Plumb
Post Bracket
Control Box
Fence Post Set in Concrete
Run 1000' (max.) of low
voltage wire to control
box from transformer
(wire not included).
Power Cable Closed Position Stop Plate
PVC conduit (not included)
to protect wire from lawn
mowers and weed eaters.
Gate Bracket
Warning Sign
Single Gate Operator
120 Volt indoor
Transformer
(surge protector
not supplied)
12 Volt automotive or marine
type battery in weather proof
housing (not included).

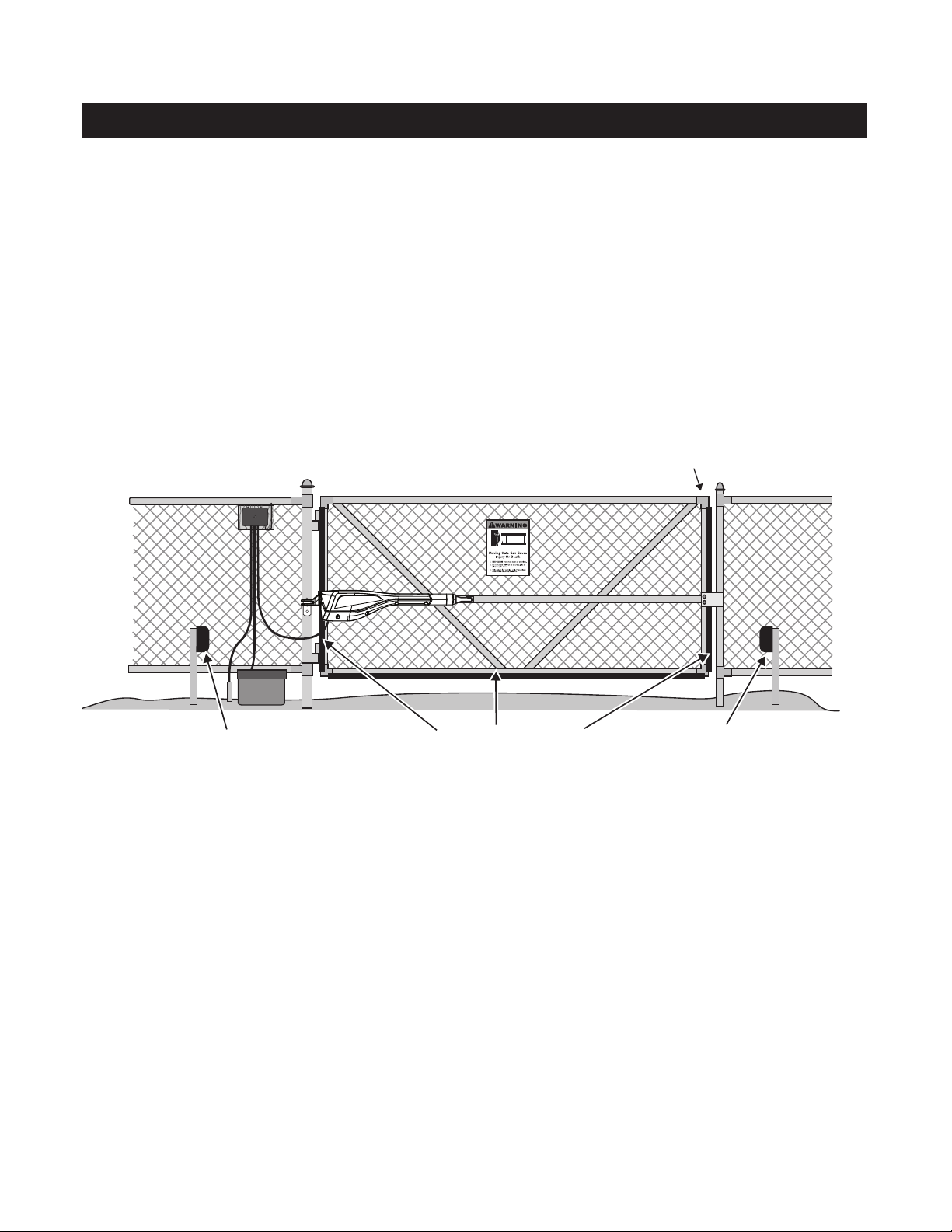

Example of nished installation
(Installations vary slightly for different types of gates)
This product meets the requirements of UL325,
the standard for gate operator safety.

WARNING
DO NOT SPLICE ANY
POWER WIRES!
DO NOT MODIFY THE
BATTERY HARNESS!
THIS WILL VOID YOUR
MANUFACTURER’S
WARRANTY.
Low voltage wire for transformer not included.

WARNING
This equipment meets Underwriters Laboratory Standard 325 (UL 325). However, gate equipment has hazards associated
with its use and therefore by installing this product the installer and user accept full responsibility for following and noting
the installation and safety instructions. Failure to follow installation and safety instructions can result in hazards developing
due to improper assembly. You agree to properly install this product and that if you fail to do so Nice North America LLC,
shall in no event be liable for direct, indirect, incidental, special or consequential damages or loss of prots whether based
in contract tort or any other legal theory during the course of the warranty or at any time thereafter. The installer and/or
user agree to assume responsibility for all liability and use of this product releasing Nice North America LLC, from any and
all liability. If you are not in agreement with this disclaimer or do not feel capable of properly following all installation and
safety instructions you may return this product for full replacement value.
READ ALL INSTRUCTIONS CAREFULLY AND COMPLETELY before attempting to install and use this automatic gate
operator. This gate operator produces a high level of force. Stay clear of the unit while it is operating and exercise
caution at all times.
ALL AUTOMATIC GATE OPERATORS ARE INTENDED FOR USE ON VEHICULAR GATES ONLY.
Product Usage
The Mighty Mule Gate Operator meets all of the safety requirements of a Class I Residential Vehicu-
lar Gate Operator and is intended for use solely with vehicular swing gates in single-family residential
applications that meet the Class I category listed in the table below.
Residential Vehicular Gate Operator-Class I:
A vehicular gate operator (or system) intended for use in
garages or parking areas associated with a residence of
one-to-four single families.
Commercial/General Access Vehicular Gate
Operator-Class II:
A vehicular gate operator (or system) intended for use in
a commercial location or building such as a multi-family
housing unit (ve or more single family units), hotel,
garages, retail store, or other buildings accessible by or
servicing the general public.
Industrial/Limited Access Vehicular Gate
Operator–Class III:
A vehicular gate operator (or system) intended for use in an
industrial location or building such as a factory or loading
dock area or other locations not accessible by or intended to
service the general public.
Restricted Access Vehicular Gate Operator –
Class IV:
A vehicular gate operator (or system) intended for use in an
industrial location or building such as a factory or loading
dock area or other locations not accessible by or intended to
service the general public.
Vehicular Gate Operator Class Categories

Table of Contents
Please Read This First! ............................................................................................................ 1
Before You Begin to Install Your Automatic Gate Opener.................................................................................. 1
Important Safety Information................................................................................................... 2
Manually Opening and Closing Gate ............................................................................................................... 2
For the Installer and End User......................................................................................................................... 3

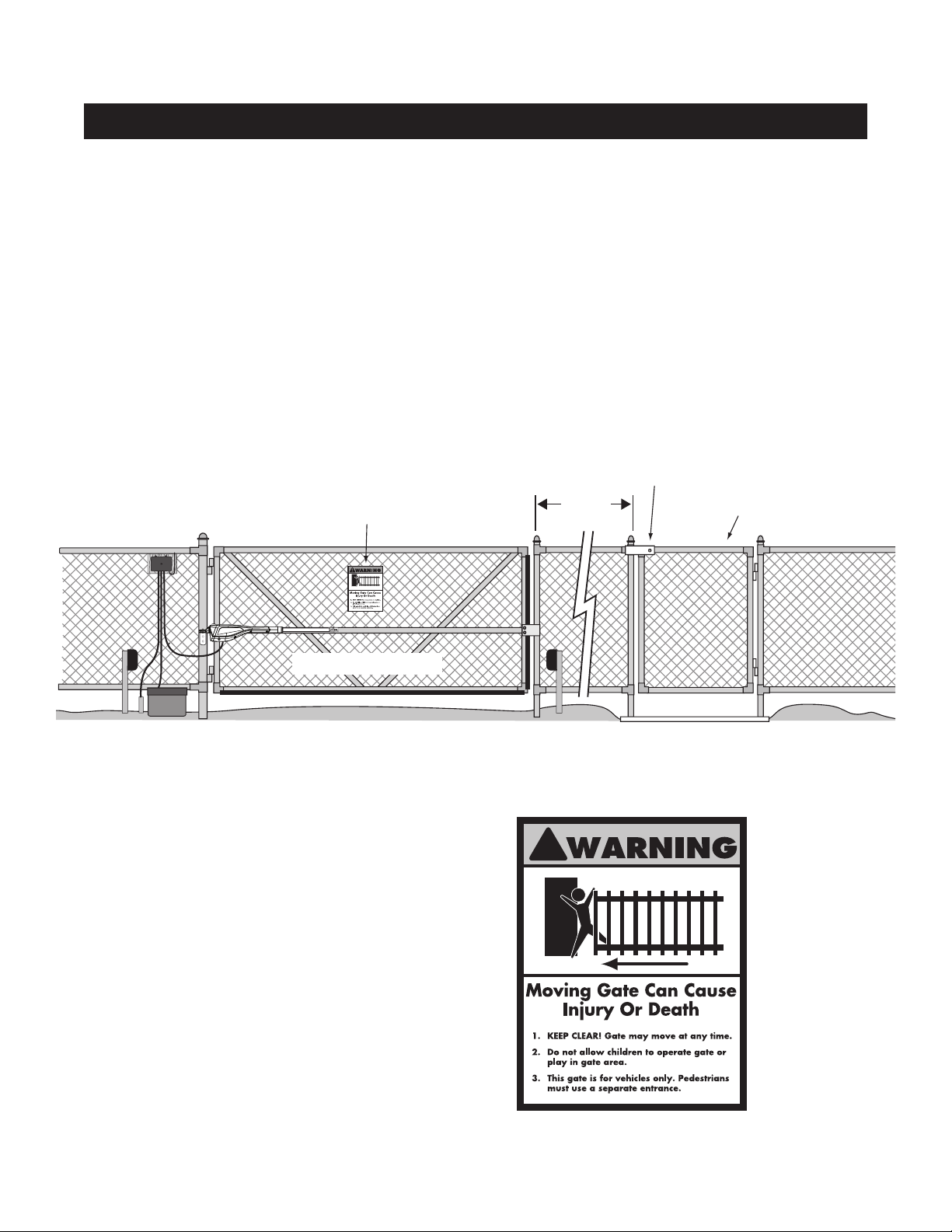

Installing Warning Signs and Pedestrian Gates ............................................................................................... 7
Required Safety Precautions for Gates............................................................................................................ 8
Technical Specications .......................................................................................................... 9
Mighty Mule 271 Gate Opener........................................................................................................................ 9
Before You Begin.................................................................................................................... 10
Powering Options......................................................................................................................................... 10

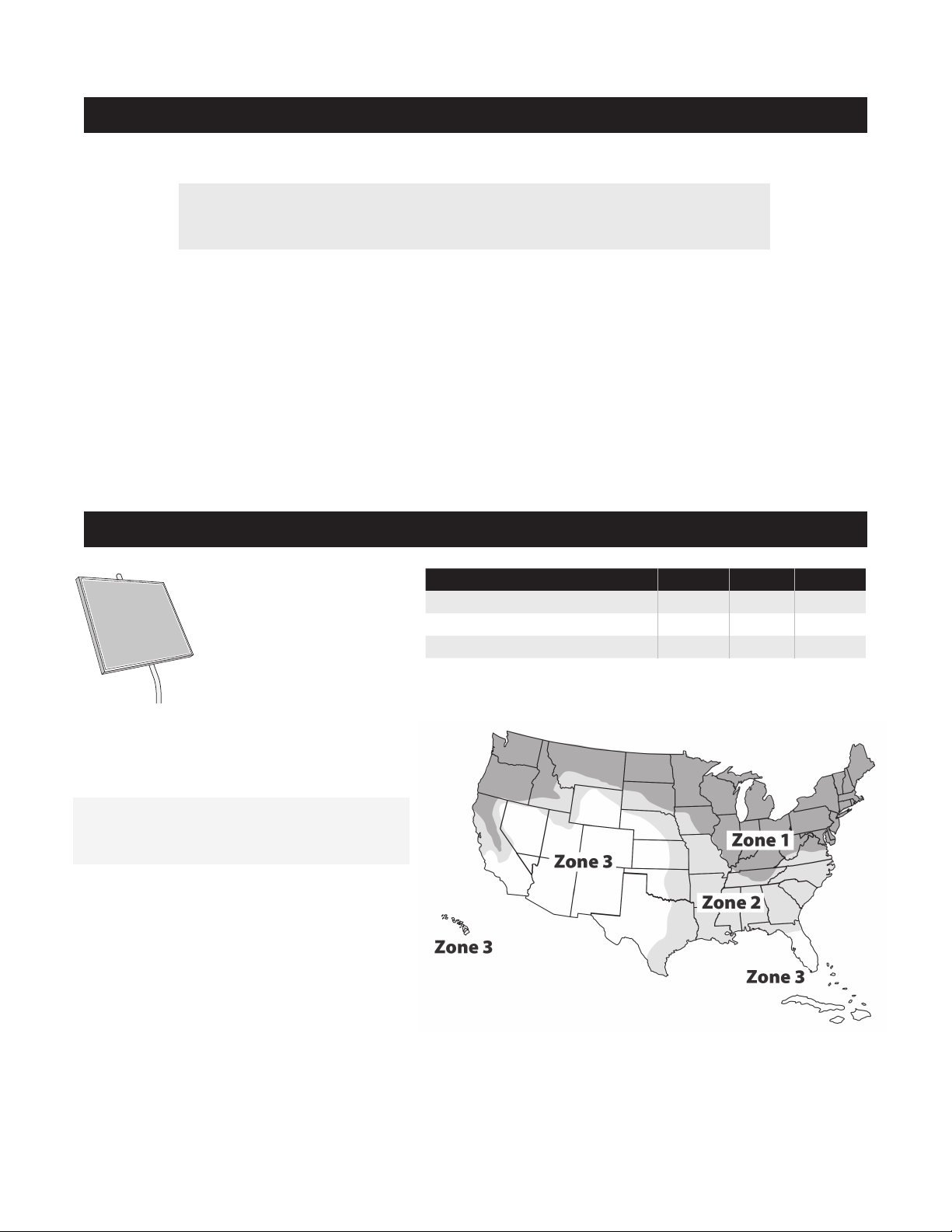

Solar Panel and Gate Activity Chart............................................................................................................... 10

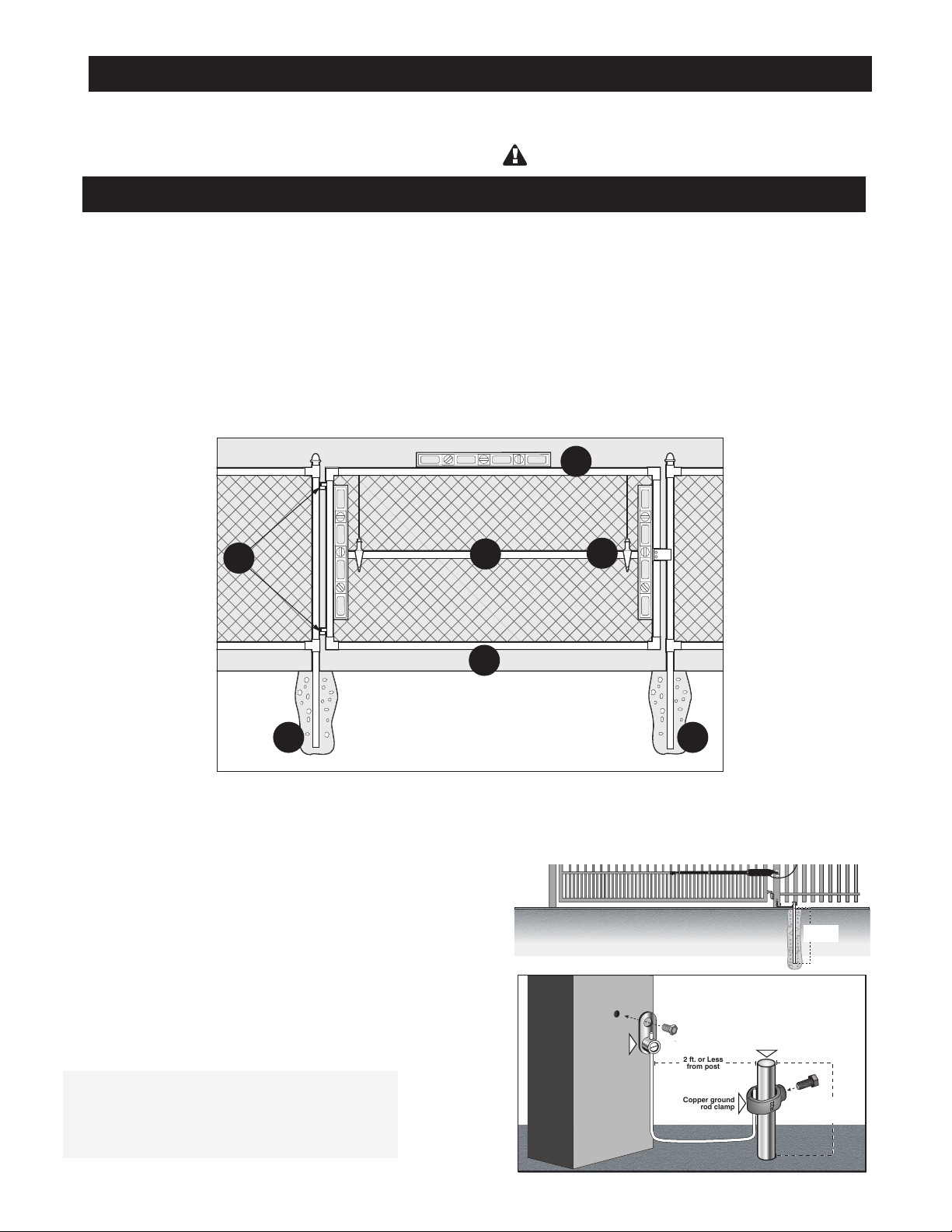

Check Existing Gate Size and Material.......................................................................................................... 11
IMPORTANT: Check for Proper Gate Installation ............................................................................................ 11
Items Included ............................................................................................................................................. 12
Tools Needed ............................................................................................................................................... 12
Items Not Included ....................................................................................................................................... 13
Installation .............................................................................................................................. 13

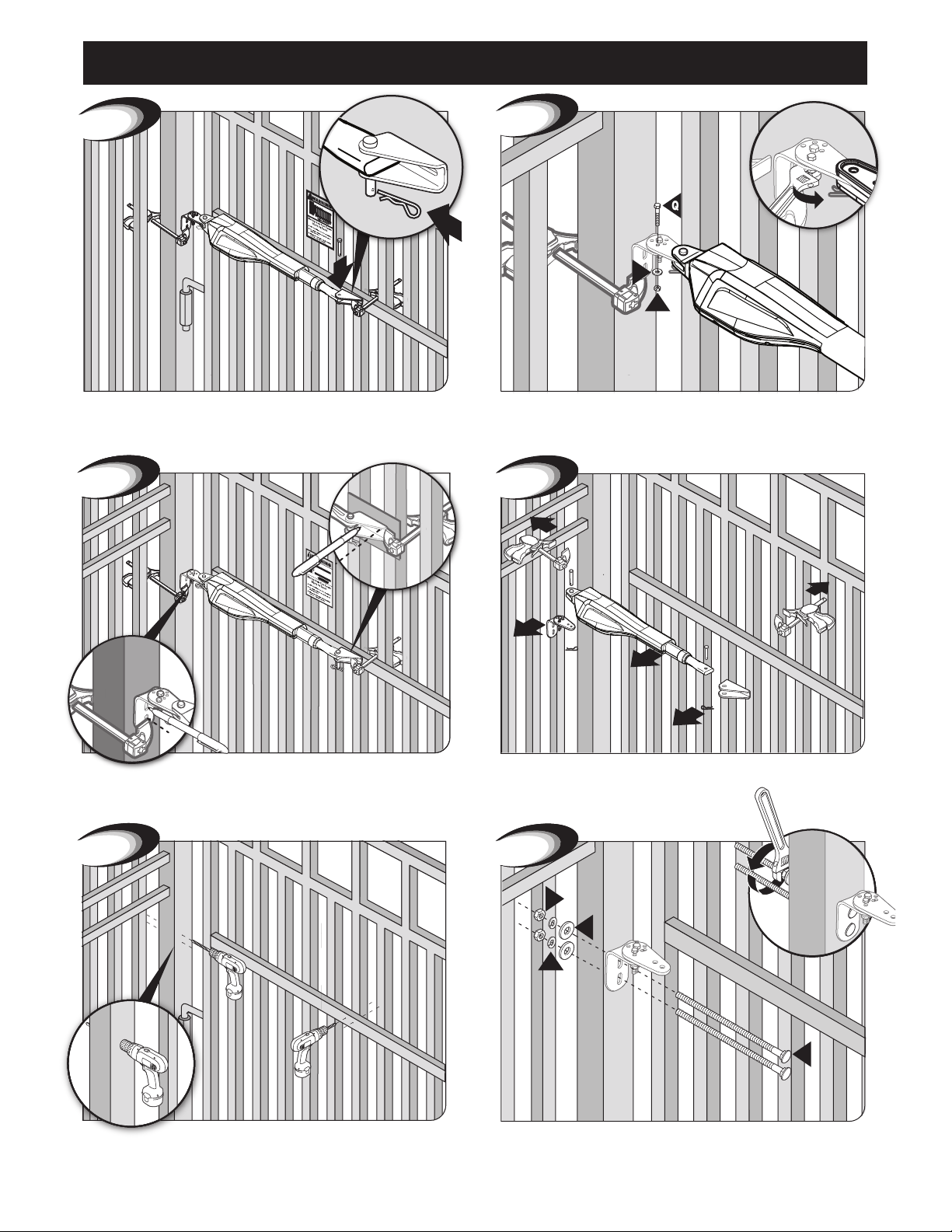

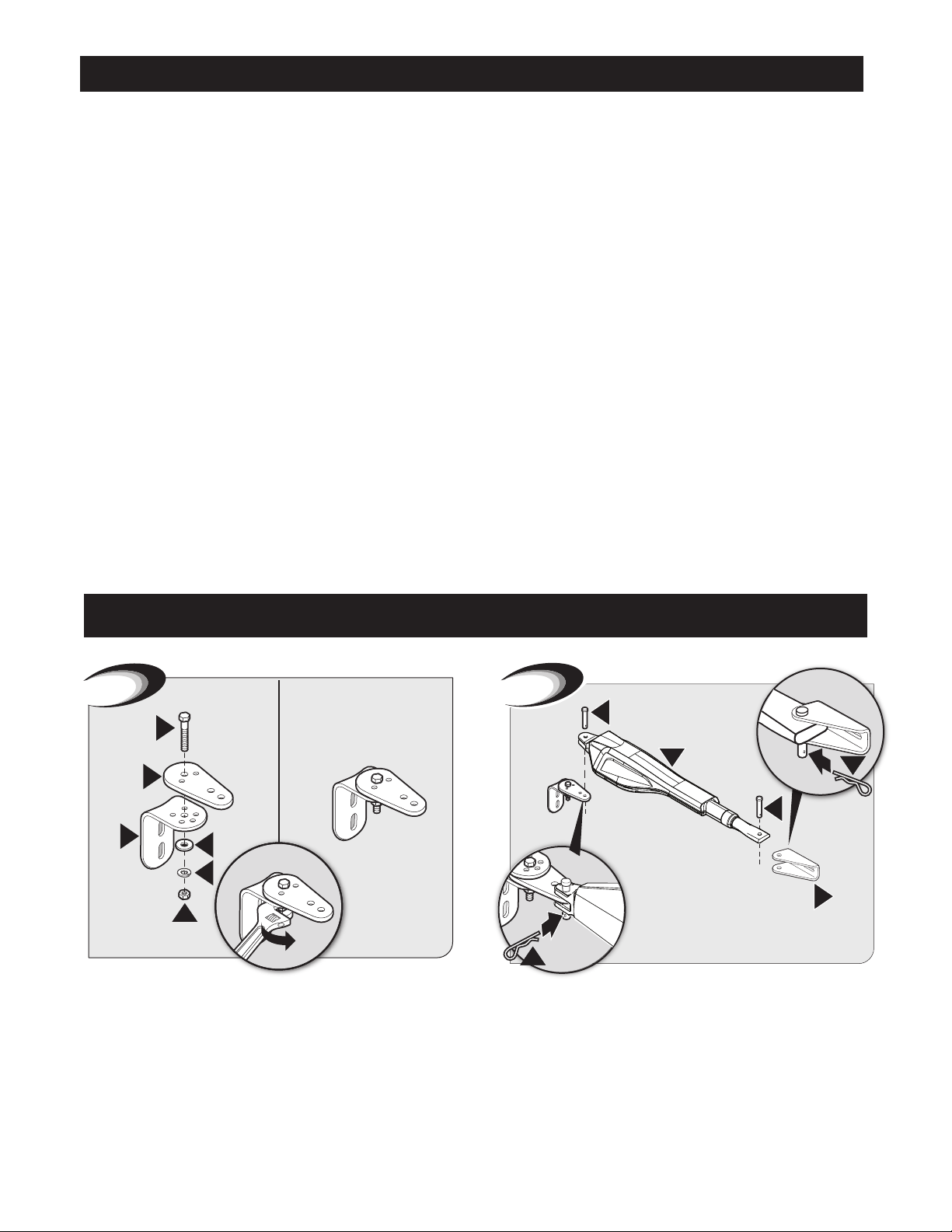

Gate Operator Installation............................................................................................................................. 13

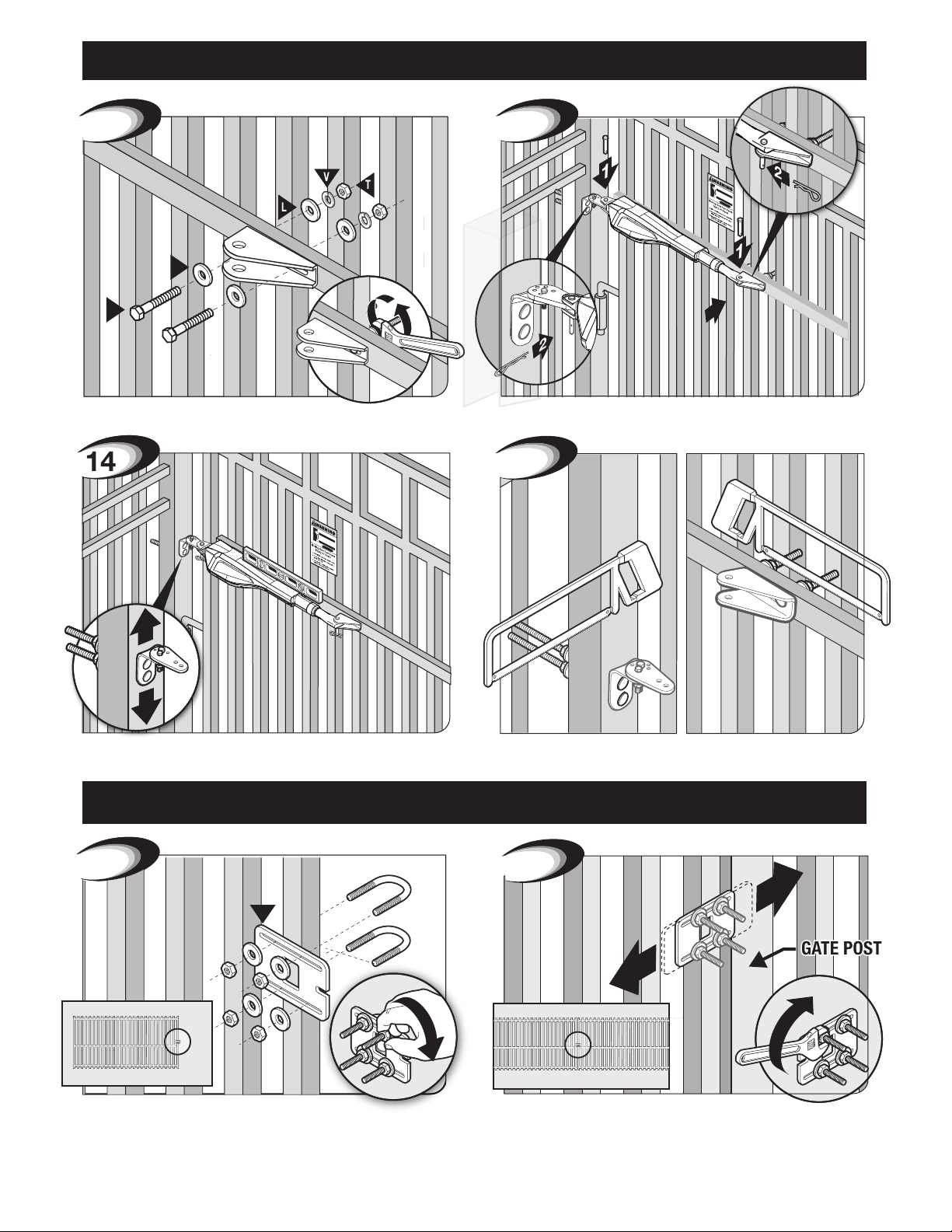

Closed Position Stop Plate Installation .......................................................................................................... 16
Control Box & Battery Installation ................................................................................................................. 17
Transformer Wiring Installation..................................................................................................................... 18
Solar Panel Installation................................................................................................................................. 19
Transmitter Programming............................................................................................................................. 20
Setting Closed Limit Position........................................................................................................................ 22
Setting Dual Sense Detection & Auto Close Timer......................................................................................... 23
Connecting Additional Devices ..................................................................................................................... 24
Control Board Connections........................................................................................................................... 25
Connecting Accessories ............................................................................................................................... 26
Maintenance ........................................................................................................................... 27
Troubleshooting Guide........................................................................................................... 27
Audible Feedback......................................................................................................................................... 27
Visual Feedback........................................................................................................................................... 28
Accessories ............................................................................................................................ 29
Gate Operator Installation Checklist ..................................................................................... 31

Please Read This First!
Thank you for purchasing a Mighty Mule Gate Operator—
Nice North America's "do-it-yourself" automatic gate
operator! When correctly installed and properly used, your
Mighty Mule Gate Operator will give you many years of
reliable service. Please read the following information to
ensure you have the correct system for your particular
needs. If so, this manual and will enable you to properly
install your Mighty Mule Gate Operator.
The Mighty Mule Gate Operator is designed for installation
on a pull-to-open single leaf gate (gates that open into
the property). The gate must not exceed 12 feet in length
or weigh more than 300 pounds (please see Technical
Specications on page 9). The Mighty Mule Gate Operator
can be used on vinyl, aluminum, chain link, farm tube, and
wrought iron gates.
Not rated for use on solid surface gates due to the
potential to damage the operator and/or injure someone.
The Mighty Mule Gate Operator accommodates extra
transmitters, digital keypads, solar panels, push buttons,
automatic gate locks, and other access control products.
These optional accessories (see the Mighty Mule Accessory
Catalog) are available at most stores. Your store should be
able to special order any accessory not in stock. If your
store cannot special order accessories, please call the
Mighty Mule Sales Department (800-543-4283).
The Mighty Mule Gate Operator features Dual Sense
Technology™. This feature makes the gate stop and
reverse direction when it comes in contact with an
obstruction. This is factory set to the most sensitive setting
and must be adjusted during installation.
The Mighty Mule Gate Operator also has an adjustable
auto-close feature. After the gate reaches the fully open
position, it can be set to remain open up to 120 seconds
before automatically closing. Pressing the transmitter
button at any time after the gate opens fully will cause it
to close immediately. OFF is the factory setting; meaning
the gate will stay open until you press the transmitter (or
keypad, etc.) again.
Go to www.mightymule.com for a dealer or retailer near
you or call [phone] for information about our Linear
professional line of gate operators and accessories. Our
Sales Department will be glad to give you the name and
phone number of a Linear dealer near you.
Before You Begin to Install Your Automatic Gate Opener
NOT FOR THE CONTAINMENT OF ANIMALS.
Watch the installation video here:
www.mightymule.com/installation-videos/
Read these instructions carefully and completely to become familiar with all parts and installation steps. The video is only
designed as an overview of the installation procedure. You must read the installation manual for detailed instructions on gate
operator safety and proper use of the gate operator.

2
Clevis Pin
Hairpin Clip
Gate Bracket
Front Mount
Because automatic gate operators produce high levels
of force, consumers need to know the potential hazards
associated with improperly designed, installed, and
maintained automated gate operator systems. Keep in
mind that the gate operator is just one component of
the total gate operating system. Each component must
work in unison to provide the end user with convenience,
security, and safety.
This manual contains various safety precautions and
warnings for the installer and end user. Because there are
many possible applications of the gate operator, the safety
precautions and warnings contained in this manual cannot

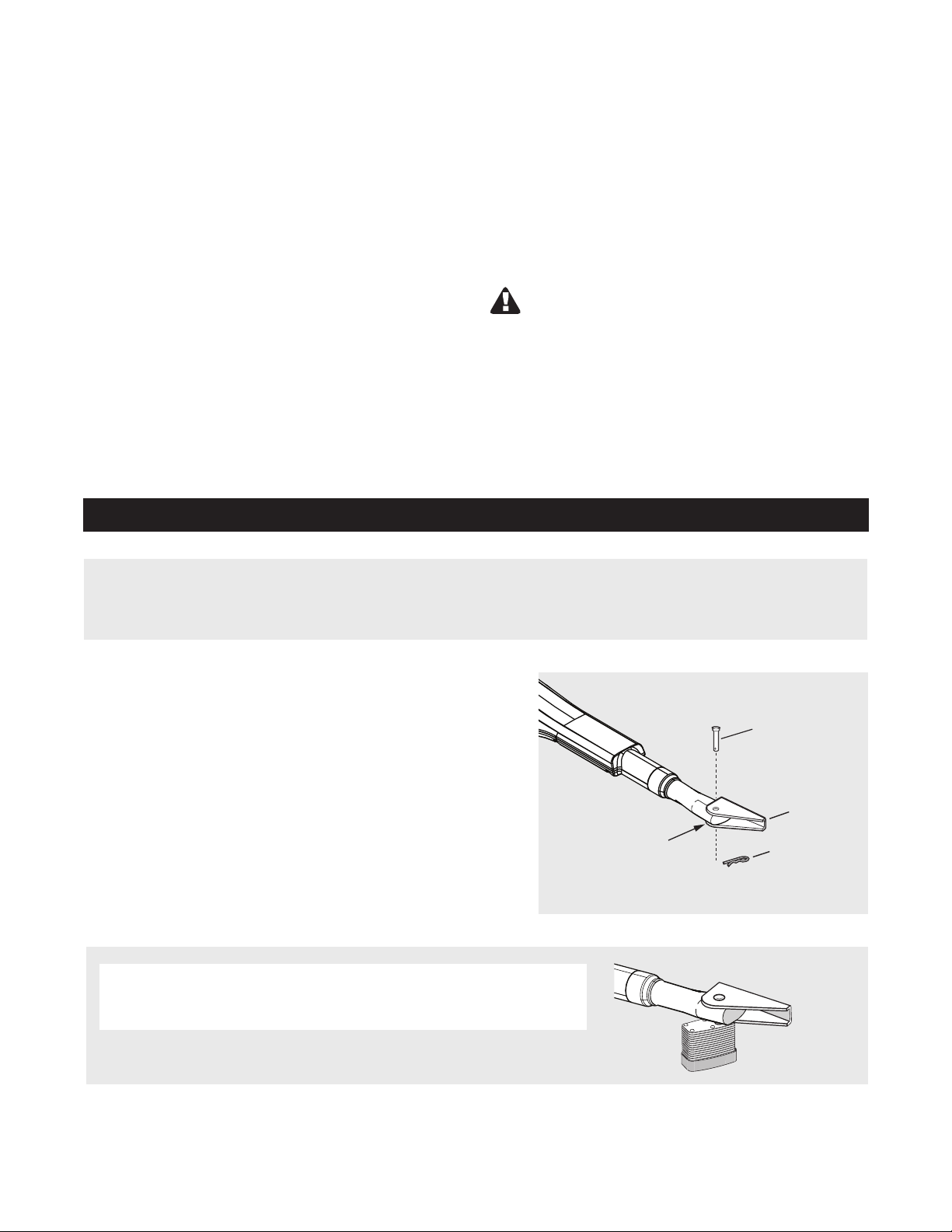

Disconnecting the Operator
1. Turn control box power switch OFF.
2. Remove the hairpin clip and clevis pin.
3. Remove the operator’s front mount from the gate bracket.
The gate can be opened and closed manually when the operator
is disconnected.
be completely exhaustive in nature. It does, however,
provide an overview of the safe design, installation, and use
of this product. CAREFULLY READ AND FOLLOW
ALL SAFETY PRECAUTIONS, WARNINGS, AND
INSTALLATION INSTRUCTIONS TO ENSURE
THE SAFE SYSTEM DESIGN, INSTALLATION,
AND USE OF THIS PRODUCT.
Warnings in this manual are identied with this
warning symbol. The symbol identies conditions that can
result in damage to the operator or its components, serious
injury, or death.
Manually Opening and Closing Gate
Because Mighty Mule automatic gate operators are only part of the total gate operating system, it is the responsibility of the
installer and end user to ensure that the total system is safe for its intended use.
CAUTION
The gate will move freely and uncontrolled when the gate operator is removed from the gate. ONLY disconnect the
operator when the control box power switch is OFF and the gate is NOT moving.
NOTE: Substitute a Pin Lock for the clevis pin on the front mount of the gate operator
to prevent theft of the operator from the gate (see accessory pages in back of
this book).
Important Safety Information
Part #: FM133

3
1. Verify this operator is proper for the type and size of gate,
frequency of use and class of the gate system.
2. Make sure the gate has been properly installed and swings freely
in both directions. Repair or replace all worn or damaged gate
hardware prior to installation. A freely moving gate will require
less force to operate and will enhance the performance of the
entrapment protection devices used with the system (see page 11).
3. Review the operation of the system to become familiar with its
safety features. Understand how to disconnect the operator for
manual gate operation (see page 3).
4. The gate and operator installation must comply with any applicable
local codes.
5. This gate operator is intended for vehicular gates only. A separate
entrance or gate must be installed for pedestrian use (see page 7).
6. Always keep people and objects away from the gate and its area of
travel. No one should cross the path of a moving gate.

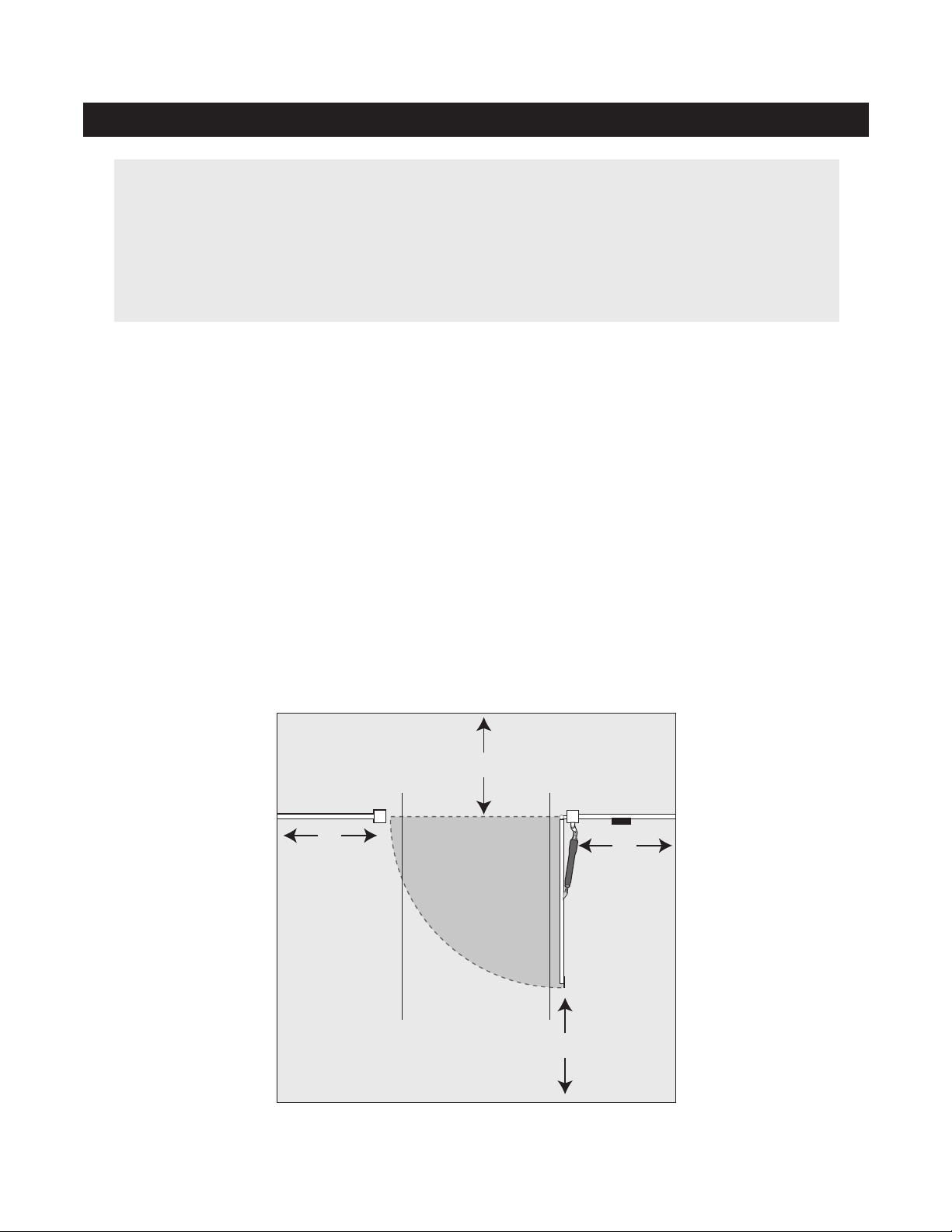

7. Identify all of the entrapment zones for the type of installation. An
entrapment zone is an area around the automatic gate system
where a person or object could be caught that increase the risk of
injury. Entrapment zones must be eliminated, guarded or protected.
8. When designing a system that will be entered from a highway
or main thoroughfare, make sure the gate system is placed far
enough from the road to prevent trafc congestion.
For the Installer and End User
Gate in the
Open Position
ZONE 2
ZONE 3
ZONE 4
ZONE 5
Driveway
ZONE 1
Entrapment
Zones for a
Pull-To-Open
Application
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote
control away from children.
3. Always keep people and objects away from the gate. NO ONE SHOULD
CROSS THE PATH OF THE MOVING GATE.
4. Test the gate operator monthly. The gate MUST reverse on contact
with a rigid object or stop when an object activates the non-contact
sensors. After adjusting the force or the limit of travel, retest the gate
operator. Failure to adjust and retest the gate operator properly can
increase the risk of injury or death.
5. Use the manual/emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the user’s
manual. Have a qualied service person make repairs to gate
hardware.
7. The entrance is for vehicles only. Pedestrians must use
separate entrance.
8. The gate must be installed in a location that provides
adequate clearance between it and adjacent structures
when opening and closing to reduce the risk of entrapment.
Swinging gates must not open into public access areas.
9. SAVE THESE INSTRUCTIONS.
To reduce the risk of injury or death:
Important Safety Information
WARNING
I. Before Installation

4
II. During Installation
1. Install the gate operator on the inside of the property and fence line. DO NOT install an operator on the outside of the gate
where the public has access to it.
2. Be careful with moving parts and avoid close proximity to areas where ngers or hands could be pinched.
3. Devices such as contact sensors (sensing
edges) and non contact sensors (photo beams) provide additional protection against vehicular damage.
4. If push buttons or key switches are installed, they should be within sight of the gate, located at least 10 feet from any moving
part of the gate (see diagram below). Never install any control device where a user will be tempted to reach through the
gate to activate the gate operator.
5. Do not activate your gate operator unless you can see it and can determine that its area of travel is clear of people, pets, or
other obstructions. Watch the gate through its entire movement.
6. Secure outdoor or easily accessed gate operator controls in order to prohibit unauthorized use of the gate.
For the Installer and End User
Typical Entrapment Zones are shown in the diagrams on page 3:
Zone 1 – leading edge of the gate and the fence post.
Zone 2 – between the gate and the gate post.
Zone 3 – the path of the gate.
Zone 4 – the space between the gate in the open position and any object such as a wall, fence, tree, etc.
Zone 5 – pinch points between the operator and gate.
Moving Gate
Area
Driveway
10'
10'
10'
10'
NEVER install any control device
within gray area
Pull-To-Open
Application
Important Safety Information

5
III. After Installation
1. Attach the warning signs (included) to each side of the
gate to alert the public of automatic gate operation. It is
your responsibility to post warning signs on both sides
of your gate. If any of these signs or warning decals
becomes damaged,
illegible, or missing, replace them immediately.
Contact Nice North America for free replacements.
2. The gate is automatic and could move at any time,
posing serious risk of entrapment. No one should be in
contact with the gate when it is
moving or stationary.
3. Do not attempt to drive into the gate area while the gate
is moving; wait until the gate comes to a complete stop.
4. Do not attempt to “beat the gate” while the gate is
closing. This is extremely dangerous.
5. Do not allow children or pets near your gate. Never let
children operate or play with gate controls. Keep the
remote control away from children and unauthorized
users; store controls where children and unauthorized
users do not have access to them.
6. KEEP GATE SYSTEMS MAINTAINED. Always
turn power to operator OFF before
performing any maintenance. See page 28 for
maintenance procedures.
7. To operate this equipment safely, YOU must know how to
disconnect the operator for manual gate operation (see
page 2). If you have read the instructions and still do not
understand how to disconnect the operator, contact the
Mighty Mule Service Department.
8. Disconnect the operator ONLY when the power is
TURNED OFF and the gate is NOT moving.
9. Make arrangements with local re and law
enforcement for emergency access.
10. Distribute and discuss copies of the
IMPORTANT SAFETY INFORMATION
section of this manual with all persons
authorized to use your gate.
11. IMPORTANT: Save these safety instructions. Make
sure everyone who is using or will be around the
gate and gate operator are aware of the dangers
associated with automated gate systems. In the
event you sell the property with the gate operator or
sell the gate operator, provide a copy of these safety
instructions to the new owner.
Should you need a replacement manual, a copy
can be obtained by downloading one from the
Mighty Mule web site (www.mightymule.com), by
contacting Nice North America, at 5919 Sea Otter
Place, Carlsbad, CA 92010 or by calling 1-800-543-
1236 and requesting a duplicate copy.
For the Installer and End User
Important Safety Information

6
For the Installer and End User
Mighty Mule gate operators utilize Dual Sense Technology™
entrapment protection. Dual Sense Technology™is built
into every Mighty Mule and provides redundant methods of
entrapment protection for open and close gate directions.
In addition to Dual Sense Technology, every Mighty Mule
gate controller has provisions for the connection of
additional obstruction detection devices such as sensing
edges and photo beams.
These devices may be located where there is an increased
risk of obstruction. Refer to the diagram below.
One or more edge sensors may be located at the leading
edge, bottom edge, and post edge, both inside and outside
of a vehicular swing gate system.
Wiring to sensors must be located and arranged so the
wiring between the sensor and the gate operator is not
subjected to mechanical damage.
A wireless sensor such as one that transmits radio frequency
(RF) signals that promote safety shall be located where the
transmission of the signals is not obstructed or impeded by
building structures, natural landscaping or similar objects.
Leading Edge
of the gate
Photo Beams
(recommended, not included)
Photo Beams
(recommended, not included)
Sensing Edges
(recommended, not included)
Vehicular Gate
Entrapment and Obstruction Protection
Mighty Mules’s Dual Sense Technology™provides entrapment protection, when properly adjusted. Since all installations are
different, you may need to add photo beams or sensing edges to help prevent damage to vehicle or other items that could be hit by a
moving gate.
Entrapment Alarm
The Mighty Mule Automatic Gate Operator is designed to stop and reverse the gate when the gate comes in contact with an
obstruction. Additionally, these operators are equipped with an audio entrapment alarm which will activate if the unit obstructs twice
while opening or closing. This alarm will sound for a period of 5 minutes, or until the operator receives an intended signal from a
hard wired entry/exit source (e.g. push button control or keypad). Turning the power switch on the control box OFF and back ON will
also deactivate the alarm. Wireless controls such as transmitters and wireless keypads will not deactivate the alarm.
Important Safety Information
NOTE: Photo beams should always be located on the non-travel side of the gate.

7
Warning Sign Pedestrian Gate
Pedestrian Gate Lock
Vehicular Gate
(recommended, not included)
7 foot
minimum
Important Safety Information
Warning signs alert people of automatic gate operation and are required when installing Mighty Mule Automatic Gate
Operators. A minimum of two WARNING SIGNS must be installed in the area of the gate. Each sign is to be visible by
persons located on the side of the gate on which the placard is installed.
The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that
persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
We recommend using the Bulldog Pedestrian Gate Lock (Call the Nice North America Sales Department at 800-543-4283)
for controlled access.
Installing Warning Signs and Pedestrian Gates
Warning Signs
The gate operator is provided with 2 safety warning signs. The
signs MUST be installed on the front and back of the gate where
they will be visible in the area of the gate.
Permanently secure each warning sign to the gate.
Immediately replace a damaged, eligible or missing warning sign.
Call Technical Support at 800-543-1236 for a free replacement.
!

8
Labels (1) installed on the front of control box
1. KEEP CLEAR! Gate may move at any time.
2. Read all SAFETY INSTRUCTIONS in the user’s
manual.
3. Do not allow children to operate gate or play in
gate area.
4. This gate is for vehicles only. Pedestrians must
use separate entrance.
1. TENEZ-VOUS LOIN! La barrière peut se
déplacer à tout moment.
2. Lisez toutes les instructions de sécurité dans
le manuel de l'utilisateur.
3. Ne laissez pas les enfants utiliser la barrière
ou jouer à proximité de la barrière.
4. Cette barrière est uniquement réservée aux
véhicules. Les piétons doivent utiliser une
autre entrée.
AVERTISSEMENT
WARNING
La barrière en mouvement
peut provoquer des blessures
graves ou la mort!
Moving gate can cause injury
or death!
Important Safety Information
These warning labels should be found at the locations specied below. If any of them are missing, immediately contact Nice
North America for replacements.
Required Safety Precautions for Gates

9
Technical Specications
Mighty Mule 271 Gate Opener
DRIVE
Low friction screw drive (linear actuator) rated for -5 °F to +160 °F (-20 °C to +71 °C).
Powered by a 12 V motor with integral gear reducer. Motor speed reduced to 280 rpm.
Maximum opening arc of 110°. Approximate opening time (90°): 18 seconds, depending on weight of gate.
POWER
The system is powered by a 12 Vdc automotive, lawn tractor or marine battery (required but not included).
Battery charger is on the control board and is maintained by 120Vac to 16VDC output transformer or by optional Solar Panels; the
solar panels should generate minimum of 10 Watts (600 mA). A diode on the control board prevents battery discharge.
IMPORTANT: Never use both transformer and solar panel - this will damage the battery and control board.
One (1) Mini blade-style fuse is rated for 15 A.
NOTE: The transformer should not be directly connected to any battery. Do not replace fuses with higher ampere rated
fuses; doing so will void your warranty and may damage your control board.
CONTROL
Microprocessor-based control board is set for dual leaf, pull-to-open gate installations.
Learn based digital transmitter technology provides millions of codes for enhanced security.
RF receiver tuned to 318 MHz.
Opener length with push-pull tube fully retracted is 263/8”, mounting point to mounting point. Maximum stroke is 13”.
Adjustable auto-close timer (OFF to 3–120 seconds), and Dual Sense Technology™ stall force.
Power terminal block accommodates an (included) transformer or optional solar panels
Accessory terminal block fully compatible with all Mighty Mule access controls.
Control board allows connection of edge sensors and photoelectric sensors.
Audio entrapment alarm sounds if unit encounters an obstruction twice while opening or closing.
OPERATIONAL CAPACITY
Maximum gate size: 300 lbs., 12' long.
NOTE: BALL BEARING HINGES SHOULD BE USED ON ALL GATES WEIGHING OVER 250 LB.

10
1. Determine Charging Option for Battery: Transformer OR Solar
IMPORTANT:
¾The Mighty Mule gate operator is designed and intended for use with a 12 Volt automotive or marine type battery. The
battery must be placed inside a weatherproof case and located within 6 feet from the Control Box. The 8 foot harness
supplied connects the battery to the Control Box.
¾The transformer is designed for indoor use. If the transformer can be plugged only into an outside electrical outlet, a
weatherproof cover/housing (available at local electrical supply stores) must be used.
¾If your gate is more than 1000 ft. from an AC power source, you will need to use at least 10 watt solar charging power
to charge the battery [FM123]. Refer to the Solar Panel and Gate Activity chart below.
¾All low voltage wire used with the Mighty Mule gate operator must be 16 gauge dual conductor, stranded, direct burial
wire [RB509]. Do not run more than 1000 ft. of wire.
NEVER USE TRANSFORMER AND SOLAR PANEL(S) AT
THE SAME TIME. It will damage the control board.
The table and map illustrate
the maximum number of gate
cycles to expect per day in a
particular area when using
from 10 to 30 watts of solar
charging power prior to the
battery depleting to a state
where the unit will not function. The gures shown
are for winter (minimum sunlight). Accessories
connected to your system will draw additional
power from the battery.
NOTE: UP to 250 ft. of dual conductor, 16 gauge,
multi-stranded wire may be used to allow installation
of solar panels in direct sunlight.
10 Watt Solar Panel [FM123]
Deep cycle marine battery is recommended for
solar and/or high trafc applications.
Before You Begin
Powering Options
Solar Panel and Gate Activity Chart
Single Gate Winter Ratings Zone 1 Zone 2 Zone 3
12 v single gate (10 watts) solar charger 816 26
12 v single gate (20 watts) solar charger 14 28 38
12 v single gate (30 watts) solar charger 20 44 54
* Power increments are for reference only.

11
E
A
B
C
DD
F
A –Level D – Posts Secured in Concrete
B – Plumb E – Centerline Mounting
C – Free Swinging F – Good Working Hinges
Gate Grounding
¾For reference only.
Cooper Clad Ground Rod (not included)
Use an 8 foot, 5/8 inch ground rod, positioned two
feet or less from the post and 2 inches or less
above the ground. Available at local home center or
hardware stores.
NOTE: No grounding system absolutely protects
against lightning strikes. If installed correctly, a
grounding system will help minimize damage to your
gate operator.
¾The gate must be plumb, level, and swing freely on its hinges.
¾The gate must move throughout its arc without binding or dragging on the ground.
¾Wheels must NOT be attached to the gate.
¾Gates over 250 lb. should have ball bearing hinges with grease ttings.
¾Post must be secured in the ground with concrete (minimizes twist/ex when the operator is activated).
¾Make sure there is a stable area for mounting the gate bracket (this may require the addition of a horizontal or vertical
cross member).
¾We recommend you position the operator near the center-line of the gate to keep the gate from twisting and exing, and
to avoid back-splash from rain.
Copper clad ground rod
(not included)
Ground
Ground
2 Inches or
Less above
ground
Copper ground
rod clamp
Copper Single
Conductor Lug
3/16” Drilled
Pilot Hole
6 ft. deep
or more
Metal gate post
Metal Gate Post
Gate Opener
Control Box
2 ft. or Less
from post
IMPORTANT: Check for Proper Gate Installation
Check Existing Gate Size and Material
• Gate size: Up to 12 feet and up to 300 lbs • Type of gate material: Vinyl, aluminum, chain link, farm
tube, wrought iron, wood.
Not rated for use on solid surface gates.
A- Level
B
- Plumb
C
- Free Swinging
D- Secured Posts Concrete
E- Center line Mounting
F- Good Working Hinges (ball bearing hinges are recommended on gates over 250 pounds)

12
Items Included
3/8” x 1-1/2” Clevis Pin (2)
3/8” x 8” Bolt (2)
8” Nylon Cable Tie (6)
Control Box
Gate Bracket Post Pivot Bracket Post Bracket
Transformer
Warning
Signs (2)
Closed Position
Stop Plate
3/8” x 1-1/2” Bolt (1)
5/16” x 1-1/4” Bolt (1)
3/8” Washer (7)
5/16” Washer (1)
3/8” Nut (5) 5/16” Lock Nut (1)
Hairpin Clip (2)
2” Mounting Screw (3)
A
F
Operator Arm
B
G
I
E
C
H
D
J K
N
L
Q
S
O
P
M
R
w
U
T
3/8” Lock Washers (5)
V
3/8” x 2-3/4” Bolt (2)
MMT103 Transmitter
®
Installation Ruler
7/16” Bit
5/16” Bit
Drill
Pliers
Level
Clamps Adjustable
Wrench
Pen Center
Punch
Hammer
Tape
Measure
Small
Flat Head
Philips Head
Screwdriver
Flat Head
Screwdriver
Wire
Stripper
Hack Saw 1/2”
wrench
9/16”
wrench
Tools Needed

13
¾12 Volt automotive or marine battery and a weather
proof case.
¾Low voltage wire will be needed to run from the
transformer to the control box; length depends
upon the distance between the transformer power
supply and the control box. See Transformer Wiring
Installation on page 18, and the accessory catalog.
¾PVC conduit.
¾If your gate is more than 1000' away from an
AC power source you will need to use at least
one Mighty Mule solar panel to trickle charge the
battery. See the accessory catalog (Do not use both
transformer and solar).
¾If you have thin-walled tube or panel gates, see
Recommended Reinforcement Examples after Step 3
of “Mounting Operator to Gate”.
¾Depending on the type of gate, a horizontal
cross member or mounting plate may be needed
to mount the front of the operator and gate
bracket to the gate. See Gate Bracket Mounting
Examples after Step 3 of “Gate Operator
Installation.”
¾Surge protection for transformer.
¾Some types of installations require u-bolts.
¾Additional washers or a metal plate may be
needed for wooden post.
¾Weatherproof cover for outdoor outlet and
transformer.
¾If the post is larger than 6”, bolts longer than 8”
are needed.
Items Not Included
12
3
55
L
V
O
F
G
T
S
S
E
B
N
N
3
Thin Walled
Tube Gate
Gate
Bracket
1” x 6” Wood Reinforcement
Panel
Gate
Gate
Bracket
Wood or Metal
Reinforcement
(not supplied)
Mounting Plate
Created for
Decorative Gate
(required but not
supplied)
Remove excess
bolt length with
hacksaw or bolt cutters
FRONT VIEW SIDE VIEW
Reinforcement and Gate Bracket Mounting
Mufer Clamp
(not supplied)
Gate
Bracket
4
1
2
1" Min. - Pinch-Point Clearance
Top View
1" Min.
4”–13"
2
1
Closed
Position
Open
Position
stroke
2
1
Attach operator (in fully retracted position) to gate and post
bracket and secure with required hardware.
Assemble post bracket parts. Do not completely tighten during
this step.
Installation
Gate Operator Installation

14
12
3
55
L
V
O
F
G
T
S
S
E
B
N
N
3
Thin Walled
Tube Gate
Gate
Bracket
1” x 6” Wood Reinforcement
Panel
Gate
Gate
Bracket
Wood or Metal
Reinforcement
(not supplied)
Mounting Plate
Created for
Decorative Gate
(required but not
supplied)
Remove excess
bolt length with
hacksaw or bolt cutters
FRONT VIEW SIDE VIEW
Reinforcement and Gate Bracket Mounting
Mufer Clamp
(not supplied)
Gate
Bracket
4
1
2
1" Min. - Pinch-Point Clearance
Top View
1" Min.
4”–13"
2
1
Closed
Position
Open
Position
stroke
2
1
12
3
55
L
V
O
F
G
T
S
S
E
B
N
N
3
Thin Walled
Tube Gate
Gate
Bracket
1” x 6” Wood Reinforcement
Panel
Gate
Gate
Bracket
Wood or Metal
Reinforcement
(not supplied)
Mounting Plate
Created for
Decorative Gate
(required but not
supplied)
Remove excess
bolt length with
hacksaw or bolt cutters
FRONT VIEW SIDE VIEW
Reinforcement and Gate Bracket Mounting
Mufer Clamp
(not supplied)
Gate
Bracket
4
1
2
1" Min. - Pinch-Point Clearance
Top View
1" Min.
4”–13"
2
1
Closed
Position
Open
Position
stroke
2
1
With Gate in OPEN position, using clamps, secure operator to
gate post and center cross member of gate.
Recommended reinforcement and gate bracket mounting
examples.
Swing gate and operator arm to the CLOSED position-check
clearance/binding by inspecting alignment. Arm stroke should be a
maximum of 13”. TIP: Turning the pivot bracket over gives more
hole alignment options for the post pivot bracket assembly.
IMPORTANT: Without adequate clearance and alignment, the
gate operator will NOT function correctly. To ensure proper
installation, use the included Installation Ruler to install the
operator and the bracket.
Remove clevis pin from the gate bracket and support loose
operator.
Gate Operator Installation
Installation Ruler

15
1
3
511
1
6
2
Q
K
U
7
3
689
10
M
L
T
611
V
OPEN gate and reattach operator with clevis pin. Check to
ensure the operator is level.
Secure post pivot bracket to post bracket with the hardware
provided (Q,K,U) when you have achieved the 1” clearance
shown in Step 5 in both open and closed positions.
Mark middle of post bracket slots on fence post. Mark middle
of gate bracket slots on gate cross support.
Remove clamps, post bracket, gate bracket, and operator. Then
use a hammer and center punch to mark
hole positions.
Drill holes completely through gate post and gate cross support. Attach post bracket assembly to gate post. NOTE: Must be
through bolted.
Gate Operator Installation

16
12
3
5
612
T
L
L
V
P
2
1
1
13
2
14 15
4
H
15
1
2
2
1
Attach and secure operator assembly to brackets.Attach gate bracket assembly to gate cross support.
Check for level. Adjust post bracket if necessary. Tighten all bolts and remove excess length on post and gate
bracket bolts with hacksaw.
Remove the arm from the front bracket then attach closed position stop
plate to the leading edge of the gate with one of the following:
• U-bolts—tube and chain link gates (Not included)
• Wood/lag screws—at aluminum/wood supports (Not included).
Position gate stop with gate CLOSED to fence post. Tighten
fasteners. Cut off excess bolt length.
Gate Operator Installation
Closed Position Stop Plate Installation
