SPECIFICATIONS SHEET
IE 6
LOUDSPEAKER ACCESSORIES
• Can be installed in stud bays and ceiling tile systems
• Ceiling tile installation hardware included

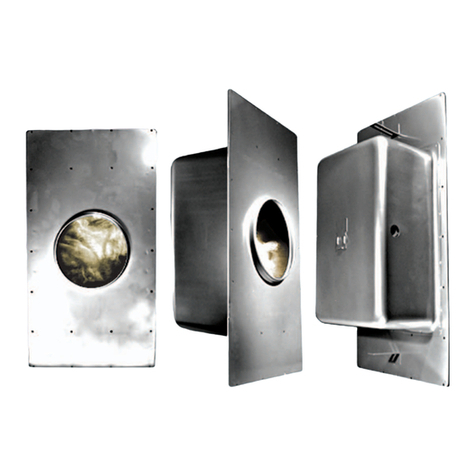

Metal Loudspeaker Enclosure
for all 6 Series In-Wall Loudspeakers

LOUDSPEAKER ACCESSORIES
FEATURES
■Exceeds one-hour fire rating requirements per the following standards ASTM E 119, NFPA 251, UL
263 & 2043, ULC CAN/ULC – S101, and UBC 7-1
■Optimized enclosure volume enhances bass response and ensures consistent performance
regardless of construction variations
■Includes all parts to install the enclosure in a wide range of ceiling tile systems
■Internal sound damping construction reduces sound transmitted to adjacent spaces by at least
10dB
■Pre-drilled holes allow easy installation of the 3/8" conduit cable clamp provided with the enclosure
■Integral hanging tab for attachment of safety harness or ceiling tile wire hanger
■Unit can be mounted in walls or ceilings in 16" or 24" stud bays made with 2" x 4" studs, at a
minimum
■Enclosure hole cut out dimensions: 8" x 11"
■Enclosure dimensions: 18" length x 14" width x 3-1/2" deep
■Front plate dimensions: 23-3/4" length x 17" width
In-Wall Fire Rated Enclosures
IE 6
Stock Number
FG00941
