Nippon Genetics FastGene NG021 User manual

FastGene®Hot & Cold Mini Dry Bath
Instruction Manual
Catalog No.
NG021
(programmable cooling and heating capability)
www.nippongenetics.eu
[email protected]
Version 01
20.01.2015

1
Content
-1x FastGene®Hot & Cold Mini Dry Bath, cooling and heating
-1x Transparent Lid
-1x Power Cord
-1x Power Adapter
-1x Instruction Manual

2
Table of contents
Content ................................................................................................................1
Warning................................................................................................................3
Section 1 Introduction........................................................................................8
Section 2 Product Specifications ......................................................................9
Section 3 Installation Instructions...................................................................10
Section 4 Device Operation Instructions ........................................................11
4.1 Controls and Features ...........................................................................11
4.2 Turn On the Instrument..........................................................................13
4.3 Setting Calendar....................................................................................14
4.4 Operation Mode: Quick Start Mode........................................................15
4.5 Operation Mode: Constant Mode...........................................................17
4.6 Operation Mode: Programmable Mode..................................................19
4.7 Operation Mode: Annealing Program.....................................................23
Section 5 Troubleshooting Guide....................................................................26
5.1 Problem and Solution.............................................................................26
5.2 Maintenance ..........................................................................................26
5.3 Temperature Calibration........................................................................27
Section 6 Ordering information.......................................................................30
Section 7 Warranty ...........................................................................................31

3
Warning
FastGene®Hot & Cold Mini Dry Bath has been tested and found to comply
with safety limits for the CE regulation. Also, the FastGene®Hot & Cold Mini
Dry Bath is RoHS compliant to deliver confident product which meets the
environmental directive. This equipment generates, uses, and can radiate
radio frequency energy, and if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. It is
strongly recommended for the user to read the following points carefully
before operating this equipment.
1. Read and follow carefully the manual instructions.
2. Do not alter the equipment. Failure to follow these directions could result in
personal and/ or laboratory hazards, as well as invalidate equipment
warranty.
3. Use a properly grounded electrical outlet with correct voltage and current
handing capacity.
4. Disconnect from power supply before maintenance and servicing. Refer
servicing to qualified personnel.
5. Never use this instrument series without having the safety cover correctly
in position.
6. Do not use the unit if there is any sign of damage to the external tank or
cover. Replace damaged parts.
7. Do not use in the presence of flammable or combustible material; fire or
explosion may result. This device contains components which may ignite
such materials.
8. Refer maintenance and servicing to qualified personnel.
9. Ensure that the system is connected to electrical service according to local
and national electrical codes. Failure to properly connection may create fire
or shock hazard.
10. Use appropriate materials and operate correctly to avoid possible hazards
of explosion, implosion or release of toxic or flammable gases arising from
overheated materials.
11. Always use the block lifter to remove hot blocks, and wear appropriate

4
protection to avoid burning your hand.
12. The unit shall be operated only by qualified personnel.
Safety Information
Use high level of precaution against any electrical device. Before connecting
the electrical supply, check to see if the supply voltage is within the range
stated at the rating label, and see to it that the device be seated firmly. Place
the unit in a safe and dry location; it must NOT touch the surrounding. Follow
the safety precautions for chemicals / dangerous materials. If needed, please
contact qualified service representative or i[email protected]
Environmental Conditions
Ensure the instrument is installed and operated strictly in the following
conditions:
1. Indoor use only
2. ≤95% RH (non-condensing)
3. 75 kPa –106 kPa
4. Altitude must not exceed 2000 meters
5. Ambient to 40°C operating temperature
6. Pollution degree: 2
7. Mains supply voltage fluctuations up to ±10% of the normal voltage
Avoiding Electrical Shock
Follow the guidelines below to ensure safe operation of the unit.
FastGene®Hot & Cold Mini Dry Bath has been designed to use with shielded
wires thus minimizing any potential shock hazard to the user. Nippon
Genetics Europe recommends against the use of unshielded wires.
To avoid electrical shock:
1. In the event of solution accidentally spilled into the instrument, it must be
dried out for a period of time, at least 2 hours, and restored to NORMAL
CONDITION before each operation.
2. NEVER connect or disconnect wire leads from the power jacks when the
power is on.
3. WAIT at least 5 seconds after stopping a run before handling output leads
or connected apparatus.
4. ALWAYS make sure that hands, work area, and instruments are clean and
dry before making any connections or operating the equipments.
5. ONLY connect the power cord to a properly grounded AC outlet.

5
Avoiding Damage to the Instrument
1. Do not attempt to operate the device if it is damaged.
2. Protect this unit from physical damage, corrosive agents and extreme
temperatures (direct sunlight, etc.).
3. For proper ventilation and safety concerns, keep at least 10 cm of space
behind the instrument, and at least 5 cm of space on each side.
4. Use high level of precautions against the damages on the unit.
5. Do not operate the unit out of environmental conditions addressed above.
6. Prior to apply any cleaning or decontamination method other than
manufacturer’s recommendation, users should check with the
manufacturer’s instruction to see if the proposed method will damage the
equipment.
Equipment Operation
Follow the guidelines below to ensure safe operation of the unit:
1. Check the displayed temperature figure and external temp. Probe to see if
it is overheating, and check if it will function in the case of a single fault at
least once per day.
2. NEVER access dangerous chemicals or other materials to prevent possible
hazard of explosion and damage.
3. Do not apply lids or covers on the tube heated inside the FastGene®Hot &
Cold Mini Dry Bath to prevent possible hazards of explosion and damages.
4. Atemporary conductivity caused by condensation might occur even though
this series is rated Pollution Degree 2 in accordance with IEC 664.
Battery Replacement Notice
The product may contain an internal manganese dioxide.
There is risk of fire and burns if the battery pack is not handled properly.
To reduce the risk of personal injury:
1.Do not attempt to recharge the battery.
2.Do not expose to temperatures higher than 40℃(104℉).
3.Do not disassemble, crush, puncture, short external contacts, or dispose of
in fire or water.
4.Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
5.Replace only with the spare designated for this product.

6
6.Please understand the positive and negative mark. Do not use the battery
positive and negative wrong.
Symbols
The symbols used on the FastGene®Hot & Cold Mini Dry Bath are explained
below.
Indicates an area where a potential shock hazard may exist.
Consult the manual to avoid possible personal injury or instrument
damage.
ATTENTION: Hot surface!
Indicates disposal instruction.
DO NOT throw this unit into a municipal trash bin when this unit has
reached the end of its lifetime. To ensure utmost protection of the
global environment and minimize pollution, please recycle this unit.

7
Potential Risk and Preventive Measure
1.Risk assessment table
Potential
Risk
Frequency
Frequent
Likely
Possible
Rare
Unlikely
Bruise
√
Burn
√
Scald
√
Aluminum block drop
√
Power cord plug
wrong
√
2.Preventative measures of risk
Potential Risk
Preventive measures
Bruise
Do not put the machine near the table edge.
Burn
Cover the lid or wear insulated gloves.
Scald
Cover the lid to avoid spray water or wear insulated
gloves.
Aluminum block drop
Tighten block lifter with aluminum block to move it.
Power cord plug
wrong
Observe correct adapter plug.

8
Section 1 Introduction
The FastGene®Hot & Cold Mini Dry Bath is designed to meet the
requirement of accurate temperature control, programming, small foot print
and ease of use.
FastGene®Hot & Cold Mini Dry Bath is capable of setting temperature
between 100°C to -10°C depending on your application and usage. The
microprocessor controller helps providing precise heating and cooling control,
whether you need a PCR incubation or enzyme/sample storage, FastGene®
Hot & Cold Mini Dry Bath does it all.
The aluminum alloy block for mini cooler provides flexibility and convenience
to share blocks in between mini cooler and mini dry bath.
Small foot print
Personal lab incubation cooler, only a small lab bench space is needed
Quick start
Preset temperature allows one button operation start
Key features of FastGene®Hot & Cold Mini Dry Bath
-Small foot-print to fit spaced limited lab bench
-Alarm, timer and digital user temperature calibration
-Single molded chamber, no cracks or welds
-Preset temperature for Quick Start operation
-Temperatures programmable operation for sophisticated heating and
cooling protocols
-PTFE coated chamber resists to stains and water mark
-Can be used as a mini water bath or bead bath
-Astounding heating and cooling rate for different application
-Small voltage consumption for low electricity consumption
-Variety sizes of aluminum alloy block for selection and customization
-USB port for easy data logging, transfer and modification
-Blocks interchangeable with mini- dry bath

9
Section 2 Product Specifications
Display
LCD
Maximum Heating / Cooling
60W
Controller
High performance Microprocessor
Dimension
L152 x W135 x H185mm
Temperature Control Range
30°C below ambient temperature ( minimum -10°C) to 100°C
Temperature Increment /
Decrement
0.1°C
Temperature Calibration
Yes
Temperature Uniformity
±0.2°C @ 37°C
Temperature Accuracy
±0.25°C @ 37°C
Operating Temperature
Ambient to 40°C
Heating Rate
Max. 5°C / min
Cooling Rate
Max. 4°C / min
Heating Parts
PI (Polyimide) Film Heater
Cooling Parts
TEC (Thermoelectric Cooling)
Programing
a. Constant Mode: Temperature:30°C below ambient temperature (minimum -10°C) to 100°C
b. Program Mode: Programmable :1-4 steps and up to 9 cycles ; Timer: 1-9999 minutes for each step
c. Annealing program
d. Quick Start: 4°C / 16°C / 37°C / 56°C / 95°C; Timer:∞for each Temperature.
Chamber Material
Molded aluminum alloy chamber coated with PTFE.
Block Material
Aluminum alloy
Safety Device
Leakage proof for heating chamber / Over Temperature protection
Rated Voltages
AC input 100V - 240V~; 2A, 50/60 Hz / DC input: +12V / 5A, 60W max.
Weight
Approx. 1.3 kg
Feature
USB for data logger and control
Lid
Transparent Lid
Computer/laptop recommended specification
Processor
1.8GHz Pentium® IV or equivalent AMD Athlon® processor
Memory
1GB
Storage
1GB available HD space
Connectivity
1 port USB 2.0
Display
1280x800 resolutions
Operating System
Windows®7 SP1/ Vista SP1 / XP SP3/ 8
Microsoft .NET Framework
.NET Framework 2.0 or above

10
Section 3 Installation Instructions
The FastGene®Hot & Cold Mini Dry Bath is actually a pre-installed instrument.
As long as it is placed on a sturdy and level surface in a safe, dry place, and is
inserted with one or two heating aluminum block(s) or simply water as a water
bath, it is ready for operation.

11
Section 4 Device Operation Instructions
4.1 Controls and Features
Please refer to below figures on the following page for the location of the
different keys.
Front panel
Back panel
1. Start / Stop: Active and stop operation of the device.
2. Enter: Enable the alteration of a selected value.
(1)
(2)
(4)
(3)
(6)
(5)
(7)
(8)
(9)

12
3. Up: To increase temperature value or time value.
4. Down: To decrease temperature value or time value.
5. Left: Move cursor to the left. Return to previous step under the
operation mode.
6. Right: Move cursor to the right.
7. AC Power Switch: The main power switch. Press “ⅼ”to
switch on the device. Press “○”to switch off the device.
8. AC Power Cord: For AC inlet and fuse holder.
9. B Type USB Port: Connect computer to record data.

13
4.2 Turn On the Instrument
1.Place Programmable FastGene®Hot & Cold Mini Dry Bath FastGene®Hot &
Cold Mini Dry Bath on a sturdy, level surface in a safe, dry place away from
laboratory traffic.
2.Ensure that the AC power switch is OFF, and then plug the three-pronged
power cord into a grounded three-prong AC outlet of the appropriate voltage.
3.Select a suitable module block or pour appropriate water volume into the
Programmable FastGene®Hot & Cold Mini Dry Bath.
4.Switch the main power ON.

14
4.3 Setting Calendar
1. Please switch the main power ON and press key simultaneously
until the display 1600 (range is: 1500~2000) appeared which is located on
the up left area of display shown as below. And then release them
immediately.
2. The Calendar Setting Screen is displayed. The parameters on the screen
are flashing, and then use key and key to move cursor to
the parameter that you want to changed. Use key and key
to adjust the setting value, then press key to store the updated
value.
( Date ) ( Time )
Version V 0.0
Hot & Cold
Mini Dry Bath
1600

15
4.4 Operation Mode: Quick Start Mode
1. Switch the main power ON.
2. Use key and key to select “Quick Start”icon, then press
key to enter next screen.
3. There are 5 modes of “Quick Start”. Use key and key to
select the mode that you want, and then press key to store the
upsated value. Those parameters of quick start’s mode are settled by
factory. Press key return to select operation mode page.
4. Press to start heating or cooling.
5. Press again to stop the device. A confirm page will pop out, select
“YES”to leave the mode .

16
Note (1):
When running Quick Start Mode, the current temperature of block and the step
settings will show on the screen.
The running time works in only one situation - starts counting up once reaching
the set temperature.
Press key to display the set temperature and time. It will be kept on
screen for 5 seconds or just press key again to go back monitor
screen immediately.

17
4.5 Operation Mode: Constant Mode
1. Switch the main power ON.
2. Use key and key to select “Constant Mode”icon, then
press key to enter next screen.
3. Press key make the parameter become flashing, then use
key and key to move cursor to the parameter. Use key and
key to adjust the setting value, then press key to store the
updated value. Press key return to select operation mode page.
4. Press key make the parameter become flashing, then use
key and key to move cursor to the parameter. Use key and
key to adjust the setting value, then press key to store the
updated value. Press key return to select operation mode page.
Note (1): 0 minutes means infinity.
5. Press to start heating or cooling.

18

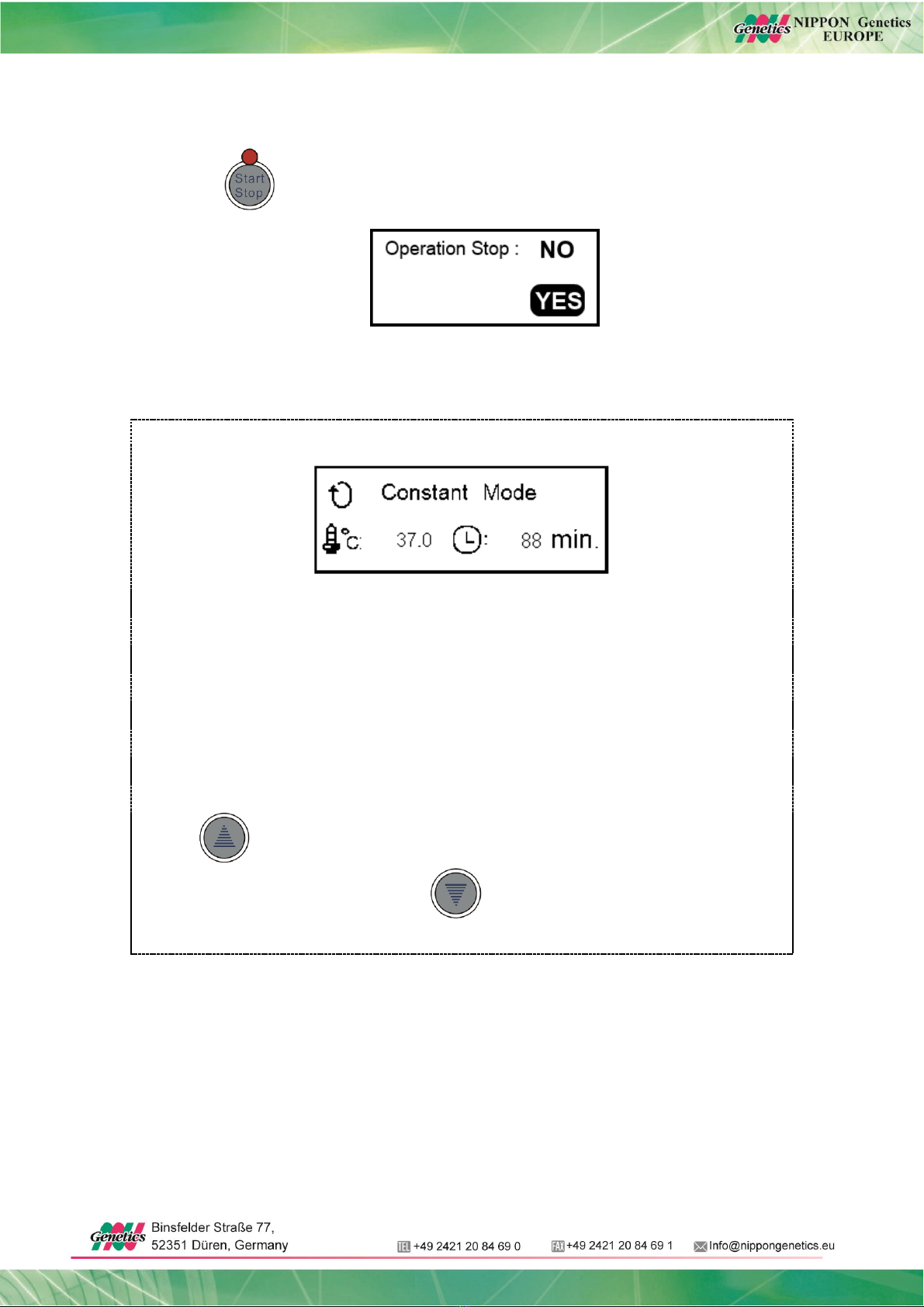

6. Press again to stop the device. A confirm page will pop out, select
“YES”to leave the mode .
Note (2):
When running Constant Mode, the current temperature of block and the step
settings will show on the screen.
There are two situations for running time:
Case 1: set time is zero, it will run continuously.
Case 2: set time is great then zero. Once the current block temperature reach
the set temperature, the running time starts counting down to zero and stop
temperature control.
Press key to display the set temperature and time. It will be kept on
screen for 5 seconds or just press key again to go back monitor
screen immediately.

19
4.6 Operation Mode: Programmable Mode
1. Switch the main power ON.
2. Use key and key to select “Programmable Mode”icon,
then press key to enter next screen.
3. Press key and then use key and key to set
program number (It can maximum save 10 file from 0 ~ 9). Press
key again to store the program number. Press key return to select
operation mode page.
4. Press key to next screen. There are 4 steps in a program: Step0 –
Step3. Press key to set the temperature and time parameters.
5. Use key and key to move cursor to the parameter. Use
key and key to change the parameter. Press key
again to store the program number. Press key return to select
operation mode page.
