Thermo Scientific 88870007 User manual

Visit us online to register your warranty
www.thermoscientific.com/labwarranty
User Manual
Thermo Scientific Touch Screen Drybath
Dry Bath with Advanced Microprocessor Control
Catalog Number:
88870007, 88870008
88870009, 88870010
88870011, 88870012
Operation Manual 0000849

Thermo Scientific
MANUAL NUMBER 0000-849
0 -- 12/1/2014 Original
REV ECR/ECN DATE DESCRIPTION By
Preface
Drybath Incubator i
Safety Information
Alert Signals
Warning The warning message requires extremely careful operation of a certain step. Failure to
observe the instruction may result in serious personal injury.
Caution Important information is contained in any item and should be carefully read. Failure to
observe the instruction would result in damage or abnormal function of the instrument.
Note Notes alert you to pertinent facts and conditions.
Warning If the Thermo Scientific Touch Screen Drybath is used in a manner not specified by the
manufacturer, the protection provided by the unit may be impaired.
Thank you for selecting Thermo Scientific for your equipment needs.
Your Thermo Scientific Touch Screen Drybath has been designed with functionality, reliability, and
safety in mind. It is your responsibility to use this instrument in conformance with local electrical
codes. It is very important that the user follows installation instructions exactly as written. Do not
attempt operation without this information.
© All rights reserved. Thermo Fisher Scientific reserves the right to modify this manual at any time
without notice. Without prior written consent from Thermo Fisher Scientific, any part of the manual
should not be duplicated, reproduced or translated into any other languages.

Thermo Scientificii Drybath Incubator
Preface
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-800-438-4851 Toll Free, U.S. and Canada
1-877-213-8051 FAX
http://www.thermoscientific.com Internet Worldwide Web Home Page
[e-mail] Tech Support Email Address
Certified Service Web Page
Our staff can provide information on pricing and give you quotations. We can
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation or
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax.
International customers, please contact your local Thermo Scientific distributor.
Sales Support
Service Support
www.unitylabservices.com

Drybath Incubator iiiThermo Scientific
Table of Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Preparation Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Operation Guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Examination Before Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Failure Analysis and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8
Section 9
Section 10
Modular Block Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Drybath Incub 1-1
Thermo Scientific
During operation, maintenance and repair of this instrument, the
following basic safety notes should be observed. In case of failure to follow
these instructions, the warnings or notes indicated herein, the basic
protection provided by the instrument, its safety criteria of design and
manufacture, and its predicted use range would be impaired. If the
equipment is used in a manner not specified bythe manufacturer, the
protection provided by the equipment may be impaired.
ermo Fisher Scientic is not responsible for any injury as a result of the
user’s failure to observe the following requirements.
is instrument is for indoor use.
a) e ground connectiona) e ground connection
To avoid the electric shock, the input power line must be reliably
grounded. e instrument is equipped with the three-pin plug that has the
third pin (the pin connects the ground), therefore, the plug should be used
with the grounded power socket only. is is a kind of safety device. If the
plug cannot be plugged into the power socket, please ask the electrician to
install a correct power socket, so as to make the grounded plug to work for
safety.
b) Servicing and Replacement of Parts
e operator should not take apart the instrument without permission.
Only qualied professionals are allowed to replace elements or adjust
components inside the instrument. Replacement of components while unit
is connected to power and/or turned on is prohibited.
c) Observe voltage/power requirementsc) Observe voltage/power requirements
Before the instrument is connected with the AC power source, the voltage
of the power source should be the same with the required voltage of the
instrument (a deviation of 10% is allowed). e rated load of the power
socket should not be lower than the requirements of the instrument.
d) e power cord
e instrument should use the power line cord attached to it. If the
power line is destroyed, it must be replaced but not be repaired. e
replacement should be carried out with the power line of the same type
and same specication. No items should be put on the power cord when
the instrument is in operation.
b) Servicing and Replacement of Parts
d) e power cord

e) Connecting and disconnecting from to power sourcee) Connecting and disconnecting from to power source
e user should hold the plug to remove from power source. When
connecting the plug, user should make sure it has been fully plugged in;
when removing the plug, do not pull the power line forcefully.
f) Placement of the instrumentf) Placement of the instrument
is instrument should be xed in a low RH and low dust place away
from water source (e.g. sink or water pipeline) and the room should be
well ventilated, and free of corrosive gas or interference of strong magnetic
eld. e instrument should not be placed in a wet or dusty location.
e openings on this instrument are for ventilation circulation and in
order to avoid over-heat of the instrument body they should not be
blocked or covered. When a single set of instrument is used, the interval
between ventilation opening before and after the instrument and its nearest
object should not be less than 25cm. Also, don’t use the instrument on
loose or soft surface, or the air inlet of instrument bottom might be
blocked. Excessive temperature will impair performance or result in failure
of instrument. is instrument should not be used in location subjected to
direct sun light. e instrument should be kept away from hot gas, oven
and all other heat sources. If the instrument is to be stored for a long time,
the power plug should be withdrawn and the instrument covered with soft
e product is powered by connecting the mains plug to a standard
socket-outlet.Always place the product in such a way that it is easy for the
operator to disconnect the product from the mains supply.
cloth or plastic lm to avoid entrance of dust.
1-2Drybath Incubator
Thermo Scientific

Drybath Incubator 2-1
Thermo Scientific
e holes of the blocks should be regularly cleaned with the damp cloth to
ensure the test tube be well contacted with the wall of the holes so as to
have good heat conduction. If the surface of the instrument is polluted, it
can be cleaned with a slightly damp soft cloth.
Warning
When cleaning the instrument, the power supply should be shut
o and unplugged. e instrument surface should be cleaned with a non-
corrosive cleaning agent.
g)g)
ere is a sign of “CAUTION: HOT SURFACE!
ATTENTION: SURFACE HOT” on the instrument. e metal part
(module) near the sign should not be touched with any part of the body
when the instrument is operating in a high temperature state or just
nished operation to avoid burns!

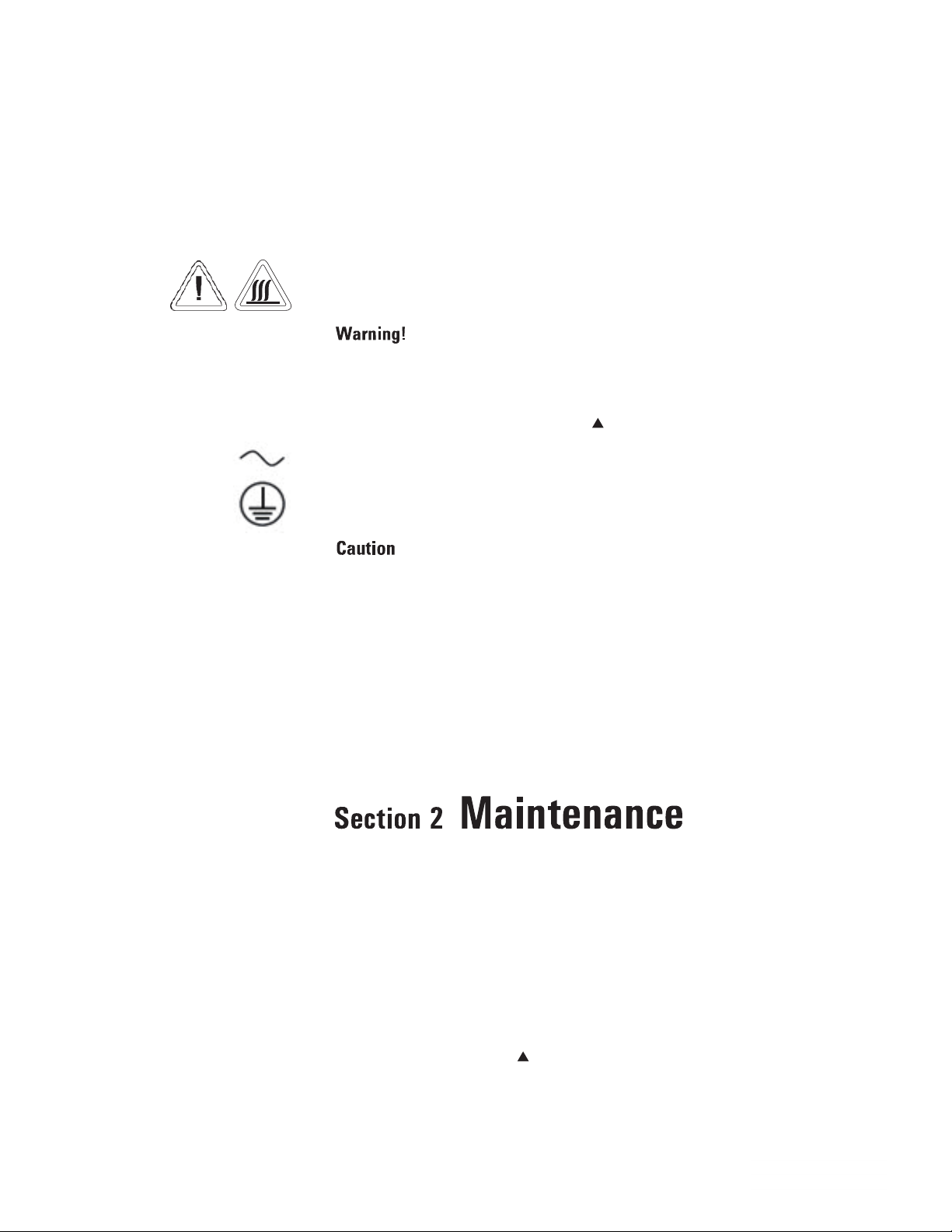

Explanation of symbols
Attention, read usermanual before use.
Alternating Current
Protective Conductor Terminal
In any of the following cases, immediately turn o the power
supply, withdraw the power plug from the power socket, contact the
supplier for service:
• Liquid drops into the inside of the instrument.
• e instrument is rained on or water is spilled on it.
• e instrument works abnormally, especially if generating an abnormal
sound or odor.
• e instrument is dropped or its casing is damaged.
• e function of instrument obviously changes.

Drybath Incubator 3-1Thermo Scientific
Section 3 Introduction
Caution After unpacking, immediately check the goods against the
packing list. In case of damaged or missed goods, please immediately
contact the distributor in which the product was purchased from. After
unpacking, the packing box and packing materials should be well kept for
future repair. For the damage of instrument occurring during transporting
to the repair department due to improper package, Thermo Fisher
Scientific will not be held responsible for damages. ▲
The product is dry bath with advanced microprocessor control, which can
be widely applied to sample reservation, enzyme reservation and reaction,
DNA amplification, electrophoresis degeneration and serum coagulation,
etc. The characteristics of the product are as follows:
• The digital display and control of the temperature.
• Heat blocks help avoid possible contamination while containing the
sample inside a tube
• The heat blocks are easily replaced, cleaned or disinfected and are suit-
able for various tubes.
• Built-in over-temperature protection device warrants sample and user
safety
• Temperature deviation adjustment.

4-1Th rmo Sci ntific
Section 4 Features
This chapter intro uces the usage, transportation, storage con itions of the
instrument, as well as its basic parameters, performance an functions.
1. Normal working con itions
Ambient temperature：10°C~30°C
Relative humi ity：≤80%
Power supply：100-120V~50/60Hz or 200-240V~ 50/60Hz
Altitu e: Upto2000 m Pollution Degree 2
Overvoltage category : II In oor use
Caution Before using the instrument, make sure the working con itions
meet the above requirements. s
2. Transportation an storage con itions
Ambient temperature：-20°C~+55°C
Relative humi ity：≤80%
3. Basic parameters
Table 1: 100-120V
Parameters / Type Touch Screen 1 block
100-120V
Touch Screen 2 block
100-120V
Touch Screen 4 block
100-120V
Tmp ratur Rang Ambi nt T mp ratur +5°C~130°C（ambi nt t mp ratur 25°C）
Tmp ratur Uniformity ≤±1.0°C
Tmp ratur Accuracy ≤±0.5°C@37°C
T mp ratur Fluctuation ≤±0.5°C
Tmp ratur Ris Tim ≤20min（ris from 30°C to 130°C）
Siz (mm) (L×W×H) 373×200×100 mm
14.7×7.87×3.94 in
403×200×100 mm
15.9×7.87×3.94 in
535×200×100 mm
21.1×7.87×3.94 in
Wight 3.4 kg (7.5 lbs.) 3.7 kg (8.16 lbs.) 5.1 kg (11.24 lbs.)
Fus Prot ctor（ø5×20）F 250V 2.5A F 250V 5A F 250V 8A
≤25min
（ris from 30°C to 130°C）

3. Basic Parameters (continue )
Caution The instrument shall be use from low to high temperature. s
Declaration of Conformity
We hereby eclare un er our sole responsibility that this pro uct conforms
with the technical requirements of the following stan ar s:
CE EMC: EN 61326-1
CE Safety: EN 61010-1
CE Safety: EN61010-2-010
UL: 61010-1/CSA C22.2 NO. 61010-1
ROHS2.0: 2011/65/EU
4-2 Th rmo Sci ntific
Section 4
F atur s
Table 2: 220V
Parameters / Type Touch Screen 1 block
200-240V
Touch Screen 2 block
200-240V
Touch Screen 4 block
200-240V
Tmp ratur Rang Ambi nt T mp ratur +5°C~130°C（ambi nt t mp ratur 25°C）
Tmp ratur Uniformity ≤±1.0°C
Tmp ratur Accuracy ≤±0.5°C@37°C
Tmp ratur Fluctuation ≤±0.5°C
Tmp ratur Ris Tim ≤20min（ris from 30°C to 130°C）
Siz (L×W×H) 373×200×100 mm
14.7×7.87×3.94 in
403×200×100 mm
15.9×7.87×3.94 in
535×200×100 mm
21.1×7.87×3.94 in
W ight 3.4 kg (7.5 lbs.) 3.7 kg (8.16 lbs.) 5.1 kg (11.24 lbs.)
Fus Prot ctor（ø5×20）F 250V 2.5A F 250V 2.5A F 250V 3.15A
≤25min
（ris from 30°C to 130°C）

Drybath Incubator 5-1Thermo Scientific
Section 5 Preparation Work
This chapter introduces the structure of the instrument, user interface and
functions of all buttons and preparation before startup. Read the content
in the chapter carefully before startup when using the instrument for the
first time.

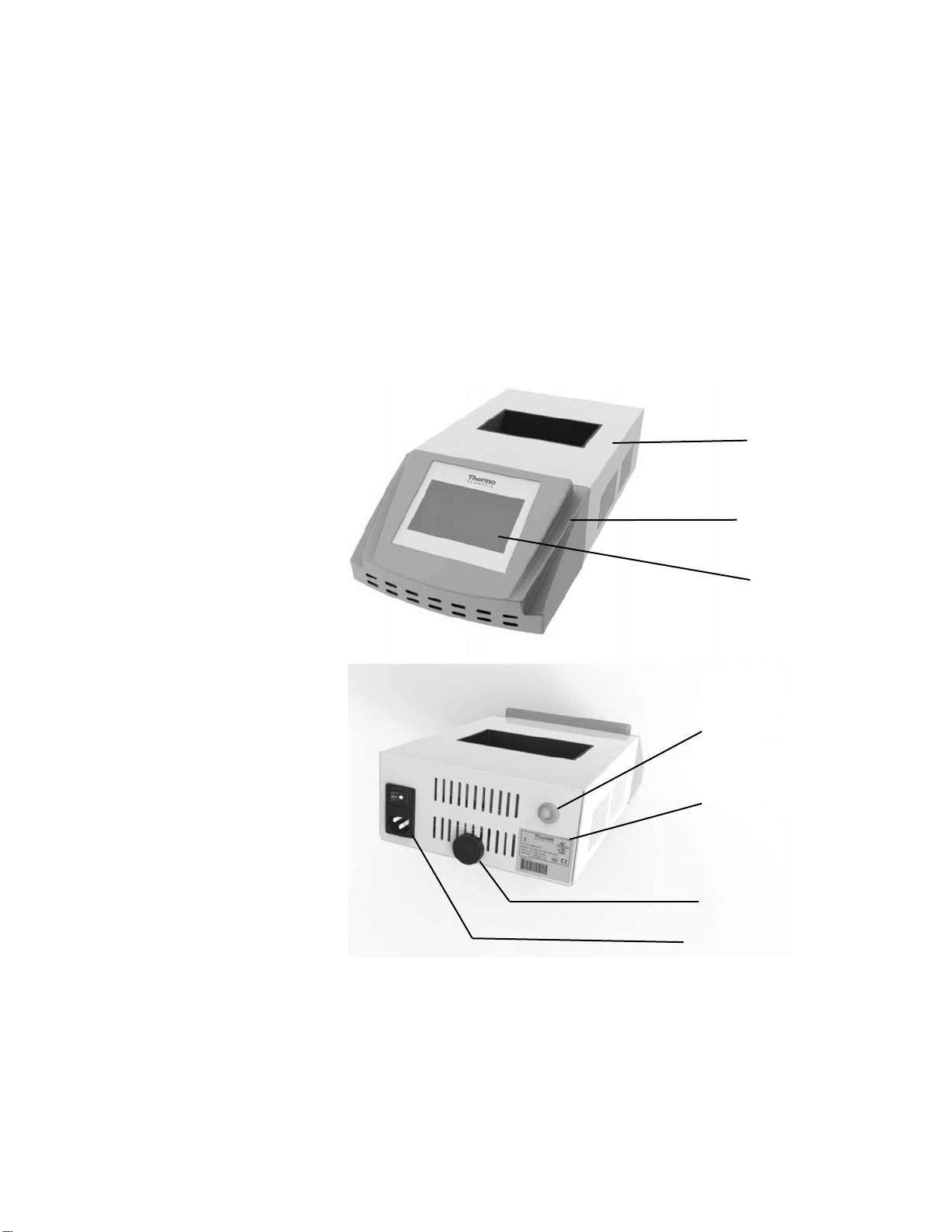

1. Structure Interface
Figure 5-1. Unit Front
Figure 5-2. Unit Back
Housing
Front Cover
LCD Touch Screen
Outlet for External
Temperature Sensor
Product Label
Handle
Power Socket, Fuse Housing,
Power Switch
Note 1) When the external temperature sensor is connected, the internal
temperature sensor will disconnect automatically, and the temperature control
and display will relay on the external temperature sensor.
2) DO NOT plug in or remove the external temperature sensor without the
power being off.

Section 6 Operation Guidance
The chapter introduces the display window and the operation of buttons
of the dry bath with constant temperature.
Confirm the following before inserting the plug into the power socket.
1. Ensure the power source is in accordance with the voltage requirement
of the instrument (refer to Features section for voltage requirements).
2. Make sure the plug has been completely inserted into the power
socket.
3. Ensure the power line has been reliably grounded.
Caution If the display of the instrument is abnormal after startup, turn off
the power source immediately and contact Thermo Fisher Scientific. ▲
Press the power switch and the instrument will be powered on. The LCD
screen of the operation panel will show the main interface.

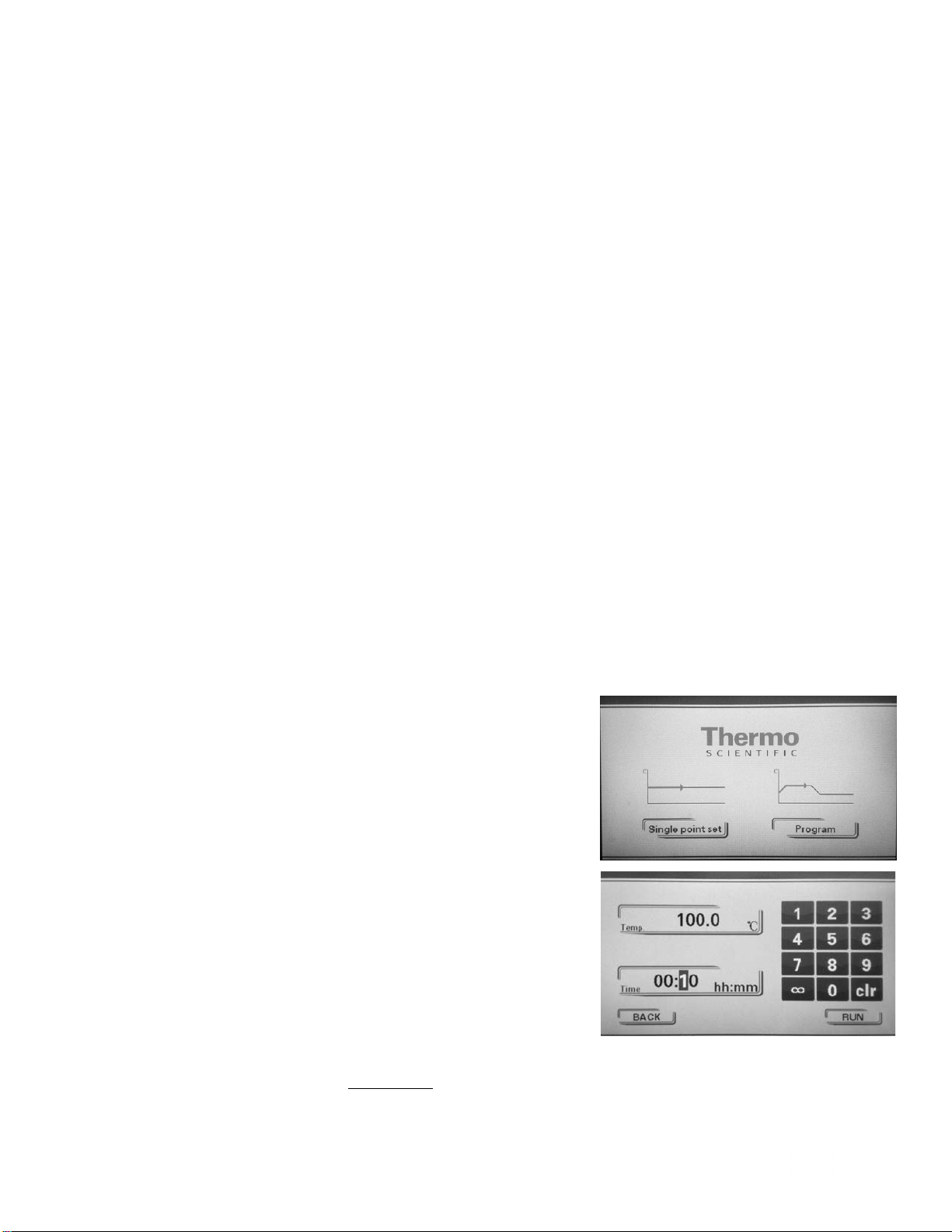

The main interface
Press “Single point set” to
enter into the single setting
interface.
Single setting interface
Press “BACK” to go back to
the main interface.
Press “RUN” to enter into
the single running interface.
Press “Temp” to set the
temperature.
Press “Time” to set the time.
Instruction: There is limitation for temperature and time setting. The
setting temperature range is: 15
～135°C；the time range is: 0～99：
and “∞”.
Drybath Incubator 6-1Thermo Scientific
Examination Before
Start-Up
Start-Up
Operation Instructions
59

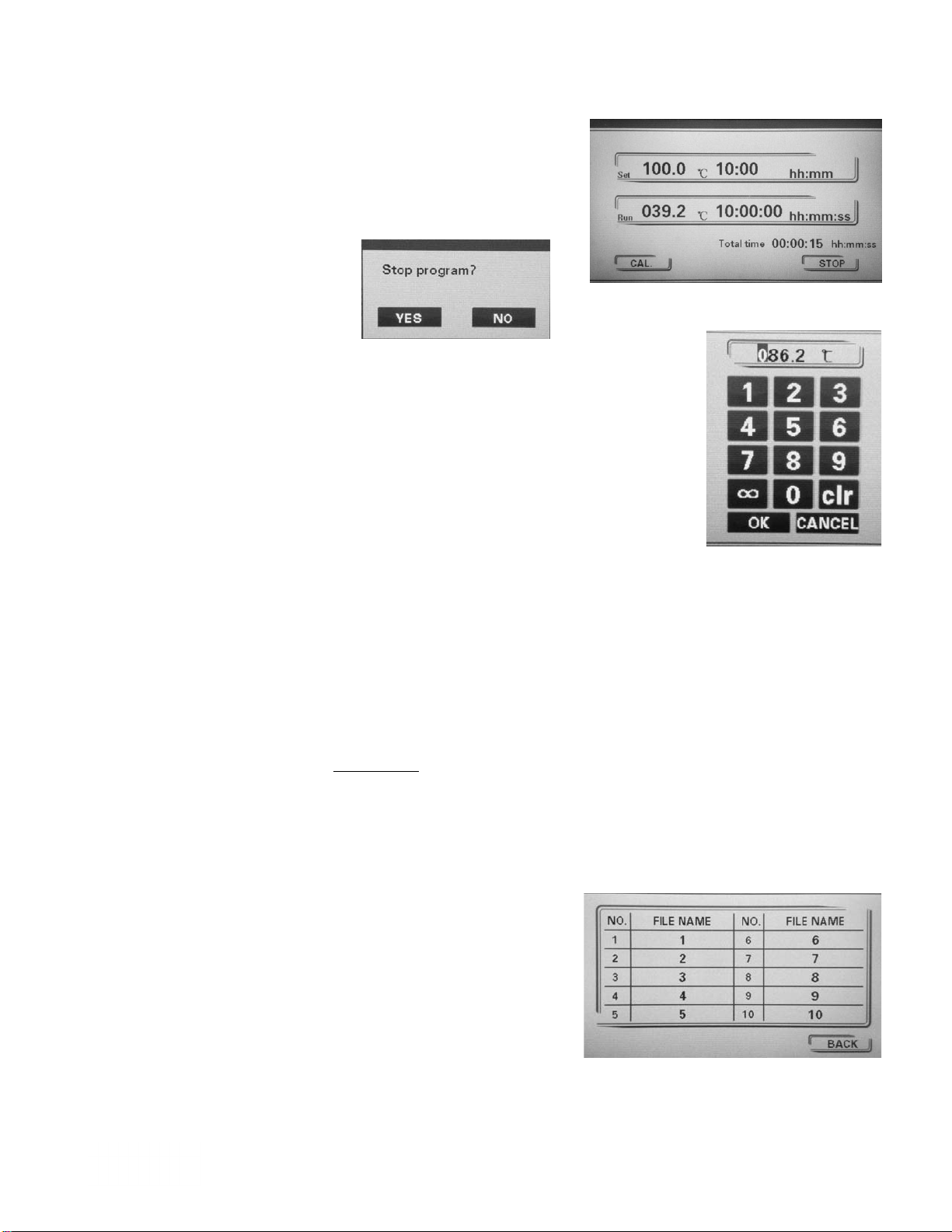

Single running interface
Press “STOP”, and the
interface of asking you
whether to stop the program
will appear.
Press “YES” to stop the program and to go
back to the main interface.
Press “NO” to go back to the single running
interface.
Press “CAL” to calibrate the temperature
adjustment interface. (If the external sensor is
being used, then there would be no “CAL.”,
and the temperature is unable to be adjusted.)
Input the correct temperature into the box that pops out.
Caution a) To ensure the accuracy of temperature, the instrument should
be calibrated after temperature stabilizes for 30 minutes.
b) Calibrate the instrument with the qualified Grade II standard filled
thermometer
c) Calibration point: The middle hole of the heat block. Pour paraffin
oil into the well, and soak the thermometer bulb.
Instruction: During the operation of the instrument, the temperature and
the time should not be changed. If it they should, stop the program and
enter into the setting interface to change them.
Listed files interface
Press “BACK” to go back to the main interface.
Enter into the setting
interface of the specific file in
accordance with its name. If
the file has a password, then
enter into the password
inputting interface.
6-2 Drybath Incubator Thermo Scientific
Section 6
Operation Guidance
Operation Instructions
(continued)

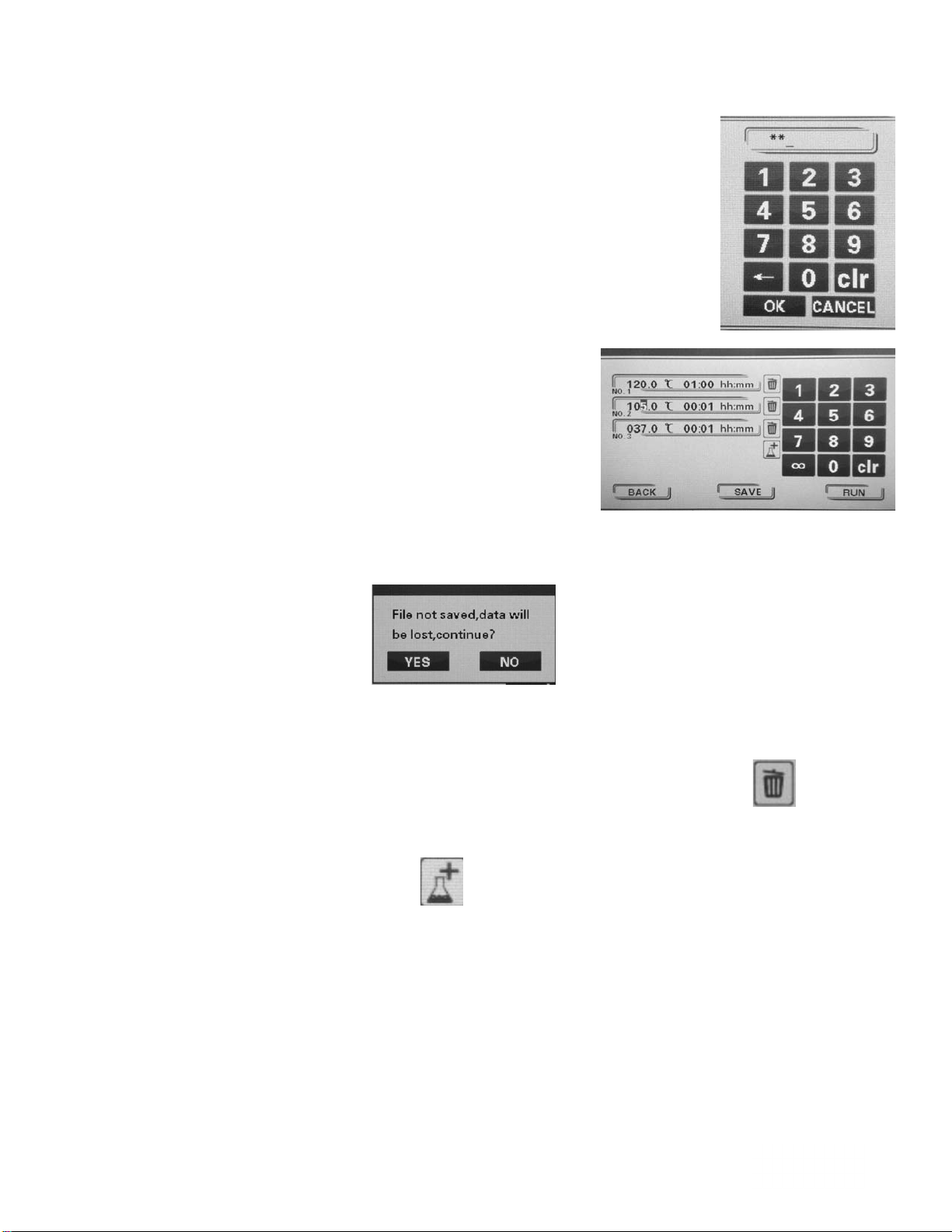

Password imputing interface
Input the password into the box.
Caution: If the password has been forgotten, user
can use 000000 to ROOT and then the file will
be reset to the initial state (the name of the file
would not be changed).
Program setting interface
Press “BACK” to go back to
the listed files interface
Press “SAVE” to enter into
the files saving interface
Press “RUN” to enter into
the program running
interface. If the alteration of the program has not been saved yet, the
warning box will pop up.
Press “YES”, and the program will run in the changed form, but the
changes won’t be saved. Press “NO” to go back to the program setting
interface.
The user can set 1-5 sections of the program. Press to delete the
corresponding section (when there is only one section, this step would
be of no use).
Press to add sections. Choose the corresponding box to set the
corresponding temperature and time.
Caution This instrument doesn’t have cooling function. If the user wants
to set multiple sections, set the temperature from low to high. Otherwise,
the temperature will be very slowly decreasing while the blocks cool down.
Drybath Incubator 6-3Thermo Scientific
Section 6
Operation Guidance
Operation Instructions
(continued)

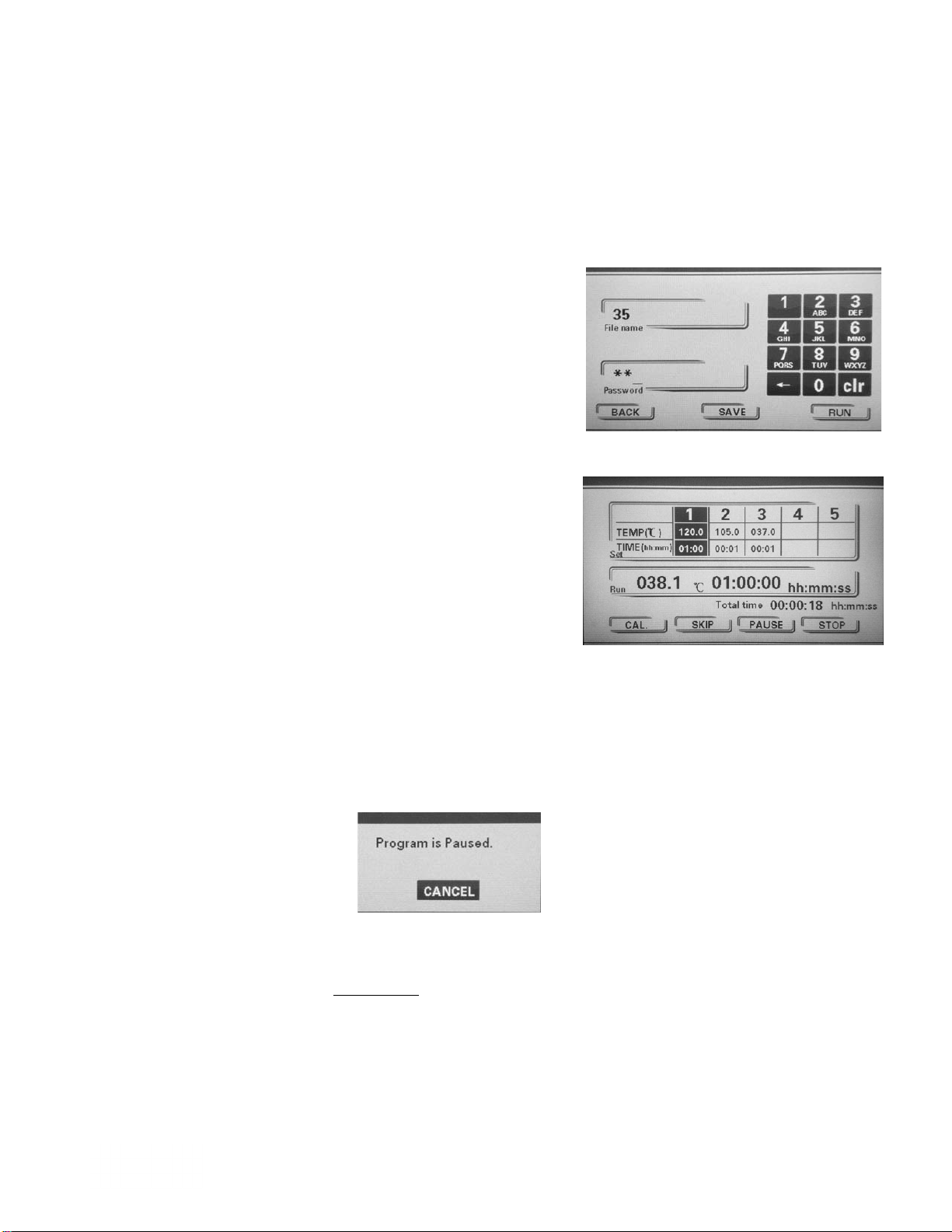

Files saving interface
Press “BACK” to go back to the program setting interface.
Press “SAVE” to save the file.
Press “RUN” to enter into the program running interface. If the
changed program has not been saved, the warning box will pop up.
Choose “File name” and
“Password” to set the file
name and the password. By
pressing Figures from 2-9
quickly, the input method
will be changed to English to
set the file name.
Program running interface
Press “CAL.” to call for the
temperature adjustment
interface. ((If the external
sensor is being used, then
there would be no “CAL”,
and the temperature is unable
to be adjusted). Refer to
‘Single Running Interface’.
Press “SKIP” to skip to the next section. If it is the last section, the
interface of asking you whether to stop the program will appear. Refer
to ‘Single Running Interface’.
Press “PAUSE”, the program will be paused and the temperature will
be maintained to the set temperature and the pause interface will pop
up.
Press “STOP”, the cancel interface will pop up. Refer to ‘Single
Running Interface’.
Instruction: During the operation of the instrument, the temperature and
the time should not be changed. If needed, stop the program and enter
into the setting interface to change them.
6-4 Drybath Incubator Thermo Scientific
Section 6
Operation Guidance
Operation Instructions
(continued)

Section 7 Failure Analysis and
Troubleshooting
This chapter details possible failures of this instrument and possible causes
with troubleshooting.
Caution The user is not allowed to open the housing of the instrument for
inspection during the warranty period. If any failures result from opening
the housing for inspection, contact Thermo Fisher Scientific. ▲
Drybath Incubator 7-1Thermo Scientific
Failure Analysis and Troubleshooting
No. Error Cause Solution
1Display window is not turned on after
switching on power supply
Power supply fails to be connected Check power supply and connect it
Fuse burned Replace fuse
Damage of the switch Replace the switch
Others Contact Thermo Fisher Scientific
2The LCD shows “Err code: 0x1” and the
buzzer alarms in a di…di…sound Short circuit of sensor Check whether the connecting wire of sensor is damaged, and replace it
3The LCD shows “Err code: 0x2” and the
buzzer alarms in a di…di…sound Open circuit of sensor Check whether the connecting wire of sensor is damaged, and replace it
4The LCD shows “Err code: 0x3” and the
buzzer alarms in a di…di…sound
Sensor is damaged or the heat
blocker is damaged Contact supplier or factory
Use the external sensor without
putting it into the module
Put the external sensor correctly into the
corresponding place of the module
5Temperature display does not conform to
actual temperature
Sensor is damaged or in poor
contact Contact supplier or factory
