Nippon Genetics FastGene NG040 User manual

FastGene®Plate Centrifuge
Instruction Manual
Catalog No.
NG040
www.nippongenetics.eu
[email protected]
Version 03
22.11.2018

1
Content
-1x Plate Centrifuge
-2xAdapter for 96 well plates (A)
-2xAdapter for stripes (B)
-1x Power Cord
-1x Instruction Manual
A
B

2
Table of contents
Content ................................................................................................................1
Warning ...............................................................................................................3
Section 1 Introduction........................................................................................8
Section 2 Product Specifications......................................................................8
Section 3 Installation Instructions.....................................................................9
Section 4 Device Operation Instructions..........................................................9
4.1 Controls and Features .............................................................................9
4.2 Turn On the Instrument..........................................................................10
4.3 Operation Mode: Quick Start Mode .......................................................10
4.4 Operation Mode: Time mode.................................................................10
4.5 Usage of adapters .................................................................................10
Section 5 Troubleshooting Guide....................................................................11
5.1 Problem and Solution.............................................................................11
5.2 Maintenance..........................................................................................11
Section 6 Ordering information.......................................................................12
Section 7 Warranty ...........................................................................................12

3
Warning
FastGene®Plate Centrifuge has been tested and found to comply with safety
limits for the CE regulation. Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment. It is strongly recommended for the user to read the
following points carefully before operating this equipment.
1. Read and follow carefully the manual instructions.
2. Do not alter the equipment. Failure to follow these directions could result in
personal and/ or laboratory hazards, as well as invalidate equipment warranty.
3. Use a properly grounded electrical outlet with correct voltage and current handing
capacity.
4. Disconnect from power supply before maintenance and servicing. Refer servicing
to qualified personnel.
5. Never use this instrument series without having the safety cover correctly in
position.
6. Do not use the unit if there is any sign of damage to the external tank or cover.
Replace damaged parts.
7. Do not use in the presence of flammable or combustible material; fire or explosion
may result. This device contains components which may ignite such materials.
8. Refer maintenance and servicing to qualified personnel.
9. Ensure that the system is connected to electrical service according to local and
national electrical codes. Failure to properly connection may create fire or shock
hazard.
10. Use appropriate materials and operate correctly to avoid possible hazards of
explosion, implosion or release of toxic or flammable gases arising from
overheated materials.
11. The unit shall be operated only by qualified personnel.

4
Safety Information
Use high level of precaution against any electrical device. Before connecting
the electrical supply, check to see if the supply voltage is within the range
stated at the rating label, and see to it that the device be seated firmly. Place
the unit in a safe and dry location; it must NOT touch the surrounding. Follow
the safety precautions for chemicals / dangerous materials. If needed, please
contact qualified service representative or [email protected]
Environmental Conditions
Ensure the instrument is installed and operated strictly in the following
conditions:
1. Indoor use only
2. ≤95% RH (non-condensing)
3. 75 kPa –106 kPa
4. Altitude must not exceed 2000 meters
5. Ambient to 40°C operating temperature
6. Pollution degree: 2
7. Mains supply voltage fluctuations up to ±10% of the normal voltage
Avoiding Electrical Shock
Follow the guidelines below to ensure safe operation of the unit.
FastGene®Plate Centrifuge has been designed to use with shielded wires
thus minimizing any potential shock hazard to the user. Nippon Genetics
Europe recommends against the use of unshielded wires.
To avoid electrical shock:
1. In the event of solution accidentally spilled into the instrument, it must be
dried out for a period of time, at least 2 hours, and restored to NORMAL
CONDITION before each operation.
2. NEVER connect or disconnect wire leads from the power jacks when the
power is on.
3. WAIT at least 5 seconds after stopping a run before handling output leads
or connected apparatus.
4. ALWAYS make sure that hands, work area, and instruments are clean and
dry before making any connections or operating the equipments.
5. ONLY connect the power cord to a properly grounded AC outlet.

5
Avoiding Damage to the Instrument
1. Do not attempt to operate the device if it is damaged.
2. Protect this unit from physical damage, corrosive agents and extreme
temperatures (direct sunlight, etc.).
3. For proper ventilation and safety concerns, keep at least 10 cm of space
behind the instrument, and at least 5 cm of space on each side.
4. Use high level of precautions against the damages on the unit.
5. Do not operate the unit out of environmental conditions addressed above.
6. Prior to apply any cleaning or decontamination method other than
manufacturer’s recommendation, users should check with the
manufacturer’s instruction to see if the proposed method will damage the
equipment.
Equipment Operation
Follow the guidelines below to ensure safe operation of the unit:
1. Check the displayed temperature figure and external temp. Probe to see if
it is overheating, and check if it will function in the case of a single fault at
least once per day.
2. NEVER access dangerous chemicals or other materials to prevent possible
hazard of explosion and damage.
3. A temporary conductivity caused by condensation might occur even though
this series is rated Pollution Degree 2 in accordance with IEC 664.
Battery Replacement Notice
The product may contain an internal manganese dioxide.
There is risk of fire and burns if the battery pack is not handled properly.
To reduce the risk of personal injury:
1.Do not attempt to recharge the battery.
2.Do not expose to temperatures higher than 40°C (104°C).
3.Do not disassemble, crush, puncture, short external contacts, or dispose of in fire
or water.
4.Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
5.Replace only with the spare designated for this product.
6.Please understand the positive and negative mark. Do not use the battery positive
and negative wrong.

6
Symbols

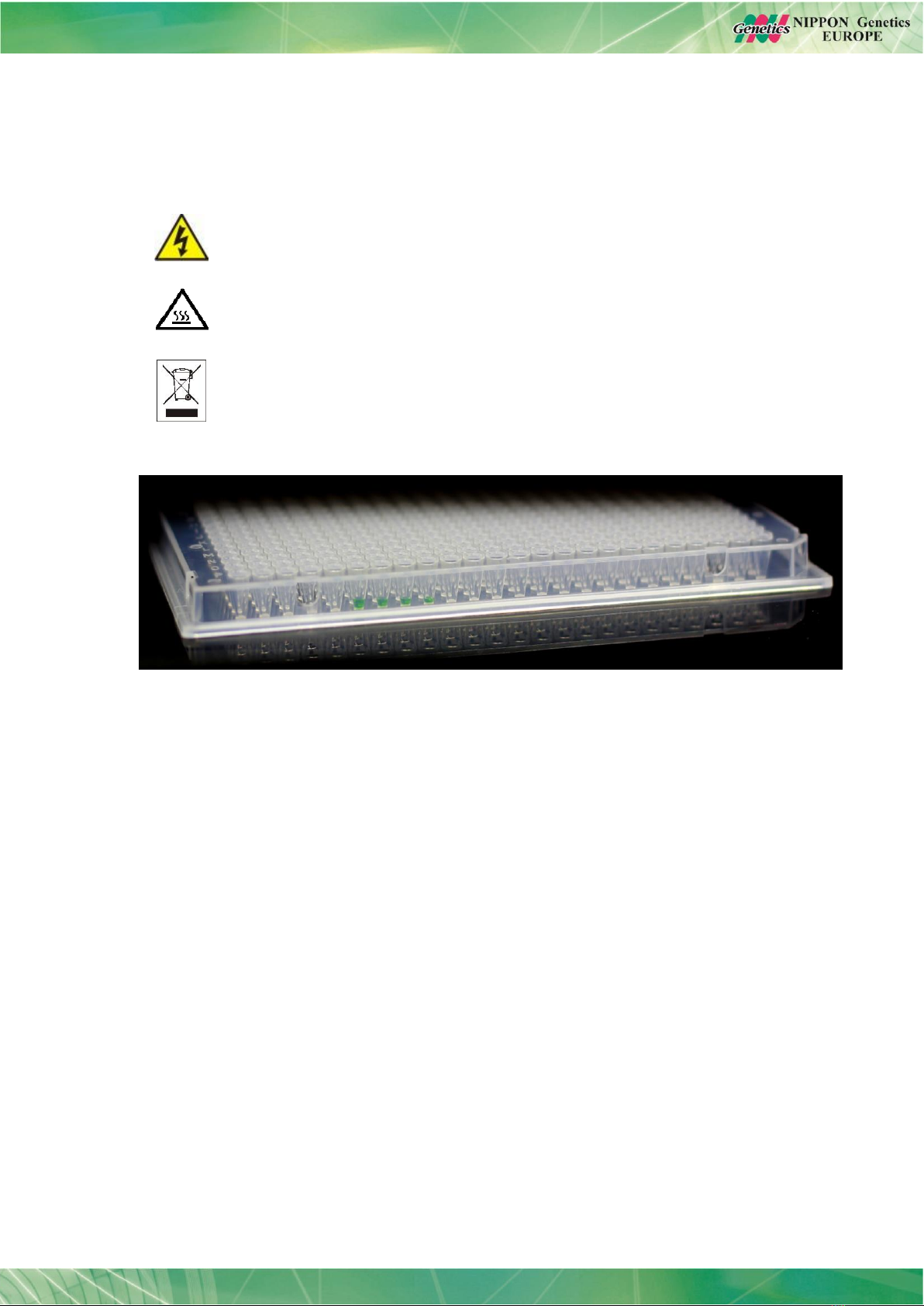

The symbols used on the FastGene®Plate Centrifuge are explained below.
Indicates an area where a potential shock hazard may exist.
Consult the manual to avoid possible personal injury or instrument
damage.
ATTENTION: Hot surface!
Indicates disposal instruction.
DO NOT throw this unit into a municipal trash bin when this unit has
reached the end of its lifetime. To ensure utmost protection of the
global environment and minimize pollution, please recycle this unit.

7
Potential Risk and Preventive Measure
1.Risk assessment table
Potential
Risk
Frequency
Frequent
Likely
Possible
Rare
Unlikely
Bruise
√
Burn
√
Scald
√
Drop
√
Power cord plug
wrong
√
2.Preventative measures of risk
Potential Risk
Preventive measures
Bruise
Do not put the machine near the table edge.
Burn
Cover the lid or wear insulated gloves.
Scald
Cover the lid to avoid spray water or wear insulated
gloves.
Drop
Place the unit on a flat and dry surface
Power cord plug wrong
Observe correct adapter plug.

8
Section 1 Introduction
The FastGene®Plate Centrifuge is designed to meet the requirement of
accurate and simply centrifugation of 96 or 384 well plates, small foot print
and ease of use.
FastGene®Plate Centrifuge is capable of up to 480 x g. The microprocessor
controller helps providing precise spinning control, whether you need a PCR
or an ELISA plate being centrifuged.
Small foot print
Only a small lab bench space is needed.
Quick start
Allows a one hand operation.
Section 2 Product Specifications
Display
LCD (illuminated)
Maximum Centrifugation force
480 x g
Timer
0-10 min
Dimension
L360 x W290 x H140mm
Weight
3,6 kg
Rated Voltages
AC input 200V - 240V~; 2A, 50/60 Hz / DC input: +12V / 5A, 60W max.
Weight
Approx. 1.3 kg
Lid
Transparent Lid

9
Section 3 Installation Instructions
The FastGene®Plate Centrifuge is actually a pre-installed instrument. As long
as it is placed on a sturdy and level surface in a safe, dry place, and is inserted
with equally heavy plates, it is ready for operation.
Section 4 Device Operation Instructions

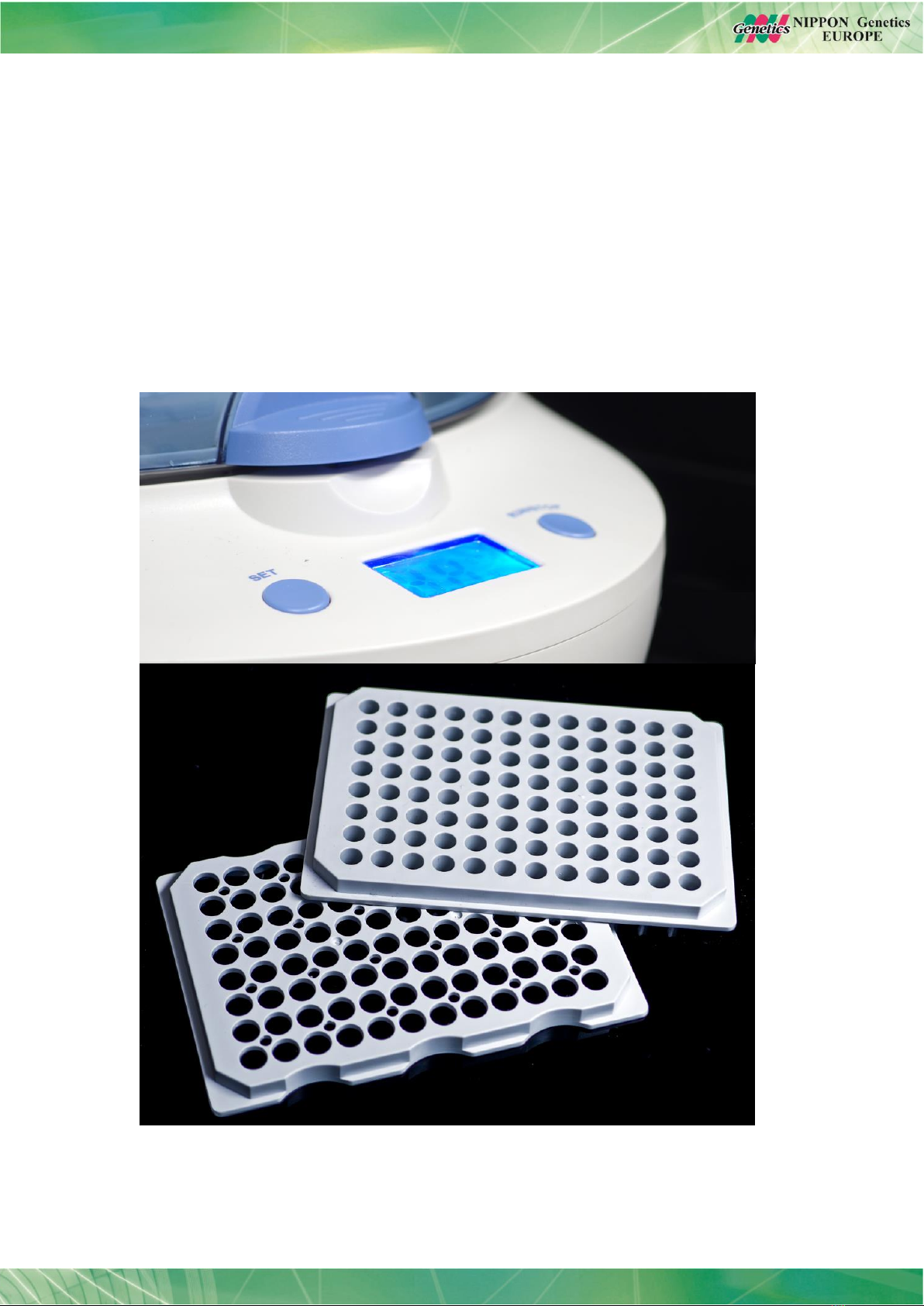

4.1 Controls and Features
Please refer to below figures on the following page for the location of the
different keys.

10
4.2 Turn On the Instrument
1. Place Programmable FastGene®Plate Centrifuge on a sturdy, level
surface in a safe, dry place away from laboratory traffic.
2. Ensure that the AC power switch is OFF, and then plug the power cord into
a grounded AC outlet of the appropriate voltage.
3. Switch the main power ON.
4.3 Operation Mode: Quick Start Mode
1. Switch the main power ON.
2. Press the “RUN/STOP” button to initiate the centrifugation
3. Stop pressing the “RUN/STOP” button to finish the centrifugation
4.4 Operation Mode: Time mode
1. Switch the main power ON.
2. Press the “Set” button to adjust to the desired time
3. Press the “RUN/STOP” button to initiate the centrifugation
4. Centrifugation will be stopped after finishing the countdown.
4.5 Usage of adapters
1. Use the adapter without grooves (A) for non-skirted and semi-skirted
plates.
2. Use the adapter with grooves (B) at the side for stripes and PCR tubes.
3. Hint: Plates and stripes can be fastened in the adapter after centrifugation.
For loosing, please put them on your lab space and move down the
adapter. See following pictures:

11
Section 5 Troubleshooting Guide
Many operating problems may be solved by carefully reading and following the
instructions in this manual accordingly. Some suggestions for troubleshooting
are given below. Should these suggestions not resolve the problem, contact
our SERVICE DEPARTMENT or a distributor in your region for assistance. If
troubleshooting service is required, please include a full description of the
problem.
5.1 Problem and Solution
Problem
Recommendations
No signal on the screen
1. Check the FUSE
2. Ensure that the AC power switch is ON
3. Check the power cord is properly plugged into a grounded AC
outlet with the appropriate voltage
Fan Error
Contact our service department or a distributor in your region.
5.2 Maintenance
Centrifuge chamber and rotors may be cleaned with a moist cloth containing a
mild soap solution.

12
Section 6 Ordering information
Cat. No.
Description
NG-040
FastGene®Plate Centrifuge
Section 7 Warranty
Nippon Genetics Europe warrants apparatus of its manufacture against
defects in materials and workmanship, under normal service, for one year
from the shipping date to purchaser. This warranty excludes damages
resulting from shipping, misuse, carelessness, or neglect. Nippon Genetics
Europe’s liability under the warranty is limited to the receipt of reasonable proof
by the customer that the defect is embraced within the terms of the warranty.
All claims made under this warranty must be presented to Nippon Genetics
Europe within one year following the date of delivery of the product to the
customer.
Manufacturer
Nippon Genetics Europe GmbH
Address:
Binsfelder Straße 77
52351 Düren
Germany
Tel: [phone]
Fax: [phone]
