Nitto Kohki Delvo DLV70A-ASL Series User manual

INSTRUCTION
MANUAL
Product Operational Information
Professional tool ELECTRIC SCREWDRIVER
Model: DLV30A/DLV45A/DLV70A-ASL Series
[Specifications]
Lever Start
Model
DLV30A06L-
ASL(AB)
DLV30A12L-
ASL(AB)
DLV30A20L-
ASL(AB)
DLV45A06L-
ASL(AB)
DLV45A12L-
ASL(AB)
DLV70A06L-
ASL(AB)
Push to Start
Model
DLV30A06P-
ASL(AB)
DLV30A12P-
ASL(AB)
DLV30A20P-
ASL(AB)
DLV45A06P-
ASL(AB)
DLV45A12P-
ASL(AB)
DLV70A06P-
ASL(AB)
Torque
[Nm(Lb-in)]
Low torque spring: 0.4 to 1.6 (3.5 to 14.2) 2.0 to 4.5
(17.7 to 39.8)
3.8 to 7.0
(33.6 to 61.9)
High torque spring: 1.2 to 3.0 (10.6 to 26.6)
Free Speed
[min-1]650 1200 2000 650 1200 650
•Please refer to p. 4 for details.
 Please read manual carefully before you attempt to use your tool so that you may use it properly and safely.
 Keep the manual handy - so you can use it whenever necessary.
• Due to continuous product development/improvement the specifications and configurations in
this document are subject to change without prior notice.
Manufactured by.
NITTO KOHKI CO., LTD. 9-4, Nakaikegami 2-chome, Ohta-ku, Tokyo, 146-8555, Japan
Tel : [phone] Fax : [phone]
EN This instruction manual is written in English.
Instruction manuals in other languages can be downloaded from the URL below.
FR
Ce manuel d'instructions est rédigé en anglais.
Les manuels d'instructions dans d'autres langues peuvent être téléchargés à partir de l'URL
ci-dessous.
DE
Diese Bedienungsanleitung ist auf Englisch verfasst.
Bedienungsanleitungen in anderen Sprachen können von der unten genannten URL
heruntergeladen werden.
IT Il presente manuale di istruzioni è redatto in lingua inglese.
I manuali di istruzioni in altre lingue possono essere scaricati dal seguente URL.
ES
Este manual de instrucciones está escrito en inglés.
En la dirección URL indicada abajo se pueden descargar los manuales de instrucciones en otros
idiomas.
PT Este manual de instruções está escrito em inglês.
Pode descarregar os manuais de instruções nos outros idiomas a partir do URL indicado abaixo.
http://www.nitto-kohki.co.jp/e/
(Original Instructions)
Indoor Use Only
Brushless Motor
Grounded bit function
TV07878-1 06/2017
TV07878-1DLV30A12P-ASLen.indbi 2017/06/2715:45:46

EN
Thank you very much for your purchase of this NITTO KOHKI product.
Before using your tool, please read this manual carefully so that you may use it properly to get the most out of it.
Please keep the manual handy - so you can use it whenever necessary.
Contents
Product Specific Safety Rules .............................. 1
1 Application ......................................................... 2
2 Checking Inside the Package............................ 2
3 Part Names........................................................ 3
4 Specifications .................................................... 4
Torque scale and output torque ............................5
Signal specification ...............................................6
5 Preparation........................................................ 7
Setting the address...............................................7
Attaching a bit .......................................................8
Attaching the suspension bail ...............................9
Replacing a torque spring...................................10
Attaching the Pistol Grip .....................................11
Notes on attaching a commercially available
fixing jig...............................................................12
6 Basic Operation............................................... 12
Start ....................................................................12
Changeover switch .............................................12
Start and stop......................................................13
Screw tightening .................................................13
Adjusting the output torque.................................14
7 Appendix.......................................................... 15
Troubleshooting ..................................................15
Maintenance and inspection ...............................16
Disposal ..............................................................17
Separately-sold products ....................................17
Inquiry contact regarding AnyWireASLINK .........18
External dimensions............................................19
TV07878-1DLV30A12P-ASLen.indbii 2017/06/2715:45:46

1
EN
Product Specific Safety Rules
WARNING
 This product is for domestic use.
This unit complies with the domestic safety standards only. The product cannot be used overseas.
 When using an extension cord, select the wire diameter according to the extended length.
If the power cord is too long or a thin cable is wound on a coil drum for a long length, voltage drop could be
caused. In such a case, the original product performance cannot be demonstrated.
Maximum extended cable length Wire diameter
(conductor nominal cross-sectional area)
10 m 1.25 mm2or more
20 m 2 mm2or more
30 m 3.5 mm2or more
 Do not use the product together with another electric tool.
CAUTION
 This tool is not an impact type electric screwdriver. Do not tighten twice (extra tightening). Also, it cannot be
used for screw tightening of such things as wood or drywall.
Depending on fastening conditions, screws may become loose.
Improper impacts could decrease product life or cause product failure.
 Do not use the tool for anything other than screw tightening.
It should not be used for tasks such as drilling or threading (such as a tapper).
 Install the power cord and signal line separated from each other.
If AC line noise directly propagates to the signal line, poor contact of ASLINK may occur. If the product is used as
in the shipped status (1 m portion is in a collected state), it is no problem.
About Unit Notation
This instruction manual is written using both SI units and the imperial measurement method (yards, pounds).
Numeric values outside the ( ) are the value in SI units, while those inside the ( ) are the imperial measurement
value.
Notation Example: Length 25.4 (1") Weight: 0.45 (1) Torque: 1.13 (10)
in
mm
lbs
kg
Lb·in
Nm
TV07878-1DLV30A12P-ASLen.indb1 2017/06/2715:45:46

2
EN
1 Application
This is a hand-held electric screwdriver used to tighten screws.
The tool is equipped with an environmentally-friendly brushless motor.
AnyWireASLINK system of Anywire Corporation and LED are built in and this specification specializes in linkage with
FA equipment.
2 Checking Inside the Package
When you open the package box, check the content of the package and also check for any damage caused by
incidents during transportation.
If a problem is found, consult with the store where you purchased the product.
Package content and list of accessories
DLV30A series DLV45A series / DLV70A series
Package content and accessories Quantity Package content and accessories Quantity
Electric screwdriver (main unit) 1 Electric screwdriver (main unit) 1
Bit NK35 (No.2×7×75) 1 Bit NK35 (No.2×7×75) 1
Low Torque Spring 1 Suspension Bail 1
High Torque Spring* 1 Pistol Grip DLW2300 1
Suspension Bail 1 Instruction Manual 2
Instruction Manual 2
* The high torque spring is built inside the main unit at the factory default.
White paint
Low Torque Spring
hexagon width across flats
Phillips No.2
7 DIA.
(0.28")
75 (2.95") 6.35 (1/4")
9 (0.35")
Bit NK35 (No.2×7×75)
High Torque Spring*
Suspension Bail
Pistol Grip DLW2300
TV07878-1DLV30A12P-ASLen.indb2 2017/06/2715:45:46

3
EN
3 Part Names
Lever start type Push start type
3
2
1
9
0
a
4
5
b
6
7
8f
e
d
c
1Power plug
2Link Connector (LP4-WW-10P, Anywire
Corporation)
3Signal line
4Spiral tube
5LED lighting part
6Lever Switch
7 Rubber Ring (the color varies by model)
8 Torque Adjustment Ring Cover
(the material varies by model)
9Power cord
0Suspension Bail
a Address receiving/sending light unit
b Coupling
c Frame Handle (exterior resin part of main unit)
dChangeover Switch
e Torque Scale (standard)
f Torque Adjustment Ring
Model Rubber Ring Torque adjustment ring cover
Lever start type Push start type
DLV30A06L-ASL(AB) DLV30A06P-ASL(AB) Yellow
Resin/transparent
DLV30A12L-ASL(AB) DLV30A12P-ASL(AB) Blue
DLV30A20L-ASL(AB) DLV30A20P-ASL(AB) Red
DLV45A06L-ASL(AB) DLV45A06P-ASL(AB)
Aluminum/black Aluminum/blackDLV45A12L-ASL(AB) DLV45A12P-ASL(AB)
DLV70A06L-ASL(AB) DLV70A06P-ASL(AB)
 The torque adjustment ring cover prevents unexpected torque setting change. We recommend the cover be
attached.
TV07878-1DLV30A12P-ASLen.indb3 2017/06/2715:45:46

4
EN
4 Specifications
CAUTION
 The output torque is the value measured in combination with the output torque measurement device.
When the output torque is measured by some other measuring device or combination, the value may be
different.
 The output torque and torque that occurs in screws do not match.
Use a torque wrench to check the torque generated on screws.
Model Lever Start DLV30A06L-ASL(AB) DLV30A12L-ASL(AB) DLV30A20L-ASL(AB)
Push to Start DLV30A06P-ASL(AB) DLV30A12P-ASL(AB) DLV30A20P-ASL(AB)
Torque
(Nm (Lb-in))
Low Torque Spring 0.4 to 1.6 (3.5 to 14.2)
High Torque Spring 1.2 to 3.0 (10.6 to 26.6)
Free speed (for reference) (min-1) 650 1200 2000
Screw Size
(for reference)
Metric Thread (mm) 2.6 to 5.0
Inch Thread #3 to #10
Tapping Screw (mm) 2.5 to 4.0
Bit Type NK35 (HEX 6.35mm (1/4"))
Mass (kg (lbs)) 0.8 (1.76)
(excluding the power cord and signal wire)
Power supply
Screwdriver side 230 V AC 50/60 Hz
AnyWireASLINK side 24V DC (Acceptable power source:
-10% to +15% (21.6 V to 27.6 V) ripple 0.5 Vp-p or below)
Power
Consumption
Screwdriver side 45 W
AnyWireASLINK side DP-DN side: 6 mA, 24 V side: 60 mA
Duty Cycle ON time 0.5 sec./ OFF time 3.5 sec.
Model Lever Start DLV45A06L-ASL(AB) DLV45A12L-ASL(AB) DLV70A06L-ASL(AB)
Push to Start DLV45A06P-ASL(AB) DLV45A12P-ASL(AB) DLV70A06P-ASL(AB)
Torque (Nm (Lb-in)) 2.0 to 4.5 (17.7 to 39.8) 3.8 to 7.0
(33.6 to 61.9)
Free speed (for reference) (min-1) 650 1200 650
Screw Size
(for reference)
Metric Thread (mm) 4.5 to 6.0 5.0 to 8.0
Inch Thread #10 to #12 #10 to 5/16"
Tapping Screw (mm) 4.0 to 5.0 4.5 to 6.0
Bit Type NK35 (HEX 6.35mm (1/4"))
Mass (kg (lbs)) 0.97 (2.14)
(Pistol Grip is included, excluding the power cord and signal wire)
Power supply
Screwdriver side 230 V AC 50/60 Hz
AnyWireASLINK side 24 V DC (Acceptable power source:
-10% to +15% (21.6 V to 27.6 V) ripple 0.5 Vp-p or below)
Power
Consumption
Screwdriver side 45 W
AnyWireASLINK side DP-DN side: 6 mA, 24 Vside: 60 mA
Duty Cycle ON time 0.5 sec./ OFF time 3.5 sec.
TV07878-1DLV30A12P-ASLen.indb4 2017/06/2715:45:46

5
EN
DLV30A/45A/70A Series common specifications
Noise emission (dB)
(According to EN60745)
LPA*1 75 (uncertainty :K=3dB)
LWA*2 86
Vibration level (m/s2)
(According to EN60745) Less than 2.5
Temperature Range (°C (°F)) Operating -5 to +50 (+23 to +122)
Storage -20 to +70 (-4 to +158)
Relative Humidity Free of Dew (include time of the Storage)
Operating Environment less than 2000 m above sea level
Pollution Degree
(According to IEC60664-1) Pollution Degree 2
Over Voltage Category
(According to IEC60664-1) Over Voltage Category I
*1 LPA; A-weighted surface sound pressure level
*2 LWA; A-weighted sound power level
Torque Measurement Device
Electric Screw Driver DLV30A Series DLV45A Series DLV70A Series
Torque Checker DLT1673A DLT1673A DLT1973A
Bit Joint DLW4360 DLW4360 DLW4000

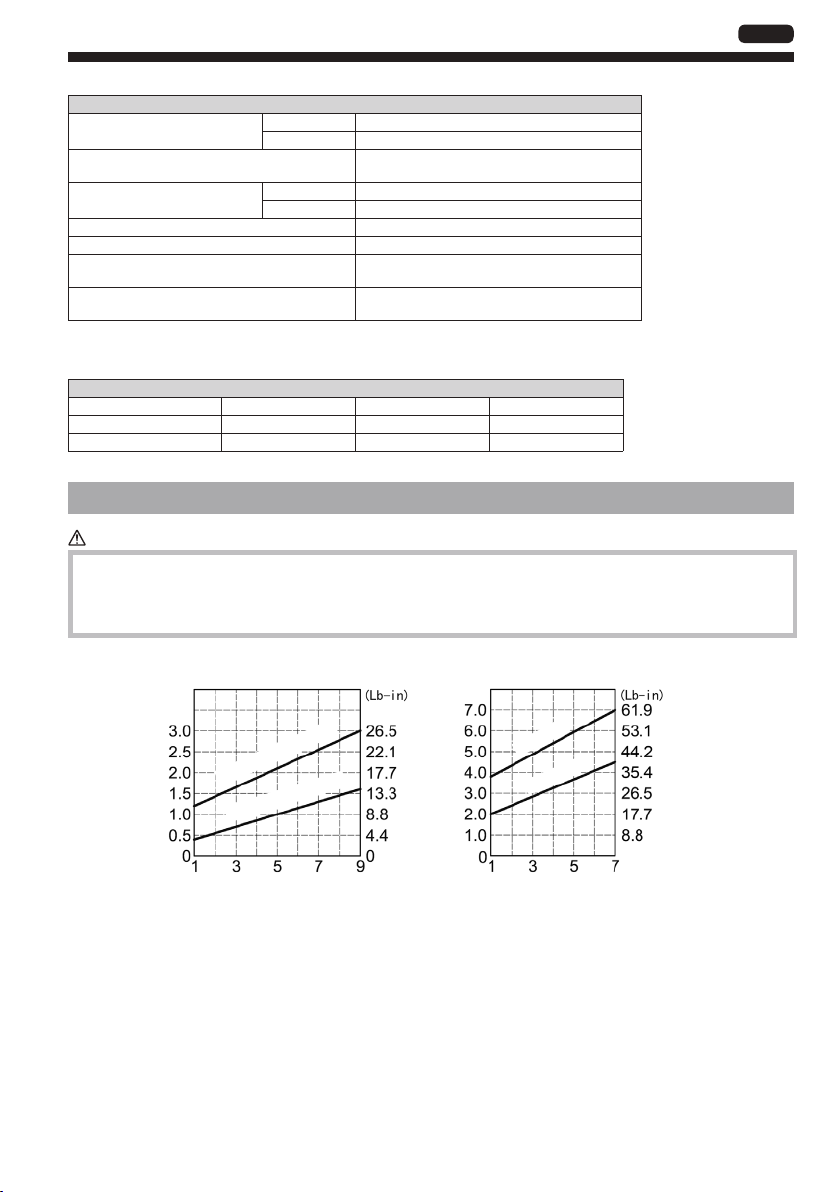

Torque scale and output torque
CAUTION
 The torque scale is for reference. The output torque range is not guaranteed.
Make sure to measure torque.
 Use the tool within the specified range.
 When the torque decreases, increase the torque based on the measured value.
DLV30A Series
High Torque Spring
Low Torque Spring
Torque (Nm) Torque (Nm)
Torque Scale Torque Scale
DLV45A/DLV70A Series
DLV70A
DLV45A
TV07878-1DLV30A12P-ASLen.indb5 2017/06/2715:45:47

6
EN
Signal specification
Signal line (link connector) details
Pin No. Wiring color Signal name
1 Black DN
2 Yellow DP
3 White 0 V
4 Green 24 V
I/O allocation
Address n n+1 n+2 n+3
Input Start signal Torque-up signal Reverse rotation signal Space
Output Red Green Blue Space
LED display
Status LED Color Details
Motion Main LED
7 colors (red/green/
blue/yellow/cyan/
magenta/white)
Set LED colors in the program
Lights during output of OUT 0 to 3 bits
Refer to I/O allocation (displays 7 colors by color combination)
Communication LINK Green
Lighting: Transmission signal error
Flashing: Normal
Lights-out: DP/DN broken wire, no power
Error
ALM Red
Lighting: I/O power dropped
Flashing: Slave unit voltage dropped
Lights-out: Normal
LINK/ALM Green/Red Alternate flashing: When the master unit detects duplication of
the ID (address) of this unit or no setting.
 For details on communication between the AnyWireASLINK system and sequencer, configuration, connection
method, and precautions, confirm with Anywire Corporation. (p. 18)
Specifications
TV07878-1DLV30A12P-ASLen.indb6 2017/06/2715:45:47

7
EN
5 Preparation
Setting the address
CAUTION
 Always connect to the AnyWireASLINK master unit when using the tool.
 To set the address of the tool, an address writer is required. For details, refer to the instruction manual for the
address writer.
1 Connect the link connector section of this tool to the AnyWireASLINK master unit
Set the transmission signal (DP/DN) and power supply (24 V/0 V) to the supplied state.
For the power supply to be connected, always use a 24 V DC stabilized power supply.
Transmission signal
AnyWireASLINK master
24 V DC
24 V DC
Red: DP
Black: DN
24 V: Green
0 V: White
DP: Yellow
DN: Black This tool
2 Setting the address writer
For the setting method, refer to the instruction manual for the address writer.
3 Direct the emitter/receiver of the address writer
toward the address sending/receiving light unit
of the tool and send a signal from the address
writer
Bring the address sending/receiving light unit of the tool
as close to the emitter/receiver of the address writer as
possible. 20°
20°
20°
20°
20 mm or less
Address writer
TV07878-1DLV30A12P-ASLen.indb7 2017/06/2715:45:47

8
EN
CAUTION
 From the 0 to 252 address numbers, set the starting number of the transmission frame of the electric screw
driver to be occupied.
 By default, the address number is "255", which indicates no setting is set. If "255" is set, input and output
operation is not performed. Make sure to set the address number from 0 to 252 and then use the tool.
 Both input and output have the same address number.
 To read the address number written in this tool, use the address writer.
 For details of AnyWireASLINK, AnyWireASLINK master unit and address writer, confirm with Anywire
Corporation. (p. 18)
Attaching a bit
WARNING
 Before attaching or detaching a bit, always turn OFF the power.

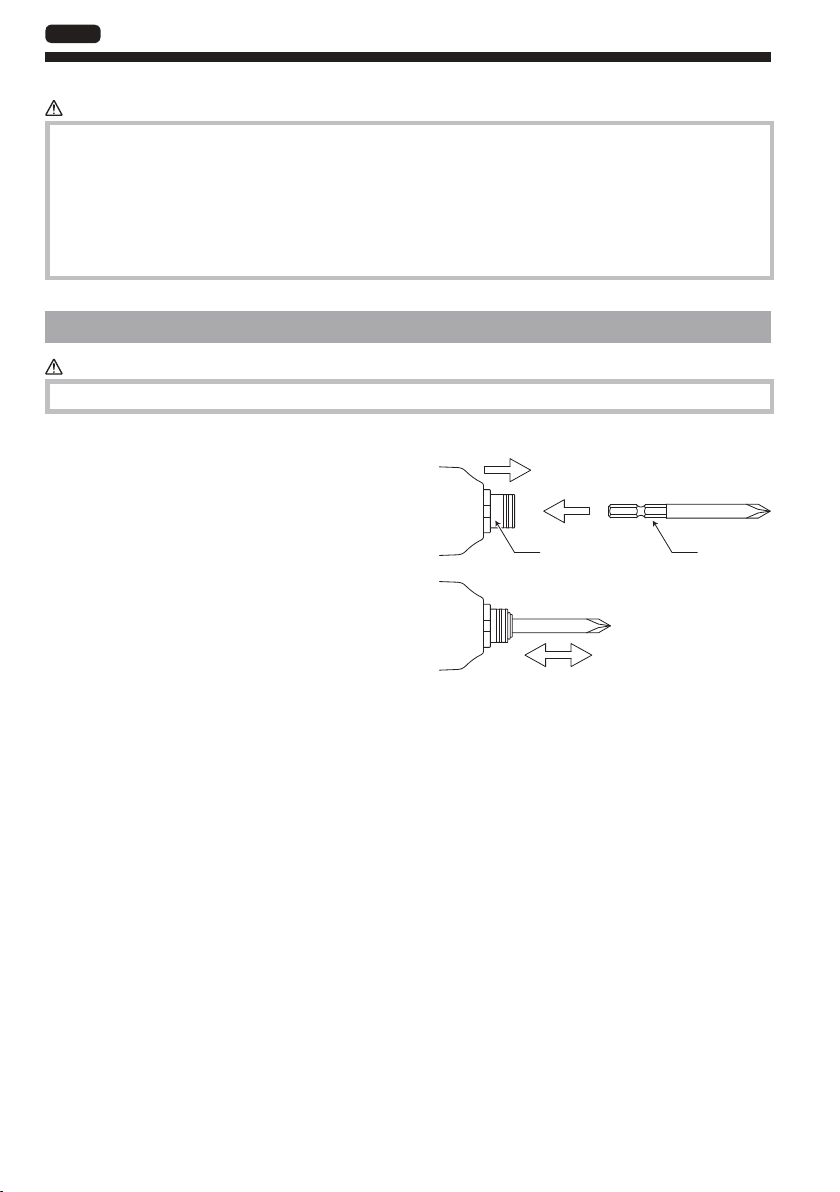

1 Insert a bit while pulling the sleeve
Sleeve
Pull the sleeve
Bit
2 Release the sleeve and make sure the bit does
not come off
To remove the bit, pull out the bit while pulling the
sleeve.
Preparation
TV07878-1DLV30A12P-ASLen.indb8 2017/06/2715:45:47

9
EN
Attaching the suspension bail
CAUTION
 If the suspension bail is pulled forcefully, it may not return to original status. Use an appropriate strength
necessary for attachment or removal.
1 Lightly pull both sides of the suspension bail
and fit it into the hole
Hole
2 Hook the U-shape part in the recess of the metal
fitting
TV07878-1DLV30A12P-ASLen.indb9 2017/06/2715:45:47

10
EN
Replacing a torque spring
WARNING
 Before attaching or detaching the torque spring, always turn OFF the power.
CAUTION
 The spring plate assembly must be oriented correctly.
The ball goes into the recess of the torque adjustment ring. When it is attached in the opposite orientation, the
torque adjustment ring easily gets loose.
Also, when the torque adjustment ring is turned, there will be no clicking sound.
 Recommended grease (separately sold)
Idemitsu Kosan Co., Ltd.: Daphne Eponex SR No. 2
Showa Shell Sekiyu K.K.: Alvania Grease S2
Cosmo Oil Co., Ltd.: DYNAMAX No. 2

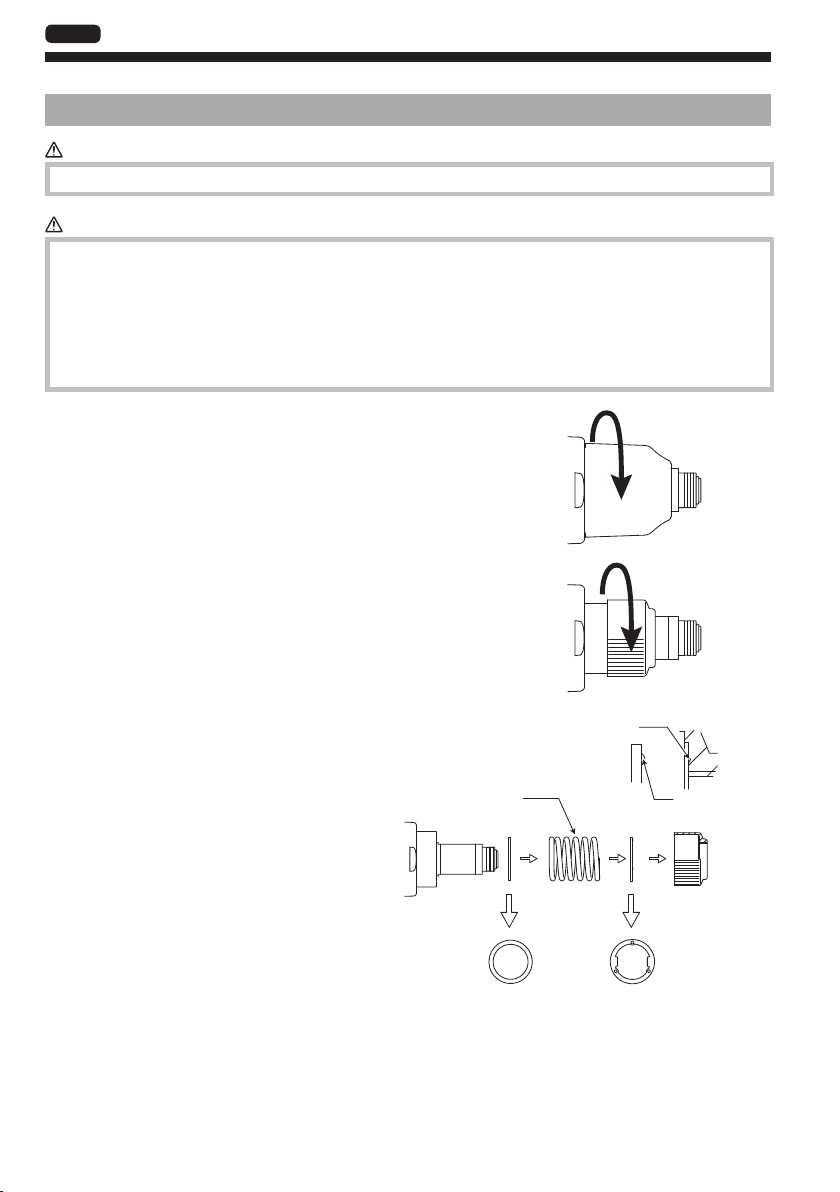

1 Turn the torque adjustment ring cover counterclockwise to remove
2 Turn the torque adjustment ring counterclockwise to remove
3 Remove the spring plate assembly
→torque spring →plate, in that
order
Recess
Ball
High torque spring at
shipment
Spring plate assemblyPlate
4 Apply grease to the torque spring
5 Replace the torque spring
To reattach, perform the order in reverse.
Preparation
TV07878-1DLV30A12P-ASLen.indb10 2017/06/2715:45:47

11
EN
Attaching the Pistol Grip
WARNING
 Before attaching or detaching the Pistol Grip, always turn OFF the power.
 After fixing the Pistol Grip with the screw, check for looseness, slip, and displacement of the screw.
CAUTION
 Use care not to lose parts.
1 Match the rib of the Pistol Grip body A and the groove of the frame handle
Match the semicircle cut-out of the Pistol Grip body A and the semicircle rib of the frame handle.
2 Attach the parts to the positions shown in the following figure
3 Match the rib of the Pistol Grip body B and the groove of the frame handle
Match the semicircle cut-out of the Pistol Grip body B and the semicircle rib of the frame handle.
4 Tighten the screws
Lever start type Push start type
1Body A...... 1 piece
2Body B ..... 1 piece
3Trigger...... 1 piece
4Pin............ 1 piece (2 pieces for push start type)
5Spring....... 1 piece (lever start type only)
6Screw ....... 5 pieces
1Rib
2Groove
3Semicircle cut-out
4Semicircle rib
TV07878-1DLV30A12P-ASLen.indb11 2017/06/2715:45:47

12
EN
Notes on attaching a commercially available fixing jig
CAUTION
 Do not block the hole on the frame handle, as doing so could cause a failure due to heating.
Fixing position of fixing jig
Hole
6 Basic Operation
Start
WARNING
 Properly connect the power plug.
 Always make sure the tool is grounded.
No grounding the tool could cause failure or electric shock at the time of electrical leakage.
If you are not sure about the grounding of the outlet, request an electrical contractor to check if it is grounded.
When an extension cord is used, use a 3-core cord that includes a ground wire.
1 Insert the power plug into an outlet (230 V AC)
Changeover switch
CAUTION
 Do not operate the changeover switch while the tool is rotating. Doing so could cause a failure.
 When the tool is not used, set the switch to neutral position.
 Do not apply a shock (such as dropping) or excessive load to the changeover switch. Doing so could cause a
failure.
By sliding the changeover switch, you can change the rotation direction of the electric screwdriver.
“ - ” means neutral. The electric screwdriver does not rotate.
Rotates
counterclockwise
Rotates clockwise
TV07878-1DLV30A12P-ASLen.indb12 2017/06/2715:45:47

13
EN
Start and stop
WARNING
 Never touch the bit while it is rotating.
 Do not direct the bit toward people or animals.
CAUTION
 Make sure to properly press the start switch.
Slide the changeover switch to the direction in which you want the tool to rotate and press the start switch to start.
Releasing the start switch stops rotation.
Lever start type
When you press the lever switch, the bit rotates.
Releasing the lever switch stops rotation.
For the lever start type, the lever switch work as the start
switch.
Push start type
The bit rotates when the electric screwdriver is pushed
in the bit direction.
Releasing it stops rotation.
The push start type has a start switch inside the electric
screwdriver.
Screw tightening
WARNING
 Firmly hold the main body to avoid losing your grip.
CAUTION
 Properly apply the bit end to the screw head.
 Check that the bit is not worn.
1 Slide the changeover switch to the “R” side
2 Apply the bit end to the screw head and press the start switch
3 When the electric driver stops, release the start switch
TV07878-1DLV30A12P-ASLen.indb13 2017/06/2715:45:47

14
EN
Adjusting the output torque
WARNING
 Before adjusting the output torque, always turn OFF the power.
CAUTION
 The torque scale is a standard. The output torque range is not guaranteed.
1 Turn the torque adjustment ring cover counterclockwise to remove it
2 To increase the output torque, turn the torque adjustment ring clockwise
To decrease the output torque, turn the torque adjustment ring counterclockwise
White paint
Basic Operation
TV07878-1DLV30A12P-ASLen.indb14 2017/06/2715:45:47

15
EN
7 Appendix
Troubleshooting
Symptoms Location to investigate Solution
The electric screwdriver
does not operate
Is the power plug inserted into an
outlet?
Is power supplied to the outlet?
Properly insert the power plug into the outlet.
Check the power supply.
Is the changeover switch set to
neutral? Slide the changeover switch to the R or L side.
The output torque is low
Screws cannot be
tightened
Are you using a combination of
NITTO KOHKI measuring devices for
measurement?
Use a combination of NITTO KOHKI's measuring
devices for measurement. (p. 4)
Are you turning the torque adjustment
ring clockwise?
Has the output torque dropped?
The output torque decreases as the tool is used.
Turn the torque adjustment ring clockwise. (p. 14)
Did you check the correlation between
the output torque occurred on screws
and the output torque measured using
a measurement device?
The output torque occurred on screws and the
output torque measured by the measurement device
are different.
Adjust the output torque according to the screw
fastening conditions. (p. 4)
Is the bit worn out?
When the bit is worn out, it becomes difficult to
transmit torque to screws.
Replace the bit. (p. 7)
Are you tightening while crushing a
part between the screws.
Has regression loosening occurred?
Torque may not be transmitted. Crush the part once
and then tighten the screw.
Has axial force occurred to the screw?
Without axial force, even though the output torque
is increased, screws are not tightened. Review the
screw fastening conditions.
Also, by tightening at low speed, it becomes easier
to transmit torque.
Has initial loosening occurred?
Initial loosening occurs as a result of permanent set
in fatigue when fine irregularities such as surface
roughness are lost over time after the screw is
tightened or outside force is applied. Tighten the
screw again.
Has the permanent set in fatigue
occurred due to permanent
deformation of sealing material such
as the gasket?
Carefully check the screw fastening conditions and
set the output torque.
Depending on the material, torque may not be
transmitted.
Is the area surrounding the screw at a
high temperature?
Screws could be extended or loosened by
temperature changes.
Review the screw fastening conditions and process.
Have you considered the occurrence
of vibration or outside force?
Loosening of screw occurs if no measures are taken
for vibration or outside force.
Take appropriate loosening prevention measures.
The output torque is high
Screws are tightened
too much
Did you check the correlation between
the output torque occurred on screws
and the output torque measured using
a measurement device?
The output torque occurred on screws and the
output torque measured by the measurement device
are different.
Adjust the output torque according to the screw
fastening conditions. (p. 4)
Have you attached a heavy jig or a jig
having a large radius at the end?
After the torque reaches the set torque, the inertial
force of the jig might have been transmitted to
screws.
Review the jig and reduce the weight or size of the
jig.
The torque scale and
output torque do not
match
The torque scale is a standard. The output torque range is not guaranteed.
The output torque range sometimes differs from the scale but this is not a product error.
(p. 5)
TV07878-1DLV30A12P-ASLen.indb15 2017/06/2715:45:47

16
EN Appendix
Symptoms Location to investigate Solution
The electric screwdriver
gets hot
Is the ON time of the electric
screwdriver too long?
Alternatively, is the OFF time too
short?
Review the operation time.
The rated operating time is 0.5 sec. ON and 3.5 sec.
OFF.
Aim at 15 screws per minute. (p. 4)
Is the input voltage 230 V AC? Check the input voltage.
Even though the output torque is set
to the specification lower limit value,
does the screwdriver get hot to a level
where you cannot touch it?
When the output torque becomes higher, the electric
screwdriver becomes hot.
If it gets hot to a level where you cannot touch even
with the specification lower limit value, a failure is
suspected.
The rotation speed is not
stabilized.
Is the electric screwdriver heating up?
Is it the same electric screwdriver?
The specification value of the rotation speed is a
standard.
The rotation speed could change due to
temperature or mechanical loss of the main unit
or grease conditions. Also, it differs by the unit.
(p. 4)
Maintenance and inspection
Store the tool according to the following warnings and cautions.
WARNING
 Before performing maintenance and inspection, always turn off the power.
 Do not disassemble or alter the tool.
 Use genuine parts.
CAUTION
 For repair or part replacement, ask your dealer.
Repair requires special knowledge and skills. If repair is performed at a place other than a specialty store, the
tool may not demonstrate its full performance or it could lead to an accident or injury.
 Request repair with the failed status kept intact.
When requesting a repair, do not throw away damaged parts. It could be important information for investigating
the failure cause so do not change the status.
For the purpose of making proper use, request the following check and maintenance by an authorized service facility.
DLV30A series DLV45A series, DLV70A series
Routine inspections and Parts to be
replaced
Number of Tightening (million)
0.5 1.0 1.5 2.0 0.25 0.5 0.75 1.0
Routine inspection
(1) Operation check 
*1 *1 *1 *1
(2) Grease-up 
*2 *1
Parts to be replaced
(1) Motor assembly 
*2 *1
(2) Gear 
*2 *1
(3) Rollers and Balls 
*2 *1
(4) Bearing 
*2 *1
*1: DLV45A series, DLV70A series
*2: DLV70A series
TV07878-1DLV30A12P-ASLen.indb16 2017/06/2715:45:47

17
EN
Inspection locations CAUTION
Cable
Failure to perform inspection could result in fire or electric shock.
 Check if cables are damaged and if found, stop using the tool.
 Do not store the cord by wrapping it around the main unit. If it is stored with the cable wrapped
around the main unit, immediately change the storage method.
Power plug
Failure to perform inspection could result in fire or electric shock.
 Check for damage on the power plug. If damaged, stop using it.
 Check if the power plug has dust or metallic material adhering to it. If attached, disconnect the
power plug and use a dry cloth to remove it.
 Check that the power plug is property inserted into the outlet all the way to the base.
 Check for play in the power plug and outlet.
Bit  Check for wear or damage on the bit end. Using the tool as is, the screw head could be damaged
or torque may not be transmitted. Replace with a new bit.
Main unit
 Check for damage, cracks or breaks on the main unit.
 Check the screws on the main unit (including accessory Pistol Grip). If screws are loose, tighten
them.
Output torque  Use a combination of NITTO KOHKI's measuring devices to measure the output torque.
 If the output torque value has decreased, turn the torque adjustment ring to adjust the torque.
Care
 If the main unit is stained, use a cloth soaked in soapy water and wrung out well to wipe off the
stain. The tool does not have a waterproof structure and if water enters inside, it could fail.
 Because the main unit uses plastic, the following chemicals cannot be used.
Acetone, benzine, thinner, ketone, ether, trichlorethylene and other similar chemicals
Disposal
 Separate power tools, accessories, and packing materials for environmentally-friendly recycling.
 Do not dispose of the power tool as household garbage.
 When disposing of electric tools, give them to NITTO KOHKI or your dealer.
 Within the EU region, Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC is
rolled out in domestic laws and it is prescribed to separately collect power tools, which are recycled and
reused.
Separately-sold products
The following products are sold separately. To purchase these items, please contact your dealer where you purchased
your electric screwdriver.
Product name (model) Appearance Specification, etc.
Pistol Grip
(DLW2300)
Grip used for reaction force measures or
transverse tightening
 DLV45A/DLV70A series standard
accessories
 Can be used for DLV30A series as well
TV07878-1DLV30A12P-ASLen.indb17 2017/06/2715:45:47

18
EN Appendix
Inquiry contact regarding AnyWireASLINK
Anywire Corporation
1 Babazusho, Nagaokakyo-shi, Kyoto 617-8550 JAPAN
Inquiry by email
[email protected]
Inquiry from the website
www.anywire.jp
TV07878-1DLV30A12P-ASLen.indb18 2017/06/2715:45:47
