Nodka TPC6000-6151 User manual

TPC6000‐6151UserManual
1



UserManualVer1.4
TPC6000‐6151
IndustrialPanelPC

TPC6000‐6151UserManual
2
COPYRIGHT
COPYRIGHTNOTICE
Theinformationinthisdocumentissubjecttochangewithoutpriornoticeinorderto
improvereliability,designandfunctionanddoesn’trepresentacommitmentonthepartof
manufacturer.
Innoeventwillthemanufacturerbeliablefordirect,indirect,special,incidental,or
consequentialdamagearisingoutoftheuseorinabilitytousetheproductor
documentation,evenifadvisedofpossibilityofsuchdamages.
Thisdocumentcontainsproprietaryinformationprotectedbycopyright.Allrightsare
reserved.Nopartofthismanualmaybereproducedbyanymechanical,electronic,orother
meansinanyformwithoutpriorwrittenpermissionofmanufacturer.

TRADEMARKS
Allregisteredtrademarksandproductnamesmentionedhereinareusedfor
identificationpurposesonlyandmaybetrademarksand/orregisteredtrademarksoftheir
respectiveowners.

AMIisatrademarkofAmericanMegatrends,Inc.
Intel&AtomaretrademarksofIntelCorporation
IBM,PC/AT,PS/2&VGAaretrademarksofInternationalBusinessMachinesCorporation
MicrosoftWindowsisatrademarkofMicrosoftCorp.
RTListrademarkofRealtekSemiconductorCo.,Ltd.

DECLARATIONOFCONFORMITY
Thisrestrictionissubjecttoprovideprotectionforsystemoperationinbusiness
environment,whichwillproduce,useandtransmitradiofrequencyenergy.Withoutnotice
oftheinstructionsofthecorrectinstallationanduse,itmaycauseharmfulinterferenceto
radiocommunication.Theinterferencepreventioncannotbeguaranteedevenwithproper
installationaccordingtothemanual.Ifthedevicegetsbadaffectonthesignalofradio/TV.
Usercouldinsurebyturndeviceon/off.
Whenthisdeviceproducessomeharmfulinterference,usercanusethefollowing
measuretosolveinterferenceproblem:
Settingthereceivingantenna’sdirectionorlocation
Increasethedistancebetweenthisdeviceandreceiver.

TPC6000‐6151UserManual
3
Pluginthisdevice’spowerconnectorintodifferentcircuitsofthepoweroutletwith
receiver
Ifyouneedtechnicalsupport,pleaseinformthedealerorexperiencedradio/TV
technicalpersonnel.
Warning:
Ifuserchangesthesettingunauthorizedorrepairsthedevicewithoutanyapprovalofthe
relevantauthority,thenuser’srightsofcontrollingthisdevicewillbecanceled.

ORDERINGINFORMATION

TypeDescription
TPC6000‐6151
OnboardIntel®N2800/1.86GHz/15’’LCD1024x768
1xVGA/2xLAN/1xAudio/4xRS‐232orRS‐485/5xUSB/1xLPT/
5‐wireresistortouchscreen

TECHNICALSUPPORTANDSERVICE
Pleasevisit:en.nodka.comtogetthedetails.
Usershouldcollecttheproductinformationfollowing:
‐Productnameandserialnumber.
‐Attacheddevice’sdescription
‐User’ssoftware’sdescription(operationalsystem,vision,applicationsoftwareandso
on)
‐Fulldescriptionoftheproduct’sproblem
‐Fulldetailsofeveryerrorinformation

Warning:
1.DC12Vinputpower;
2.Package:becareful,pleasetakethedevicebytwohands;
3.Maintenance:pleasecleanandmaintainthesurfacebycorrectways,onlycanusethe
certificatedordryproducttocleanup.

SAFETYINTRODUCTION
1.Pleasereadthesafetyoperatingintroductionverycarefully.
2.Pleasestorethismanualsothatrefersitagain.
3.Beforecleanupthedevicebywetcloth,pleaseconfirmthatpowerconnectoris
outofoutlet,DONOTuseanyliquidordecontaminationspraytocleanitup!

TPC6000‐6151UserManual
4
4.Theremustbeaneasytouchedpoweroutlet.
5.Pleaseconfirmthatthedeviceisbeputonastableplatformbeforeinstallation,
accidentfallmaycausedamagesofdevice.
6.Pleaseconfirmthatthevoltagewhichiscomefrompoweroutletisfitonthe
requirement,beforeyouconnectthedevicetooutlet.
7.Pleasearrangethepowercableinahidingplaceanddonotcoveranythingonthe
cable.
8.Pleasebecautiousofthewarningsandnoticesonthedevice.
9.Ifthedeviceisnotusedforalongtime,shutoffthepowertoavoidthedamagesby
transientovervoltage.
10.DONOTallowanyliquidflowintothedevicesothatcausefireorshortcircuit.
11.DONOTpullthedeviceupbyyourself,pleaseletanycertificatedengineertodo
thatforyoursafety.
Ifyoumeetthefollowingsituations,pleaserepairitbyprofessionalperson:
Powercableorconnectorisbroken;
Liquidflowintothedevice.
Devicedoesn’tworkproperly.Oryoucan’tmakeitworkthroughtheusermanual.
Thisdevicefallsoranydamage;
Someobviousdamage;
12.DONOTstorethedeviceinoutofthetemperaturerangewhatwesuggested,NOT
lessthen‐30°Corhigherthan80°C,ormaydamagethedevice.

TPC6000‐6151UserManual
5
Contents
Chapter1
1.1INTRODUCTIONS.................................................................................................................9
1.2FEATURES...........................................................................................................................9
1.3EXTERNALOVERVIEW.......................................................................................................10
1.3.1FRONTPANEL................................................................................................................................10
1.3.2REARPANEL..................................................................................................................................11
1.4INTERNALOVERVIEW........................................................................................................11
1.5SPECIFICATIONS................................................................................................................12
1.6DIMENSIONS.....................................................................................................................14
Chapter2
2.1UNPACKTHEFLATPANELPC....................................................................................................16
2.2PACKINGLIST:..........................................................................................................................17

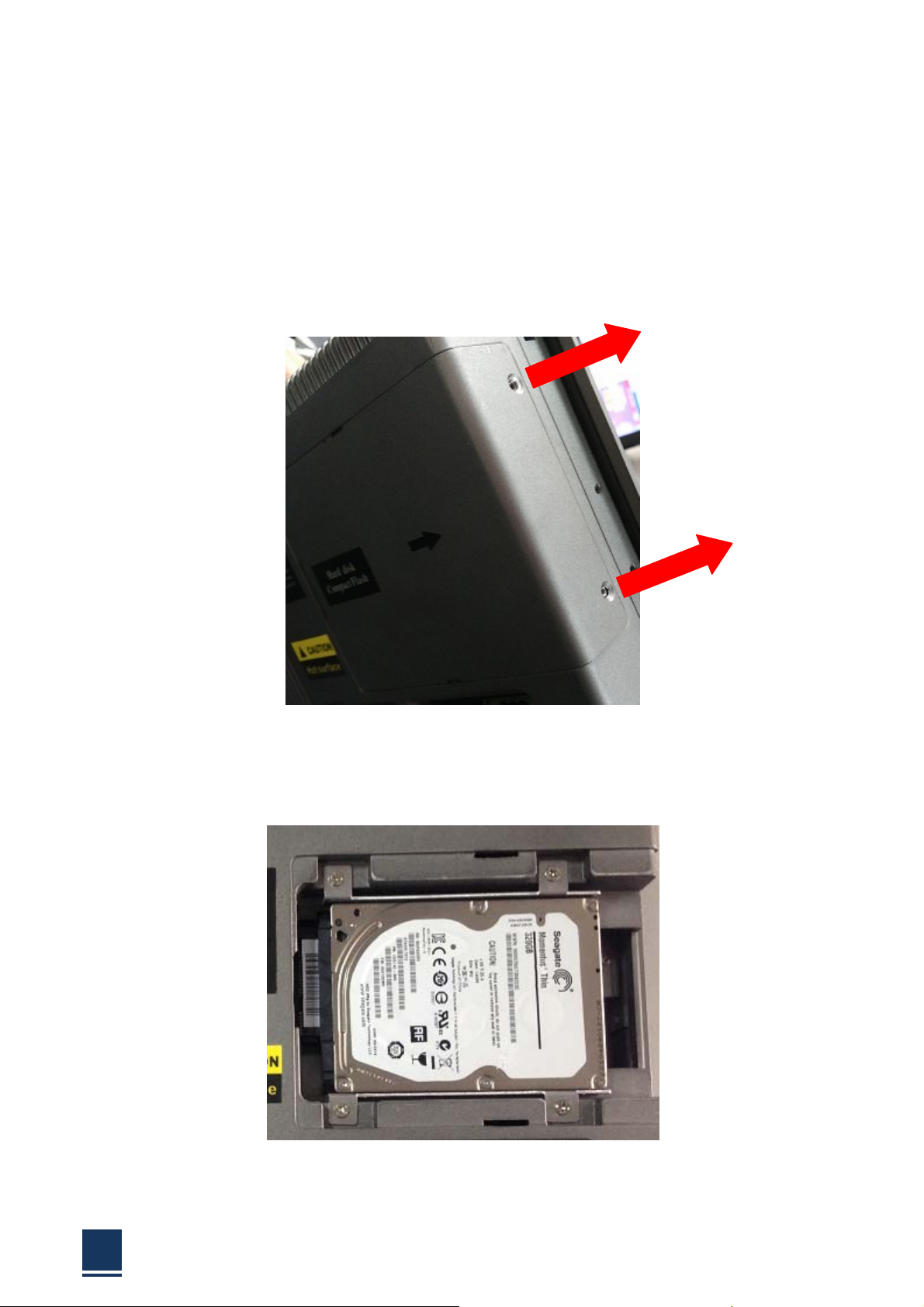

2.3HARDDRIVEINSTALLATION.....................................................................................................18

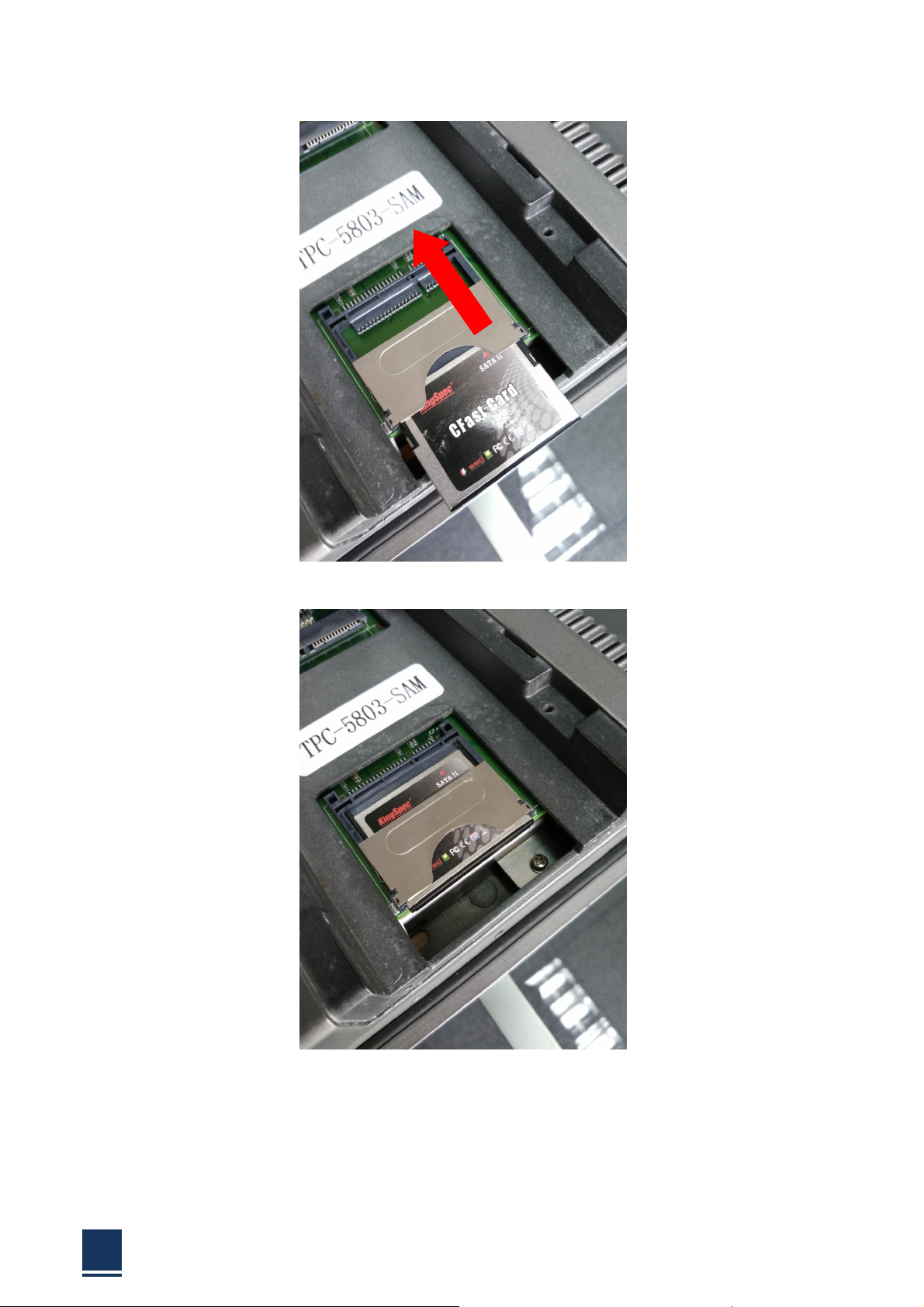

2.4CFASTCARDINSTALLATION.....................................................................................................19
2.6MOUNTINGSYSTEM................................................................................................................21
2.6.1MONITORSTAND...........................................................................................................................21
2.6.2ARMMOUNTING............................................................................................................................21
2.6.3WALLMOUNTING...........................................................................................................................22
2.6.4PANELMOUNTING..........................................................................................................................23

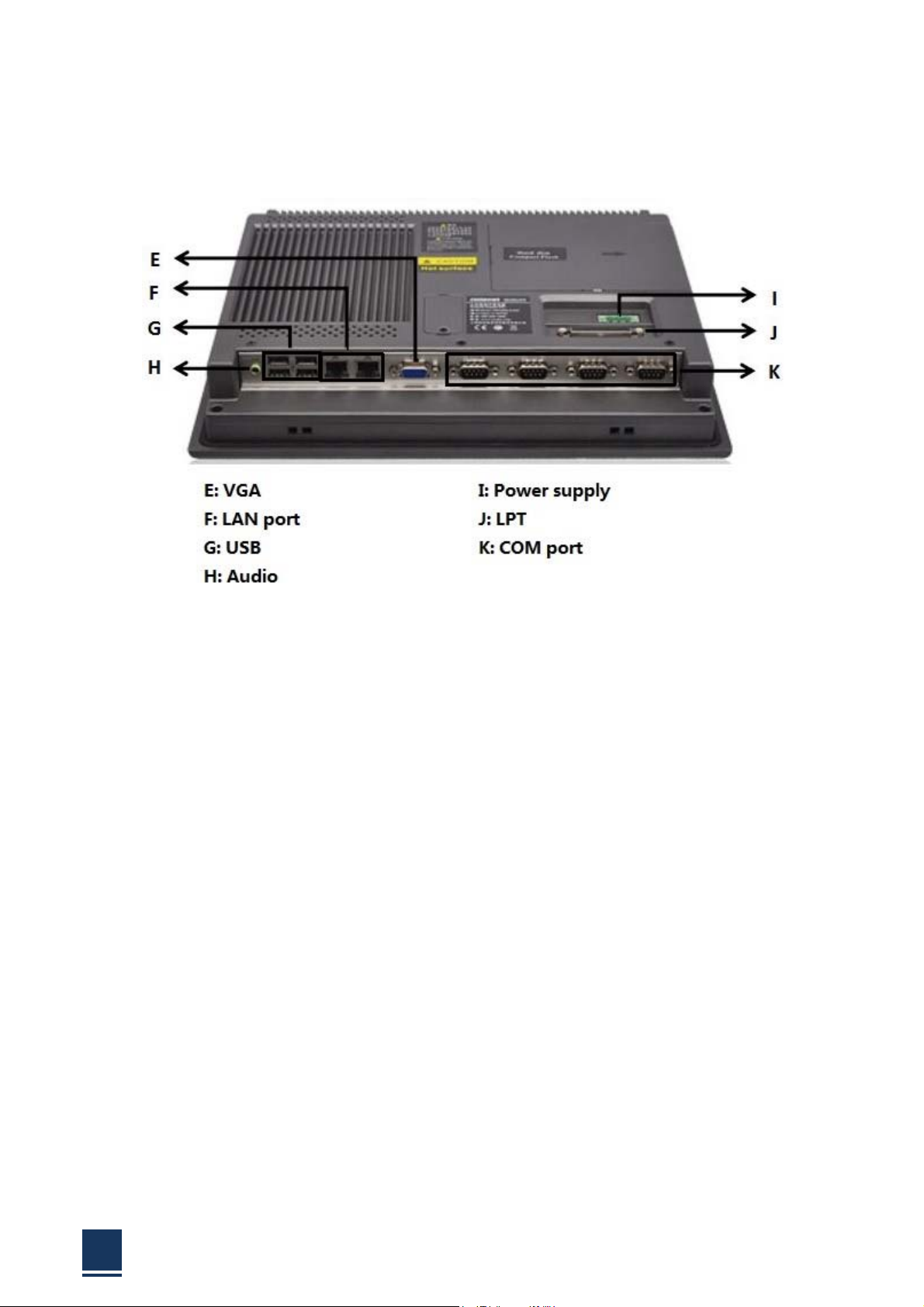

2.7BOTTOMPANELCONNECTORS.................................................................................................25
2.7.1LANCONNECTION..........................................................................................................................25
2.7.2SERIALDEVICECONNECTION.............................................................................................................26
2.7.3USBCONNECTION..........................................................................................................................27
2.7.4VGAMONITORCONNECTION............................................................................................................27
2.8POWERCONNECTOR................................................................................................................28
2.9CONNECTORSDEFINITION.......................................................................................................28

TPC6000‐6151UserManual
6
2.10DRIVERINSTALLATION...........................................................................................................33
2.10.1CHIPSETDRIVER...........................................................................................................................33
2.10.2GRAPHICSDRIVER.........................................................................................................................38
2.10.3AUDIODRIVER.............................................................................................................................42
2.10.4LANDRIVER................................................................................................................................45
2.10.5TOUCHPADDRIVER.......................................................................................................................50
Chapter3
3.1INTRODUCTION.................................................................................................................54
3.1.1STARTINGSETUP............................................................................................................................54
3.1.2USINGSETUP.................................................................................................................................54
3.1.3GETTINGHELP...............................................................................................................................55
3.1.4UNABLETOREBOOTAFTERCONFIGURATIONCHANGES...........................................................................55
3.1.5BIOSMENUBAR............................................................................................................................55
3.2MAIN................................................................................................................................55
3.2.1SYSTEMTIME/SYSTEMDATE...........................................................................................................56
3.3ADVANCEDBIOSFEATURESSETUP....................................................................................56
3.3.1PCISUBSYSTEMSETTING.................................................................................................................57
3.3.2ACPISETTING...............................................................................................................................58
3.3.3CPUCONFIGURATIONSETTING.........................................................................................................59
3.3.4SATACONFIGURATION...............................................................................................................60
3.3.5USBCONFIGURATION................................................................................................................61
3.3.6SUPERI/OCONFIGURATION.............................................................................................................62
3.3.7PCHEALTHSTATUS....................................................................................................................64
3.3.8PPMCONFIGURATION................................................................................................................65
3.4CHIPSETSETTINGS/HOSTBRIDGE.....................................................................................66
3.4.1INTELIGDCONFIGURATION.........................................................................................................67
3.5CHIPSETSETTINGS/SOUTHBRIDGE..................................................................................68
3.5.1NM10CHIPCONFIGURATION......................................................................................................69
3.5.2PCIEXPRESSSPORT0‐PORT4CONFIGURATION..............................................................................70
3.5.3RESTOREACPOWERLOSSCONFIGURATION..................................................................................74
3.5.4BOOTCONFIGURATION..............................................................................................................75
3.6EXITOPTION.....................................................................................................................76

TPC6000‐6151UserManual
7
3.6.1SAVECHANGESANDEXIT............................................................................................................77
3.6.2DISCARDCHANGESANDEXIT........................................................................................................77
3.6.3LOADOPTIMALDEFAULTS...........................................................................................................77
3.6.4LOADFAIL‐SAFEDEFAULTS..........................................................................................................77
Chapter4
4.1SYSTEMMAINTENANCEINTRODUCTION...........................................................................79
4.2MOTHERBOARDREPLACEMENT........................................................................................79
4.3COVERREMOVAL..............................................................................................................79
Appendix
A.1SAFETYPRECAUTIONS.............................................................................................................82
A.1.1GENERALSAFETYPRECAUTIONS........................................................................................................82
A.1.2ANTI‐STATICPRECAUTIONS..............................................................................................................82
A.1.3PRODUCTDISPOSAL........................................................................................................................83
A.2MAINTENANCEANDCLEANINGPRECAUTIONS........................................................................83
A.2.1MAINTENANCEANDCLEANING.........................................................................................................84
A.2.2CLEANINGTOOLS...........................................................................................................................84
B.1ALC662DIGITALMICROPHONECONFIGURATION.....................................................................86
D.1HAZARDOUSMATERIALSDISCLOSURETABLEFORIPBPRODUCTSCERTIFIEDASROHS
COMPLIANTUNDER2002/95/ECWITHOUTMERCURY...................................................................94


TPC6000‐6151UserManual
8
Chapter1
OVERVIEW


TPC6000‐6151UserManual
9
1.1Introductions


Figure1‐1:TPC6000‐6151

TPC6000‐6151islow‐powerconsumptionfanlesspanelPC,itequippedwiththelast
IntelAtom‐N2800processoranditalsohasexcellentcomputationalperformanceand
low‐consumption,DatastoragesupportsCFASTand2.5inchSSDorHDD;Ithasbeen
designedwithaabundantcommunicationinterfaceand2x1000MbpsEthernetport,4x
USB2.0ports,4xRS232/485;Widepowerinput9~30VDCwithmeasureofpowerreverse
protection,overvoltage,overcurrentprotection.
Usingsealedboxstructure,preventdustfromfloatingintothedevice,largeareaof
aluminumfinheatsink,Itcandistributestheinternaldevice’sheatquicklyandeffectively,
makesurethatthePC’sreliabilityandlongerservicelife.TPC6000‐6151canbeusedina
long‐termrunningandindustrialfieldinharshenvironment,iswidelyusedinintelligent
traffic,machinevision,medicalequipment,textilemachine,railwayandindustrial
automationetc.
TPC6000‐6151compatiblewithWindowsXP,WindowsXPEmbedded,Windows7and
popularLinuxoperatingsystemandembeddedoperatingsystem.

1.2Features
AluminumMagnesiumalloydie‐casting,IP65enabledinfrontpanel;
Hightemperature5‐wiresresistortypetouchpad;
IntelAtomN28001.86GHzdualprocessor,onboardDDR32GBRAM;
2xIntel82583V10/100/1000MbpsEthernetinterface;

TPC6000‐6151UserManual
10
4xRS‐232/RS485serialport(selectable),withmagnetic‐couplingisolationand
surgeprotection;
DC9~30Vwidevoltagepowersupplywithovervoltage,overcurrentandpower
reverseprotection;
Interfaces:VGA/2xGLAN/5xUSB/4xCOM/LPT/AUDIO;

1.3ExternalOverview
TheTPC6000‐6151consistsofascreenandarearpanelthatcoverstheback,sideand
top.Therearpanelcontainsasmalleraccesspanel,allthecableconnectionsandmounting
holes.

1.3.1Frontpanel
ThefrontsideoftheTPC6000‐6151isflatpanelLCDscreensurroundedbyanaluminum
magnesiumalloydie‐castframe.


Figure1‐2:Frontpanel


TPC6000‐6151UserManual
11
1.3.2Rearpanel


Figure1‐3:Rearpanel

1.4Internaloverview
Allcomponentsarecontainedundertherearpanel.Theinternalcomponentsinclude
thetouchpanelmoduleandthemotherboard.Themotherboardhasmemory,awireless
moduleandaharddrive.Optionally,anHSDPAmodulecanbeinstalledinanyofthe
models.


TPC6000‐6151UserManual
12

1.5Specifications

TypeTPC6000‐6151
Hardware
ProcessorOnboardIntelAtomN2800dualprocessor(TDP6.5W)
CPUclockspeed1.86GHz
ChipsetIntelNM10(TDP2.1W)
RAMOnboardDDR32GBRAM
HarddriveSupportSATA2.5“SSDandHDD,supportCFAST
GraphicsIntegratedIntelGMA3650shareddisplaychip.Support
synchronous,asynchronousdisplay,512Msharedmemory
Ethernetport2xIntel82583V1000MbpsRJ‐45Ethernetportwithsurge,
lighting,15KVESDprotections
Wirelessnetwork1xMini‐PCIeslot,expandable3G,WIFIwirelessnetworkcard
USB5xUSB2.0ports(1frontpanel/4rearpanel)with8KV
electrostaticprotection
AudioRealtekALC662Audiocontroller
Serialport
4xRS‐232/RS‐485serialports(selectable)withmagnetic‐
couplingisolationandsurgeprotection,RS485supportsdata
transferdirectioncontrol
LPT1xstandardLPTinterface
Watchdog1~255secondprogrammablesetting
InterfacesVGA/2xGLAN/4xUSB/4xCOM/LPT/AUDIO
LCDandtouchpanel
Size15’’TFT
Max.resolution1024x768
Max.color16.7MB
Displayarea304.13x228.10mm
BacklightLED
BacklightMTBF(Hours)50,000
Pixeldistance0.264x0.264
Luminance450cd/m2
Contrast700:1

TPC6000‐6151UserManual
13
Max.visibleangle(L)80/(R)80/(T)70/(B)70
Touchpadstyle5‐wiresanalogresistivetype
Responsetime(Touch
pad)<5ms
SurfacerigidityMostValue7
Touchlifetime250g/35,000,000times
Strokelifetime250g/5,000,000times
LuminousnessMorethan81%
Structure
FrontpanelAluminummagnesiumalloydie‐castingpanelframe,PETpaton
surface,compliantwithNEMAIP65
StructureAluminummagnesiumalloydie‐castingbox,hightemperature
painting,alargeareaoffinheatsinksonbackshell.
MountingmethodSupportdesktopandinset‐mounting,fixitbyhooks;Or
VESA‐mountingwithracks.
InterfacecolorDeepcolors
Totaldimension395x313x51mm(WxHxD)
Cutdimension376x300mm(WxH)
Structuredimension373x297x45mm(WxHxD)
Netweight4.44kg
Environment
Worktemperature0‐45℃(HDD‐Free)
‐20‐60℃(SSD‐Free)
Storagetemperature‐40‐80℃
PowersupplyDC9~30V
Powerconsumption45W
Constanttemperature/
wettest40℃95%RH/1000hrs
Hightemperaturetest60℃/1000hrs
Relativehumidity10‐95%(Non‐condensing)
Vibration50‐500Hz,1.5G,0.19mmpeak‐peakvalue
Shock10G/peak(11msduration)
Table1‐1:Specification


TPC6000‐6151UserManual
14

1.6Dimensions


Figure1‐5:TPC6000‐6151dimensions

TPC6000‐6151UserManual
15
Chapter2
INSTALLATIONS


TPC6000‐6151UserManual
16
Warning:
WheninstallingtheTPC6000‐6151,makesureto:
Turnthepoweroff:chanceofelectrocution.Turnoffthemonitorandunplugitfrom
thepowersupply.
Onlyletcertifiedengineerchangethehardwaresettings:Incorrectsettingscancause
irreparabledamagetotheproduct.
Installthemonitorwithassistance:Theproductisveryheavyandmaybedamageby
dropsandbumps.TwoormorepeopleshouldinstallthepanelPC.
Takeanti‐staticprecautions:Electrostaticdischargecandestroyelectricalcomponents
andinjuretheuser.Usersmustgroundthemselvesusingananti‐staticwristbandor
similardevice.

Theinstallationstepsbelowshouldbefollowedinorder:
Step1:UnpacktheflatpanelPC;
Step2:Checkalltherequiredpartsareincluded;
Step3:Installtheharddrive;
Step4:Installthecompactflashcard;
Step5:MounttheflatpanelPC;
Step6:ConnectperipheraldevicestothebottompaneloftheflatpanelPC;
Step7:Connectthepowercable;
Step8:configurethesystem;

2.1UnpacktheflatpanelPC
UnpacktheflatpanelPC,followthestepbelow:
Step1:Carefullycutthetapestealingtheoutsidebox.Onlycutdeepenoughtobreakthe
tape.
Step2:Opentheoutsidebox.
Step3:Carefullycutthetapestealingtheinsidebox.Onlycutdeepenoughtobreakthe
tape.
Step4:Opentheinsidebox.
Step5:Liftthemonitoroutthebox.
Step6:Removetheperipheralboxfromthemainbox.


TPC6000‐6151UserManual
17

2.2Packinglist:
Pleasecheckoutallitemsbyfollowinglistwhenyouopenthepackage:
ItemImageQuantity
TPC6000‐6151

1
Touchscreenpen1
UtilityCD

1
Powercord

1
Poweradapter1
MountingClamps4
Table2‐1:Packinglist

Ifanyitemsaremissingordamaged,contactthedistributororsalesrepresentative
immediately.


TPC6000‐6151UserManual
18

2.3Harddriveinstallation
ThissectionoutlinestheinstallationoftheharddriveintheTPC6000‐6151.Toinstallthe
harddrive,pleasefollowthestepsbelow:
Step1:Flipoverthisdeviceandyoucanseeitsback.
Step2:Unfastenthetwosilverretentionscrewsontherightside.(Figure2‐1)


Figure2‐1:Removethemetalbackcoverfromretentionscrews.

Step3:Sliderthecoverdownandthenlifttoremove.


Figure2‐2:HDDbracket


TPC6000‐6151UserManual
19
Step4:LocatetheHDDbracket.
Step5:InserttheSATAconnectorattheendoftheHDDintothebrackettoconnectthe
motherboardSATAconnectortotheharddriveSATAconnectorasshowninthe
figurebelow.
Step5:PlantthescrewontheHDDbracket.


Figure2‐3:HDDinstallation

Step7:Replacethecoversandscrews.

2.4CFastcardinstallation
TheinstallationforaCFastcardisdescribedinthissection.
Step1:RemovetheHDDbracketjustlikementionedonthe“Harddriveinstallationsteps”.
Step2:InserttheCFastcardintotheCFastCardslotasshownintheFigure2‐4below:


TPC6000‐6151UserManual
20



Figure2‐4:CFastcardinstallation

Step3:ReplacetheHDDbracket,coverandscrews.

