Nokia 105 User manual

Quick Guide Nokia 105
9264938 Issue 1.1 EN-US RM-1135

For your safety
We invite you to read the instructions on this guide before using the
device.
TURN OFF IN RESTRICTED AREAS
Turn the device off when mobile phone use is not allowed or
when it may cause interference or danger, for example, in
aircraft, in hospitals or near medical equipment, fuel, chemicals, or
blasting areas. Obey all instructions in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving
should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which
could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved
by Microsoft Mobile for use with this device. Do not connect
incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high
volume levels for long periods. Exercise caution when holding
your device near your ear while the speakerphone is in use.
SAR
This device meets RF exposure guidelines when used either in
the normal use position against the ear or when positioned at
least 5/8 inch (1.5 centimeters) away from the body. The specific
maximum SAR values can be found in the Certification Information
2

(SAR) section of this user guide. For more information, go to www.sar-
tick.com.
When a carry case, belt clip or other form of device holder is used for
body-worn operation, it should not contain metal and should provide
at least the above-stated separation distance from the body. Note
that mobile devices may be transmitting even if you are not making
a voice call.
Get started

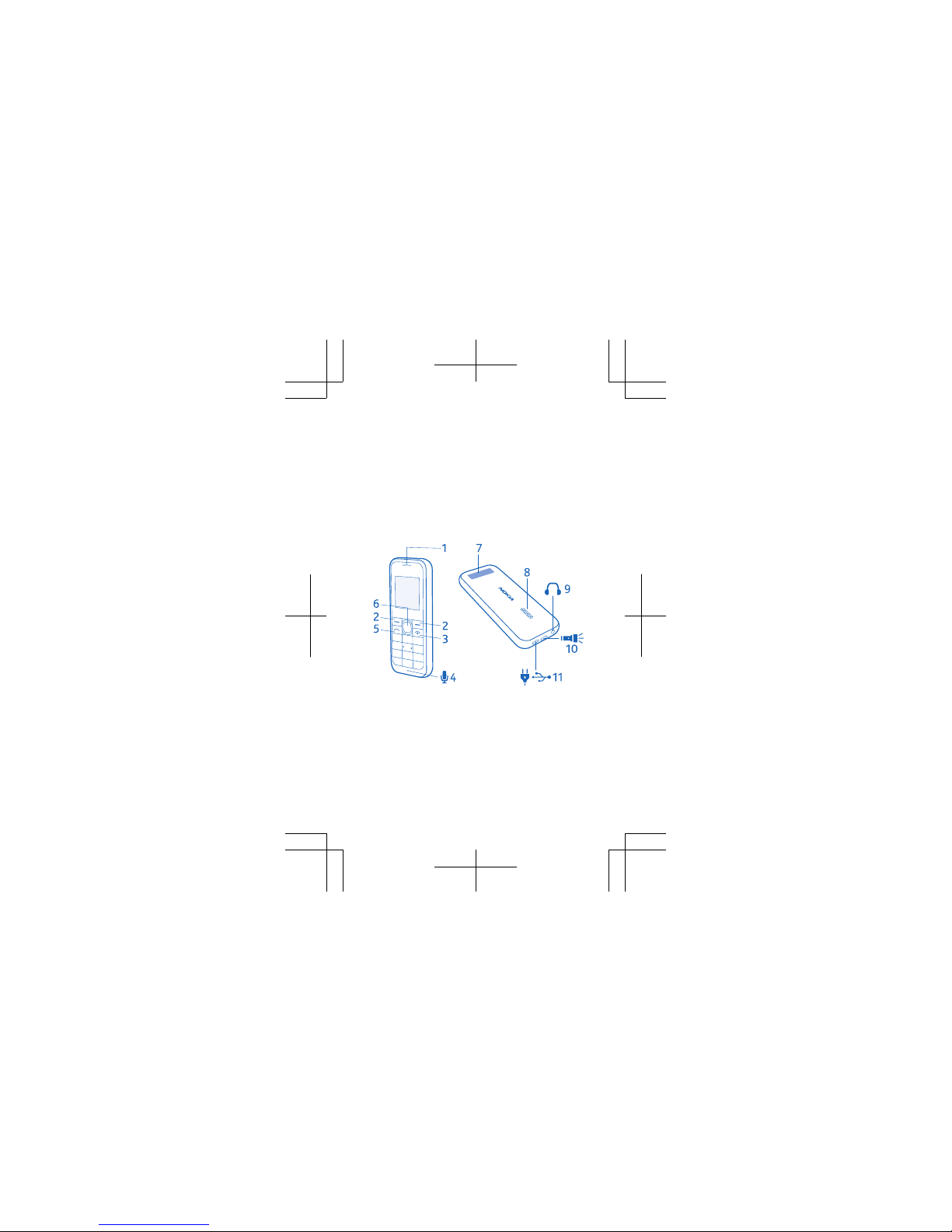

Keys and parts
1Earpiece
2 Selection keys
3End/Powerkey
4Microphone
5 Call key
6 Scroll key
7 Antenna area
3

8 Speakerphone
9 Headset connector (3.5 mm)
10 Flashlight
11 Charger connector
To lock the keys, press , and quickly select Lock.
To unlock the keys, press , and select Unlock.
Avoid touching the antenna area while the antenna is
in use. Contact with antennas affects the
communication quality and may reduce battery life
due to higher power level during operation.
Do not connect to products that create an output
signal, as this may damage the device. Do not connect
any voltage source to the audio connector. If you
connect an external device or headset, other than
those approved for use with this device, to the audio
connector, pay special attention to volume levels.
Parts of the device are magnetic. Metallic materials
may be attracted to the device. Do not place credit
cards or other magnetic storage media near the
device, because information stored on them may be
erased.
Some of the accessories mentioned in this user guide,
such as charger, headset, or data cable, may be sold
separately.
Note: You can set the phone to ask for a security
code. The pre-set code is 12345, but you can
change it to protect your privacy and personal
data. Note, however, that when you change the
4

code, you need to remember the new code, as
Microsoft Mobile is not able to open or bypass it.
Insert the SIM card and battery
Important: This device is designed to be used
with a standard SIM card (see figure) only. Use of
incompatible SIM cards may damage the card or
the device, and may corrupt data stored on the
card. Please consult your mobile operator for the
use of a SIM card that has a mini-UICC cutout.
Note: Turn the device off and disconnect the
charger and any other device before removing
any covers. Avoid touching electronic
components while changing any covers. Always
store and use the device with any covers
attached.
1. Press the back cover with your thumb, carefully lift
the bottom edge of the back cover with your fingers,
and remove the cover.
5

2. If the battery is in the phone, lift it out.
3. Slide the SIM in with the contact area face down.
4. Line up the battery contacts, and put the battery
in.
5. Replace the back cover.
Remove the SIM card
Open the back cover, remove the battery, press the
release spring, and slide the SIM out.
6

Turn your phone on
Press and hold the power key.
Charge the battery
1. Plug the charger into a wall outlet.
2. Connect the charger to the phone. When done,
unplug the charger from the phone, then from the
wall outlet.
If the battery is completely discharged, it may take
several minutes before the charging indicator is
displayed.
Basics
Explore your phone
• To see the apps and features of your phone, select
Menu.
• To go to an app or feature, press the scroll key up,
down, left, or right.
• To open an app or select a feature, select Select.
• To go back to the previous view, select Back.
• To go back to the home screen, press the end key.
• To use the flashlight, on the home screen, quickly
scroll up twice. To turn it off, scroll up once. Do not
shine the light in anyone’s eyes.
People & messaging
Make a call
1. Type in the phone number.
7

To type in the + character, used for international calls,
press *twice.
The + character only works from abroad. The +
character may not work in all regions. In this case,
enter the international access code directly.
2. Press .
3. To end the call, press .
Answer a call
Press .
Save a name and phone number
1. Select Menu > Contacts > Add contact.
2. Select where to save the contact.
3. Write the name, and type in the number.
Send and receive messages
1. Select Menu > Messages.
2. Select Create message, and write your message.
3. Select Opt. > Send. Type in a phone number, or
select Find and a recipient from your contacts list.
You can send text messages that are longer than the
character limit for a single message. Longer
messages are sent as two or more messages. Your
service provider may charge accordingly. Characters
with accents, other marks, or some language options,
take more space, and limit the number of characters
that can be sent in a single message.
Read a message
On the lock screen, select Read.
8

Phone management
Remove private content from your phone
When removing private content from your phone, pay
attention to whether you are removing content from
the phone memory or the SIM card.
1. To remove messages, select Menu > Messages >
Delete messages. Go to the folder you want to empty,
and select All or All read. To remove all messages
from your phone, empty all the folders separately.
2. To remove contacts, select Menu > Contacts >
Delete > Delete all and the location.
3. To remove call information, select Menu > Call
log > Delete recent call lists > All.
4. Check that all your personal content has been
removed.
Restore the original settings
To reset your phone to its original settings and to
remove all your data, on the home screen, type in
*#7370#.
After-sales policy
If you need assistance after you've bought your
phone, contact the store where you bought it for help
and advice. Keep your receipt as proof of purchase
for warranty purposes.
Authorized repair centers
Find the answers to technical questions related to
your device, and the nearest authorized repair center
addresses at www.microsoft.com/mobile/support/.
For the list of Mexico Repair Centers, see the leaflet
attached to this sales package.
9

For tips and instructions on how to take care of your
device, see your device user guide.
Find your model number and serial number(IMEI)
If you need to contact your care point or your service
provider, you may need info such as the model
number and the serial number (IMEI). To see the
model number, dial *#0000#. To see the serial
number, dial *#06#.
You can also find the info on your phone label, which
is located under the battery.
Product and safety info
For information on Microsoft Mobile Service terms and Privacy policy,
go to www.microsoft.com/mobile/privacypolicy.
For the online user guide, even more info, and troubleshooting help,
go to www.microsoft.com/mobile/support/.
Network services and costs
You can only use your device on the GSM 850, 1900 MHz networks.
You need a subscription with a service provider.
You may also need to subscribe to some features.
Emergency calls
Important: Connections in all conditions cannot be guaranteed.
Never rely solely on any wireless phone for essential
communications like medical emergencies.
Before making the call:
• Switch the phone on.
• If the phone keys are locked, unlock them.
• Move to a place with adequate signal strength.
1. Press the end key repeatedly, until the home screen is shown.
2. Enter the official emergency number for your present location.
Emergency call numbers vary by location.
3. Press the call key.
4. Give the necessary info as accurately as possible. Do not end the
call until given permission to do so.
