Nokia Asha 202 User manual

Nokia 202 User Guide
Issue 1.2 EN

Contents
Keys and parts.................................................................................................5
Insert a SIM card and battery..........................................................................7
Insert or remove a second SIM card...............................................................8
Insert a memory card......................................................................................9
Charge the battery........................................................................................10
Lock or unlock the keys and screen .............................................................11
Attach a strap................................................................................................11
Explore your phone.......................................................................................12
Swipe to open applications...........................................................................13
Copy content from your old phone...............................................................14
Set which SIM card to use.............................................................................16
Indicators.......................................................................................................17
Make or answer a call....................................................................................18
Call the last dialled number..........................................................................19
View your missed calls..................................................................................19
Change the volume........................................................................................20
Save a name and phone number...................................................................20
Make calls quickly..........................................................................................22
2

Send a message.............................................................................................23
Personalise your home screen......................................................................24
Write text.......................................................................................................25
Check your voicemail....................................................................................26
Change your ringtone....................................................................................27
Set a song as your ringtone..........................................................................28
Set an alarm...................................................................................................29
Add an appointment......................................................................................30
Listen to the radio.........................................................................................30
Find and save radio stations.........................................................................31
Play a song.....................................................................................................33
Take a photo..................................................................................................34
Record a video...............................................................................................35
Browse the web.............................................................................................36
Add a bookmark............................................................................................37
Send a mail.....................................................................................................37
Chat with your friends...................................................................................39
Send a photo using Bluetooth.......................................................................40
3

Nokia Life.......................................................................................................41
Copy between your phone and PC................................................................42
Restore original settings...............................................................................42
Update phone software using your PC.........................................................43
Update phone software using your phone...................................................44
Back up content to a memory card...............................................................45
Access codes..................................................................................................46
Support..........................................................................................................48
Nokia original accessories.............................................................................48
Practical rules about accessories....................................................................48
Battery..............................................................................................................48
General information......................................................................................50
4

Keys and parts
6
7
8
9
1 Headset connector (3.5 mm)
2 Micro-USB connector
3Chargerconnector
4Earpiece
5End/Powerkey
6Keypad
7Microphone
8Callkey
9 Screen
5

10 11
14
15 12
13
10 Loudspeaker
11 Camera lens
12 Volume keys
13 Key lock button
14 Antenna area (highlighted). See
1 in "Feature specific
instructions".
15 SIM card slot (SIM 2). See 6.
6

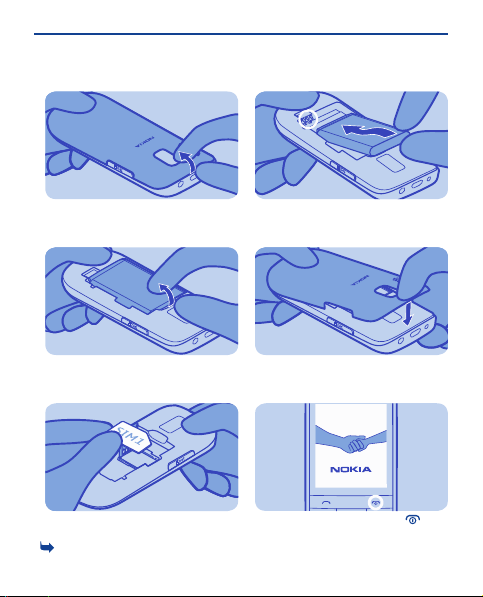

Insert a SIM card and battery
Switch the phone off, then remove
the back cover.
1
If the battery is in the phone, lift it
out.
2
Open the holder, then put the SIM in
with the contact area face down. See
4.
3
Line up the battery contacts, then
push the battery in.
4
Press the back cover down until it
locks into place.
5
To switch on, press and hold until
the phone vibrates.
6
7

Insert or remove a second SIM card
Open the external SIM slot marked
with . See 7.
1
Put the SIM in with the contact area
face down.
2
Push the card in until it locks into
place. Close the cover.
3
To remove the card, open the SIM
slot.
4
Push the SIM in until it's free.
5
Pull the SIM out.
6
8

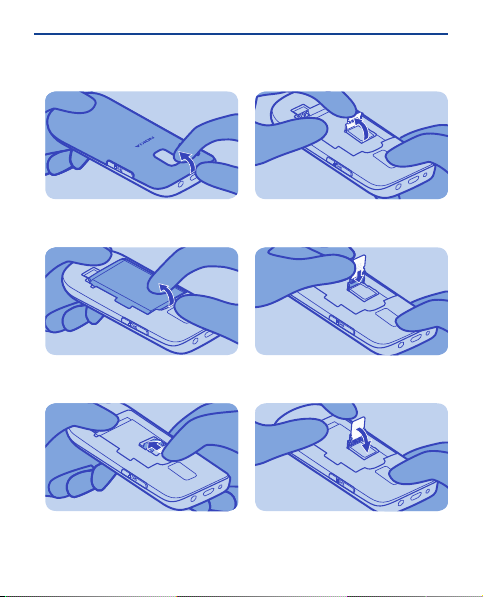

Insert a memory card
Switch the phone off, then remove
the back cover.
1
If the battery is in the phone, lift it
out.
2
Slide the memory card holder
towards the bottom of the phone.
3
Lift the holder.
4
Put a compatible memory card in with
the contact area face down.
5
Lower the holder.
6
9

Slide the holder to its original
position.
7
Line up the battery contacts, then
push the battery in.
8
Press the back cover down until it
locks into place. See 2.
9
Charge the battery
Plug the charger into a wall outlet.
1
Connect the charger to the phone.
2
Battery full? Unplug from the phone,
then from the wall outlet.
3
10

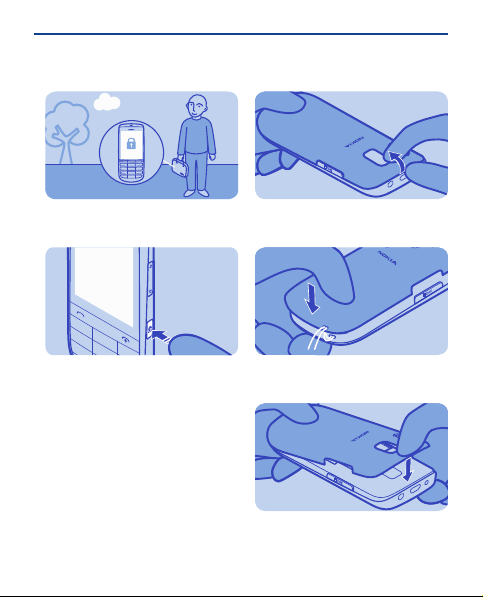

Lock or unlock the keys
and screen
Lock the keys and screen when not
using your phone.
Press the key lock button.
1
Attach a strap
Switch the phone off, then remove
the back cover.
1
Loop the strap around the wrist strap
peg.
2
Press the back cover down until it
locks into place.
3
11

Explore your phone
NamesMenu
Goto
To see the features and apps in your
phone, press Menu.
1
Back
To go back to the previous view, press
Back.
2
Exit
To go back to the home screen, press
.
3
Options
Tap an app or other item to open it.
4
Go to Menu Names
Tap and hold an item to see more
options.
5
To swipe, steadily slide your finger to
the desired direction.
6
12

Options
To scroll, slide your finger quickly up
or down, then lift your finger. See
3.
7
Swipe to open
applications
Go to Menu
Open your favourite app with a single
swipe on the home screen.
ExitOptions
Select Menu > Settings.
1
Back Back
Go to
Display
Tone s
My shortcuts
Left selection key
Right selection key
Swipe gesture
Date and time
Names
Select My shortcuts > Swipe
gesture.
2
13

Back
Camera
Change outg.
Back
Call divert
Favourite s
Countd. timer
Apps and games
Create message
Select which app to open when you
swipe left.
3
Back
Mail
Back
Log
Create message
Meeting
Message inbox
Make a to-do
Apps and games
Select which app to open when you
swipe right.
4
Copy content from your
old phone
Easily get your contacts, calendar,
and other stuff to your new phone.
Exit
Switch Bluetooth on in both phones.
1
ExitOptions
Select Menu > Settings.
2
14

Back Back
My shortcuts
Connectivity
Phone switch
Create backup
Sync with server
Sync & backup
Date and time
Restore backup
Select Sync & backup > Phone
switch.
3
Back
Synchronise
Copy to this
Contacts
Calendar
Text messages
Multimedia msg.
Notes
Done
Options
Copy from this
Select Copy to this and what you want
to copy, then select Done.
4
New search
Nokia XX
Back
Options
Select your old phone from the list of
found devices.
5
Clear
OK
123
Enter passcode:
*****
If asked, create a one-time passcode
(such as 123), then select OK.
6
NoYes
123456
Does code match with
code on other device?
Check that the codes match on both
phones.
7
Follow the instructions on both
phones.
8
15

Set which SIM card to use
Set which SIM to use for calls or the
internet connection.
ExitOptions
Select Menu > SIM mgr..
1
Back
SIM1
SIM2
(no selections)
(no selections)
Info
Always used
Ask every time
To decide every time which SIM to
use, select Ask every time.
2
Back Done
SIM2
(no selections)
Always used
Ask every time
SIM1
(no selections)
Info
Call
Text messages
Multimedia msgs.
Mobile data
Select SIM1 or SIM2 to set which SIM
to use for which connection.
3
Back Back
Always used
Ask every time
SIM1
(no selections)
Info
SIM2
Always used
Ask every time
SIM1
(no selections)
SIM2
(no selections)
Rename
To rename a SIM, select and hold the
card, then select Rename.
4
Clear
OK
Options
abc
Ask every time
Rename SIM:
******
Write a name, then select OK.
5
16

Indicators
/ — You have unread
messages sent to SIM1 or SIM2.
— You have unread messages
sent to SIM1 and SIM2.
/ — You have unsent,
cancelled, or failed messages from
SIM1 or SIM2.
— You have unsent, cancelled, or
failed messages from SIM1 and SIM2.
— The touch screen and keys
are locked.
— The phone doesn't ring when
somebody calls or sends a message.
— An alarm is set.
/ — The phone is connected to a
GPRS or EGPRS network using SIM1.
/ — A GPRS or EGPRS
connection from SIM1 is open.
/ — The GPRS or EGPRS
connection from SIM1 is on hold.
— Bluetooth is on.
/ — All incoming calls to SIM1
or SIM2 are forwarded to another
number.
— All incoming calls to SIM1 and
SIM2 are forwarded to another
number.
— The profile in use is timed. After
a set amount of time, the phone
changes back to the previously used
profile.
— A headset is connected to the
phone.
— The phone is connected to a
device, such as a PC, with a USB cable.
17

Make or answer a call
Call your friend. See 16.
ClearOptions
23456789
01
Save
Type in the phone number, then press
.
1
Back
SIM2
SIM1
Call using:
If asked, select which SIM to use.
2
Contact
In call
0123456789
Options
Mute Loudsp.
To end the call, press .
3
Options Silence
Incoming call
9876543210
SIM1
When your phone rings, press to
answer. See 17.
4
18

Call the last dialled
number
Go to NamesMenu
On the home screen, press .
1
Mike
Tod a y, 08: 2 9
0123456789
Tod a y, 08: 2 9
Send message
Call
Back
Back
Options
Anna
Tod a y, 07: 2 9
Select the number, then press .
2
Back
SIM2
SIM1
Call using:
Select the SIM to use.
3
View your missed calls
View
1 missed call
Mike
On the home screen, select View. See
5.
1
Mike
Tod a y, 14: 2 9
0123456789
Tod a y, 14: 2 9
Send message
Call
Back
Back
Options
To call back, select the number, then
press .
2
Options Exit Back
Names
Add new
Log
Synchronise all
Tip: To view missed calls later, select
Menu > Contacts > Log.
19

Change the volume
Is the volume too loud during a call or
when listening to the radio?
Use the volume keys.
1
Better.
2
Save a name and phone
number
Add new contacts to your phone.
ExitOptions
Select Menu > Contacts.
1
Back
Names
Add new
Log
Synchronise all
Select Add new. If asked, select
where to save the contact.
2
20
