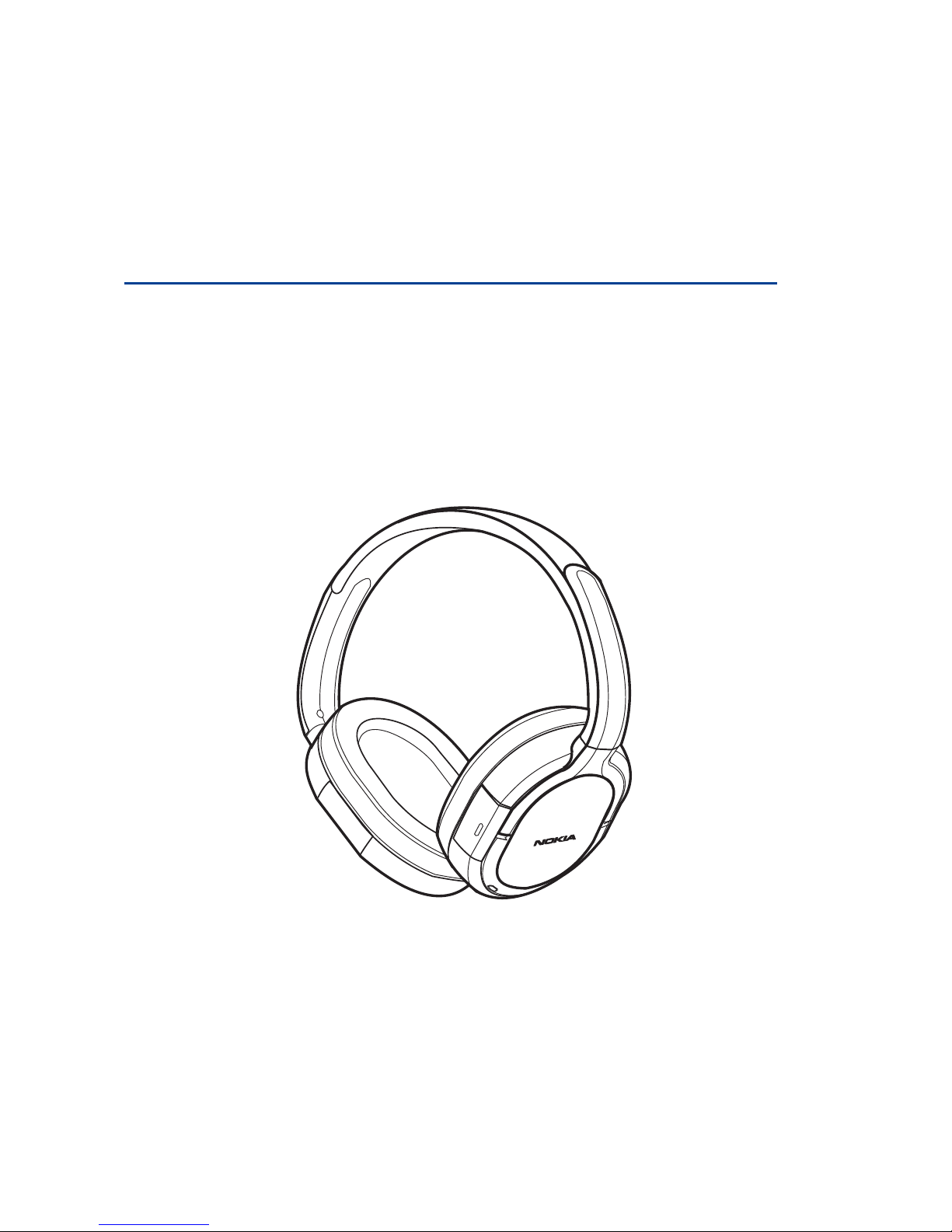

Nokia Bluetooth Headset BH-604
User Guide
Issue 1 EN

2
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this HS-96W product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
© 2007 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other
product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
Unauthorized changes or modifications to this device may void the user's authority to operate
the equipment.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
Issue 1 EN

Contents
3
Contents
1. Introduction ......................... 4
Bluetooth wireless technology.......... 4
2. Get started ........................... 5
Overview .................................................. 5
Chargers................................................... 5
Charge the battery................................ 5
Switch the headset on or off ............. 6
Switch on ............................................. 6
Switch off............................................. 6
Pair and connect the headset............ 7
Pair and connect the headset
with a mobile phone that has
a music player feature...................... 7
Pair and connect the headset
with a music player........................... 7
Disconnect the headset.................... 8
Reconnect the headset..................... 8
3. Basic use ............................... 9
Place the headset over the head....... 9
Adjust the volume................................. 9
Call handling........................................... 9
Listen to music..................................... 10
Clear the settings or
reset the headset................................. 10
4. Battery information ........... 11
Care and maintenance ........... 12

Introduction
4
1. Introduction
With the Nokia Bluetooth Headset BH-604 you can listen to music from your
compatible music player and make and receive hands-free calls using your
mobile phone. The music player can be the music player feature of your
mobile phone or a separate music device.
You can use the headset with compatible devices that support Bluetooth
wireless technology.
Read this user guide carefully before using the headset. Also read the user
guide for your mobile phone, which provides important safety and
maintenance information, and the user guide for your music device. Keep the
headset and its accessories out of reach of small children.
■Bluetooth wireless technology
Bluetooth wireless technology allows you to
connect compatible devices without cables.
A Bluetooth connection does not require
that the headset and the other device be in
line of sight, but the maximum distance
between the devices is 10 meters (30 feet).
The closer the devices are to each other, the
better is the performance. The optimal
operating range is shown in dark grey in the
picture. The connection is subject to
interference from distance and obstructions
(shown in light grey) or other electronic devices.
The headset is compliant with Bluetooth Specification 2.0 + EDR supporting
the following profiles: Headset Profile 1.1, Hands-Free Profile 1.5, Advanced
Audio Distribution Profile (A2DP) 1.0, and Audio Video Remote Control Profile
1.0. Check with the manufacturers of other devices to determine their
compatibility with this device.
There may be restrictions on using Bluetooth technology in some locations.
Check with your local authorities or service provider.

Get started
5
2. Get started
■Overview
The headset contains the following parts:
• Fast forward key (1)
• Microphone (2)
• Volume key (3)
• Multifunction key (4)
• Play/pause key (5)
• Rewind key (6)
• Indicator light (7)
• Charger connector (8)
Before you can start using the headset, you must charge the battery and pair
the headset with a compatible mobile phone.
Parts of the headset are magnetic. Metallic materials may be attracted to the
headset. Do not place credit cards or other magnetic storage media near the
headset, because information stored on them may be erased.
■Chargers
Check the model number of any charger before using it with this headset. The
headset is intended for use with the AC-4, AC-5, and DC-4 chargers.
Warning: Use chargers approved by Nokia for use with this particular
enhancement. The use of any other types may invalidate any approval or
warranty, and may be dangerous.
When you disconnect the power cord of any enhancement, grasp and pull the
plug, not the cord.
■Charge the battery
The headset has an internal, nonremovable, rechargeable battery. Do not
attempt to remove the battery from the headset, as you may damage the
headset.

Get started
6
1. Connect the charger to a wall outlet.
2. Connect the charger cable to the charger connector. The indicator light is
red while charging. It may take a while before charging starts. If charging
does not start, disconnect the charger, plug it in again, and retry.
Charging the battery fully may take up to 1 hour and 30 minutes.
3. When the battery is fully charged, the indicator light turns green.
Disconnect the charger from the headset and the wall outlet.
The fully charged battery has power for up to 15 hours of talk time, up to 300
hours of standby time, or up to 15 hours of music playing time. However, the
times may vary with different compatible Bluetooth devices, usage settings,
usage styles, and environments.
When battery power is low, the headset beeps at regular intervals, and the
indicator light slowly flashes red. Recharge the battery.
■Switch the headset on or off
Switch on
To switch on, press and hold the multifunction key for about 2 seconds. The
headset beeps, and the green indicator light is briefly displayed.
When the headset tries to connect to the paired mobile phone or music player
that you have last used with it, the indicator light slowly flashes green. When
the headset is connected to a paired device and is ready for use, the indicator
light slowly flashes blue. If the headset has not been paired with a device, it
automatically enters the pairing mode (see “Pair and connect the headset,”
p. 7).
If you connect the headset to a device but do not use it for a while, switch off
the headset to save power.
Switch off
To switch off, press and hold the multifunction key for about 5 seconds. The
headset beeps, and the red indicator light is briefly displayed.

Get started
7
■Pair and connect the headset
Pair and connect the headset with a mobile phone that has a
music player feature
If your phone supports the A2DP Bluetooth profile and has a music player
feature, you can use the phone to make and receive calls and to play music
with the headset.
1. Ensure that your phone is switched on.
2. If the headset has not been previously paired with a device, switch on the
headset. The headset enters the pairing mode, and the indicator light starts
to flash blue quickly.
If the headset has been previously paired with another device, switch off
the headset, and press and hold the multifunction key until the indicator
light starts to flash blue quickly.
3. Activate the Bluetooth feature on the phone, and set it to search for
Bluetooth devices. See the user guide of your phone for instructions.
4. Select the headset from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your phone. In
some phones, you may need to make the connection separately after
pairing. You only need to pair the headset with your phone once.
If pairing is successful, the headset appears in the menu of the mobile phone
where you can view the currently paired Bluetooth devices.
When the headset is connected with your mobile phone and ready for use, the
indicator light of the headset slowly flashes blue.
Pair and connect the headset with a music player
If your phone does not support the A2DP Bluetooth profile, you can separately
pair the headset with the phone and a music player that supports this
Bluetooth profile.
If you have paired and connected the headset with your phone, disconnect the
headset from it before pairing the headset with a music player.

Get started
8
To pair the headset with a music player, follow the instructions in “Pair and
connect the headset with a mobile phone that has a music player feature,” p.
7. If your music player does not have a keypad, it may use the Bluetooth
passcode 0000 by default. If this is not the case, see the user guide of your
music player to change the default Bluetooth passcode to 0000.
If pairing is successful and the headset is connected with your music player,
the indicator light of the headset slowly flashes blue.
Disconnect the headset
To disconnect the headset from your device, switch off the headset, or
disconnect it in the Bluetooth menu of your device.
You do not need to delete pairing with the headset to disconnect it.
Reconnect the headset
To connect the headset to the phone or music player that you have last used
with it, switch on the headset, or make the connection in the Bluetooth menu
of your device.
In your device, you may be able to allow the headset to connect to it
automatically when the headset is switched on. To do this in Nokia devices,
change your paired device settings in the Bluetooth menu.

Basic use
9
3. Basic use
■Place the headset over the head
Place the headset over your head so that the speaker pads rest comfortably on
your ears.
Place the pad indicated with L on the left ear and the pad with R on the right
ear. Adjust the headband length for the best fit.
Warning: When using the headset your ability to hear outside sounds may be
affected. Do not use the headset where it can endanger your safety.
■Adjust the volume
To adjust the headset volume, slide the volume key forward to increase or
backward to decrease the volume during a call or while listening to music.
■Call handling
To make a call, use your mobile phone in the normal way when the headset is
connected to it.
If your phone supports redialing with the headset, press the multifunction key
twice quickly when no call is in progress.
If your phone supports voice dialing with the headset, press and hold the
multifunction key for about 2 seconds until the phone starts voice dialing, and
proceed as instructed in the user guide of the phone. Voice dialing cannot be
used during a call.
To answer a call, press the multifunction key, or use the keys of the phone. To
reject the call, press the multifunction key twice quickly.
To end a call, press the multifunction key, or use the keys of the phone.
To mute or unmute the microphone during a call, press the play/pause key.
To switch the call from the headset to a connected phone, press and hold the
play/pause key for about 2 seconds. To switch the call back to the headset,
press the multifunction key once.

Basic use
10
■Listen to music
To listen to music, connect the headset to a compatible music player such as a
mobile phone with a music player feature or other music device. The music
player must support the A2DP Bluetooth profile.
When the headset is connected to a phone but not to a separate music device,
the headset can only be used to make and receive calls if the phone does not
have a music player feature.
The available music functions depend on your music player.
If you receive or make a call while listening to music, the music is paused until
you end the call.
Warning: Listen to music at a moderate level. Continuous exposure to high
volume may damage your hearing.
To play a track, select it in the music player, and press the play/pause key.
To pause or resume playing, press the play/pause key. To stop playing, press
and hold the play/pause key for about 2 seconds.
To select the next track, press the fast forward key. To select the previous
track, press the rewind key. To scroll through the current track quickly during
playback, press and hold either key.
■Clear the settings or reset the headset
To clear the pairing and volume settings, switch off the headset, and press and
hold the multifunction key and slide the volume key forward until the
indicator light alternates red, green, and blue three times.
To reset the headset if it stops functioning, although it is charged, plug the
charger into the headset, and press and hold the multifunction key and slide
the volume key forward. The reset does not clear the headset settings.

Battery information
11
4. Battery information
Your device is powered by a rechargeable battery. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. Recharge your battery
only with Nokia approved chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in use. Do not
leave a fully charged battery connected to a charger, since overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its charge over time.
Never use any charger that is damaged.
Leaving the device in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery. Always try to keep the
battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may
not work temporarily, even when the battery is fully charged. Battery performance is
particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged.

Care and maintenance
12
Care and maintenance
Your device is a product of superior design and craftsmanship and should be treated
with care. The following suggestions will help you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can
contain minerals that will corrode electronic circuits. If your device does get wet,
allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic circuit
boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit
boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest authorized
service facility for service.
