NOMA 052-6972-6 User manual

model no. 052-6972
Turin LED Ceiling Fan
Instruction Manual
Toll-free: 1-866-827-4985
model no. 052-6972-6
IMPORTANT: Please read and understand this manual before any assembly. Before
beginning assembly of product, make sure all parts are present. Compare parts
with exploded view. If any part is missing, or if you have any questions, contact
customer service at 1-866-827-4985 (toll-free).
V. 3 2016

Toll-free: 1-866-827-4985 · model no. 052-6972-6
Exploded view ................................................................................................................. 1
Important safety instructions .................................................................................... 2
Rules for safe installation ............................................................................................ 2
Tools required for assembly ...................................................................................... 3
Assembly ........................................................................................................................... 3
Operation .......................................................................................................................... 7
Maintenance ..................................................................................................................... 8
Care and cleaning .......................................................................................................... 8
Troubleshooting ............................................................................................................. 8
Environmental protection ........................................................................................... 9
Warranty .............................................................................................................................. 10
Table of Contents
IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.

3
1
No. Description Qty.
A
B
C
D
E
F
G
H
I
J
K
L
Mounting Bracket
Downrod
Canopy
Screw Cover
Housing
Fan Assembly
Fan Blade
Light Kit
LED Lamp
Glass Shade
1
1
2
2
1
3
1
1
1
1
No. Description Qty.
M
N
1
Remote Control
1
Receiver
Parts Pack
Balance Pack
Exploded View
EXPLODED VIEW
A
B
C
D
E
F
G
I
JK
LM
1
1
H
N

Toll-free: 1-866-827-4985 • model no. 052-6972-6
2
· Mount only to an outlet box marked acceptable for fan support.
· To prevent injury, make sure the fan blades are not bent and that there are no objects
within the rotation area.
· The important precautions, safeguards and instructions appearing in this manual are not
meant to cover all possible situations. It must be understood that common sense and
caution are factors which cannot be built into the product.
· Not suitable for use with solid-state speed controls.
Import Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
Please retain this manual for future reference.
Note:
· A dry dust cloth is suitable for most cleanings.
· Should the ceiling fan become wet, have a qualified electrician inspect it before next use.
· In order to comply with safety regulations and to avoid safety hazards, ceiling fan repairs must be
carried out by qualified personnel.
· Pay attention to the ceiling fan blades when cleaning, painting or working nearby.
· Children do not recognize the dangers that may occur when operating ceiling fan. Keep children away
from ceiling fans.
DO NOT: · Expose the ceiling fan to water or immerse it in water.
· Operate the ceiling fan if it shows any signs of damage or if it has been dropped.
· Attempt to remove any parts of the housing or insert any object while the ceiling fan is
operating.
· Position the ceiling fan on or near hot surfaces such as stove tops, or near open flames.
· Expose the ceiling fan to rain or moisture.
. Operate the ceiling fan outdoors or with wet hands.
· Use the reverse switch while the fan blades are in motion. This could result in
damage to the ceiling fan.
RULES FOR SAFE INSTALLATION
This ceiling fan is designed for household use only and not for commercial applications. No responsibility
is accepted for damage resulting from improper use or noncompliance with the instructions.
CAUTION!
WARNING!
· To avoid possible electric shock, be sure electricity at the fuse box or the circuit breaker
· All wiring must be done in accordance with national and local wiring codes. Consult a
qualified electrician to ensure correct branch circuit conductor.
· Follow the recommended instructions for the proper method of wiring for the new ceiling
fan. The ceiling fan must be grounded as a precaution against possible electric shock.
electrician.
· The outlet box and joist must be securely mounted and capable of reliably supporting at
least 35 lb (15.9 kg).
· Mount the lowest moving parts at least 6’ 11” (2.1 m) above floor or ground level.
· Make sure all electrical connections are sealed with proper connectors and electrical tape
inside the outlet box.
· Make sure the ceiling fan is securely fastened to the ceiling.
· All set screws must be checked and re-tightened where necessary before fan operation.
is turned off before wiring.
If you do not have sufficient electrical wiring knowledge, have the fan installed by a licensed

3
Parts Pack Containing:
2 wood screws with flat washers
2 5/32" screws with lock washers
3 4x10 screws
4 blade screws
1 “J” hook
This manual is designed to make it as easy as possible for you to assemble, install, operate and maintain
the ceiling fan. The following tools listed are required for assembly and installation:
TOOLS REQUIRED FOR ASSEMBLY
1 x star-head screwdriver
1 x flat screwdriver
1 x wrench
1 x stepladder
1 x wire stripper/pliers
1 x electrical tape
After opening the package you should find all the necessary parts for installing this ceiling fan.
The box should also contain:
1 zip tie
3 balance pieces
1 balancing clip
1 instruction sheet
12
3
ASSEMBLY
Preparing for installation
Getting ready
· Unpack and inspect carefully to make sure all parts are
included and not damaged (see Fig. 1). Lay all pieces out
on a working space.
possible electric shock (see Fig. 2).
Choosing a location for the ceiling fan
32" (81.3 cm) from adjacent walls or obstructions.
· Choose a location where there is a high enough ceiling clearance (at least 6' 11" (2.1 m) from the floor
to the ceiling fan’s lowest moving part).
· Ensure that the outlet box in the room’s ceiling can support the weight of the fan. Typically, if the
outlet box is marked “acceptable for fan support”, it can hold the fan securely.
Mounting option
Drop-mount (for normal ceilings)
· This method is preferred if the ceiling is sloped or vaulted, or if the ceiling
is extra high, requiring the need of a downrod (see Fig. 3).
Tools Required for Assembly

4Toll-free: 1-866-827-4985 • model n o. 052-6972-6
7

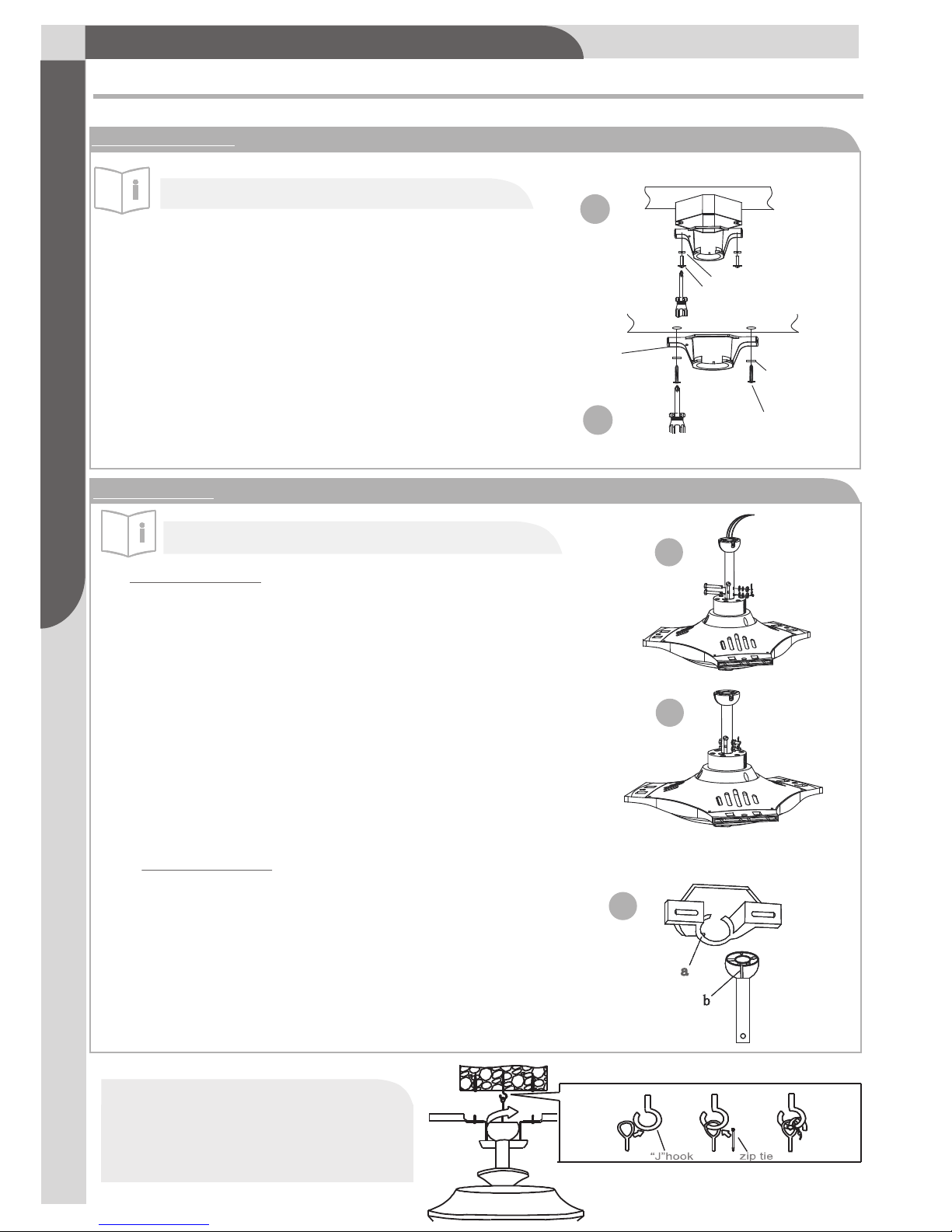

1. Mounting bracket
Installation
4a
3. Dr
2. Drop-mount
Note: Canopy picture may vary depending on style
of ceiling fan.
. Loosen 2 screws on the motor coupling.
Insert the downrod and thread the safety
cable and wire through the downrod (see Fig. 5)
Downrod assembly
. Lock the downrod to the motor, tighten
the 2 screws on the motor coupling
(see Fig. 6).
Hands-free wiring
ASSEMBLY
Note: The mounting bracket depicted will vary
depending on the model .
. Carefully lift the fan assembly onto the mounting
bracket.
. Rotate the fan until the notch (b) on the aluminum
ball fits against the ridge (a) on the mounting
bracket (see Fig. 7).
. With the mounting bracket holding the fan assembly,
follow wiring instructions (step 3).
Assembly
a
b
Outlet box screw
Lock washer
.
. Drill two mounting holes in the ceiling joist.Securely
an outlet box marked “ Acceptable for Fan Support”,
using the supplied outlet box screws with lock washers
(see Fig. 4b).
Securely attach the mounting bracket to
an outlet box marked “Acceptable for Fan
Support”, using the supplied outlet box
screws with lock washers (see Fig. 4a).
6
. Remove the four sets of side screws from mounting
bracket and save for future use.
Normal masonry ceiling
Wooden ceiling
4b
Mounting
bracket
Flat
washer
wood screw
5
NOTE: For added security, attach safety
cable from fan unit to “J” hook in outlet
box. Secure by looping zip tie through
safety cable and “J” hook. Tighten zip
tie securely.

3. Wiring instructions
ASSEMBLY
IMPORTANT: If you are not sure if the electrical outlet box and fan are grounded, contact a
licensed electrician for advice. They must be grounded for safe operation.
WARNING:
before wiring.
Between fan and receiver:
· Connect the black wire marked “L” from the fan to the black wire marked “TO MOTOR L” from the receiver.
· Connect the blue wire marked “FOR LIGHT” from the fan to the blue wire marked “FOR LIGHT” from the
receiver.
· Connect the white wire marked “N” from the fan to the WHITE wire marked “TO MOTOR N” from the receiver.
Between receiver and mains :
· Connect the black live wire marked “AC IN L” from the receiver to the live wire (typically black) from the
outlet box.
· Connect the white neutral wire marked “AC IN N ” from the receiver to the neutral wire (typically white) from
the outlet box.
· Connect the green ground wires from the mounting bracket and hanging ball to the ground wire (bare or
green) from the outlet box.
Assembly
Remote and Receiver Pairing
Codes are set by pushing the location of the dip switches located on the transmitter and receiver
up or down. It is important that the code used for both the remote and receiver are identical for
the two devices to be able to communicate; otherwise the remote will not be able to control
the fan.
If you plan to install more than one fan then each fan will require the remote and receive to
use a unique code, or else one remote will be able to control more than one fan.
Installing Receiver Assembly
Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket .
Downrod
Receiver
Antenna:
DO NOT CUT
OR SPLICE

6
9
10
11
12a
12b
13
Toll-free: 1-866-827-4985 • model no. 052-6972-6

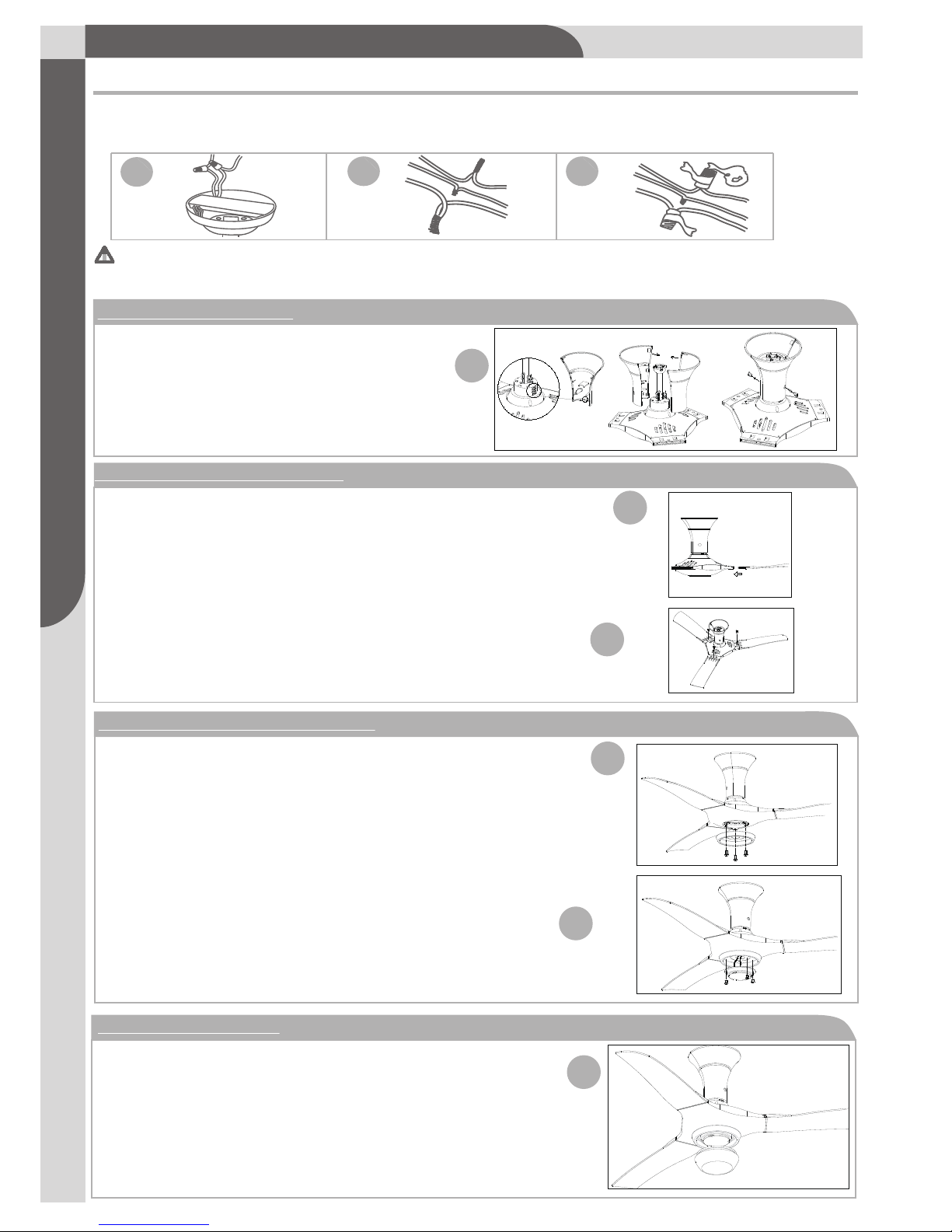

4. Attach canopy to motor
. Insert fan blade into slot of motor assembly
(see Fig. 10).
. Raise the upper canopy and tighten it.
Be sure the upper canopy does not touch
the ceiling. Insert the screw cover (2 pcs)
as shown (see Fig. 9).
5. Attach blade assembly to motor
. Ensure all screws holding the blades are tightly
secured (see Fig. 11).
6. Connect switch housing and light kit
. Make wire connection. Plug the connector
from the motor into the connector from the
fan light.
Carefully put the wires into the switch box.
Secure the fan light up to the bottom of the
motor with fan light screws (see Fig. 12b).
. Secure the fan light up to the bottom
of the motor with fan light screws (see
Fig. 12a).
7. Mounting light kit glass
. Install the glass shade by screwing it onto
the central fan fixture. Make sure the glass
shade is securely attached, but DO NOT over
tighten (see Fig. 13).
ASSEMBLY
Assembly
· When wires are matched up, connect them by twisting frayed ends together (see Fig. 8a).
· Screw wire connectors (3 are provided) onto the tops of the twisted wires (see Fig. 8b).
· Fasten them with electrical tape (see Fig. 8c).
WARNING: Be sure no bare wire or wire strands are visible after making connections. Place
green and white connections on opposite side of box from the black and blue (if applicable)
connections.
8c
8a 8b

14
15
7

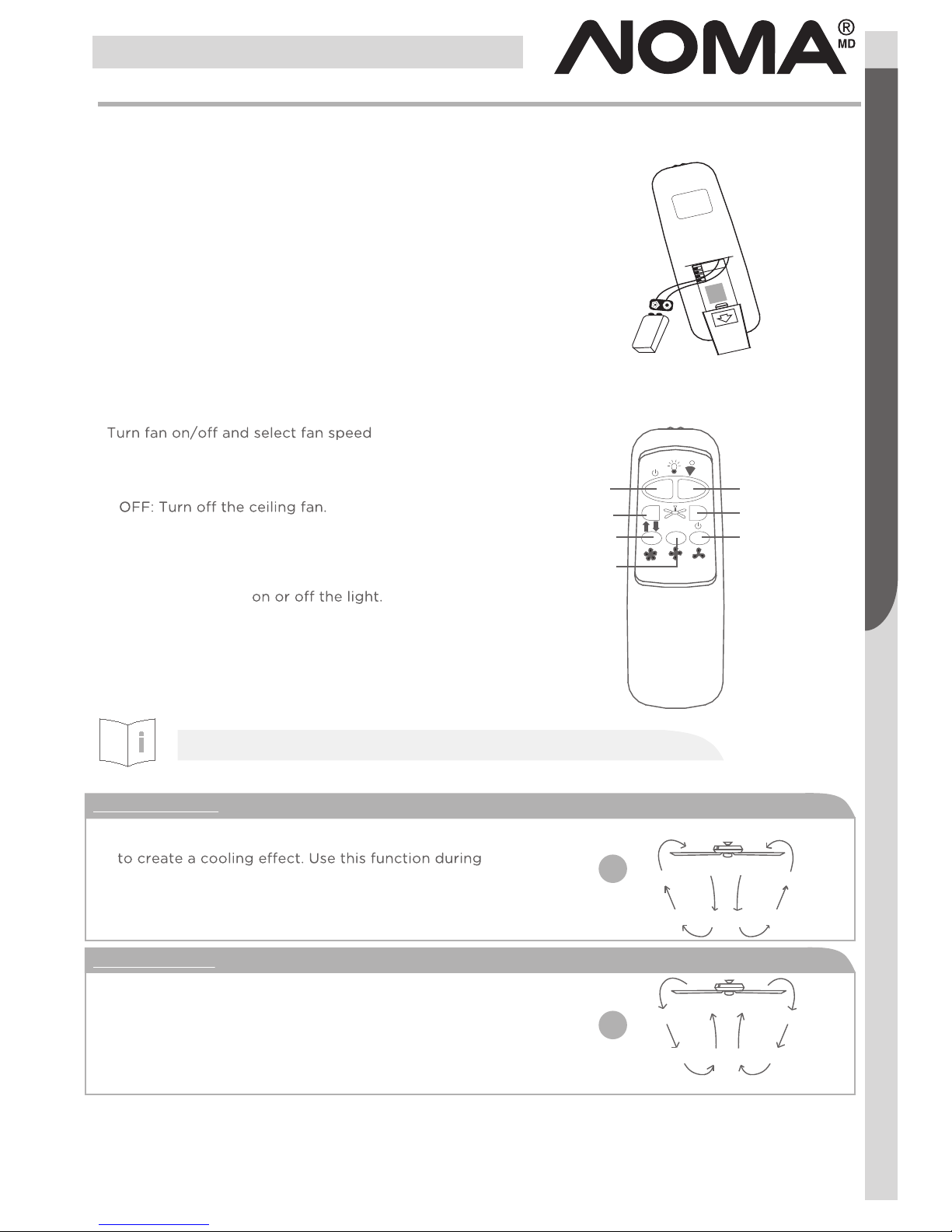

OPERATION
Forward function
Reverse function
LIGHT
ON/OFF
HI
REVERSE ROTATION
MED
DIMMER
FAN OFF
LOW
· Restore power to ceiling fan and test for proper operation.
· The fan remote control controls the fan settings:
HI: Turn on the fan at high speed.
MED: Turn on the fan at medium speed.
LOW: Turn on the fan at low speed.
LIGHT: ON/OFF: Press and release immediately to turn
DIMMER: Press and hold on to dim or brighten
lights to the desired level and release
(only for the tungsten bulb).
REVERSE ROTATION: Turn on the fan with reserse rotation
Note: Do not use the reverse switch when the fan blades are in motion.
· On this setting, the fan will turn counter-clockwise
warmer weather to circulate the hot air away from
your living space (see Fig. 14).
. On this setting, the fan will turn clockwise. Use this
function during cooler weather to re-circulate warm
air (see Fig. 15).
Operation
9V
Battery
Install the 9 V battery (included). To prevent damage to transmitter
remove the battery if not used for long periods .

Toll-free: 1-866-827-4985 • model no. 052-6972-6
8
MAINTENANCE
· Because of the fan’s natural movement, some connections may become loose. Check the support
connections, brackets and blade attachments twice a year. Make sure they are secure.
· There is no need to oil your fan. The motor has permanently-lubricated bearings.
CARE AND CLEANING
· Dust your fan periodically with a soft, dry cloth. Do not use harsh cleaners or materials as they may
damage the unit.
· To prevent bending the blades during cleaning, support the blades so that no pressure is applied to
them.
Caution!
Do not allow water to come in contact with fan blades or the ceiling fan. Doing so will create
fire and /or shock hazards, damaging property.
TROUBLESHOOTING
If problems persist, seek help from a certified electrician.
Problem
Fan is noisy
during
operation
Fan does not
start
Possible reason
· Blade screws are loose.
· The mounting bracket or canopy is loose.
· Screws securing decorative housing to
hanger are loose.
· Lamp shades or bulbs are loose.
· Screws securing downrod to hanger are
loose.
· Wire connectors are vibrating against the
inside of canopy.
· Light kit or light bulb is not firmly
attached.
· Canopy is rattling against ceiling.
· Motor housing screws have come loose.
. Fuse is blown, or circuit breaker has
tripped.
. Loose or in correct power line
connections to the fan or switch wires.
Solution
· Tighten screws on blades with a
screwdriver.
· Check and tighten the screws.
· Check and tighten the screws.
· Tighten by hand, as necessary.
· Check and tighten screws.
· Disconnect power at fuse box, loosen
canopy and re-position connectors.
· Remove and re-attach.
· Be sure canopy is not touching ceiling.
· Check and tighten the screws.
· Check main fuse and branch circuit
fuses or circuit breaker. Repair as
necessary.
· Check all the wire connections to
fan and housing wiring. Repair as
necessary.
Caution! Make sure the main
Troubleshooting

9
13

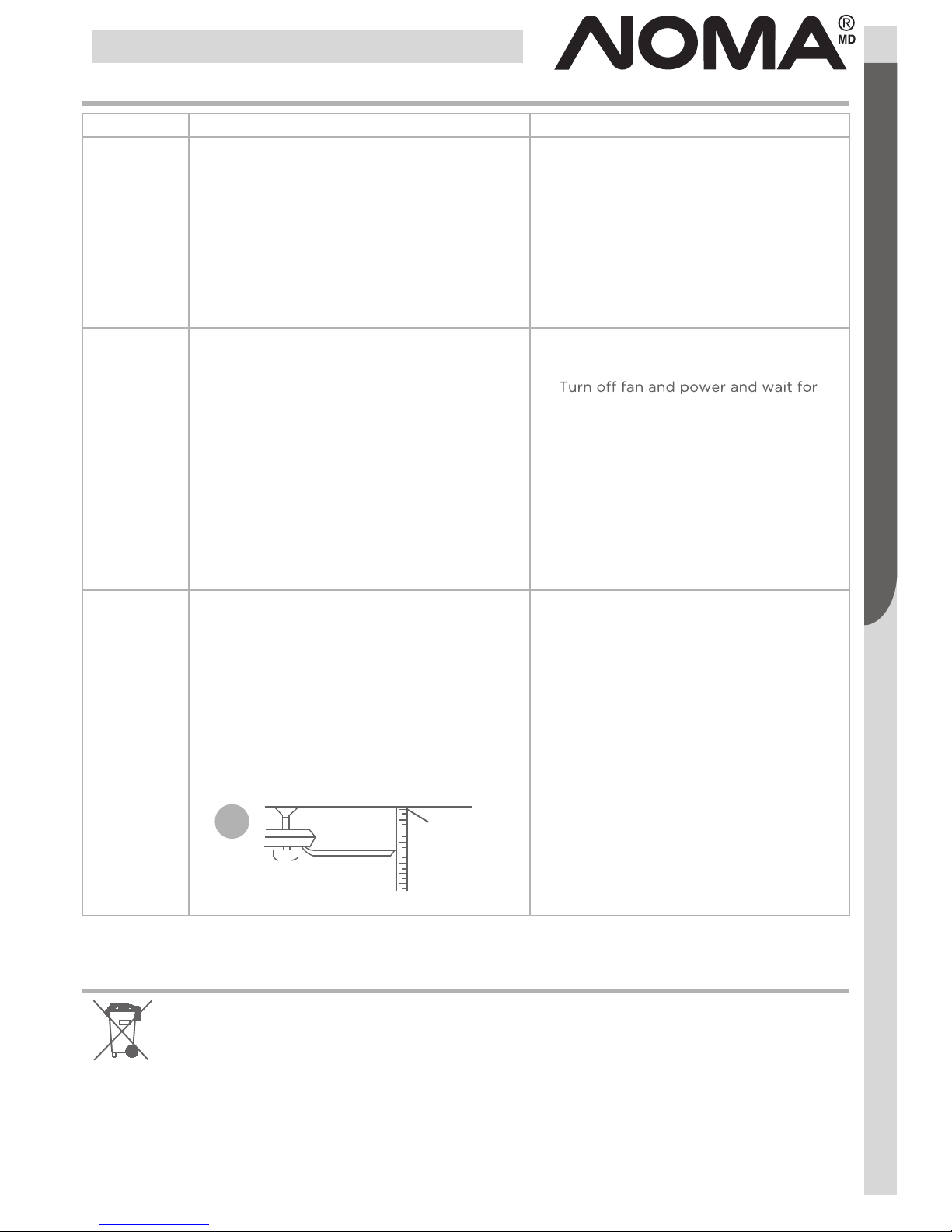

TROUBLESHOOTING
Light does
not work
Fan does
not seem to
move much
air
Fan wobbles
or shakes
excessively
· Wires are not properly connected.
· Light bulbs are faulty.
· This fan is equipped with a 190 W
LIMITER that will automatically turn
the light o total wattage exceeds
the maximum wattage level.
· Fan is in reverse (blades are moving in
clockwise direction).
· Fan is not properly located.
· Screws securing fan blade clips to motor
are loose.
· Fan blade and its blade clip are not
fastened securely.
· Canopy and mounting bracket are not
tightened securely.
· Blades are unbalanced.
Touching
ceiling
· Ensure wire connector in switch
housing is connected.
· Unscrew light bulbs and discard
properly.
· Turn the power OFF and replace
the bulbs with lower wattage bulbs
so that the total wattage is below
190 W.
· Counter-clockwise (forward) is
recommended in warm weather.
rotation to stop. Use the eraser end
of a pencil to change the forward/
reverse slide switch.
· Place fan in the centre of the room
so there is at least 12" (30 cm)
between the end of the blades and
walls or other obstructions.
. Make sure that screws which attach
fan blade clips to motor are fastened
and tightened.
. Tighten screws of fan blade to blade
clip securely.
. Ensure that canopy and mounting
bracket are tightened securely to
ceiling joist.
. Check by selecting a point on the
ceiling above the tip of one of the
blades. Measure this distance and
ensure all blades are even (see Fig.
13). If all blade levels are not equal,
adjust accordingly (see Balancing Kit
Manual).
ENVIRONMENTAL PROTECTION
Discarded electrical appliances are recyclable and should not be discarded in your regular
domestic waste! Please actively support us in conserving resources and protecting the
environment by returning this appliance to a collection centre (if available).
Battery reclamation (please keep to comply with the local law).
Problem Possible reason Solution
Troubleshooting

Toll-free: 1-866-827-4985 • model no. 052-6972-6
WARRANTY
10
Warranty
This Noma product carries a limited ten (10) year warranty against defects in the motor, and a one (1) year
warranty against defects in workmanship and materials. Noma Canada agrees to replace the defective
product free of charge within the stated warranty period, when returned by the original purchaser with proof
of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
Made in China
Imported by
Noma Canada, Toronto, Canada M4S 2B8
Subject to the conditions and limitations described below, this product, if returned to us with proof of
purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear the
cost of any repair or replacement and any costs of labor relating thereto.
These warranties are subject to the following conditions and limitations:
a) A bill of sale verifying the purchase and purchase date must be provided;
b) This warranty will not apply to any product or part thereof which is worn or broken or which has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation,
operation or maintenance (as outlined in the applicable owner’s manual or operating instructions)
or which is being used for industrial, professional, commercial or rental purposes;
c) This warranty will not apply to normal wear and tear or to expendable parts or accessories that
may be supplied with the product that are expected to become inoperative or unusable after a
reasonable period of use;
d) This warranty will not apply to routine maintenance and consumable items such as, but not limited
to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) This warranty will not apply where damage is caused by repairs made or attempted by others
(i.e. persons not authorized by the manufacturer);
f) This warranty will not apply to any product that was sold to the original purchaser as a
reconditioned or refurbished product (unless otherwise specified in writing);
g) This warranty will not apply to any product or part thereof if any part from another manufacturer
is installed therein or any repairs or alterations have been made or attempted by unauthorized
persons;
h) This warranty will not apply to normal deterioration of the exterior finish, such as, but not limited
to, scratches, dents, paint chips, or to any corrosion or discoloring by heat, abrasive and chemical
cleaners; and
i) This warranty will not apply to component parts sold by and identified as the product of another
company, which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor
the manufacturer shall be liable for any other expense, loss or damage, including, without limitation,
any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or
inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify, take
away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or
federal legislation
