NordicTrack E11.0 Elliptical User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal (under frame)
USERʼS MANUAL
Model No. NTEVEL90910.0
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5Q
UK
AUSTRALIA
Call: 1-800-237-173
E-mail:
[email protected]
www.iconeurope.com

2
NordicTrack is a registered trademark of ICON IP, Inc.
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEELLIPTICAL .............................................................14
MAINTENANCEANDTROUBLESHOOTING ...................................................23
EXERCISEGUIDELINES ...................................................................25
PARTLIST ..............................................................................27
EXPLODEDDRAWING ....................................................................29
RECYCLINGINFORMATION.........................................................BackCover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with a
mat beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (0.9 m) of
clearance in the front and rear of the elliptical
and 2 ft. (0.6 m) on each side.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack®
E11.0 elliptical. The E 11.0 elliptical provides an
impressive selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Upper Body Arm
Access Cover
Wheel
Pedal
Accessory Tray
Console
Leveling Foot
Handle
Power
Switch
Latch Button
Ramp
Storage Magnet
Pedal Arm Latch
Leveling Foot
Power Cord
H: 5 ft. 5 in. (165 cm)
W: 2 ft. 3 in. (69 cm)
L: 6 ft. 9 in. (206 cm)
Wt.: 192 lbs. (87 kg)

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s) and grease packet(s), assembly requires a Phillips
screwdriver and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M10 x 95mm Patch
Screw (100)–4
M8 Split Washer
(103)–14
M8 Washer
(95)–6
M8 x 16mm Patch
Screw (102)–16
Wave Washer
(118)–2
M6 Washer
(112)–8
M8 x 25mm Patch
Screw (121)–2
M6 x 50mm Patch
Screw (62)–4
M8 x 35mm Patch
Screw (149)–2
M4 x 19mm
Screw (156)–8
M6 x 13mm Patch
Screw (111)–4

6
1.
Orient the Rear Stabilizer (4) as shown.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Patch Screws
(100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and lower the Rear
Stabilizer and the Folding Frame (2) to the floor.
4
1
To make assembly easier, read the
information on page 5 before you begin.
100
Handle
2
67
2. Orient the Front Stabilizer (3) so that the indi-
cated hole is facing the pin on the Main Frame
(1).
While a second person lifts the front of the Main
Frame (1), attach the Front Stabilizer (3) with
two M10 x 95mm Patch Screws (100).
2
3
1
100
Hole
Pin

7
3. Identify and orient the Upright (5) and the Top
Cover (27) as shown.
Slide the Top Cover (27) upward onto the
Upright (5).
Have a second person hold the Upright (5) and
the Top Cover (27) near the Main Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Main Wire (60).
Next, pull the upper end of the wire tie until the
Main Wire is routed through the Upright.
Tip: To prevent the Main Wire (60) from
falling into the Upright (5), secure the Main
Wire with the wire tie.
4. Tip: Avoid pinching the Main Wire (60). Insert
the Upright (5) into the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103); do not tighten the Patch Screws yet.
You will tighten the Patch Screws at the end
of step 11.
3
5
Wire Tie
Wire Tie
27
60
1
4
5
60
102
102
102
102 103
103
103
1
Avoid pinching the
Main Wire (60)

8
6
5
5. Using a small plastic bag to keep your fingers
clean, apply a coat of the included grease to the
Upright Axle (48) and to two Wave Washers
(118).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Tighten an M8 x 16mm Patch Screw (102) and
an M8 Washer (95) into each end of the Upright
Axle (48) at the same time.
Grease
Grease
95
5
7
102
95
102
118
48
60
6
118
6. Identify the Right Pedal (14) and the Right
Pedal Arm (12), which are marked with “Right”
stickers, and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 13mm Patch Screws
(111) and two M6 Washers (112); do not
tighten the Patch Screws yet.
Next, tighten two M6 x 50mm Patch Screws
(62) and two M6 Washers (112) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,
tighten the two M6 x 13mm Patch Screws
(111).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) assembly in the
same way.
14
12
111
112
112 62

9
8a
8. See drawing 8a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12).
Set the Pedal Arm Roller (32) on the right side
of the Ramp (130).
See drawing 8b. Pull upward on the Latch (50)
on the Right Pedal Arm (12).
Press the Right Pedal Arm (12) onto the right
Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
32
12
130
7. Apply grease to the axle on the right Crank Arm
(39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39).
Attach the Pedal Arm Sleeve (46) with an M8 x
25mm Patch Screw (121), a Large Axle Cover
(113), and an M8 Washer (95). Tip: Avoid
damaging the Large Axle Cover when tight-
ening the Patch Screw.
Repeat this step on the other side of the
elliptical.
8b
46
12
50
7
95
113
46
Flat
Side
Grease
121
39

10
10. Apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle (114) into the Right
Upper Body Leg (6) and the Right Link Arm (43)
from the side shown.
Insert a hex key into the M8 x 35mm Patch
Screw (149) in the Link Arm Axle (114).
Using a second hex key, tighten another M8 x
35mm Patch Screw (149), a Small Axle Cover
(56), and an M8 Washer (95) into the other end
of the Link Arm Axle (114). Tip: Avoid damag-
ing the Small Axle Cover when tightening
the Patch Screw.
Repeat this step on the other side of the
elliptical.
10
9. Orient the Ramp Cover (131) around the
Upright (5) as shown.
Press the tabs on the Ramp Cover (131) into
the Ramp (130).
9
131
130
5
95
43
56
6
114
149
149 Grease

11
12
11
9
7
6
8
102
102
103
11. Identify the Right Upper Body Arm (8), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg
(6).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Patch Screws (102) and three M8 Split
Washers (103).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
See step 4 on page 7. Tighten the M8 x 16mm
Patch Screws (102).
Slide the Top Cover (27) downward and press it
into the Right and Left Frame Covers (21, 22).
12. Identify the Right Handlebar (10), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Handlebar
(10) near the right side of the Upright (5).
Insert the Pulse Wire (105) from the Right
Handlebar (10) into the right side of the Upright
(5) and pull it upward out of the top of the
Upright.
Tip: Avoid pinching the Pulse Wire (105).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Patch Screws (102)
and two M8 Split Washers (103).
Attach the Left Handlebar (11) in the same
way.102
103
105
105
10
11
5
Avoid pinching the
Pulse Wires (105)
27
21, 22

12
13
14
14. Untie and discard the wire tie attached to the
Main Wire (60).
While a second person holds the Console (33)
near the Upright (5), connect the wires on the
Console to the Main Wire (60) and to the Pulse
Wires (105).
Insert the excess wire downward into the
Upright (5) or upward into the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
19mm Screws (156).
33
105
5
60
25
156
5
13. Orient the Rear Upright Cover (25) as shown.
Attach the Rear Upright Cover (25) to the
Upright (5) with four M4 x 19mm Screws (156).
Avoid pinching
the wires
156
156

13
16. Make sure that all parts of the elliptical are properly tightened. Note: An extra grease packet and some
hardware may be left over after assembly is completed. To protect the floor or carpet from damage, place a
mat under the elliptical.
24
25

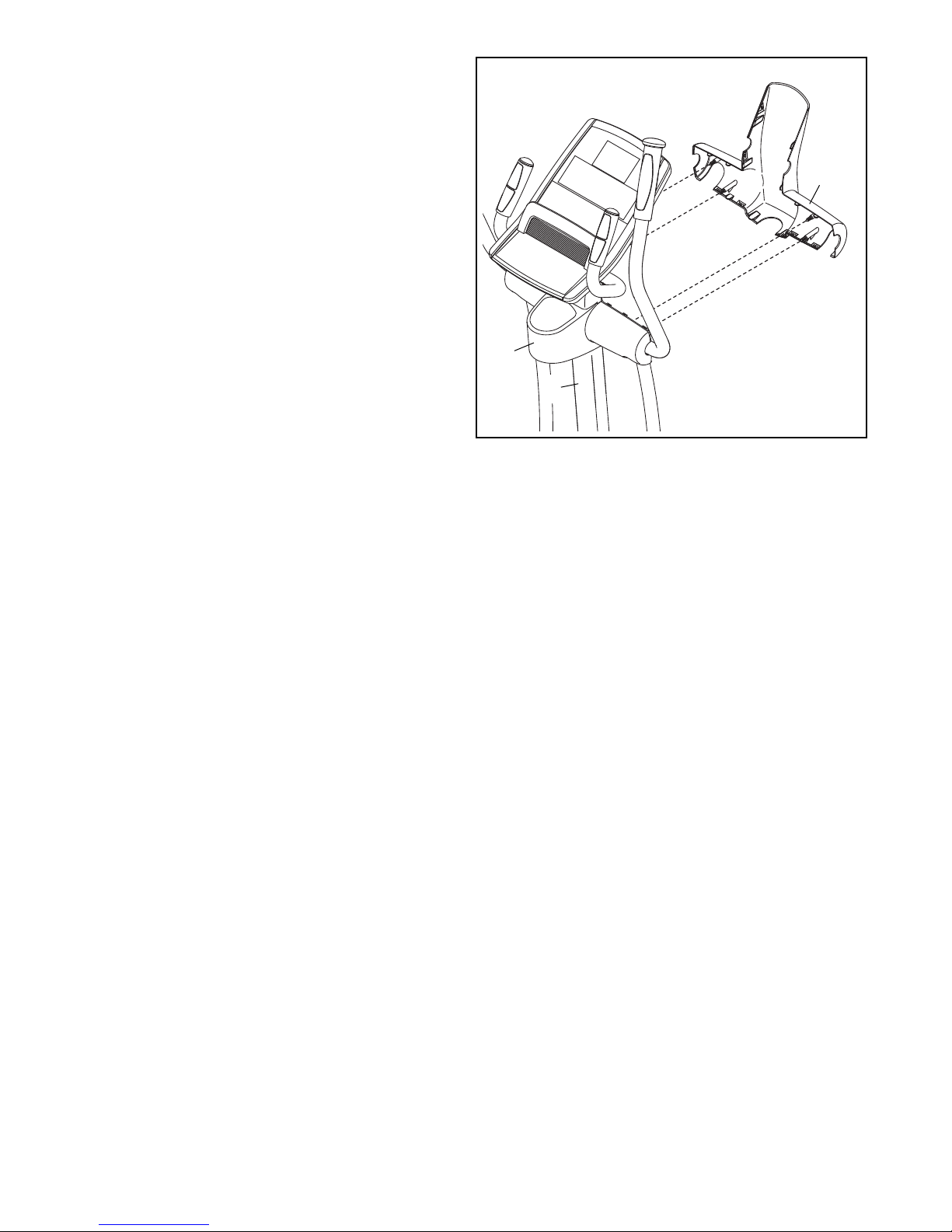

15. Orient the Front Upright Cover (24) as shown.
Attach the Front Upright Cover (24) around the
Upright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (25).
5
15

14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product is equipped with a power
cord having an equipment-earthing conductor and an
earthing plug. IMPORTANT: If the power cord is
damaged, it must be replaced with a manufacturer-
recommended power cord.

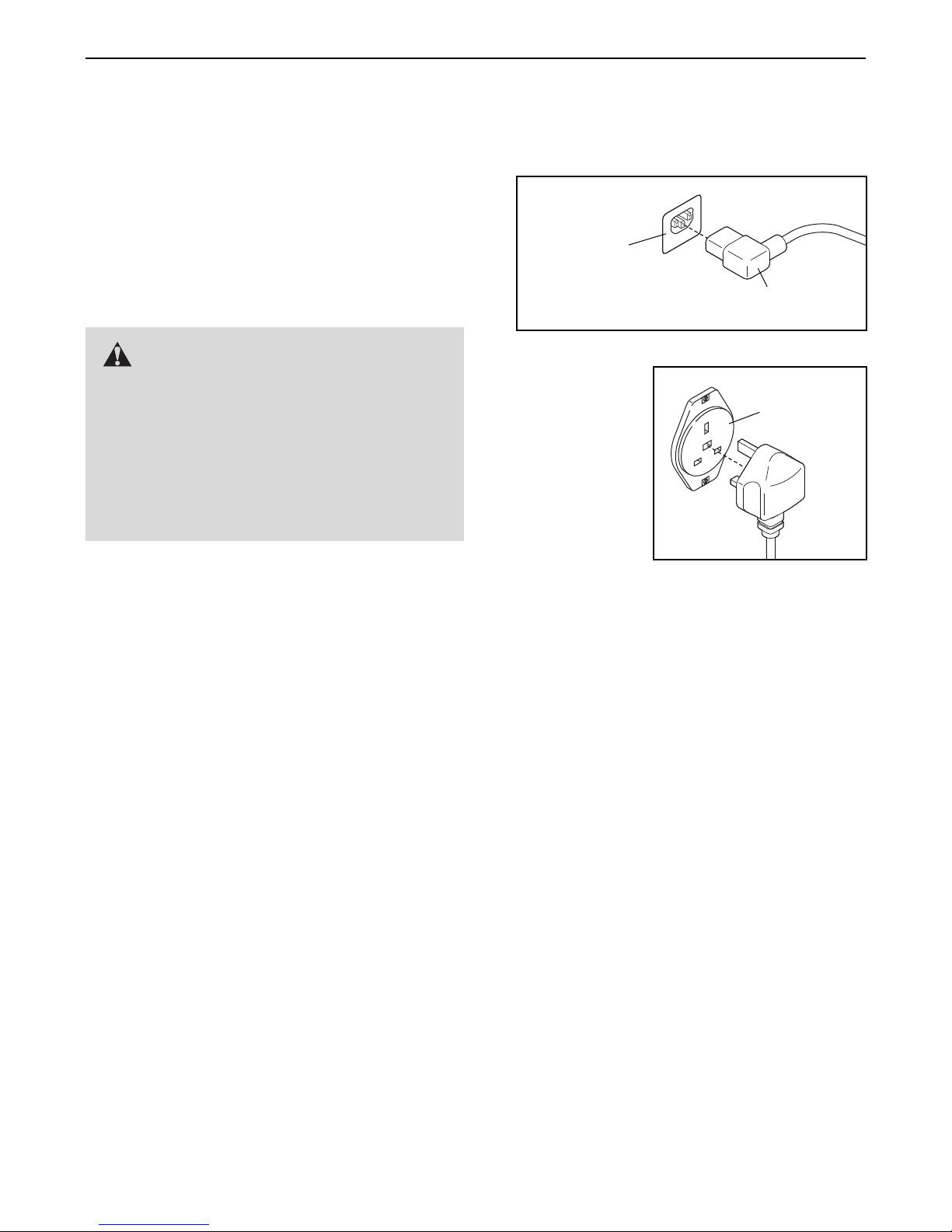

1. Plug the indicated end of the power cord into the
receptacle on the elliptical.
2. Plug the power
cord into an
appropriate out-
let that is
properly
installed and
earthed in
accordance
with all local
codes and ordi-
nances.
DANGER: Improper connection
of the equipment-earthing conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly earthed. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Receptacle
on Elliptical
Power Cord
Outlet

15
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described on page
14. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
With the help of a second person, carefully move the
elliptical to the desired location, and then lower it to
the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the level-
ing feet beneath
the rear stabi-
lizer until the
rocking motion is
eliminated.
If the frame of
the elliptical
flexes during
use, turn the
center leveling
foot until the flex-
ing motion is
eliminated.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms and
step onto the pedal that is in the lowest position. Next,
step onto the other pedal. Push the pedals until they
begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the oppo-
site direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Leveling
Feet
Leveling
Foot
Upper Body Arms
Handlebars
Pedals
Crank
Arm
Pull on
the upright
Place your
foot here

16
CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the
incline of the ramp with the touch of a button. While
you exercise, the console will display continuous exer-
cise feedback. You can also measure your heart rate
using the handgrip pulse sensor or the optional chest
pulse sensor.
In addition, the console offers twenty-four onboard
workouts—eight calories workouts, six intensity work-
outs, five speed workouts, and five incline workouts.
Each workout automatically changes the resistance of
the pedals and the incline of the ramp and prompts
you to vary your pedaling pace as it guides you
through an effective workout.
The console also features revolutionary iFit Live tech-
nology that enables the console to communicate with
your wireless network through an optional iFit Live
module. With the iFit Live mode, you can download
personalized workouts, create your own workouts,
track your workout results, race against other runners,
and access many other features. To purchase an iFit
Live module at any time, go to www.iFit.com or
call the telephone number on the front cover of
this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 17. To use the
manual mode, see page 17. To use an onboard
workout, see page 19. To use an iFit Live workout,
see page 21. To use the sound system, see page
22. To change console settings, see page 22.
Note: If there is a sheet of plastic on the display,
remove the plastic.

17
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
14). Next, locate the power
switch on the frame near
the power cord. Make sure
that the power switch is in
the reset position.
The display will then light and the console will be
ready for use.
Note: When you turn on the power for the first
time, the ramp will calibrate automatically. The
ramp will move upward and downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate auto-
matically, see HOW TO CALIBRATE THE RAMP on
page 23 and manually calibrate the ramp.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER above.
2. Select the manual mode.
Press the Manual button on the console. Note: If
you are not connected to iFit Live, the manual
mode will be selected automatically.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the 1 Step Resistance increase and
decrease buttons or one of the numbered 1 Step
Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press the Power Adjustable Ramp increase and
decrease buttons.
Note: After you press the button, it will take a
moment for the ramp to reach the selected incline
level.
4. Follow your progress with the display.
The display can show the following workout
information:
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)—This display mode will show the
distance that you have pedaled in miles or kilome-
ters.
Incline—This display mode will show the incline
level of the ramp for a few seconds each time the
incline level changes.
Reset
Position

18
Pulse—This display mode will show your heart
rate when you use the handgrip pulse sensor or
the optional chest pulse sensor (see step 5).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
RPM—This display mode will show your pedaling
speed in revolutions per minute (rpm).
Stride—This display mode will show the total
number of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show
the time remaining in the workout.
The matrix offers several display tabs. Press the
increase and decrease buttons next to the Enter
button until the desired tab is shown.
Incline—This tab will show a profile of the incline
settings of the workout. A new segment will appear
at the end of each minute.
Speed—This tab will show a profile of the speed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail—This tab will show a track that repre-
sents 1/4 mile (400 meters). As you exercise, the
flashing rectangle will show your progress. The My
Trail tab will also show the number of laps you are
completing.
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar will
indicate the approximate intensity level of your
exercise.
Press the Home button to return to the default
menu (see HOW TO CHANGE CONSOLE
SETTINGS on page 22 to set the default menu). If
necessary, press the Home button again.
When a wireless iFit Live mod-
ule is connected, the wireless
symbol at the top of the dis-
play will show the strength of
your wireless signal. Four arcs
indicate full signal strength.
To exit the manual mode or a workout, press the
Home button. If necessary, press the Home button
again.
Change the volume
level of the console by
pressing the Volume
increase and decrease
buttons.
5. Measure your heart rate if desired.
You can measure you heart rate using either the
handgrip pulse sensor or an optional chest pulse
sensor (see page 22 for information about the
optional chest pulse sensor). Note: If you hold the
handgrip pulse sensor and wear the chest pulse
sensor at the same time, the console will not dis-
play your heart rate accurately.
If there are
sheets of plastic
on the metal
contacts on the
handgrip pulse
sensor, remove
the plastic. To
measure your
heart rate, hold
the handgrip
pulse sensor with
your palms rest-
ing against the metal contacts. Avoid moving
your hands or gripping the contacts tightly.
Contacts

19
When your pulse is detected, a heart symbol in
will flash in the display each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15 sec-
onds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components on the elliptical may
wear prematurely.
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on page
17.
2. Select an onboard workout.
To select an onboard workout, press the Calories
button, the Intensity button, the Speed button, or
the Incline button repeatedly until the desired
workout appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. A profile of the speed settings of
the workout will appear in the matrix.
The display will also show the maximum pedaling
speed (rpm), the maximum resistance level, and
the maximum ramp level.
If you select a calorie workout, the approximate
number of calories you will burn will appear in the
name of the workout.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level, one ramp incline
level, and one target rpm (speed) are programmed
for each segment. Note: The same resistance
level, ramp incline level, and/or target rpm may be
programmed for consecutive segments.
The resistance level, the ramp incline level, and
the target rpm for the first segment will appear in
the matrix.
During the
workout,
the profiles
on the
speed and
incline tabs
will show
your
progress.
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the target speed or the
incline level for the current segment.
Profile

20
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
tance level, ramp incline level, and/or target rpm is
programmed for the next segment, the resistance
level, ramp incline level, and/or target rpm will
appear in the display for a few seconds to alert
you. The resistance of the pedals and the incline
level of the ramp will then change.
As you exercise, you will be prompted to keep
your pedaling speed near the target rpm for the
current segment. When an upward-pointing arrow
appears in the display, increase your pace. When
a downward-pointing arrow appears, decrease
your pace. When no arrow appears, maintain your
current pace.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling speed
may be slower than the target rpm. Make sure
to pedal at a speed that is comfortable for you.
If the resistance level or incline level for the cur-
rent segment is too high or too low, you can
manually override the setting by pressing the 1
Step Resistance buttons or the Power Adjustable
Ramp buttons. IMPORTANT: When the current
segment of the workout ends, the pedals will
automatically adjust to the resistance level
programmed for the next segment and the
ramp will automatically adjust to the incline
level programmed for the next segment.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories
that you burn will depend on your weight. In
addition, if you manually change the resistance
level or if your pedaling speed does not match
the target rpm during the workout, the number
of calories you burn will be affected.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 17.
5. Measure your heart rate if desired.
See step 5 on page 18.
6. When you are finished exercising, unplug the
power cord.
See step 6 on page 19.
