CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. NTE13920
Serial No. _
Serial Number
Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
USER’S MANUAL

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.

3
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual before
using the elliptical exerciser.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
in-home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
4. Place the elliptical exerciser on a level sur-
face, with a mat beneath it to protect the
floor or carpet. Keep the elliptical exerciser
indoors, away from moisture and dust.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothing when
using the elliptical exerciser. Always wear
athletic shoes for foot protection.
9. Always hold the handlebars when mounting,
dismounting, or using the elliptical exerciser.
10. Keep your back straight when using the ellip-
tical exerciser; do not arch your back.
11. If you feel pain or dizziness while exercis-
ing, stop immediately and cool down.
12. The pulse sensors are not medical devices.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensors are intended
only as exercise aids in determining heart
rate trends in general.
13. When you stop exercising, allow the pedals
to slowly come to a complete stop. The ellip-
tical exerciser does not have a free wheel;
the pedals will continue to move until the
flywheel stops.
14.Always unplug the power cord immediately
after use and before cleaning the elliptical
exerciser.
15.The decal shown below has been placed on
the elliptical exerciser. If the decal is missing
or illegible, please call our Customer Service
Department toll-free at 1-888-825-2588 to
order a free replacement decal. Apply the
decal in the location shown.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Congratulations for selecting the new NordicTrack®
CX 995 elliptical exerciser. The CX 995 is an incredi-
bly smooth exerciser that moves your feet in a natural
elliptical path, minimizing the impact on your knees
and ankles. And the unique CX 995 features
adjustable resistance and incline to help you get the
most from your exercise. Welcome to a whole new
world of natural, elliptical-motion exercise from
NordicTrack.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have addi-
tional questions, please call our Customer Service
Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is NTE13920. The
serial number can be found on a decal attached to the
elliptical exerciser (see the front cover of this manual
for the location of the decal).

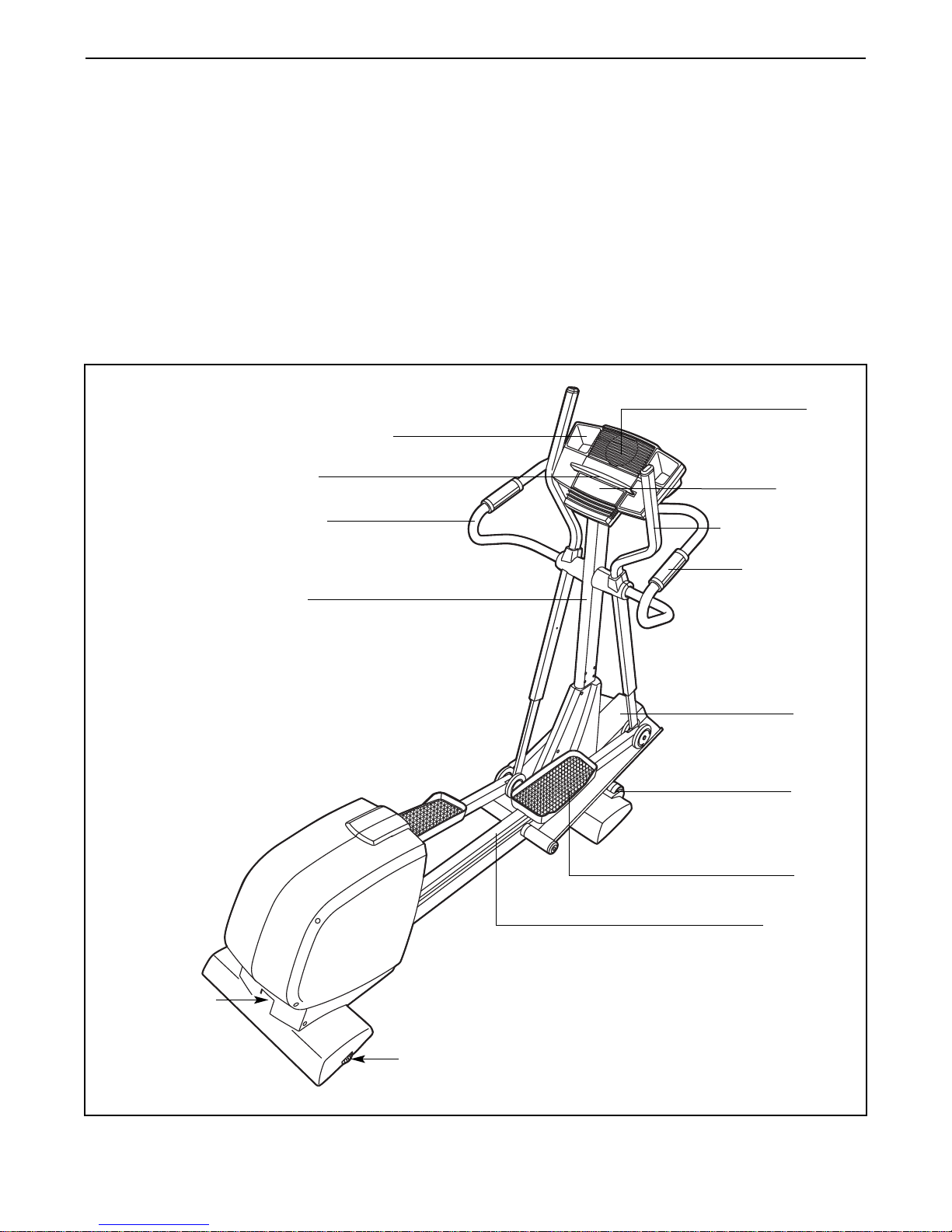

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder*
*No water bottle is included
Handlebar
Pulse Sensor
FRONT
BACK
RIGHT SIDE
Power Socket
Wheel
Pedal
Fan
Bookrack Console
Ramp
Upright
Upper Body Arm
Leveling Foot
Pedal Leg

5
M10 x 110mm Button Screw (70)–2
M8 x 58mm Button Screw (83)–4
M8 x 44mm Button Screw (84)–8
M6 x 16mm Patch
Screw (76)–4
M8 x 41mm Button
Bolt (85)–4
M10 Split
Washer (73)–2
M4 x 12mm
Screw (96)–1
M10 x 78mm Bolt Set (65)–2
M6 Washer
(64)–2 Spacer (109)–2 M8 Jam Nut
(86)–6
M10 Washer
(126)–2
M4 x 16mm
Screw (98)–4
M8 x 38mm Button
Bolt (105)–2

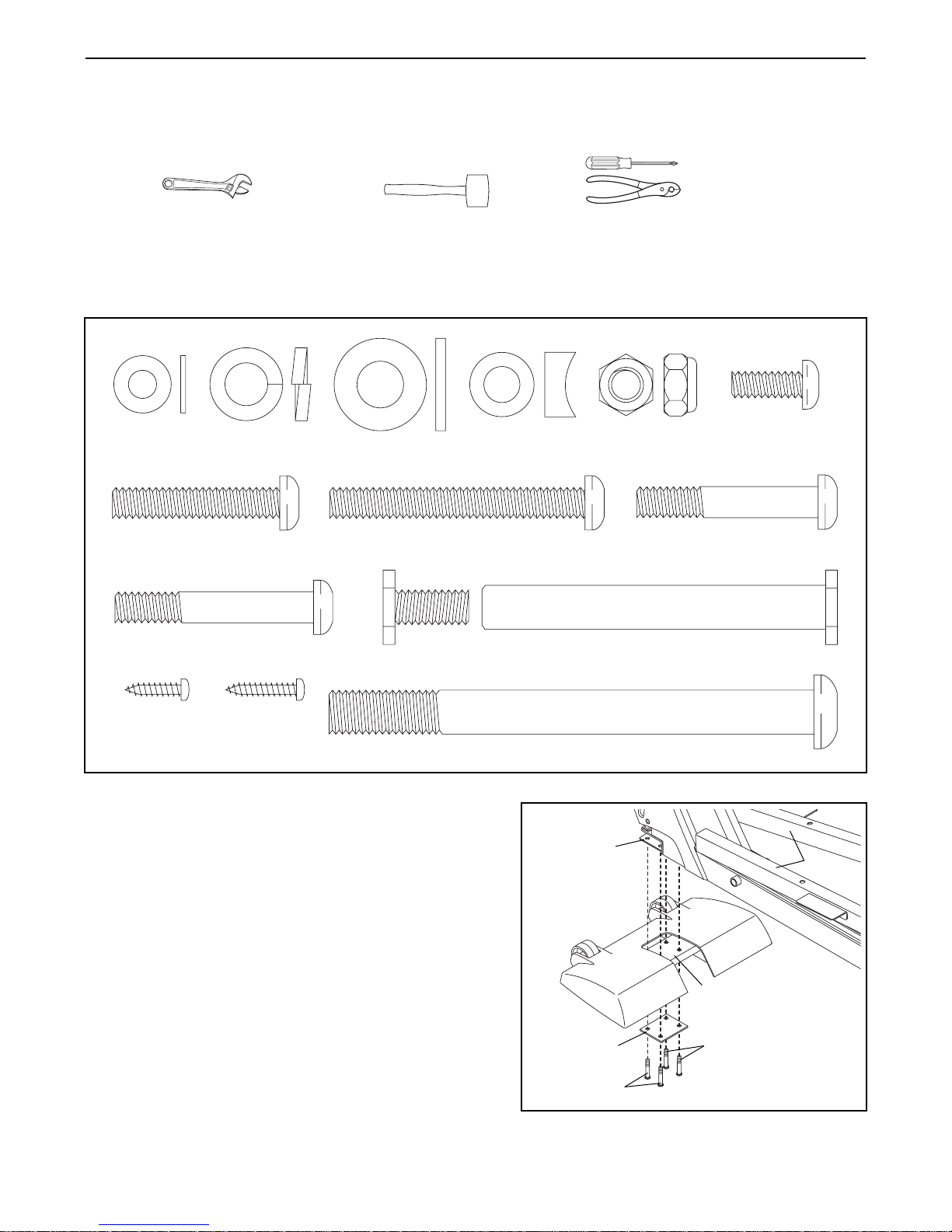

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , two adjustable
wrenches , a rubber mallet , and pliers .
As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
pages 28 and 29. The second number refers to the quantity used in assembly. Note: Some small parts may
have been pre-assembled. If a part is not in the parts bag, check to see if it is pre-assembled.
1. Identify the Front Stabilizer (8). While another person
lifts the front of the Frame (1) and holds the Pedal
Legs (4, 5) in the position shown, attach the Front
Stabilizer to the Frame with four M8 x 44mm Button
Screws (84) and a Support Plate (104).
While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (not shown) to the Frame
in the same way.
1
8
4, 5
1
104
84
84

6
3
14
1
Grease
48
48
76
76
99
99 Tubes
2. Identify the Pivot Axle (14), which is the longer of the
two axles. Slide a Ramp Cover (48) onto an M6 x
16mm Patch Screw (76) as shown. Tighten the Patch
Screw into one end of the Pivot Axle. Apply a small
amount of the included grease to the Pivot Axle.
Have a second person hold the two Ramp Spacers
(99) against the sides of the Frame (1) so that they
cover the indicated tubes on the Frame. Align the
round tubes on the Ramp (3) with the Ramp Spacers.
Make sure that the Ramp is turned as shown in
drawing 3 below. Insert the Pivot Axle (14) into the
Ramp, the Ramp Spacers, and the Frame. If neces-
sary, tap the Pivot Axle with a rubber mallet to insert it.
Slide the other Ramp Cover (48) onto an M6 x 16mm
Patch Screw (76) as shown. Tighten the Patch Screw
into the open end of the Pivot Axle (14).
Tubes
2
3
3. Slide an M6 Washer (64) onto an M6 x 16mm Patch
Screw (76). Tighten the Patch Screw into one end of
the Incline Axle (13). Apply a small amount of grease
to the Incline Axle.
Raise the Ramp (3). Insert the Incline Axle (13) into
the welded tube under one side of the Ramp, through
the motor screw, and then into the welded tube under
the other side of the Ramp. As you insert the Incline
Axle through the motor screw, make sure that the
motor screw does not turn.
Slide an M6 Washer (64) onto an M6 x 16mm Patch
Screw (76). Tighten the Patch Screw into the open
end of the Incline Axle (13). 13
Grease
Motor
Screw
64
76
36476
4. Have another person hold the Upright (2) in the posi-
tion shown. Make sure that the Upright is turned as
shown in drawing 5 on page 7.
Connect the Upper Wire Harness (115) to the Lower
Wire Harness (42). Carefully pull the upper end of
the Upper Wire Harness to remove the slack from
the Wire Harnesses. Insert the Upright (2) into the
Frame (1). Be careful to avoid disconnecting or
pinching the Wire Harnesses. Attach the Upright with
two M10 x 110mm Button Screws (70), two M10 Split
Washers (73), and two Spacers (109); make sure that
the curved sides of the Spacers are facing the
Upright. Be careful to avoid damaging the Wire
Harnesses with the Button Screws.
2
115
70 42
1
73
73
109
4
109

7
5
85
105
86
118
119 86
23
24
2
31
3
118

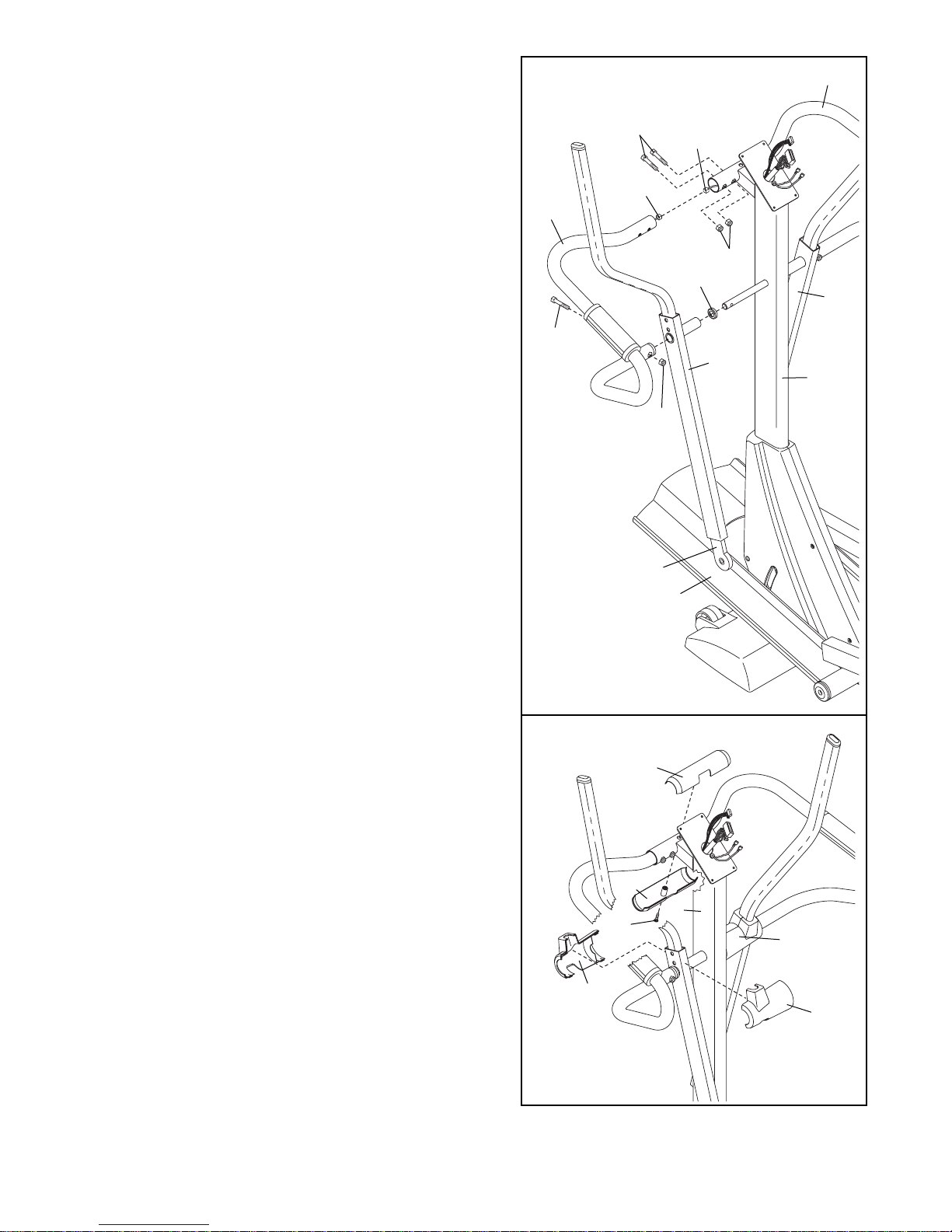

5. Slide a Weld Spacer (119) onto the axle on the left
side of the Upright (2), with the open side of the Weld
Spacer facing the Upright.
Locate the Upper Body Arm (118) that has the Left
Upper Body Leg (31) inside of it (the Left Upper Body
Leg is marked with a sticker). Hold the Upper Body
Arm with one hand, hold the Left Upper Body Leg with
your other hand, and slide the Upper Body Arm onto
the axle on the left side of the Upright (2). Then, slide
the Left Upper Body Leg out of the Upper Body Arm
until it rests on the Ramp (3).
Have another person hold the Left Handlebar (24)
near the Upright (2) as shown. Connect the left Pulse
Sensor Wire (20) to the Pulse Extension Wire (114).
Slide the upper end of the Left Handlebar (24) into the
tube on the front of the Upright (2), while sliding the
lower end of the Left Handlebar onto the axle on the
left side of the Upright. Attach the upper end of the
Left Handlebar with two M8 x 41mm Button Bolts (85)
and two M8 Jam Nuts (86); be careful not to damage
the Wires (20, 114) as you insert the Button Bolts.
Make sure that the Jam Nuts are resting in the
hexagonal holes in the Left Handlebar. Attach the
lower end of the Left Handlebar with an M8 x 38mm
Button Bolt (105) and an M8 Jam Nut (86).
Attach the other Upper Body Arm (118) and the Right
Handlebar (23) to the Upright (2) in the same way.
114
20
26
96
25
25
2
26 26
6. Look inside one of the Handlebar Covers (26) and
locate the square tabs connecting the two halves.
Gently lift the tabs and disconnect the halves.
Hold the two halves of the Handlebar Cover (26)
around the tube on the left side of the Upright (2). Align
the halves and press them together until they lock.
Attach the other Handlebar Cover (26) to the right side
of the Upright (2) in the same way.
Hold the halves of the Upper Handlebar Cover (25)
around the tube on the front of the Upright (2); be
careful not to damage the Wires (not shown).
Attach the Upper Handlebar Cover with an M4 x 12mm
Screw (96).
6

8
7. Identify the Left Pedal (10), which is widest at the rear
and has an opening on the left side. Attach the Left
Pedal to the Left Pedal Leg (4) with two M8 x 58mm
Button Screws (83).
Attach the Right Pedal (11) to the Right Pedal Leg (5)
in the same way.
Attach two Pedal Wheels (28), an M10 Washer (126),
and the Left Upper Body Leg (31) to the Wheel Frame
(30) on the Left Pedal Leg (4) with an M10 x 78mm
Bolt Set (65). Make sure that the Bolt Set, Pedal
Wheels, Washer, and Upper Body Leg are oriented
as shown.
Attach the other two Pedal Wheels, the Right Upper
Body Leg, and an M10 Washer (not shown) to the
Wheel Frame (not shown) on the Right Pedal Leg (5)
in the same way. 410
5
11
83
65
28
31
126
118
Wide
End
65
30
28
10.Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the
elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.
9. Plug the Power Cord (116) into the Power Socket
(117) at the rear of the elliptical exerciser.
116
117
9
8. Have another person hold the Console (17) near the
Upright (2).
Connect the Upper Wire Harness (115) to the wire har-
ness on the Console (17). Connect the Pulse
Extension Wire (114) to the pulse wire on the Console.
Next, locate the two ground wires that are attached
with a screw to the Upright (2). Connect the ground
wires to the two smallest wires on the Console.
Carefully insert all excess wiring up into the Console
(17) and down into the Upright (2). Attach the Console
to the Upright with four M4 x 16mm Screws (98).
(Note: The Screws may be shipped in the console
box.) Be careful to avoid pinching the wires.
17
Ground
Wires
2
98
98
115
114
Do not pinch
the wires
during this step.
8
7

9
To get the best performance from the chest pulse sen-
sor, please read the instructions below.
HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pulse sensor consists of two components:
the chest strap and the sensor unit. Follow the steps
below to put on the chest pulse sensor.
Refer to the inset drawing above. Insert the tab
on one end of the chest strap through one end of
the sensor unit as shown. Then, press the end of
the sensor unit under the buckle on the chest
strap.
Wrap the
chest pulse
sensor
around
your chest.
Attach the
free end of
the chest
strap to the sensor unit as described above.
Adjust the length of the chest strap, if necessary.
The chest pulse sensor should be under your
clothing, against your skin, and as high under the
pectoral muscles or breasts as is comfortable.
Make sure that the logo is facing forward and is
right-side-up.
Pull the
sensor unit
away from
your body
a few inch-
es and
locate the
two electrode areas on the inner side. Using a
saline solution such as saliva or contact lens
solution, wet both electrode areas. Return the
sensor unit to a position against your chest.
CHEST PULSE SENSOR TROUBLESHOOTING
If the chest pulse sensor does not function proper-
ly, or if the displayed heart rate is excessively high
or low, try the steps below.
•Make sure that the chest pulse sensor is worn
exactly as described in step 2 at the left. If the chest
pulse sensor does not function when positioned as
described, move it slightly lower or higher on your
chest.
•Each time you use the chest pulse sensor, use
saline solution such as saliva or contact lens solu-
tion to wet the two electrode areas on the sensor
unit (see the drawing in step 3 at the left). If heart
rate readings do not appear until you begin perspir-
ing, re-wet the electrode areas.
•Make sure that you are within arm’s length of the
console. For the console to display heart rate
readings, the user must be within arm’s length of
the console.
•The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
•The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that
magnetic interference may be causing a problem,
try relocating your exercise equipment.
•If the chest pulse sensor still does not function prop-
erly, test the chest pulse sensor in the following way:
Hold the chest
pulse sensor
and place your
thumbs over
the electrode
areas as
shown.
3
2
1
Chest Strap
Sensor Unit
Tab
Buckle
Electrode Areas
Sensor
Unit
Electrode Areas
HOW TO USE THE CHEST PULSE SENSOR
Logo

10
Next, hold the chest pulse sensor near the console.
While holding one thumb stationary, begin tapping
the other thumb against the electrode area at a rate
of about one tap per second. Check the heart rate
reading on the console.
•If the chest pulse sensor does not function properly
after you have followed all of the above instructions,
the battery should be replaced in the following way:
Locate the battery
cover on the back of
the sensor unit. Insert
a coin into the slot in
the cover, turn the
cover counterclock-
wise, and remove the
cover.
Remove the old bat-
tery and insert a
new CR 2032 bat-
tery. Make sure that
the battery is
turned so the writ-
ing is on top.
Replace the battery
cover and turn it
clockwise to close it.
CHEST PULSE SENSOR CARE
•Thoroughly dry the chest pulse sensor after each
use. The chest pulse sensor is activated when the
electrode areas are wetted and the chest pulse sen-
sor is put on; the chest pulse sensor shuts off when
it is removed and the electrode areas are dried. If
the chest pulse sensor is not dried after each use, it
may remain activated longer than necessary, drain-
ing the battery prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct
sunlight for extended periods of time. Do not expose
the chest pulse sensor to temperatures above 122°
Fahrenheit (50° Celsius) or below 14° Fahrenheit
(-10° Celsius).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest
strap may be hand washed and air dried.
CR 2032
Battery

11
HOW TO PLUG IN THE POWER CORD
This product
must be
grounded.
If it should
malfunction
or break
down,
grounding
provides a
path of least
resistance for
electric
current to reduce the risk of electric shock. This prod-
uct is equipped with a cord having an equipment-
grounding conductor and a grounding plug. Plug the
power cord into an appropriate outlet that is prop-
erly installed and grounded in accordance with all
local codes and ordinances. This product is for
use on a nominal 120-volt circuit. Important: The
elliptical exerciser is not compatible with GFCI-
equipped outlets.
Atemporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown at
the right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a quali-
fied electrician to determine if the outlet box cover
is grounded before using an adapter.
Note: When the power cord is plugged in, the ellip-
tical exerciser’s incline system may automatically
calibrate itself. During the calibration process, two
dashes (– –) will appear in the main display of the
console, and the ramp will move to the highest
position and then return to the lowest position.
The calibration process will last for one to two
minutes.
EXERCISING ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. The elliptical exerciser
does not have a free wheel; the pedals will contin-
ue to move until the flywheel stops. When the ped-
als are stationary, step off the highest pedal first.
Then, step off the lowest pedal.
DANGER:Improper connection of
the equipment-grounding conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product is
properly grounded. Do not modify the plug
provided with the product—if it will not fit the
outlet, have a proper outlet installed by a qual-
ified electrician.
Grounded Outlet Box
Grounding Plug
Grounded Outlet
Grounding Pin
HOW TO USE THE ELLIPTICAL EXERCISER
Grounded Outlet Box
Adapter
LugMetal Screw
Pedals
Handlebar

12
FEATURES OF THE CONSOLE
The state-of-the-art console offers an impressive array
of features. When the manual mode of the console is
selected, the resistance of the pedals and the angle of
the ramp can be changed with a touch of a button. As
you exercise, the console will provide continuous exer-
cise feedback. You can even measure your heart rate
using the handgrip pulse sensor or the chest pulse
sensor.
The console also offers 15 certified personal trainer
programs. Each program automatically changes the
resistance of the pedals and prompts you to increase
or decrease your pace as it guides you through an
effective workout.
In addition, the console features four heart rate control
programs that automatically change the resistance of
the pedals and prompt you to vary your pace to keep
your heart rate near a target level as you exercise.
The console even measures your body fat percentage,
provides custom programs based on personal data
that you enter, and displays your fat burning or weight
loss progress.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using the included audio
cable, you can connect the elliptical exerciser to your
home stereo, portable stereo, or computer and play
special iFIT.com CD programs (CDs are available sep-
arately). IFIT.com CD programs automatically control
the resistance of the pedals and prompt you to vary
your pace as a personal trainer coaches you through
every step of your workout. High-energy music pro-
vides added motivation. Each CD features two pro-
grams designed by certified personal trainers.
In addition, you can connect the elliptical exerciser to
your VCR and TV and play iFIT.com video programs
(videocassettes are available separately). Video pro-
grams offer the same benefits as iFIT.com CD pro-
grams, and allow you to enjoy breathtaking scenery
while you exercise. To purchase iFIT.com CDs and
videocassettes, call toll-free 1-800-735-0768.
With the elliptical exerciser connected to your comput-
er, you can also go to www.iFIT.com and use pro-
grams directly from our Web site. Explore
www.iFIT.com for details.
To use the manual mode of the console, see page
13. To use a personal trainer program, see page
15. To use a heart rate program, see page 16. To
use an iFIT.com CD or videocassette, see page 21.
To use a program from our Web site, see page 22.
To measure your body fat percentage, see page 23.
To use a custom program based on personal date
that you enter, see page 24. To review your fat
burning or weight loss progress, see page 25.

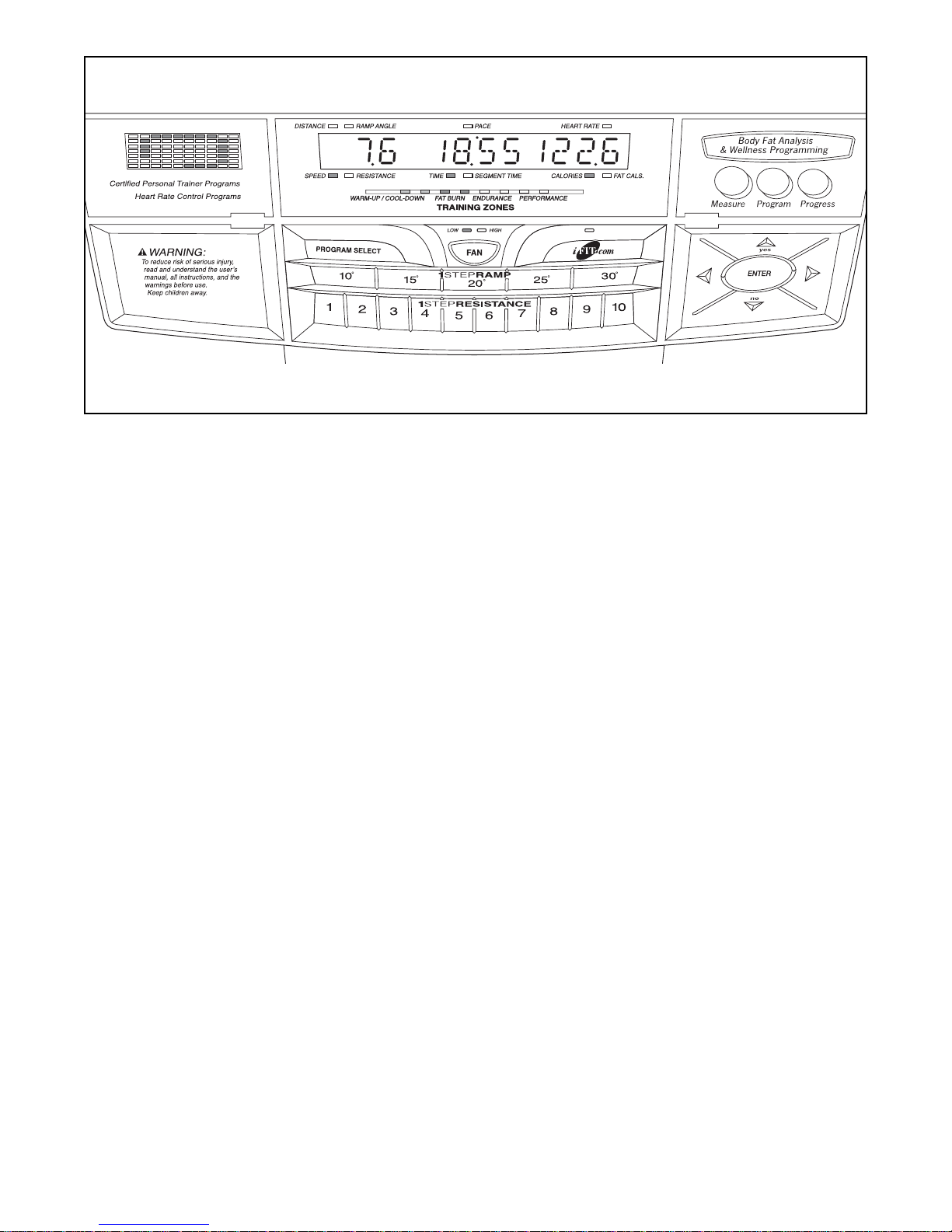

CONSOLE DIAGRAM
Note: If there is a sheet of clear plastic on the face of the console, remove it before using the console.

13
HOW TO USE THE MANUAL MODE
Begin pedaling to activate the console.
Make sure that the power cord is properly
plugged in (see HOW TO PLUG IN THE
POWER CORD on page 11). To activate the
console, simply begin pedaling. After a few sec-
onds, the console displays will light. A tone will
then sound and the console will be ready for use.
Note: When the console is activated, messages
such as “PUSH ‘MEASURE’ TO DETERMINE
YOUR BODY FAT PERCENTAGE” will scroll
across the main display. If you wish to use these
features, see pages 23 to 25.
Select the manual mode.
When the power is turned on, the manual mode
will be selected. If you have already selected a
program or a different mode, select the manual
mode again by repeatedly pressing the Program
Select button until the words “MANUAL MODE”
appear in the main display. Another way to select
the manual mode is to press the iFIT.com button
twice.
Change the resistance of the pedals and the
angle of the ramp as desired.
To change the resis-
tance of the pedals,
press the Resis-
tance buttons.
Resistance level 10
is the highest resis-
tance level. Note:
After the Resistance buttons are pressed, it will
take a moment for the pedals to reach the select-
ed resistance level.
To vary the feel of
your exercise on the
elliptical exerciser,
increase or
decrease the angle
of the ramp by
pressing the Ramp
buttons. There are five ramp angles. Note: After
the Ramp buttons are pressed, it will take a
moment for the ramp to reach the selected
angle.
Monitor your progress with the matrix, the
Training Zone bar, and the main display.
The matrix—When
the manual mode or
the iFIT.com mode is
selected, the matrix
will display a 1/4-mile
track. As you pedal,
the indicators around
the track will light, one at a time, until the entire
track is lit. The track will light once each time you
pedal 1/4 mile.
The Training Zone
bar—The Training
Zone bar will indicate
the approximate
intensity level of your
exercise. For exam-
ple, if three or four
indicators in the bar are lit, the bar shows that
your pace is ideal for fat burning. Note: During
programs, the Training Zone bar will also prompt
you to increase or decrease your pace.
The main display—The main display will show
the following information:

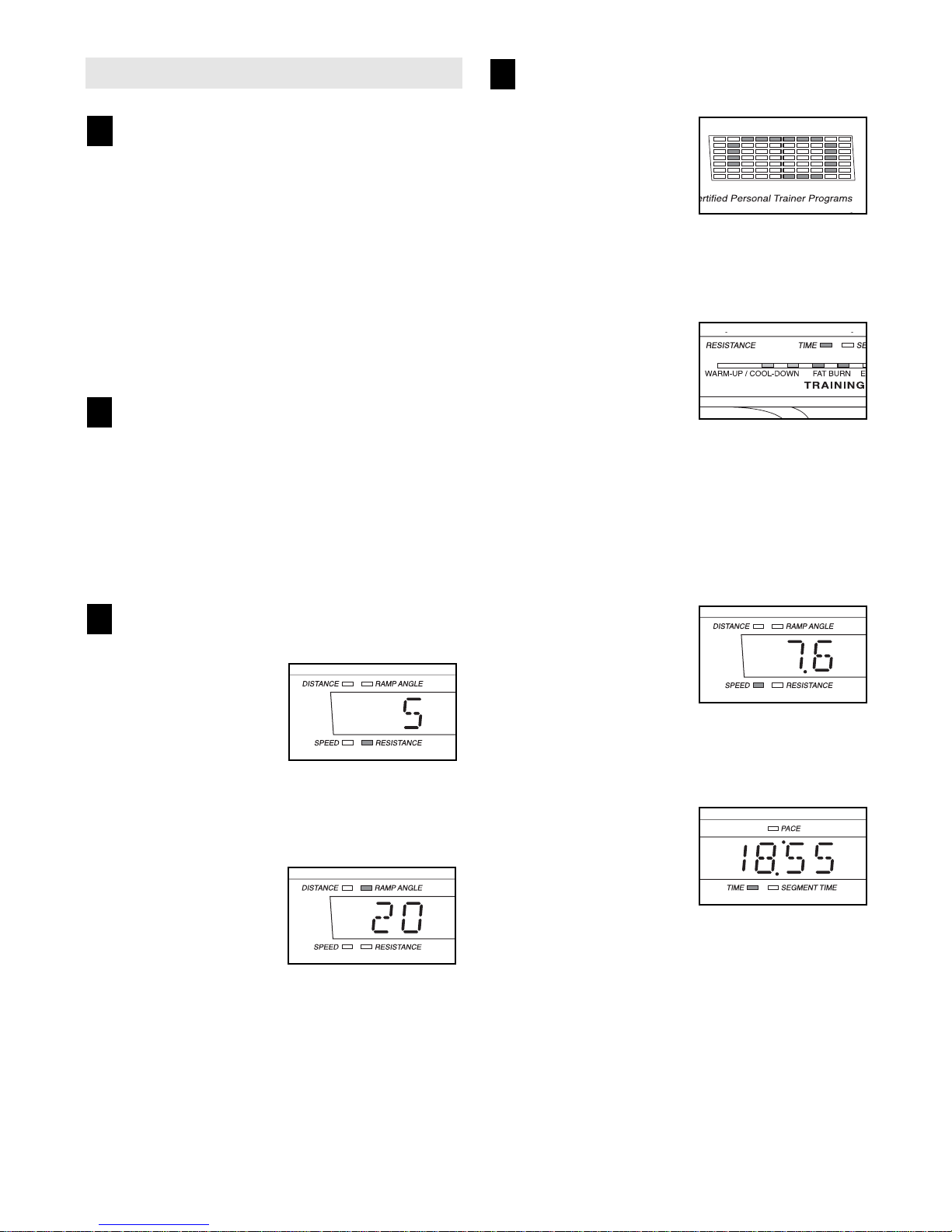

The left side of the
main display will
show the distance
you have pedaled,
your pedaling speed,
the resistance level of
the pedals, and the
angle of the ramp. The display will change from
one number to the next every few seconds, as
shown by the indicators around the display.
The center of the
main display will
show your pedaling
pace (in minutes per
mile) and the elapsed
time. The display will
change from one
number to the next every few seconds, as shown
by the indicators around the display. Note: When
a program is selected, the display will show the
time remaining in the program and the time
remaining in the current segment of the program
instead of the elapsed time.
4
3
2
1

14
The right side of
the main display will
show the approxi-
mate numbers of
calories and fat calo-
ries you have
burned (see FAT BURNING on page 27). The dis-
play will change from one number to the next
every few seconds, as shown by the indicators
around the display. Note: When you use the
handgrip pulse sensor or the chest pulse sensor,
the display will also show your heart rate.
Note: The console
can display speed
and distance in
either miles or kilo-
meters. To find
which unit of mea-
surement is select-
ed, you must select the console’s user mode.
Hold down the Program Select button for about
three seconds. The letter “E” for English miles or
the letter “M” for metric kilometers will appear on
the right side of the main display. To change the
unit of measurement, press the Resistance 10
button.
While the user mode is selected, press the
iFIT.com button. The main display will then show
the total number of hours that the elliptical exer-
ciser has been used. Press the iFIT.com button
again. The main display will then show the total
number of miles pedaled. To exit the user mode,
press the Program Select button again.
Measure your heart rate if desired.
To use the chest pulse sensor, see page 9. To
use the handgrip pulse sensor, follow the instruc-
tions below. Note: If you wear the chest pulse
sensor and hold the handgrip pulse sensor at
the same time, the console may not display
your heart rate accurately.
If there are
thin sheets of
plastic on the
metal contacts
on the hand-
grip pulse sen-
sor, peel off
the plastic. To
measure your
heart rate, hold the contacts; your palms must be
resting on the upper contacts, and your fingers
must be touching the lower contacts. Avoid mov-
ing your hands.
When your pulse is
detected, the Heart
Rate indicator above
the right side of the
main display will light,
two dashes (– –)
will appear in the
main display, and then your heart rate will be
shown. For the most accurate heart rate reading,
hold the contacts for at least 15 seconds.
Note: If you continue to hold the contacts, the
main display will show your heart rate for up to
30 seconds. The main display will then show
your heart rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the contacts too tightly. For optimal per-
formance, clean the contacts using a soft cloth;
never use alcohol, abrasives, or chemicals.
Turn on the fan if desired.
To turn on the fan, press the Fan button. Pivot
the fan to the desired angle. To turn on the fan at
high speed, press the Fan button a second time.
To turn off the fan, press the Fan button a third
time.
When you are finished exercising, the
console will automatically turn off.
If the pedals are not moved for several seconds,
a tone will sound, the console will pause, and the
time will begin to flash in the main display.
If the pedals are not moved for about five min-
utes, the console will turn off and the main dis-
play will be reset.
7
6
5
Contacts

15
HOW TO USE PERSONAL TRAINER
PROGRAMS
Begin pedaling to activate the console.
See step 1 on page 13.
Select one of the 15 personal trainer
programs.
When the power is turned on, the manual mode
will be selected. To select a personal trainer pro-
gram, repeatedly press the Program Select but-
ton until the name of the desired program appears
in the main display.
The matrix will show
the first eight resis-
tance settings of the
program you have
selected.
Begin pedaling to start the program.
Each program is divided into several time seg-
ments of different lengths. (The main display will
show both the time remaining in the program and
the time remaining in the current segment of the
program.) One resistance setting and one pace
setting are programmed for each segment. (The
same resistance setting and/or pace setting may
be programmed for two or more consecutive seg-
ments.)
The resistance set-
ting for the first seg-
ment will be shown
in the flashing
Current Segment
column of the
matrix. (The pace
settings are not shown in the matrix.) The resis-
tance settings for the next several segments will
be shown in the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and all resistance set-
tings will move one column to the left. The resis-
tance setting for the second segment will then be
shown in the flashing Current Segment column,
and the resistance of the pedals will automatically
change if a different resistance setting is pro-
grammed for the second segment.
As you exercise, the Training Zone bar will help
you to keep your pedaling pace near the pace
setting for the current segment. The lit indicators
in the bar will show
your actual pace. If
an indicator to the
right of the lit indica-
tors is flashing (see
drawing a), increase
your pace. If an indi-
cator to the left of
any lit indicator is
flashing (see drawing
b), decrease your
pace. When no indi-
cator is flashing, your
pace matches the
pace setting for the current segment. Important:
The pace settings are intended only to pro-
vide motivation. Your actual pace may be
slower than the current pace setting. Make
sure to exercise at a pace that is comfortable
for you.
The program will continue in this way until the
main display shows that no time remains in the
program.
Note: During the program, you can override the
resistance setting for the current segment, if
desired, by pressing the Resistance buttons.
However, when the next segment begins, the
resistance will automatically change if a different
resistance setting is programmed for the next
segment. If you stop pedaling for several sec-
onds, a tone will sound and the program will
pause. To restart the program, simply resume
pedaling.
3
2
1
a
b
Current Segment

16
Monitor your progress with the main display.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 14.
Turn on the fan if desired.
See step 6 on page 14.
When the program is finished, the console
will automatically turn off.
See step 7 on page 14.
HOW TO USE HEART RATE PROGRAMS
Each heart rate program helps you to keep your heart
rate near a certain percentage of your maximum heart
rate during your workout. Note: Your maximum heart
rate is estimated by subtracting your age from 220.
For example, if you are 30 years old, your maximum
heart rate is 190 (220 – 30 = 190).
Heart rate program 1 will keep your heart rate
between 50% and 80% of your maximum heart rate;
heart rate program 2 will keep your heart rate
between 55% and 85%; heart rate program 3 will
keep your heart rate between 60% and 85%; heart
rate program 4 will keep your heart rate between 50%
and 85%.
Follow the steps below to use a heart rate program.
Begin pedaling to activate the console.
See step 1 on page 13.
Select one of the four heart rate programs.
When the power is turned on, the manual mode
will be selected. To select a heart rate program,
press the Program Select button repeatedly until
the words “HEARTRATE 1,” “HEARTRATE 2,”
“HEARTRATE 3,” or “HEARTRATE 4” appear in
the main display.
Three seconds after a program is selected, the
name of the selected program and the total pro-
gram time will scroll across the main display.
The current age setting will then begin to flash in
the main display.
During heart rate pro-
grams, the matrix will
show a graphic that
represents your heart
rate. Each time a
heartbeat is detect-
ed, an additional
peak will appear.
2
1
7
6
5
4

17
Enter your age.
You must enter your age to use a heart rate pro-
gram. If you have already entered your age,
press the Enter button and go to step 4. If you
have not entered your age, press the Up Arrow
or Down Arrow button repeatedly to enter your
age, and then press the Enter button. Once you
have entered your age, it will be saved in memory.
Wear the chest pulse sensor or hold the
handgrip pulse sensor.
To use the chest pulse sensor, see page 9.
To use the handgrip pulse sensor, it is not neces-
sary to hold the handgrips continuously during
the program. However, you should hold the
handgrips frequently for the program to operate
properly. Each time you hold the handgrips,
keep your hands on the metal contacts for at
least 30 seconds. Note: When you are not hold-
ing the handgrips, the letters “PLS” will appear in
the right side of the display instead of your heart
rate.
Begin pedaling to start the program.
Each heart rate program consists of 20 one-
minute segments. (The main display will show
both the time remaining in the program and the
time remaining in the current segment of the pro-
gram.) One resistance setting is programmed for
each segment. (The same resistance setting may
be programmed for two or more consecutive
segments.)
At the end of each segment, a series of tones will
sound. The resistance of the pedals will then
change if a different resistance setting is pro-
grammed for the next segment. Note: If the resis-
tance is too high or too low, you can adjust the
resistance by pressing the Resistance buttons.
However, when the next segment begins, the
resistance will automatically change if a different
resistance setting is programmed for the next seg-
ment.
As you exercise, the Training Zone bar will help
you to keep your heart rate near the current tar-
get heart rate for the program. The lit indicators
in the bar will show your actual pace. When you
wear the chest pulse sensor or hold the handgrip
pulse sensor, the console will periodically com-
pare your heart rate to the current target heart
rate; if necessary, an indicator in the bar will then
flash to prompt you
to increase or
decrease your
pace to bring your
heart rate closer to
the current target
heart rate. If an
indicator to the
right of the lit indi-
cators is flashing
(see drawing a),
increase your
pace. If an indica-
tor to the left of
any lit indicator is
flashing (see drawing b), decrease your pace.
When no indicator is flashing, your heart rate is
near the current target heart rate. Important:
The target heart rates are intended only to
provide motivation. Your actual heart rate
may be slower than the current target heart
rate. Make sure to exercise at a pace that is
comfortable for you.
The program will continue in this way until the
main display shows that no time remains in the
program.
Note: If you stop pedaling for several seconds, a
tone will sound and the program will end. Heart
rate programs cannot be stopped temporarily and
then restarted.
Monitor your progress with the main display.
See step 4 on page 13.
Turn on the fan if desired.
See step 6 on page 14.
When the program is finished, the console
will automatically turn off.
See step 7 on page 14.
8
7
6
5
4
3
a
b

18
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the elliptical exerciser must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
18 and 19 for connecting instructions. To use iFIT.com
videocassettes, the elliptical exerciser must be con-
nected to your VCR. See page 20 for connecting
instructions. To use iFIT.com programs directly from
our Web site, the elliptical exerciser must be connect-
ed to your home computer. See page 19 for connect-
ing instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.

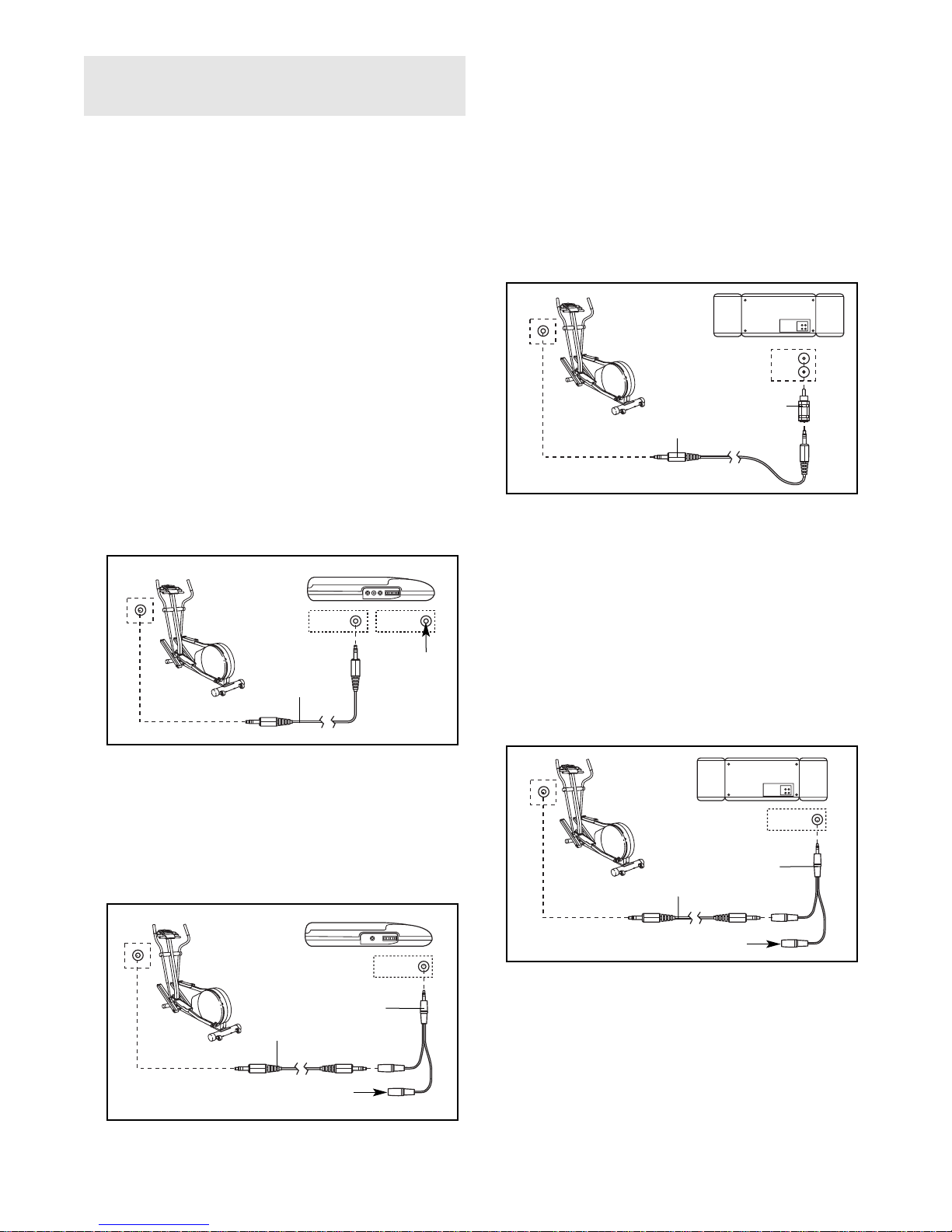

A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable
into the adapter. Plug the adapter into an AUDIO
OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo. Do
not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable Head-
phones
A
PHONES
PHONES
Audio
Cable
1/8”
Y-adapter
Headphones
B
AUDIO OUT
RIGHT
LEFT
PHONES
Audio
Cable
C
1/8”
Y-adapter
Headphones
Audio Cable Adapter
A, B

19
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable Adapter
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
LINE OUT
Audio
Cable
A
PHONES
Audio
Cable
B
1/8”
Y-adapter
Headphones/Speakers

20
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 19.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the AUDIO OUT jack on your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable
Adapter
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter
