NordicTrack NTCCEL16909.0 User manual

Serial Number
Decal
USERʼS MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. eep this manual
for future reference. www.nordictrack.com
Model No. NTCCEL16909.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
f you have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER SER-
VICE DEPARTMENT DIRECTLY.
CALL TOLL-FREE:
1-888-936-4266
Mon.–Fri., 7:30 until 16:30 ET
(excluding holidays)
OR E-MAIL US:
[email protected]

TABLE OF CONTENTS
WARNNGDECALPLACEMENT ..............................................................2
MPORTANTPRECAUTONS ................................................................3
BEFOREYOUBEGN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEELLPTCALEXERCSER ..................................................11
MANTENANCEANDTROUBLESHOOTNG ...................................................21
EXERCSEGUDELNES ...................................................................22
PARTLST ..............................................................................24
EXPLODEDDRAWNG ....................................................................26
ORDERNGREPLACEMENTPARTS ..................................................BackCover
LMTEDWARRANTY ..............................................................BackCover
WARNING DECAL PLACEMENT
2
NordicTrack is a registered trademark of CON P, nc.
Keep hands and
fingers clear of
this area.
AATTENTIONTTENTION
Gardez vos mains
et vos doigts
ÈloignÈs de cet
endroit.
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
4. eep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (1 m) of
clearance in the front and rear of your ellipti-
cal exerciser and 2 ft. (0.6 m) on each side.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. eep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 350 lbs.
(159 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the han-
dlebars when mounting, dismounting, or
using your elliptical exerciser.
10. eep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
14. Use your elliptical exerciser only as
described in this manual.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack
COMMERC AL™ XM elliptical exerciser. The
NordicTrack COMMERC AL XM elliptical exerciser
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. f you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Ramp
Handlebar
Pedal Disc
Wheel
Pedal
Water Bottle Holder*
Console
Handle
Leveling Foot
Fan
*Water bottle is not included

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tools, assembly requires a Phillips screwdriver and an adjustable
wrench .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART L ST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware
kit, check to see if it has been preassembled.
#8 x 3/4"
Screw (78)–4
5/16" x 1" Patch
Screw (81)–7
5/16" x 1 1/2" Button
Bolt (73)–4
5/16" Washer
(104)–2
5/16" Split
Washer (105)–5
5/16" Locknut
(106)–4
3/8" x 2 1/2" Patch
Screw (88)–14
5/8" Wave
Washer (102)–2

6
1.
Remove the two packing inserts from the pack-
ing materials. With the help of another person,
place the packing inserts under the front of the
Frame (1) as shown. Have the other person
hold the elliptical exerciser to prevent it
from tipping until this step is completed.
Hold the Front Stabilizer (2) under the Frame
(1). Attach the Front Stabilizer with four 3/8" x 2
1/2" Patch Screws (88).
With the help of the other person, remove the
packing inserts and lower the Front Stabilizer
(2) and the Frame (1).
2. With the help of another person, place the pack-
ing inserts under the rear of the Frame (1) as
shown. Have the other person hold the ellip-
tical exerciser to prevent it from tipping until
this step is completed.
Next, hold the Rear Stabilizer (3) under the
Frame (1). Attach the Rear Stabilizer with four
3/8" x 2 1/2" Patch Screws (88).
With the help of the other person, remove the
packing inserts and lower the Rear Stabilizer (3)
and the Frame (1).
88
88
2
1
To make assembly easier, read the
information on page 5 before you begin.
1
88
88
3
Packing
nserts
1
Packing
nserts
2

7
4. Apply a generous amount of the included
grease to the Pivot Axle (33) and to two 5/8"
Wave Washers (102).
Tip: Do not pinch the Upper Wire Harness
(97). nsert the Pivot Axle (33) into the Upright
(6). Then, slide a 5/8" Wave Washer (102) onto
each end of the Pivot Axle.
Next, orient an Upper Body Arm (12) so that the
M10 x 78mm Patch Screw (71) in the lower end
is facing away from the Upright (6).
Slide the Upper Body Arm (12) onto the Pivot
Axle (33). Attach the Upper Body Arm with a
5/16" x 1" Patch Screw (81), an Outer Large
Axle Cover (94), and a 5/16" Washer (104).
Attach the other Upper Body Arm (12) in the
same way.
4
3. Tip: Do not pinch the Wire Harnesses (97,
54) during this step. Start all screws before
tightening any of them.
While another person holds the Upright (6) near
the Frame (1), connect the Upper Wire Harness
(97) to the Lower Wire Harness (54).
Attach the Upright (6) to the Frame (1) with five
5/16" x 1" Patch Screws (81) and five 5/16"
Split Washers (105).
3
Do not pinch the
Wire Harnesses (97,
54) during this step
81
81
81
105
105
54
97
81
94
12
71
71
12
102
102
94
33
6
Grease
6
1
97
81
104
104

8
6. dentify the Right Link Arm (10), which is
marked with a “Right” sticker.
Locate the M10 x 78mm Patch Screw (71) in
one end of the Right Link Arm. Tighten the
Patch Screw into the indicated post on the Right
Pedal Arm (8).
Next, locate the M10 x 78mm Patch Screw (71)
in the right Upper Body Arm (12). Tighten the
Patch Screw into the post on the Right Link Arm
(10).
Repeat this step to attach the Left Link Arm
(not shown).
6
10
12
Post
71
71
8
5
5. dentify the Right Pedal Plate (107), which is
attached to the Right Pedal (62). The Right
Pedal is marked with a “Right” sticker.
Attach the Right Pedal Plate (107) to the Right
Pedal Arm (8) with three 3/8" x 2 1/2" Patch
Screws (88).
Repeat this step to attach the Left Pedal
Plate and the Left Pedal (not shown).
62
107
88
Post
8

9

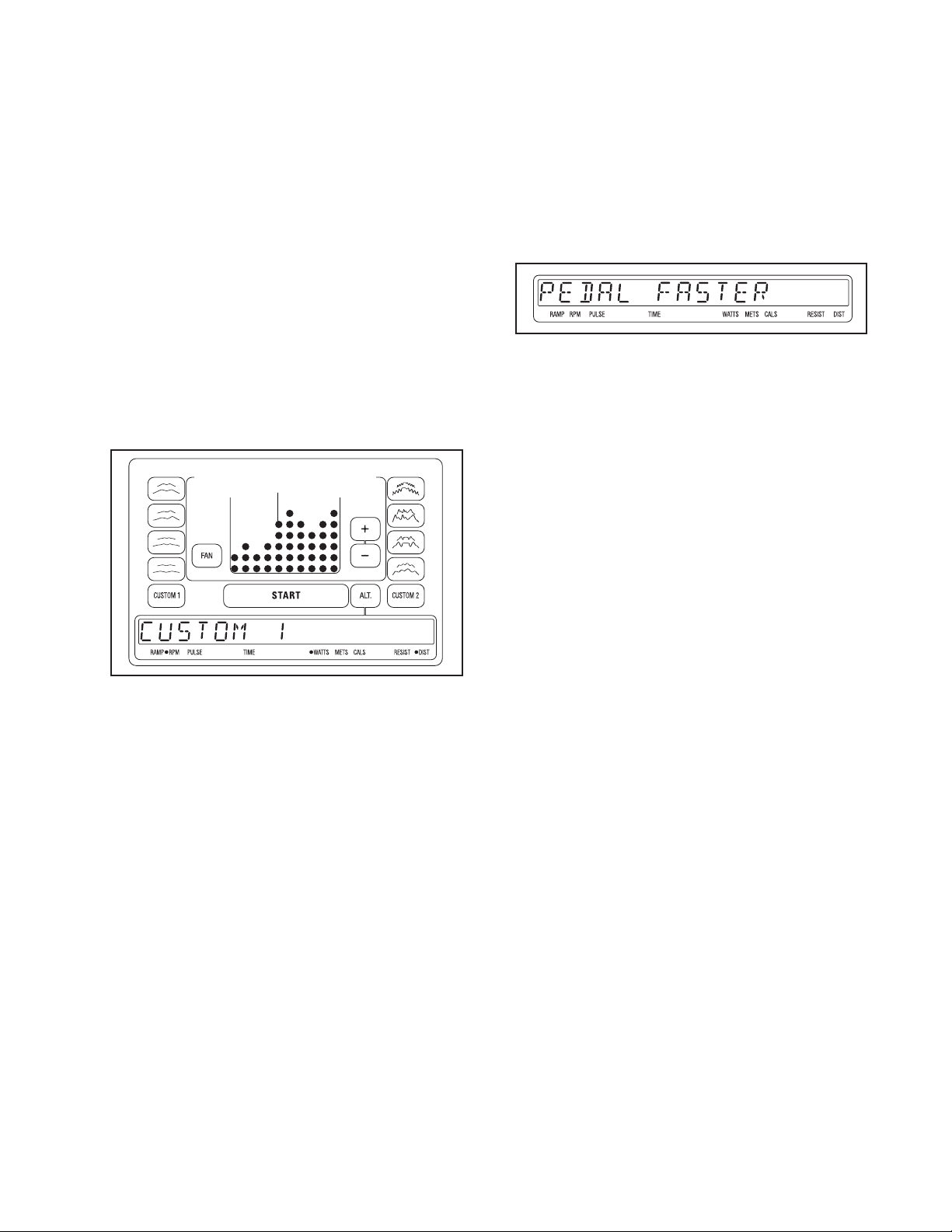

7. While a second person holds the Console (60)
near the Upright (6), connect the console wire to
the Upper Wire Harness (97). Then, connect the
console pulse wire to the Hand Pulse Wire (65).
nsert the excess wire downward into the
Upright.
Tip: Do not pinch the wires during this step.
Attach the Console (60) to the Upright (6) with
four #8 x 3/4" Screws (78).
7
Do not pinch the
wires during
this step
Console Wire
6
97
78
60
8. dentify the Right Handlebar (31), which is
marked with a “Right” sticker, and orient it as
shown.
Attach the Right Handlebar (31) to the right
Upper Body Arm (12) with two 5/16" x 1 1/2"
Button Bolts (73) and two 5/16" Locknuts (106).
Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step to attach the Left Handlebar
(7) to the left Upper Body Arm (12).
8
31
106
73
7
12
12
Hexagonal
Holes
65
Pulse Wire

10
9. IMPORTANT: If the elliptical exerciser has
been exposed to cold temperatures, allow it
to warm to room temperature before plug-
ging in the Power Cord (55). If you do not do
this, you may damage the console displays
or other electronic components.
Plug the Power Cord (55) into the power socket
at the rear of the elliptical exerciser.
Note: When you plug in the elliptical exer-
ciser for the first time (see HOW TO PLUG
IN THE POWER CORD on page 11), the
Ramp (not shown) will calibrate automati-
cally. The Ramp will move upward and down-
ward as it calibrates. When the Ramp stops
moving, the Ramp is calibrated.
IMPORTANT: If the Ramp (not shown) does
not calibrate automatically, see HOW TO
CALIBRATE THE RAMP on page 21 and
manually calibrate the Ramp.
10. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
9
55
