Nortel DMS-100 Series User manual

297-2011-214
DMS-100 Family
M5316 Meridian Business Set
Description, Installation, Operation, and
Maintenance Manual
Release 02.01 Standard February 1999

DMS-100 Family
M5316 Meridian Business Set
Description, Installation, Operation, and
Maintenance Manual
NTP: 297-2011-214
Document status: Standard
Version: 02.01
Date: February 1999
© 1999 Northern Telecom
Printed in Canada
NORTHERN TELECOM CONFIDENTIAL: The information contained in this document is the property of Northern
Telecom. Except as specifically authorized in writing by Northern Telecom, the holder of this document shall keep the
information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to third
parties and use same for evaluation, operation, and maintenance purposes only.
The following are trademarks of Northern Telecom: Nortel, the Nortel globemark, DMS-100, Meridian.

iii
Publication history
297–2011–214 02.01 Standard February 1999
October 1996
Release 01.01. Standard version for NA004 and up.
February 1999
Release 02.01. Standard version changed from NA004 and up to CCM04 and
up.

iv Publication history
297–2011–214 02.01 Standard February 1999

v
Contents
297–2011–214 02.01 Standard February 1999
Publication history iii
Chapter 1: Introduction 1-1
General description 1-1
Physical characteristics 1-2
Other documentation 1-2
Chapter 2: Specifications 2-1
Environmental and safety considerations 2-1
Temperature 2-1
Relative humidity 2-1
Electromagnetic interference 2-1
Atmospheric pollution 2-1
Vibration 2-2
Shock 2-2
Line engineering 2-2
Loop power 2-2
External power 2-2
Chapter 3: Operations and features 3-1
Basic operations 3-1
Acoustics 3-1
Alphanumeric display 3-2
Description of features 3-3
Basic features 3-5
Additional features 3-5
Features operation 3-6
Handsfree operation 3-7
Local features 3-8
C.O. features 3-8
Available features 3-10
Answer back 3-11
Tones 3-11
Switch generated tone characteristics 3-11

vi Contents
297–2011–214 02.01 Standard February 1999
Chapter 4: Installation 4-1
Installing the M5316 4-1
Wall mounting the M5316 4-4
Chapter 5: Verification procedures 5-1
Verification test routines 5-1
Maintenance 5-1
Loop check 5-1
Polarity check 5-2
Station Ringer test 5-3
Chapter 6: Replacement parts 6-1
Figures
Figure 3-1 M5316 keys and other components 3-3
Figure 3-2 M5316 key assignments 3-9
Figure 4-1 M5316 bottom view 4-2
Figure 4-2 Wall jack/AC adaptor connection 4-3
Figure 4-3 M5316 wall mounting locations 4-4
Figure 4-4 M5316 base attachment 4-5
Figure 4-5 Handset retainer installation 4-6
Figure 4-6 Final wall position 4-6
Figure 5-1 Feature/line key and LCD assignments 5-7
Tables
Table 3-1 Summary of M5316 keys and indicators 3-4
Table 3-2 Handsfree features and signals 3-7
Table 3-3 Switch generated tones 3-12
Table 6-1 Ordering information 6-1

1-1
Chapter 1
Introduction
297–2011–214 02.01 Standard February 1999
General description
The M5316 Meridian Business Set is designed for direct connection (through
a non-loaded subscriber loop pair) to the Northern Telecom DMS–10,
DMS–100, DMS–250, or Meridian SL–100 Digital Switching systems.
The M5316 is partially loop powered and requires the use of a 16 V AC
external power supply.
The service provided by the M5316 substitutes low-level signals over a half-
duplex, above-voice band (8 kHz) signalling channel for the traditional loop
signalling (dial pulse) or inband tone signalling (DTMF tones) on a
conventional subscriber loop. In addition to signalling and supervision,
messages on the above-voice band signalling channel include signals for
implementing the many special features available on the M5316, as well as
display characters.
The M5316 offers a choice of selected key and system features—it has 3
fixed keys, a dial pad consisting of 12 fixed keys, 16 programmable
feature/directory number keys with LCD indicators (including the two
assigned feature keys Handsfree and Mute), and is equipped with a speaker
for alerting tones, Handsfree dialing and intercom.
The alphanumeric display module is mounted at the rear top edge of the
telephone and is hinged so that the viewing angle can be adjusted physically
to reduce glare and maximize the contrast. The maximum display capacity
of the display screen is 2 rows of 24 characters each.

1-2 Introduction
297–2011–214 02.01 Standard February 1999
Physical characteristics
Figure 3-1 shows the main components of the M5316. The M5316 comes in
three different colours:
• Chameleon-grey (Engineering code NT4X42AA)
• BTS light-grey (Engineering code NT4X42BA)
• Black (Engineering code NT4X42CA)
The Mean Time Between Failure (MTBF) for the M5316 is at least 100
years.
Other documentation
Other information pertaining to Meridian Business Sets can be found in the
following documents:
297–2001–100 Integrated Business Network (IBN) —Description
297–1001–114 Operational Measurements (OM)
297–1001–250 Testing and Acceptance for Initial Installation
297–1001–310 Table Editors User Guide
297–1001–518 Operational Measurements—Man-Machine Interface
297–2011–180 DMS-100 Business Set—Line Engineering Rules
P0749051 M5316 MBS User Guide (English/French)
P0800729 M5316 MBS User Guide (Spanish)

2-1
Chapter 2
Specifications
297–2011–214 02.01 Standard February 1999
The following specifications govern the performance of the M5316 Business
Set and the environmental conditions under which this performance is
achieved.
Environmental and safety considerations
The M5316 meets the Canadian and U.S. mandatory interconnect
requirements for Telephone Equipment, CSA, DOC, UL, FCC (part 15 &
part 68).
Temperature
In the Operating State, the M5316 temperature range is 0 C to 50 C
(32 F to 122 F).
In the Non-Operating State, the M5316 temperature range is -20 C to 70 C
(-6 F to 158 F).
Relative humidity
20% to 95% (non-condensing). At temperatures above 34 C (93 F), relative
humidity is limited to 52mbar of water vapour pressure.
Electromagnetic interference
The radiated and conducted electromagnetic interference meets the
requirements of Subpart J of Part 15 of the FCC rules for class B computing
devices.
Atmospheric pollution
The M5316 is designed to withstand normal atmospheric conditions
throughout its life and during shipment and storage as defined in the
International Electromechanical Commission (IEC) document 50 (salt, mist,
atmospheric dust, sulfur dioxide, and hydrogen sulfide exposure).

2-2 Specifications
297–2011–214 02.01 Standard February 1999
Vibration
The M5316 is designed to work to specifications after being subjected to the
following vibrations in each of three orthogonal directions for 90 minutes:
• Vibration frequency of 5 Hz to 500 Hz
• Maximum half displacement 0.35mm (0.014 in)
• Maximum acceleration 1.5m/s/s.
Shock When packaged, the M5316 is designed to withstand normal handling during
shipment.
When unpacked, the M5316 is designed to withstand accidental dropping
during normal use, without sustaining damage, as specified below:
• Telephone: when dropped on any face or corner from a height not
exceeding 0.75m (30in)
• Handset: when dropped from a height not exceeding 1.5m (60in)
Line engineering
The M5316 operates to its full potential through twisted pair wiring on
transmission lines selected by the rules provided in NTP 297–2011–180.
The M5316 interfaces with the business set (6X21AC) line card in the Line
Concentrating Module (LCM) of the DMS–10/DMS–100/Meridian SL-100
Central Office (CO) equipment. The 6X21AC supports one business set per
line card.
Loop power The M5316 is partially loop powered by a balanced 440 Ohm battery feed
from the switching equipment. The switch battery voltage supplied to the
loop is nominally 52 VDC with a minimum of 42.75 VDC and a maximum
of 56 VDC. Under normal conditions the polarity must be negative on the
Ring lead with respect to the Tip lead.
The current drawn from the loop is 16 ±1mA when the set is active. The
current drawn from the loop is 10 ±1mA when the set is inactive.
External power
The M5316 requires a 16 V AC external power supply rated at 375 mA.
During a power failure, the Handsfree and RT clock functions are not
available.

Specifications 2-3
297–2011–214 02.01 Standard February 1999

3-1
Chapter 3
Operations and features
297–2011–214 02.01 Standard February 1999
Basic operations
The M5316 Meridian Business Set can be used to make voice calls and
operate selected DMS–10, DMS–100, or Meridian SL–100 features. All
supported features can be accessed using keys provided on the M5316. For
further details about software requirements, refer to NTP 297–2011–100 and
NTP 297–1001–310 respectively. Dial pad, DN, and feature key layout is
shown in Figure 3-1.
Note that the M5316 must not be assigned as a maintenance set.
Before attempting to operate the M5316, please refer to the M5316 Meridian
Business Set User Guide. This document is shipped with the set and contains
instructions for making calls and how to use various features.
Acoustics
A speaker is used for alerting tones, call monitoring (on-hook dialing),
Handsfree dialing, and intercom.

3-2 Operations and features
297–2011–214 02.01 Standard February 1999
Alphanumeric display
The M5316 display screen allows access to the following features:
Called Number Display/Called Name Display
The display of the called number (or name of the party being called, when
available) is always activated as dialing takes place.
Calling Number Display/Calling Name Display
The calling number (or name of the calling party, when available) for calls
originating within the same switch is displayed when the first ringing tone
sounds for an incoming call at the Prime DN. If the incoming call terminates
at a secondary DN, the number is displayed only after lifting the receiver.
Query Time and Date
One of the feature keys must be assigned for accessing the QTD display.
That key should be labelled Time/Date for easy identification.
Feature programming and usage
The display screen shows important information and prompts when using or
programming M5316 features.

Operations and features 3-3
297–2011–214 02.01 Standard February 1999
Description of features
The M5316 Business Set (see Figure 3-1) is characterized by the following:
• there are 15 fixed keys with no LCD indicators: Release key (1), Hold
Key (1), Volume key (1), dial pad keys (12)
• there are two fixed keys with LCD indicators (Handsfree and Mute)
• there 14 assignable key/LCD indicator pairs.
The operation of these keys and other components is summarized in
Table 3-1.

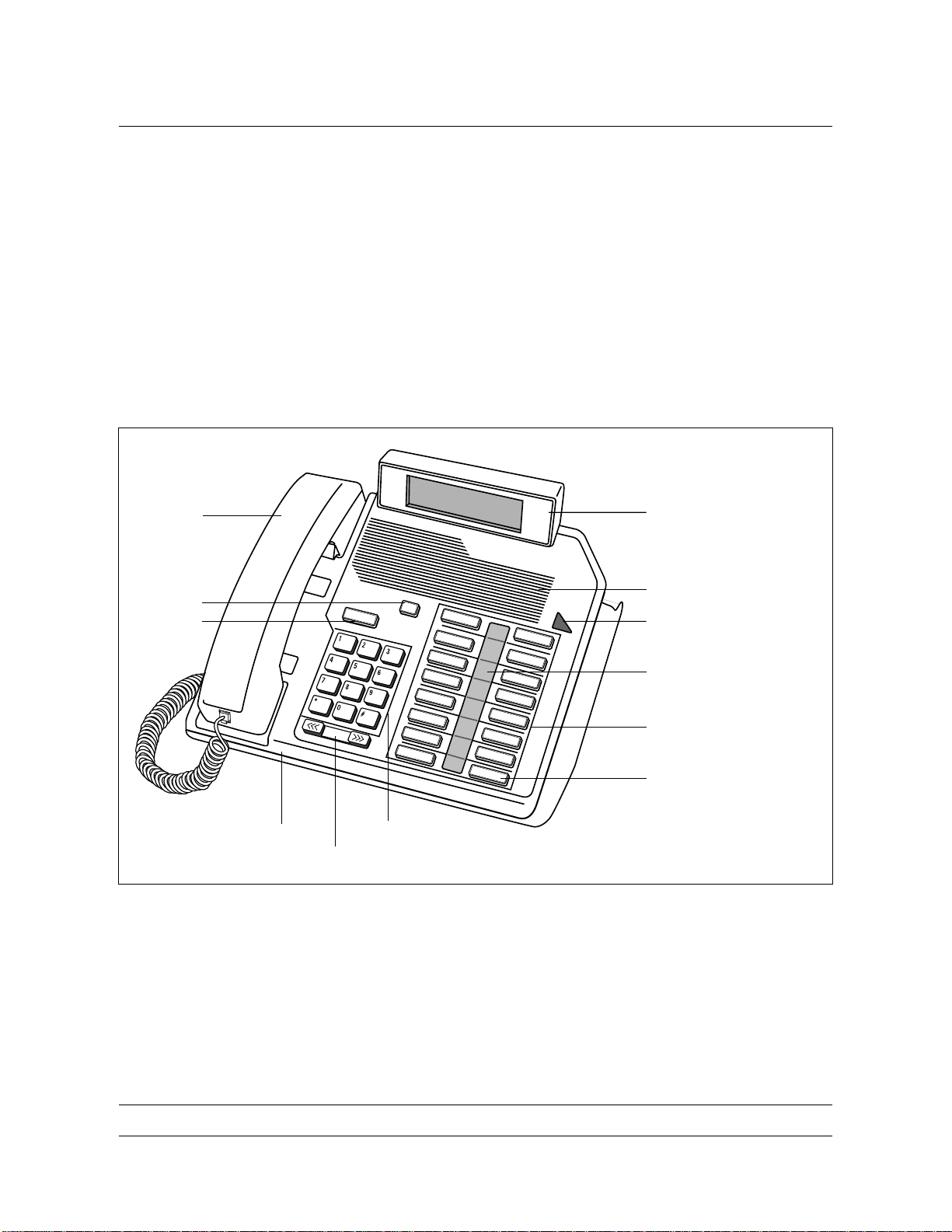

Figure 3-1
M5316 keys and other components
Display
Alerter
Speaker
Handset
Release key
Hold key
LCD Feature/ Line
indicator
Microphone
Volume key
Dialpad
Feature/line keys
Prime Directory Number key

3-4 Operations and features
297–2011–214 02.01 Standard February 1999
Table 3-1
Summary of M5316 keys and indicators
Key or indicator Description
Speaker Monitors the progress of a call without lifting the handset.
Handset Used for talking on the phone—automatically selects the
prime directory number when lifted.
Display Shows call and installation information.
Alerter Flashes to indicate incoming calls.
Dial pad Used for entering numbers and the or keys.
Volume key Adjusts the volume of the ring and the speaker.
Releases a call without replacing the handset.
Puts a call on hold.
See “Handsfree Operation”.
See “Handsfree Operation”.
14 feature/line
keys Acts as line key or as a feature key depending upon how the
set is programmed.
LCD indicators
No half diamond
(Off)
Steady half
diamond (On)
Slow flashing half
diamond (60IPM)
Fast Flashing half
diamond
(120IPM)
Indicates the status of the feature/line keys:
Feature or line is not active.
Feature or line is active.
Line is ringing or feature is being programmed.
Line is on hold .
Rls
Hold
Handsfree
Mute
#
✶

Operations and features 3-5
297–2011–214 02.01 Standard February 1999
Basic features
Every Business Set has the basic features described below.
Automatic Prime Directory Number (PDN) selection
Allows the user to select the prime DN (i.e. the DN assigned to the first
feature/line key) by going off-hook to answer a call without pressing a DN
key.
On-hook dialing
Allows the user to select a line and dial the call without lifting the handset.
Once the party answers, the handset must be lifted to speak.
Listen on hold
Activated by pressing the Hold key (associated LCD flashes), placing the
handset back in its cradle, and re-selecting the line to be monitored
(associated LCD on).
Alerting tones
Warble tone sounds when the telephone is on-hook, 500 Hz local buzzer tone
sounds when the telephone is off-hook and the associated LCD indicator
flashes.
Additional features
In addition to the basic features, the M5316 provides the following features:
LCD Screen
Two rows of 24 alphanumeric characters can be displayed.
Handsfree calling
Allows the user to carry on a telephone conversation without lifting the
handset (applies to both the originating and answering a call).
Microphone muting
Allows the user to listen to a call without the other party being able to hear
any sound from the user.
Automatic Answer Back (AAB)
This is an optional feature which can be provided with or without a dedicated
feature key. When installed, AAB allows an incoming call to the PDN to be
answered automatically after one ring. Conversation takes place through the
integrated handsfree functions without manually controlling the telephone.

3-6 Operations and features
297–2011–214 02.01 Standard February 1999
Features operation
The fixed keys on the M5316 Business Set provide these permanent
functions:
• dialing
• call Hold
• call Release
• Volume control
Dial pad
Before a call is established, no tone-feedback is provided when the dialing
keys are being pressed. After a call has been established, end-to-end
signalling using CO generated DTMF tones is enabled.
Hold
The Hold function has two modes of operation—manual and automatic. With
the user engaged in a call, the call can be put on hold either by pressing the
key or by pressing another DN key. In either case, the DN LCD
changes from ON to winking and the user is free to answer or make another
call.
Release
The (Release) key performs a similar function as going on-hook (i.e.
when pressed, it terminates a call). The DN LCD associated with the
released call changes from ON to OFF, but the status of the Set remains off-
hook to the switch.
Volume control
The loudness of any sound which comes through the speaker (i.e. ringing,
dial tone, busy tone and on-hook monitoring) is controlled by one key with
two toggle positions. Tapping the key at the right hand side increases the
volume while tapping it at the left-hand side decreases it. Each time the key
is pressed, the volume level changes one step, as shown on the volume bar
display (there are seven volume levels).
The volume for ringing tones can only be adjusted while alerting is in
progress and is automatically stored at the new level. The on-hook monitor
volume level can be adjusted and automatically stored while monitoring.
Volume levels can also be pre-set to a new level in program mode.
If the M5316 Business Set is disconnected from the line and then
reconnected, all volume settings return to the original factory default values
Rls
Hold

Operations and features 3-7
297–2011–214 02.01 Standard February 1999
(Mid-point setting for alerting tones and minimum setting for on-hook
monitoring).

3-8 Operations and features
297–2011–214 02.01 Standard February 1999
Handsfree operation
There are two permanently assigned keys with associated LCD indicator
triangles which enable Handsfree conversation (HANDSFREE) and
microphone muting (MUTE). Refer to the following table for a list of
Handsfree features and signals:
Table 3-2
Handsfree features and signals
State Action Result and verification
Incoming call on
PDN Press Set goes off-hook and Handsfree is enabled. Prime DN and Handsfree LCD
indicators are ON and the microphone
and speaker are enabled.
Handsfree ON Press Call is terminated. Set goes on-hook
and Handsfree is disabled. Handsfree
LCD indicator goes OFF and the
microphone and speaker are disabled.
Handsfree ON Lift handset Transfers speech to the handset.
Handsfree indicator goes OFF.
Handsfree ON Press Disables microphone but speaker
remains on. Press again to
restore microphone. The Mute LCD
indicator winks during microphone use;
winking stops once Mute key is pressed
again. The Mute feature also functions
in handset mode to disable the
mouthpiece.
Handsfree
Rls
Mute
Mute

Operations and features 3-9
297–2011–214 02.01 Standard February 1999
Local features
The M5316 has the following local features which can be set up to make it
easier to use and to customize the set to meet specific user requirements. The
Program key allows access to Programming mode to set up the following
features:
• Alerter Volume
• Time and Date Set
• Time and Date Format
• Call Timer
• Display Language
• C.O. Features
•Predial
• Memory Number
Note that an incoming call interrupts the activation or programming of all
local functions. Local features are also not available during an active call,
with a call on hold, or when a C.O. feature is active (the Time/Date C.O.
feature is active for 12 seconds).
C.O. features
Using the C.O. features local function, the M5316 can be programmed to
enable or disable the following three additional feature keys:
• Save Number
• Memory Number
•Pause
Note that the M5316 is initially set up to have the Save Number, Memory
Number, and Pause keys available to you and they appear at the feature key
locations shown in Figure 3-2.
