NOUVOLED VELA 440BSW User manual

VELA 440BSW
USER MANUAL
20R 440W BSW

CONTENTS
1. Safety Instructions ..........................................................................................
2. Technical Specifications ..................................................................................
3. Description .....................................................................................................
3.1 Control Panel ..........................................................................................
4.2 Light Source ............................................................................................
5. How to Set the Unit .......................................................................................
5.1 Main Function .........................................................................................
5.2 Home Position Adjustment ...................................................................
5.3 Error Information ..................................................................................
6. Control by Universal DMX Controller ...........................................................
6.1 Connection ...........................................................................................
6.2 Address Setting .....................................................................................
6.3 DMX 512 Configuration ........................................................................
7. Troubleshooting ...........................................................................................

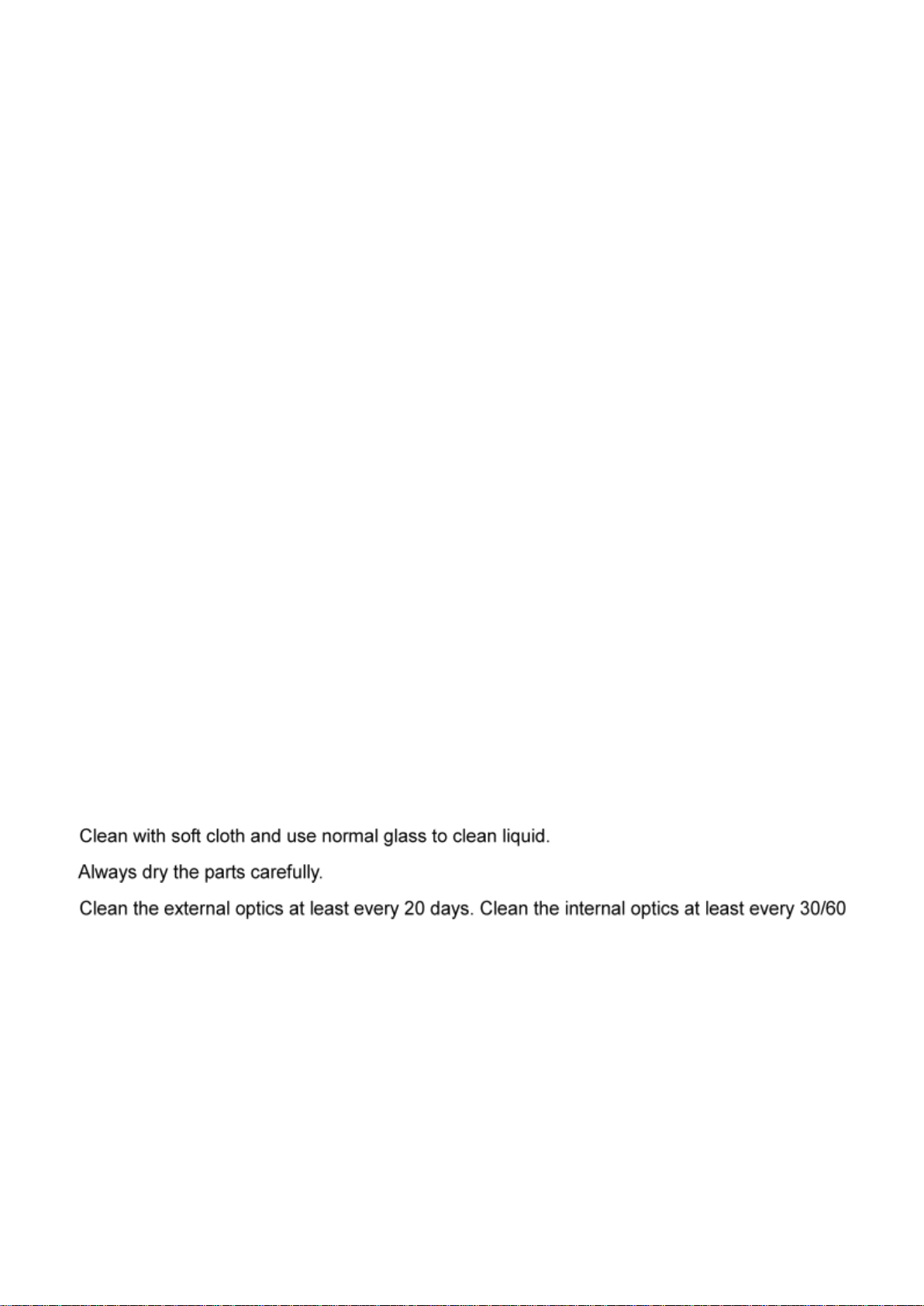

8. Maintenance and Cleaning ...........................................................................

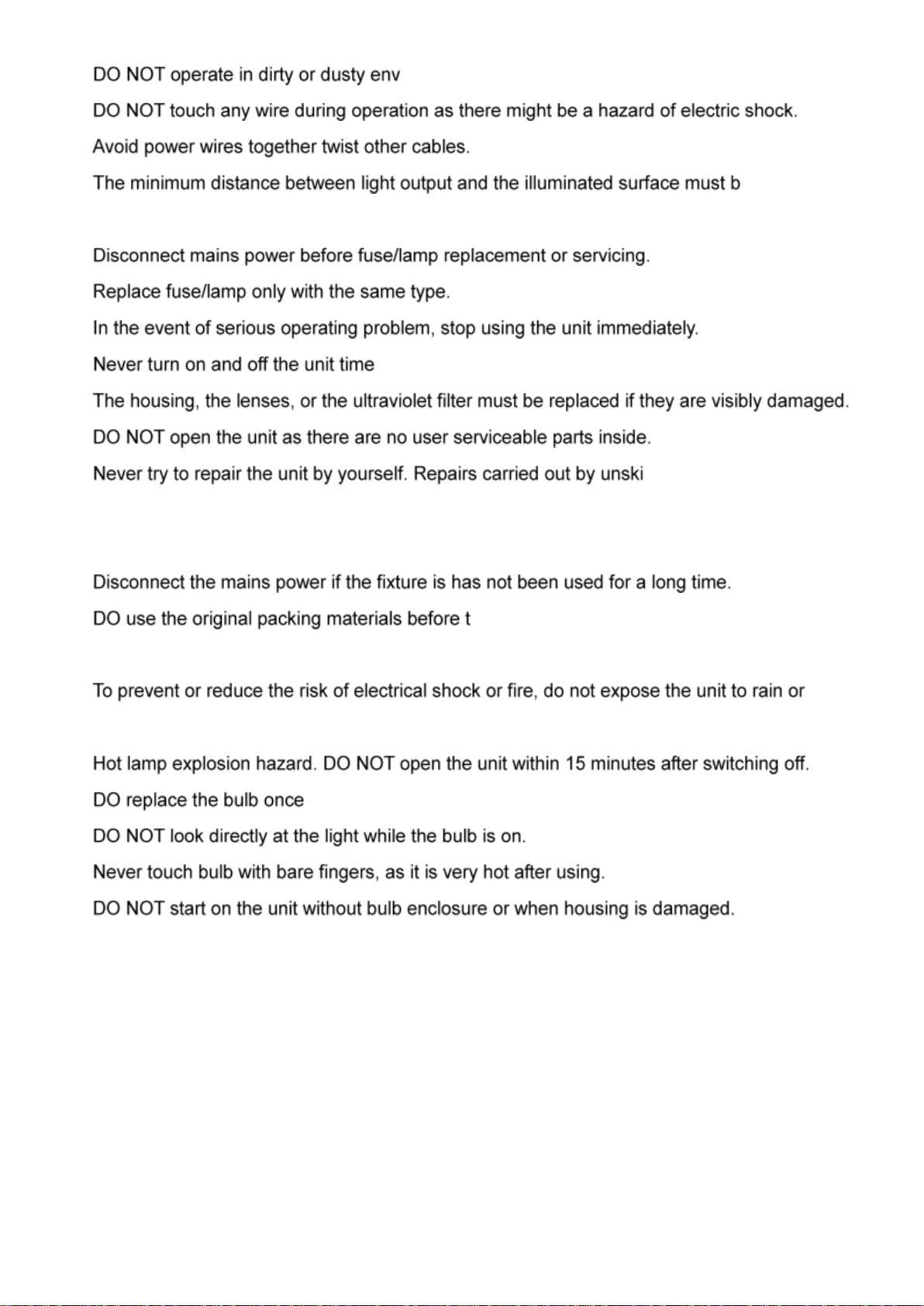

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
allow children to operate the fixture.
surfaces.
sure, that no ventilation slots are blocked, otherwise the unit will be overheated.
requirements of the unit.
o earth in order to avoid electric shock.
℃-40℃.
-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
hazard.
nit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed
during
its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
ater or metal objects entering the unit. Once it happens, cut off
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
the mains power immediately.
1/12

2/12
ironment, do clean fixtures regularly.
e more than 18
meters.
after time.
lled people can lead to
damage
or malfunction. Please contact the nearest authorized technical assistance center if needed.
ransporting it again.
Cautions:
moisture.
it is damaged, deformed or life-expired.
2. Technical Specifications
Power supply
- AC 100~240V 50/60Hz
Power Consumption
- 600W
Fuse
- T 10A

Light Source
- YODN MSD 440R20
Color Temperature ：
- 7800K
Optical system
- High efficiency optical system, delivering extremely powerful output
- High quality dichroic lenses
Movement
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Dimmer/Shutter
- Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.
Color wheel
- Color wheel: 3 color wheels with 5 color plus white
CMY
- Rainbow effect in both directions.
Gobo wheel
- Gobo Wheel: 1 Fixed gobo wheel with 18 gobos plus open
1 Rotating gobo wheel with 7 gobos plus open
Prism
- Prism 1: 16 facet prisms rotating in both directions
- Prism 2: 8prism rotating in both directions
Focus
- Electronic focus effect
Zoom
- Motorized linear zoom system, zoom range: 2°-50°
Protocols
- DMX 512
- Date input/output: 3/5 Pin XLR socket
3/12

4/12
Weight
- 23Kg
Dimension
- 667×335×393mm
3. Description
3.1 Control Panel

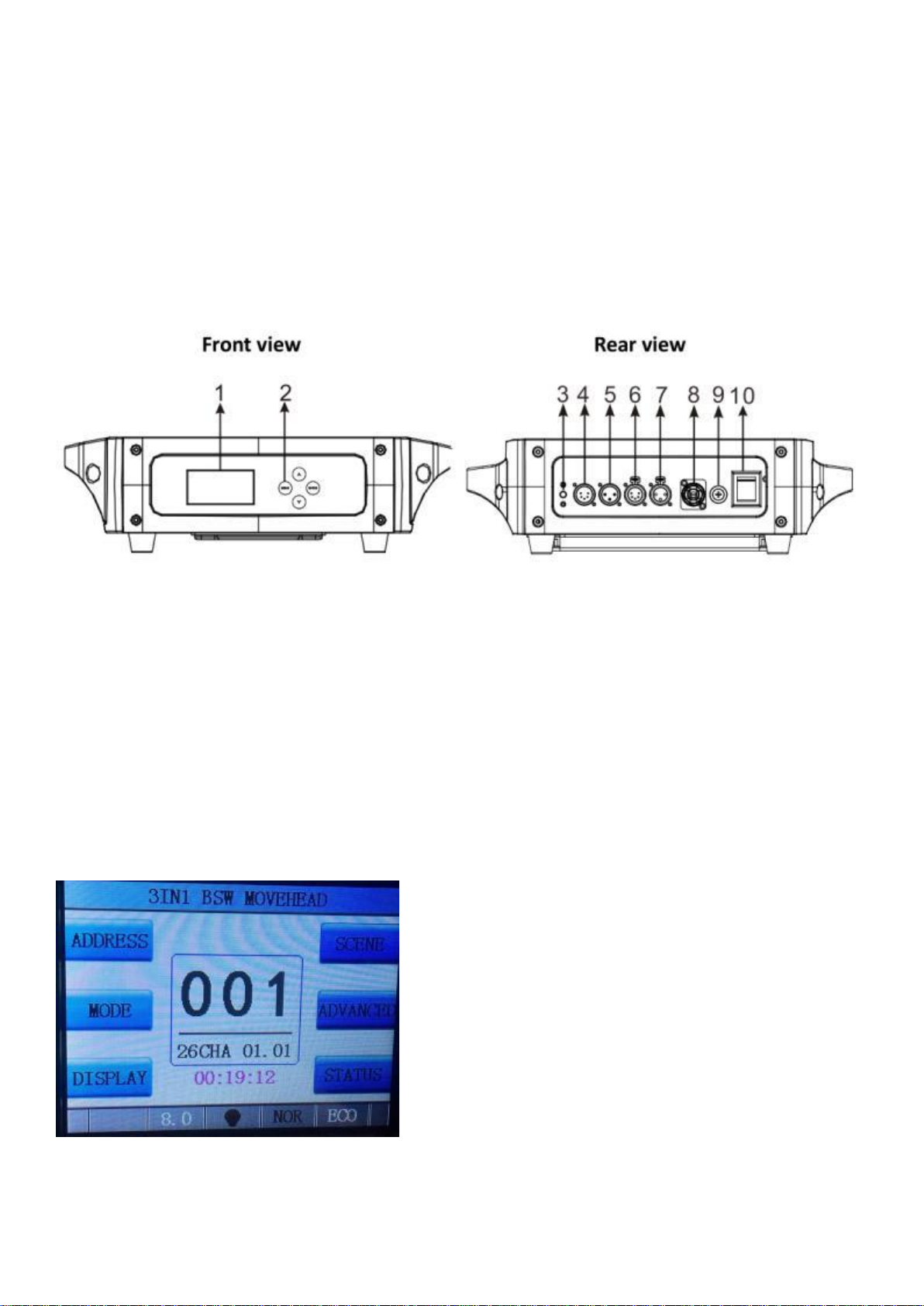

Front view Rear view
1. Function Display:
Shows the various menus and the selected functions.
2. Button:
The light panel diagram, left area is TFT Displayer, support touch, and right area is encoder button,
both of touch and coder button can operate light and setting.
Display & operation just like ‘Android operation system, touch the item will set or modify setting.
Note: Prevent damage the touch or TFT displayer, cannot use sharp objects chick displayer.
Operation
Operate light with touch or encoder button

5/12
The left area is TFT Displayer and touch, chick item or value with finger will to complete
operation of set light setting(parameters) or view light state.
The area on the right-hand side is rotary encoder with button, as auxiliary input interface,
if disable touch function, the encoder can be chosen to set or view the item, and then press
the encoder button to confirm the selection, rotary encoder again set the parameter value,
finally, Press encoder button one again to save value or setting.
Parameter value setting

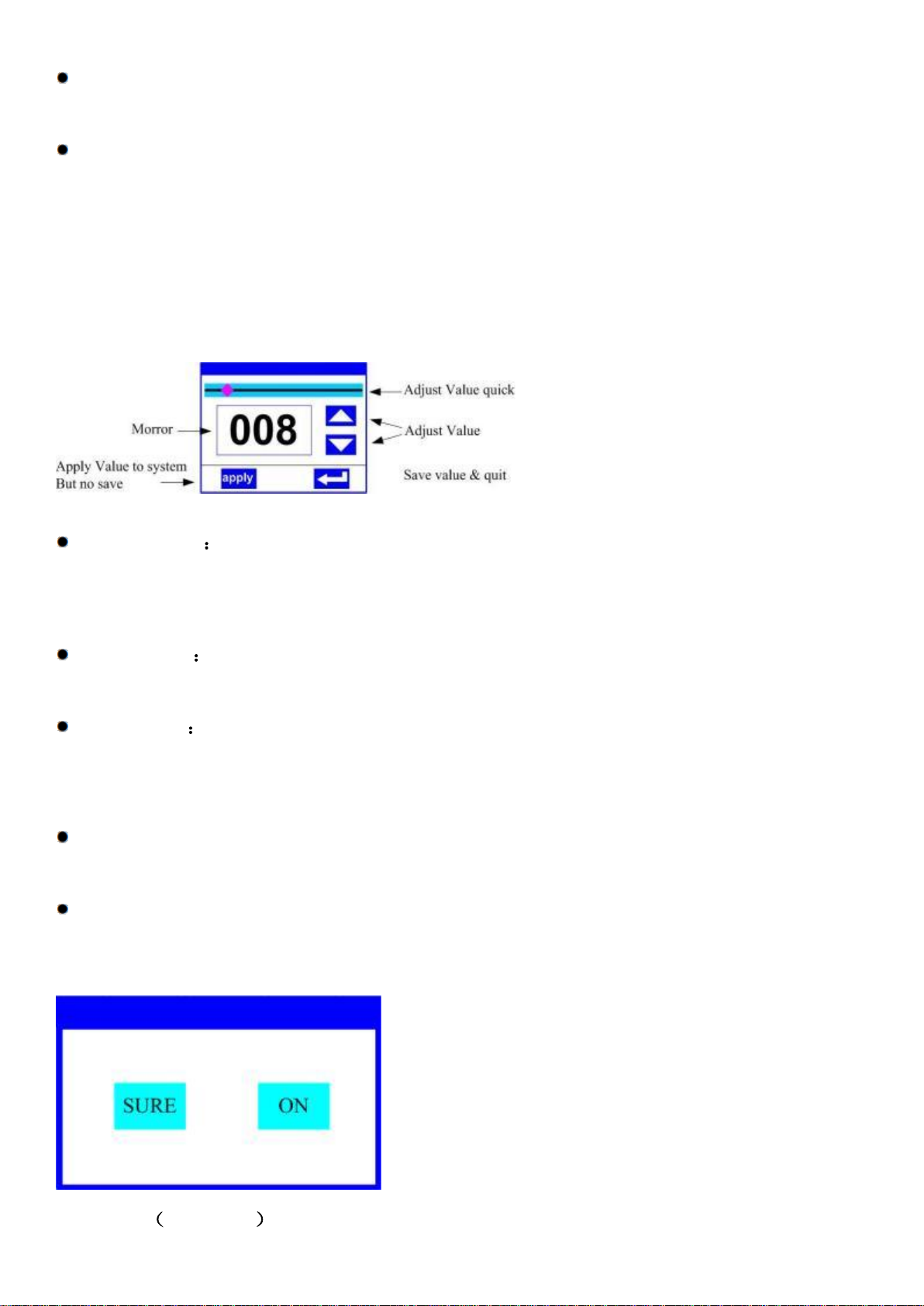

When the selected item is value need to been modified, the dialog shown in will popup.
Modify value Can quickly modify value via pull the slider to the desired position, or click the
button of ‘up’ or ‘down’ whit finger on the right side to set the exact desired value, another way
is roll encoder on the right-hand side of panel.
Apply value When Value had been modified, then press the bottom of ‘apply’ in the left corner
to apply to the light, but hav’t saved；
Save Value Any time, click on the lower right corner of the "OK" button, the setting will been
saved into internal memory.
Boolean parameter setting
when the selected parameters is a Boolean value (such as ON or OFF), can directly modify
setting by chick corresponding item, the setting will been saved right now.
When the parameter is a key item, chick corresponding item, a dialog shown in will been popup
ask for the confirm. Chick ‘sure’ to confirm.
Sub Menu Parameter

6/12

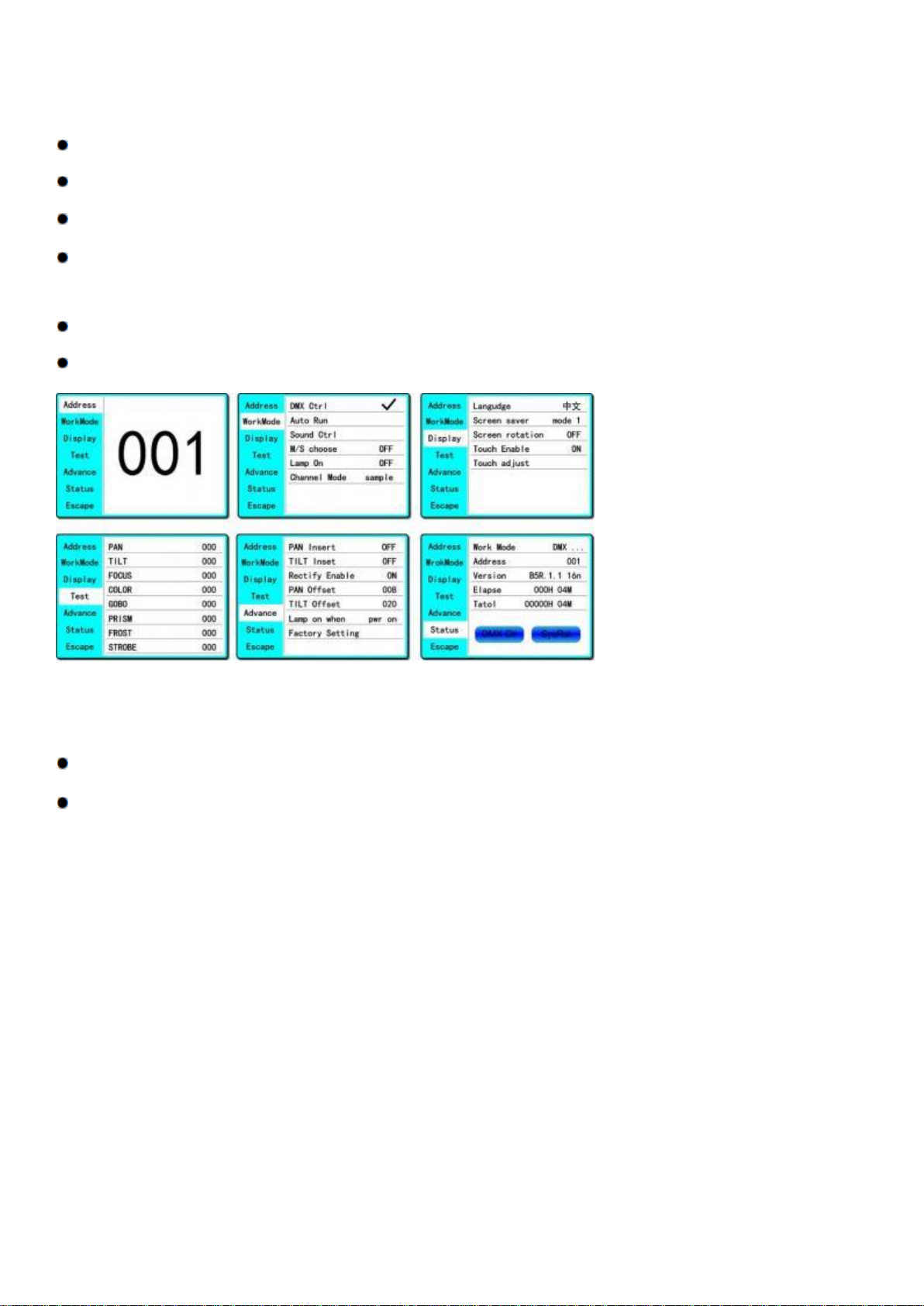

Chick item of main menu, enter corresponding sub menu, total 6 sub menu, includes class of
parameter and status:
ADDRESS：Set light DMX address.
WORKMOD：Set light work mode, master or slave mode when in auto run mode.
DISPLAY：Set display parameter, e.g. select language.
TEST：Used for test light, modify DMX channel data to test function，the corresponding
function of reference channel function table.
ADVANCE：Set light running parameter.
STATUS：view light current status.
Operation and parameter instruction
Via following operation, enter sub menu (parameter menu)
In main menu, chick 1/6 function button into corresponding parameter menu.
In sub menu(page), chick main item on the left side of displayer, can shift to corresponding sub
menu(page) quickly.
Set DMX Address
Click and select the "ADDR", can enter the page of DMX address setting, range from 1 to 512, the
address code shouldn’t be not greater than (512- channels quantity), otherwise the light will
not been controlled. Following is the operation:
Enter the page of DMX address, click the blank area in right side of display will pop-up dialog as in
Fig. 4, modify value, then click ‘ENTER’ to confirm and save DMX address code.
6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1
to 512

7/12
so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button
to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm,
the present address will be blinking the display, use the UP/DOWN button to adjust the address
from 001 to 512, press the ENTER button to store. Press the MENU button back to the last
menu or idling let the unit idle one minute to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
26
1
27
53
79
6.3 DMX 512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 5 seconds, then the corresponding function
will take into effect.
26Channels (Mode 1):
CHANNEL1
Designation
Value
FUNCTION
CH1
PAN
0-255
Pan ：
0°- 540°
CH2
PAN FINE
0-255
Pan Fine ：
Fine Pan positioning
CH3
TILT
0-255
Tilt
0°– 244°
CH4
TILT FINE
0-255
Tilt Fine ：
Fine Tilt positioning
CH5
PAN/TILT STEED
0-255
Pan/Tilt Speed shaking fast to slow
CH6
FUNCTION
100-105
Lamp OFF
110-115
Lamp ON
210-215
Reset XY
220-235
Reset Effect
240-255
Reset All
CH7
Cyan
000-255
Linear adjustment from light to
dark for Cyan
CH8
Magenta
000-255
Linear adjustment from light to dark
for Magenta

8/12
CH9
Yellow
000-255
Linear adjustment from light to dark
for Yellow
CH10
COLOR1
000-127
Linear colour
128-148
Open
149-169
Colour 1
170-191
Colour 2
192-212
Colour 3
213-233
Colour 4
234-255
Colour 5
CH11
COLOR2
000-127
Linear colour
128-148
Open
149-169
Colour 1
170-191
Colour 2
192-212
Colour 3
213-233
Colour 4
234-255
Colour 5
CH12
COLOR3
000-127
Linear colour
128-148
Open
149-169
Colour 1
170-191
Colour 2
192-212
Colour 3
213-233
Colour 4
234-255
Colour 5
CH13
GOBO1
000-003
Open
004-009
GOBO 1
010-015
GOBO 2
CHANNEL1
Designation
Value
FUNCTION
CH13
Static GOBO
16-21
Gobo3
22-27
Gobo4
28-33
Gobo5
34-39
Gobo6
40-45
Gobo7
46-51
Gobo8
52-57
Gobo9
58-63
Gobo10
64-69
Gobo11
70-75
Gobo12
76-81
Gobo13
82-87
Gobo14
88-95
Gobo1 shaking slow to fast
96-103
Gobo2 shaking slow to fast
104-111
Gobo3 shaking slow to fast
112-119
Gobo4 shaking slow to fast
120-127
Gobo5 shaking slow to fast
128-135
Gobo6 shaking slow to fast
136-143
Gobo7 shaking slow to fast

9/12
144-151
Gobo8 shaking slow to fast
152-159
Gobo9 shaking slow to fast
160-167
Gobo10 shaking slow to fast
168-175
Gobo11 shaking slow to fast
176-783
Gobo12 shaking slow to fast
184-199
Gobo13 shaking slow to fast
200-201
Empty position
202-227
Continuous gobo wheel clockwise
rotation at
Linearly variable speed from fast
to slow
228-229
Stop rotation
230-255
Continuous gobo wheel
counter-clockwise rotation at linearly
variable speed from slow to fast
CH14
Animation WHEEL
00-005
Empty position
006-055
SPOT WHITE
056-105
shaking slow to fast 1
106-155
shaking slow to fast 2
156-205
shaking slow to fast 3
206-255
Continuous animation disk
counter-clockwise rotation
at linearly variable speed from slow to
fast
CH15
Rotating GOBO
0-010
Empty position
011-020
GOBO1
021-030
GOBO2
031-040
GOBO3
041-050
GOBO4
051-060
GOBO5
CHANNEL1
Designation
Value
FUNCTION
CH15
61-70
Gobo6
71-80
Gobo7
81-90
Gobo1 shaking slow to fast
91-100
Gobo2 shaking slow to fast
101-110
Gobo3 shaking slow to fast
111-120
Gobo4 shaking slow to fast
121-130
Gobo5 shaking slow to fast
131-140
Gobo6 shaking slow to fast
141-150
Gobo7 shaking slow to fast
151-199
Continuous gobo wheel clockwise
rotation at
Linearly variable speed from fast
to slow
200-202
Stop rotation
203-255
Continuous gobo wheel

10/12
counter-clockwise rotation
at linearly variable speed from
slow to fast
CH16
GOBO Rotation
0-127
Gobo indexing:0°to 400°range
128-190
Continuous gobo wheel clockwise
rotation at Linearly variable speed
from fast
191-192
Stop rotation
193-255
Continuous gobo wheel
counter-clockwise rotation at
linearly variable speed from slow
CH17
PRISM1
0-127
Prism out
128-191
Prism 1 into the light beam
192-255
Prism 2 into the light beam
CH18
Prisms 1 Rotation
0-127
Prism indexing:0°to 400°range
128-190
Continuous gobo wheel clockwise
rotation at Linearly variable speed
from fast
191-192
Stop rotation
193-255
Continuous gobo wheel
counter-clockwise rotation at
linearly variable speed from slow
CH19
Prism amplification.
000-255
linearly moves from narrow to
wide be
CH20
Rainbow
000-127
Empty position
128-255
Rainbow
CH21
Frost
000-127
Empty position
125-255
Frost moves linearly into the
light beam
CH22
Zoom
000-255
Zoom linearly moves from narrow
to wide beam
CH23
Focus
000-255
Focus moves linearly into the
light beam
CH24
Focus Fine
000-255
Fine Focus positioning
CH25
Strobe
000-003
Light OFF
004-103
Strobe at linearly variable
frequency
From low to high
104-107
Light ON
108-207
Pulsation at linearly variable speed
from slow to fast
208-212
Light ON
213-251
Random Strobe at low frequency
252-255
Light ON
CH26
Dimmer
000-255
0-100%

11/12
7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions
for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED to see if it can be light up or not.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if they are linked properly.
2. If the DMX LED is on and no response to the channel, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit
or the previous one.
4. Try to use another DMX controller.
5. Check to see if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
D. The lamp is cutting out intermittently
1. The lamp is not working well. Check the mains voltage either too high or too low.
2. Internal temperature may be too high. Check if replacement of fan is needed on the head.
E. If The pan belt is broken
1. Turn off the mains power.
2. Loosen the screws (A)，open the cover(B).
3. Loosen the motor gear (C).
4. Loosen the screws (D)
5. Unplug all the connect wires over the belt.
6. Change a new belt (E), put the belt around the axis gear and motor gear.
7. Plug all the connect wires back upon the belt.
8. Tighten all the screws.

12/12
F. If The tilt belt is broken
1. Turn off the mains power.
2. Loosen all the screws (A) and open the right arm cover (B).
3. Loosen the screws (C) that fix the bridge.
4. Change a new belt (D). Please adjust the tension of the belt properly. Note: do not fix the belt too
tight as it is can easily rupture.
5. Reverse the procedures from step 3 to 2.
8. Maintenance and Cleaning
Maintenance:
A. As the pictures shown above, please replace the cable or cable joints immediately once they’ve
turned yellow.
B. Do maintain the fixtures every two months and make sure that all the screws and terminals have
been locked firmly to make sure the normal performance of the fixtures. Negligence of
maintenance would cause malfunction of the fixture.
Cleaning:
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically
to optimize light output. Cleaning frequency depends on the environment in which the fixture
operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on
the
unit’s optics.
days.
