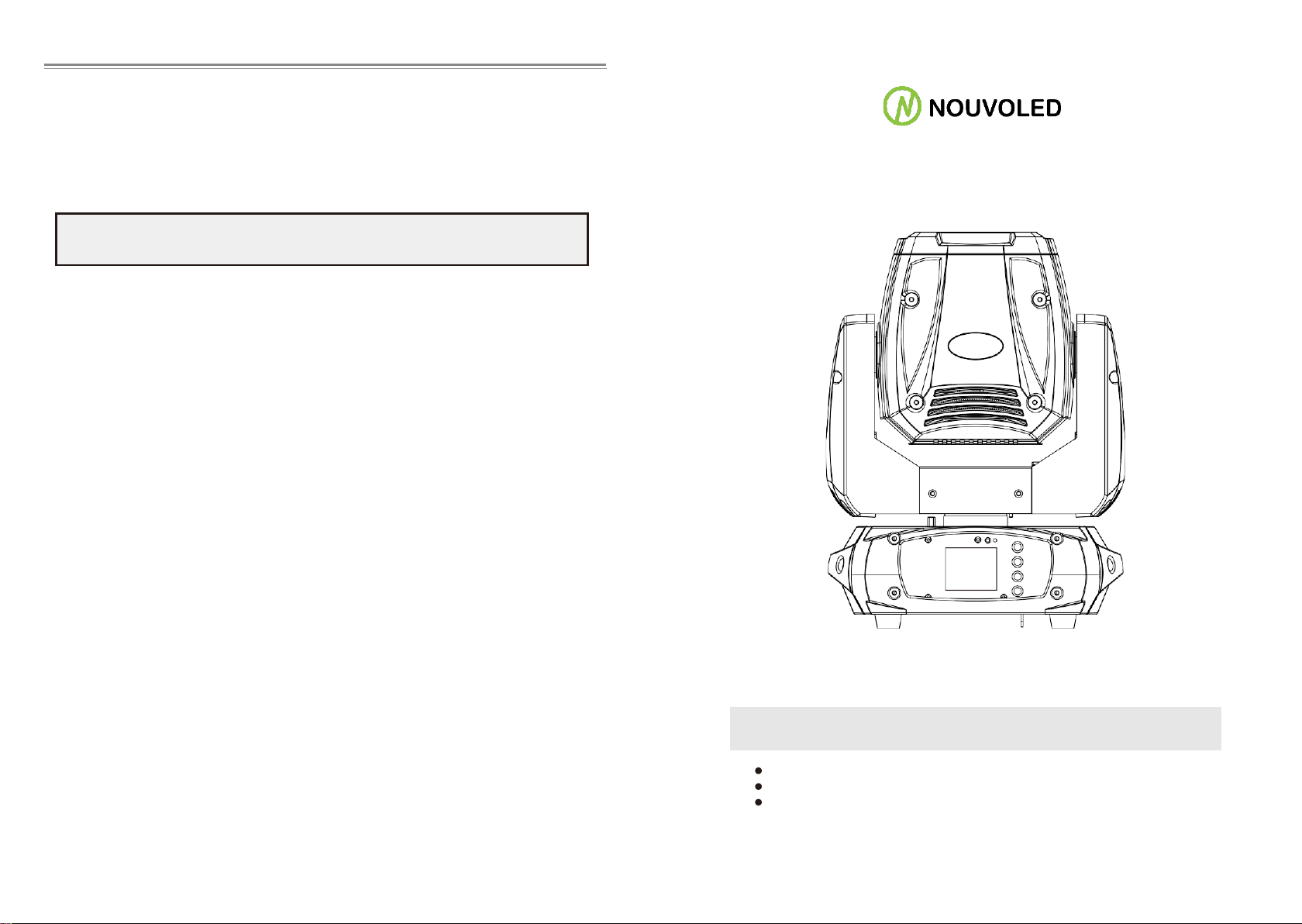

NOUVOLED VIRGO150S User manual

LED SPOT 150W Product Datasheet
10.Maintenance and cleaning
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up
on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular cleaning will not
only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.A soft lint-
free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol
or solvents be used!
VIRGO150S
The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-
output very quickly. The cooling-fans should be cleaned monthly.
The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.
Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.
Important! Check the air filters periodically and clean before they become clogged!
Clean two air filters placed in the fixture’s covers and two in the fixture base. Use a vacuum cleaner,
compressed air or you can wash them and put back dry.
After replacing the air filters, reset the elapsed time counter in the menu "Information" (Information--->Air Filters---
>Elapsed Time).
Replacing the fuse. Before replacing the fuse, unplug mains lead.
1) Remove the fuse holder on the rear panel of the base with a fitting screwdriver from the housing (anti-
clockwise).
2) Remove the old fuse from the fuseholder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and fix it.
Version 1.0
USER MANUAL
Be sure to read the USER MANUAL carefully before using this product. Be
sure to keep the USER MANUAL properly for future needs.
Use this product correctly when you can fully understand the User Manual
DANGER !
Disconnect from the mains before starting any
maintenance work

LED SPOT 150W Product Datasheet
LED SPOT 150W Product Datasheet
01
10
CAUTION!
Be careful with your operations.
With a high voltage you can suffer a dangerous electric shock when touching the wires!
1. Safety instructions
Thank you for choosing our LED SPOT 150W. FOR YOUR OWN SAFETY, PLEASE READ THIS USER
MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
During the operation the housing becomes hot). Allow the fixture to cool approximately 20 minutes prior to
manipulate with it.
Make sure that the available voltage is not higher than stated on the rear panel.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to
completely remove power from unit when not in use or before cleaning or servicing the fixture.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-
cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-
cord by the plug. Never pull out the plug by tugging the power cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a qualified employee. Do not
connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)! For
replacement use lamps and fuses of same type and rating only.
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION! EYE DAMAGES!
Avoid looking directly into the light source
(meant especially for epileptics) !
9
7
Shutter
0..31
Shutter closed
32..63
shutter open
64..95
Strobe effect slow to fast
96..127
shutter open
128..159
Pulse-effect in sequences slow to fast
160..191
shutter open
192..223
Random strobe effect slow to fast
224..255
shutter open
10
8
Dimmer
0..255
Dimmer 0%...100%
11
9
Focus
0..255
In(near) to out(far)
12
10
Rotating prism
0..5
Prism swing out(hole)
6..127
Prism swing in
128..189
Prism Forwards rotation from fast to slow
190..193
Prism rotation stop
194..255
Prism Backwards rotation from slow to fast
13
11
Speed pan/tile
0..225
max to min speed
226..235
blackout by movement
236..245
blackout by all wheel changing
246..255
no function
14
12
Special function
0..19
No function
20..29
No function
30..39
No function
40..79
No function
80..84
All Motor reset
85..87
Scan motor reset
88..90
Colors motor reset
91..93
Gobo motor reset
94..96
No function
97..99
Other motor reset
100..119
Internal program 1
120..139
Internal program 2
140..159
Internal program 3
160..179
Internal program 4
180..199
Internal program 5
200..219
Internal program 6
220..239
Internal program 7
240..255
Internal Sound program 1

LED SPOT 150W Product Datasheet
LED SPOT 150W Product Datasheet
02
09

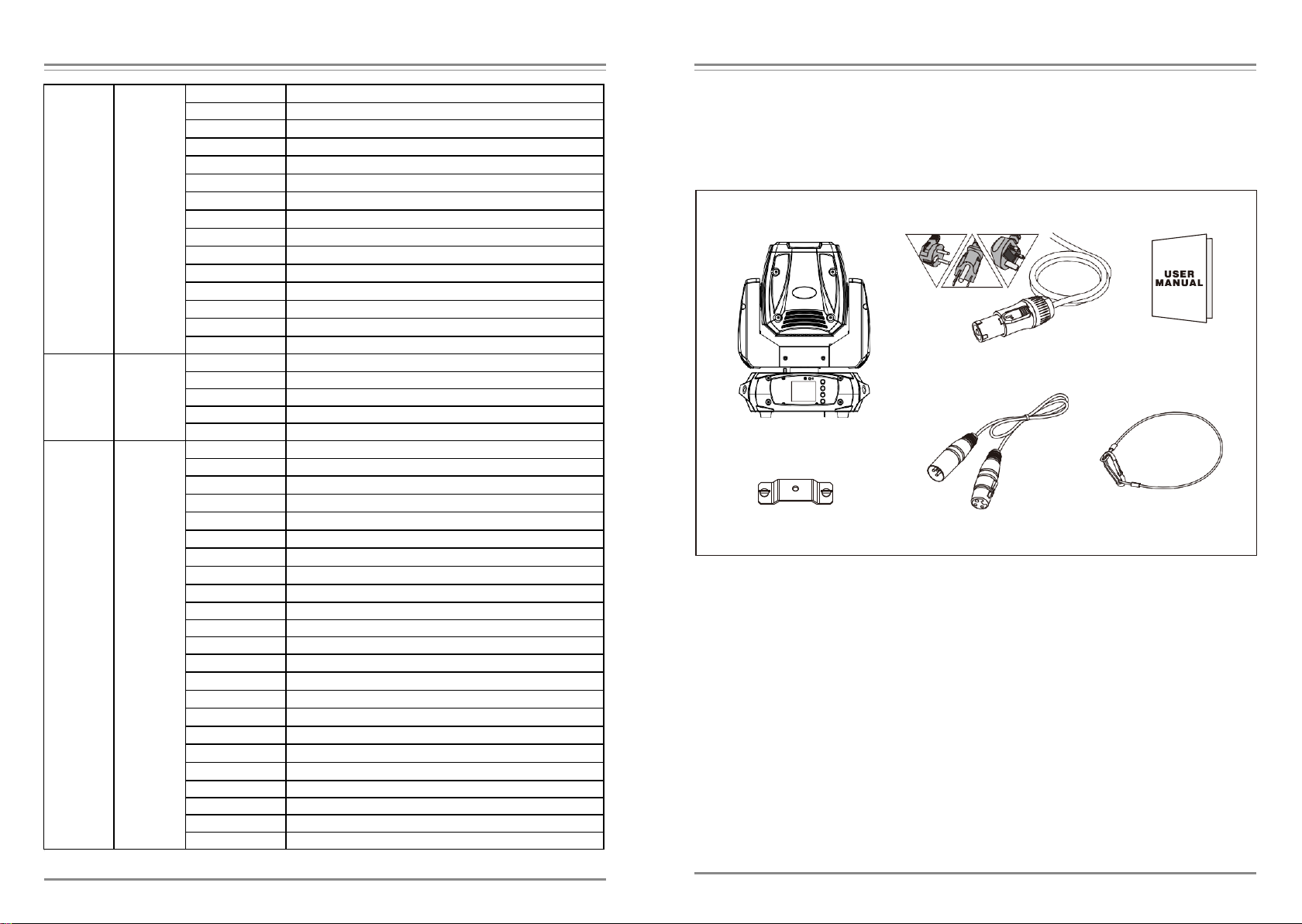

▲ Signal Cable *1
▲ Hanging Kit *1
▲ Safety Cable*1
▲ Moving Head *1
▲ Power Cable*1
▲ User Manual*1
USA Standard
EuroStandard UKStandard
2. UNPACKING
The LED SPOT 150W adopts a 150W white LED lamp which features high brightness and stability. Please carefully
unpack it when you receive the fixture and check whether it is damaged during the transportation. And please check
whether the following items are included inside the box:
The LED SPOT 150W is made of a new type of high temperature strength of engineering plastics and cast
aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards,
complying with international standard DMX512 protocol. It’s available independently controlled and linkable with
each other for operation. And it is applicable for large-scale live performances, theater, studio, nightclubs and
discos.
This manual covers the important information on installation and applications. Meanwhile, please keep this
manual well for future needs.
6
4
Gobo wheel 1
0..9
Open
10..19
gobo 1
20..29
gobo 2
30..39
gobo 3
40..49
gobo 4
50..59
gobo 5
60..69
gobo 6
70..89
Gobo 1 shake slow to fast
90..109
Gobo 2 shake slow to fast
110..129
Gobo 3 shake slow to fast
130..149
Gobo 4 shake slow to fast
150..169
Gobo 5 shake slow to fast
170..189
Gobo 6 shake slow to fast
190..255
Rot. gobo wheel cont. rotation slow to fast
7
5
Gobo1 rotation
0..3
no function
4..127
Forwards gobo rotation from fast to slow
128..131
Gobo & prism rotation stop
132..255
Backwards gobo rotation from slow to fast
8
6
Gobo wheel 2
0..9
Open
10..19
gobo 1
20..29
gobo 2
30..39
gobo 3
40..49
gobo 4
50..59
gobo 5
60..69
gobo 6
70..79
gobo 7
80..89
gobo 8
90..99
gobo 9
100..109
gobo 10
110..119
Gobo 1 shake slow to fast
120..129
Gobo 2 shake slow to fast
130..139
Gobo 3 shake slow to fast
140..149
Gobo 4 shake slow to fast
150..159
Gobo 5 shake slow to fast
160..169
Gobo 6 shake slow to fast
170..179
Gobo 7 shake slow to fast
180..189
Gobo 8 shake slow to fast
190..199
Gobo 9 shake slow to fast
200..209
Gobo 10 shake slow to fast
210..255
Rot. gobo wheel cont. rotation slow to fast

LED SPOT 150W Product Datasheet
LED SPOT 150W Product Datasheet
08
03

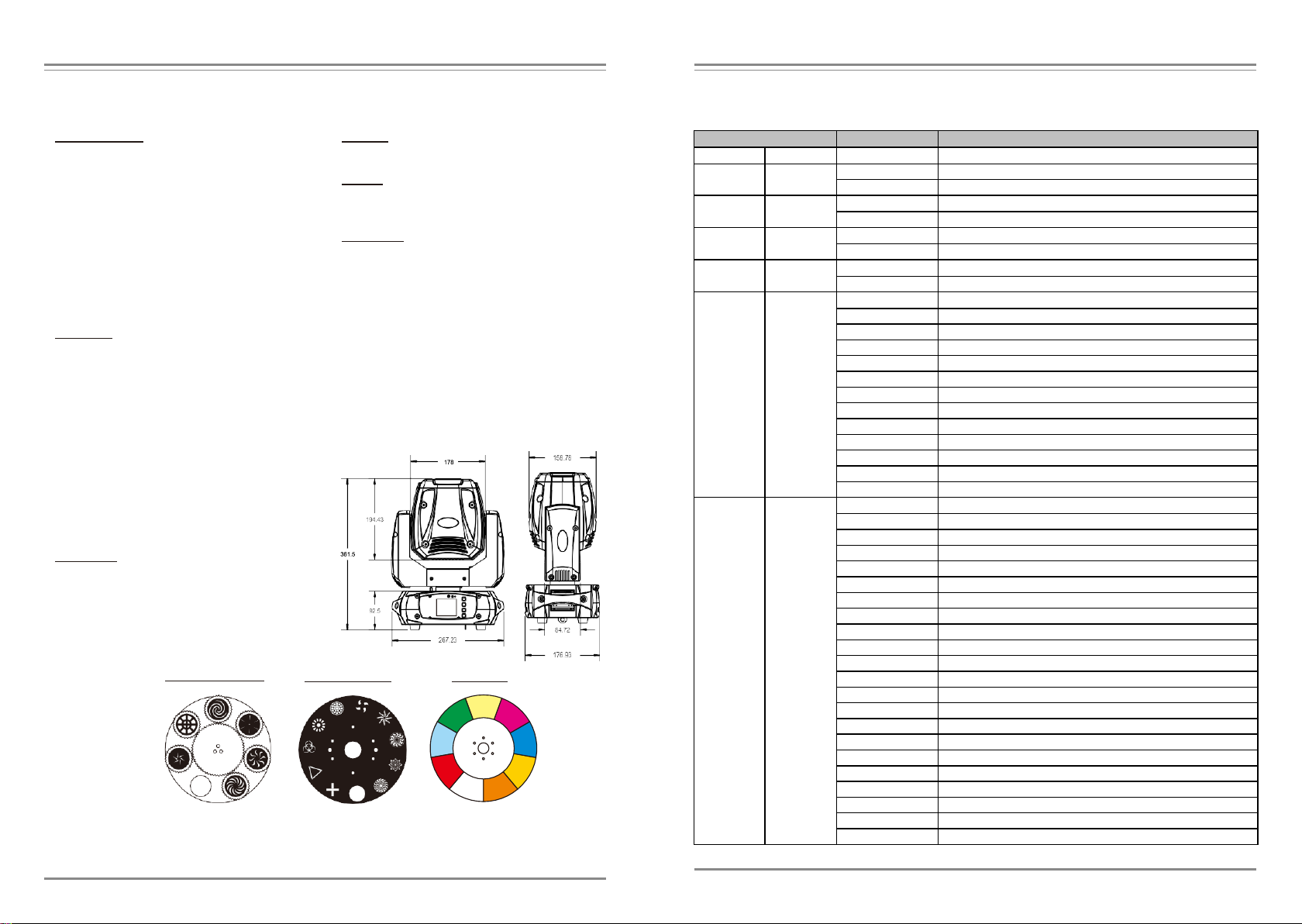

SPECIFICATIONS:
3. TECHNICAL INFORMATION
COLORS:
9. DMX PROTOCOL
■
A 150W white LED lamp,7500K, 50000 hours life span
■
Input Voltage:AC90-260V 50/60Hz
■
Power Consumption: 195W
■
Control Signal: DMX512, master-slave andsound
activated or auto operation (7 built-in
programs)
■
1 Color wheel with 8 colors plusopen.
GOBOS:
■
1 RotatingGobo Wheel with 6 gobos plus open
■
1 Static Gobo Wheel with 10 gobos plus open
■
Control Channel: 14/12 DMX channels USITTDMX-
512
■
Dimensions:266(D)*177(W)*362(H)mm
■
Packing Dimensions:350(D)*245(W)*45(H)mm
■ Net Weight:6.6kgs
■ Gross Weight:7.6kgs
FEATURES:
■ Low power consumption
■ 13° Beam angle
■ Motorized focus from near tofar (2.5M-30M)
■ 3-Facet prism with variable speed anddirection
■ 25T/sec high speed LED shutter/strobe effectwith
variable speed
■ Preset variable/random strobe and dimming pulse effect
■ 1.8' TFT LCD display (160*128pix)
■
Powercon IN
■
3-Pin XLR connectors IN/OUT
■
IP20 protection rating
■
55dB at 3’dB rating
■
1*1/4 turn fastening Omega clamps
■
1*Safety attachment point available
MOVEMENT:
■ Smooth and precise resolution for PAN/TILT
movement
■ 360° /540° /630° PAN and 90°/180° /270°TILT
■ movement optional
■ Scan position memory, auto repositionafter
■ unexpected movement
FUNCTION:
■
Improved optics and flat beamfield
■
Variable direction rainbow effect with speed
adjustable
■
Vector mode with blackout MIBfunction
■
Constant temperature readout andmanagement
function
■
Fan cooling system
■
-35-45°C max ambient temperature
Rotating Gobo WheelStatic Gobo WheelColor Wheel
Mode/Channel
Value
Function
16b
8b
1
1
Pan
0..255
PAN Movement
2
Pan-fine
0..255
Fine control of Pan movement
3
2
Tilt
0..255
Tilt Movement
4
Tile-fine
0..255
Fine control of Tilt movement
5
3
Color wheel
0..13
Open / white
14..27
Red
28..41
Blue
42..55
Green
56..69
Yellow
70..83
Rosy Red
84..97
Deep Blue
98..111
Deep Yellow
112..127
Orange
128..189
Forwards rainbow effect from fast to slow
190-193
Color rotation stop
194..255
Backwards rainbow effect from slow to fast
5
3
Color wheel (Half color Mode)
0..6
Open / white
7..13
Open + Red
14..20
Red
21..27
Red + Blue
28..34
Blue
35..41
Blue + Green
42..48
Green
49..55
Green + Yellow
56..62
Yellow
63..69
Yellow + Rosy Red
70..76
Rosy Red
77..83
Rosy Red + Deep Blue
84..90
Deep Blue
91..97
Deep Blue + Deep Yellow
98..104
Deep Yellow
105..111
Deep Yellow + Orange
112..118
Orange
119..127
Orange + Open
128..189
Forwards rainbow effect from fast to slow
190-193
Color rotation stop
194..255
Backwards rainbow effect from slow to fast

LED SPOT 150W Product Datasheet
LED SPOT 150W Product Datasheet
04
07

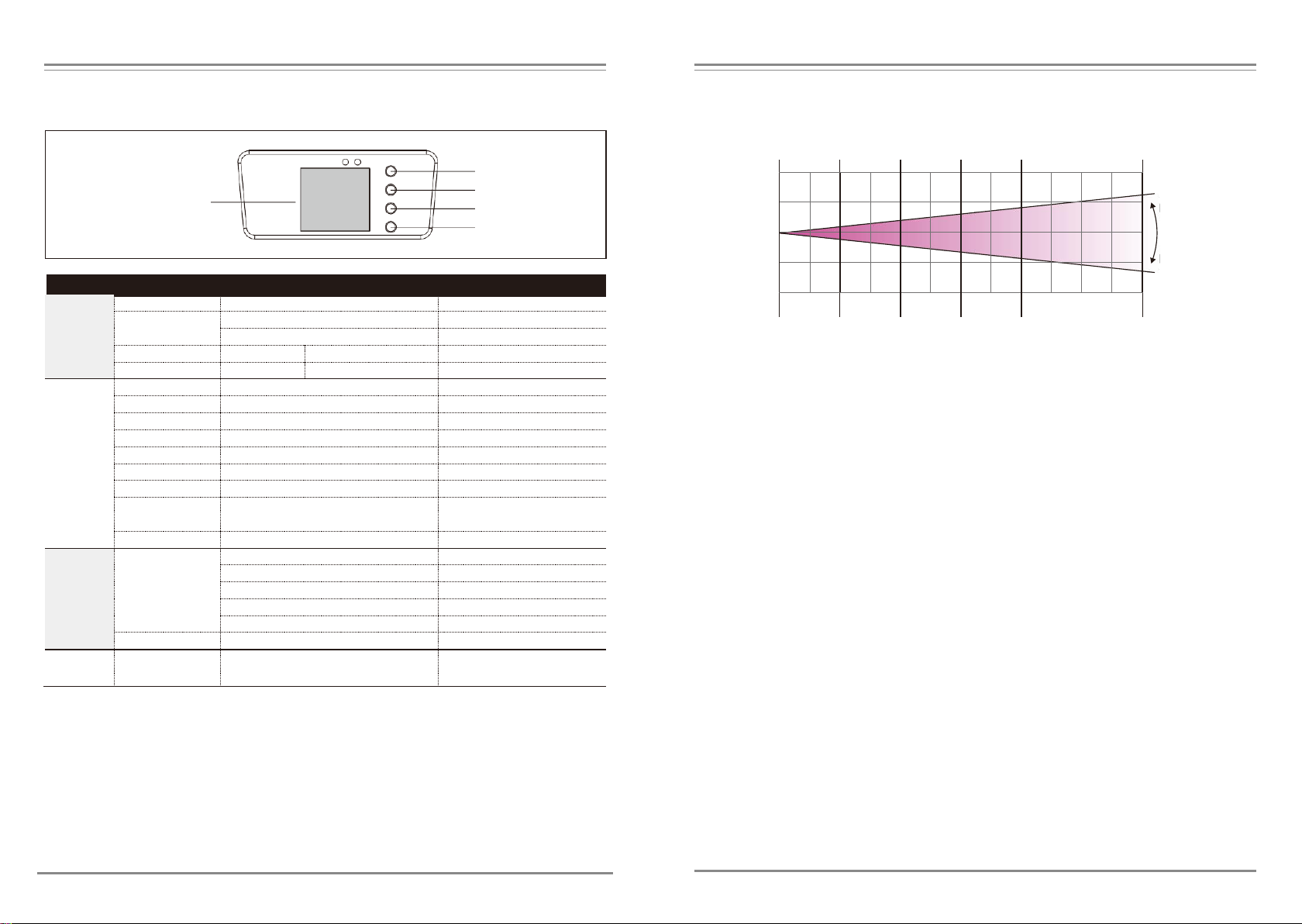

MENU Description
8. MENU OPERATIONS 4.PHOTOMETRICS DIAGRAM
Distance 2.5m 5m 7.5m 10m 15m
13°
150W(LUX)
Diameter(m)
25200 5520 3276 1716 1152
ø0.41 ø0.82 ø1.23 ø1.65 ø2.64
5.OPERATION INSTRUCTIONS
●The LED SPOT 150W is for beam effect for on-site decoration purpose.
●Don’t turn on the fixture if it’s been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the fixture
until it is in normal temperature.
●This light should be kept away from strong shaking during any transportation or movement.
●Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
●Don’t expose the fixture in overheat, moisture or environment with too much dust when installing it. And
●don’t lay any power cables on the floor. Or it might cause electronic shock to the people.
●Make sure the installation place is in good safety condition before installing the fixture.
●Make sure to put the safety chain and check whether the screws are screwed properly when installing
the fixture.
●Make sure the lens is in good condition. It’s recommended to replace the units if there are any damages
or severe scratch.
●Make sure the fixture is operated by qualified personnel who knows the fixture before using.
●Keep the original packages if any second shipment is needed.
●Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing
agencies.
●It is not in warranty range if there are any malfunctions from not following the user manual to operate or
any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
MENU
UP
DOWN
ENTER
LCD DISPLAY
DMX
(Function Mode)
Dmx Address
A001~AXXX
DMX address setting
Channel Mode
CH14 MODE
Standard mode
CH12 MODE
Vector mode
Auto Run
Program1~9
Master/Alone
Auto run
Music Run
Program1~9
Master/Alone
Sound Control
SET
(Fixture Set)
Reset Default
Yes/No
Reset Default
Signal Set
Wire
Wire DMX
Reverse Pan
(On/Off)
Reverse Pan
Reverse Tilt
(On/Off)
Reverse Tilt
Select Pan
630°/540°/360°
Pan Degree, default is 540°
Select Tilt
270°/180°/90°
Tilt Degree, default is 270°
Mic Sensitivity
0~99%
MIC Sensitivity Setting
OFF Signal Mode
(On/Off)
OFF at original status and
ON at reset status when no
DMX signal
Half Color Wheel
(On/Off)
Half color Select
Manu
(Manual)
Reset
Total Reset
Total Reset
Scan Reset
Scan Reset
Color Reset
Color Reset
Gobo Reset
Gobo Reset
Others Reset
The Others Reset
Channel
PAN=XXX……
Channel Control
ADV
(Advanced)
(AccessCode088)
Calibration
PAN=XXX……
Calibration

LED SPOT 150W Product Datasheet
LED SPOT 150W Product Datasheet
06
05
Cautions:
6. INSTALLATIONS 7. CONTROL CONNECTION
For added protection mount the fixtures in areas outside
walking paths, seating areas, or in areas where the fixture
might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that
the installation area can hold a minimum point load of 10
times the device’s weight.
Fixture installation must always be secured with a
secondary safety attachment, such as an appropriate
safety cable.
Never stand directly below the device when mounting,
removing, or servicing the fixture.
from a ceiling, or set on a flat level surface (see
illustration below). Be sure this fixture is kept at least
0.5m (1.5 f t) away from any flammable materials
(decoration etc.).
Always use and install the supplied safety cable as a
safety measure to prevent accidental damage and/or
injury in the event the clamp fails.
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-
pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable
needed should be two core, screened cable with XLR input and output connectors.
Please refer to the diagram below. DMX-512 connection with DMX terminator.
For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in
a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control
signal by electrical noise. The DMX terminator is simply an XLR plug with a3 resistor connected between pins 2 and
3, which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.

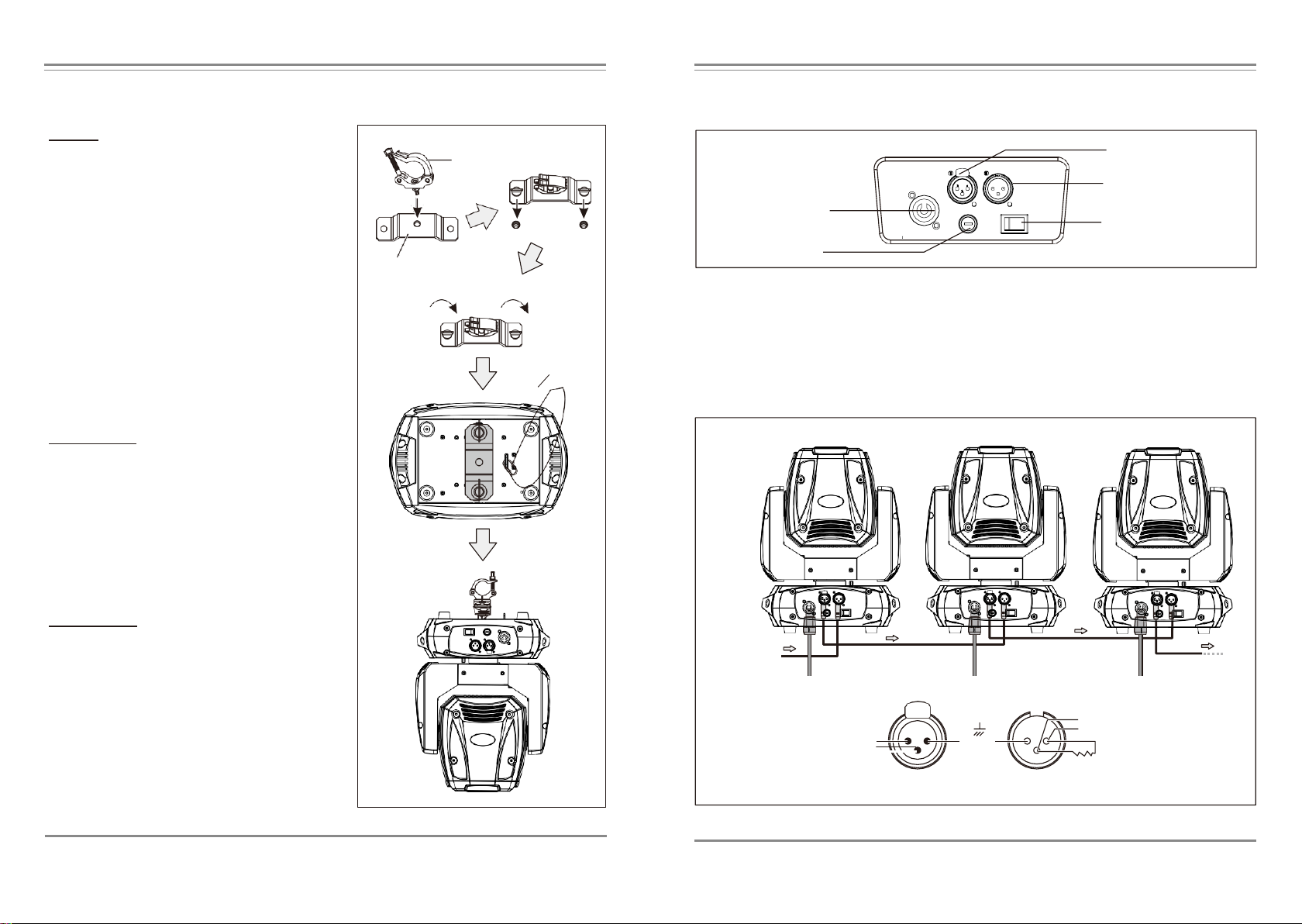

Mounting points:
Overhead mounting requires extensive experience,
including amongst others calculating working load limits, a
fine knowledge of the installation material being used, and
periodic safety inspection of all installation material and
the fixture. If you lack these qualifications, do not attempt
the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures
before connecting the main power cord to the appropriate
wall outlet.
Clamp Mounting:
The LED SPOT 150W provides a unique mounting
bracket assembly that integrates the bottom of the base,
and the safety cable rigging point in one unit (see the
illustration below). When mounting this fixture to truss be
sure to secure an appropriately rated clamp to the
included omega bracket using a M10 screw fitted through
the center hole of the “Hanging Kit”. As an added safety
measure be sure to attached at least one properly rated
safety cable to the fixture using one of the safety cable
rigging point integrated in the base assembly .
DMX512 IN
DMX512 OUT
120 Ω
Signal (-)
Signal (+)
1 2
3
Ground
3
Signal (+)
2 1
Signal (-)
DMX IN
POWER IN
INSTALLATION DIAGRAM
Safety Cable
1/4 Turn
1/4 Turn
Hanging Kit
Safety Clamp
Fuse
Power Switch
POWER IN
DMX OUT
DMX IN
