NuTone 656 User manual

SPECIFICATION SHEET
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
Model 655 — Heater/Fan/Light
Model 659 — Heater/Fan/Light
Model 656 — Heater/Light
Model 657 — Fan/Light
Model 658 — Heater/Fan
FEATURES
GRILLE:
•White polymeric grille
•Directional vanes for heat and exhaust
•Snap-in light diffusing lens for 100W bulb (not included)
VENTILATOR (except Model 656):
•Resilient anti-vibration mounts
•Plug-in, permanently lubricated motor
•Low sound, high performance blower wheel
HEATER (except Model 657):
•1300 watts, with metal blower wheel for efficient, even
heating
•Plug-in, permanently lubricated motor - functions
independent of ventilator
HOUSING:
•Adjustable mounting brackets span up to 24"
•Polymeric damper/duct connector with 2" long tapered
sleeve and no metallic clatter
•Compact 23 gage steel housing finished with electrically-
bonded epoxy paint
NOTE: For installation in ceilings up to 12/12 pitch
•Suitable for use in insulated ceilings (Type I.C.).
•For all models shown above, except Model 658, use
supply wiring rated for at least 90°C.
•Models 655 and 659: Use Model 66V (Ivory) / 66W
(White) Three Function Control
•Models 656, 657, and 658: Use Model 68V (Ivory) / 68W
(White) Two Function Control
•Model 657 U.L. listed for use in tub/shower enclosure with
GFCI branch wiring
Model 654H: Rough-in housing for Models 655F, 656F,
657F, 658F, 659F finish assemblies. 654H packed (4) per
carton, 655F thru 659F packed (1) per carton
COMBINATION
UNITS
70E 99041093R
TYPICAL SPECIFICATION
Combination unit shall be Broan Model 655 (Model 659)
(Model 656) (Model 657) (Model 658).
Unit shall have steel housing finished in electrically-bonded
epoxy paint and adjustable mounting brackets.
Unit shall have directional vanes for heat and exhaust and
must be rated to handle a 100W bulb.
Fan, heater and light shall be separately controllable. Motors
shall be permanently lubricated. RPM not to exceed number
listed for each model.
Air delivery shall be no less and sound levels no greater than
listed for each model. All air and sound ratings shall be
certified by HVI.
Units shall be U.L. listed.
Models 655, 656, 657, 658 and 659 suitable for use in
insulated ceilings. (Type I. C.)
PERFORMANCE RATINGS - MODELS 655, 656, 657, 658, 659
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
MODEL DESCRIPTION VOLTS AMPS WATTS* SONES CFM DUCT
655 Heater/Fan/Light 120 12.8 1536 4.0 70 4" Round
656 Heater/Light 120 11.9 1428 --- ---- -----------
657 Fan/Light 120 2.0 N/A 4.0 70 4" Round
658 Heater/Fan 120 11.9 1428 4.0 70 4" Round
659 Heater/Fan/Light 120 12.0 1440 2.5 50 4" Round
*Total connected load
MODEL 658MODELS 655,
656, 657 & 659
HVI-2100 CERTIFIED RATINGS comply with new testing
technologies and procedures prescribed by the Home Ventilating
Institute, for off-the-shelf products, as they are available to
consumers. Product performance is rated at 0.1 in. static pressure,
based on tests conducted in AMCA’s state-of-the-art test laboratory.
Sones are a measure of humanly-perceived loudness, based on
laboratory measurements.

Other NuTone Heater manuals

NuTone 9417DNM User manual

NuTone

NuTone 9417DNM User manual

NuTone Heat-A-Ventlite 9965-R02 User manual

NuTone

NuTone Heat-A-Ventlite 9965-R02 User manual

NuTone QTXN110HL Instruction sheet

NuTone

NuTone QTXN110HL Instruction sheet

NuTone 9417DNM User manual

NuTone

NuTone 9417DNM User manual

NuTone 9192NT User manual

NuTone

NuTone 9192NT User manual

NuTone 192 User manual

NuTone

NuTone 192 User manual

NuTone 154 User manual

NuTone

NuTone 154 User manual

NuTone 9093WH DELUXE HEAT-A-VENTLITE User manual

NuTone

NuTone 9093WH DELUXE HEAT-A-VENTLITE User manual

NuTone QTXN110HL User manual

NuTone

NuTone QTXN110HL User manual

NuTone 9905-RO2 User manual

NuTone

NuTone 9905-RO2 User manual

NuTone 9315T User manual

NuTone

NuTone 9315T User manual

NuTone 6201 User manual

NuTone

NuTone 6201 User manual

NuTone 6200 User manual

NuTone

NuTone 6200 User manual

NuTone 192 User manual

NuTone

NuTone 192 User manual

NuTone Heat-A-Ventlite 9965-R03 User manual

NuTone

NuTone Heat-A-Ventlite 9965-R03 User manual

NuTone 9810 Series User manual

NuTone

NuTone 9810 Series User manual

NuTone 112 User manual

NuTone

NuTone 112 User manual

NuTone 765H80L User manual

NuTone

NuTone 765H80L User manual

NuTone 161 User manual

NuTone

NuTone 161 User manual

NuTone 9815 Series User manual

NuTone

NuTone 9815 Series User manual

NuTone 157 User manual

NuTone

NuTone 157 User manual

NuTone 665RP User manual

NuTone

NuTone 665RP User manual

NuTone 665RP User manual

NuTone

NuTone 665RP User manual

NuTone Heat-A-Vent 605RP User manual

NuTone

NuTone Heat-A-Vent 605RP User manual

Popular Heater manuals by other brands

Ferroli BLUEHELIX 352 RRT 28 C Instructions for use & installation

Ferroli

Ferroli BLUEHELIX 352 RRT 28 C Instructions for use & installation

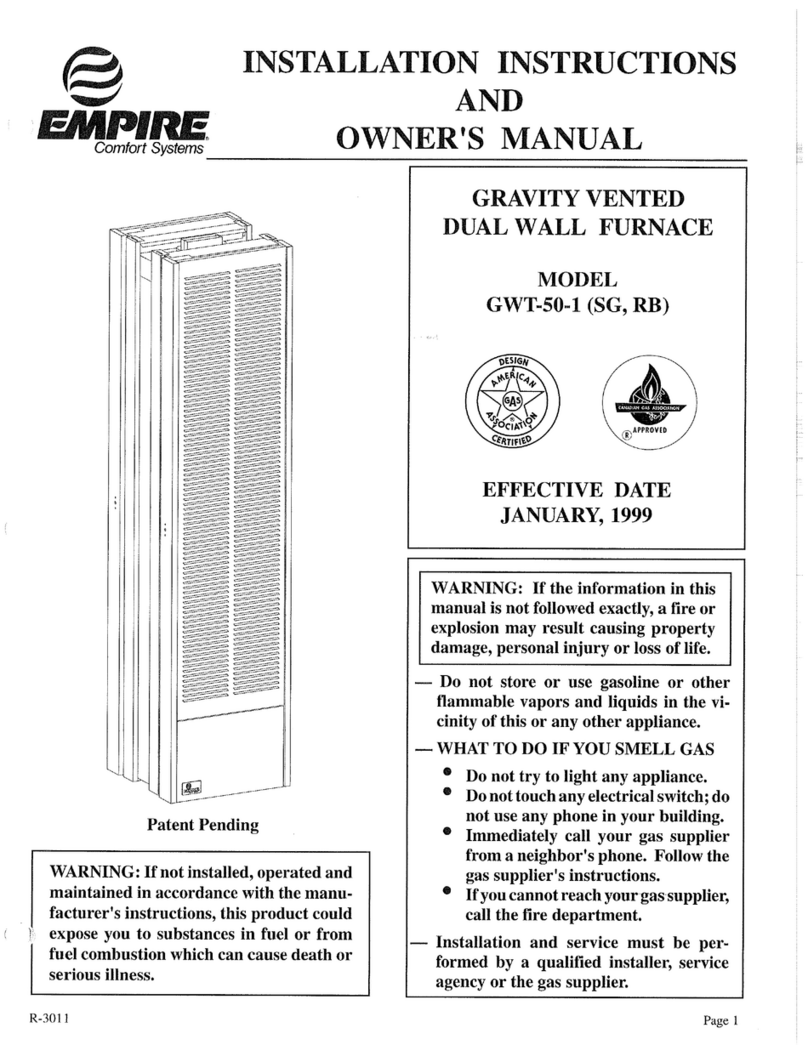

Empire Comfort Systems GWT-50-1 Installation instructions and owner's manual

Empire Comfort Systems

Empire Comfort Systems GWT-50-1 Installation instructions and owner's manual

Nibe EAH 21-1800 Installer manual

Nibe

Nibe EAH 21-1800 Installer manual

Sealey VS230 instructions

Sealey

Sealey VS230 instructions

Honeywell QuickHeat HZ-817 Series manual

Honeywell

Honeywell QuickHeat HZ-817 Series manual

DeLonghi PALACE 1800/2 Instruction and installation booklet

DeLonghi

DeLonghi PALACE 1800/2 Instruction and installation booklet

Protemp PT-16-TTC user manual

Protemp

Protemp PT-16-TTC user manual

KING KBP2406 Installaltion & maintenance manual

KING

KING KBP2406 Installaltion & maintenance manual

TESY 19-21 quick start

TESY

TESY 19-21 quick start

Better Bathrooms Tundra BeBa 26296 quick start guide

Better Bathrooms

Better Bathrooms Tundra BeBa 26296 quick start guide

Dyna-Glo LPC25 Series User's installation, operation and maintenance manual

Dyna-Glo

Dyna-Glo LPC25 Series User's installation, operation and maintenance manual

Ulvac Band Heater instruction manual

Ulvac

Ulvac Band Heater instruction manual

Dyna-Glo IRSS6LPT-2P manual

Dyna-Glo

Dyna-Glo IRSS6LPT-2P manual

Consort CN1LSTW manual

Consort

Consort CN1LSTW manual

Smith's Heating First Eco-Powerad 500 Installation & user guide

Smith's Heating First

Smith's Heating First Eco-Powerad 500 Installation & user guide

Truma Ultraheat S 5004 installation instructions

Truma

Truma Ultraheat S 5004 installation instructions

EWT QUBE 2MWO manual

EWT

EWT QUBE 2MWO manual

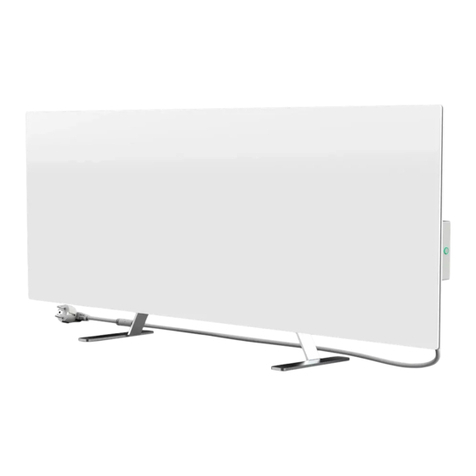

joule JPSH01 quick start guide
