OAKWORKS PerformaLift Series User manual

OAKWORKS®
PerformaLift Series
4-Section Electric
Salon Top
2-Section Lift-Assist
Backrest Top
USER MANUAL
www.OAKWORKS.com · 717.235.6807
1-Section Flat Top

© Copyright 2021
OAKWORKS®, Inc.
Printed in U.S.A.
All rights are reserved. No part
of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of OAKWORKS®, Inc.
OAKWORKS®is a registered
trademark of OAKWORKS®, Inc.
Notice
The information contained within
this document is subject to change
without notice and should not
be construed as a commitment by
OAKWORKS®, Inc.
OAKWORKS®, Inc. encourages
requests for technical
specifications and the like
documentation to ensure accuracy.
The appropriate documentation is
available upon request.
OAKWORKS®, Inc. shall not be
liable for incidental or
consequential damages in
connection with or arising out of
the furnishing, performance, or use
of this document and the program
material which it describes.

TABLE OF CONTENTS
Product Use Description......................................................................................................... 1
Important Safety Instructions
Symbol Identification ..................................................................................................... 1
Safety Instructions ......................................................................................................1-2
Product Description & Photo
4-Section Electric Salon ................................................................................................ 3
Control Operation - Electric Salon................................................................................. 4
2-Section Lift-Assist Backrest........................................................................................ 5
Control Operation - Lift Assist Backrest ........................................................................ 6
1-Section Flat Top ......................................................................................................... 7
Control Operation - Flat Top ......................................................................................... 8
Installation

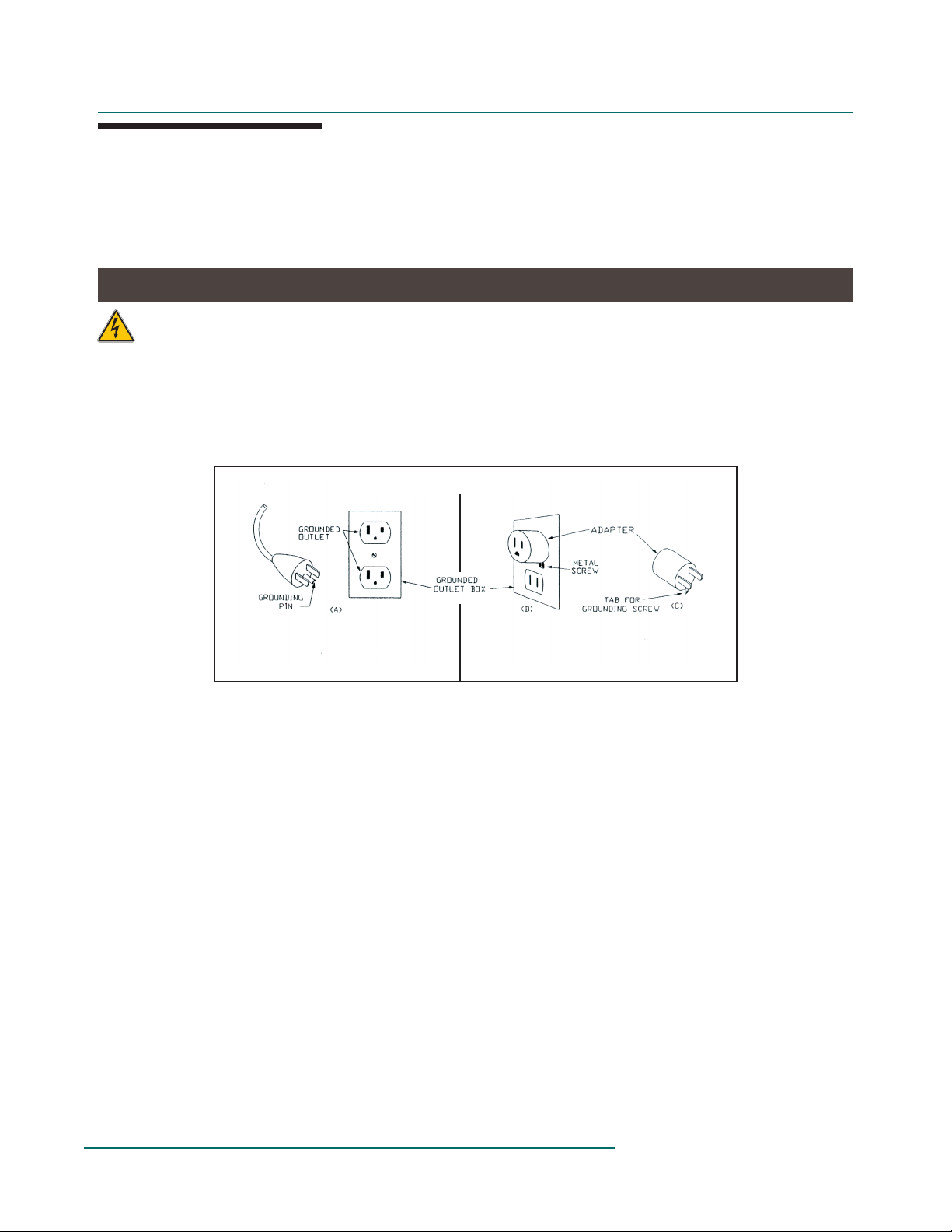

Grounding...................................................................................................................... 9
Directions for Use
Moving the Table......................................................................................................... 10
Leveling the Table ....................................................................................................... 10
Lift-Assist Backrest Adjustment................................................................................... 11

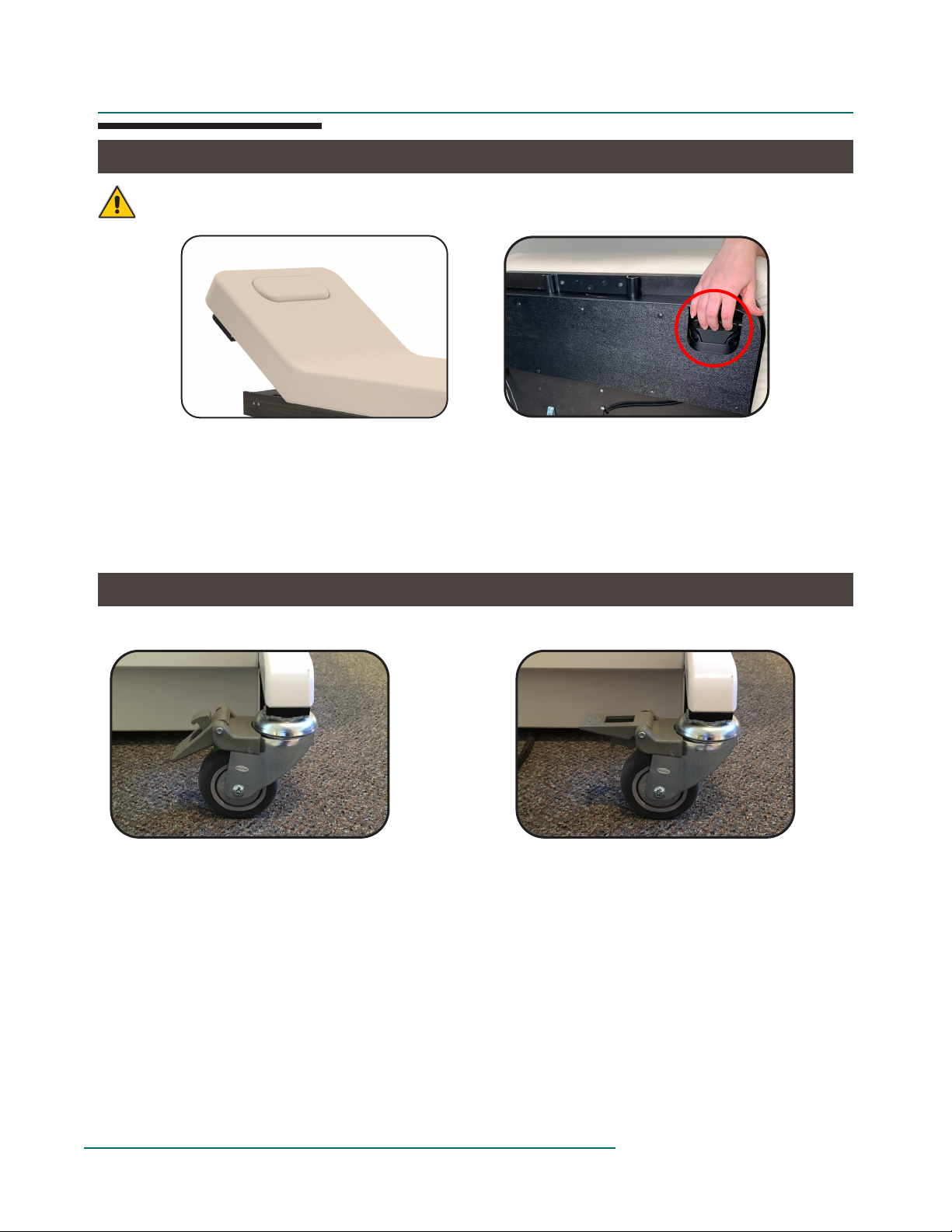

Locking Casters Use (Option) ..................................................................................... 11

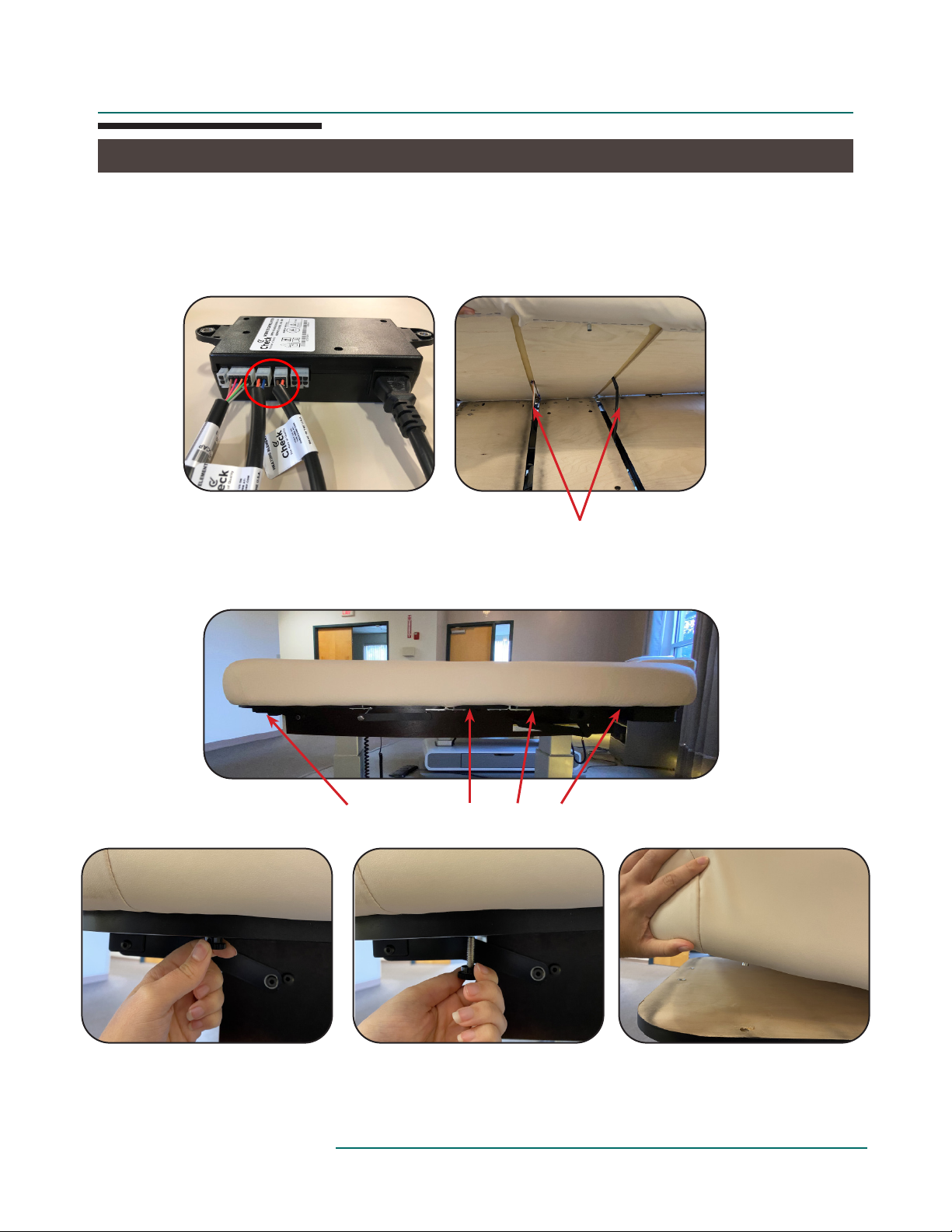

Removing Top Pad...................................................................................................... 12
Adjustable Breast Comfort (ABC) System (Option) .................................................... 13
Integrated Heated Top (Option) .................................................................................. 14

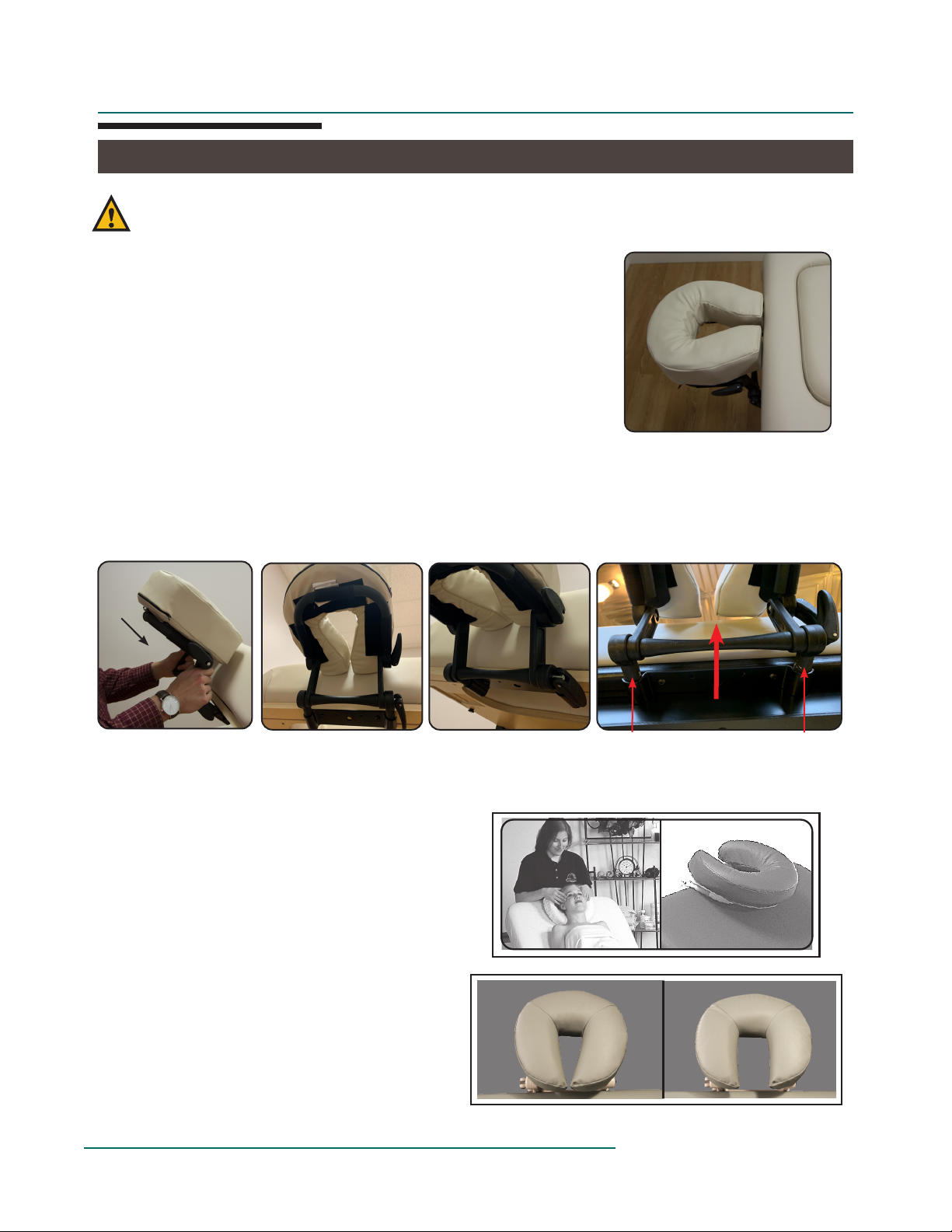

QuickLock Face Rest (Accessory Option) .................................................................. 15
Adjustable Side Arm Rest (Accessory Option - Salon Only) ...................................... 16
Boiance Shelf Support (Accessory Option)................................................................. 17
Bluetooth Speaker (Accessory Option) ....................................................................... 18
LED Lighting (Accessory Option) ................................................................................ 19
Table Reset Procedure - Hand Control....................................................................... 20
Table Reset Procedure - Foot Control ........................................................................ 20
Set Zero Height ........................................................................................................... 21
Cleaning & Disinfection
Recommended Cleaners/Disinfectants ....................................................................... 22
Cleaning Process ........................................................................................................ 22
Inspections & Maintenance .................................................................................................. 23
Warranty Information............................................................................................................ 23
Model Number & Serial Number .......................................................................................... 24
Specifications
Environmental Conditions............................................................................................ 25
Electrical Specifications............................................................................................... 25
Contact Information .................................................................................................back cover

This symbol, when used in this manual and on product labels, represents a caution warn-
ing. Be sure to read and comply with all precautions and warnings.
This symbol, when used in this manual and on product labels, warns against an electrical
shock hazard. Be sure to observe and comply with all warnings.
This symbol, when used in this manual or on product labels, indicates a Protective Earth
(Ground) Terminal.
This symbol, when used in this manual or on product labels, indicates the date of manu-
facture of the device.
This symbol, when used in this manual or on product labels, indicates alternating
current (AC).
This symbol, when used in this manual or on product labels, indicates direct current (DC).
This symbol is used to indicate that the operator should consult the user manual.
~
----
PRODUCT USE DESCRIPTION
Oakworks PerformaLift Series offers a variety of positioning capabilities for massage therapists and spa
professionals of all specialties. On these multifunctional professional tables the practitioner can perform
numerous protocols with ease and comfort. The fully electric PerformaLift Series is especially effective
when professional protocols require specific positioning for the client. While the client receives comfortable,
relaxing support, the comfort level of the therapeutic professional is enhanced by superior ergonomics.
It is intended to be operated by Massage Therapists in a professional environment. No special
training is required but a review of the following Safety Instructions is important for the safety of
the operator and client. The massage professional should read and understand this entire man-
ual before use with a client. There are no known contraindications to the use of this equipment.
The PerformaLift Series should not be used in any other manner than that described within this manual. Use
of any unnecessary force or unauthorized procedures could result in injury to practitioner, client or equipment.
SYMBOL IDENTIFICATION
CAUTION
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
The use of accessories, transducers, and cables other than those specified by the manufacturer, may result in
increased emissions or decreased immunity of the table.
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS
1
UL 2601-1
CSA C22.2NO.601.1
IEC 60601-2(2001-09)
CCUSUS
LL
II
SS
TT
EE
DD
R
UL 2601-1
CSA C22.2 NO.601.1
IEC 60601-2(2001-09)
CCUSUS
LL
II
SS
TT
EE
DD
R

The Table is designed to be a stand-alone table. This table must not be modified or incorporated into any other
equipment.
As with any moving mechanism there are potential pinch points around and underneath the table. It is the responsi-
bility of the operator of this equipment to insure that bystanders are not in the area below or around this equipment
during operation.
Proper operation of this equipment is very important for the safety of the operator, client, and any other/ individu-
als in the area of this equipment. Directions for use of this equipment are described in this manual. The operator
should read these sections carefully.
Weight Limit: (Client and accessories) 550 lbs. (250 kg) Do not exceed.
Adjustable Breast Comfort (ABC) System Weight Limit - 100 lbs. (45 kg.) Do not sit on the ABC System. Do not
place foreign objects into the ABC System. Only use as intended. For safety of your client, use a cloth sheet
between the ABC System and your client.
Be certain that the table is completely lowered without any tilt being present prior to discharging an ambulatory cli-
ent. The client may lose balance and fall.
This table is not suitable for use in the presence of flammable anesthetic mixture with air or oxygen or nitrous
oxide.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
Do not lift table by the table top. This can damage the table.
When lowering the table, make sure there is nothing underneath the table top that can impede motion (like
stools, cabinets, accessory parts, cleaners, etc)
Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recom-
mended by the manufacturer.
Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
WARNING
To reduce the risk of burns, fire, electric shock or injury to persons:
1. Unplug this furnishing from the electrical outlet before cleaning.
2. Unplug from outlet before adding or removing parts.
3. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
DANGER
Risk of electric shock - Connect this furnishing to a properly grounded outlet only. See Grounding Instructions in this
manual.
Electrical Shock Hazard - The power supply/control module is located on the lift frame. No user serviceable parts
are inside. Refer servicing to qualified personnel. Unplug wall plug prior to contact with any cables connected to the
power supply.
2
IMPORTANT SAFETY INSTRUCTIONS

PerformaLift
4-Section Electric Salon
PRODUCT DESCRIPTION
For electrical specs, see Specifications section.
STANDARD SPECIFICATIONS
Motion 1 Powered 20”-34” (51-86 cm.) Height Range
Motion 2 Powered ±15º Trendelenburg/ Reverse
Trendelenburg
Motion 3 Powered 0-70º Backrest
Motion 4 Powered 0-30º Foot Rest
Foot Control All powered motions
Hand Control All powered motions
Table Voltage Options 100V/60Hz - 230V/50Hz
Table Capacity 550 lbs. (250 kg.) (client and accessories)
Widths 29” (74 cm.), 31” (79 cm.), or 33” (84 cm.)
Length 73” (185 cm.)
Padding 4” (10 cm.) or 6” (15 cm.) Aerocel Foam™
Table Weight*250 lbs. (113 kg.)
OPTIONS
Adjustable Breast Comfort (ABC) System
Wood Finishes
Locking Casters
Integrated Heated Top
ACCESSORIES
QuickLock Face Rest
Boiance Shelf Support
Side Arm Rests
For electrical specs, see Specifications section.
3

CAUTION
CONTROL OPERATIONS - ELECTRIC SALON TABLES
Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for
storage. DO NOT use this area for holding anything. Damage can occur to the table.
The OAKWORKS®PerformaLift Electric Salon Tables offer trendelenburg, height, backrest, footrest and
optional ABC positioning with electronic ease. Operate the foot and hand control as shown below to raise
or lower the trendelenburg, height, backrest or footrest functions of the table.
PRODUCT DESCRIPTION
Height Down
Head End Down
Head End Up
Backrest Down Footrest Down
Backrest Up Footrest Up Height Up
MEM1 MEM2
Use any of the top 8 buttons to orient the table in
a favorite position. To store the current position
in memory, press the MEM button twice (double
click). Two audible beeps will confirm. To recall
a stored position, press & hold the MEM button.
MEMORY FUNCTION USE
Backrest Up Backrest Down
Memory 1 Function Memory 2 Function
Zero Gravity Position
Fully Flat/Fully Down
Footrest Up Footrest Down
Head End Up Head End Down
Height Up Height Down
ABC Down
ABC Up
ABC Option ABC Option
ABC SYSTEM UP
ABC SYSTEM DOWN
ABC Down
ABC Up
Optional
Optional
4

PerformaLift
2-Section Lift-Assist Backrest
PRODUCT DESCRIPTION
STANDARD SPECIFICATIONS
Motion 1 Powered 20”-34” (51-86 cm.) Height Range
Motion 2 Powered ±15º Trendelenburg/ Reverse
Trendelenburg
Motion 3 Manual 0-80º Backrest
Foot Control All powered motions
Hand Control All powered motions
Table Voltage Options 100V/60Hz - 230V/50Hz
Table Capacity 550 lbs. (250 kg.) (client and accessories)
Widths 29” (74 cm.), 31” (79 cm.), or 33” (84 cm.)
Length 73” (185 cm.)
Padding 4” (10 cm.) or 6” (15 cm.) Aerocel Foam™
Table Weight*230 lbs. (104 kg.)
OPTIONS
Adjustable Breast Comfort (ABC) System
Wood Finishes
Locking Casters
Integrated Heated Top
ACCESSORIES
QuickLock Face Rest
Boiance Shelf Support
For electrical specs, see Specifications section.
5

MEM1 MEM2
AB C ABC
CAUTION Do not sit on backrest section. The hood area under the backrest top is not designed for storage.
DO NOT use this area for holding anything. Damage can occur to the table.
The OAKWORKS®PerformaLift Lift-Assist Backrest tables offer trendelenburg, height, and optional ABC
positioning with electronic ease. Operate the foot and hand control as shown below to raise or lower the
Trendelenburg, height and optional ABC functions of the table.
PRODUCT DESCRIPTION
CONTROL OPERATIONS -LIFT-ASSIST BACKREST
Height Down
Head End Down
Head End Up Height Up
ABC SYSTEM UP
ABC SYSTEM DOWN
ABC Down
ABC Up
Optional
Optional
Use any of the top 8 buttons to orient the table in
a favorite position. To store the current position
in memory, press the MEM button twice (double
click). Two audible beeps will confirm. To recall
a stored position, press & hold the MEM button.
MEMORY FUNCTION USE
Memory 1 Function Memory 2 Function
Head End Up Head End Down
Height Up Height Down
ABC Down
ABC Up
ABC Option ABC Option
6

PerformaLift
1-Section Flat Top
PRODUCT DESCRIPTION
For electrical specs, see Specifications section.
STANDARD SPECIFICATIONS
Motion 1 Powered 20”-34” (51-86 cm.) Height Range
Motion 2 Powered ±15º Trendelenburg/ Reverse
Trendelenburg
Foot Control All powered motions
Hand Control All powered motions
Table Voltage Options 100V/60Hz - 230V/50Hz
Table Capacity 550 lbs. (250 kg.) (client and accessories)
Widths 29” (74 cm.), 31” (79 cm.), or 33” (84 cm.)
Length 73” (185 cm.)
Padding 4” (10 cm.) or 6” (15 cm.) Aerocel Foam™
Table Weight*230 lbs. (104 kg.)
OPTIONS
Adjustable Breast Comfort (ABC) System
Wood nishes
Locking Casters
Integrated Heated Top
ACCESSORIES
QuickLock Face Rest
Boiance Shelf Support
7

8
PRODUCT DESCRIPTION
MEM1 MEM2
AB C ABC
The OAKWORKS®PerformaLift Flat Top tables offer trendelenburg, height, and optional ABC
positioning with electronic ease. Operate the foot and hand control as shown below to raise or lower the
Trendelenburg, height and optional ABC functions of the table.
CONTROL OPERATIONS -FLAT TOP
Height Down
Head End Down
Head End Up Height Up
ABC SYSTEM UP
ABC SYSTEM DOWN
ABC Down
ABC Up
Optional
Use any of the top 8 buttons to orient the table in
a favorite position. To store the current position
in memory, press the MEM button twice (double
click). Two audible beeps will confirm. To recall
a stored position, press & hold the MEM button.
MEMORY FUNCTION USE
Memory 1 Function Memory 2 Function
Head End Up Head End Down
Height Up Height Down
ABC Down
ABC Up
ABC Option ABC Option

All tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated
for the table. (See Grounding below)
Arrange the power cord and control cords so that they will not create a tripping hazard and where the
controls are located to your liking and are conveniently accessible.
Be sure access to plug is not blocked for disconnecting the table from power.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least resis-
tance for electrical current to reduce the risk of electric shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding pin. The pin must be plugged into an appropriate outlet that
is properly installed and grounded in accordance with all local codes and ordinances. See U.S. sample below.
Correct Implementation Incorrect Implementation
Risk of Electric Shock - Connect this furnishing to a properly grounded outlet only.
DANGER

INSTALLATION
GROUNDING
Improperconnectionoftheequipment-groundingconductorcanresultinariskofelectricshock.Checkwithaquali-
fied electrician or service person if you are in doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product - if it will not fit the outlet; have a proper outlet installed by a qualified electrician.
Grounding Methods
9

When moving the table, place one person at each corner of the table. Have each person firmly
grasp the base at the bottom and lift the table. Be aware and use proper, safe procedures for
moving a table of this size to prevent injury to yourself or the table. We strongly recommend
that a flatbed dolly be used that can hold the entire table when moving the table long distances.
CAUTION
MOVING THE TABLE
Before moving the table, disconnect the power cord from the power outlet. The table weighs as
much as 250 lbs. (113 kg.) Never lift the table by grasping the table top. You could damage the
table and the electronics that run the tabletop. Four people are required to move the table safely.
Do not use the table to transport a client.
DIRECTIONS FOR USE
Grasp at base
corner
At low height range
1/2” (13mm) Open
End Wrench
Leveler Foot
1. Place the table in the location where
you plan to use it.
2. Rock the table to determine if it is
level with the floor. If the table rocks
back and forth at all, the foot that
clears the floor when you rock the
table will need adjustment.
3. Adjust the Leveler Foot by first
loosening the locking nut found just
above the rubber Leveler Foot with
the open-end wrench.
4. Lower the adjustable rubber Leveler
Foot until it meets the floor snugly.
Tighten the locking nut against
the wooden leg of the table with the
open-end wrench to fix the Leveler
Foot in position.
5. Rock the table again to be sure
adjustments have stabilized the
table. If necessary make any addi-
tional adjustments in the same way.
Tighten Locking NutLocking Nut
LEVELING THE TABLE
10

DIRECTIONS FOR USE
TO RAISE THE BACK REST
Raise the back rest by pressing the lever
under the head section and lifting up to
the desired height. It is recommended that
clients take some of their weight off the
back rest while you lift.
CAUTION
LIFT-ASSIST BACKREST ADJUSTMENT
Do not sit on the backrest section.
All casters should be locked during use with a client.
LOCKING CASTERS USE (OPTION)
LOCKING THE CASTERS
1. Place your foot on the end of the casters locking tab.
2. Press firmly downward until you hear a clicking noise
and the caster is locked.
UN-LOCKING THE CASTERS
1. Place your foot on top of the casters locking tab.
2. Press firmly inward and downward until you hear
a clicking noise and the caster is unlocked.
TO LOWER THE BACK REST:
Press the lever under the head section and
push the back rest down.
11

DIRECTIONS FOR USE
REMOVING TOP PAD
The top pad has been designed to be easily removable and replaceable with no tools needed.
Thumb Screw Locations (4 per side)
1. Unscrew the thumb screw clockwise until the thumb screw is completely
removed. Repeat for all 8 thumb screws. If the thumbs screws are on too
tight, a 3/16” bit can be used.
2. Lift top pad off the platform.
IF THE TABLE HAS A HEATED TOP:
Unplug the table from the wall outlet and disconnect the wires circled from the control box located under the
platform. Pull the cables through the platform before completely removing the top pad.
TO REMOVE THE TOP PAD:
The top pad is attached to the platform with 8 thumb screws located below the platform as shown.
Heated Top Cables
12

DIRECTIONS FOR USE
ADJUSTABLE BREAST COMFORT (ABC) SYSTEM (OPTION)
CAUTION
• ABC System Weight Limit - 100 lbs. (45 kg.) Do not sit on the ABC System.
• Do not place foreign objects into the ABC System. Only use as intended.
• For safety of your client, use a cloth sheet between the ABC System and your client.
When turning clients over in the supine
position, you may use the cushion to level
during or after their change of position. IT is
not important that the cushion be completely
level. As in prone positions, make small
changes in height and check in with the client.
In Prone positions, for male or female clients when the face rest is in use, lower
the cushion approximately 3/4” at a time (This is approximately 1 second of
lowering) and check in with the client regarding their comfort after making the
change. Incrementally lower the cushion until the client reports they are com-
fortable. Sometimes going back up a little will be preferred. This whole process
takes no more than 15-20 seconds. After lowering, check headrest position to
ensure comfort & support. NOTE: Breast size is not the only determinate of cush-
ion location. Every person’s comfort spot is different, regardless of breast size.
If you are using the head rest in the
Supine position, you may use the cush-
ion at relatively high heights to facilitate
stretching for short periods of time. It is
not recommended that clients experience
this position for more than a few minutes.
The OAKWORKS®Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts and pectoral
muscles, allowing the client to relax and create a more comfortable position for their spine. The height of the cushion is
easily adjusted up and down in small increments by using the hand control. We recommend that the cushion height be
adjusted in the following ways:
*Always start with the cushion top level with the top of the table for Prone or Supine Positioning*
PRONE POSITIONING
SUPINE POSITIONING
HEAD REST USE IN SUPINE
13

Integrated heat level indicator
DIRECTIONS FOR USE
INTEGRATED HEATED TOP (OPTION)
USING THE INTEGRATED HEATED TOP:
The table comes with the option for a fully integrated dual zone heated top pad. Simply press the heating
indicator(s) located on the right side rail of the table to the desired heat level. The heat can reach up to
40°C (105°F).
Low Medium High
ZONE 1 ZONE 2
Zone 1 controls the upper half of the pad, while Zone 2 controls the lower half of the pad. Press both but-
tons located on the right side of the table in the seat section to turn on both zones and heat the entire top.
BLINKING LIGHTS
If one or both controllers’ heat level indicator lights are blinking, the heating elements are not con-
nected properly and/or damaged. Unplug the table and locate the control box(es) on the underside of
the table top. Disconnect the heating element connectors from the control box and reconnect. Plug
the power cord back into the wall outlet. Call Customer Service at 717.235.6807 if problem continues.
14

Double articulating action provides nearly limitless positioning options with
the QuickLock Face Rest. The adjustable pad takes pressure off sensitive
facial areas while providing superb support. The QuickLock Face Rest
can be used in both prone and supine positioning and folds out of the way
when not in use. Adjustments are made easily by loosening the cam locks,
adjusting for height and angle and then locking locks into that position.
The table has a bracket at the head of the table for a variety of uses.
3”
• QuickLock Face Rest Weight Limit - 25 lbs (11.3 kg)
• Do not put excessive weight or pressure on the Face Rest.
• Excessive pressure can cause premature failure of the Face Rest.
CAUTION
ATTACHING QUICKLOCK FACE REST:
When attaching the QuickLock Face Rest, slide the frame dowels into the bracket until bullet catches are
snapped into place.
To remove the QuickLock Face Rest, gently pull the headrest by the dowels until it comes free. Set it
safely aside or store it inside the under-table cabinet until needed.
DIRECTIONS FOR USE
QuickLock FACE REST: (ACCESSORY OPTION)
To use the face rest with your clients supine,
rotate the face rest pad so that the thick part of
the pad supports your client’s cervical region.
Adjusting the height and angle of the face rest
gives your clients perfectly comfortable support.
The face pad is flexible so that you can bring
the open ends together or spread them apart
to achieve the most comfortable support for
any size face. To avoid your client’s chin
from hitting the spacebar, make sure the pad
is narrow enough to support their whole face.
For appropriate cervical flexion, use the cam locks
to adjust the downward angle of the face rest,
making sure that the surface of the face rest pad at
the chin is not lower than the surface of the table.
TIPS FOR GREAT POSITIONING USING THE QUICKLOCK FACE REST:
Pull by dowels
Pull by dowels
To remove
15

DIRECTIONS FOR USE
ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION - SALON ONLY)
CAUTION • Do not use the arm rest for client support during the mounting or dismounting of the chair.
• The arm rest is not designed to support the client’s weight.
TO INSTALL THE ARM RESTS:
The Arm Rests adjust automatically as the back rest moves to remain parallel to the floor.
1. Insert end of arm rest into
backrest hole while holding
the arm rest at a 60° angle
to the backrest.
2. Push end all the way into the hole and drop the arm rest into the
horizontal position. Pull outward to make sure the arm rest is
secure.
TO LEVEL THE ARM RESTS:
The Arm Rest height is adjusted at the factory for each table. If the armrest starts to sag with repeated
use, follow the steps below to readjust.
1. Loosen the bottom 2 set
screws.
2. Turn the side set screw
(clockwise to raise or
counter-clockwise to
lower) while adjusting the
arm rest. Lift the arm rest
slightly when doing this
adjustment to reduce the
weight.
3. Tighten the two bottom set
screws to lock the position.
16

DIRECTIONS FOR USE
BOIANCE SHELF SUPPORT: (ACCESSORY OPTION)
• Boiance Shelf Support Weight Limit - 25 lbs (11.3 kg)
• Do not put excessive weight or pressure on the Boiance Shelf Support.
• Excessive pressure can cause premature failure of Boiance Shelf Support.
CAUTION
USING THE BOIANCE SHELF SUPPORT:
The shelf and bracket used together allow you to create the perfect place for clients’ arms. The shelf can
also be used alone as a table extender for additional head support.
Note: The QuickLock Face Rest is required to use the boiance shelf support system.
TO INSTALL THE BOIANCE SHELF SUPPORT:
First install the QuickLock Face Rest at the head end of the table.
1. Position bracket under-
neath QuickLock. 2. Hook bracket onto cen-
ter support beam on
the QuickLock.
3. Lower the bracket down.
Make sure bracket is
engaged with the dowels
on the side of QuickLock.
4. Slide shelf onto bracket.
The top track works best
for this application.
1. Remove face rest from
QuickLock.
2. Slide QuickLock into the
tracks. Top track is best
for 4” foam and bottom
for 6” foam.
For Arm Rest Usage:
For Head Support and
Table Extender Usage:
17
