OAKWORKS Marina User manual

INSTRUCTION MANUAL
Oakworks®
Marina

© Copyright 2007
O®, Inc.
Manual Part # MMMNST0107
Edition 2, April 2010
Edition 1, May 2007
Printed in U.S.A.
All rights are reserved. No part
of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of O®, Inc.
O®is a registered
trademark of O®, Inc.
Notice
The information contained in this
document is subject to change
without notice and should not
be construed as a commitment by
O®, Inc.
O®, Inc. assumes no
responsibility for any errors that
may appear in this document nor
does it make expressed or implied
warranty of any kind with regard
to this material, including, but not
limited to, the implied warranties
of merchantability and fitness for
a particular purpose.
O®, Inc. shall not be liable
for incidental or consequential
damages in connection with or
arising out of the furnishing,
performance, or use of this
document and the program
material which it describes.

TABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTS
Symbol Identification .......................................................................... pg i
Warnings and Important Safety Instructions ...................................... pg ii
Introduction .......................................................................................... pg 1
Section I: Product Descriptions & Photos
Marina™.................................................................................. pg 2
Section II: Directions for Use

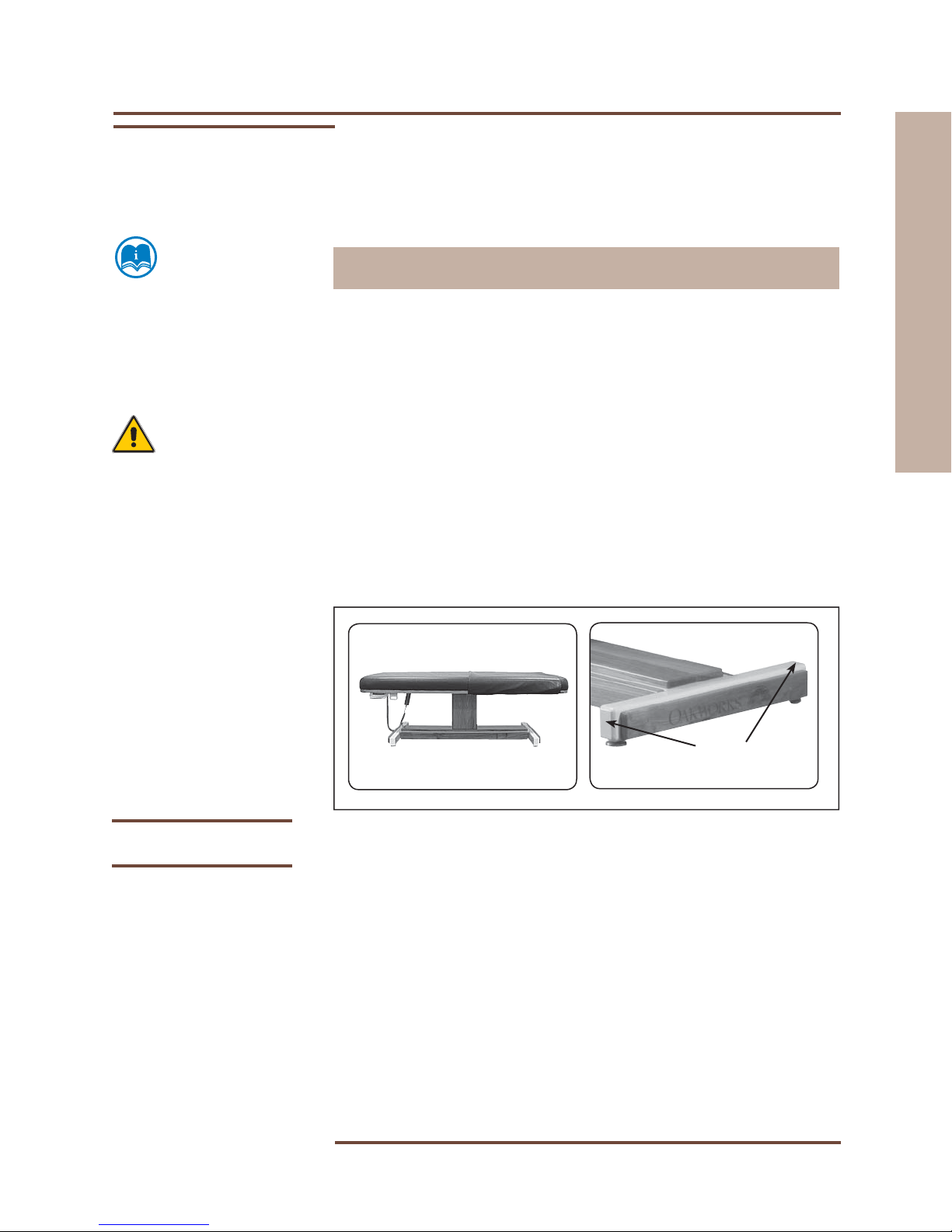

Leveling Instructions ......................................... pg 4
Section II: Directions for Use
Moving the Table .............................................................. pg 5
Marina™ Hand Control ..................................................... pg 6
Important Safety Note ....................................................... pg 7
Table Operation: Battery .................................................. pg 7
Drape & Hot Water Bag .................................................... pg 10
QuickLock™Face Rest ..................................................... pg 10
Optional Gutter - Operation ............................................. pg 13
Section VI: Care & Cleaning ................................................................ pg 14
Section V: Troubleshooting
If Table Will Not Change Height ................................. pg 16
Section VII Table Specifications .......................................................... pg 17
Section VIII: Product Identification .................................................. pg 18
Section IX: List of Parts ...................................................................... pg 19
Section X: Warranty .................................................................... pg 20
Contact Information ........................................................................... IBC

i
SYMBOL IDENTIFICATION
This symbol, when used in documentation on this product, represents a
caution. Be sure to read and comply with all precautions and warnings.
This symbol, when used in documentation on this product, indicates
danger and warns against an electrical shock hazard. Be sure to observe
and comply with all warnings and instructions.
This symbol, when used in this manual or on product labels, indicates a
Protective Earth (Ground) Terminal.
This symbol when used in this manual or on product labels, warns
that during transport there should be no stacking of containers.
This symbol, when used in this manual or on product labels, indicates
that the product should be protected from moisture. The humidity
specifications for Transport & Storage are listed on page 17.
This symbol, when used in this manual or on product labels, indicates
that information is given regarding the recommended temperature
limits during transport and storing.
This symbol, when used in this manual or on product labels, indicates
the date of manufacture of the device.
This symbol, when used in this manual or on product labels, indicates
alternating current (AC).
This symbol, when used in this manual or on product labels, indicates
direct current (DC).
This symbol, when used in this manual or on product labels, indicates
that instructional information is included. It should be read carefully and
completely .
SYMBOL (used on product and labels)
SYMBOL IDENTIFICATION
SYMBOL IDENTIFICATION
CU S
L
I
S
T
E
D
CU S
L
I
S
T
E
D
CU S
L
I
S
T
E
D
CU S
L
I
S
T
E
D
CU S
L
I
S
T
E
D
CU S
L
I
S
T
E
D
∼

WARNINGS / SAFETY INSTRUCTION
WARNINGS / SAFETY INSTRUCTIONS
WARNINGS & IMPORTANT
SAFETY INSTRUCTIONS
Improper use of this device can cause injury. Be sure to read all operating
instructions prior to use to prevent injury to operator or client.
Electrical Shock Hazard. Use this equipment only for its intended use as
described in these instructions. Do not use any attachment or accessories
not recommended by the manufacturer.
To reduce the risk of burns, fire, electrical shock or injury:
• Refer servicing to qualified personnel and follow manual
instructions when doing any authorized troubleshooting. Before
doing any work on the unit, disconnect the battery from the table.
• Before moving the table, secure the hand control out of the way
for moving.
• Use this furnishing only for its intended use as described in these
instructions. Do not use attachments not recommended by the
manufacturer.
• Never operate this table if it is not working properly, if it has been
dropped or damaged. Return the table to a service center for
examination and repair.
• Keep the hand control away from heated surfaces.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or
where oxygen is being administered.
Risk of Injury — Keep children from moving upholstered top.
Never drop or insert any object into any opening.
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS
ii
IMPORTANT
DANGER
WARNING
CAUTION
CAUTION
READ AND
SAVE THESE INSTRUCTIONS

WARNINGS & IMPORTANT
SAFETY INSTRUCTIONS
iii
WARNINGS / SAFETY IINSTRUCTIONS
WARNINGS / SAFETY INSTRUCTION
Close supervision is necessary when this furnishing is used by, or near,
children, invalids or disabled persons. Do not leave children alone or allow
them to operate the controls. Keep controls out of reach of children. Do
not allow children to crawl under the table.
Be certain that the table is completely lowered prior to discharging an
ambulatory patient. The patient may lose balance and fall. Do not leave
clients unattended when table is set at its highest level.
The table weighs as much as 225 lbs. Do Not lift or move the unit without
using proper safely procedures or equipment. DO NOT turn the Marina™
on its side for any reason. To do so could cause damage to the base and
will void the warranty. There are no serviceable items that require this
action. Never lift the table by grasping the table top(or gutter) as the table
top (nor gutter) is not designed to hold the weight of the base and you
could damage the table.
When operating the Marina™ controls and making any and all adjustments
to the table, move hands and feet away from the working mechanism of the
table.
Do not put excessive weight or pressure on the QuickLock™ Face Rest.
Excessive pressure can cause premature failure of the QuickLock™ Face
Rest. Do Not extend the dowels of the Face Rest further than 3” from the
table edge to ensure a stable connection.
DO NOT store or place anything under the table that will interfere with
the motion of the table.
Maximum Working Load Rating (client and accessories): 400 lbs.
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS
CAUTION
CAUTION
IMPORTANT READ AND
SAVE THESE INSTRUCTIONS
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION

INTRODUCTION
INTRODUCTION
INTRODUCTION
Oakworks® Marina™offers a variety of features for massage therapists
and skin care professionals of all specialties when treatments require
wet conditions. On this multifunctional professional model table the
practitioner can perform numerous protocols with ease and comfort.
The low-voltage battery-operated Marina™is especially effective for
those professional protocols that require placement in a wet environment
where special treatments are offered. While the client receives comfortable,
relaxing support, the comfort level of the therapeutic professional is
enhanced by the superior ergonomics offered by this table.
The Marina™should not be used in any other manner than that
described within this manual. Use of any unnecessary force or unauthorized
procedures could result in injury to practitioner, client or equipment.
Marina™
The Marina™raises and lowers your clients to the optimal working
height easily. The variety of height positions align the Marina™top
so your client’s body is at the optimum level for any number of treatments.
It features a single hand control to make the precise adjustments to
the height positions so to really make it a custom fit to each client
and practitioner.
Unlike the competition, the Marina™’s bed is built on a solid steel
frame for optimum strength. The beautiful wood trim makes the
Marina™look like custom-designed, high-end furniture. You will rely
on the strength, but all you will see is the beauty. We’ve gone to great
lengths to hide the wiring on the Marina™, for a streamlined glamour
that will accentuate your decor as well as provide ergonomic benefits
and comfort to serve you and your client.
1
The Marina™ should not
be used in any other
manner than that described
within this manual. Use of
any unnecessary force or
unauthorized procedures
could result in injury to
practitioner, client or
equipment.
Children must be supervised
when around this equipment
by a responsible adult.
CAUTION
IMPORTANT

PRODUCT
DESCRIPTION
• Quiet height adjustments with the touch of a button
accommodates practitioners and estheticians of all sizes
• The maintenance-free whisper quiet motor powers the
electric lift feature
• Solid steel frame provides optimum strength.
• Low voltage battery operated table — safe for wet
treatment applications
• Premium wood accents provide a durable wood
trim look for many years
2
Total Lifting Capacity:
400 lbs. Maximum Working Load
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
Marina™
• Marina™

PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
PRODUCT
DESCRIPTION
3
• Marina™
• Height: 25” - 34”
• Width: 31”
• Length: 72”
• Lift Capacity: 400 lbs. Maximum Working Load
• Weight: 225 lbs.**
• Top: Battery Powered Round Corner
Flat Top;
Custom Option: Round Corner
Flat Top with Gutter & Drain System
• Padding: Plush with recessed Aero·Cel™
section for use with Forentek bags
• Upholstery: TerraTouch™
• Electronics: I Hand Control
• Base: Powder-Coated Steel or Stainless
Steel Base with top frame
For electrical specs, see Specifications Chart, pg 17.
• published weight may differ due to options chosen, natural material
variations and padding density
Marina™
Table Specs*
Upholstered Top
Leveling Feet (4)
Lo-voltage Vertical
Battery Controlled
Lift Column (1)
Fitted Table
Drape (1)
Accessory
Outlets (4)
Shown here with optional
Draining Gutter
and draining tube
Water Bag

The Marina™ comes completely assembled and ready to use. Be sure to
charge the battery for 4 hours prior to use.
Arrange the control cords so that they will not create a tripping hazard.
Place the controls in a safe location where they are convenient and acces-
sible. Keep the controls out of the way of all table mechanisms.
If Table Will Not Sit Flat on the Floor:
The Marina™ is equipped with Leveler Feet that adjust to
level the table on uneven floors. Adjust each leg individu-
ally by turning the foot clockwise or counter-clockwise to
adjust height of each leveler foot until the unit rests level
and steady. This adjustment will not effect the function of
the table.
DIRECTIONS FOR USE
4
DIRECTIONS FOR USE
DIRECTIONS FOR USE
•Leveling the Table
LEVELING INSTRUCTIONS:
• Leveling Feet
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
CAUTION
IMPORTANT
CAUTION
IMPORTANT
The table weighs as much
as 225 lbs. Do Not lift or
move the unit without using
proper safely procedures or
equipment. DO NOT turn the
Marina™on its side for any
reason. To do so could cause
damage to the base and
will void the warranty. There
are no serviceable items that
require this action. Never lift
the table by grasping the
table top as the table top
is not designed to hold the
weight of the base and you
could damage the table.
When operating the controls on
any of the Marina™ tables be
sure to observe all cautions and
warnings given in the manual to
prevent injury to both operator
and client.

All models can be moved and set-up in different rooms thus ensuring
that you expend your energy on the client, not the equipment.
The Marina™weighs approximately 225 lbs. You will need 4 people work-
ing together if it is necessary to move the table. Never lift the table by
grasping the table top as the table top is not designed to hold the weight
of the base and you could damage the table and the electronics that run
the tabletop. Do not lift the table by holding the trim on the base
of the table as this is not designed to hold the weight of the table. We rec-
ommend that any accessories be removed prior to moving the table.
If you need to move the table, place one person at each corner of the
table. Have each person firmly grasp the base at the bottom by the table
legs and lift the table from the base. As when moving any piece of heavy
equipment, bend at the knee and lift with your legs beneath you and not
with your back. Be aware and use proper, safe procedures for moving a
table of this size to prevent injury to yourself or the table. We strongly
recommend that a flat-bed dolly be used that can hold the entire table if
moving the table involves any distance.
DIRECTIONS FOR USE
DIRECTIONS FOR USE
DIRECTIONS FOR USE
5
• Moving the Table
Moving the Table
• Moving the Table
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
IMPORTANT
CAUTION
The table weighs as much
as 225 lbs. Do Not lift or
move the unit without using
proper safely procedures or
equipment. DO NOT turn the
Marina™on its side for any
reason. To do so could cause
damage to the base and
will void the warranty. There
are no serviceable items that
require this action. Never lift
the table by grasping the
table top as the table top
is not designed to hold the
weight of the base and you
could damage the table.
IMPORTANT
DO NOT lift the table by holding
the trim on the base, or if you
own a table with the optional
Gutter, do not lift the table
by grasping the gutter. They
are not designed to hold the
weight of the table and not
substantial enough to use as
a hand-hold. Be sure to grasp
the table as shown in the
instructions.
Grasp
at base ends;
not the trim
Position table at low height range

The Oakworks® Marina™ comes complete with a hand control to
operate the height of the table with ease.
Hand Control: 2 positioning Buttons
The Hand Control on the Marina™operates all the height positioning at
the touch of a button. Press and hold the appropriate button until
the position desired is achieved and then release.
DIRECTIONS FOR USE
6
DIRECTIONS FOR USE
DIRECTIONS FOR USE
•Adjusting the Table Height using the Hand Control
ADJUSTING THE HEIGHT OF THE TABLE:
• Hand Control
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
CAUTION
IMPORTANT
IMPORTANT
When operating the Marina™
controls and making any and
all adjustments to the table,
move hands, feet and controls
away from any working
mechanisms of the table.
Children must be supervised
when around this equipment
by a responsible adult. Do
not leave children alone or
allow them to operate the
controls.
UP
Press until
desired height
is reached;
then stop.
DOWN
Press until
desired height
is reached;
then stop.
Hand Control

The area under the top is not designed for storage or as an area to
hold accessories while with a client. DO NOT use this area for hold-
ing anything. Damage can occur to the table, especially when com-
mands that are accessed by the hand control are activated. Placing
anything on this area will prohibit movement of the table and can
cause damage to the table or the object and will void the warranty.
The movement of the table is powered by a battery. This allows a
low voltage operation of the table that is safe in all environments
and is very suitable for wet treatment conditions. The battery is
easily charged in a separate charging unit outside of the wet environment.
To Turn the Control Box Off
(for shipping, overnight, or to change the battery)
Push the red ‘Emergency’ button on the control box, found under the
table to turn the Control Box OFF.
DIRECTIONS FOR USE
PRODUCT DESCRIPTION
DIRECTIONS FOR USE
7
• Important Safety Note
• Table Operation
IMPORTANT SAFETY NOTE
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
IMPORTANT
CAUTION
Children must be supervised
when around this equipment
by a responsible adult. Do
not leave children alone
or allow them to operate
the controls. Do not allow
children to crawl under the
table. Keep controls out of
reach of children.
• Battery TABLE OPERATION
NOT FOR
STORAGE
Red ‘Emergency’ button

To Turn the Control Box ON:
Turn the red ‘Emergency’ button on the control box, found under
the table, in a clockwise direction.
The level indicator should read at least 75% of stored power for
proper use. If less than this amount is available, recharge the battery
as described under Directions for Battery Care, pg 14.
To remove the battery for charging:
Push the red ‘Emergency’ button to turn the control box off. Open
the Velcro® hook and loop fastener flap at the end of the battery
unit. Pull the battery release lever found at the end of the battery unit.
DIRECTIONS FOR USE
8
DIRECTIONS FOR USE
DIRECTIONS FOR USE
• Battery Use
TABLE OPERATION: (CONT)
• Battery
CAUTION
IMPORTANT
Children must always be
supervised when around this
equipment by a responsible
adult. Do not leave children
alone or allow them to operate
the controls. Do not allow chil-
dren to crawl under the table.
Keep controls out of reach of
children.

Pull the battery out and place it firmly onto the charger bracket. Plug
in the charger to begin charging the battery.
To place the battery back into table after charging:
Push the red ‘Emergency’ button to turn the control box off. Open
the Velcro® hook and loop fastener flap at the end of the battery
unit. Slide the battery into the clear vinyl sling, pushing it into the
metal bracket above until it snaps into place. Turn the red ‘STOP’
button clockwise to turn the control box back on.
DIRECTIONS FOR USE
PRODUCT DESCRIPTION
DIRECTIONS FOR USE
9
• Battery Use
TABLE OPERATION: (CONT)
• Battery
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
IMPORTANT
Be sure the
battery is
snapped
securely in
place before
turning the
unit back on.

The fitted table drape secures snugly over the table.
Note: Not using the drape may void the warranty.
Place the hot water bag under the table drape where desired, then
secure the fitted edges of the drape around the table top.
Double articulating action provides nearly limitless positioning
options with the QuickLock™ Face Rest. The adjustable pad takes
pressure off sensitive facial areas while providing superb support.
The QuickLock™ Face Rest can be used in both prone and supine
positioning and folds out of the way when not in use. Adjustments
are made easily by loosening the cam locks, adjusting for height
and angle and then locking the cam locks into that position. The
Marina™ has outlets at the head of the table for a variety of uses and
outlets at the other end that work as well for additional procedures.
An optional Lift Plate can be used for even more adjustability; call
Customer Service for more information.
DIRECTIONS FOR USE
10
DIRECTIONS FOR USE
DIRECTIONS FOR USE
• Drape & Hot Water bag
• QuickLock™ Face Rest
• Drape & Hot
Water Bag
CAUTION
Do not put excessive weight
or pressure on the face rest.
Excessive pressure can cause
premature failure of the
QuickLock™ Face Rest.
* U.S. Patent #5,177,823
• Acessory Option:
QuickLock™
Face Rest
QUICKLOCK™ FACE REST
IMPORTANT
NOTE:
Not using the fitted table
drape, may void the warranty.
DRAPE & HOT WATER BAG
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
IMPORTANT
Lift Plate
QuickLock™ Face Rest
using optional Lift Plate
IMPORTANT Safety Note:
Maximum distance from
edge of table = 3”
3”

DIRECTIONS FOR USE
DIRECTIONS FOR USE
DIRECTIONS FOR USE
11
• QuickLock Face Rest
• Accessory Option:
QuickLock™ Face
Rest: (cont)
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
IMPORTANT
CAUTION
Do not put excessive weight or
pressure on the face rest.
Excessive pressure can cause
premature failure of the
QuickLock™ Face Rest
Do not immerse the face rest in
water for cleaning. Clean per
instructions given in the ‘Care &
Cleaning’ section on page 14
IMPORTANT
CAUTION
Attaching the QuickLock™ Face Rest / Head & Foot End Outlets:
When attaching the QuickLock™ Face Rest to the foot end by using the
provided outlets, just slide the frame dowels into the outlets being sure to
keep the 1st cam lock within 3” of the table to ensure a stable connection.
To remove the QuickLock™ Face Rest, just pull the frame from the
outlet until it comes free. Set it safely aside or store it inside the
under-table cabinet until needed.
Tips for Great Positioning using the QuickLock™ Face Rest:
• To use the face rest with your clients supine, rotate the face rest
pad so that the thick part of the pad supports your client’s cervical
region. Adjusting the height and angle of the face rest gives
your clients perfectly comfortable support.
QUICKLOCK™ FACE REST: (CONT)

Tips for Great Positioning using the QuickLock™ Face Rest: (cont)
• The face pad is flexible so that you can bring the open ends
together or spread them apart to achieve the most comfortable
support for any size face. To avoid your client’s chin from hitting
the spacebar, make sure the pad is narrow enough to support
their whole face.
• For appropriate cervical flexion, use the cam locks to adjust the
downward angle of the face rest, making sure that the surface of
the face rest pad at the chin is not lower than the surface of the table.
DIRECTIONS FOR USE
12
DIRECTIONS FOR USE
DIRECTIONS FOR USE
•QuickLock™ Face Rest
• Accessory Option:
QuickLock™ Face
Rest
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
IMPORTANT
QUICKLOCK™ FACE REST: (CONT)

For most treatments the Oakworks® AquaDuct™ drain system will
collect and flow the treatment solution into the table drain tubing
with ease.
For best operation:
• Connect the drain tubing to a suitable drain outlet. Be sure
there is no obstruction to the flow of solution in either the
gutter or the drain outlet. Gravity will do the rest.
• Inspect the table gutter and the drain periodically to remove
any build-up of material that might interfere with the flow of
the treatment solution.
DIRECTIONS FOR USE
DIRECTIONS FOR USE
DIRECTIONS FOR USE
13
•Optional Gutter Operation
Gutter Operations:
• Optional Gutter
Operations:
Be sure to read all cautions,
warnings and instructions given
in the manual to prevent injury
to both operator and client.
IMPORTANT
IMPORTANT
Be careful not to place any-
thing in the gutter that might
be flushed into the drainage
tubing. This could cause the
drain to clog and interfere
with the free flow of the drain
tube.
CAUTION
DO NOT lift the table by holding
the gutter. This is not designed
to hold the weight of the table
and not substantial enough to
use as a hand-hold. Be sure to
grasp the table as shown in the
instructions under ‘Moving the
Table’.

CARE & CLEANING
14
CARE & CLEANING
CARE AND CLEANING
•Battery care
• How to Care for Your Table Base & Controls
• Battery Care
In order to maintain the quality and ensure the life of the Marina™,
here are some preventative steps that can be taken to protect the battery.
• The charger must be used in a dry environment.
• Normal use of the lift function of the table is a 10% duty cycle
(i.e. 2 minutes of continuous use followed by 18 minutes off)
The recommended battery recharge interval for the Marina™
table is every 3 hours of normal use. At this rate the battery
should last for 1200 recharge cycles or 3600 usage hours.
• The battery should be recharged when the level indicator on the
control box is at 75% (before it drops to 50%). In this way,
maximum battery life may be achieved. If used every day in this
manner, a battery should last up to two (2) years.
• It is recommended the battery be fully charged before first use
after receiving the table new. Charging time is 4 hours.
• It is recommended that the battery be left to charge over periods
of non-use and that only a freshly charged battery be used after
periods of non-use. Non-use is defined as overnight or over a weekend.
• DO NOT fully discharge the battery before recharging. Use of
the battery in this way will shorten the recharge cycles to that of
approximately 180 recharge cycles and thus shorten the life of
the battery.
You can receive the most from the battery on your Marina™by following
these easy recommendations and care instructions.
The Marina™base is made of stainless steel with a high quality
powder-coated finish that can’t rust.
• Do not spray the under side of the table with water or cleaners.
Damage to the electrical system may occur.
• Do not use high-pressure water to clean the column. Damage to
the electrical system may occur.
• Use a mildew cleaner regularly. Be sure excess cleaner does not
drip onto, or into, any of the electrical controls or mechanisms.
Wipe these areas carefully with a lint free cloth.
HOW TO CARE FOR YOUR Marina™BATTERY:
GENERAL CARE OF STEEL BASE & WOOD TRIM:
• Steel Base
& Wood Trim
CAUTION
CAUTION
