OAKWORKS Clodagh Gemini User manual

Clodagh Gemini
Celesta®
Celesta®and
Clodagh Gemini
USER MANUAL
www.OAKWORKS.com · 717.235.6807
made in the USA
with US & imported parts

© Copyright 2018
OAKWORKS®, Inc.
Printed in U.S.A.
All rights are reserved. No part
of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of OAKWORKS®, Inc.
OAKWORKS®is a registered
trademark of OAKWORKS®, Inc.
Notice
The information contained within this
document is subject to change
without notice and should not
be construed as a commitment by
OAKWORKS®, Inc.
OAKWORKS®, Inc. encourages requests
for technical specifications and the
like documentation to ensure accu-
racy. The appropriate documentation
is available upon request.
OAKWORKS®, Inc. shall not be
liable for incidental or consequential
damages in connection with or arising
out of the furnishing, performance, or
use of this document and the program
material which it describes.

TABLE OF CONTENTS
Important Safety Instructions
Product Use Description....................................................................................................................1
Symbol Identification .........................................................................................................................1
Important Safety Instructions ...................................................................................................... 2-3
Product Description & Photo
Celesta ....................................................................................................................................................4
Clodagh Gemini ...................................................................................................................................5
Installation
Grounding .............................................................................................................................................6
Directions for Use
In Cabinet Outlet .................................................................................................................................7
Levelling.................................................................................................................................................7
Table Keyswitch ...................................................................................................................................8
Foot Control Operations
Flat Top Tables Only.................................................................................................................8
Electric Salon Top Tables Only ..............................................................................................9
Adjustable Body Comfort (ABC) Systems Only ...............................................................10
Hand Control Operations
Flat Top Tables Only...............................................................................................................11
Electric Salon Top Tables Only ............................................................................................12
Adjustable Body Comfort (ABC) Systems Only ...............................................................13
Adjustable Body Comfort (ABC) System Use..............................................................................14
Under Table Cabinet.........................................................................................................................15
Important Safety Note......................................................................................................................15
Moving the Table...............................................................................................................................16
Table Extender ...................................................................................................................................16
Arm Rest Installation and Adjustment Instructions .................................................................17
QuickLockTM Face Rest: (Accessory Option)................................................................................18
Cleaning & Disinfection
Recommended Cleaners/Disinfectants .......................................................................................19
Cleaning Process................................................................................................................................20
Inspections.....................................................................................................................................................20
Warranty Information..................................................................................................................................20
Model Number & Serial Number
Product Label Location....................................................................................................................21
Specifications
Electrical Specifications ...................................................................................................................22
Dimensions..........................................................................................................................................22
Permissible Environmental Conditions........................................................................................22
Contact Information....................................................................................................................back cover

1
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS
This symbol, when used in this manual and on product labels, represents a caution warn-
ing. Be sure to read and comply with all precautions and warnings.
This symbol, when used in this manual and on product labels, warns against an electrical
shock hazard. Be sure to observe and comply with all warnings.
This symbol, when used in this manual or on product labels, indicates a Protective Earth
(Ground) Terminal.
This symbol, when used in this manual or on product labels, indicates the date of manufac-
ture of the device.
This symbol, when used in this manual or on product labels, indicates alternating
current (AC).
This symbol, when used in this manual or on product labels, indicates direct current (DC).
This symbol is used to indicate that the operator should consult the user manual.
This symbol indicates that when the end-user wishes to discard this product, it must be
sent to separate collection facilities for recovery and recycling.
UL 2601-1
CSA C22.2NO.601.1
IEC 60601-2(2001-09)
CUS
L
I
S
T
E
D
R
UL 2601-1
CSA C22.2NO.601.1
IEC 60601-2(2001-09)
CUS
L
I
S
T
E
D
R
~
----
PRODUCT USE DESCRIPTION
The product is a cord connected spa/massage table for commercial use. It is intended for indoor use.
Maximum weight capacity of 500 lbs.
The product is intended to be used by trained professionals in a controlled environment. A review of the
following Safety Instructions is important for the safety of the operator and patient. Read all instructions
and understand this entire user manual before using the product. There are no known contraindications to
the use of this equipment.
The table should not be used in any other manner than that described within this manual. Use of any
unnecessary force or unauthorized procedures could result in injury to practitioner, client or equipment.
SYMBOL IDENTIFICATION

2
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed, including the following:
DANGER
To reduce risk of electric shock:
1. Always unplug this furnishing from the electrical outlet before cleaning.
2. Connect this furnishing to a properly grounded outlet only. See Grounding Instructions in this manual.
Electrical Shock Hazard. The power supply/control module is located on the lift frame. No user serviceable parts are inside.
Refer servicing to qualified personnel. Unplug wall plug prior to contact with any cables connected to the power supply.
WARNING
To reduce the risk of burns, fire, electric shock or injury to persons:
1. Unplug from outlet before adding or removing parts.
2. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water. Contact OAKWORKS® Inc., Customer Service before use at 717.235.6807.
3. Keep the cord away from heated surfaces.
4. Never drop or insert any object into any opening.
5. Do not use outdoors.
6. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacturer.
8. To disconnect, turn all controls to the off position, then remove plug from outlet.
9. Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service person if you are in doubt as to whether the product is properly grounded.
10. Do not modify the plug provided with the product - if it will not fit the outlet; have a proper outlet installed
by a qualified electrician.
WARNING
1. Risk of Injury - 500 lbs. (227 kg.) maximum load.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Remove key from switch when not in use, and store out of reach of children.
PERSONAL SAFETY
This unit is For Commercial Use Only and to be operated only by trained personnel.
Remove power key when not in use and store out of reach of children.
Lifting & top motion electric motors are rated at 10% duty cycle max. (2 min. on, 18 min. rest)
PINCH HAZARD
Keep hands, feet and controls away from the table while making adjustments
Risk of Injury - Children should NEVER be near the table when in use.
READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
1. The use of accessories, transducers, and cables other than those specified by the manufacturer, may result in increased emissions or
decreased immunity of the table.
2. The table should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, the table
should be observed to verify normal operation in the configuration in which it will be used.
3. The table is designed to be a stand-alone table. This table must not be modified or incorporated into any other
equipment.
4. Proper operation of this equipment is very important for the safety of the operator, patient, and any other individuals in
the area of this equipment. Directions for use of this equipment are described in this manual. The operator should read these
sections carefully.
5. Weight Limit: (patient and accessories) 500 lbs. (227 kg.) Do not exceed.
6. Adjustable Body Comfort (ABC) System Weight Limit - 100 lbs. (45 kg.)
7. Do not sit on the ABC System.
8. Do not place foreign objects into the ABC System.
9. Only use the ABC system as intended.
10. For safety of your client, use a cloth sheet between the ABC System and your client.
11. Be certain that the table is completely lowered without any tilt being present prior to discharging an ambulatory
patient. The patient may lose balance and fall.
12. Do not lift table by the tabletop pad. This can damage the removable pad.
13. When lowering the table, make sure there is nothing underneath the tabletop that can impede motion (like stools,
cabinets, accessory parts, cleaners, etc...)
14. When using the table Height Up function, do not place anything between the metal frame and the base structure.
Damage can occur to the table.
15. Do not sit on backrest or footrest sections.
16. The hood area under the backrest top is not designed for storage.
17. DO NOT use the hood area under the backrest top for holding anything as damage can occur to the table.
18. Before moving any of the tables, disconnect the power cord from the power outlet.
19. The table weighs as much as 475 lbs. (216 kg.)
20. Use extreme caution when lifting the table to move it.
21. 4 people are required to move the table safely.
22. DO NOT use the table to transport a patient.
3

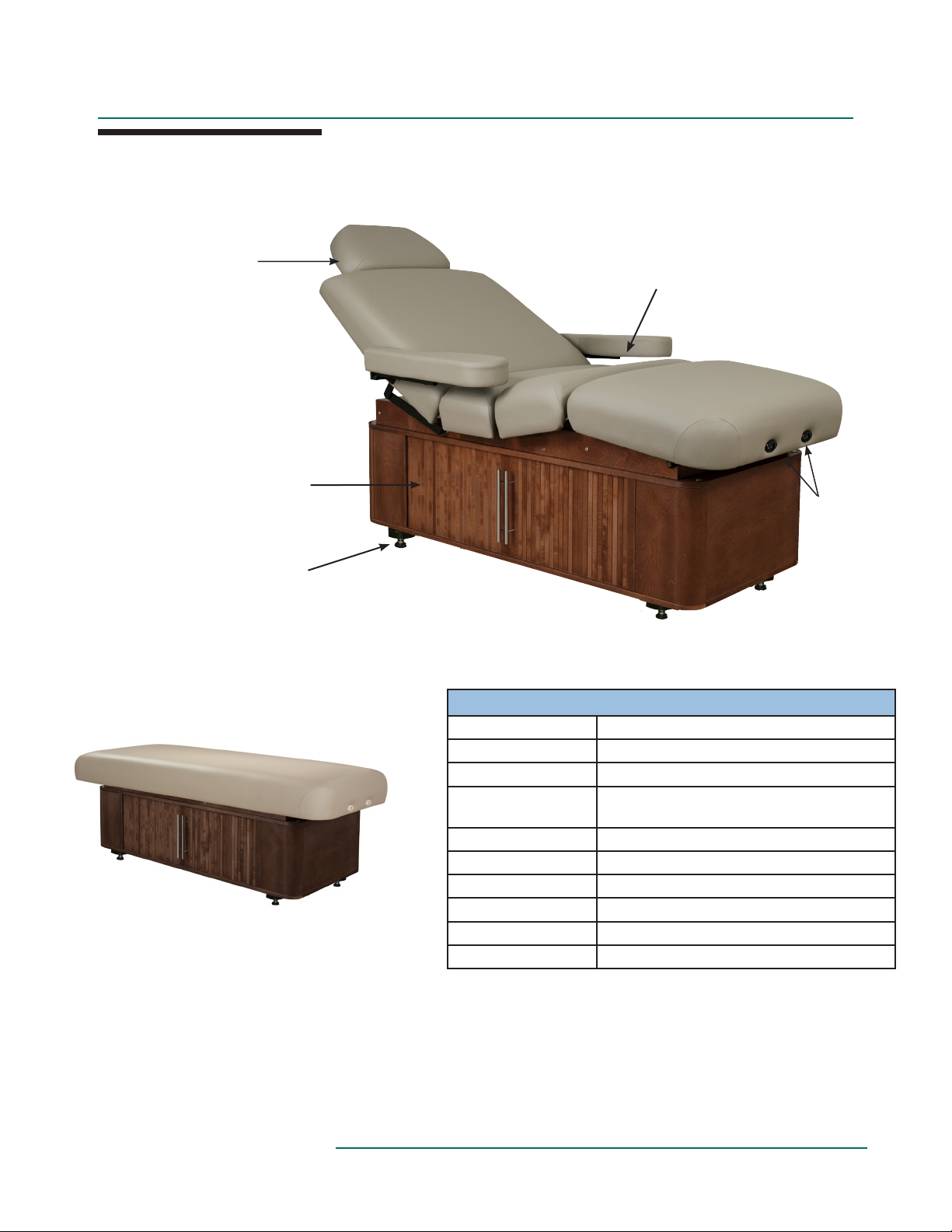

Celesta
Self Adjusting
Removable
Arm Rests (2)
(option)
Cabinet doors
(access both sides)
Fully Enclosed
Cabinet Base
Vertical
Electronic
Lift Columns (4)
Accessory
Outlets (2)
Universal
Table Extender
(optional accessory)
Flat Top model
shown here
4
PRODUCT DESCRIPTION
TABLE SPECIFICATIONS
Height 25” - 37” (64 cm - 94 cm)
Width 29” (74 cm), 31” (79 cm)
Length 73” (185 cm)
Lift Capacity 500 lbs. (227 kg)
Maximum Working Load
Weight 300 lbs. (136 kg)
Top Electric Salon Top or Flat Top
Electronics 1 Foot Control
Padding Aero-CelTM System; 4” or 6”
Upholstery UltraTouchTM or TerraTouchTM
Cabinetry Wood/Baltic Birch
For electrical specs, see Specifications section.

Clodagh Gemini™
Self Adjusting
Removable
Arm Rests (2)
(option)
Cabinet doors (6 -
access both sides)
Fully Enclosed
Cabinet Base
Exterior
Cabinet
shelf; foot
end only (1)
Vertical
Electronic
Lift Columns (4)
Accessory
Outlets (2)
Universal
Table Extender
(optional accessory)
Flat Top model shown
here with QuickLock™
Face Rest and Boiance™
Crescent
5
TABLE SPECIFICATIONS
Height 25” - 37” (64 cm - 94 cm)
Width 29” (74 cm), 31” (79 cm)
Length 73” (185 cm)
Lift Capacity 500 lbs. (227 kg)
Maximum Working Load
Weight 300 lbs. (136 kg)
Top Electric Salon Top or Flat Top
Electronics 1 Foot Control
Padding Aero-CelTM System; 4” or 6”
Upholstery UltraTouchTM or TerraTouchTM
Cabinetry Wood/Baltic Birch
For electrical specs, see Specifications section.
PRODUCT DESCRIPTION

6
The tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for
the table. (see Grounding below)
Arrange the power cord and control cords so that they will not create a tripping hazard.
Be sure access to the plug is not blocked for disconnecting the table from power.

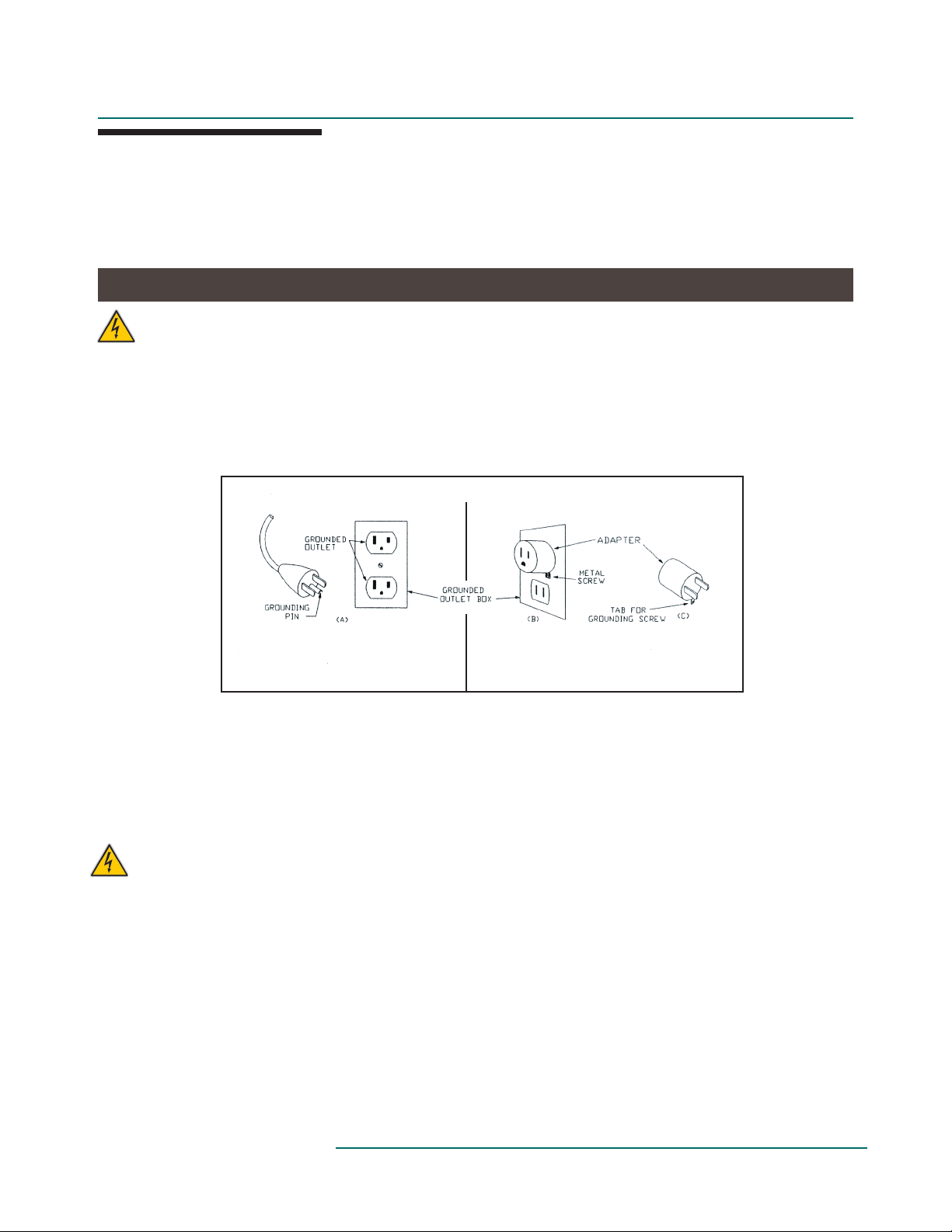

Grounding for 120 Volt products:
This product is for use on a nominal 120-volt circuit and has a grounding plug that looks
like the plug shown below. See Grounding Methods - US 120V Example. Make sure that the
product is connected to an outlet having the same configuration as the plug. No adapter
should be used with this product.
Grounding for 230 Volt products:
This product is rated for less than 15 amperes and is for use on a circuit having a nominal
rating of 230 volts and is factory-equipped with specific electric plug to permit connec-
tion to a proper circuit. Make sure that the product is connected to an outlet having the
same configuration as the plug. No adapter should be used.
WARNING
1. Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service person if you are in doubt as
to whether the product is properly grounded.
2. Do not modify the plug provided with the product - if it will not fit the outlet; have a
proper outlet installed by a qualified electrician.
Correct Implementation Incorrect Implementation
Risk of Electric Shock - Connect this furnishing to a properly grounded outlet only.
DANGER

INSTALLATION
GROUNDING
Grounding Methods - US 120V Example

If Table Will Not Sit Flat on the Floor:

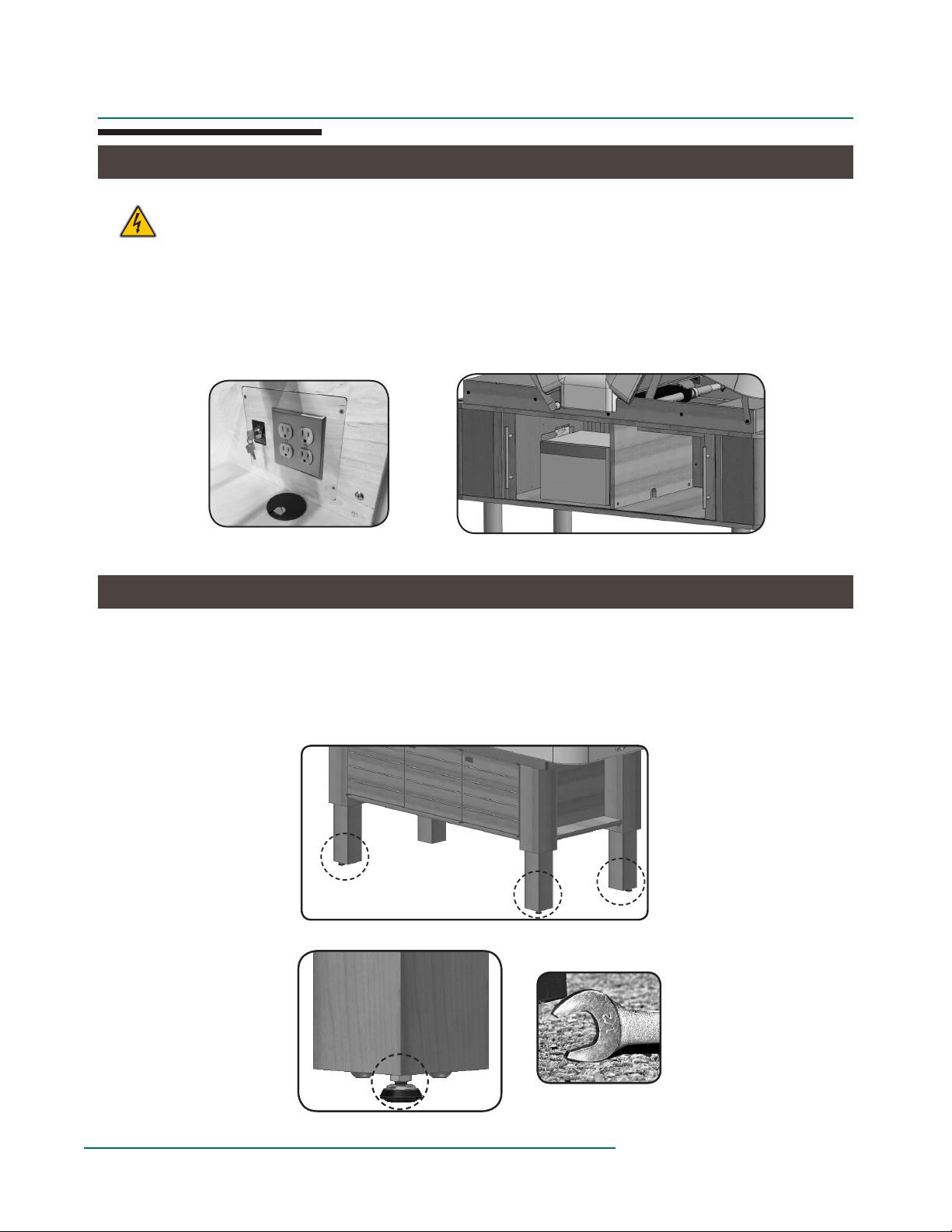

The table is equipped with Leveler Feet that adjust to level the table on uneven floors. To
adjust the Leveler Feet to suit common floor differences you will need to use a 1 /2” open-end
wrench or an adjustable wrench. Adjust each leg individually in turn by adjusting the height of
each leveler foot until the unit rests level and steady. This adjustment will not effect the function
of the table.
1/2” Open-end Wrench
Leveler Foot
This product is equipped with an interior 120-volt 60Hz accessory outlet. The
total electrical load of equipment plugged into this set of outlets is not to exceed
7 amps or 840 watts. Voltage will be di󰀨erent for other counties.
DANGER
This product oers an in-cabinet plug to accommodate hot towel cabinets or other accessories. This al-
lows you to store the unit inside with no excess cords to get in the way. With it plugged in, your towels
stay warm and within easy reach, yet are still out of the way. You will nd the plug inside the cabinet
at the head end of the table. Simply plug the warming cabinet in and move any excess cord inside the
wooden cabinet.
Note: Appearance of outlets will vary depending oncountry of use.
INSTALLATION
IN CABINET OUTLET
LEVELLING INSTRUCTIONS
7

DOWN
UP
CAUTION
FOOT CONTROL OPERATIONS 
FLAT TOP TABLES ONLY
When using the table Height Up function, do not place anything between the metal frame and the base
structure as damage can occur to the table.

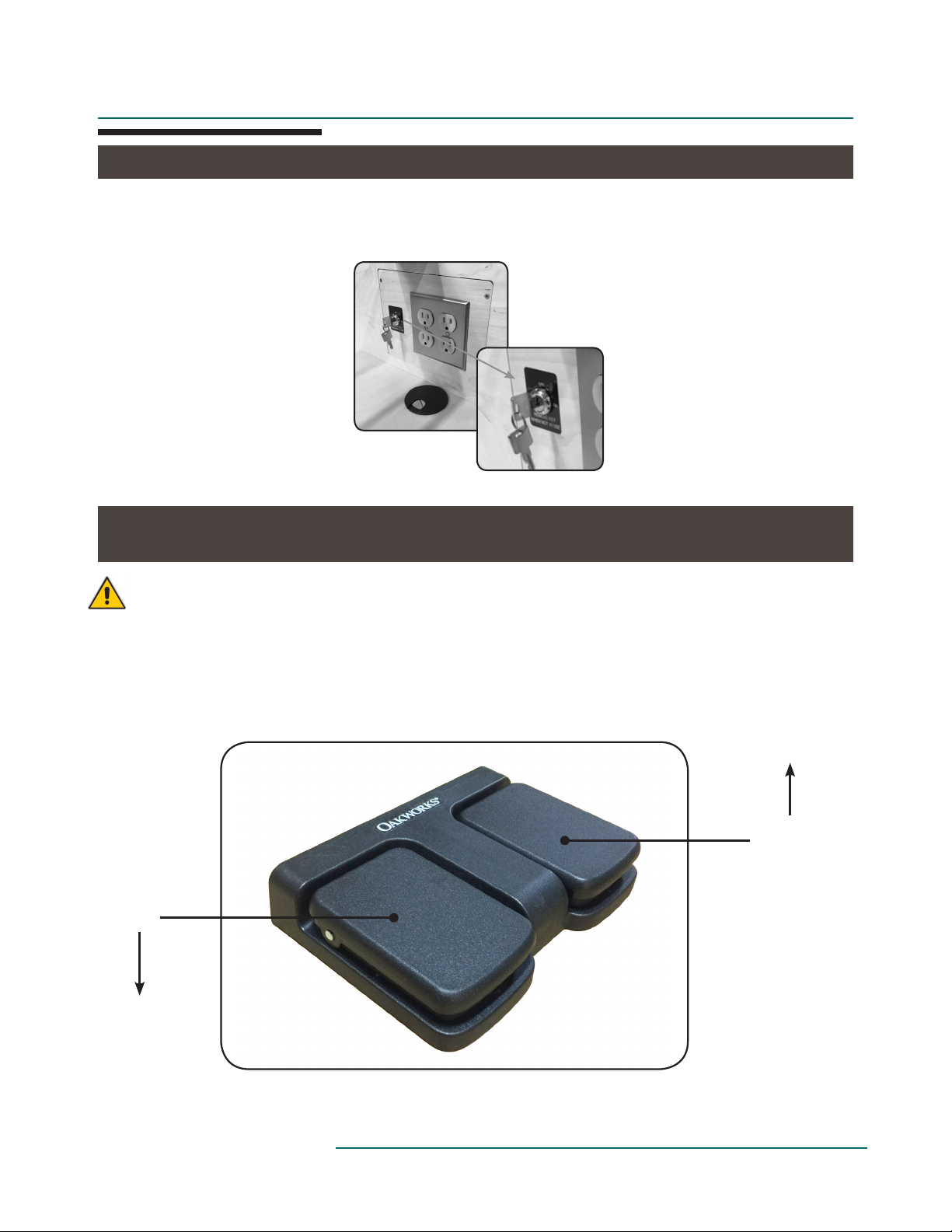

The Flat Top Tables offer height positioning with electronic ease. Operate the foot control as shown below to
raise or lower the height of the table.
DIRECTIONS FOR USE
FOOT CONTROL OPERATION
8
A table keyswitch is located inside the cabinet on the shelf at the head end of the table. This key
switch will lock-out the table and prevent all motions. It should be used to prevent unauthorized
use. Remove the key if children have the opportunity to access the table without adult supervision.
TABLE KEYSWITCH

CAUTION
FOOT CONTROL OPERATIONS 
ELECTRIC SALON TOP TABLES ONLY
Do not sit on backrest or footrest sections.
The hood area under the backrest top is not designed for storage.
DO NOT use this area for holding anything as damage can occur to the table.

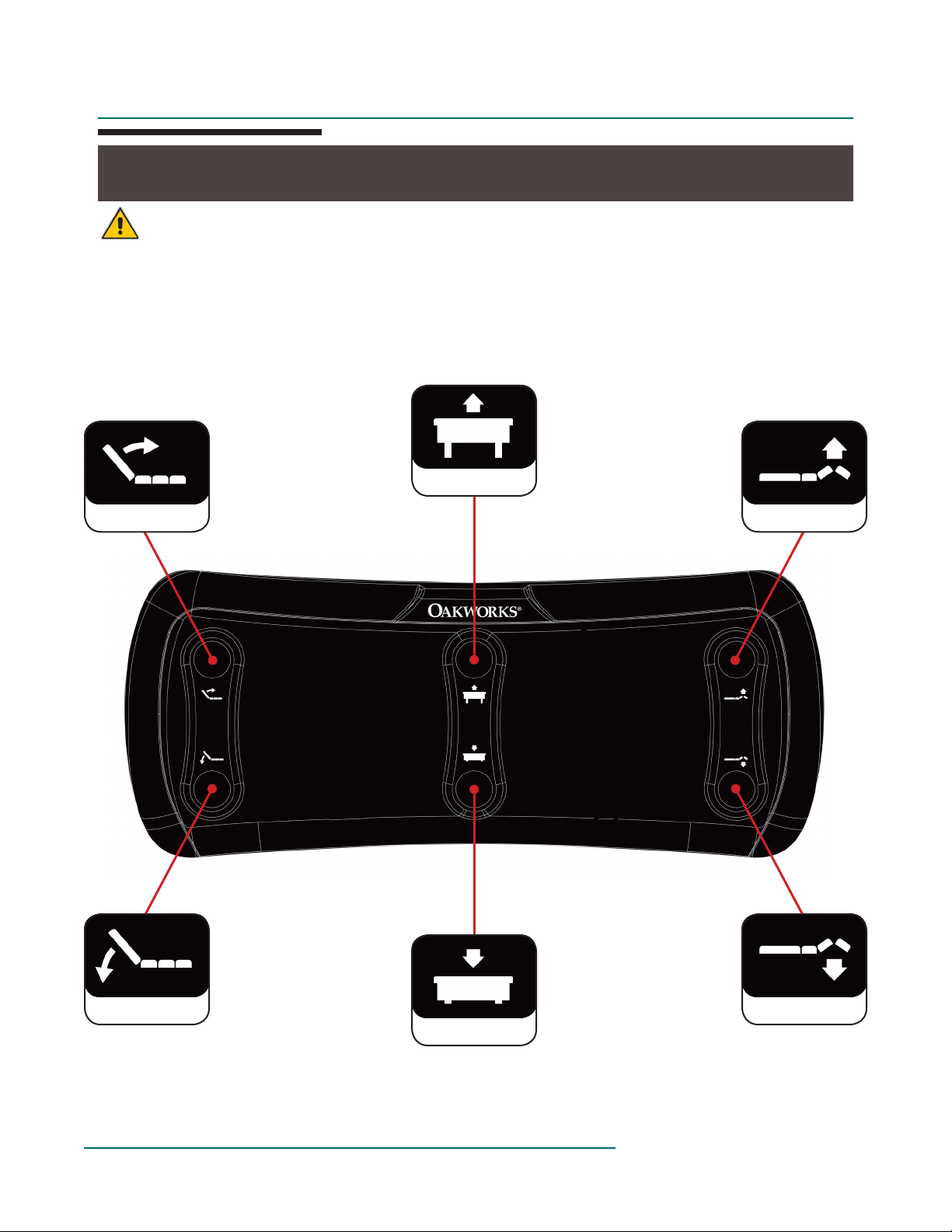

The Electric Salon Top Tables offer backrest, height and footrest positioning with electronic ease. Operate the
foot control as shown below to raise or lower the backrest, height or footrest functions of the table.
9
DIRECTIONS FOR USE
Footrest Down
Footrest Up
Backrest Down
Backrest Up
Height Down
Height Up

DIRECTIONS FOR USE
CAUTION
FOOT CONTROL OPERATIONS 

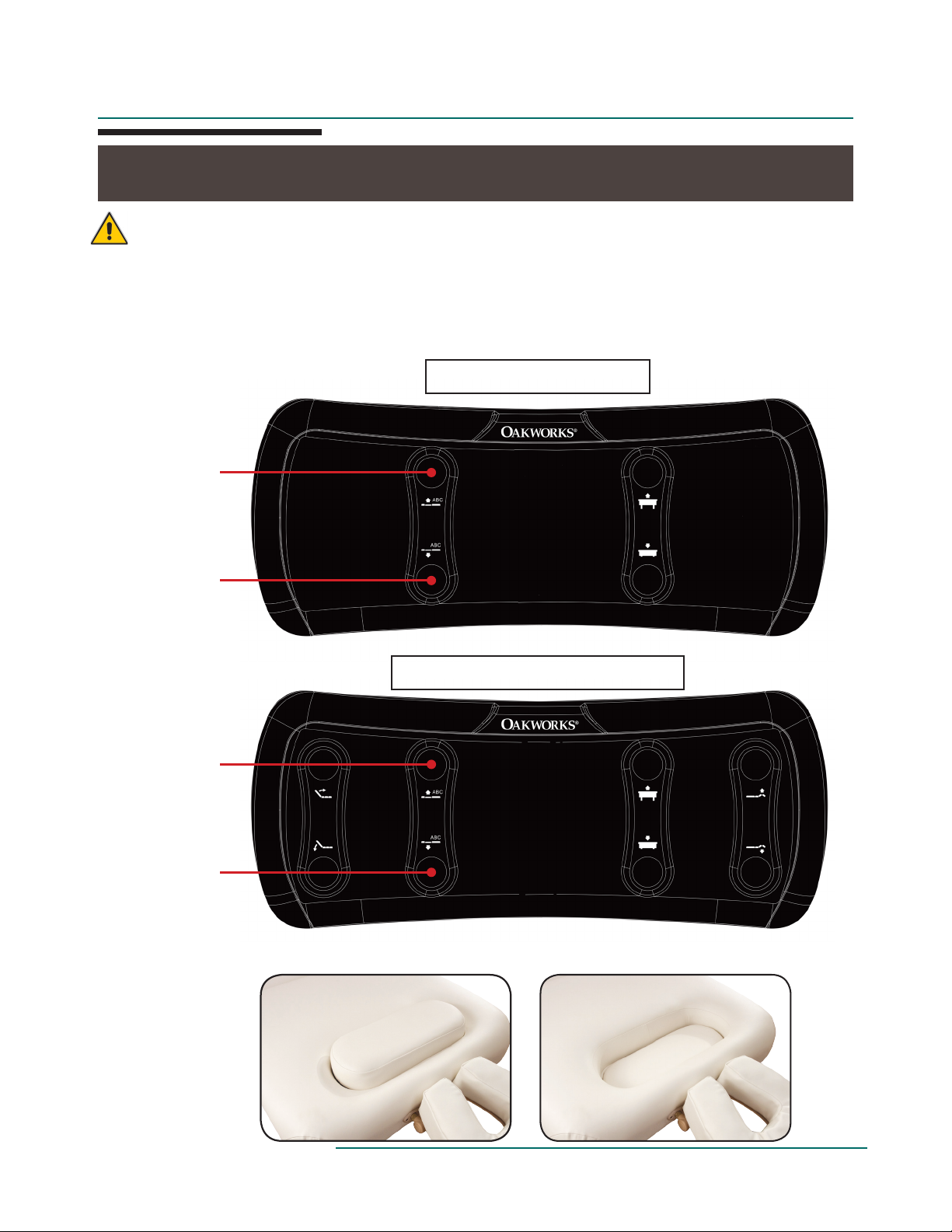

ADJUSTABLE BODY COMFORT ABC SYSTEMS ONLY
ABC System Weight Limit - 100 lbs. (45 kg.)
Do not place foreign objects into the ABC System.
Only use the ABC System as intended.
For safety of your client, use a cloth sheet between the ABC System and your client.
The OAKWORKS®Adjustable Body Comfort (ABC) System is designed to lower the pressure on breasts and pecto-
ral muscles, allowing the client to relax and create a more comfortable position for their spine. The height of the
cushion is easily adjusted up and down in small increments by using the foot control.
ABC SYSTEM UP ABC SYSTEM DOWN
FLAT TOP TABLES ONLY
ELECTRIC SALON TABLES ONLY
ABC System
UP
ABC System
DOWN
ABC System
UP
ABC System
DOWN
10

11
DIRECTIONS FOR USE
CAUTION
HAND CONTROL OPERATIONS 
FLAT TOP TABLES ONLY
When using the table Height Up function, do not place anything between the metal frame and the base
structure as damage can occur to the table.

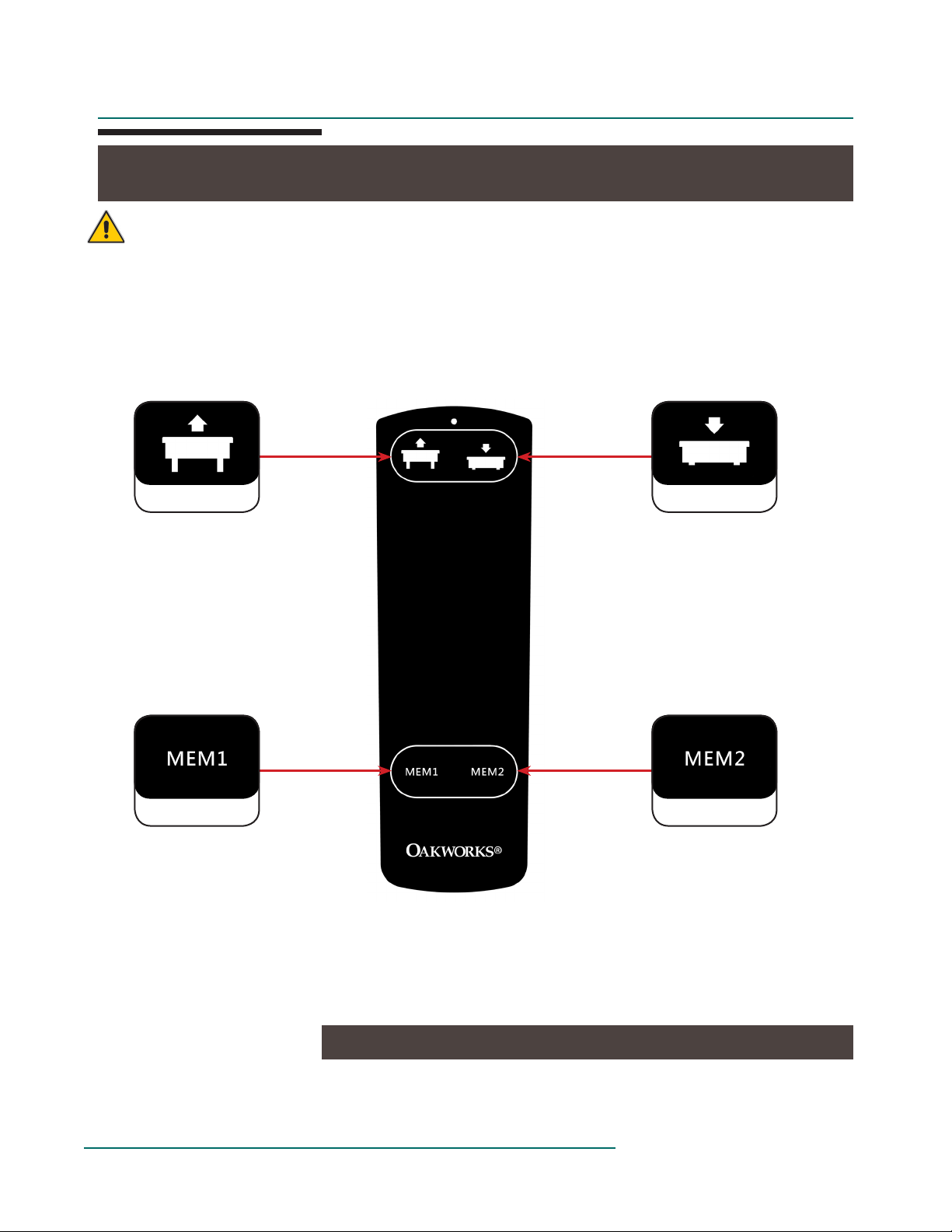

The Flat Top Tables offer height positioning and memory positions with electronic ease. Operate the hand con-
trol as shown below to raise or lower the height of the table.
Use either of the top 2 buttons to orient the table in a favorite position. To store the
current position in memory, press the MEM button twice (double click). Two audible
beeps will confirm. To recall a stored position, press & hold the MEM button.
MEMORY FUNCTION USE
Height Up Height Down
Memory 1 Function Memory 2 Function

DIRECTIONS FOR USE
CAUTION
HAND CONTROL OPERATIONS 
ELECTRIC SALON TOP TABLES ONLY
Do not sit on backrest or footrest sections.
The hood area under the backrest top is not designed for storage.
DO NOT use this area for holding anything as damage can occur to the table.
The Electric Salon Top Tables offer backrest, height and footrest positioning with electronic ease. Operate the
hand control as shown below to raise or lower the backrest, height or footrest functions of the table.
Use either of the top 8 buttons to orient the table in a favorite position. To store the
current position in memory, press the MEM button twice (double click). Two audible
beeps will confirm. To recall a stored position, press & hold the MEM button.
MEMORY FUNCTION USE
Height Up Height Down
Backrest Up Backrest Down
Footrest Up Footrest Down
Fully Down/Flat Position Zero Gravity Position
Memory 1 Function Memory 2 Function
12

13
DIRECTIONS FOR USE
CAUTION
HAND CONTROL OPERATIONS 
ADJUSTABLE BODY COMFORT ABC SYSTEMS ONLY
The OAKWORKS®Adjustable Body Comfort (ABC) System is designed to lower the pressure on breasts and pecto-
ral muscles, allowing the client to relax and create a more comfortable position for their spine. The height of the
cushion is easily adjusted up and down in small increments by using the hand control.
ELECTRIC SALON TABLES ONLYFLAT TOP TABLES ONLY
ABC SYSTEM UP ABC SYSTEM DOWN
ABC System
UP
ABC System
DOWN
ABC System
DOWN
ABC System
UP
Standard Table
Functions
Standard Table
Functions
ABC System Weight Limit - 100 lbs. (45 kg.)
Do not place foreign objects into the ABC System.
Only use the ABC System as intended.
For safety of your client, use a cloth sheet between the ABC System and your client.

DIRECTIONS FOR USE
ADJUSTABLE BODY COMFORT ABC SYSTEM USE
CAUTION
SUPINE POSITIONING
When turning clients over to supine, you
may use the cushion to level after or during
their change of position. It is not important
that the cushion be completely level. As
in prone positions, make small changes in
height and check in with the client.
PRONE POSITIONING
In prone positions, for male or female
clients when the face rest is in use, lower
the cushion approximately 3/4” at a time
(this is approximately 1 second of lower-
ing) and check in with the client regard-
ing their comfort right after making the
change. Incrementally lower the cushion
until the client reports they are comfort-
able. Sometimes going back up a little will
be preferred. This whole process takes no
more than 15-20 seconds. After lowering,
check headrest position to ensure comfort
& support. Once a client’s preferences are
known, the cushion can be brought to that
level before they are on the table. NOTE:
Breast size is not the only determinate of
cushion location. Every person’s comfort
spot is different, regardless of breast size.
HEAD REST USE IN SUPINE
If you are using the head rest in the supine
position, you may use the cushion at rela-
tively high heights to facilitate stretching
for short periods of time. It is not recom-
mended that clients experience this posi-
tion for more than a few minutes.
The OAKWORKS®Adjustable Body Comfort (ABC) System is designed to lower the pressure on breasts and pectoral muscles,
allowing the client to relax and create a more comfortable position for their spine. The height of the cushion is easily adjusted
up and down in small increments by using the hand control. We recommend that the cushion height be adjusted in the fol-
lowing ways:
*Always start with the cushion top level with the top of the table for Prone or Supine Positioning*
FACE REST USE
To attach the Quicklock face rest, insert the dowels into the holes on the end of the table. Wrap the Face rest Strap that is
attached to the table around the horizontal bar on the face rest as shown to secure into place. Attach the BoianceTM face rest
pad to top of platform. Adjust the Face rest pad on the platform closer to the table for shorter clients and farther away for taller
clients.
ABC System Weight Limit - 100 lbs. (45 kg.)
Do not place foreign objects into the ABC System.
Only use the ABC System as intended.
For safety of your client, use a cloth sheet between the ABC System and your client.
14

The cabinet hood area under the backrest top is not designed for storage or as an area to hold acces-
sories while with a client. DO NOT use this area for holding anything. Damage can occur to the
table, especially when the pre-set position commands that are accessed by the hand control are activated.
Placing anything on this area is prohibiting movement of the backrest and can cause damage to the table
or the object. Using this area as storage will void the warranty.
NOt fOR StORAge!

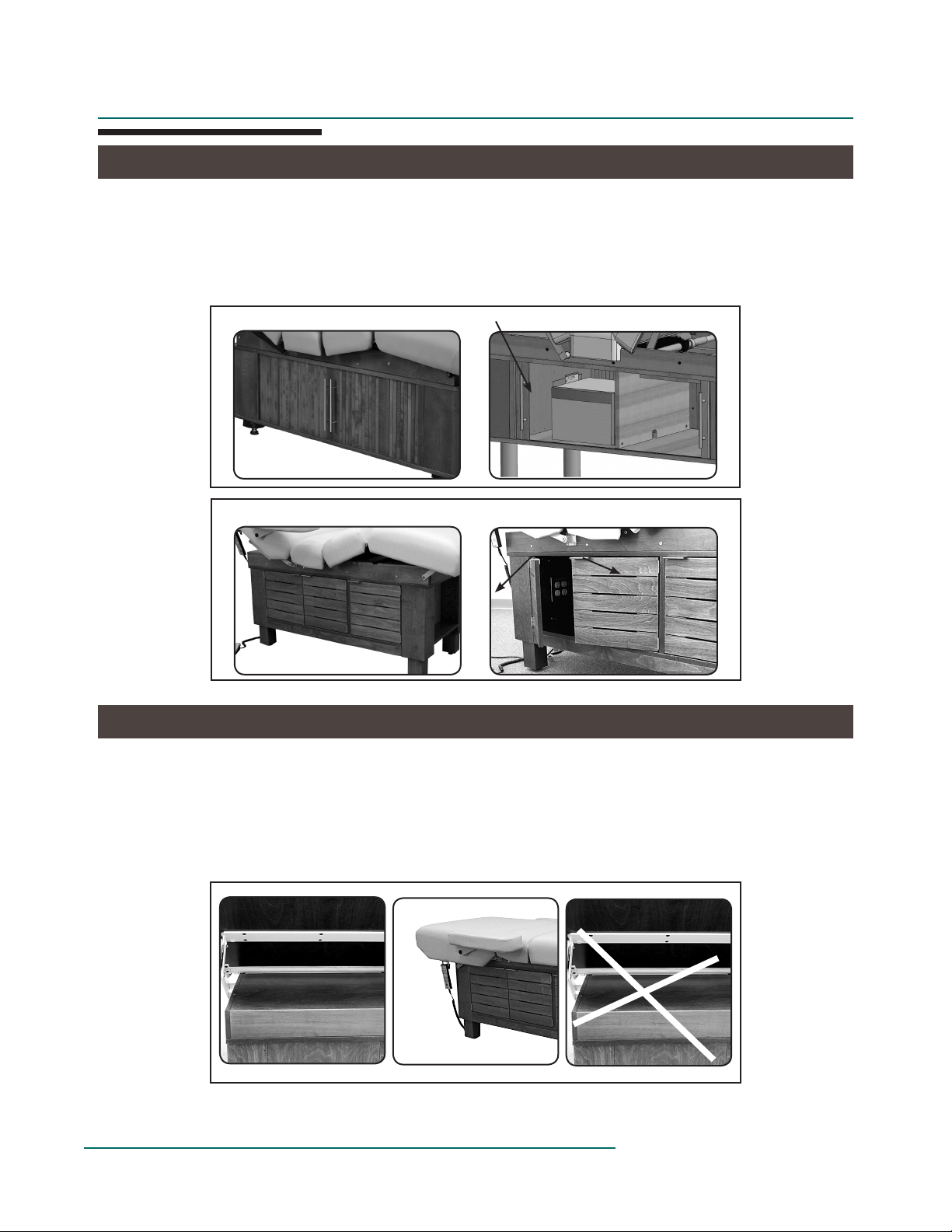

To Access the Storage in the Under Table Cabinet:
The table has a fully integrated beautiful wood cabinet and base. The large under-table cabinet
provides storage for stacks of towels and other equipment and an in-cabinet plug to accommo-
date hot towel cabinets and other accessories.
CELESTA MODEL
CLODAGH MODEL
easily slide to the side
swing open for cabinet access
DIRECTIONS FOR USE
UNDER TABLE CABINET
IMPORTANT SAFETY NOTE
15

The table weighs approximately 300 lbs. (136 kg.) You will need 4 people working together if it is nec-
essary to move the table. Never lift the table by grasping the table top as the table top is not designed
to hold the weight of the base and you could damage the table and the electronics that run the table
top.
If you need to move the table, place one person at each corner of the table. We recommend that you
have the table top in the up position (with Arm Rests removed) to have the table top ends out of the
way as much a possible. Have each person firmly grasp the cabinet base at the bottom by the table
legs and lift the table from the base. As when moving any piece of heavy equipment, bend at the knee
and lift with your legs beneath you and not with your back. Be aware and use proper, safe procedures
for moving a table of this size to prevent injury to yourself or the table. We strongly recommend that
a flatbed dolly be used that can hold the entire table if moving the table involves any large distance.
Grasp
at base
corner
Position at low height range
Before moving the table, disconnect the power cord from the power outlet
and secure the electrical cord, hand control and foot controls for moving.
CAUTION
Do not put excessive weight or pressure on the extender.
Excessive pressure can cause premature failure of the Table Extender.
CAUTION
Outlets
The optional stationary Table Extender provides ultimate comfort for your tallest clients, quickly and
easily. The Table Extender comes with two connecting arms that slide into the outlets at the foot end
of the tabletop. Slide these fully into the outlets so the Table Extender is flush to the end of the table
top. This Stationary Extender provides 11” of additional comfort and support when needed.
DIRECTIONS FOR USE
MOVING THE TABLE
TABLE EXTENDER
16

OPTIONAL ACCESSORY AVAILABLE ON SALON TOP ONLY
Manicure Arm Rests
Adjustable Side Arm Rests
1. Insert end of arm rest into
hole in backrest while holding
arm rest at 60° angle.
2. Push end all the way into hole and drop arm rest into horizontal
position. Tug slightly to make sure the armrest is fully locked to
the table (for patient safety).
To remove the arm rest, simply reverse the procedure above.
TO INSTALL THE ARM REST:
The arm rests adjust automatically as the table’s back support moves to remain parallel to the floor in any position.
They are designed to be strong and will take a reasonable amount of weight, but they are not designed to be used to
sustain a person’s weight when getting on or off the table.
The arm rest height is adjusted to level at the factory. When in use,
some of the new parts will wear, and you may see some sagging of the
arm rest over time. If the arm rest is not correct, the height can easily be
adjusted using the enclosed Allen wrench.
1. Loosen bottom 2 set screws
(turn counter-clockwise).
2. Turn side set screw in (clock-
wise to rase or counter-clockwise
to lower) while lightly raising the
arm rest with your other hand (to
make the adjustment easier).
3. When you have achieved
the desired height, tighten
the two bottom set screws
(turn clockwise).
TO LEVEL THE ARM REST:
Do not use the arm rest for customer weight support during the mounting or
dismounting of the table. The arm rest is not designed to support the client’s
weight.
CAUTION
DIRECTIONS FOR USE
ARM REST INSTALLATION AND ADJUSTMENT INSTRUCTIONS
17
