Oase Aquarius Universal Classic 3000 User manual

Aquarius Universal Classic
3000
Operating instructions
Downloaded from www.watergardeningdirect.com

EN
17
Original manual.
EN
WARNING
WARNING
Disconnect all electrical devices in the water from the power supply
before reaching into the water. Otherwise there is a risk of severe in-
juries or death by electrocution.
This unit can be used by children aged 8 and above and by persons
with reduced physical, sensory or mental capabilities or lack of expe-
rience and knowledge if they are supervised or have been instructed
on how to use the unit in a safe way and they understand the hazards
involved. Do not allow children to play with the unit. Only allow chil-
dren to carry out cleaning and user maintenance under supervision.
Downloaded from www.watergardeningdirect.com

18
Safety information
Electrical connection
•Special regulations apply for electrical installation in outdoor spaces. Only a qualified electri-
cian may perform the electrical installation.
– The qualified electrician has the necessary professional training, knowledge and experience
to perform electrical installation in outdoor spaces. The electrician can detect potential
dangers and knows how to adhere to regional and national standards, regulations and direc-
tives.
– For your own safety, please consult a qualified electrician.
•Only connect the unit if the electrical data of the unit and the power supply match.
•Only plug the unit into a correctly installed outlet. Ensure that the unit is fused for a rated
fault current of max. 30 mA by means of a fault current protection device.
•Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use
(splash-proof).
•Protect open plugs and sockets from moisture.
Safe operation
•Do not use the unit, if electrical lines or the housing are damaged.
•Dispose of the unit if its power connection cable is damaged. The power connection cable can-
not be replaced.
•The impeller unit in the pump contains a magnet with a strong magnetic field that may affect
the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Keep a distance
of at least 0.2 m between the implant and the magnet.
•Do not carry or pull the unit by its power cable.
•Route lines in such a way that they are protected from damage and do not present a tripping
hazard.
•Never carry out technical changes to the unit.
•Only carry out work on the unit that is described in this manual.
•Only use original spare parts and accessories.
•Should problems occur, please contact the authorised customer service or OASE.
Downloaded from www.watergardeningdirect.com

EN
19
Intended use
Only use the product described in this manual as follows:
•For pumping water, e.g. for water features.
•Indoors and outdoors.
•While adhering to the technical specifications. (→ Technical data)
•Adherence to the permissible water quality. (→ Permissible water quality)
The following restrictions apply to the unit:
•Do not use in swimming ponds.
•Never use the unit with fluids other than water.
•Never run the unit without water.
•Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
•Do not connect to the domestic water supply.
•Do not use for commercial or industrial purposes.
•According to EMC (Electromagnetic Compatibility), this is a class A unit. The unit may cause
malfunctions in living environments. It is the user's responsibility to take suitable counter-
measures.
Downloaded from www.watergardeningdirect.com

20

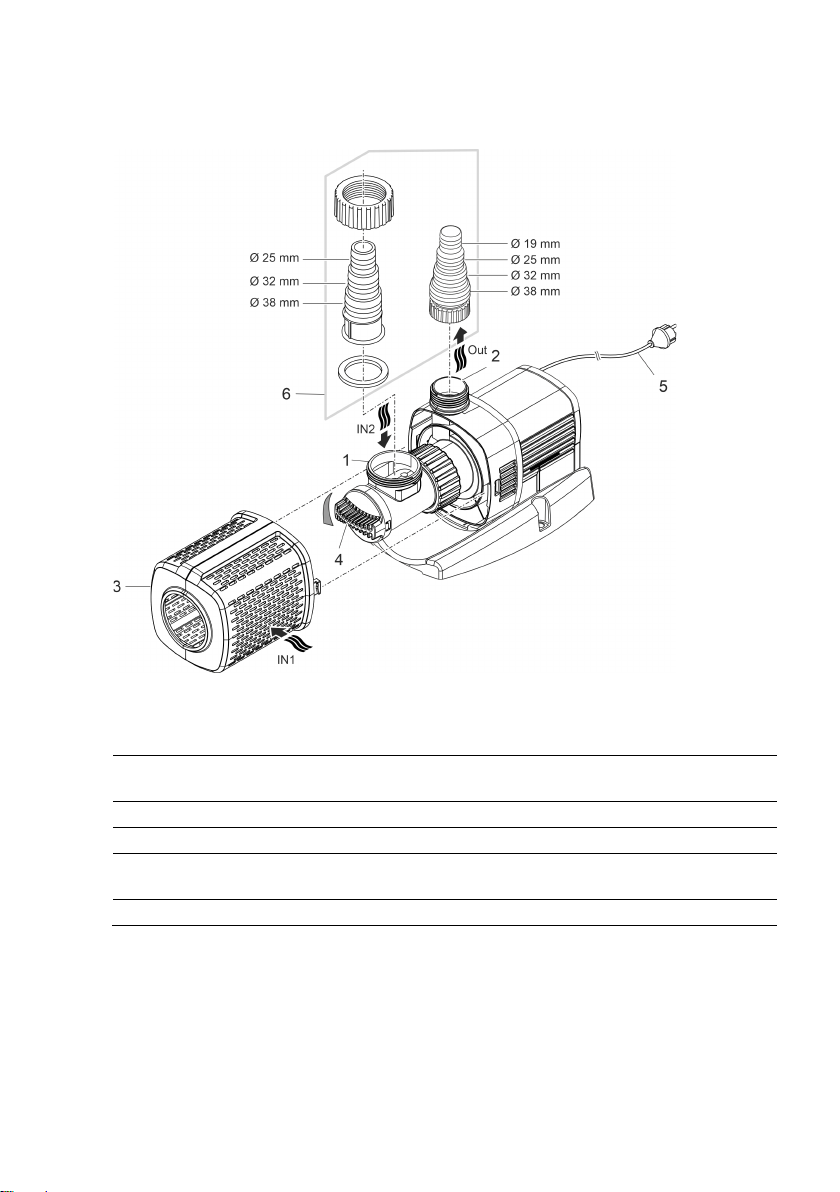

Product Description
Overview
ARS0083
1
Inlet (suction side)
•
With filter cage (3) for submerged installation.
•With hose sleeve for connecting a hose for dry installation.
2
Outlet (pressure side)
•Connection of the return line (e.g. to a fountain)
3
Filter cage
4
Flow rate controller
5
Power cable
•Pump power supply
6
Stepped hose adapter
Downloaded from www.watergardeningdirect.com

EN
21

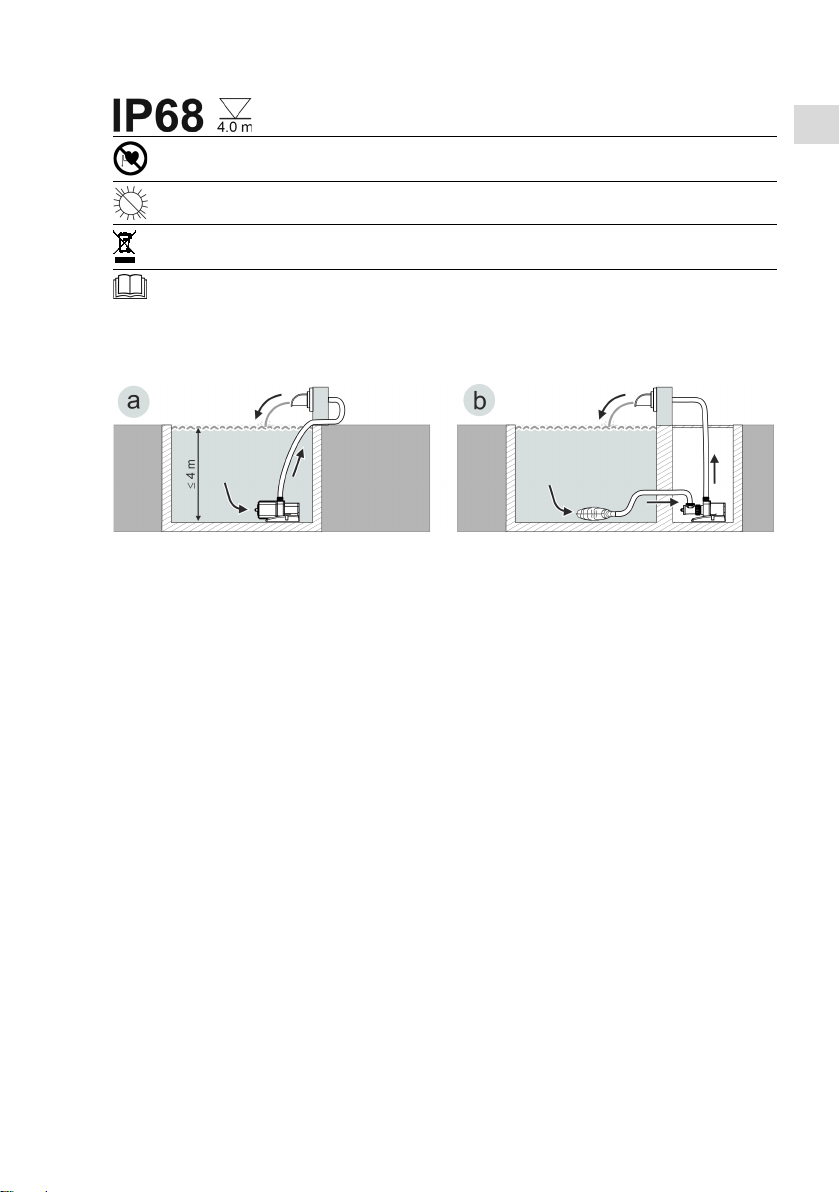

Symbols on the unit
The unit is dust-tight and water-tight down to 4 m.
Possible danger for
persons with pacemakers.
Protect the unit from direct sunlight.
Do not dispose of the unit with normal household waste.
Read the operating instructions.
Installation variants
ARS0084
•Variant (a): Submerged pump installation
–The pump is positioned in the pond or basin.
–Water flow via the filter cage.
•Variant (b): Dry pump installation
–The pump is installed without the filter cage outside of the pond or basin but lower than the
water level.
–Water flow via a satellite filter or skimmer.
Downloaded from www.watergardeningdirect.com

22
Installation and connection
The pump can be installed submerged (in water) or dry (outside the water).
The use of the pump is only permitted with observance of the specified water quality.
(→ Permissible water quality)
WARNING
Severe injuries or death due to operation of this unit in a swimming pond. Defective electrical
components will electrify the water with dangerous electrical voltage.
Never operate the unit in a swimming pond.
CAUTION
Rotating components in the intake and pressure socket area. Risk of injury when reaching into
the sockets.
In particular, observe the following: A unit that has stopped due to overload can start up unex-
pectedly!
Do not reach into the opening of the intake socket or pressure socket while the power plug is
plugged in.
If the sockets are freely accessible during operation, e.g. if no hoses are connected, use a hand
guard to secure the sockets. The hand guard is available as an accessory.
NOTE
If the pump is used for conveying excessively soiled water, the impeller unit will be subject to in-
creased wear and will require earlier replacement.
Thoroughly clean the pond or pool before installing the pump.
Install the pump at a raised level above the bottom. This reduces intake of muddy water.
Avoid direct sunlight on unit components that are not submerged, as they may overheat. If
necessary, use a protective cover.
Downloaded from www.watergardeningdirect.com

EN
23
Turning the pump inlet
The pump inlet can be moved to the required orientation.
Orientation
Use
Top or side (right, left)
•
Recommended for dry installation.
•
When used with submerged installation, ensure that the water level is
sufficient.
Bottom
•
Recommended for submerged installation.
•Pumps water even when the water level is low.
ARS0090
Downloaded from www.watergardeningdirect.com

24

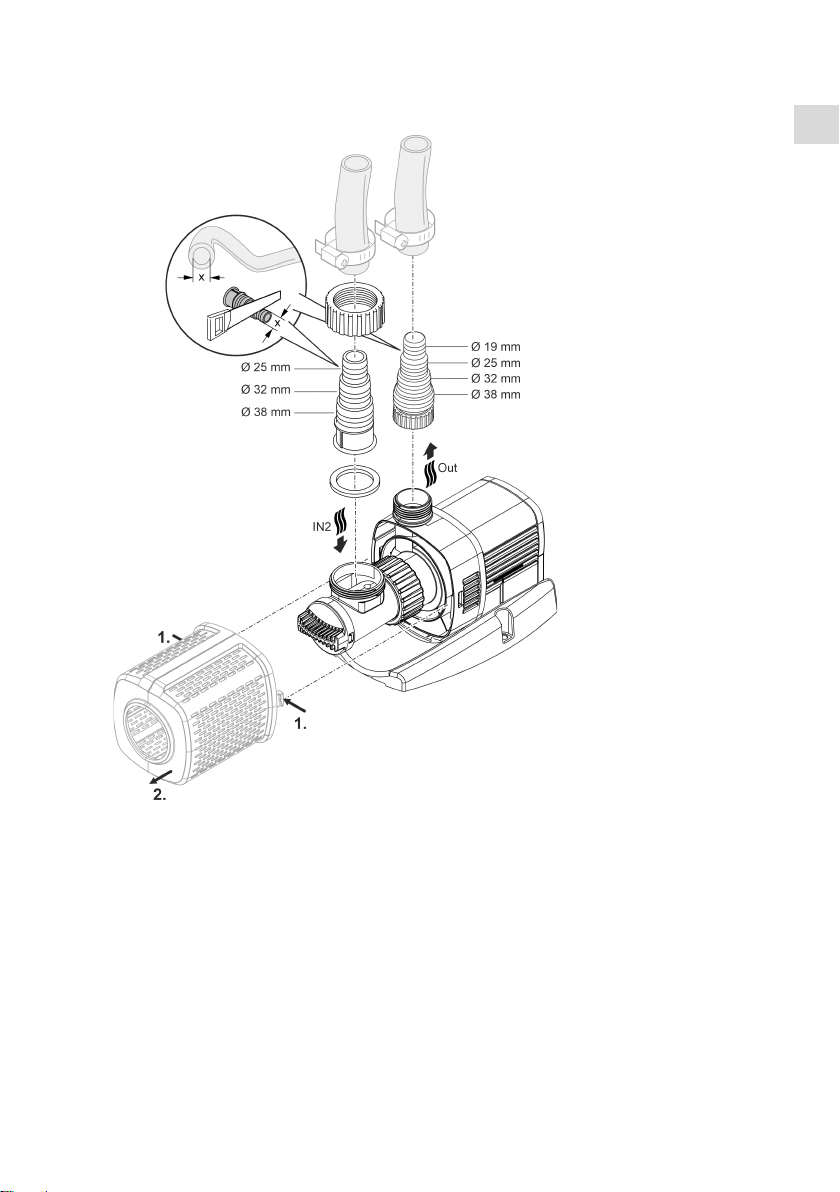

Submerged installation of the pump
Connecting
ARS0085
Do not plug the power plug into the socket yet!
Installation
ARS0086
•Place the pump horizontally on a stable, mud-free surface.
•Ensure secure and stable positioning of the pump.
•Only operate the pump when it is fully submerged.
Downloaded from www.watergardeningdirect.com

EN
25
Install the unit at a dry place
Connecting
ARS0087
Do not plug the power plug into the socket yet!
Downloaded from www.watergardeningdirect.com

26
Installation
ARS0088
•Place the pump horizontally on a stable, mud-free surface.
•Ensure secure and stable positioning of the pump.
It is possible to screw the unit to a suitable surface to ensure stability.
Downloaded from www.watergardeningdirect.com

EN
27
Commissioning/start-up
NOTE
Never connect the pump to a dimmer. Otherwise the pump will be destroyed.
NOTE
Prevent the pump from running dry. Otherwise the pump will be destroyed.
Only operate the pump when it is submerged or flooded.
Switching ON/OFF
•Switching on: Plug the power plug into the outlet.
–The unit switches on immediately.
–Use the controller to set the flow rate to the desired value.
•Switching off: Pull the power plug from the outlet.
Maintenance and cleaning
CAUTION
Risk of injury due to unexpected start-up. Internal monitoring functions may switch off the unit
and automatically reactivate it.
Disconnect the power plug before carrying out any work on the unit.
NOTE
Do not use aggressive cleaning agents or chemical solutions. These agents can damage the
housing, impair the function of the device and harm animals, plants and the environment.
If possible, clean the unit with clear water and a soft brush or a sponge; remove stubborn dirt
with the aid of the recommended cleaning agents.
Cleaning the device
Clean the unit as required but at least twiceper year.
•Recommended cleaning agent for removing stubborn limescale deposits:
–Pump cleaning agent PumpClean from OASE.
–Vinegar- and chlorine-free household cleaning agent.
•After cleaning, thoroughly rinse all parts in clean water.
Downloaded from www.watergardeningdirect.com

28

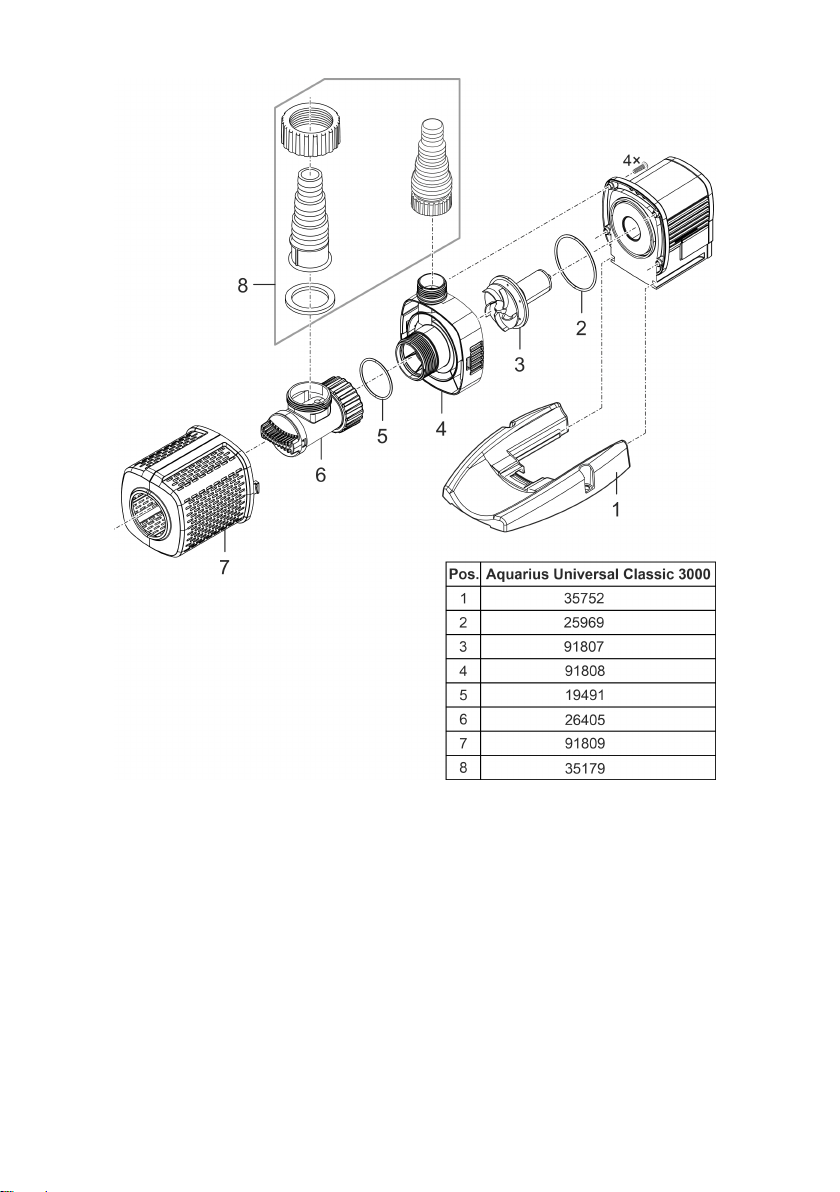

Cleaning/replacing the impeller unit
•Dismantle the pump as shown in the figure.
•Use a brush under clear water to clean the components.
•Check all components for damage. Replace damaged or worn components.
•Assemble the pump in reverse order.
ARS0089
Downloaded from www.watergardeningdirect.com

EN
29
Storage/winter protection
Shut down the unit at water temperatures below +4 °C or at the latest when freezing tempera-
tures are expected.
Malfunction remedy
Malfunction
Cause
Remedy
Pump does not start
No mains voltage
Check the mains voltage.
Supply lines kinked
Route the supply lines without kinks
Supply lines blocked.
Check/clean the supply lines
Impeller unit is blocked
Remove blockage, check impeller unit for
ease of movement
Pump does not transport fluid
Insufficient flow rate
Flow rate is set too low on the
controller
Increase flow rate on the controller
Filter housing clogged
Clean strainer casings
Excessive loss in the supply
lines
Reduce hose length t
o the necessary mini-
mum, remove unnecessary connection
parts
Impeller unit is running slug-
gishly
Check impeller unit for ease of movement
Pump switches off after oper-
ating briefly
Water heavily soiled
Clean pump
Impeller unit is blocked
Remove blockage, check impeller unit for
ease of movement
Pump has run dry
Check/clean the supply lines
Water temperature too high
Adhere to the maximum permissible water
temperature. (→
Technical data)
Downloaded from www.watergardeningdirect.com

30
Technical data
Aquarius Universal Classic
3000
Connection voltage
V AC
220 … 240
Mains frequency
Hz
50
Max. power consumption
W
40
Max. pump capacity
l/h
3000
Max. pump head
m
3.2
Protection type
IP68
Max. immersion depth
m
4
Inlet port
Thread
G1½
Connection, hose
mm
25, 32, 38
Outlet port
Thread
G1
Connection, hose
mm
19, 25, 32, 38
Filter supply surface area
cm²
200
Water temperature
(submerged
installa-
tion)
During operation
°C
+4 ... +35
Out of operation
°C
-
20 ... +35
Ambient temperature
(dry installation)
During operation and
convection
°C
-20 ... +30
During operation and
forced cooling
°C
-20 ... +40
Dimensions
Length
mm
245
Width
mm
130
Height
mm
135
Connection cable length
m
10
Weight
kg
3.0
Permissible water quality
Type
Fresh water
pH value
6.8
… 8.5
Hardness
DH
8 … 15
Free chlorine
mg/l
<0.3
Chloride content
mg/l
<250
Salt content
%
<0.4
Overall dry
residue
mg/l
<50
Temperature
°C
+4
… +35
Downloaded from www.watergardeningdirect.com

EN
31
Wear parts
•Impeller unit
Disposal
NOTE
Do not dispose of this unit with household waste.
Dispose of the unit by using the return system provided for this purpose.
Should you have questions, please contact your local disposal company. They will give you in-
formation on how to correctly dispose of the unit.
Render the unit unusable by cutting the cables.
Downloaded from www.watergardeningdirect.com

331
XX
ARS0091
Downloaded from www.watergardeningdirect.com

OASE GmbH
Tecklenburger Straße 161
484
77 Hörstel | Germany
[phone]
[phone]
[email protected] 90555/05-
22
Downloaded from www.watergardeningdirect.com
