Oase AquaMax Eco Classic 9000 C User manual

AquaMax Eco Classic 9000 C / 12000 C / 18000 C
Downloaded from http://www.watergardeningdirect.com

--
2
A
AMX0096
B
AMX0090
C
AMX0002
D
AMX0003
Downloaded from http://www.watergardeningdirect.com

--
3
E
AMX0089
F
AMX0094
Downloaded from http://www.watergardeningdirect.com

--
4
G
H
AMX0091
AMX0092
I
AMX0095
Downloaded from http://www.watergardeningdirect.com

--
5
J
AMX0093
Downloaded from http://www.watergardeningdirect.com

-EN -
17
-EN -
Translation of the original Operating Instructions
EN
WARNING
WARNING
•This unit can be used by children aged 8 and above and
by persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they are
supervised or have been instructed on how to use the unit
in a safe way and they understand the hazards involved.
•Do not allow children to play with the unit.
•Only allow children to carry out cleaning and user mainte-
nance under supervision.
•Ensure that the unit is fused for a rated fault current of max.
30 mA by means of a fault current protection device.
•Only connect the unit if the electrical data of the unit and
the power supply correspond. The unit data is to be found
on the unit type plate, on the packaging or in this manual.
•Possible death or severe injury from electrocution! Before
reaching into the water, disconnect all electrical units in the
water from the mains.
•Only operate the unit if no persons are in the water.
•Do not use the unit if electrical cables or housings are dam-
aged.
•A damaged connection cable cannot be replaced. Dispose
of the unit.
Downloaded from http://www.watergardeningdirect.com

-EN -
18
Table of Contents
1Information about these operating instructions..............................................................................18
2Safety information ..........................................................................................................................19
3Product Description........................................................................................................................19
4Installation and connection ............................................................................................................20
5Commissioning/start-up .................................................................................................................22
6Operation........................................................................................................................................22
7Remedy of faults ............................................................................................................................24
8Maintenance and cleaning.............................................................................................................25
9Wear parts......................................................................................................................................26
10 Spare parts.....................................................................................................................................26
11 Storage/overwintering ....................................................................................................................26
12 Repair.............................................................................................................................................26
13 Disposal..........................................................................................................................................26
14 Technical data................................................................................................................................27
15 Symbols on the unit........................................................................................................................27
1 Information about these operating instructions
You made a good choice with the purchase of this product AquaMax Eco Classic 9000 C / 12000 C /
18000 C.
Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise your-
self with the unit. Ensure that all work on and with this unit is only carried out in accordance with these
instructions.
Adhere to the safety information for the correct and safe use of the unit.
Keep these instructions in a safe place! Please also hand over the instructions when passing the unit
on to a new owner.
1.1 Warnings used in these instructions
The warning information is categorised by signal words, which indicate the extent of the hazard.
WARNING
Indicates a possibly dangerous situation, which could lead to death or severe injuries, if not
avoided.
NOTE
Indicates a possibly dangerous situation, which could lead to damage to property or the envi-
ronment, if not avoided.
TIP
Useful tip.
Downloaded from http://www.watergardeningdirect.com

-EN -
19
1.2 Cross-references used in these instructions
A reference to a figure, e.g. figure A.
→Reference to another section.
2 Safety information
2.1 Correct electrical installation
•Electrical installations must meet the national regulations and may only be carried out by a qualified
electrician.
•A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and
experience, he or she is capable of and authorised to judge and carry out the work commissioned to
him/her. This also includes the recognition of possible hazards and the adherence to the pertinent
regional and national standards, rules and regulations.
•For your own safety, please consult a qualified electrician.
•Route cables such that they are protected from damage and do not present a tripping hazard.
•Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-
proof).
•Protect the plug connection from moisture.
•Only connect the unit to a correctly fitted socket.
2.2 Safe operation
•The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the
operation of pacemakers or implantable cardioverter defibrillators (ICDs). Always keep magnets at
least 0.2 m away from implanted devices.
•Never carry or pull the unit by the electrical cable.
•Never carry out technical changes to the unit.
•Only carry out work on the unit that is described in this manual. If problems cannot be overcome,
please contact an authorised customer service point or, if in doubt, the manufacturer.
•Only use original spare parts and accessories for the unit.
3 Product Description
3.1 Overview

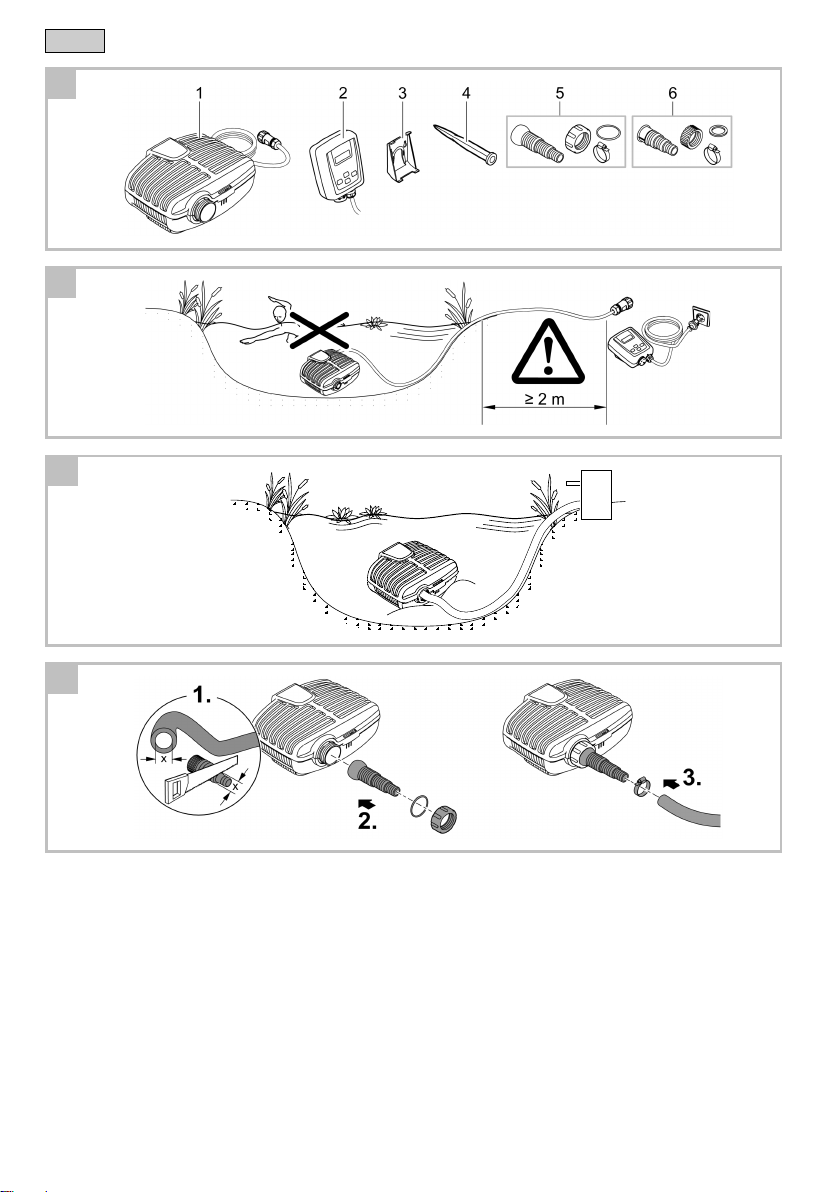

A
Description
1
Filter pump
2
Controller for regulating the speed of the filter pump
•Control via the OASE App "Easy Switch"
3
Retaining frame for mounting controller to the wall
4
Ground stake for mounting controller at ground level
5
Stepped hose adapter with ball joint, seal, coupling nut and hose clip
6
Stepped hose adapter with coupling nut and hose clip
Downloaded from http://www.watergardeningdirect.com

-EN -
20
3.2 Intended use
Only use the product described in this manual as follows:
•For pumping normal pond water for filter systems, waterfall systems and water course systems.
•Operate in accordance with instructions. (→ Technical data)
•Use for private purposes only.
The following restrictions apply to the unit:
•Do not use in swimming ponds.
•Never use the unit with fluids other than water.
•Never run the unit without water.
•Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
•Do not connect to the domestic water supply.
4 Installation and connection
The unit can be placed submerged or dry.
B
WARNING
Death or serious injuries from hazardous electrical voltage due to operation of this unit in a
swimming pond.
•Never operate this unit in a swimming pond.
4.1 Submerged installation of the pump
C
•Only install the unit below water level.
Place the unit horizontally on the ground ensuring its stable position.
How to proceed:
D
1. Shorten the stepped hose adapter to the diameter of the hose used if necessary.
– This reduces pressure losses.
2. Screw the stepped hose adapter including union nut and sealing ring to the outlet.
– Align the stepped hose adapter prior to tightening the union nut.
3. Slip the hose clip over the hose, fit the hose onto the hose connector and secure with the hose clip.
Downloaded from http://www.watergardeningdirect.com

-EN -
21
4.2 Install the unit at a dry place
E
•Swimming pond or pool that may be accessed by people.
– Install the unit at least 2 m away from the water.
•Do not expose the pump to direct sunlight.
How to proceed:

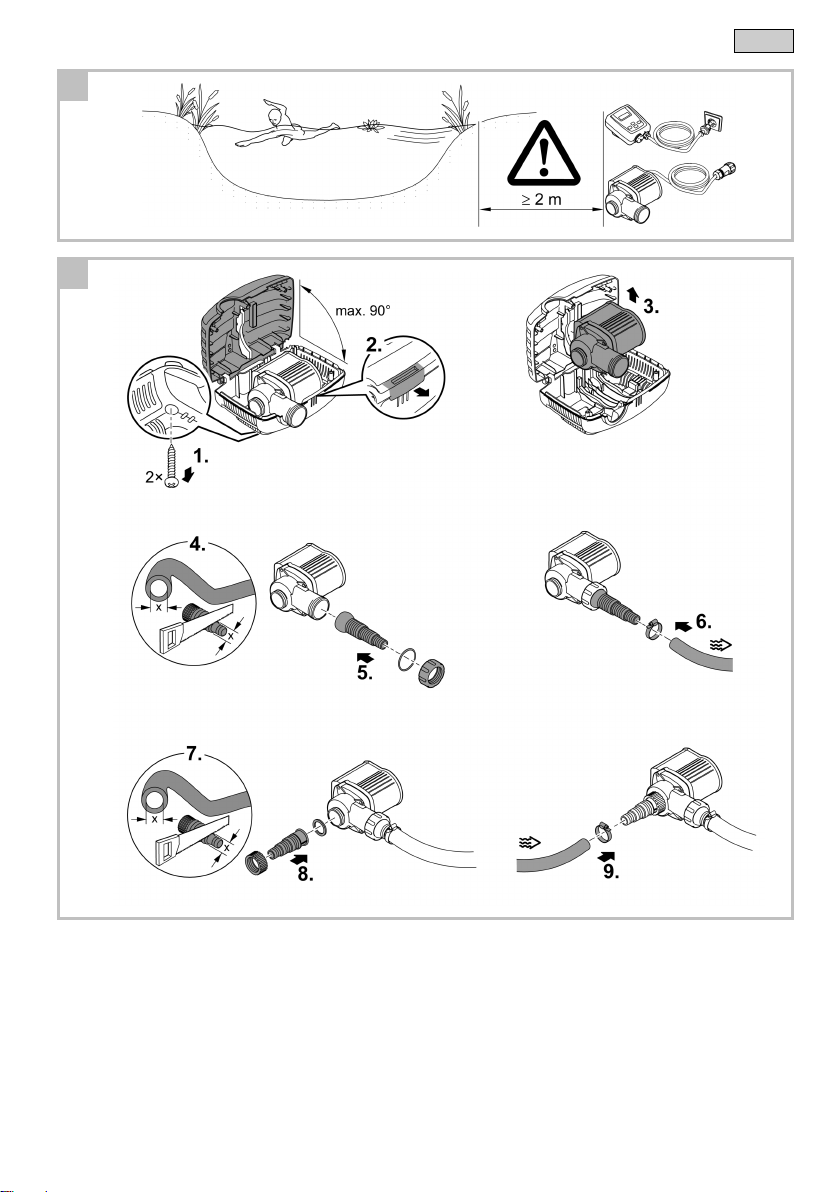

F
1. Remove screws.
– The screws are used as transport protection and not required for operation.
2. Actuate the engagement hook and fold up the strainer top casing.
3. Remove pump.
4. Shorten the stepped hose adapter to the diameter of the hose used if necessary.
– This reduces pressure losses.
5. Screw the stepped hose adapter including sealing ring onto the inlet.
6. Slip the hose clip over the hose, fit the hose onto the hose connector and secure with the hose clip.
– Align the stepped hose adapter prior to tightening the union nut.
7. Shorten the stepped hose adapter to the diameter of the hose used if necessary.
– This reduces pressure losses.
8. Screw the stepped hose adapter including union nut and sealing ring to the outlet.
– Align the stepped hose adapter prior to tightening the union nut.
9. Slip the hose clip over the hose, fit the hose onto the hose connector and secure with the hose clip.

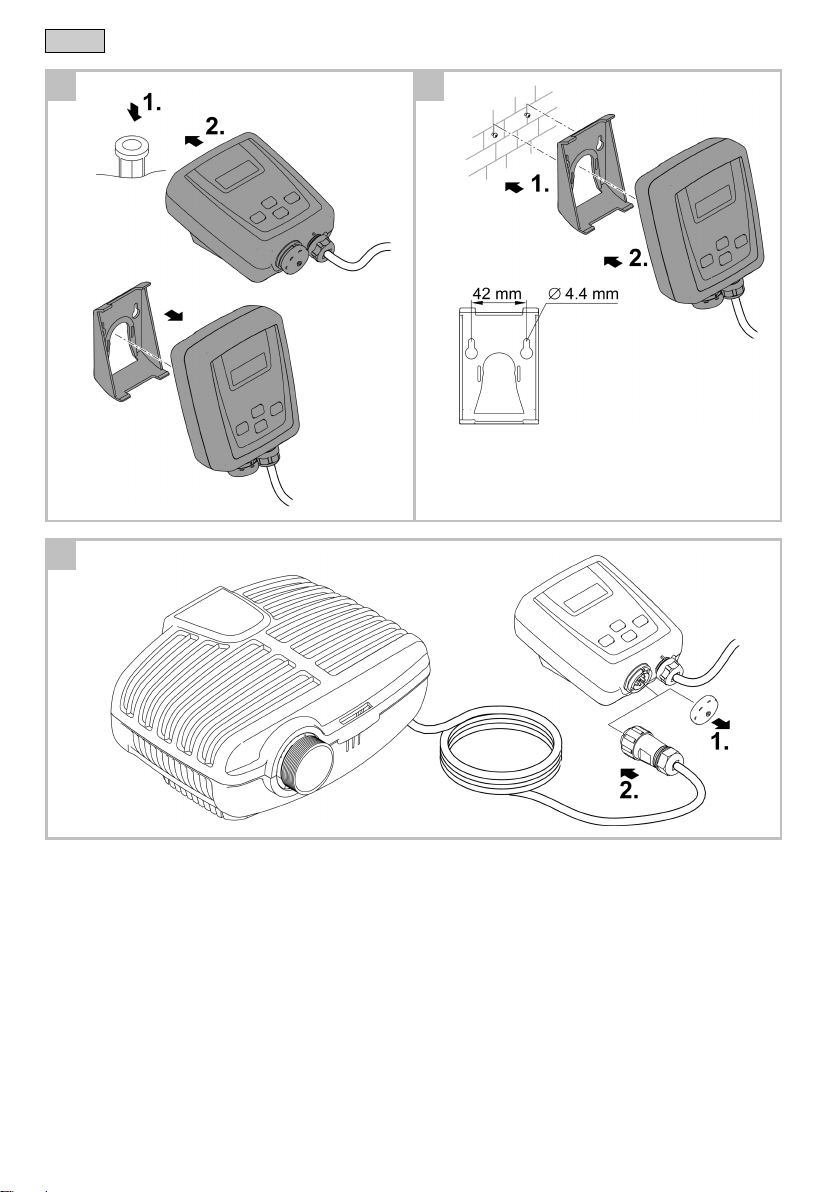

4.3 Mounting the controller on the ground stake
How to proceed:
G
1. Fully insert the ground stake into the ground.
2. Slide the device onto the ground stake.
3. Check its stability.
4.4 Mounting the controller to the wall
How to proceed:
H
1. Affix the retaining frame using suitable screws.
2. Fit the device into the retaining frame.
– Ensure that the device is properly engaged in the retaining frame.
4.5 Connecting the controller
How to proceed:
I
1. Remove the protection cap from the unit.
2. Attach the connector and secure with the coupling nut.
– The connector and coupling must be clean and dry.
Downloaded from http://www.watergardeningdirect.com

-EN -
22
5 Commissioning/start-up
NOTE
The unit will be destroyed if it is operated with a dimmer. It contains sensitive electrical com-
ponents.
•Do not connect the unit to a dimmable power supply.
Switching on
The pump must be connected to the controller before the controller is switched on.
•First connect the controller to the mains supply, then switch on the pump at the controller.
Switching off
•Switch the pump off at the controller.
– Disconnect the controller from the mains before performing any work on the unit.
When started up, the pump automatically performs a pre-programmed self-test (Environmental Func-
tion Control (EFC)). The pump detects if it is running dry / blocked or submerged. The pump switches
off automatically after approx. 90 seconds if it runs dry/is blocked. In the event of a malfunction, dis-
connect the power supply and “flood the pump” or remove the obstacle. Afterwards, the unit can be
restarted.
6 Operation
6.1 Controller overview
AMX0087
Description
Function
1
Four-digit LED display
For displaying values
•Standard display is "Power / W" mode.
2
“On/Off” button
For switching the pump on or off
3
Arrow keys
For increasing or decreasing rotation speed/power output
4
“Mode” button
•For selecting the next mode
•For switching the wireless connection on/off
5
LED wireless connection
•The LED lights up when the wireless connection is
switched on.
•The LED blinks when connected to the OASE App.
Speed / %
Runtime / h
Power / W
RPM
The respective LED lights up for the mode that is selected.
•The current mode appears in the display.
ON
The LED lights up when the pump is switched on.
Error
The LED lights up when an error occurs.
•The error code appears in the display. (→ Error messa-
ges)
Downloaded from http://www.watergardeningdirect.com

-EN -
23
6.2 Operating functions
Switching the pump on/off
Proceed as follows
Information
Press the button briefly to turn the pump
on or off.
–
Increasing or decreasing rotation speed
Proceed as follows
Information
Press the desired button several times or
push continually in order to change the ro-
tation speed in percent.
•Adjustable range: 1 % … 100 %
•Increment: 1 %
•Adjustment is only possible in "Speed / %" or "Power / W”
modes.
•The adjusted value is immediately adopted.
•By pressing a button the controller automatically switches to
"Speed / %” mode.
After 15 s without operation the controller automatically
switches to "Power / W"mode.
Displaying current status values
Proceed as follows
Information
Press the button briefly to select the next
mode.
"Runtime / h” mode
•Displays the total operating hours of the pump
•Displays up to 9999 operating hours: 0to 9999
−Displayed increments: 1 hour
•Displays from 10000 to 99900 operating hours: 100H to 999H
−Displayed increments: 100 hours
−Example: 022H = 22 × 100 = 2200 operating hours
"Power / W” mode
•Displays the current power consumption of the pump in
watts
−Tolerance: ±5 % of the max. power consumption.
(→ Technical data)
"RPM" mode
•Displays the current speed of the pump in revolutions per
minute
"Speed / %" mode
•Displays the current speed in percentage
−Display range: 1to 100
After 15 s without operation the controller automatically
switches to "Power / W"mode.
Switching the wireless connection on/off
Proceed as follows
Information
Press and hold the button for longer than
10 s.
•If
boF
appears in the display, the wireless connection is
switched off.
•If bon appears in the display, the wireless connection is
switched on.
−The LED in the display lights up when the wireless con-
nection is switched on.
−The LED in the display blinks when connected to the
OASE App.
−(→ Controller overview)
•When the unit is delivered, the wireless connection is
switched on.
After 15 s without operation the controller automatically
switches to "Power / W"mode.
Downloaded from http://www.watergardeningdirect.com

-EN -
24
Connecting the controller to the smart phone/tablet
The maximum distance for interference-free communication between the controller and
smartphone/tablet depends on the transmission power of the smartphone/tablet. Brick walls, walls
made of reinforced concrete, large metal objects or bushes and trees can dampen radio waves and
decrease the distance.
Proceed as follows
Information
1.
Download and install the OASE App "Easy Switch" to the
smartphone/tablet.
The OASE App is available on iOS (App Store) and Android
(Play Store).
2.
If you have not already done so, switch on the wireless
connection at the controller.
(→ Switching the wireless connection on/off)
3.
Activate the Bluetooth feature on the smartphone/tablet.
–
4.
Start the App "Easy Switch" .
After a brief search, a list of available products will appear.
5.
Select your pump from the list.
An authentication code will be displayed on the controller for
two minutes.
6.
Enter the authentication code in the smartphone/tablet.
Upon successful connection, the display will change to the op-
erating instruction page for the pump.
•Now, the pump can be controlled via the smartphone/tablet.
•The LED in the controller display blinks. (→ Controller over-
view)
7 Remedy of faults
7.1 Troubleshooting overview
Malfunction
Cause
Remedy
Pump does not start
No mains voltage
•Check the mains voltage.
•Check supply lines.
Faulty connection between pump and
controller
Check connection, and if needed recon-
nect
Pump not switched on
Switch the pump on at the controller
Pump does not transport fluid
Filter housing clogged
Clean strainer casings
Excessively soiled water
Clean the pump. The pump automati-
cally switches on again once the motor
has cooled down.
Pump is set too low
Increase the rotation speed of the pump
at the controller
The impeller unit is blocked
Disconnect the power supply and re-
move obstacle. Then switch the pump
on again.
Insufficient delivered quantity
Filter housing clogged
Clean strainer casings
Excessive loss in the supply lines
•Select larger hose diameter
•Adjust stepped hose adapter to hose
diameter
•Reduce hose length to minimum nec-
essary
•Avoid unnecessary connection ele-
ments
Pump is set too low
Increase the rotation speed of the pump
at the controller
Pump switches off after operating briefly
Excessively soiled water
Clean the pump. The pump automati-
cally switches on again once the motor
has cooled down.
The impeller unit is blocked
Disconnect the power supply and re-
move obstacle. Then switch the pump
on again.
Pump has run dry.
Flood the pump. Fully submerge the
pump for operation in the pond.
Downloaded from http://www.watergardeningdirect.com

-EN -
25
7.2 Error messages
The error message automatically disappears after the error has been corrected.
Error message
Cause
Remedy
Er1
No pump connected or connection to pump is
faulty
•Check that cable is connected correctly to
pump
•Connect the pump to the controller
Er2
Communication error between controller and
pump
•Check that cable is connected correctly to
pump.
•Connect the pump to the controller
Er3
Excess temperature
•Check that impeller unit moves freely
−If the impeller unit is sluggish, the pump is
requiring too much power
•The ambient temperature is too high
Er4
Overcurrent
Check that impeller unit moves freely
•If the impeller unit is sluggish, the pump is re-
quiring too much power
Er5
Pump blocked
Check pump and remove obstacle
Er6
Pump has run dry
•Submerge pump in water
•For dry installation ensure adequate water
supply
Er7
Overvoltage
Connect the pump to the correct mains voltage
•The unit is not suitable for use with the existing
mains voltage range
Er8
Undervoltage
•Keep extension cable to the pump as short as
possible.
−The voltage to the pump is too low due to
the voltage drop in long cables.
•Use extension cable to the pump with greater
conductor cross-section
−The voltage to the pump is too low due to
the voltage drop in cables with too small of a
conductor cross-section.
8 Maintenance and cleaning
TIP
Recommendation regarding cleaning:
•Clean the unit as required but at least twice a year.
•When cleaning the pump, pay particular attention to the cleaning of the impeller unit and
pump housing.
•In the event of the filter housing capacity reducing, clean the unit under running water using a brush.
•Do not not use cleaning agents or chemical solutions.
•Recommended cleaning agent for removing stubborn limescale deposits:
– Pump cleaning agent PumpClean from OASE.
– Vinegar- and chlorine-free household cleaning agent.
•After cleaning, thoroughly rinse all parts in clean water.
Downloaded from http://www.watergardeningdirect.com

-EN -
26

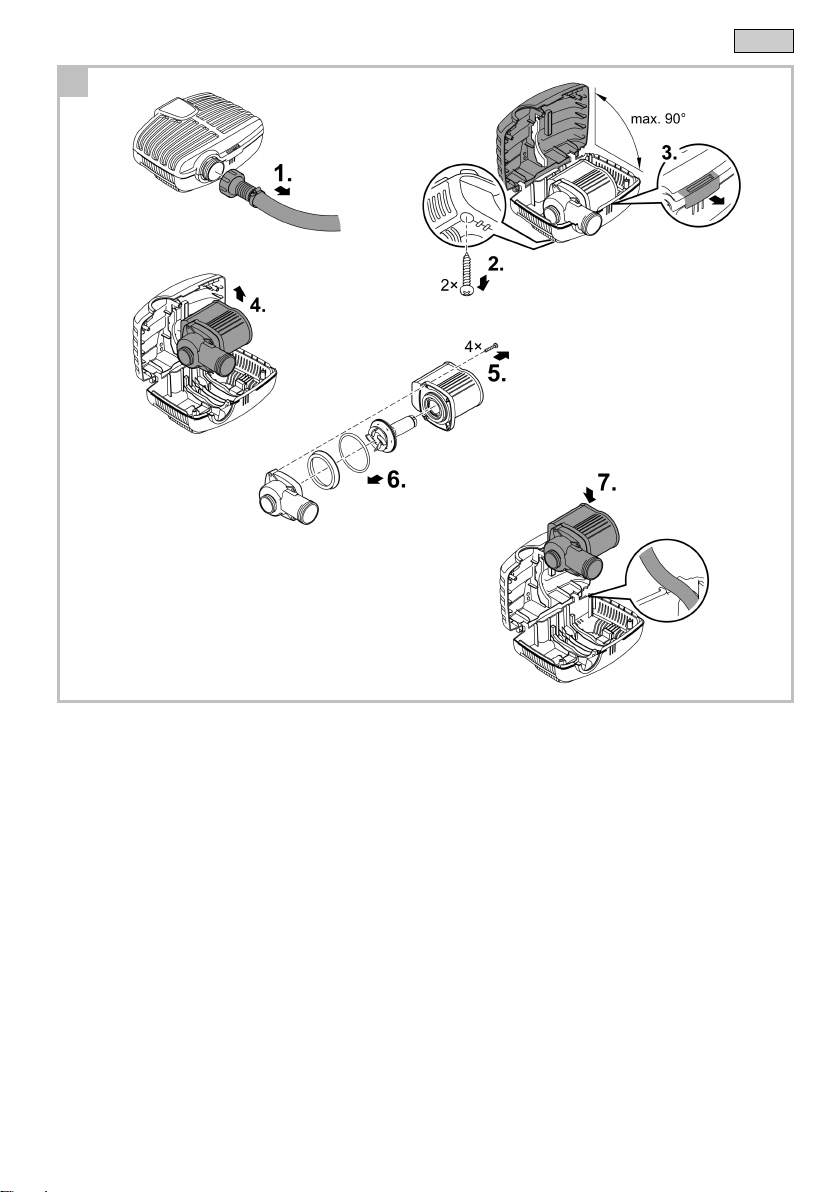

8.1 Cleaning the pump
How to proceed:
J
1. Screw off the stepped hose adapter.
2. Remove screws.
– The screws are used as transport protection and not required for operation.
3. Actuate the engagement hook and fold up the strainer top casing.
4. Remove pump.
5. Remove screws.
6. Remove the pump housing including its holding ring, sealing and impeller unit.
– Clean all components under running water using a soft brush, replace damage parts.
7. Reassemble the unit in the reverse order.
– Place the pump cable into the cable opening of the bottom strainer casing such that the cable will
not be crushed when closing the filter housing.
9 Wear parts
•Impeller unit
10 Spare parts
The use of original parts from OASE ensures
continued safe and reliable operation of the unit.
Please visit our website for spare parts drawings
and spare parts.
www.oase.com/spareparts
11 Storage/overwintering
The unit is not frost-proof and has to be removed and put into storage if minus temperatures are ex-
pected.
How to correctly store the unit:
•Thoroughly clean the unit, check it for damage and replace any damaged parts.
•Store the pump submerged and in a frost-free environment.
•Protect open plug connections from moisture and dirt.
12 Repair
A damaged unit cannot be repaired and must be put out of operation. Dispose of the unit in accord-
ance with the regulations.
13 Disposal
NOTE
Do not dispose of this unit with domestic waste.
•Render the unit unusable beforehand by cutting the cables and dispose of the unit via the
return system provided for this purpose.
Downloaded from http://www.watergardeningdirect.com

-EN -
27
14 Technical data
14.1 Unit data
Description
AquaMax Eco Classic
9000°C
12000°C
18000°C
Connection voltage
V AC
220 … 240
220 … 240
220 … 240
Mains frequency
Hz
50/60
50/60
50/60
Power consumption
W
23 … 90
26 … 120
33 … 175
Pump protection type
IP 68
IP 68
IP 68
Controller protection type
IP 44
IP 44
IP 44
Connection
Discharge port
G1½
G2
G2
Inlet port
G1½
G1½
G1½
Hose
mm
25/32/38
25/32/38
25/32/38
Max. pump capacity
l/h
8800
12000
17600
Max. pump head
m
4.5
4.7
5.3
Filter supply surface area
cm²
810
810
810
Max. particle size, coarse dirt par-
ticles
mm
8
8
8
Max. immersion depth
m
4
4
4
Length of mains cable to controller
m
2
2
2
Length of mains cable to pump
m
10
10
10
Dimensions
Length
mm
280
280
280
Width
mm
230
230
230
Height
mm
140
140
140
Weight
kg
4.4
5.0
5.35
14.2 Water values
Type
Fresh water/Pond water
pH value
6.8 … 8.5
Hardness
8 … 15 DH
Free chlorine
<0.3 mg/l
Chloride content
<250 mg/l
Overall dry residue
<50 mg/l
Temperature
+4 … +35°C
15 Symbols on the unit
Dust tight. Watertight to a depth of 4 m.
Dust protected. Protected against water splashed from all directions. Do not immerse.
Remove the unit at temperatures below zero (centigrade).
Possible danger for persons with pacemakers.
Protect from direct sunlight.
Do not dispose of with household waste.
Read the instructions for use.
Downloaded from http://www.watergardeningdirect.com

75590/05
-20
Downloaded from http://www.watergardeningdirect.com
