Oasis PCPD10EBQ User manual

FREE STANDING CONTACTLESS OUTDOOR
BOTTLE FILLER WITH QUASAR UV-C LED
Installation Instructions For:
UNFILTERED:
PCPD10EBQ
OASIS International
222 East Campus View Blvd.
Columbus, OH 43235
614-861-1350
www.oasiscoolers.com 1

INDEX
1. PRODUCT SPECIFICATIONS
2. IMPORTANT REQUIREMENTS
3. SAFETY WARNINGS
4. QUASAR UV-C LED OPERATION
5. GETTING STARTED
6. PROPER QUICK CONNECT FITTING CONNECTION INSTRUCTIONS
7. INSTALLATION
8. SET-UP GUIDE FOR DISPENSER PCB ELECTRONICS
9. AIR FILTER CARE & USE
2
1. PRODUCT SPECIFICATIONS
Dimensions:
Depth 13.35”(339.0 mm)
Width 12” (304.8 mm)
Height 49.7” (1262.4 mm)
Refrigerant: R-134a
Input Voltage: 115 VAC, 60 HZ–See Data Plate

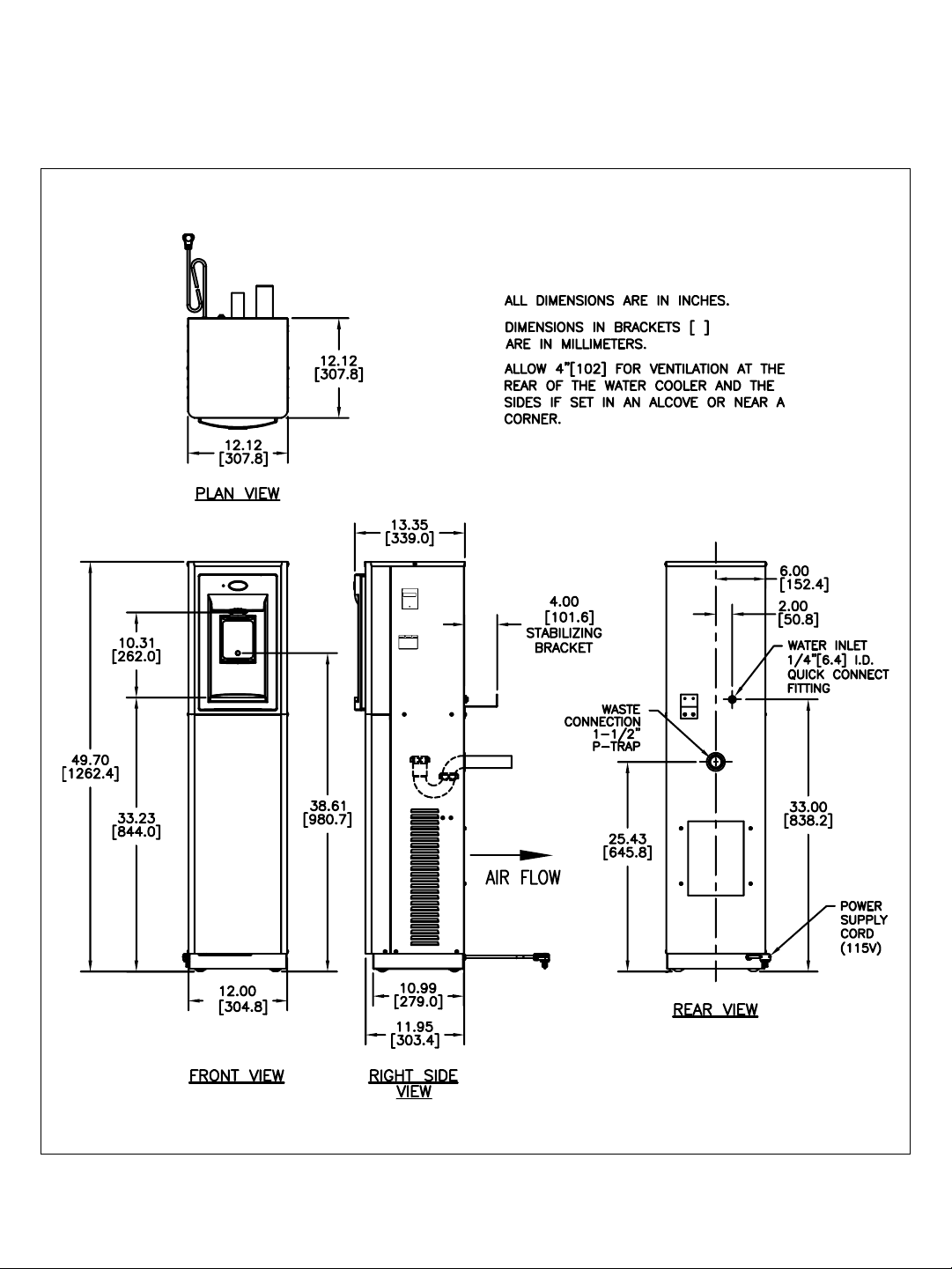

ROUGHING-IN AND DIMENSIONAL DRAWING
3

•Use only original and new parts to guarantee the reliability, optimization, and
performance of the OASIS water machine.
•Always wear proper protection when performing any type of service or
maintenance.
•When cleaning the unit, do not use corrosive acidic products, or metal
brushes.
•Do not wash the unit using high-pressure water.
•Connect to a water supply with a pressure of 45 PSI minimum to 100 PSI
maximum.
•WARNING: DO NOT USE WITH WATER THAT IS MICROBIOLOGICALLY UNSAFE
OR OF UNKNOWN QUALITY.
•ATTENTION: IT IS IMPORTANT TO MAKE PROPER CONNECTIONS TO THE
QUICK CONNECT FITTINGS TO AVOID LEAKS. SEE SECTION 6.
•CAUTION: DO NOT PLACE UNDUE STRESS OR SIDE LOAD ON ANY OF THE
PLASTIC FITTINGS.
•CAUTION: DO NOT ACTIVATE ELECTRICAL EYE SENSOR WITHOUT RUNNING
WATER THROUGH THE UV-C MODULE. DOING SO WILL DAMAGE THE UV-C
LEDS. SEE SECTION 7, STEPS 10 THROUGH 18.
2. IMPORTANT REQUIREMENTS
4
BEFORE YOU START USING THIS WATER DISPENSER, PLEASE READ THE
FOLLOWING INSTRUCTIONS CAREFULLY.
•The unit must be connected to a 115 VAC GFCI power supply as listed on the
equipment data label.
•The unit must be protected by a properly installed 20 amp circuit breaker.
Verify that the electrical current is correct for the power of this unit, which is
listed on the machine data label.
•To avoid electrical shock always unplug the unit from the electrical outlet
before servicing.
•If the power supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
•This appliance must be earthed.
•Children should be supervised to ensure that they do not play with this
appliance.
3. SAFETY WARNINGS:

4. QUASAR UV-C LED OPERATION
DIAGRAM 8
5

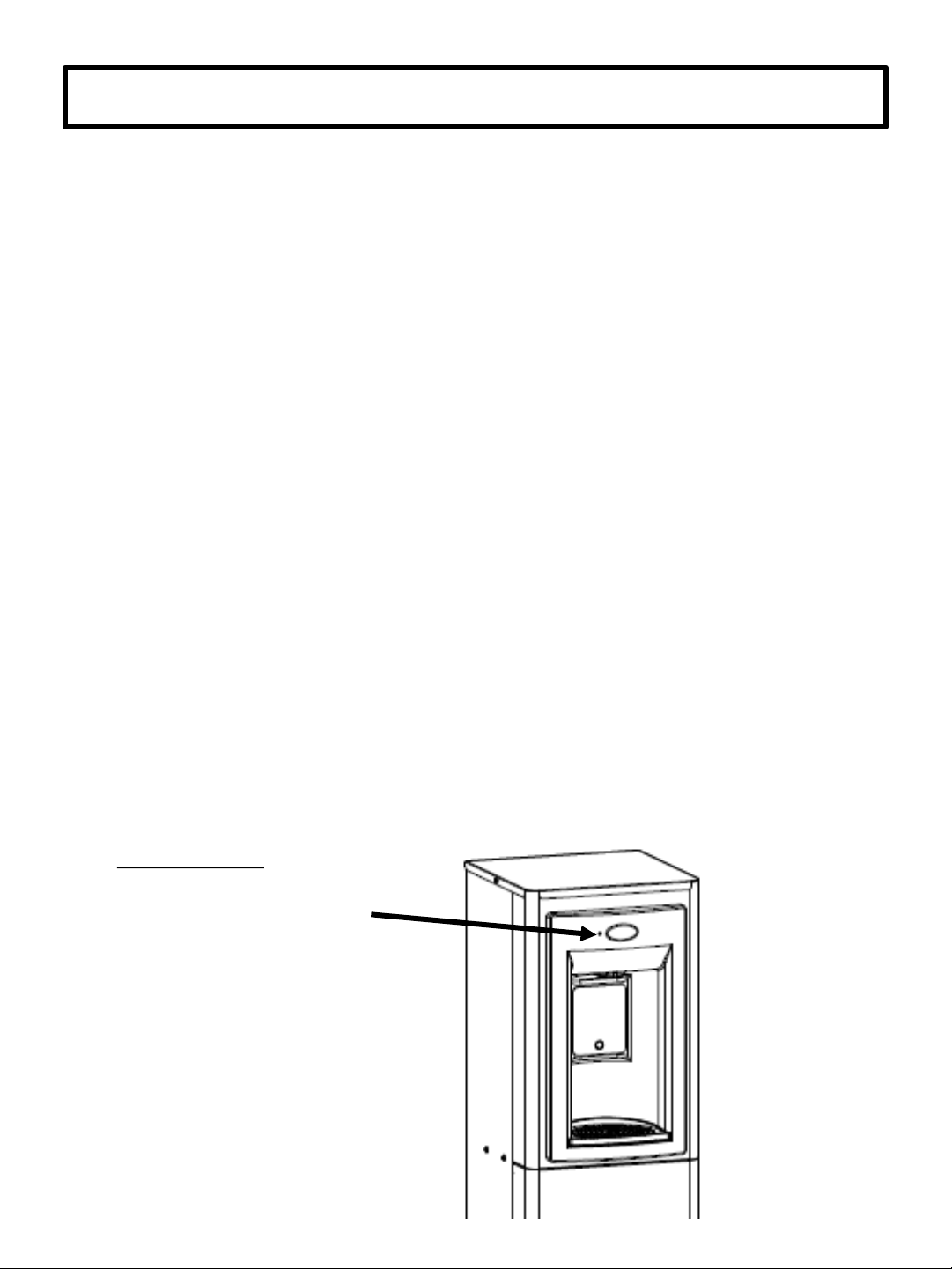

Indicator Light
BLUE=operating normally
RED/YELLOW=QUASAR
failure and water will not
dispense.
1. QUASAR is a form of dispense point water treatment that utilizes UV-C
LED’s to inactivate pathogens.
2. Operation:
a. The QUASAR activation is automatic. The UV-C LED’s turn ON when
water is dispensed and OFF when the dispense stops.
b. During non-use periods the QUASAR automatically cycles ON for
ten seconds every ten minutes. This keeps the dispense point more
sanitary between use.
c. When the QUASAR is ON, the LED light on the front of the alcove
near the top will turn ON. The LED will be BLUE when the QUASAR
is working properly.
d. If QUASAR is not working properly, then the LED light on the front
of the alcove near the top will be RED or YELLOW. The light will
remain ON and the system will not allow water to be dispensed
until the problem is resolved.
e. IMPORTANT: Never operate the QUASAR without water connected
to the system. Lack of water can cause the QUASAR to overheat. If it
is necessary to activate QUASAR to purge the system of air, then do
not activate the QUASAR dry for more than 4-5 seconds at a time.
Wait 60 seconds to allow the QUASAR to “cool” before the next
“dry” activation. Dry activations normally occur during initial setup
or during filter changes.

5. GETTING STARTED:
What’s Included:
a. OUTDOOR BOTTLE FILLER
b. MOUNTING BRACKET
c. IR SENSOR GUARD
d. AIR FILTER MOUNTING BRACKET
e. DURAFLOW AIR FILTER
6
Duraflow Air
Filter 2X
OUTDOOR
BOTTLE FILLER
Mounting Bracket 2X
Air Filter Mounting
Bracket 6X
IR Sensor Guard

Quick-Connect Fittings
•If you need to cut the plastic tubing, be sure to cut tube ends square
and straight. Do not deform the tube (i.e., cause tube to compress its
diameter so it is no longer round, or it may result in a water leak at the
fitting).
•Make sure the outer surface of the tube is clear of marks or scratches
for a length equal to twice the tube diameter. This allows the “O” ring
to seat properly against the tube (See figure below).
•Avoid sharp changes in direction when routing the tubing. Sharp turns
could cause the tubing to kink, which reduces its flow capacity and or
stops it completely.
•Fittings consist of two parts: a body and a collet. (See figure below).
•To install a tube, push it through the collet until it seats firmly at the
bottom of the fitting.
•To remove a tube, push and hold the collet against the body while
pulling the tube out. Pushing the tube into the body before pushing the
collet in will aid in the removal of the tube.
6. PROPER QUICK CONNECT FITTING CONNECTION
INSTRUCTIONS:
Push tube through
Collet into Body
Tube must seat firmly
At bottom of fitting
Push Collet against
Body to release tube
7

STEP 1 & 2:
1. Carefully unpack Air filter mounting brackets, IR
Sensor Guard, and pallet mounting brackets
2. Install using included Torx Screws (quantity 18) See
Diagram 1&2.
7. INSTALLATION:
DIAGRAM 2
INSTALL USING
T15 TORX SCREWS
QTY. 18
8
DIAGRAM 1

STEPS 3 through 5 (for optional filters)
3. Unpack the VersaFilter III and remove the sanitary cap.
4. Looking at the filter top, orient the filter so that the rectangular lug, on top
of the filter faces forward.
5. Push the filter up into the filter housing and rotate the filter one-quarter
turn to the right until it stops turning. Refer to Diagram 3
7. INSTALLATION:
DIAGRAM 3
Remedi Filter –
9
VERSAFILTER III
Lug IMPORTANT: When
replacing filter
cartridge, turn OFF
water supply.
Depressurize water
lines prior to removal
of filter housing from
the quarter turn
filter head assembly.

STEP 6:
6. Locate the snap bushing in the back of the cabinet and feed 1-1/2” OD Drain
Pipe through the hole. See Diagram 4 & 5.
7. INSTALLATION:
DIAGRAM 4
Front View
DIAGRAM 5
Rear View
P-Trap Located
behind the
filter mounting
bracket
Drain Pipe –
shown after
completing
Step 6.
10

7. INSTALLATION:
CONNECT WATER SUPPLY
Rear View
STEPS 7 through 9:
(See Diagram 6)
7. Connecting 1/4” OD water supply tube to 1/4” quick connect fitting on the
back of the unit. Refer to Section 6 for instructions on how to properly
connect to quick connect fittings. IMPORTANT: Before connecting water
supply to dispenser, flush building water supply.
8. Connect 1-1/2” OD drain pipe to Elbow Coupling (not provided). Connect to
building drain.
9. Attach mounting brackets to a pallet or ground as necessary. No mounting
screws are included due to many possible mounting methods.
11
CONNECT DRAIN
Diagram 6

7. INSTALLATION:
STEPS 10 through 18:
10. NOTE: This unit contains the QUASAR UV-C LED.
IMPORTANT:
REVIEW Section 4: QUASAR UV-C LED OPERATION before proceeding. Failure to follow
Section 4 can damage the QUASAR. Do not attempt to operate the electronic bottle filler
dispenser until the cooling tank is filled and the water filters are flushed.
11. Purging Air From Cooling Tank and Flushing Filters:
•Remove top of unit by removing one screw on each side of the top.
•Locate the ball valve as shown in Diagram 7
•Place a container in the alcove
•Open the ball valve and leave open until water comes out continuously without any air. If
filters are installed, continue to run water until the water runs clear. Then close the Ball
Valve.
12. Check system for any leaks.
13. Rotate the fan blade to see that it is free of obstructions.
14. ENERGIZING UNIT: Check the available power supply against the water dispenser data plate to
ensure correct electrical service. This water dispenser is intended to be connected to a 20A
minimum ground fault circuit interrupting (GFCI) device to meet UL requirements. Plug Power
Supply Cord into outlet.
15. Place bottle in alcove to purge additional air in Cooling Tank and water lines. The Water
Dispenser sensor will run for 20 seconds and shut-off. Do this 2 or 3 times until a steady
stream of water dispenses.
16. SETTING UP PCB ELECTRONICS: Follow instructions in Section 8 to change default setting.
17. Re-install Front Panel, and 2 screws.
18. Set up is complete. Enjoy!
12

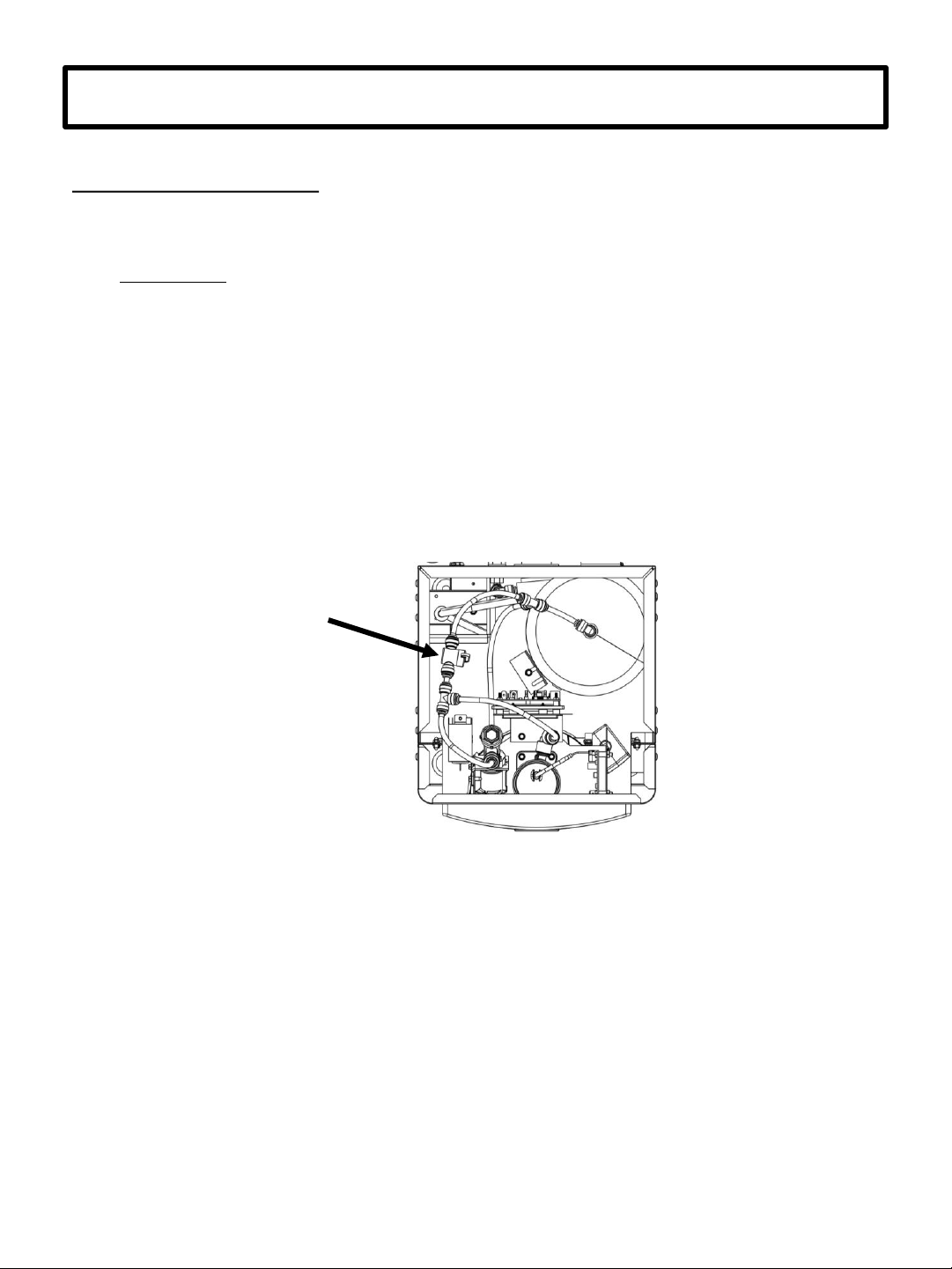

Ball Valve
DIAGRAM 7
TOP VIEW

8. SET-UP GUIDE FOR DISPENSER PCB ELECTRONICS:
•Units - Gallons
•Unfiltered unit
•Flow Meter = Rate Selected
•Filter Capacity = 1250 gallons [4731 liters]
Pushbutton
Factory default program settings are:
•Bottle Count = 0.5L (1 Bottle)
•Flow Rate = 1.2 GPM
•20 second maximum dispense time
To change the program settings, follow these steps:
Top panel will need to be removed by taking out one screw on each side. Set aside until
programming is complete. Remove wire tie bundling pushbutton inside bottle dispenser. You
can then adjust program using the pushbutton through the top of the dispenser.
Display Action
000000000
BOTTLES REUSED
(Home Screen)
Depress button for 3 seconds to enter into the following menu settings and make changes.
Note: at anytime it will exit menu and save settings when idle for 10 seconds (no button press) and
revert back to Home Screen.
LTR/GAL
GAL
Depress button 3 seconds to change from Gallons to Liters,
or momentary press to advance to next menu.
UNFILT/FILT?
UNFILT UNIT
Depress button 3 seconds to change from Unfiltered to Filtered unit,
or momentary press to advance to next menu.
FLOW METER?
RATE SELECTED
Depress button 3 seconds to change from Rate Selected to (Flow) Meter Enabled,
or momentary press to advance to next menu.
SELECT RATE
1.2 GPM UNIT
To change flow rate, momentarily depress button to change whole gallon digit.
Hold button 3 seconds to advance to TENTHS of gallon digit.
Depress momentarily to change the digit.
Hold button 3 seconds to advance to the next menu.
RESET 00000000
GALLON CNT
[LTR COUNT]
Depress button for 3 seconds to reset Gallon or Liter count,
or momentary press to advance to next menu.
FILT CAPAC
OF 1250 GAL
[4731 LTR]
Depress button for 3 seconds to change filter capacity to 3000 GAL [11355 liters] for Galaxi green
filter,
or momentary press to advance to next menu.
3 sec rule?
0.5L
Depress button for 3 seconds to switch from 0.5L bottle to 3 sec rule,
or momentary press to advance to next menu.
(The 3 Sec rule increases the bottle count based on a 3 second dispense.)
Reset 00000000
BOT COUNT?
Depress button for 3 seconds to reset (Home Screen) BOTTLES REUSED count,
or momentary press to advance to next menu.
Bot Filler
Set_time: 20 s
Depress button for 3 seconds to change maximum dispense time to 10, 20 or 30 seconds,
or momentary press to advance to next menu.
RUN CAL
AGAIN?
Depress button 3 seconds to run calibration again,
or momentary press to advance to next menu.
13
P/N 030099-713, Rev. A 04/2023
©2021 LVD Acquisition, LLC; OASIS and QUASAR are registered trademarks of
LVD Acquisition, LLC dba OASIS International.

9. AIR FILTER CARE & USE:
14
