Océ 7055/7056
User Manual
n

Copyright
Océ-Technologies B.V. Venlo, The Netherlands © 1998
All rights reserved. No part of this work may be reproduced, copied, adapted,
or transmitted in any form or by any means without written permission from
Océ.
Océ-Technologies B.V. makes no representation or warranties with respect to
the contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose.
Further, Océ-Technologies B.V. reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation to
notify any person of such revision or changes.
Code number 7114124
Edition 2.0
Océ-Technologies B.V.
GB
This manual contains a description regarding the Océ 7055/7056 system and a
detailed explanation about the plot functions. The introduction (chapter 1)
contains a general description of the working methods for using the copier and
it is recommended that you read at least this chapter.
Overview of copier parts on the covers
To assist you in finding parts of the copier/printer and the functions on the
operating panel quickly, an illustration of the Océ 7055/7056 is presented on
the inside front cover and of the operating panel on the inside back cover, both
of which can be folded out.
Safety information
This manual contains the following safety information:
■Appendix B lists ‘Instructions for safe use’. You are advised to read this
information before you start to actually use the copier. Technical safety
information such as safety data sheets can also be found in appendix B.
■Where applicable, cautions and warnings are used throughout this manual to
draw your attention to safety precautions to be taken.For more information
on the notation conventions used in this manual, refer to Appendix C.

Contents 3
Contents
Chapter 1 Introduction
The Océ 7055/7056 6
The operating panel 7
Stand-by mode 7
Buttons and functions 7
Display 8
Switching on/off 9
Chapter 2 Copy jobs
Introduction 12
Making copies 13
Special settings 19
Exposure setting 19
Trailing edge and leading edge 20
Making a test strip 22
Chapter 3 Materials
Inserting a new copy material roll 24
Programming roll specifications 31
Adding toner 32
Cleaning the transparent platen 35
Chapter 4 Solving problems
Introduction 38
Operator recoverable errors 39
Machine errors 40
Clearing original jams 41
Clearing paper jams 42

4 Océ 7055/7056 User Manual
Appendix AOverview and Tables
Standard settings 46
Standard operating mode 47
Product specifications 48
Roomtemperature (T) and Relative Humidity (RH) 48
Originals that can be used 49
Copy material that can be used 50
Appendix BSafety information
Instructions for safe use 54
Mains core colours 56
Safety data sheets 57
Safety data sheets Océ 7055/7056. 58
Safety data sheet Océ OPC Drum 59
Safety data sheet Océ B1 Toner 61
Safety data sheet Océ Cleaner A 63
Safety data sheet Océ Developer 65
EPA ENERGY STAR® 67
Appendix CMiscellaneous
Notation conventions 70
Reader’s comment sheet 71
Addresses of local Océ organisations 73
Index 75

5
Océ 7055/7056
User Manual
Chapter 1
Introduction
This chapter contains a general description of the Océ
7055/7056 and how to get the copier ready to copy.

6 Océ 7055/7056 User Manual
The Océ 7055/7056
The Océ 7055/7056 is a copier for large documents (e.g. architectural or
engineering drawings). The machine is easy to use and makes copies on paper,
transparent, vellum or polyester film with the quality and reliability that one
might expect from Océ. The Océ 7055/7056 has, besides a copy feed table for
manual copy material input, an automatic copy material input mechanism. The
Océ 7055 has only one copy material roll for automatic input whereas the Océ
7056 has two rolls.

Introduction 7
The operating panel
Stand-by mode
The operating panel (see the illustration on inside back cover) on the Océ
7055/7056 is easy to use and specially designed to carry out copy jobs. After
switching on, (see page 9), the machine is always ready for operation: the
display shows blinking LEDs. In this state, the operating panel is in stand-by
mode. The operating panel activates in the following situations:
■you feed an original
■you feed a copy material
■a button on the operating panel is pressed
■a roll unit is opened.
Note: If you do not work with the operating panel for more than 2 minutes, it
returnsautomaticallytostand-bymode.TheOcé7055/7056,however,remains
always for operation.
Buttons and functions
Start button The copy process starts with the current settings.
Stop button The stop button stops the current copy process immediately
without finishing the current job. The original and the copy material remain in
the copier.
Exposure level You modify the exposure level with the ‘lighter’ and ‘darker’
buttons. The exposure level can be changed at all times.
Copymaterialinput buttonWith this button you choose the input of the copy
material. Possible input selections are manual feed, roll 1 or roll 2.
Copymaterial selection button If youhaveselectedmanualfeed,youusethis
button to select the copy material. Your selection, paper or film, influences the
fusing temperature. All materials, except for film, should be copied in the
‘paper’ setting. You also use this button to program the copy material on a roll.

8 Océ 7055/7056 User Manual
Copy quantity selection button Press these buttons to increase or decrease
the number of copies. The copy quantity can be changed at all times.
Correction button Resets the copy quantity counter to ‘1’. By pressing the
correction button twice, all settings will reset to the standard settings (see
‘Standard settings’ on page 46).
Trailing edge With this button you add or remove a filing strip at the trailing
edge varying between +40 to -100 mm in steps of 5 mm.
Leading edge With this button, you add or remove a filing strip at the leading
edge varying between +100 to -100 mm in steps of 5 mm.
Operating mode button This button toggles between synchro cut mode and
standard mode. In synchro cut mode, the copy is cut at the length of the
original. In standard mode, the copy is cut at a standard length.
Display
Depending on the mode you are working in, you have to interpret the figures
shown on the display in a different way:
■In stand-by mode, the display shows blinking LEDs.
■In manual feed mode, the display shows the length of the original in mm.
■When you select roll 1 (or roll 2 for the Océ 7056) in automatic feed mode,
■the display shows the width of the roll. The width of the roll and the kind of
material should be configured when a new roll is inserted.
■When a roll unit is opened, the display flashes. In this mode you canprogram
the width of the roll and the kind of copy material of the roll.
■In standard operating mode, the display shows the standard length that you
select with the selections buttons. The pair of symbols on the display
and next the operating mode indicator are lighted.
■In synchro-cut mode, you can see the values of the trailing and leading
edges.The pair of symbols on the display and next to the edge
adjustments indicators identify which values are displayed.

Introduction 9
Switching on/off
After switching on the machine is ready for operation. The display shows
blinking LEDs. In this state, the operating panel is in stand-by mode. After you
have switched on the machine, there is no need to switch it off after each copy
job. You can leave the machine switched on for the rest of the day since it uses
less than 15 W in this mode. At all times, the Océ 7055/7056 is ready for
operation. If the machine has been inactive for more than 2 minutes, the
operating panel returns automatically to the stand-by mode. The operating
panel activates in the following situations:
■you feed an original
■you feed a copy material
■a button on the operating panel is pressed
■a roll unit is opened.
▼
▼▼
▼Switching on
1 Set the on/off switch at the rear of the machine, to position ‘1’ (see figure 1).
If the mains is connected correctly, the green switch will light up.
[1] On/off switch
Note: The machine is immediately ready for use.
▼
▼▼
▼Switching off
1 Set the on/off switch at the rear of the machine, to position ‘0’ (see figure 1).

10 Océ 7055/7056 User Manual

11
Océ 7055/7056
User Manual
Chapter 2
Copy jobs
Making copies and special settings

12 Océ 7055/7056 User Manual
Introduction
With the Océ 7055/7056, you can make copies on paper, transparent, vellum
or polyester film.
You can select between manual feed and automatic feed by pressing the copy
material input button. When automatic feed is selected, the copy material is
taken from the selected roll. The copy material is then cut. The length of the
copy depends on the operating mode you have selected. The operating mode
can be either synchro cut or standard.
With the copy material selection button you can select the copy material.
Pressing the button toggles between film and paper. You only have to use this
button if you have selected manual feed. When using automatic feed, the copy
material should be configured as a new roll is inserted.
Note: Only use paper as is specified in ‘(see ‘Copy material that can be used’
onpage 50).Avoidstoringpaperinroomswheretemperatureandhumidityare
high (see ‘Roomtemperature (T) and Relative Humidity (RH)’ on page 48).
Also, avoid dust and direct sunlight. Wrap unused paper in plastic to prevent
it absorbing moisture.

Copy jobs 13
Making copies
When you use the manual feed option, you can always feed the original or the
copy material. The copyingprocess only starts after pressing the ‘start’ button.
Before pressing the ‘start’ button, you can control and change the settings.
When you usethe automatic feed option, you can always feed the original. The
copyingprocessonlystartsafterpressingthe‘start’ button.Beforepressingthe
‘start’ button, you can control and change the settings.
Note: After 2 minutes of idleness,the operator panel returns to the ready mode.
When you wait more than 2 minutes between two operations, you have to
restart the procedure.
▼
▼▼
▼Making copies using the automatic feed option
1Press the copy material input button until the LED that corresponds with the
roll of your choice lights up. The display shows the width of the selected roll.
Note: The copy material should be configured as a new roll is inserted. Hence,
as you select a roll, the copy material selection is automatically updated.
2Select the desired number of copies by pressing the ‘+’ or ‘-’ button on the
operating panel see figure 2.
Note: Changing the copy quantity can be done at all times. When you make a
mistake you simply press the correction button to correct the copy quantity.
[2] Setting more than one copy using the ‘+’ or ‘-’ button
stop+-start
correction
C
paperpath
add toner

14 Océ 7055/7056 User Manual
3Press the operating mode button to toggle between synchro cut mode and
standard mode. Synchro cut mode is selected by default.
■In synchro cut mode, the copy is cut at the length of the original.
■In standard mode, the copy is cut at a standard length. You selectthe standard
length with the selection buttons. For an overview of the possible standard
lengths, refer .
4Feed the original centrally and face down into the original feed table in
accordance with the guidelines see figure 3.

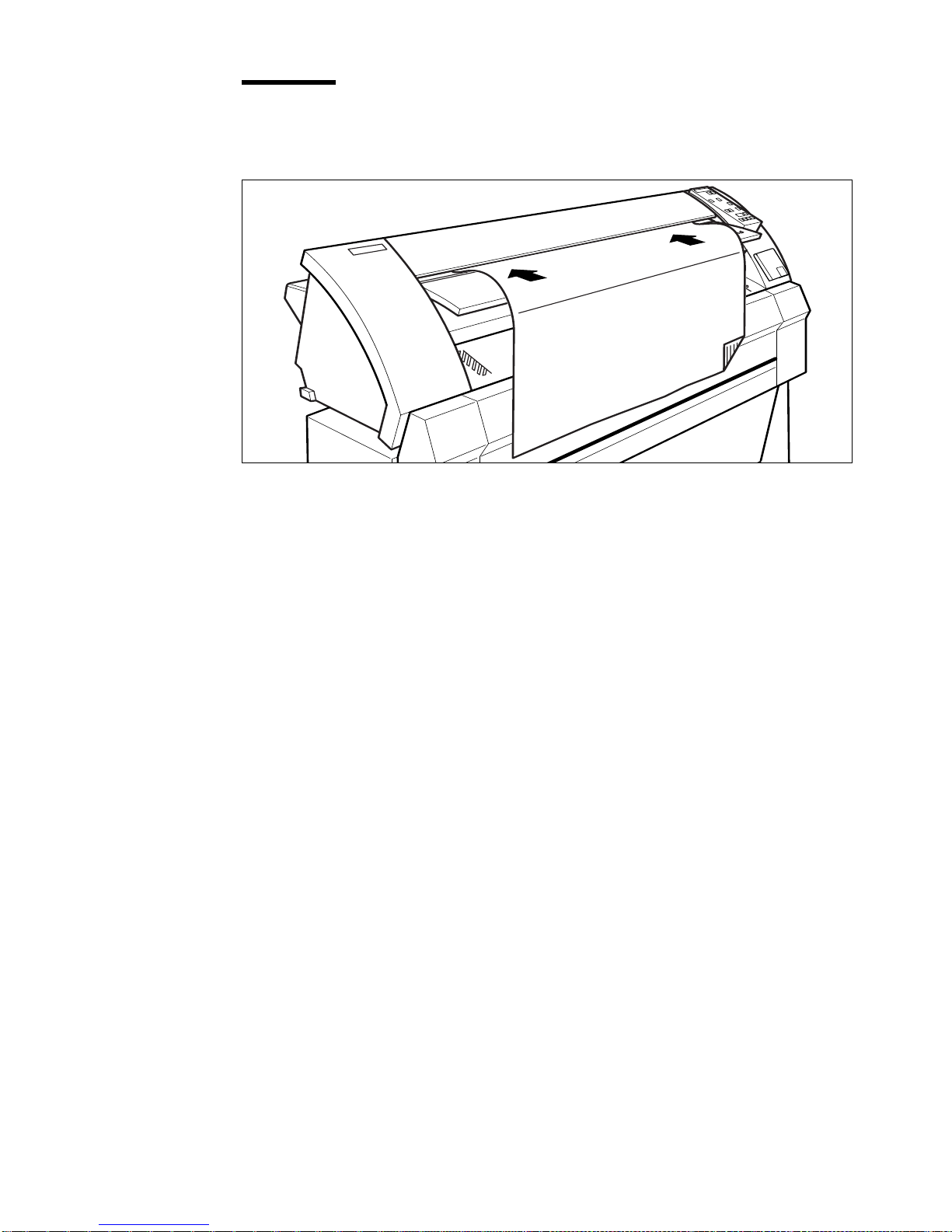

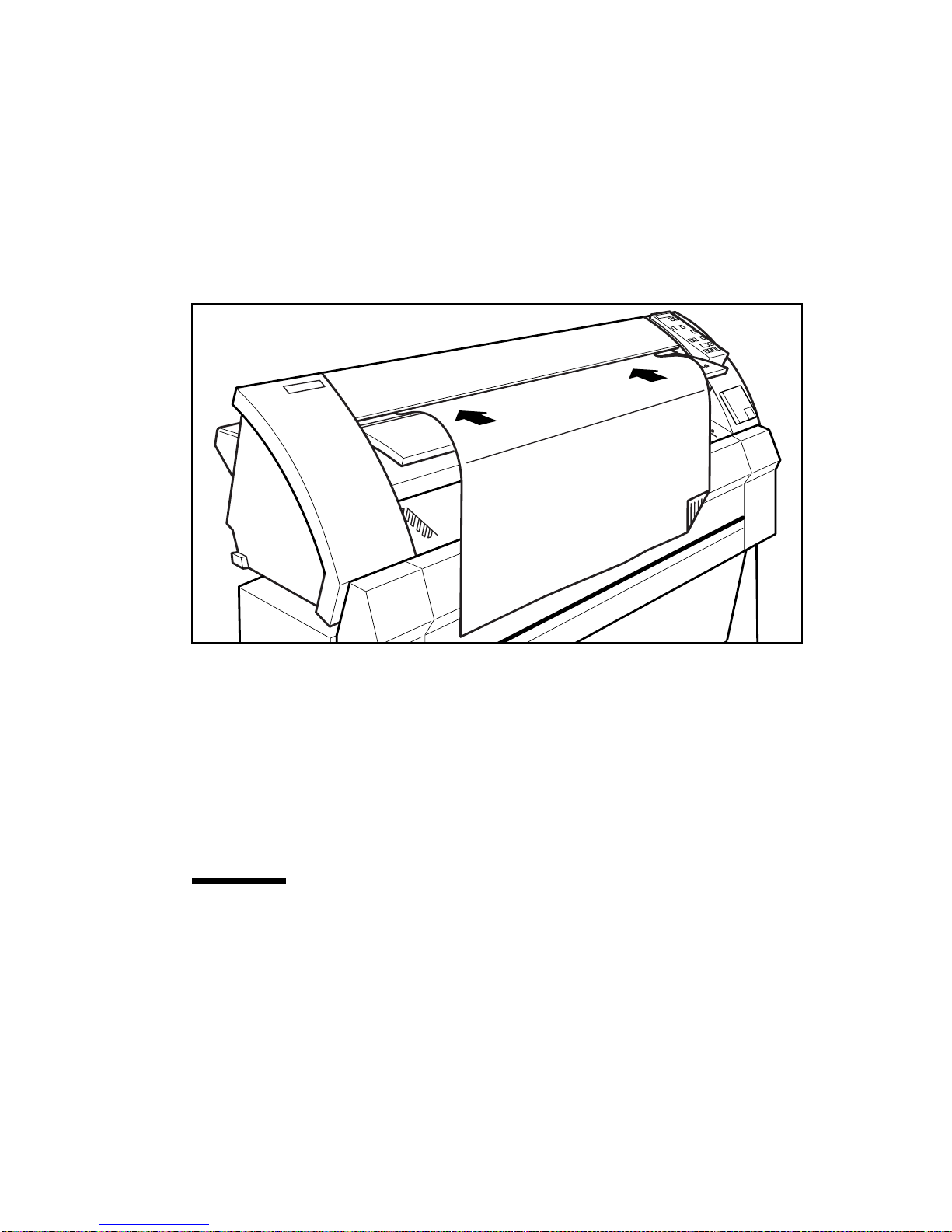

[3] Feeding an original
Note: The original is aligned in the nip of the rollers. By inserting the material
with an amount of slack, the leading edgeis aligned in the nip. A delaybetween
insertion of the material and the start of the transport ensures proper
alignment.
The original is transported to the rear of the machine.
Attention: Strongly curled originals have to be fed in carefully. In certain
circumstances the copier can pull the original in.
Note: Minimum length that the machine can cut is 420 mm.

Copy jobs 15
5Press the start button.
The copies are made and cut at the appropriate length.
After the job is completed the copy counter is set to 0. If you want to make
more copies of the same original, you don’t have to feed the original again as
long as you haven’t pulled it from the original feed table. Control the settings
and press the ‘start’ button again: the original is transported back into the rear
of the machine to prepare for a next batch of copies, and the counter
isincreased to 1. By pulling out the original the counter will be set to 1.
▼
▼▼
▼Making copies using the manual feed option
1Press the copy material input button until the manual feed LED lights up or
insert a sheet of copy material in the manual copy material feed table.
2Press the copy material selection button to toggle between paper (paper,
vellum,...) or film.
Attention: Select the appropriate copy material to avoid flawed copies. All
materials (except for film) should be copied with the copy material
selection set to ‘paper’. Only select the setting ‘film’ if you make copies on
polyester film 3.
3Select the desired number of copies by pressing the ‘+’ or ‘-’ button on the
operating panel (see figure 4 on page 16).

16 Océ 7055/7056 User Manual
Note: Changing the copy quantity can be done at all times. When you make a
mistake you simply press the correction button to correct the copy quantity.
[4] Setting more than one copy using the ‘+’ or ‘-’ button
4Feed the original centrally and face down into the original feed table in
accordance with the guidelines (see figure 5 on page 17).
Note: The original is aligned in the nip of the rollers. By inserting the material
with an amount of slack, the leading edgeis aligned in the nip. A delaybetween
insertion of the material and the start of the transport ensures proper
alignment.
The original is transported to the rear of the machine and the display shows
the length of the original.
2477

Copy jobs 17
Attention: Strongly curled originals have to be fed in carefully. In certain
circumstances the copier can pull the original in.
[5] Feeding an original
Note: Minimum length of the copy material is 420 mm.
5Feed a sheet of copy material, in line with the original, into the copy feed table
in accordance with the guidelines (see figure 6 on page 18) .
Note: The copy material is aligned in the nip of the rollers. By inserting the
material withan amount of slack, the leadingedge is aligned in thenip. Adelay
between insertion of the material and the start of the transport ensures proper
alignment.

18 Océ 7055/7056 User Manual
Attention: If sheets of copy material are curled, feed them with the curl
facing down.
[6] Feeding the copy materialmakemore copies of
6Press the start button.
The copy will now be made and the copy quantity counter decreases by one.
After the job is completed the copy counter is set to 0. If you want to make
more copies of the same original, you don’t have to feed the original again as
long as you haven’t pulled it from the original feed table. Control the settings
and press the ‘start’ button again: the original is transported back into the rear
of the machine to prepare for a next batch of copies, and the counter is
increased to 1. By pulling out the original the counter will be set to 1.
2477

Copy jobs 19
Special settings
Exposure setting
When copying extremely light or dark originals, or originals with unequal
background density, the result may not meet your requirements (e.g. too much
background). In such cases you can adjust the exposure level. In the default
setting the exposure level indicator is in the neutral position see figure 7.
[7] Exposure setting
▼
▼▼
▼Exposure setting
1If the copy is too dark, you can modify the exposure level using the ‘lighter’
button.
2If the copy is too light, you can modify the exposure level using the ‘darker’
button.
lighter
darker
roll 1 paper
manual feed 4
2
0
2
4
roll 2 film

20 Océ 7055/7056 User Manual
Trailing edge and leading edge
Assume that you are working in automatic feed mode and your original has a
filing strip. If you don’t want the filing strip to show on the copy, it is possible
to create an edge. Make sure that the filing strip is at the trailing edge of the
originalseefigure8. The adjustment stepsareindicatedonthe operatingpanel,
expressed in millimetres. The opposite of a trailing edge is called leading edge.
[8] Example of adjusting the trailing edge
- 40
