Océ TDS100
User manual

Copyright
© 2005, Océ-Technologies B.V. Venlo, The Netherlands
All rights reserved. No part of this work may be reproduced, copied, adapted,
or transmitted in any form or by any means without written permission from
Océ.
Océ-Technologies B.V. makes no representation or warranties with respect to
the contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose.
Further, Océ-Technologies B.V. reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation to
notify any person of such revision or changes.
Edition 2005-02
Océ-Technologies B.V.
GB
Trademarks
Products in this manual are referred to by their trade names. In
most, if not all cases, these designations are claimed as trademarks
or registered trademarks of their respective companies.

3
Notes for the reader
Introduction
This manual helps you to use the Océ TDS100. The manual contains a
description of the Océ TDS100 and guidelines to use and operate the Océ
TDS100. There are also tips to increase your knowledge of the Océ TDS100
and to help you manage the workflow even better.
Definition
Attention Getters
Parts of this manual require your special attention. These parts provide
important, additional information or are about the prevention of damage to
your properties.
Note, Attention and Caution
The words Note, Attention and Caution indicate these important parts.
■The word Note comes before additional information about the correct
operation of the Océ TDS100 or before a hint.
■A part marked with Attention contains information to prevent damage to
items, for example the Océ TDS100 or a file.
■A part marked with Caution contains information to prevent personal
injury.
Safety information
The safety information for this product is included in a separate manual with
the title Safety manual. This manual is part of the documentation set that you
received with your product.

4 User manual

Contents 5
Contents
Notes for the reader 3
Chapter 1
Introduction to the Océ TDS100
The documentation set 8
The configurations 9
The components 10
The operator panel of the automatic 1 roll and 2 roll feed configuration 12
The operator panel of the sheet feed, multi copy configuration 16
The operator panel of the sheet feed, single copy configuration 19
Chapter 2
Use the Océ TDS100
Turn on and off the Océ TDS100 22
Turn on and off the optional dew preventer 24
Copy on a media roll (automatic roll feed) 25
Copy on cut sheet media (manual sheet feed) 27
Adjust leading and trailing strips 29
Improve the copy quality of dark and light originals 32
Check the copy quality with a test strip 33
Straighten the edge of a media roll 34
Chapter 3
Maintain the Océ TDS100
Understand message codes 36
Add toner 38
Clear an original jam 41
Clear a media jam 43
Replace a media roll 46
Clean the transparent plate 51
Appendix A
Overview and tables 53
Default values 54
Product specifications 55
Supported original types and sizes 56
Supported media types and sizes 57

6 User manual
Appendix B
Miscellaneous 59
Reader's comment sheet 60
Addresses of local Océ organisations 62

7
Océ TDS100
User manual
Chapter 1
Introduction to the Océ TDS100

8 User manual
The documentation set
Introduction
This manual is a part of a documentation set. The following table displays the
complete list.
Overview of the complete documentation set
Note: Visit Océ on the internet at www.oce.com for more information.
Document Publication
medium
Contents
Safety
manual
Paper book ■Instructions for safe use.
■Safety data sheets.
Quick
reference
guide
Paper book ■A short description on how to operate the
Océ TDS100.
User
manual
CD-ROM ■A complete description on how to operate
and maintain the Océ TDS100.

Introduction to the Océ TDS100 9
The configurations
Introduction
The Océ TDS100 is a wide format copier to copy large drawings. The Océ
TDS100 is available in four different configurations. The following table
displays these configurations with their functions and options.
Functions and options per configuration
[1] The Océ TDS100 configurations
[1] The Océ TDS100 configurations
Configuration Functions Options
Sheet feed,
single copy
■Manual sheet feed
■Single copy
■Original length measuring
■Reproduction scale 1:1.
■Stand
■A1 shelves and stand.
Sheet feed,
multi copy
■Manual sheet feed
■Multi copy
■Trailing strip
■Original length measuring
■Reproduction scale 1:1.
■Stand
■A1 shelves and stand
■1-roll upgrade kit
■2-roll upgrade kit
■Dew preventer.
Automatic 1 roll
feed
■Automatic 1-roll media
feed
■Multi copy
■Manual sheet feed
■Trailing strip
■Leading strip
■Test strip
■Original length measuring
■Reproduction scale 1:1.
■2-roll upgrade kit
■Dew preventer.
This configuration comes
default with a stand.
Automatic 2 roll
feed
■Automatic 2-roll media
feed
■Multi copy
■Manual sheet feed
■Trailing strip
■Leading strip
■Test strip
■Original length measuring
■Reproduction scale 1:1.
■Dew preventer.
This configuration comes
default with a stand.

10 User manual
The components
Introduction
The following illustration displays the most complete configuration of the Océ
TDS100, the automatic 2 roll feed configuration. Some options may not be
available on your TDS100 due to the differences between the configurations.
Illustration

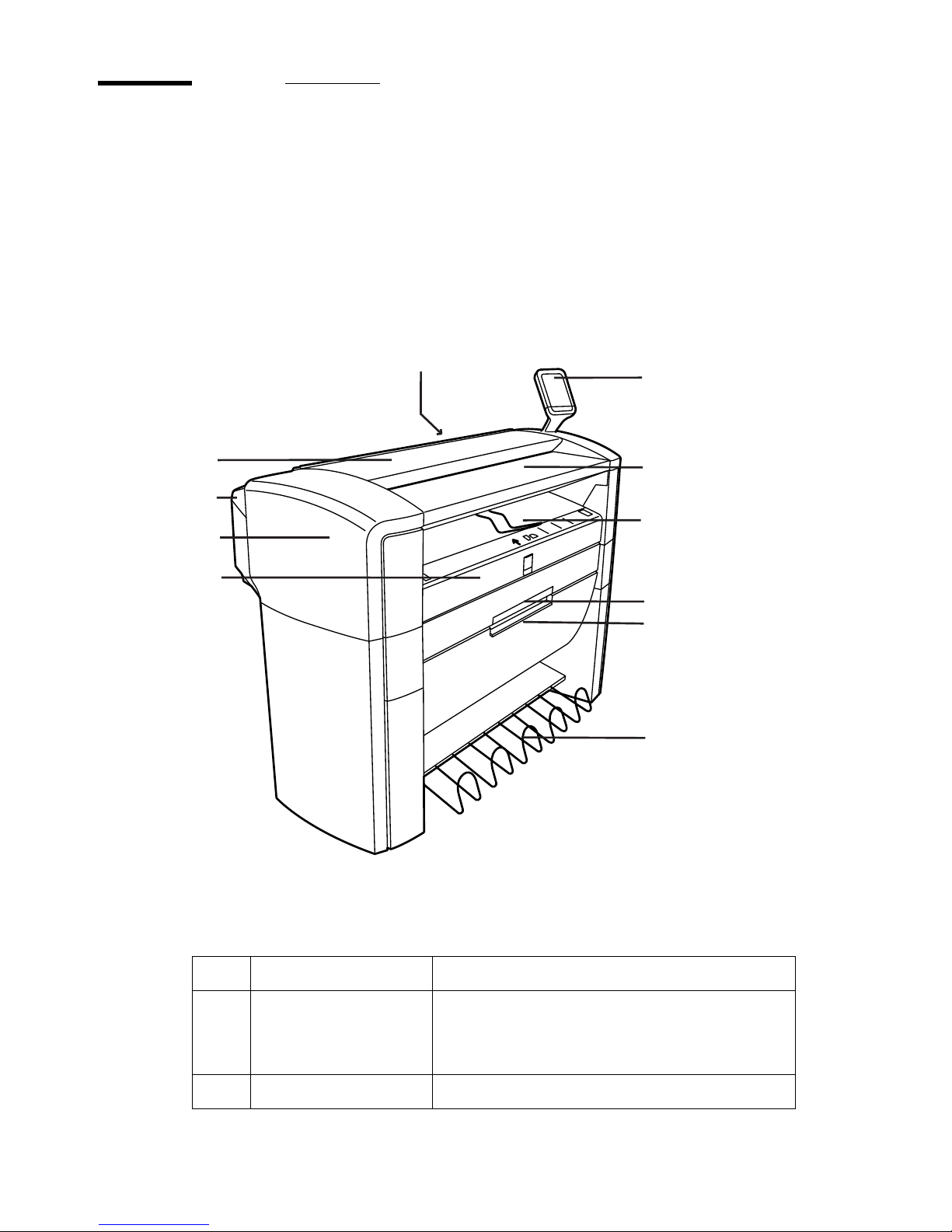

[1] The automatic 2 roll feed configuration of the Océ TDS100
[1] The automatic 2 roll feed configuration of the Océ TDS100
The components and functions of the Océ TDS100
Nr. Component Function
1 On / off switch Turn on and off the Océ TDS100.
Note: The on / off switch is not visible in the
illustration.
2 Operator panel Set up, start and control the copy jobs.
8
2
1
3
4
6
5
7
11
10
9

Introduction to the Océ TDS100 11
Note: Some items may not be available on your Océ TDS100 due to the
differences between the configurations.
3 Original feed table Feed the original.
4 Manual feed table Feed the media manually.
5 Roll 1 (drawer) Feed the media automatically from roll 1.
6 Roll 2 (door) Feed the media automatically from roll 2.
7 Integrated receiving
tray
Receive the copies.
8 Top cover Give access to the transparent plate.
9 Fuser cover Give access to the fuser.
Note: The fuser is not visible in the
illustration.
10 Left cover Give access to the fill opening of the toner
reservoir, the waste toner bag and to the
handle of the fuser cover.
11 Middle cover Give access to the underside of the manual
feed table.
Nr. Component Function

12 User manual
The operator panel of the automatic 1 roll and 2 roll feed
configuration
Introduction
You can identify your configuration by its operator panel. The following
illustration displays the operator panel of the 1 roll and 2 roll configuration.
Illustration

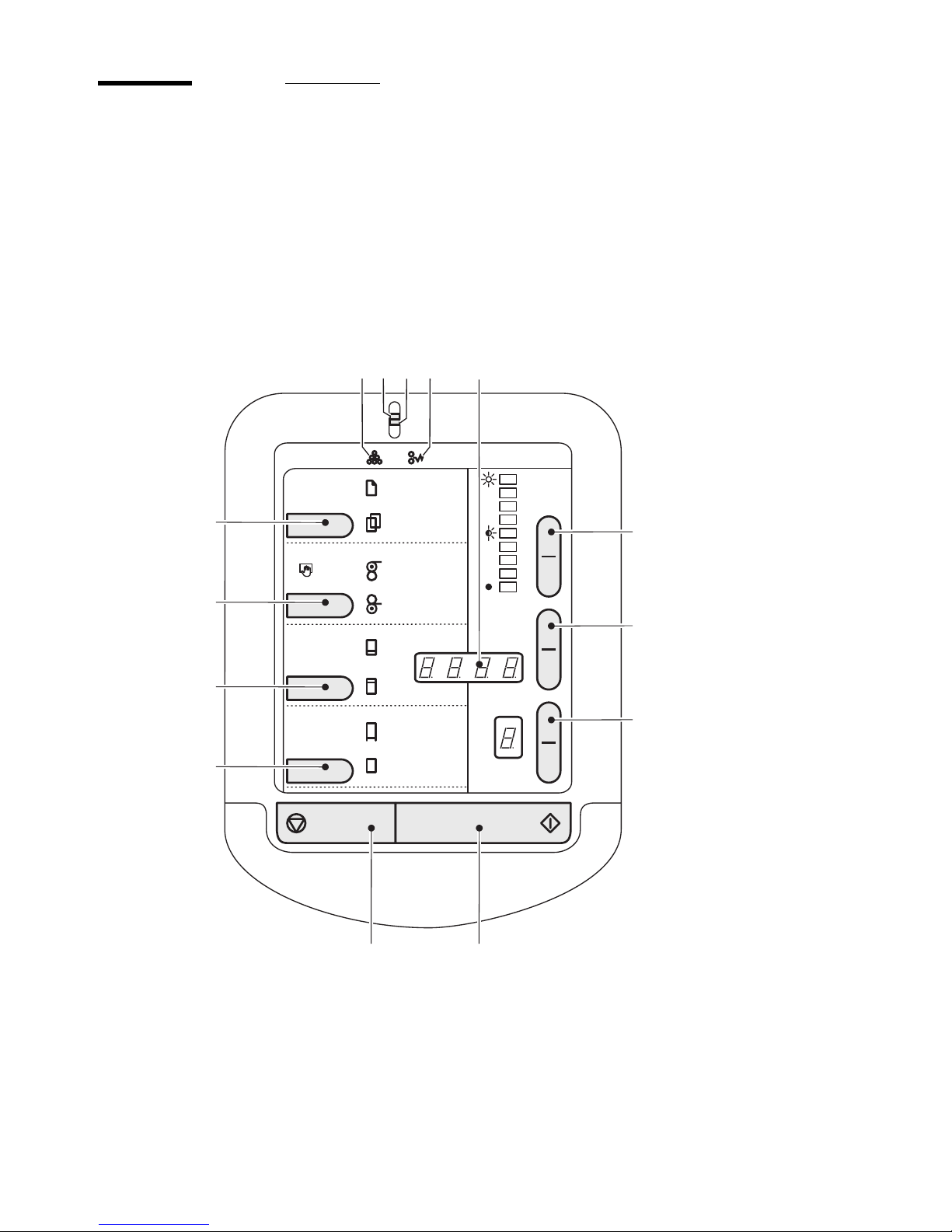

[2] The operator panel of the automatic 1 roll feed and 2 roll feed configuration
[2] The operator panel of the automatic 1 roll feed and 2 roll feed configuration
4
2
0
-2
-4
media
paper
roll 1
trailing
synchro
film
roll 2
leading
standard
feed
manual
strip
cut
toner media jam
68
1234 5
1413
10
12
7
9
11

Introduction to the Océ TDS100 13
The indicators
The keys and their functions
Nr. Indicator Function
1 'Toner' Indicate that the Océ TDS100 has run out of
toner.
2 Green light Indicate that the copier is ready.
A blinking green light indicates that the
copier runs a copy job.
3 Red light Indicate that an error has occurred.
4 'Media jam' ■Indicate that the original or copy media
has jammed.
■Indicate that the media roll is empty for a
1 roll and 2 roll configuration.
■Indicate that you can remove the cut off
strip
5Display ■Display the media size when you change
a roll.
■Display the strip length when you add or
remove a strip.
■Display a message code.
■Display the length of the original when
you copy manually on cut sheet media
Nr. Key Function
6 'Media' Select the media type of the copy.
Select one of the following.
■'Paper'
■'Film'
7 'Feed' Select the media feed method.
Select one of the following.
■'Roll 1'
■'Roll 2'
(2 Roll configuration only)
■'Manual'

14 User manual
8 Exposure Adjust the exposure.
Use the exposure setting to correct the
background of the copy. You can adjust the
exposure from -4 up to +4. A negative value
darkens the copy, a positive value lightens
the copy.
9 'Strip' Select the edge for the strip.
Select one of the following.
■'Trailing'
Use the adjustment key to set the trailing
strip length from -100 up to +40 mm / -2.75”
up to +1.75”. A positive value adds a strip,
a negative value removes a strip.
■'Leading'
Use the adjustment key to set the leading
strip length from -100 up to +100 mm /
-2.75 - +2.75”. A positive value adds a strip,
a negative value removes a strip.
(see ‘Adjust leading and trailing strips’ on
page 29).
10 Adjustment key ■Adjust the strip length.
■Adjust the media size for a new roll.
■Adjust the media size for the standard cut
size.
11 'Cut' Select the cut method.
■'Synchro' enables you to cut the copy to
the same size as the original.
■'Standard' enables you to cut the copy to
the same size as a standard size. Use the
adjustment key to set the standard size.
12 Copies Adjust the number of copies.
You can select a number of copies from 1 up
to 9.
Nr. Key Function

Introduction to the Océ TDS100 15
13 Stop ■When you press the stop key while the
copier runs a copy job, the copy job will
stop.
■When you press the stop key once while
you set up a copy job, the number of
copies returns to 1.
■When you press the stop key twice while
you set up a copy job, the default values
return.
14 Start Start the copy job.
Nr. Key Function

16 User manual
The operator panel of the sheet feed, multi copy configuration
Introduction
You can identify your configuration by its operator panel. The following
illustration displays the operator panel of the multi copy configuration.
Illustration

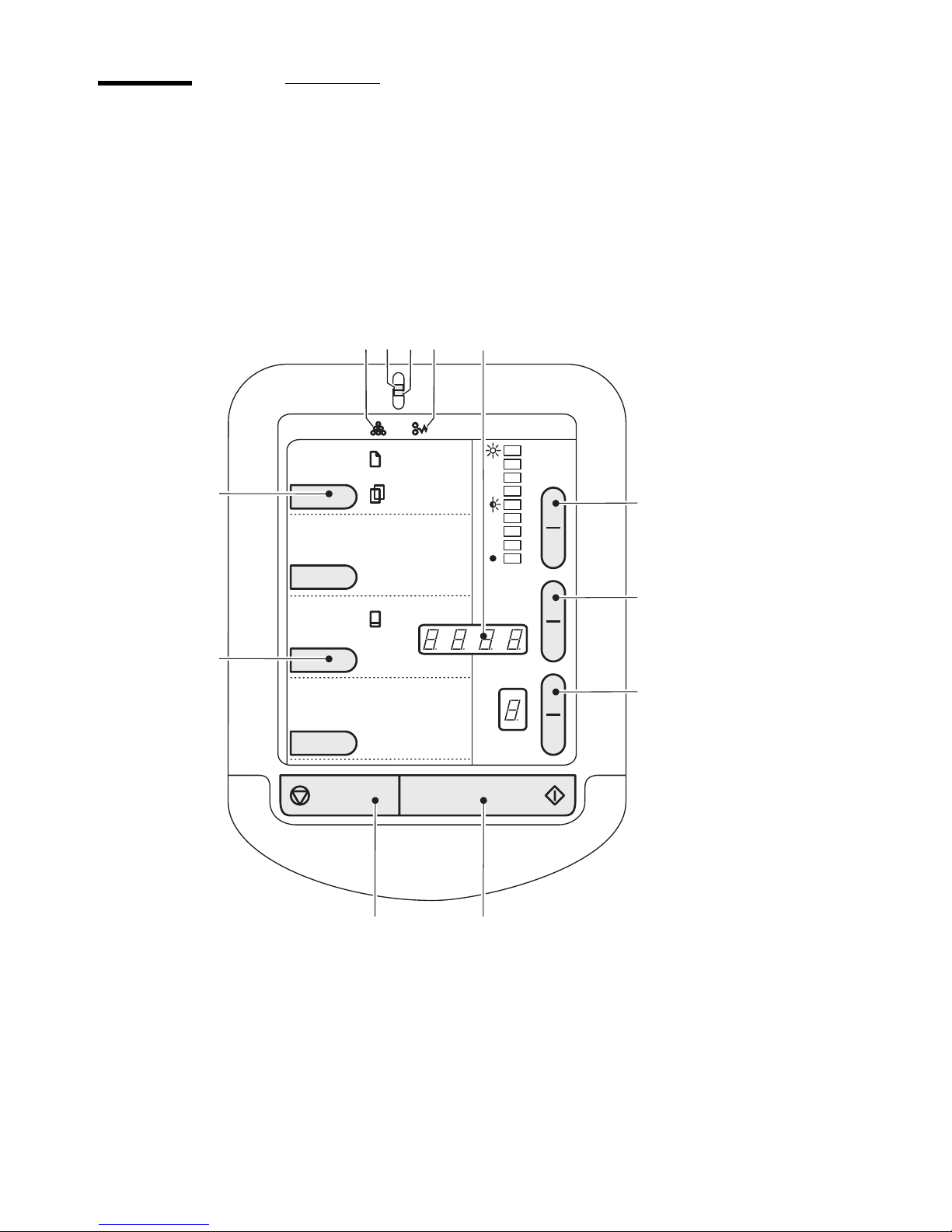

[3] The operator panel of the sheet feed, multi copy configuration
[3] The operator panel of the sheet feed, multi copy configuration
4
2
0
-2
-4
media
paper
trailing
film
strip
toner media jam
67
1234 5
1211
9
10
8

Introduction to the Océ TDS100 17
The indicators
The keys
Nr. Indicator Function
1 'Toner' Indicate that the Océ TDS100 has run out of
toner.
2 Green light Indicate that the copier is ready.
A blinking green light indicates that the
copier runs a copy job.
3 Red light Indicate that an error has occurred.
4 'Media jam' ■Indicate that the original or copy media
has jammed.
5Display ■Display the strip length when you add a
trailing strip.
■Display a message code.
■Display the length of the original when
you copy manually on cut sheet media
manually
Nr. Key Function
6 'Media' Select the media type of the copy.
Select one of the following.
■'Paper'
■'Film'
7 Exposure Adjust the exposure.
Use the exposure setting to correct the
background of the copy. You can adjust the
exposure from -4 up to +4. A negative value
darkens the copy, a positive value lightens
the copy.

18 User manual
8 'Strip' Select a trailing strip.
Select one of the following.
■'Trailing'
Use the adjustment key to set the trailing
strip length from -100 up to +40 mm / -2.75”
up to +1.75”. A positive value adds a strip, a
negative value removes a strip.
■'Leading'
Use the adjustment key to set the leading
strip length from -100 up to +100 mm / -2.75
- +2.75”. A positive value adds a strip, a
negative value removes a strip.
(see ‘Adjust leading and trailing strips’ on
page 29).
9 Adjustment Adjust the strip length.
10 Copies Adjust the number of copies.
You can select a number of copies from 1 up
to 9.
11 Stop ■When you press the stop key while the
copier runs a copy job, the copy job will
stop.
■When you press the stop key once while
you set up a copy job, the number of
copies returns to 1.
■When you press the stop key twice while
you set up a copy job, the default values
return.
12 Start Start the copy job.
Nr. Key Function

Introduction to the Océ TDS100 19

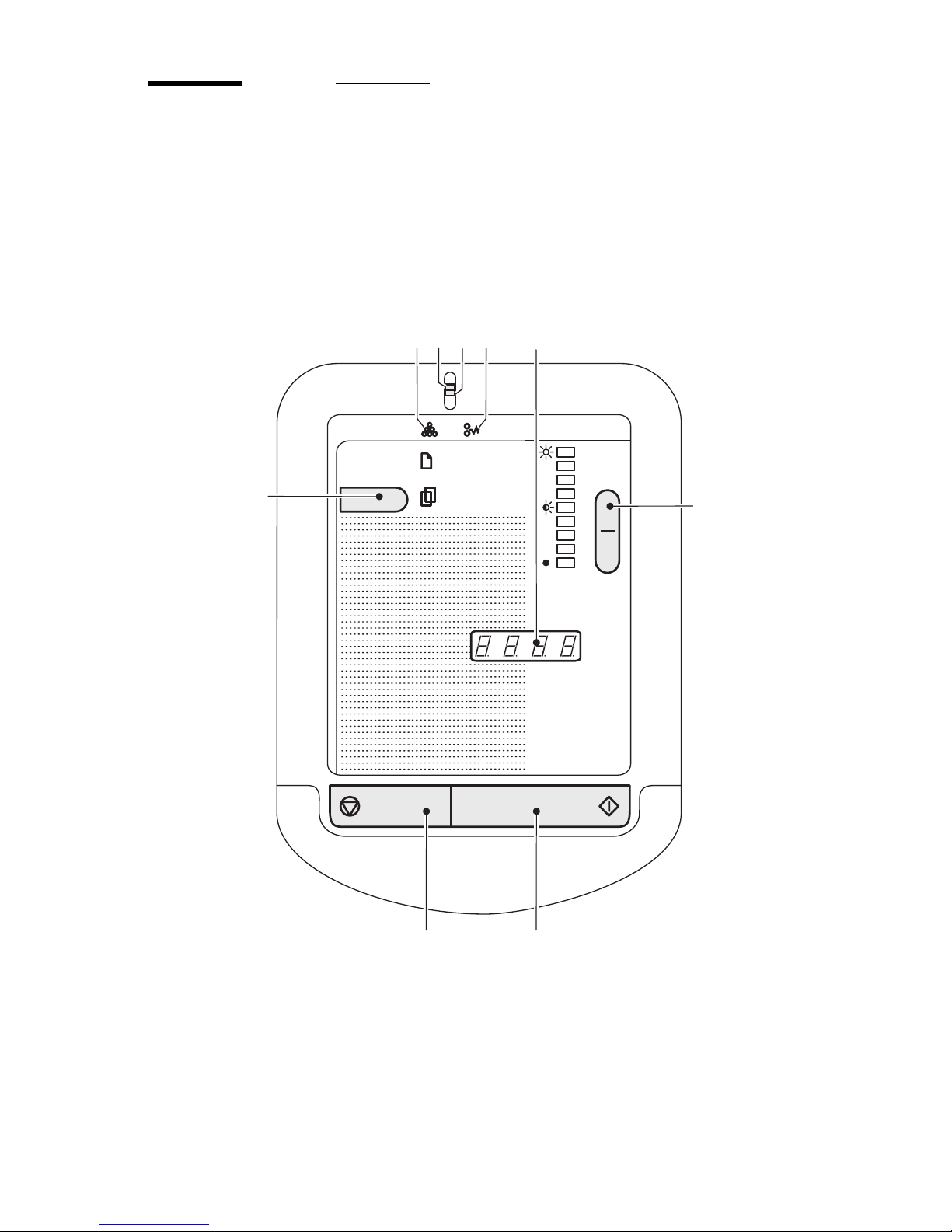

The operator panel of the sheet feed, single copy configuration
Introduction
You can identify your configuration by its operator panel. The following
illustration displays the operator panel of the single copy configuration.
Illustration
[4] The operator panel of the sheet feed, single copy configuration
[4] The operator panel of the sheet feed, single copy configuration
4
2
0
-2
-4
media
paper
film
toner media jam
67
12 3 4 5
98

20 User manual
The indicators
The keys
Nr. Indicator Function
1 'Toner' Indicate that the Océ TDS100 has run out of
toner.
2 Green light Indicate that the copier is ready.
A blinking green light indicates that the
copier runs a copy job.
3 Red light Indicate that an error has occurred.
4 'Media jam' ■Indicate that the original or copy media
has jammed.
5Display ■Display a message code.
■Display the length of the original when
you copy manually on cut sheet media
manually
Nr. Key Function
6 'Media' Select the media type of the copy.
Select one of the following.
■'Paper'
■'Film'
7 Exposure Adjust the exposure.
Use the exposure setting to correct the
background of the copy. You can adjust the
exposure from -4 up to +4. A negative value
darkens the copy, a positive value lightens
the copy.
8Stop ■When you press the stop key while the
copier runs a copy job, the copy job will
stop.
■When you pressthe stop keytwice while
you set up a copy job, the default values
return.
9 Start Start the copy job.
