Ocean Digital WR-202 User manual

Internet Radio
User Manual
WR-202
Please read this user manual carefully before using the receiver.

Contents
Location of Controls ................... .... ...............1
Remote control..............................................2
Enter encryption code of the Wi-Fi router ..........3
Connect the radio with your Wi-Fi Router ..........5
Start using internet radio ................................6
My Favorite ...................................................6
Internet Radio............................................7
Media Centre .............................................8
Alarm Setting........................................... 9
Sleep Timer.............................................9
Configuration..........................................9
Add your favorite URL...................................13
Trouble Shooting..........................................14
Helpful Tips .................................................15
Technical Specification.................................16

Front
Back
Location of Controls
1. LCD Display
2. Dial/Select/Volume
- Rotate the dial to adjust
volume level
Adjust LCD backlight level
under Standby
- Push the dial to confirm /
select menu options
- Push to stop/resume
playback of the radio
3. Speaker
4. On/off
- Press to power on/ Standby
5. Local
- Quick access the local
stations in your country
6. Menu
- Press to enter menu
7. Preset
- Long press to store the
station to Favorite list
- Press briefly to recall the
favorite station
8. Left
- Back to previous menu
- Left cursor
9. Right
- Right cursor
- Enter edit menu under
Favorite list
10. Earphone jack
11. Line Out jack
12. DC IN jack
1
1
2
3457
8
9
6
1011 12

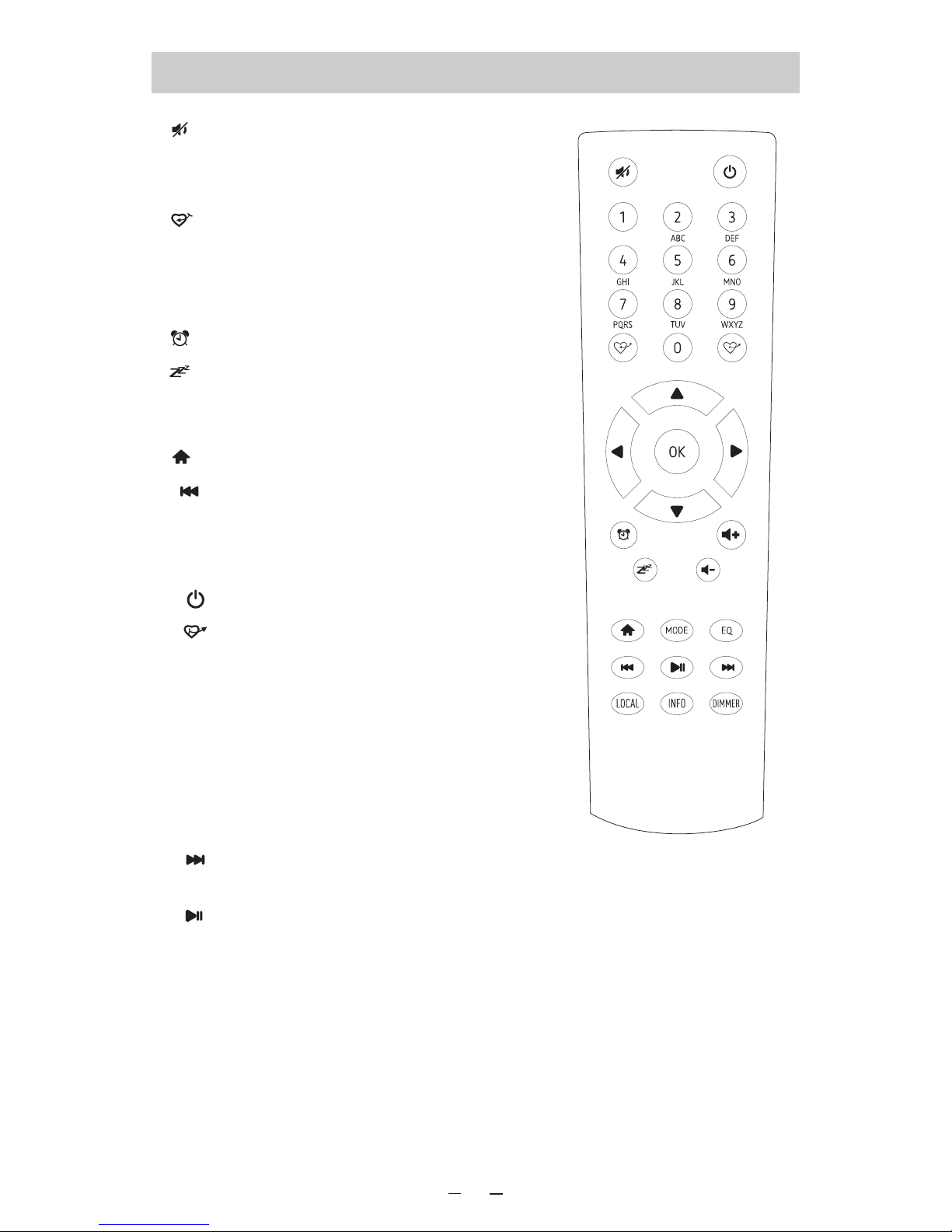

Remote Control
2
1. : Mute
2. 0-9: Input index number on the list / input
letters and numbers for WiFi Encryption code
3. : Preset the current playing station to
Favorite
4. ▲: Cursor up
5. t: Cursor left / back to previous menu
6. : Alarm button
7. : Sleep Timer
8. Mode: Switch between Internet
radio/Media Center
9. : Main Menu
10. : Previous station on the list/previous
track on UPnP
11. Local: Access the local station list (Local
area set up in Configuration)
12. : Standby button
13. : Recall the favorite list
14. OK: confirm button
15. u: Cursor right
16. ▼: Cursor down
17. Vol+: Volume up
18. Vol-: Volume down
19. EQ: Equalizer
20. : Next station on the list/next track on
UPnP
21. : Play/pause for internet radio
22. Dimmer: Access the Dimmer menu to
adjust the brightness of the
display
23. Info: Quick access to Network and
System information

Enter encryption code of the Wi-Fi router
Using remote control
When you want to enter the letters, numbers or symbols for the
encryption code, using remote control would be easy to complete the job.
Here is the definition of each key and press the same button to cycling
through different letters / symbol available
After each entry, press the right key to input the next. When it is done,
press Enter to confirm.
Key 1: 1 and different kind of symbols !@#$%^&*()_+[]{};:'”\|,./<>?
Key 2: 2ABCabc
Key 3: 3DEFdef
Key 4: 4GHIghi
Key 5: 5JKLjkl
Key 6: 6MNOmno
Key 7: 7PQRSpqrs
Key 8: 8TUVtuv
Key 9: 9WXYZwxyz
Key 0: 0
Using buttons on the radio
Use the Dial control to scroll through the letters or symbols, press right
key to input the next entry. Press the Dial knob when it is done.
3

Before you start
Please ensure the following is ready:
žYou have a broadband internet connection.
žA wireless broadband router is connected to the internet successfully.
The radio supports Wireless B, G and N connection (Wireless N router
can also be used with the setting on B or G).
žYou know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected
Access (WPA) data encryption code/password. You need to key in the
correct code when the radio is connected to the wireless router for
network connection.
If you do not know the code/password, please contact the person
/technician who set up the router/network for you.
žThe radio can work via Wireless network connection (Wi-Fi connection)
Precautions
žThe radio should not be used in a high temperature or high humidity
environment over prolonged periods of time as this may damage the
unit.
žKeep the radio away from liquids as it may get damaged. Please switch
off the radio immediately if water or liquids is spilled into the radio.
Consult with the shop you bought this radio for any question.
žAvoid using or storing the unit in dusty or sandy environment.
žDo not open and repair the radio by yourself.
žUse only the AC adaptor supplied with the radio.
Connecting a power supply with a different rating will cause permanent
damage to the radio and may be hazardous.
žClean only with dry cloth.
4

Connect the radio with your Wi-Fi Router
1. Insert the adaptor plug into the DC socket located at the rear side of the
radio.
Plug the adaptor into a wall socket outlet.
Caution: Use only the adaptor supplied with the radio. Connecting a
power supply with a different rating will cause permanent damage to
the radio and may be hazardous.
2. The radio will power on and display as follow. Choose <Yes> to start
configuring network.
3. Select <Add/Remove AP> and <Add AP>:
4. It will start scanning the available Wi-Fi routers nearby. Choose to
connect your AP and enter the encryption code. Press ‘Enter’ to
confirm.
Remark: The encryption codes are case sensitive to upper and lower
case.
5. When the Wi-Fi connection is done, the display shows:
5
Boot up and connect to
network
Configure Network?
<Yes> No
Welcome
Add AP
Remove AP
Add/Remove AP
AP:[ ]
Association complete
When this symbol appears, the radio
is trying to connect to the Wi-Fi
network
Skytune
Search
< 1/6 >
01:42AM
After the Wi-Fi network is connected,
you will see the Wi-Fi signal bar
here.
1. fm Bay Smooth Jazz
H2 ch
< 18/11225 00:25
iRadio
If you try to select Skytune when the
Wi-Fi network is not connected, it
will show the message below:
Skytune not connected,
retry later
When the “No internet warning icon”
appears, it means the WiFi
connection is there but there is
problem in the internet connection.
Please check your internet
connection if this icon appears.
No internet warning icon
11:10 AM
My Favourite
Internet Radio

6
Start using internet radio
Press <MENU> to return to the main menu or the key on the remote
controller. You will see the item list below:
<My Favorite>- To show the list of favorite stations which have been
assigned to the presets. There are up to 99 presets available.
<Internet Radio>- Start exploring the worldwide radio stations and music
here
<Media Centre>- Music streams from the UPnP servers/ devices under
the same Wi-Fi network
<Alarm>- Setting of Alarms
<Sleep Timer>- You can set the timer to turn the radio standby after
certain time elapsed
<Configuration>- More settings available for you to configure the radio as
you desire
My Favorite
This is to show the list of your Favorite stations which have been assigned
to the presets.
¢ Preset a station
While you are playing a radio station, press the button on the remote
controller or long press the <PRESET> key on the unit, you will see the
icon appears as below. It means the station is added to the Favorite
list.
The new added station will always showing in the last item on the Favorite
list.
You can store up to 99 presets
My Favorite
Internet Radio
Media Centre
Alarm
Sleep Timer
Configuration
1. fm Bay Smooth Jazz
128kbps, 44100 Hz, 2 ch
< 1/1 00:39
HISTORY
Preset icon

¢ Recall a station
Press the button on the remote controller or press the <PRESET>
button briefly on the unit to recall the Favorite list. You can enter the Index
number to quickly scroll to the radio station you want to listen.
e.g., On the remote controller, press 2 8 and Enter, it will scroll to the
station no. 28.
¢ Edit your favorite list
On the Favorite list, choose the radio station you want to edit then press
the right "key on the remote controller. It will enter the Edit menu with
the following options:
Move down – To move down the ranking of a station
Move up – To move up the ranking of a station
Delete – To delete a particular station
Internet Radio
On the main menu, choose <Internet Radio> and you will find the options
below:
Skytune
Select Skytune to start enjoying thousands of radio stations over the
world. You can filter your search by Region, Music genre and talks. The
<Local Radio> let you access quickly the stations available in your local
area.
You can change the Local Radio area under Configuration> Local
radio setup.
Search
Instead of browsing the radio station list, you can access the desired
station by performing search and input the name of the station.
History
The radio will memorize the stations you have listened on the radio. It can
memorize up to 99 stations.
If you have listened more than 99 stations, it will supersede the first
station that you have listened.
Skytune
Search
History
Local Radio
Globe All
Globe By Genre
Globe By Region
7

Media Centre
The device supports UPnP and is DLNA-compatible.
This provides the opportunity to stream music from your network.
However, this requires you to have a compatible device in your network
that can function as a server. This can be e.g., a network hard drive or a
conventional PC with e.g., Windows 8 via which access to the shared
folder or media sharing is permitted. The folders can then be browsed and
played on the Tuner.
Note - Please make sure your computer laptop is on the same Wi-Fi
network as the Radio before you start using this function.
Music streaming
• Once the UPnP/DLNA compatible server is configure to share media
files with your radio, you can start music streaming.
• On the main menu, select Media Centre and choose UPnP.
• It may take a few seconds for the radio to complete the scan for
available UPnP servers. If no UPnP servers are found, it will show
Empty List.
• After a successful scan is done, select your UPnP server.
• The radio will show the media categories available from the UPnP
server, e.g. 'Music', 'Playlists' etc.
• Choose the media files that you wish to play.
You can set the mode of playback under Configuration > Playback
setup.
My Playlist
You can make your own playlist for the UPnP music files. Choose and
highlight the song you want to add to playlist, press and hold the
[DIAL/SELECT] knob or press and hold the [OK] button on remote, until
the sign appears. The song will be added to My playlist.
Clear My Playlist
Remove all songs in “My Playlist” to allow a new playlist to be prepared.
Note - If you have DLNA compatible servers available, follow the steps
described above to browse the audio files from DLNA compatible device
on the Tuner to play.
8

9
Alarm Setting
1. Choose <Alarm> from the main menu or press the <Alarm> button on
the remote controller.
2. Select either Alarm 1 or Alarm 2, and choose <Turn on> to activate the
Alarm.
3. Follow the alarm wizard instructions to set the alarm.
The wizard will guide you through the settings below:
Time – Set the time for the alarm
Sound – You can choose <Wake to Radio> or <Wake to Melody> for the
alarm sound.
¢ Wake to Radio – only the preset stations can be used for the radio
alarm (stations from Favorite list).
Please preset your favorite station before setting the alarm.
¢ Wake to Melody- The Melody is default by system.
Repeat – You can schedule the alarm as you desire – Everyday, Once or
multiple days.
Alarm Volume – Adjust the volume of the alarm as you like by rotating the
dial.
4. After the above settings are completed, press the left !button to exit
and make sure the Alarm is turned on. You will see the Alarm icon
appeared on the display if it is activated.
Sleep Timer Setting
You can set the timer to let the radio go standby after certain time elapsed
in the range of 15 minutes to 180 minutes.
You can press <Sleep> button on the remote controller to set the timer.
You will see the icon appeared on the display if the timer is set.
Configuration
Network
There are two options under this setting: Wi-Fi Network and Wi-Fi
Channels
Wi-Fi Network
¢ Add / Remove AP
Add AP – It will scan out a list of routers available nearby
Remove AP – If you have already added a router and want to remove
it, choose this option.
Alarm Sleep Timer
1. fm Bay Smooth Jazz
H2 ch
< 18/11225 00:25
iRadio

10
¢ AP: [ ]
If you have added more than one routers on the radio and want to
switch to another one, select this option to change.
¢ Signal
This is to show the strength of the Wi-Fi Signal of the Wi-Fi router as
received by the radio. Usually signal levels lower than -70dBm is at
weaker level and if it affects the reception of your radio, you may need
to optimize the router location or check any problem of the router
itself.
¢ IP
The IP is set <Dynamic> by default. Select to change <Fixed> IP
according to your network condition.
¢ DNS
The DNS is set <Dynamic> by default. Select to change <Fixed>
DNS according to your network condition.
Wi-Fi Channels
Not all of the Wi-Fi channels are available in every country. There may
be variation between different countries. Therefore it is necessary to
choose the Wi-Fi channels to ensure the Wi-Fi performs satisfactory.
We have already set the channels according to the requirement in
different countries. Choose the country you are staying from the list
to get the correct channel.
The <Europe/United Kingdom> is set by default, press <Enter> on
the Remote controller or push the <Dial> to edit the country selection.
Date and Time
The radio will set your local time automatically after wifi connection. You
can choose to manual set the time if you want. Press the <Tune/Select>
rotary knob to enter into menu, then choose manual set time zone.
Language
English, German, French, Italian, Netherlands, Polish, Russian, Spanish
Local Radio
The radio will detect the radio stations in your local area automatically.
When you press the <Local> button on the radio, you can access the
local radio stations right away, or select <Local Radio> under the
Skytune menu.
You can also set the Local with other country if you want. Go to
<Configuration>, choose <Local Radio> and select <Manual –set
Local Radio> to set other region.
Playback Setup
This is to set the mode of playback under UPnP streaming: Repeat All,
Repeat Once or Shuffle.

11
Resume when Power on
This function is ON by default. The radio will resume to the last state of
mode when the radio is power on next time, e.g. if it was playing radio
station before power off, it will resume playing the last listened station
when it is power on the next time.
Dimmer
You can set the display backlight level as you prefer.
There are two settings available: Mode and Level
¢ Mode: Normal or Power Saving
Normal – the display will stay with the same level of brightness all the
time without dim down.
Power Saving – the display will dim down after 15 seconds if no operation
is made on the radio.
¢ Level: Bright and Dim
Bright - the display will stay at the selected level when there is operation
on the radio or if the mode is selected in <Normal> as described above.
Dim - the display will dim to the selected level when <Power saving>
mode is selected.
¢ Dimmer on Standby
When the radio is on Standby, rotate the dial to adjust your prefer
backlight level which you feel comfortable especially during night time.
EQ
The radio provides several choices of equalizers for you to apply to the
type of music playing.
Buffer Time
Sometimes you may experience uneven playback of the internet radio.
This can happen if the internet connection is slow or network congestion
occurs. To help improving the situation, you can choose longer buffer
time to get a few seconds of radio stream before beginning to play. The
default value is 2 seconds. You can choose 5 seconds if you prefer to
have a longer buffering time.
Information
View the Network and System Information of your radio.
To access quickly to this information, press the <Info> button on the
remote controller.
When you use your PC to manage the My favorite stations, you have
to use the IP address and you can view this info from here. Then type in
the IP address (Configuration>Info>Network>IP) to your PC’s browser
input window
Software Update
There may be software release to upgrade features of the radio time to
time.

12
Check the update regularly to keep your radio up to date with the latest
software.
Reset to Default
You can do the reset to clear all the settings and return to default settings.
** Please note all the Station presets, Settings and configuration will be
lost after you have performed the Reset.

13
Add your favorite URL
You can add your favorite radio station if you know the published audio
streaming URL of the radio.
We provide an embedded server for your radio and you can manage your
favorite stations anytime to add or edit the list. Follow the steps below to
access the embedded server:
1. Connect your PC to the same Wi-Fi network as your radio.
2. Locate the IP address in either way as follow:
¢ Press the <Info> button on the remote controller, choose <Network>
and scroll to <IP> to view the IP address
¢ On the main menu, go to Configuration > Information > Network > IP
3. Open the web browser (we support Internet Explorer and Chrome) in
your PC and type the IP address of the radio (e.g. 192.168.1.11). The
screen will pop up as below:
4. You can input the name and URL of a new radio station under the Add
channel section, then click Submit. The new station will sync to the
Favorite list of your radio immediately.
You can add up to 99 radio stations.

14
Problem Cause Solutions
• Confirm that a Wi-Fi or Ethernet
Wired connected PC can access
the internet (i.e. can browse the
web) using the same network.
• Check that a DHCP server is
available, or that you have
configured a static IP address on
the radio.
• Check that you firewall is not
blocking
any outgoing ports. As a minimum
the radio needs access to UDP and
TCP ports 80,554,1755,5000 and
7070.
Network down
Cannot connect to
Wi-Fi network
Router restricts
access to listed MAC
addresses
Obtain the MAC address from
Configuration > Information >
Network > Wi-FiMAC and add to the
allowed equipment list on your
access point.
Note:TheradiohasseparateMAC
addressesforwiredandwireless
networks;
Insufficient Wi-Fi
signal strength
• Check distance to router; see if a
computer can connect to the
network
in this location
• Optimize the distance of the
router’s location
Unknown encryption
method
Change encryption method on router.
The radio supports WEP, WPA, WPA2
Firewall preventing
access
Check the following ports are open:
UDP and TCP ports 80 and 123; DNS
port 53. Windows Media Player:
varies – non-Microsoft firewalls may
require configuration for UPnP.
If your radio can
connect to the
network
successfully, but
is unable to play
particular stations
• The station is not broadcasting at
this time of the day (remember it
may be located in a different time
zone).
• The station has too many people
trying to attach to the radio station
server and the server capacity is
not large enough.
• The station has reached the
maximum allowed number of
simultaneous listeners.
• The link on the radio is out of date.
This is updated automatically every
day, so the next time you turn on
the link will be recognised.
Trouble Shooting

15
1. If the Internet Radio keeps re-buffering radio station:
The Internet Radio is streaming the data from the radio station via your
broadband connection, if there is a high error rate on your broadband
connection, or the connection is intermittent, then it will cause the
Internet Radio to pause until the connection is re-established and it has
received enough data to start playing again.
If your Internet Radio keeps stopping, please check the DSL modem to
ensure that the Broadband line is not suffering a high error rate or
disconnections. If you are experiencing these problems, you will need
to contact your broadband supplier.
2. What is Buffering?
When playing a stream, the Internet Radio/Media player, downloads a
small amount of the stream before it starts playing. This is used to fill in
any gaps in the stream that may occur if the internet or the wireless
network is busy.
The Internet Radio streams music data from the PC while you are
listening. If a stream gets blocked or experiences Internet congestion
while transferring it may stop/interfere with the quality of play. If this
happens, check your internet connection speed- it must be faster than
the speed of the streams.

Technical Specification
Model: WR-202
Power input: 5V 1.2A
Power voltage: 100-240V~50/60Hz
Wireless Network: IEEE802.11b/g/n
Security Protocol: WEP/WPA/WPA2
Audio output power: 2.5W (RMS)
Audio sockets: 3.5mm earphone jack, 3.5mm Line-out jack
Unit Dimension: 164 x 98 x 98 mm (L x H x D)
Remark: Specification may vary without notice
What’s included in the box
* Internet Radio
* Power adaptor
* Remote control
* User manual
16
WEEE and Recycling
The European laws do not allow any more the disposal of
old or defective electric or electronic devices with the
household waste. Return your product to a municipal
collection point for recycling to dispose of it. This system is
financed by the industry and ensures environmentally
responsible disposal and the recycling of valuable raw
materials.
Ocean Digital Technology Ltd.
Flat B, 12/F., Yeung Yiu Chung (No.8) Ind. Bldg.,
20 Wang Hoi Road, Kowloon Bay,
Hong Kong
Email: [email protected]
