Oceanic 0CS30 User manual

April ‘13 Oceanic Sauna Heater Manual
Thank you for choosing to buy our Oceanic Sauna heater; please take the time to read
these instructions before you begin as they contain important information about the
installation and maintenance requirements.
“Oceanic” sauna heaters are available in specifications from 3kw to 9kw and are
equipped with our OC-SA digital controller. With this not only can you control the temperature and time
duration of your sauna bath but also the light of the sauna room, alter the temperature display between
Centigrade and Fahrenheit; as well as displaying the sauna heater’s status.
Every “Oceanic” sauna heater is thoroughly tested before leaving the factory.
IMPORTANT
•Read the manual before installation and operation and then keep it for reference
•This equipment must be installed by competent person
•This equipment must be connected to an all pole isolator of the correct rating
•Disconnect the power supply before exposing electrical connections
•All heaters can be connected single phase(230v) or triple phase(400v), this can be easily changed by
adding bridge connectors across the connections L1, L2 and L3.
•5 core silicon bound heat proof cable must be used to wire from the control to the heater. (For 230v and
400v) Wire the letters with the corresponding letters on the heater. For example: U V W on the control
go to U V W on the heater, the three lives for the elements, the reason for having three is because each
element is controlled individually. When the heater reaches the desired temp it cuts out two elements.
•The sauna heater should not be used for any other purpose
•Do not cover the heater or allow contact with flammable materials such as toweling – Risk of fire.
•Do not operate sauna heater without sauna stone
•Do not touch the heater when operational as it is very hot
•Sauna heater must have right earth connection, the earth wire should be bigger than the power supply
wire to sauna heater
•The sauna controller should be installed on a dry wall outside the sauna cabin

Oceanic Sauna Heater
2
SAFETY PRECAUTIONS FOR SAUNA
•Elderly persons, pregnant women, or these suffering heart disease, high blood pressure, diabetes or
not in good health are advised to seek medical opinion before using a sauna room;
•Do not smoke in the sauna room;
•Avoid using the sauna room immediately after strenuous exercise;
•Do not use the sauna room when under the influence of alcohol;
•Leave the sauna room at once if you feel sleepy, sick or uncomfortable;
•Ensure there is good ventilation for the sauna room
•We do not recommend this product is used by children under 16 years old;
•Commercial operators should post a notice of these precautions in a prominent position
•The sauna controller should be installed on a dry wall outside the sauna cabin

Oceanic Sauna Heater
3
Simple Diagram

Oceanic Sauna Heater
4

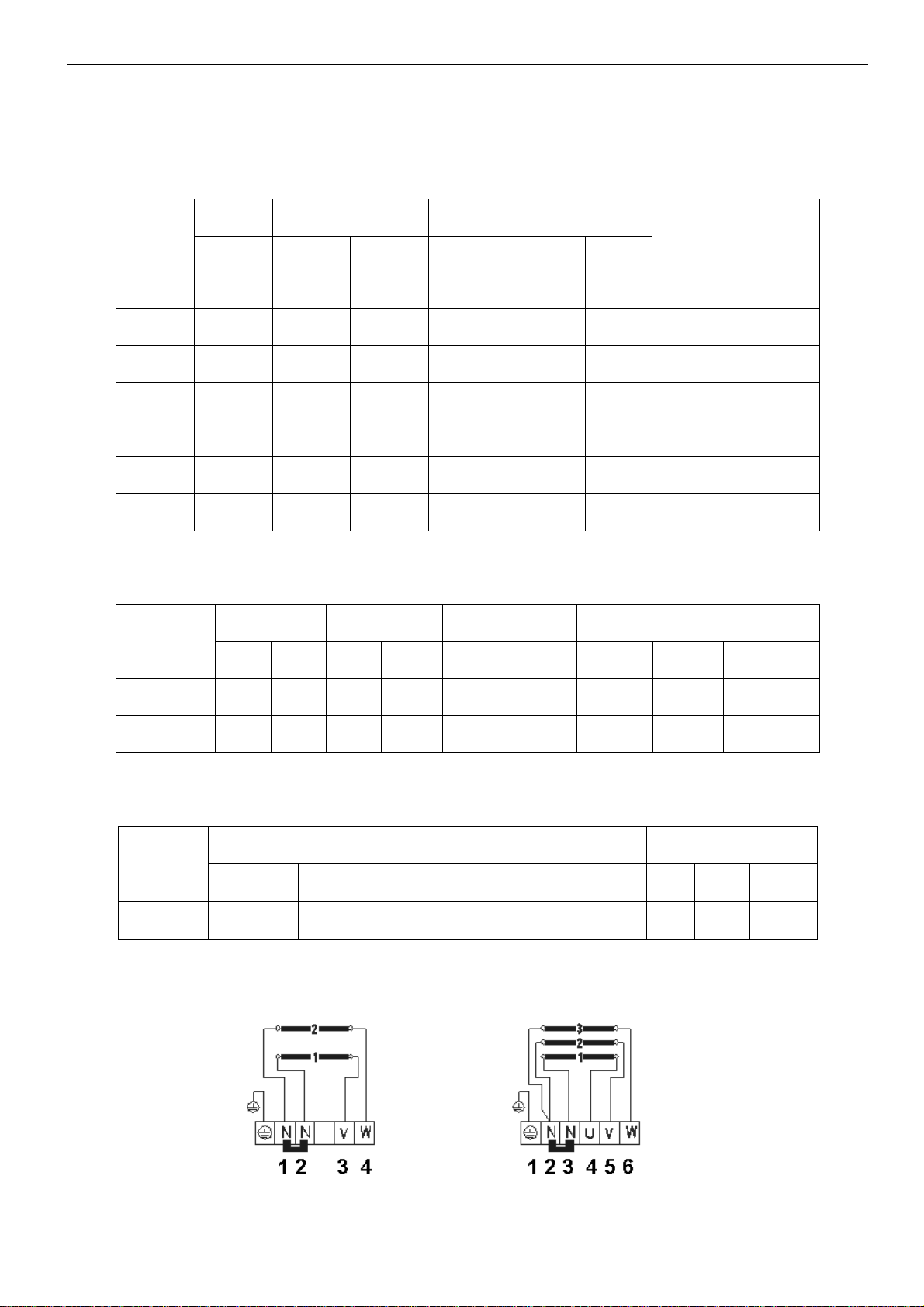

Chapter One: Specification
1. Parameter and size of sauna heater (chart 1)
Chart 1
Model
Power Input Size (mm) Heat
element
quantity
Sauna
stone
(Kg)
(Kw) 1N~ 3N~ L W H
0CS30 3.0 230V 410 280 570 2 12-14
0CS40 4.0 230V 410 280 570 2 13-15
OCS45 4.5 230V 400 410 280 570 3 14-16
OCS60 6.0 230V 400 410 280 570 3 16-18
OCS80 8.0 230V 400 410 280 570 3 18-20
OCS90 9.0 230V 400 410 280 570 3 18-20
2. Parameter and size of OC-SA controller (chart 2)
Chart 2
Model Input Output Load power Size (mm)
1N~ 3N~ 1N~ 3N~ (Kw) L W H
OC-SA I 230V
230V 3~4 248 217 78
OC-SA II 230V
400V 230V 400V 4.5~9 280 217 78
3. Parameter and size of temperature sensor (chart 3)
Chart 3
Model Detected scope Cut off on high temperature Size (mm)
o
C
o
F
o
C
o
F L W H
OC-S 0~110 32~230 120 248 76 42 27
4. Circuit Diagram for sauna heater and controller
i. Sauna heater circuit diagram (Fig 1)
(Fig 1)
OC30~OC40 Circuit diagram OC45~OC90 Circuit diagram

Oceanic Sauna Heater
5
ii. Circuit Diagram for controller (Fig2, Fig3)
(Fig 2)
(Fig3)

Oceanic Sauna Heater
6
Chapter Two: frame and functions
1. Sauna heater frame and parts
(1) Sauna heater frame (Fig 4)
(Fig 4)
(2) Parts Chart 4
No. Parts
1 Inner shell
2 Stone bracket
3 Shell
4 Heat element
5 Fix bracket
6 Cover Panel
7 Terminal

Oceanic Sauna Heater
7
2. Controller frame and parts
•Controller frame (Fig 5)
(Fig 5)
•Keys and LED instruction (Chart 5)
Chart 5
No. Parts Description
1 High1 LED Indicator LED on when sauna over heats (serious hazard)
(Reset Manually)
2 Wait LED Indicator LED when timer is on (B Model)
3 High Heat 2 Only for use in U.S.A, ignore if it doesn’t apply to you.
4 Heating LED Indicator LED on when heating
5 Heat preservation LED Indicator LED for Heat preservation (one element remains
on)
6 A model LED Indicator LED for A model when heater is on
7 B model LED Indicator LED B model, means sauna heater is a timer
8 Light LED Indicator LED when lamp is on in sauna room
9 Temp display windows Displays the temperature of sauna room
10 Time display window Displays the time remaining for the timer or heating.
11
Time Increase button
“▲” Increase button
12 Time decrease button or
“▼” Decrease button
13 Model switch button Switch between timer and heating program
14
o
C /
o
F button Switch the temperature display between centigrade and
Fahrenheit
15 Light Push for a few seconds to turn on the light in sauna room
16 ON/OFF Push to turn the heater On or Off
17 Temp Increase button
“▲” Increase button
18 Temp decrease button
“▼” Decrease button
19 Controller shell Protects the electronics from damage or users injury.

Oceanic Sauna Heater
8
3.Temp sensor frame and parts
•Temp sensor frame (Fig 6)
(Fig6)
•Temp sensor instruction (chart 6)
Chart 6
No. Parts Description
1 Circuit board Circuit board
2 Bracket Bracket
3 Cover Protects the electronics
4 Heat resistance Detects temperature
5 High Temp cut of switch When temperature in sauna room exceed 120
o
C or 248
o
F

Oceanic Sauna Heater
9
Chapter Three: installation
1. Important
•Confirm the model you have selected is suitable for your sauna room, please refer to chart 7
•Ensure the power supply is suitable for the sauna heater
•Isolate the power supply before installation
•The installation position must comply with the minimum distance in chart 7; also consider the safety
and convenience (chart 8)
•The minimum height of your sauna room must be 1900mm, please refer fig 7C
•Do not install the sauna heater on the floor or in a cabinet
•Do not cover the sauna heater back with asbestos cement or similar material
•The wire which enters the sauna room must be type 60245 IEC 66 HO7RN-F (BSEN 6141) please
refer to chart 7
•Do not install two or more sauna heaters in one sauna room.
•The sauna heater becomes very hot when operating and must be guarded to protect incase of
accidental contact, please see the sizes in fig 7D and also refer to charts 7 & 8
•The upper supporting screws must be fixed tightly, there is a 3mm gap between the screw head and
wall (refer fig 4A, fig 4B), additional retaining screws should be inserted into the round holes to prevent
the heater being lifted.
•The sauna controller should be installed on a dry wall outside the sauna cabin
•The controller should be kept at a height of between 1200MM-1500MM so that it is easily controlled
and operated
•Temperature sensors should be installed in sauna room but not directly above sauna heater, the height
should be 1500-1800mm from floor. The horizontal distance to sauna heater should exceed 500mm

Oceanic Sauna Heater
10
Chart 7
Model
Sauna room Min distance from sauna
heater to (mm) Current (A) Fuse (A)
Volume
(M
3
) Min
height
(Mm)
Distance to
shelf over
500mm
above the
floor
Ceiling Floor
230V
1N~ 400V 3N~ 230V 1N~ 400V 3N~
Min Max
0CS30 2 4 1900 50 1100 180 13 20
0CS40 3 5 1900 50 1100 180 17 25
OCS45
4 6 1900 80 1100 180 19.5 6.5 25 10
OCS60
5 8 1900 150 1100 180 27 9 40 16
OCS80
7 11 1900 200 1100 180 35 12 60 20
OCS90
8 12 1900 200 1100 180 39 13 60 20
Fig 7A fig 7B fig 7C
D
C
BA
OCS90
OCS80
OCS45
OCS60
OCS40
OCS30
7
6
4 5
2 31
C D
50
20
50 70 280 100
1002807050
150130 290 200
120100 280 150
10080 280 100
200290130 150
Model Min distance
（ mm)
1 、 Cover panel
2 、 entry and wire
anchorage
3 、 power supply
4 、 Juction box
5 、 conducting wire
6 、 controller
7 、 lamp
Fig 7D chart 8 fig 8

Oceanic Sauna Heater
11
2. Installation for sauna heater
•Refer the installation drawing fig 7A, 7B, Fix screws and hang sauna heater on wall
•Remove the cover panel & connect power supply wire & control cable through the knock-out holes to
the Terminal as per fig 8 and replace the cover panel.
3.Installation for controller
•Controller should be installed on the outside dry wall
•Fix a screw at 1200-1500 mm high on the wall outside wall of the sauna cabin leaving approximately
3mm protruding. Fix retaining screws through 2 of the round holes.
•Remove the screw on the base of controller & open the cover, remove the knock out for the control
wire entry.
•Locate the hole of controller on to the protruding screw, then fix in place using 2 further screws through
the holes in the back of the control box directly into the sauna cabin wall.
•Connect the wires in accordance with the drawing and ensure all connections are tightly fastened.
•Replace the cover and fasten.
4. Installation for Temp sensor (fig 9)
•Install the temperature sensor on the height between 1500-1800MM in sauna room
•Open the cover with a screwdriver
•Fix the bottom of the temperature sensor on to wall with screw
•Replace the cover.
(Fig 9)

Oceanic Sauna Heater
12
5. Sauna heater, controller and temperature sensor connection drawing (Fig10A, Fig 10B, F869g 10C)
(Fig 10A)
(Fig 10B)
(Fig 10C)

Oceanic Sauna Heater
13
Chapter Four: Testing and operation
1. Testing
•After checking that the sauna heater installation is correct, put the sauna stone in place (note we
recommend washing the stones thoroughly in water to remove any dust before the first use). Put the
larger stones at the bottom and smaller stones on top. Take care not to pack the stones too tightly other
wise the air will not be able to circulate around the elements which can cause premature failure, but do
make sure to cover the elements completely. Note that it will be necessary to change the stones from
time to time as they will gradually crumble with use. For commercial users this is probably every year,
for domestic users once every several years, depending upon use. (Fig 11)
(Fig 11)
•Before connecting to the power supply check the sauna heater and make sure there are no flammable
items on or around the heater, please note that on the first use the elements and stones may smoke
slightly and give off a smell – please ensure the sauna cabin is well ventilated.
•Connect to power supply, press “ON/OFF “, temp and time windows will display data, LED shows the
sauna’s heating status when the light is on, the temperature of sauna room will rise and will achieve the
preset temperature (the default settings are 70
o
C/158
o
F, work time is 2 hours) chart 9
•When the time has finished counting down and the time window displays “0”, the controller and heater
will shut down automatically.
•The sauna heater has a sequential heating function so that the heater can work economically. When
the heater is first turned on all the elements will work together to reach the target temperature, when the
target is reached one element will be left working to keep the target temperature constant (for OCS30,
OCS40 ,one bank will stop ). When sauna room temperature goes 2
o
C/ 4
o
F above the target
temperature all heat elements will stop. When the temperature of the sauna goes below the target
temperature, one bank heat element will work again, when the temperature goes 2
o
C/ 4
o
F below the

Oceanic Sauna Heater
14
target temperature, all heat elements will work again.
•Light button: Turns sauna light on/off
•Use temperature switch button to change the temperature display between centigrade and Fahrenheit
•The Controller has a timing device so you can set a time when you want the heater to power up, this
can be set from 0~12 hours as shown in the Chart 9 below. When the controller is in B Model (Timer
mode) the heater can’t operate, but when B Model reaches “0” or the “Model Button” is pressed the
heating function will start (A Model). This is explained more at the bottom of this page.
Chart 9
Model Default model Default Temp Temperature adjust scope
o
C
o
F
o
C
o
F
OC-SA I
OC-SA II
A 75 167 50~110 122~230
A 75 167 50~110 122~230
Default time Time adjust scope
Working time Waiting Work time Waiting time
2 hours 4 hours 30 minutes~6hours 0~12 hours
The time adjustment difference for every
press
The temperature adjustment difference for
every press
10minutes 1
o
C/2
o
F

Oceanic Sauna Heater
15
2. Setting time and temperature:
•The default settings for temperature are: 75
o
C/167
o
F. For preset operation time: 2 hours. These can
be adjusted easily, if the electricity supply is lost the controller will return to default settings.
•When the sauna is turned on the time settings will work under A model (A model LED is on), the time
window will display the last time that was set. To adjust press the time adjust button “▲” or “▼”, every
press the time will increase or reduce 10 minutes. When you reach the time want, wait and after 5
seconds the time window will stop flashing, now the setting is confirmed.
•To set your heater to come on at a certain time (for example: if your watching a film and want the sauna
to start heating up half way through so its ready for the end of the film) you can use the B model setting
which can be set if you press the “Model button” and the time window will display 4.00 minutes, now
press the “time adjust button” (the time will now flash) “ ▲” or “▼” and set the amount of time you want
until the heater will turn on wait five seconds and the display will stop flashing now the time is confirmed
and will start counting down, when it reaches “0” it will switch over toAModel and the heater will turn on.
(Remember to set the time you want the heater on for onAModel before setting B Model)
•For quick time adjustment: hold the “▲” or “▼” and it will count continuously up or down, when it
reaches the time you want release and it will stop. It will confirm after 5 seconds
•Temperature: by pressing temperature display switch button you can switch between centigrade and
Fahrenheit.
To adjust temperature press “▲” or “▼” (the display will flash) now press the temp adjust button “▲” or
“▼”, each press the temperature will increase or reduce 1
o
C or 2
o
F. When you reach the temperature
you want wait for 5 seconds and the temp will stop flashing which means its confirmed.
For quick temperature adjustment: hold the “▲” or “▼” and it will count continuously up or down, when
it reaches the temperature you want release and it will stop. It will confirm after 5 seconds

Oceanic Sauna Heater
16
Chapter Five: Trouble shooting Guide
Please Note that we recommend a suitably qualified person carries out all repairs.
Trouble description Cause Solutions
There is no display on
the control panel when
the on/off switch is
pressed
There is a problem with;
1.power supply or
2.circuit board transformer or
3.fuse
1. Check the power supply. If the power
supply indicator LED L1 (red) is on, check
the wire
2. Change the controller
The controller is on but
the sauna heater
doesn’t work
1. The sauna heater hasn’t
been connected
2. There is a problem with the
controller
1. Check the connection, refer to (Fig 2 and
Fig 10)
2. Change the controller
High1 LED is on
1. The temperature sensor
hasn’t been connected
correctly
2. The high temperature cut
off switch is turned off
1. Check the connection to temperature sensor
2. Check if the high temperature cut off
switch is turned off, if yes ,reset by hand
Wait LED is on
Sauna heater is under B
model
Press the Model button to change toA
model (heating Mode)
Temperature windows
display --L(or
)or --H(or )
1. Thermometer isn’t
connected or cable is
broken
2. The temperature is lower
than 0
o
C (or 32
o
F),
The temperature is higher
than 115
o
C (or 239
o
F)
1. – L
o
C (or
o
F) means temperature sensor
hasn’t connected or the temperature is
lower than 0
o
C (or 32
o
F), check the
connection, cable or change sensor
2. – H
o
C (or
o
F) means there is a short circuit
in the temperature sensor or the
temperature is higher than 115
o
C (or
239
o
F) check the connection, cable or
change sensor
3. Change controller

Oceanic Sauna Heater
17
Chapter Six Maintenance
We recommend that you inspect the sauna heater on a regular basis for any signs of deterioration of the
condition, pay particular attention to both the fastenings, the condition of the wiring and the electrical elements.
Note if the rocks have started to crumble this can cause the elements to overheat and they should be changed
for new rocks. We recommend commercial operators to change the rocks at least once very 12 months.
Sauna Heaters & Sauna Cabins Maintenance
All Sauna products supplied by Direct Saunas Limited and Oceanic Saunas are for use in an indoor
environment such as a domestic house or a club building and should not be used in any other circumstances.
Sauna Maintenance
Dependant upon how regularly the sauna cabin is being used a series of maintenance checks should be
performed on the sauna cabin and sauna heater to ensure that they are kept in a good state of repair.
For commercial users we recommend these inspections be conducted on a monthly basis by a member of the
maintenance staff and detailed records kept.
For domestic use these checks should be carried out every 6 months.
Any obvious deterioration should be noted immediately if noticed in between maintenance checks and should
be resolved before continuing use of the products.
Under no circumstances do we recommend operating the sauna cabin if any electrical wiring is considered to
be hazardous, please contact your electrician or our technical department for assistance .
Maintenance Checks
Please note all maintenance checks should be preformed whilst the sauna cabin and sauna heater are cold.
Sauna Heater:
Ensure the heater has been correctly disconnected from the mains electricity before these checks are
conducted
1) Check sauna elements for signs of deterioration. Report any signs of deterioration to the supplier
2) Make sure all rocks are placed correctly onto the heater elements to ensure an adequate airflow around
the elements. Note that the rocks will gradually crumble and settle around the elements which can then
cause overheating, this may lead to early failure or even melting of the elements.
For commercial operators an electrician must periodically inspect and ensure all the wiring is in a good
condition and all connections are good and tight – a good idea would be to have this carried out annually as for
PAT testing.

Oceanic Sauna Heater
18
Sauna Cabin
1) Ensure all signage (safety and usage) is in place and in a readable condition.
2) Check the benches are secure and have no signs of deterioration, if benches have become loose
ensure they are tightened correctly.
3) If there are any splinters on the bench sand over lightly until they have been removed.
4) Any major damage to the benches should be reported to the supplier and further advice will be given.
5) Ensure the timbers surrounding the heater have not become charred. Any offending timber slats
should be replaced in a reasonable time period.
6) Ensure that the heater guard is in place and conforms to the clearance distances stated in the sauna
heater manual. Check for any signs of charring and replace the heater guard if it is showing signs of
disrepair.
7) The sauna cabin should be kept in a clean and hygienic state at all times. It is recommended that the
benches in the sauna are wiped down with a weak solution of disinfectant and water after each use we
especially recommend this in commercial divisions. The floor in the sauna should be mopped
regularly.
Chapter Seven: Warranty & After Sales
All Oceanic Sauna Heaters are guaranteed for 12 months from the date of purchase against faulty materials or
workmanship. The guarantee excludes consumable items such as the electrical elements and faults arising
from misuse or abuse of the appliance.
Elements last for 2500 hours, after this time has passed you should be expecting to buy new ones, premature
failure can be caused by:
- A half filled rock basket.
- Rocks forced against elements from bad filling
- Customers throwing large amounts of water over the rocks, for heavy duty places we recommend
screwing the bucket to the bench this prevents this from happening.
- Incorrectly wired heater.
For warranty claims and after sales service outside or the guarantee please contact your local Oceanic dealer.
If you encounter any difficulty with this assembly procedure or think we could have explained anything
more clearly we would welcome your comments, please ℡01902 655425 or 01902 871127 technical help
line.
