Oceanic Apollo User instructions

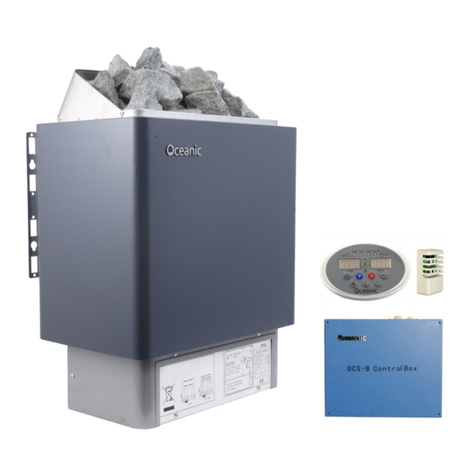

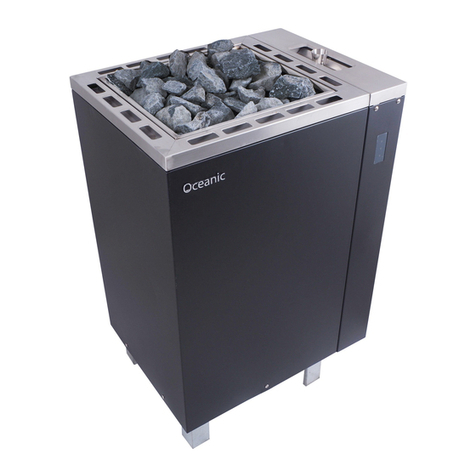

PRODUCT IMAGE
Oceanic Ltd, Pountney Street, Wolverhampton, WV2 4HX
Phone: [phone] [email protected].uk www.oceanic-saunas.co.uk
Sauna & Steam
APOLLO SAUNA HEATER
Assembly and operating manual

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 2
Sauna Heater Manual
Table of contents
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Important Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
5. Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
6. Sauna Heater and Control Box Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . .5
7. Sauna Heater Frame and Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
8. OC-SB Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9. Temp sensor frame and parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
11. Testing and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
12. Trouble shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
13. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
14. Warranty & After Sales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 3
Sauna Heater Manual
1. Introduction
Thank you for choosing to buy our Apollo Series Sauna heater, please take the time to read these
instructions before you begin as they contain important information about the installation and
maintenance requirements. Apollo Series Sauna heaters are available from 3kw to 9kw and are
equipped as standard with our OCSB digital controller .
The Apollo heater is available with the optional steam generator which mounts onto the side of
the heater, this version will be controlled via the OCST combined Sauna+Steam controller which
has a separate manual‘Apollo Sauna Heater and Steam Unit with Saunarium Controls Manual.
2. Important Notes
• Read the manual before installation and operation and then keep it for reference
• This equipment must be installed by competent person
• This equipment must be connected to an all pole isolator of the correct rating
• Disconnect the power supply before exposing electrical connections
• The sauna heater should not be used for any other purpose
• Do not cover the sauna heater or allow contact with ammable materials such as toweling –
Risk of re.
• Do not operate sauna heater without sauna rocks
• Do not touch the heater when operational as it is very hot
• When this heater is used in an unsupervised and/or public location with the advanced timer
setting an interlock must be provided for the door
3. Safety Precautions
• Elderly persons, pregnant women, or these suering heart disease, high blood pressure,
diabetes or not in good health are advised to seek medical opinion before using a sauna room;
• Do not smoke in the sauna room;
• Avoid using the sauna room immediately after strenuous exercise;
• Do not use the sauna room when under the inuence of alcohol;
• Leave the sauna room at once if you feel sleepy, sick or uncomfortable;
• Ensure there is good ventilation for the sauna room
• We do not recommend this product is used by children under 16 years old unless they are
supervised by an adult
• This appliance is not intended for use by persons including children with reduced physical,
sensory or mental capabilities or lack of experience unless they have been given supervision
or instruction concerning the use by a person responsible for their safety
• Commercial operators should post a notice of these precautions in a prominent position
4. Electrical connection
A qualied electrician will have no problem installing this system with the provided wiring
schematic and with the help of the circuit diagram mounted inside the respective control unit.
According to the valid regulations, the electrical connection of the sauna heater and the control
box has to be carried out by an authorised electrician. In case of a warranty claim, you are kindly
requested to present a copy of the invoice from the electrician.

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 4
Sauna Heater Manual
5. Specication
5.1. Sauna Heater Parameters. Chart 1
Heater
Model
Input
KW
Heating
element
n×kW
Sauna
room
volume
min-max
m3
Voltage
VAC
Phase
P
Connecting
cable
n×mm2
Stones
kg
Size
mm
0CAP30 3 3×1kW
(H1-H3)
2-4 230 or
400
1N or 3N Terminal1:
5×2.5mm
40~50 Without
Steam
Unit
L:405
W:380
H:740
With
Steam
Unit
L:495
W:380
H:740
0CAP45 4.5 3×1.5kW
(H1-H3)
4-6 230 or
400
1N or 3N Terminal1:
5×2.5mm
OCAP60 6 6×1kW
(H1-H6)
6-8 230 or
400
1N or 3N Terminal1:
5x4mm
OCAP75 7.5 3×1.5kW
(H1,H2,H4)
3 x 1kW
(H3,H5,H6)
7-10 230 or
400
1N or 3N Terminal1:
5×6mm
0CAP90 9 6×1.5kW
(H1-H6)
9-12 230 or
400
1N or 3N Terminal1:
5x6mm

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 5
Sauna Heater Manual
5.2. 2.OCSB Controller and OCST Control Box Parameters. Chart 2
5.3. Temperature sensor parameters. Chart 3
6. Sauna Heater and Control Box Circuit Diagrams
Model Input Output Load
power
Size (mm)
1N~/3N~ 1N~/3N~ (Kw) L W H
OCSB 230/400v 230/400v 4.5~12 310 260 70
Model Detected scope Cut o on high
temperature Size (mm)
oCoFoCoF L W H
OC-S 0~110 32~230 120 248 76 42 27

N NN NU UV VW W
AC 230V 1N or 400V 3N AC 230V 1N or 400V 3N
From control box Terminal From control box Terminal
H1 H1
H2
H2 H3
H4
H3 H5
H6
Fig 1.a OCAP 45, 4.5kw Fig 1.b OCAP60, OCA75, OCA90

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 6
Sauna Heater Manual
i. Fig 2a. Circuit Diagram for OCSB control box wired with Single Phase 230V connection

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 7
Sauna Heater Manual
ii. Fig 2b OCSB control box circuit diagram with wired with Three Phase 400V connection

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 8
Sauna Heater Manual
7. Sauna Heater Frame and Parts
Fig 3 Frame Dimensions
二合一试装图
深圳市普龙鑫机电设备有限公司
二合一试装图
深圳市普龙鑫机电设备有限公司
No. parts description
1Cover Trim Shield top edge of shell
and rock basket
2 Rock Basket Holds sauna rocks
3 Central Body Contains Elements
4 Shell Insulate the inner shell to
prevent from scalding
5 Terminal Connect the power
supply
6 Power entry The route of power wires
7 Cover Panel Protects the electrical
connections
8 Terminal plate Access to terminals
9 Mounting
bracket
To x steam generator to
heater central body
10 Feet Raise heater o ground
11 Under tray Collect excess water
1
2
3
5
6 7
8
9
9
11
10
4
Chart 4. Sauna Heater Part list
Fig 3b Sauna Heater Part diagram

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 9
Sauna Heater Manual
No. parts description
1Cover Trim Cover top of generator
2 Main Housing Contains generator unit
and wiring terminal
3 Water tray Water inlet and steam
outlet
4 Steam tank Steam unit contains
water tank, elements,
water level probe
5 Mounting plate Fixed generator to
housing
6 LED display Displays water level
7 Cable Entry For power and control
cable entry
8 Cover Plate Remove to access wiring
terminal
9 Mounting
bracket
To x steam generator to
sauna heater
1
2 3
4
5
6
7 8
9
10
7.1. Steam Generator Diagram and Parts
Fig 4a. Steam Generator Part Diagram
Chart 5. Steam Generator Part List
Fig 4b. Steam Generator Attachment
7.2. Fixing Steam Generator to Sauna
Heater
Note: Steam Generator is an optional item
and is not supplied with all Apollo Sauna
Heaters. For Apollo Heaters with Steam
Unit please refer to the ‘Apollo Heater With
Steam Unit and Saunarium Control manual’
To x the steam unit to the sauna heater
the line the mounting tabs on the steamer
with the mounting tabs on the heater.
Slide steamer into position and x to tabs
using the screws provided.

Sauna & Steam
Oceanic Saunas 01902 450 550 [e-mail] www.oceanic-saunas.co.uk 10
Sauna Heater Manual
No. Description Function instruction
1 On/o button Push to operate
2 Light button Push to operate for sauna room light
3 Fan button Push to operate for control box fan
4 Setting button Preset time and temperature and the setting conrmation
5 Increase button Press to increase
6 Increase button Press to decrease
7 Mode button Change working mode
8 Time display Display working time or waiting time to work
9 Temp. display Display temperature
10 Light LED Indictor Led for sauna room lamp
11 Model LED Indictor LED for working mode. If LED is heater is in Mode A / heating mode
12 Wait LED Indicator LE D for waiting mode, If LED is on heater is in Mode B / waiting mode
13 Sauna room
Door(interlock)
indicator LED
Indicator LED is on: Sauna Heater will not operate. i.e. the door has been opened
and the sauna must be checked for safe operation (no towel over heater etc)
and door interlock reset before countdown timer can continue. For commercial
use only where a door interlock switch has been installed.
14 High temperature LED indicator LED is on The sauna has overheated, the room temperature has
reached higher then 120 centigrade . High temperature cut o switch has
been tripped, when the temperature in sauna room falls below 100 centigrade
investigate what has caused the problem then manually reset the switch by
inside the temperature sensor housing.
15 Fan LED Press to operate for fan
16 Heating LED LED On means the heat element is working
17 Stop working LED indicator LED to show Sauna temperature has been reached and the heater is
not receiving any power until the temperature drops below preset level.
Chart 6. Keys and LED instruction

Fig 4. Controller frame
8. OC-SB Controller
