Oerlikon Sogevac SV28 BI User manual

Part Numbers
960 270 - 960 273
960 276 - 960 278
Sogevac SV28 BI
Single-stage, oil-sealed
Rotary Vane Pump
Operating Instructions GA02331_002_01

Installation and operating instructions
These installation and operating instructions are valid for the
SOGEVAC pumps SV28 BI in their standard version.
Special versions to these pumps are delivered with an additive
document, which prevails over the standard instructions.
The SOGEVAC vacuum pumps have been manufactured according
to the latest technical standards and safety regulations. If not
installed properly or not used as directed, dangerous situations or
damage could occur.
It is mandatory that these operating instructions be read and
understood prior to vacuum pump installation and start-up.
1 General Instructions 3
1.1 Safety Instructions 3
1.2 Application range 4
1.3 Principle of operation 4
1.4 Technical characteristics 5
1.5 Accessories 7
1.6 Transport and Packing 7
1.7 Mounting orientation and storage 8
1.8 Lubricants 8
2 Installation 8
2.1 Setting-up 8
2.2 Inlet connection 8
2.3 Connection to exhaust side 9
2.4 Oil filling 9
2.5 Electrical connection 9
2.6 Operating advices 10
2.7 Shutdown 10
3 Maintenance 11
3.1 Oil level 11
3.2 Oil change 11
3.3 Exhaust filters replacement 12
3.4 Gas ballast valve cleaning 12
3.5 Inlet flange sifter cleaning 12
3.6 Anti-suckback valve 12
3.7 Fan cover cleaning 12
3.8 Checking the float valve 12
4 Breakdown analysis 12
5 Spare parts 12
6 Information 13
EC Declaration of Conformity
Declaration of contamination
Spare Parts list
Sales and Service
Contents
2 GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum
Page

1 General Instructions
1.1 Safety instructions
In this paragraph, the most important safety and usage instructions for the
SOGEVAC pumps are listed. Ahead of each following paragraph of the manual,
the numbers of the applicable safety instructions will be listed.
1.1.1
SOGEVAC pumps are not designed:
. for pumping of aggressive, corrosive, flammable or explosive gases or gases
mixtures ;
. for pumping of oxygen or other highly reactive gases with a greater
concentration than atmospheric concentration (>20%) ;
. for working in flammable or explosive environment. For all these cases, special
materials must be used. In case of doubt, please contact Oerlikon Leybold
Vacuum.
See also the limits of use indicated in the EC Declaration of Conformity.
1.1.2
Liquid and solid particles must not enter the pump. Install the adequate filters,
separators and/or condensers. In case of doubt consult Oerlikon Leybold
Vacuum.
1.1.3
The intake line of the pump must never be connected to a device with over
atmospheric pressure. Size of the exhaust line so that no pressure higher than
1,15 bar abs. (0,15 bar rel.) or depression of 15 mbar (0,15 bar rel.) can occur
1.1.4
Operating of the pump without oil or operating with incorrect sense of rotation
can destroy the pump.
1.1.5
Never expose part of the body to the vacuum. There is a danger of injury. Never
operate the pump with an open and thus accessible inlet. Vacuum connections
as well as oil filling and oil draining openings must not be opened during
operation of the pump.
1.1.6
When operating pump is hot and some surfaces could reach a temperature
higher than 80°C (176°F). There is a risk of burn by touching.
Switch off the pump and let it cool down before any intervention or take
appropriate precautions.
1.1.7
Depending on the process involved, dangerous substances and oil may escape
from the pump. Take the necessary safety precautions !
1.1.8
Observe the safety regulations !
Never use discarded seals. Always assemble using new seals.
Respect the instructions concerning environment protection when discarding
used oil or exhaust filters !
General Instructions
3GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum
Warning

1.2 Application range
See prescriptions chapters 1.1.1. and 1.1.2.
SOGEVAC pumps are designed for pumping of inert gases in the range of
medium vacuum, between atmospheric pressure and ultimate pressure of the
pump.
Indoor use up to 1000 m altitude and rel. humidity ≤ 95 % without
condenstion
When removing condensable vapours, a gas ballast valve must be installed, or
opened.
1.3. Principle of operation
The SOGEVAC pumps SV28 BI are single-stage oil sealed rotary vane vacuum
pumps. The rotor, having three slots in which the vanes are sliding, is
eccentrically installed in a pump cylinder (stator).
The vanes separate the interior space into 3 chambers. The volume of these
chambers varies with the rotation of the rotor.
The gas sucked into the inlet chamber is compressed and then pushed out at
the exhaust valve.
The oil injected in the inlet chamber guarantees the air-tightness, the
lubrication and cooling of the pump. It is dragged off by the compressed
gases and roughly separated by gravity when entering in the oil sump. A fine
separation is then operated in the exhaust filter. The exhaust filter retains
> 99,9% of the aerosols. An internal transfer pushes the collected oil back
into the vacuum generator, the transfer is operated by a float valve to avoid
atmospheric air coming from the oil casing to the inlet of the pump when no oil
is present in the recovery system.
The oil circulation functions by differential pressure.
Depending on catalog numbers, the pumps are equipped with a gas ballast
valve for pumping condensable vapours.
The anti suckback valve at the inlet flange avoids oil coming back into the
inlet line when the pump is stopped. This is valid for working pressures below
100 mbar and under the condition that the valve is kept clean and in good
condition. The anti suck-back valve is not a safety valve. If oil back flowing is to
be avoided by all means, it is ncessary to mount a separate safety valve on the
pump inlet
General Instructions
4 GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

General Instructions
5GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum
1.4 Technical Characteristics
50Hz 60Hz
Nominal pumping speed m3.h-1 25 30
Pumping speed (according to Pneurop) m3.h-1 23 27
Ultimate partial pressure without gas ballast mbar ≤ 0,05 ≤ 0,05
Ultimate total pressure with small gas ballast mbar ≤ 0,5 ≤ 0,5
Water vapour tolerance with small gas ballast mbar 10 10
Water vapour tolerable load with small gas ballast kg.h-1 0,07 0,08
Noise level (according to DIN 46635) dB(A) 54 57
Main voltage (standard) AC ~ V230/400
(+/- 10%)
460
(+/- 10%)
Motor power - Rated rotational speed kW 0,75-1430
(3φ)
0,9-1720
(3φ)
Protection - Isolation IP55 - F IP55 - F
IP54-F for single-phase
motors
Leak rate mbar.l.s-1 1.1031.103
Oil type / Capacity lGS32 / 0,5l or 1,8l
Intake connection 25 KF 25 KF
Exhaust connection 25 KF 25 KF
Pump with three-phase motor, without gas ballast, small oil casing
230 V/400 V, 50Hz ; 460 V, 60Hz
960 270
Pump with three-phase motor, gas ballast, small oil casing
230 V/400 V, 50Hz ; 460 V, 60Hz
960 271
Pump with three-phase motor, without gas ballast, big oil casing
230/400V, 50Hz ; 460V 60Hz
960 272
Pump with three-phase motor, gas ballast, big oil casing
400 V, 50Hz ; 230/460 V, 60Hz
960 273
Pump with single-phase motor wide range, gas ballast, small oil
casing
180-264V, 50/60Hz
960 276
Pump with single-phase motor wide range, gas ballast, big oil casing
180-264V, 50/60Hz
960 277
Pump with JP and USA single-phase motor, gas ballast, big oil casing
100V -15/+10%, 50/60Hz & 115V -15/+10%, 60Hz
960 278

General Instructions
6 GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

General Instructions
without gas ballast with gas ballast
at 60Hz
at 50Hz
Pumping speed curves
1.5 Accessories
For the accessories, please refer to the Oerlikon Leybold Vacuum General
Catalogue chapters C01 and C13.
Kit anti suck back valve 9 714 62 600
Gas ballast kit 9 714 62 640
Set of seals 9 714 62 670
Float valve kit 9 714 62 660
Rubber feet kit 9 714 62 650
3 phase motor flange kit 9 714 62 630
Stator kit 9 714 62 620
Complete oil casing 0.5 l 9 714 49 400
Complete oil casing 1.5 l 9 701 54 140
Repair kit 9 714 62 690
Vacuum generator three phase pump 9 714 62 620
Vacuum generator single phase pump 9 714 62 630
Oil level switch upon request
no retrofit possible
1.6 Transport and Packing
SOGEVAC vacuum pumps pass a rigorous operating test in our factory and are
packed to avoid transport damages.
Please check packing on delivery for transport damages.
The outer package bears a shock indicator, turning red at 50 g. Should the
shock indicator have reacted, a transportation damage may have occurred
and the freight forwarder must be advised.
Packing materials should be disposed off according to local environmental laws
or re-used.
TOME 2
Courbe pompage 50Hz.xls RD VALENCE 05/2007
Pumping speed curve SV28 BI S=f(p)
0
5
10
15
20
25
0,01 0,1 1 10 100 1000
Pressure (mbar)
Pumping speed (m3/h)
50Hz
50Hz with GB
TOME 2
Courbe pour débit 60 Hz.xls RD VALENCE 05/2007
Pumping speed curve SV28 BI S=f(p)
0
5
10
15
20
25
30
35
0,010 0,100 1,000 10,000 100,000 1000,000
Pressure (mbar)
Pumping speed (m3/h)
60Hz
60Hz with GB
7GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

Installation
8
These operating instructions are part of the consignment. The connection ports
are blanked off by plastic protective caps or self-adhesives. Take these caps or
self-adhesives away before turning on the pump.
The necessary oil is supplied in a can beside the pump.
1.7 Mounting orientation and storage
1.7.1 Mounting orientation :
See required space on chart in paragraph 1.4. Pumps which have been filled with
operating oil must only be moved in the upright position (horizontally). Other-
wise oil may escape. The angle of slope may not be over 10° max. Avoid any
other orientations while moving the pump.
1.7.2 Storage
Before stocking the pump for a long time put it back in its original condition
(blank off inlet and exhaust ports with the shipping seals, drain the oil sump) and
store the pump in a dry place at room temperature. A storage period excee-
ding one year requires a pump maintenance. Please contact Oerlikon Leybold
Vacuum's customer service.
Storage temp. : - 15°C to + 60°C.
1.8 Lubricants
The SOGEVAC SV28 BI pumps should be run with mineral oils for vacuum pumps
with low viscosity according to ISO category VG32. The Oerlikon Leybold Vacuum
oil GS32 corresponds to these prescriptions.
GS32 Oil
Conditioning Reference
1l 711 17 772
2l 711 17 723
5l 711 17 724
20l 711 17 725
You may use other special lubricants adapted to the applications.
Please consult us.
2 Installation (see chapter 1.1)
It is essential to observe the following instructions step by step to ensure safe
start-up. Start-up may only be conducted by trained specialists.
2.1 Setting-up
The pump must be set up or mounted horizontally on a flat surface. Special
mounting is not required.
The following ambient operating environment must be observed :
. Ambient temperature: 15°C to 40°C (59°F to 104°F),
. Ambient pressure = Atmospheric pressure.
In order to avoid over-heating of the pump, an undisturbed fresh airflow to the
pump is necessary.
GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

2.2 Inlet connection (see chapter 1.1)
The inlet flange can be connected with a vacuum-tight flexible hose and/or
pipe. The pipes should cause no stresses on the pump’s flanges. If necessary,
compensators must be installed.
Restriction of the pipes must be avoided in order not to decrease the pumping
speed of the pump. The nominal diameter of the pipes has to be at least the
same as the diameter of pump’s inlet flange.
When removing condensable vapours, a gas ballast valve must be installed or
opened.
The inlet pressure must not be above atm. pressure.
2.3 Connection to exhaust side
No isolation or restricting devices should be installed in the exhaust line of the
pump. If an exhaust line is installed, it must at least have the same diameter as
the exhaust flange. It should be installed in a manner so that no condensate can
enter the pump (siphon, slope).
Warning: The maximum exhaust pressure must neither exceed 1.15 bar absolute
(0.15 bar relative), nor fall under atmosphere pressure minus 15 mbar.
2.4 Oil filling (see chapter 1.1.4)
The necessary oil is supplied in a can beside the pump. To fill in the oil, unscrew
the oil fill plug and fill in until the oil level reaches the “MAX” mark beside the oil
sight glass.
2.5. Electrical connection (see chapters 1.1.4 and 1.1.5)
The electrical installation may only be conducted by a specialist. Local
regulations have to be followed.
. Voltage and frequency mentioned on the motor nameplate must correspond
with the supply voltage and frequency.
. The drive motor must be protected against overloads according to local
regulations and IEC 60204-1.
. To check the direction of rotation of pumps, flick pump on. If the direction
of rotation is not identical with the one indicated by the arrow sticking on the
motor hood, then inverse any two of the 3 electrical phases in the terminal box.
Looking at the motor fan cover, the direction of rotation has to be counter-
clockwise.
Installation
9GA02331_002_01 -09/2007 - © Oerlikon Leybold Vacuum
Warning
single-phase connection diagram

2.6 Operating advices (See chapters 1.1.1, 1.1.2, 1.1.3 and
1.2)
When removing condensable vapours, a gas ballast valve must be installed or
opened.
The vacuum pump must be run for 30 minutes prior to operation with the
inlet connection closed, in order to reach the operating temperature of about
75°C. Only up from this operating temperature, condensable vapours can be
transported. After use, the pump has to be left running for an additional 30
minutes with the inlet connection closed and open gas ballast, to clear the oil of
condensate.
2.7 Shutdown
The inlet flange of the SOGEVAC pumps contains an anti-suck back valve. It
closes the inlet flange when the pump is voluntarily or accidentally shut down,
thus maintaining the vacuum in the connected system and preventing oil from
being sucked back into the system.
Except the indications in chapter 2.6 (operating advices) there are no particular
precautions for the shutdown of the pump.
If the pump must be stopped for a longer period, see chapter 1.7.
Installation
10 GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum
3-phase connection diagram

Maintenance
11
3 Maintenance (see chapter 1.1)
The vacuum pump must be switched off and secured against accidental
switch-on for all maintenance jobs. All work must be done by suitably trained
personnel.
The following maintenance-schedule shows the regular maintenance periods
for an average use of the pump.
Unfavourable ambient conditions and/or aggressive media may
significantly reduce the maintenance intervals.
On the other hand, favorable conditions may allow longer operating
periods or to skip the first oil change.
Maintenance job Frequency Section
Check the oil level daily 3.1
Subsequent oil changes Every 2000 h of operation
or 6 months (depending
on application)
3.2
Replace the exhaust
filter
If oil mist at exhaust or
annualy
3.3
Gas ballast valve Monthly 3.4
Clean the inlet flange
sifter
6 months 3.5
Check the anti-suckback
valve
6 months 3.6
Clean the fan cover 6 months 3.7
Check the electrical
connection (only by a
specialist)
6 months
To simplify the maintenance work we recommend combining several jobs.
3.1 Oil level
The oil level shall be checked at least once a day and must be, while the pump is
in operation, close to the MAX mark. Should the oil level be below the MIN mark
switch off the pump, check it (see chapter 4) and add the required amount of
oil.
3.2 Oil change
Oil changes, depending on operating conditions (products, vapours, ambient
temperature…) must be done every 500 to 2000 operating hours or at least
every 6 months.
If there is considerable pollution, it could be necessary to change the oil more
frequently. Special oils allow to extend the oil changing period.
Oil changing must be done with a switched off
and still warm pump. Open the oil drain plug and let run out the used oil into an
appropriate container. Refasten the oil drain plug when oil runs slower, start up
the pump briefly (5 sec. max) and switch off immediately. Re-open the oil drain
plug and drain the rest of the oil.
GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

Before refastening the oil drain plug, control the O-ring and if necessary replace
it. Open the oil fill plug and pour in clean oil ; refasten the oil fill plug. The pump
has to be rinsed out if there is considerable pollution. Therefore pour in clean
oil up to the low edge of the oil-level glass, let the pump run briefly (for a few
minutes) then drain the oil again.
3.3 Exhaust filters replacement (see chapters 1.1.6 and 1.1.8)
Oil mist escaping from the exhaust during operation indicates that the filter is
probably clogged. Increased energy intake by the motor could also be the result
of a soiled exhaust filter. Open the exhaust hood, take out the filter and replace
it. Also check the gasket of the exhaut flange and change it if necessary.
3.4 Gas ballast valve cleaning (see safety prescriptions
chapter)
Consult OLV
3.5 Inlet flange sifter cleaning
See safety prescriptions chapters 1.1.2., 1.1.6. and 1.1.8.
To clean the inlet flange sifter, disconnect the inlet connection and clean the
sifter with blast air or an appropriate solvent.
3.6 Anti-suck back valve checking
See safety prescriptions chapter s1.1.2., 1.1.6. and 1.1.8.
The anti-suck back valve should be checked at the same time as the inlet flange
sifter and if dirty, be cleaned with an appropriate solvent. Remove the inlet
flange, check if there is no damage on the sealing part of the valve.
3.7 Fan cover cleaning
Soiling of the fan cover may lead to overheating of the motor and the pump.
Put off the cover and clean it with blast air. Before starting the pump again, be
sure that the cover has been reassembled.
3.8 Checking the float valve (see chapters 1.1.6 and 1.1.8)
When replacing the exhaust filter, check the cleanliness and the proper
operation of the float valve. After having disassembled the exhaust flange and
fan cover, remove the screw using a 4mm Allen Key. Pull on the float valve ,
clean the nozzle and check that the float itself oscillates free around its axle and
that the valve is tight. Clean the float chamber of the oil casing. Reassemble in
the reverse sequence.
4 Breakdown analysis
If you have a breakdown, please contact the Oerlikon Leybold Vacuum service
station and/or ask us, to send you the guide: “breakdown analysis”.
5 Spare parts
To guarantee safe operation of the Oerlikon Leybold Vacuum vacuum pump,
only original spare parts and accessories should be used. When ordering spare
parts and accessories, always state pump type and serial number. You can find
part numbers in the spare parts list.
Maintenance
12 GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

Spare parts
Consummables and main spare parts kits for SOGEVAC pumps are usually
available on stock at Oerlikon Leybold Vacuum’s service centers. The list of these
parts is given hereafter and in the spare parts table where the contents of each
kit is detailed.
. Exhaust demisters
. Oil GS32 (Special oils please refer to the specific notice of the pump or contact
Oerlikon Leybold Vacuum).
. Service kit
. Set of seals
. Repair kit
We recommend to use these kits which have been defined to allow an optimal
maintenance or repair. Individual spare parts may need longer delivery time.
Return to Oerlikon Leybold Vacuum service station
If the pump has to be returned to Oerlikon Leybold Vacuum service station for
repairing, you have to attach the form “Declaration of Contamination of Vacuum
Equipment and Components”.
The Service of Oerlikon Leybold Vacuum will send it to you on simple request
(specimen on the end of this manual).
Oerlikon Leybold Vacuum will return to the sender’s address any material
received without this declaration.
For the transport, the pump and its components must be packaged in such
a way, that it will not be damaged during shipping, and that no harmful
substances can escape from the package.
6 Information
We would be happy to supply further information as required:
Available are :
. Technical description of the SOGEVAC vacuum pumps
. Technical description of special oil types for vacuum pumps
. Declaration of Contamination of Vacuum Equipment and Components.
13GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

14 GA02330_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

Declaration of contamination
17200001_002_00
© Leybold Vacuum
Declaration of Contamination of Compressors, Vacuum Pumps and Components
The repair and / or servicing of compressors, vacuum pumps and components will be carried out only if a correctly completed declaration has
been submitted. Non-completion will result in delay. The manufacturer can refuse to accept any equipment without a declaration.
A separate declaration has to be completed for each single component.
This declaration may be completed and signed only by authorized and qualified staff.
Customer/Dep./Institute :Reason for return: applicable please mark
Address : Repair: chargeable warranty
Exchange: chargeable warranty
Exchange already arranged / received
Person to contact: Return only: rent loan for credit
Phone : Fax: Calibration: DKD Factory-calibr.
End user: Quality test certificate DIN 55350-18-4.2.1
A. Description of the Leybold product: Failure description:
Material description :
Catalog number: Additional parts:
Serial number: Application-Tool:
Type of oil (ForeVacuum-Pumps) : Application- Process:
B. Condition of the equipment No
1)
Yes No Contamination : No
1)
Yes
1
1. .Has the equipment been used toxic
2. Drained (Product/service fluid) corrosive
3. All openings sealed airtight flammable
4. Purged explosive
2)
If yes, which cleaning agent radioactive
2)
and which method of cleaning microbiological
2)
1)
If answered with “No”, go to D. other harmful substances
C. Description of processed substances (Please fill in absolutely)
1. What substances have come into contact with the equipment ?
Trade name and / or chemical term of service fluids and substances processed, properties of the substances
According to safety data sheet (e.g. toxic, inflammable, corrosive, radioactive)
X Tradename: Chemical name:
a)
b)
c)
d)
No Yes
2. Are these substances harmful ?
3. Dangerous decomposition products when heated ?
If yes, which ?
2)
Components contaminated by microbiological, explosive or radioactive products/substances will not be accepted without written
evidence of decontamination.
D. Legally binding declaration
I / we hereby declare that the information supplied on this form is accurate and sufficient to judge any contamination level.
Name of authorized person (block letters) :
Date signature of authorized person
firm stamp
15GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

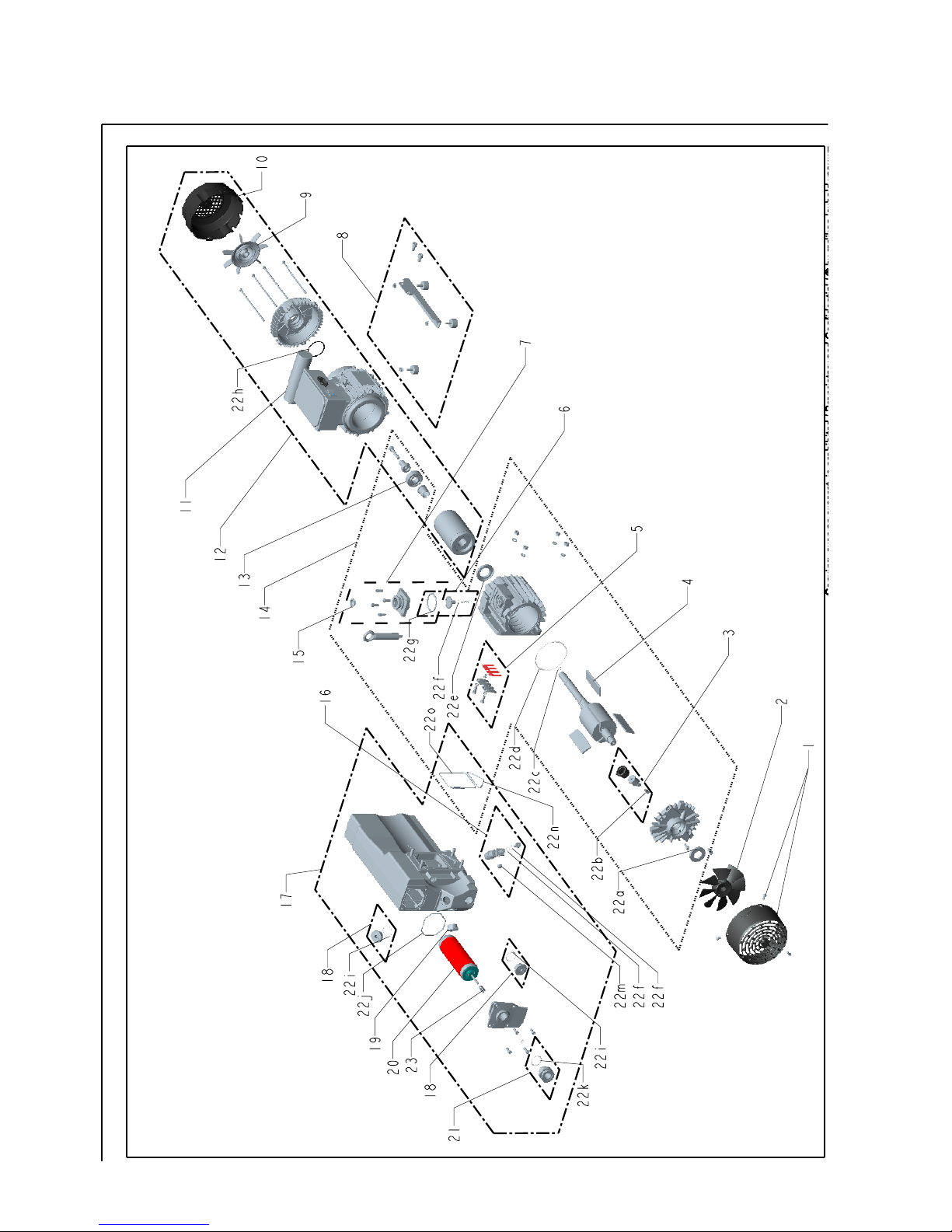

Spare parts list
16 GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

Spare parts list
17GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum
Pos. Stück.
Qty Qté
BENENNUNG SPECIFICATION DESIGNATION Werkstoff
Material Matière
Bestell-Nr Ref, No, N° de réf.
Bemerkungen Notes Remarques
1 1 TURBINENHAUBE FAN COVER CAPOT TURBINE ENS. 971447860 2 1 TURBINE FAN TURBINE 971447870 3 1 GAS BALLAST KIT GAS BALLAST KIT KIT LEST AIR 971462640 4 1 SCHIEBERSATZ 3 STÜCK SET OF 3 VANES JEU DE 3 PALETTES 971447220 5 1 VENTILPLATTE UND ANSCHLAG KIT VALVE AND VALVE STOP KIT KIT LAME ET CONTRE LAME 971462750 6 1 SAUGSTUTZEN KIT ANTI SUCK BACK KIT KIT CLAPET ASPIRATION 971462600 Incl. 22f, 22g 7 1 ANSAUGFLANSCH KIT INTAKE FLANGE KIT KIT BRIDE ASPI 971454300 Incl. 15, 22g 8 1 GUMMIFUSS KIT RUBBER FEET KIT KIT AMORTISSEURS 971462650 9 1 MOTOR LUEFTER MOTOR FAN VENTILATEUR MOTEUR 971462760 10 1 MOTOR LUEFTERHAUBE MOTOR FAN COVER CAPOT MOTEUR 971462770 11 1 KONDENSATOREN 1 PH 230 V CAPACITORS 1 PH 230 V CONDENSATEURS MONO 230 V 971462780 11 1 KONDENSATOREN 1 PH 115 V CAPACITORS 1 PH 115 V CONDENSATEURS MONO 115 V 971462790 12 1 DREHSTROM MOTOR THREE PHASE MOTOR MOTEUR TRI 971457650 12 1 WECHSELSTROM MOTOR 230 V SINGLE PHASE MOTOR 230 V MOTEUR MONO 230V 971457670 12 1 WECHSELSTROM MOTOR 115 V SINGLE PHASE MOTOR 115 V MOTEUR MONO 115V 971457680 13 1 DREHSTROM MOTOR KUGELLAGER BEARING THREE PHASE MOTOR ROULEMENT MOTEUR TRI 971464740 13 1 WECHSELSTROM MOTOR KUGELLAGER BEARING SINGLE PHASE MOTOR ROULEMENT MOTEUR MONO 971440330 14 1 GENERATOR MODUL DREHSTROM GENERATOR THREE PHASE GENERATEUR ENS. TRI 971462620 Incl. 22a,b,c,d,e,f,g,n,o 14 1 GENERATOR MODUL WECHSELSTROM GENERATOR SINGLE PHASE GENERATEUR ENS. MONO 971462630 Incl. 22a,b,c,d,e,f,g,n,o 15 1 EINLASS FILTER INLET FILTER FILTRE ASPIRATION 71413440 16 1 SCHWIMMERVENTIL FLOAT VALVE FLOTTEUR ENS. 971462660 Incl. 22f, 22m 17 1 OELKASTEN 0.5 L OIL CASING 0.5 L CARTER 0.5L ENS. 971449400 Incl. 16, 18, 19, 20, 21, 22j, n, o, 23 17 1 OELKASTEN 1.5 L OIL CASING 1.5 L CARTER 1.5L ENS. 971454140 Incl. 16, 18, 19, 20, 21, 22j, n, o, 23 18 1 STOPFEN G 3/4 PLUG G 3/4 BOUCHON G 3/4 71256380 Incl. 22i 19 1 OELSCHAUGLASS OIL SIGHT GLASS VOYANT HUILE 71212420 20 1 AUSLASSFILTER EXHAUST FILTER CARTOUCHE REFOUL. AVEC BY-PASS 71416340 21 1 AUSLASS 25 KF ANSCHLUSS EXHAUST 25 KF FITTING RACCORD 25KF 71404530 Incl. 22k 22 DICHTUNGS KIT KIT OF SEALS JEU DE JOINTS FKM 971462670 All 22 REPARATUR KIT REPAIR KIT KIT REPARTION 971462690 Incl. 4, 5, 19, 20, 22, 23 WARTUNGS KIT MAINTENANCE KIT KIT DE MAINTENANCE 971462810 Incl. 18, 20, 22k, 23 SCHRAUBEN KIT NUTS AND BOLTS KIT KIT VISSERIE 971462800

Oerlikon
Leybold Vacuum GmbH
Bonner Strasse 498
D-50968 Cologne
Phone: [phone]
Fax: [phone]
[email protected]
P.R. China
Oerlikon
Leybold Vacuum (Tianjin)
International Trade Co., Ltd.
Beichen Economic
Development Area (BEDA),
Shanghai Road
Tianjin 300400
China
Sales and Service:
Phone: [phone]
Fax: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum
(Tianjin) Co., Ltd.
Beichen Economic
Development Area (BEDA),
Shanghai Road
Tianjin 300400
China
Sales and Service:
Phone: [phone]
Fax: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum (Tianjin)
International Trade Co., Ltd.
Shanghai Branch:
Add: No. 33
76 Futedong San Rd.
Waigaoqiao FTZ
Shanghai 200131
China
Sales and Service:
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum (Tianjin)
International Trade Co., Ltd.
Guangzhou Office and
Service Center
1st F, Main Building,
Science City Plaza,
No.111 Science Revenue,
Guangzhou Science City
(GZSC) 510663, Guangzhou,
China
Sales:
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum (Tianjin)
International Trade Co., Ltd.
Beijing Branch:
1-908, Beijing Landmark Towers
8 North Dongsanhuan Road
Chaoyang District
Beijing 100004
China
Sales:
Phone: [phone]
Fax: [phone]
India
Oerlikon
Leybold Vacuum India Pvt Ltd.
EL-22, J Block
MIDC Bhosari
Pune 411026
India
Sales:
Phone: [phone]
Fax: [phone]
[email protected]
Netherlands
Oerlikon
Leybold Vacuum Nederland B.V.
Computerweg 7
NL-3542 DP Utrecht
Sales and Service:
Phone: [phone]
Fax: [phone]
[email protected]
[email protected]
Spain
Oerlikon
Leybold Vacuum Spain, S.A.
C/ Huelva, 7
E-08940 Cornellà de Llobregat
(Barcelona)
Sales:
Phone: [phone]
Fax: [phone]
[email protected]
Service:
Phone: [phone]
Fax: [phone]
Sweden
Oerlikon
Leybold Vacuum Scandinavia AB
Box 9084
SE-40092 Göteborg
Sales and Service:
Phone: [phone]
Fax: [phone]
[email protected]
Visiting/delivery address:
Datavägen 57B
SE-43632 Askim
Switzerland
Oerlikon
Leybold Vacuum Schweiz AG
Leutschenbachstrasse 55
CH-8050 Zürich
Sales:
Phone: [phone]
Fax: [phone]
[email protected]
Service:
Phone: [phone]
Fax: [phone]
USA
Oerlikon
Leybold Vacuum USA Inc.
5700 Mellon Road
Export, PA 15632
Phone: [phone]
Fax: [phone]
[email protected]
Sales:
Eastern & Central time zones
Phone: [phone]
Fax: [phone]
Pacific, Mountain, Alaskan &
Hawaiian time zones
Phone: [phone]
Fax: [phone]
Service:
Phone: [phone]
Fax: [phone]
Belgium
Oerlikon
Leybold Vacuum Nederland B.V.
Belgisch bijkantoor
Leuvensesteenweg 542-9A
B-1930 Zaventem
Sales:
Phone: [phone]
Fax: [phone]
[email protected]
Service:
Phone: [phone]
Fax: [phone]
[email protected]
France
Oerlikon
Leybold Vacuum France S.A.
7, Avenue du Québec
Z.A. Courtaboeuf 1 - B.P. 42
F-91942 Courtaboeuf Cedex
Sales and Service:
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum France S.A.
Valence Factory
640, Rue A. Bergès - B.P. 107
F-26501 Bourg-lès-Valence Cedex
Phone: [phone]
Fax: [phone]
[email protected]
Great Britain
Oerlikon
Leybold Vacuum UK LTD.
Unit 2
Silverglade Business Park
Leatherhead Road
UK-Chessington, Surrey KT9 2QL
Sales:
Phone: [phone]
Fax: [phone]
[email protected]
Service:
Phone: [phone]
Fax: [phone]
[email protected]
Italy
Oerlikon
Leybold Vacuum Italia S.p.A.
8, Via Trasimeno
I-20128 Milano
Sales:
Phone: [phone]
Fax: [phone]
[email protected]
Service:
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum Italia S.p.A.
Field Service Base
Z.I. Le Capanne
I-05021 Acquasparta (TR)
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum GmbH
Bonner Strasse 498
D-50968 Cologne
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum GmbH
Sales Area North/East
Branch Office Berlin
Buschkrugallee 33
1. Obergeschoss
D-12359 Berlin
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum GmbH
Sales Area South/Southwest
Branch Office Munic
Sendlinger Strasse 7
D-80331 Munic
Phone: [phone]
Fax: [phone]
[email protected]
service.vacuum.mn
@oerlikon.com
Oerlikon
Leybold Vacuum GmbH
Sales Area West & Benelux
Bonner Strasse 498
D-50968 Cologne
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum GmbH
Service Competence Center
Emil-Hoffmann-Strasse 43
D-50996 Cologne-Suerth
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum GmbH
Mobil Customer Service
Emil-Hoffmann-Strasse 43
D-50996 Cologne-Suerth
Phone: [phone]
Fax: [phone]
[email protected]
Oerlikon
Leybold Vacuum GmbH,
Dresden
Zur Wetterwarte 50, Haus 304
D-01109 Dresden
Service:
Phone: [phone]
Fax: [phone]
[email protected]
Japan
Oerlikon
Leybold Vacuum
Japan Co., Ltd.
Head Office
Tobu A.K. Bldg. 4th Floor
23-3, Shin-Yokohama
3-chome
Kohoku-ku, Yokohama-shi
Kanagawa-ken 222-0033
Sales:
Phone: [phone]
Fax: [phone]
Oerlikon
Leybold Vacuum
Japan Co., Ltd.
Osaka Sales Office
5-13, Kawagishi-cho
Suita-chi
Osaka-fu
Phone: [phone]
Fax: [phone]
Oerlikon
Leybold Vacuum
Japan Co., Ltd.
Tsukuba Technical S.C.
Tsukuba Minami Daiichi
Kogyo Danchi
21, Kasumi-no-Sato,
Ami-machi, Inashiki-gun
Ibaraki-ken, 300-0315
Service:
Phone: [phone]
Fax: [phone]
Korea
Oerlikon
Leybold Vacuum Korea Ltd.
#761-4, Yulkeum-ri
SungHwan-eup, Cheonan-City
Choongchung-Namdo
330-807 Korea
Sales:
Phone: [phone]
Fax: [phone]
Service:
Phone: [phone]
Fax: [phone]
Singapore
Oerlikon
Leybold Vacuum
Singapore Pte Ltd.
1 Science Park Road
Singapore Science Park 2
#02-12 Capricorn Building
Singapore 117528
Sales and Service:
Phone: [phone]
Fax: [phone]
[email protected]
Taiwan
Oerlikon
Leybold Vacuum Taiwan Ltd.
No 416-1, Sec. 3
Chung-Hsin Rd., Chu-Tung
Hsin-Chu, Taiwan, R.O.C.
Sales and Service:
Phone: [phone]
Fax: [phone]
[email protected]
Germany Europe Asia
Sales and Service
America
www.oerlikon.com
Oerlikon
Leybold Vacuum USA Inc.
5700 Mellon Road
Export, PA 15632
Phone: [phone]
Fax: [phone]
[email protected]
18 GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

Notes
19GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum

Oerlikon Leybold Vacuum GmbH
Bonner Strasse 498
D-50968 Cologne
Phone : [phone]
Fax : [phone]
E-mail : [email protected]
www.oerlikon.com
Oerlikon Leybold Vacuum France
640, rue. A. Bergès - B.P. 107
F-26501 Bourg-lès-Valence
Phone : [phone]
Fax : [phone]
E-mail : [email protected]om
20 GA02331_002_01 - 09/2007 - © Oerlikon Leybold Vacuum
