Oerlikon Sogevac SV40 BI User manual

Sogevac
®
SV40 BI
Single-stage, oil-sealed rotary vane pump
Operating instructions GA02329_002_03
Waters Corporation
Ref.:
960331V3007
Document Y26/300270034/002/03

2GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Contents
Page
Important Safety Information 3
1 Description 5
1.1 Principle of operation 5
1.2 Technical characteristics 6
1.3 Accessories 8
1.4 Lubricants 8
2 Transport and Storing 9
2.1 Transport and packaging 9
2.2 Mounting orientation 9
2.3 Storing 9
3 Installation 10
3.1 Setting up 10

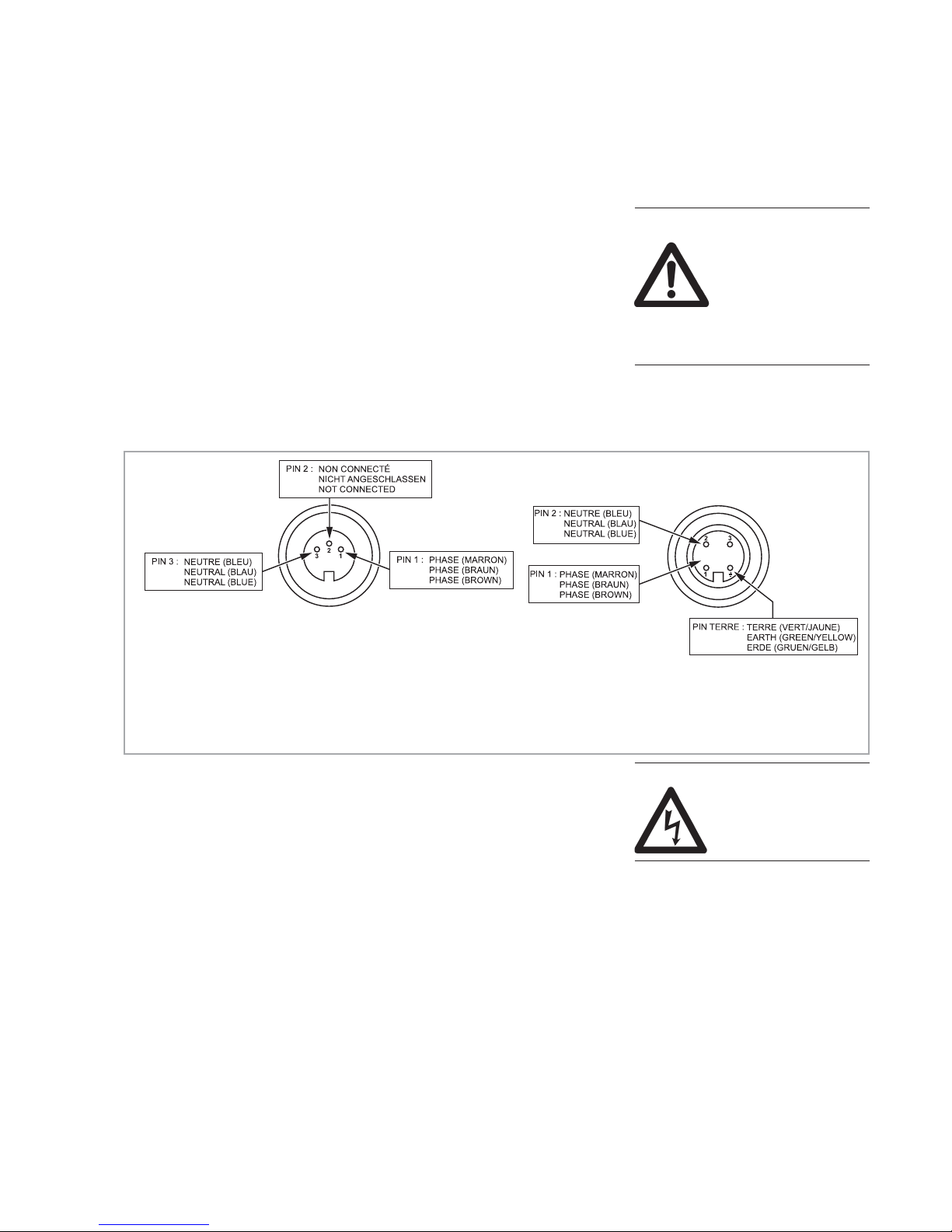

3.2 Electrical connections 11
3.3 Oil filling 12
4 Operation 13
4.1 Operation 13
4.2 Working in cycles in / out 14
4.3 Switching off / Shutdown 14
5 Maintenance 15
5.1 Safety Information 15
5.2 Maintenance Intervals 15
5.3 Oerlikon Leybold Vacuum Service 16
5.4 Maintenance Work 16
6 Troubleshooting 18
7 Spare parts 20
EC Conformance Declaration 24
Declaration of Contamination of Compressors,
Vacuum Pumps and Components 25

3GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Important Safety Information
Indicates procedures that must be strictly observed to prevent hazards to
persons.
Indicates procedures that must be strictly observed to prevent damage to, or
destruction of the product.
Emphasizes additional application information and other useful information
provided within these Operating Instructions.
The Oerlikon Leybold Vacuum Sogevac®SV40 BI has been designed
for safe and efficient operation when used properly and in accordance
with these Operating Instructions. It is the responsibility of the user to
carefully read and strictly observe all safety precautions described in
this section and throughout the Operating Instructions. The Sogevac®
SV40 BI must only be operated indoor in the proper condition and
under the conditions described in the Operating Instructions. If not,
the protection provided by the equipment may be impaired. It must be
operated and maintained by trained personnel only. Consult local, state,
and national agencies regarding specific requirements and regulations.
Address any further safety, operation and/or maintenance questions to
our nearest office.
Failure to observe the following precautions could result in serious
personal injury!
Sogevac®pumps are not designed:
■for pumping of dusty, aggressive, corrosive, flammable or explosive gases or
gases mixtures,
■for pumping of oxygen or other highly reactive gases with a greater
concentration than atmospheric concentration (>20%),
■for working in flammable, explosive or dusty environment.
For all these cases, special materials must be used. In case of doubt, please
contact Oerlikon Leybold Vacuum.
See also the limits of use indicated in the CE declaration of conformity.
Never expose part of the body to the vacuum. There is a danger of injury.
Never operate the pump with an open and thus accessible inlet. Vacuum
connections as well as oil filling and oil draining openings must not be open
during operation of the pump.
When operating pump is hot and some surfaces could reach a temperature
higher than 80 °C (176 °F). There is a risk of burn by touching.
Depending on the process involved, dangerous substances and oil may
escape from the pump. Take the necessary safety precautions !
Disconnect the unit from the power supply before starting any work.
Pump must not be operated above 2000 m sea level.
Safety Information
Warning
Caution
Note
Warning
Warning

4GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
These installation and operating instructions are valid for Waters use of the
Sogevac®pumps, model SV40 BI.
The Sogevac®vacuum pumps have been manufactured according to the
latest technical standards and safety regulations. If not installed properly or
not used as directed, dangerous situations or damages could occur.
It is mandatory that these operating instructions be read and understood
prior to vacuum pump installation and start-up.
The pump complies to the standard EN 61010-1-2004.
Take appropriate precautions to insure that the pump cannot start.
If the pump has pumped hazardous gases it will be absolutely necessary to
determine the nature of the hazard involved and take the appropriate safety
precautions.
Observe all safety regulations!
Take adequate safety precautions prior to opening the intake or exhaust port.
Failure to observe the following precautions could result in damage to
the equipment!
Liquid and solid particles must not enter the pump. Install the adequate
filters, separators and/or condensers. In case of doubt consult Oerlikon
Leybold Vacuum.
The intake line of the pump must never be connected to a device with over
atmospheric pressure. Design the exhaust line so that no pressure higher
than 1,15 bar abs. (0,15 bar rel.) can occur.
Operating of the pump without oil or operating with incorrect direction of
rotation can destroy the pump.
Never use discarded seals. Always assemble using new seals.
Respect the instructions concerning environment protection when discarding
used oil or exhaust filters!
The pump must be packaged in such a way that it will not be damaged
during shipping, and so that no harmful substances can escape from the
package.
We reserve the right to alter the design or any data given in these Operating
Instructions. The illustrations are not binding.
Caution : hot surface ! In normal operation, the pump surface temperature
can exceed 80°C. There is a risk of burning. Switch off the pump and let it
cool down before any intervention or take appropriate precautions.
Caution
Note
Safety Information
Warning
Warning
Caution

5GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
1 Description
Sogevac®pumps are designed for pumping of inert gases in the range of
rough vacuum, between atmospheric pressure and ultimate pressure of the
pump.
When removing condensable vapors, periodic opening of the gas ballast
valve is required.
1.1 Principle of operation
The Sogevac®pumps SV40 BI are single-stage oil-sealed rotary vane
vacuum pumps.
The rotor, having three slots in which the vanes are sliding, is eccentrically
installed in a pump cylinder (stator).
The vanes separate the interior space into 3 chambers. The volume of these
chambers varies with the rotation of the rotor.
The gas sucked into the inlet chamber is compressed and then pushed out
at the exhaust valve.
The oil injected in the inlet chamber guarantees the air-tightness, the
lubrication and cooling of the pump. It is dragged off by the compressed
gases and roughly separated by gravity when entering in the oil sump. A fine
separation is then operated in the exhaust filter. An internal transfer pushes
the collected oil back into the vacuum generator, the transfer is operated by
a float valve to avoid atmospheric air coming from the oil casing to the inlet
of the pump when no oil is present in the recovery system.
The oil circulation functions by differential pressures.
The pumps are equipped with a gas ballast valve for pumping condensable
vapors.
The anti suckback valve at the inlet flange avoids oil coming back into the
inlet line when the pump is stopped. This is valid for working pressures below
100 mbar and under the condition that the valve is kept clean and in good
condition. The anti suck
back valve is not a safety valve. If oil back flowing is to be avoided by all
means, it is necessary to mount a separate safety valve on the pump inlet.
Description

6GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
1.2 Technical characteristics
SV40 B
Technical data 50 Hz 60 Hz
Nominal pumping speed m3/h 42 50
Pumping speed (according to PNEUROP) m3/h at 2 mbar > 35 > 45
Ultimate partial pressure without gas ballast mbar ≤ 0,25 ≤ 0,25
Ultimate total pressure with small gas ballast mbar ≤ 0,8 ≤ 0,8
Water vapor tolerance:
■with small gas ballast mbar 10 10
Water vapor tolerable load:
■with small gas ballast kg.h-1 0,28 0,34
Noise level (according to DIN 46 635) dB (A) 60 (1φ)63 (1φ)
Motor power - Rated rotational speed kW - min-1 1,6-1500 1,9-1800
(1φ)(1φ)
Mains voltage (+/- 10 %) AC ~ V 200 240
Protection - Insulation IP 55 - F IP 55 - F
Leak rate mbar.I.s-1 <1 x 10-3 <1 x 10-3
Oil type / Capacity l LV0110 / 2x1
Intake connection 25KF
Exhaust connection Barbed fitting
0.5" ID tubing
See pump nameplate for further data.
Description

7GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Description

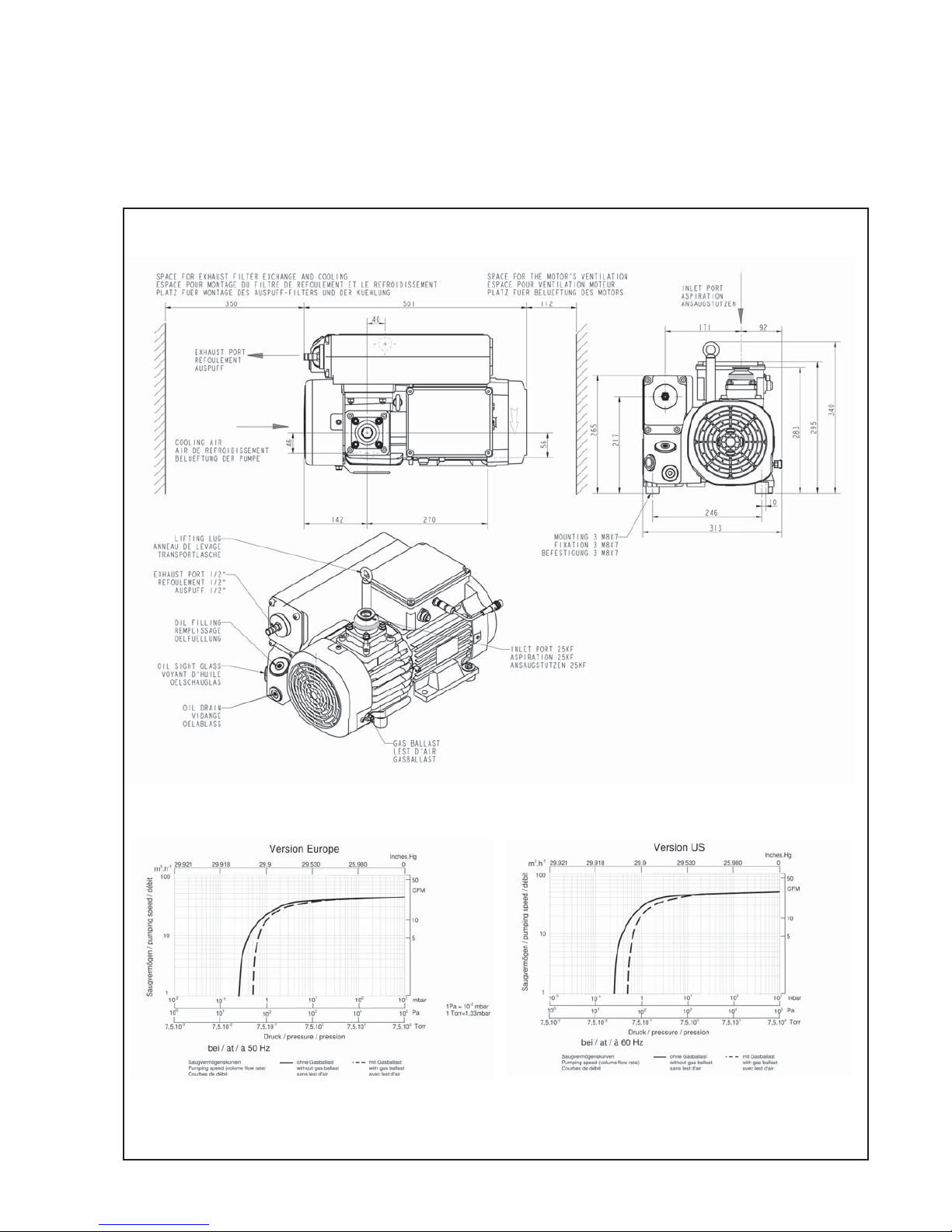

Pumping speeds curves SV40 B - SV65 B
fig. 1
SV40 BI
Pumping speeds curves SV40 BI
Pumpingspeed Pumpingspeed

8GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Description
1.3 Accessories
SV40 BI
Specification Cat. Nr.
Oil level switch 711 19 110
Temperature switch 9 714 32 820
Exhaust filter over 9 714 25 890
pressure switch
Exhaust filter over 951 94
pressure manometer
Oil drain tap 711 30 114
1.4 Lubricants
The Sogevac®SV40 BI pump should be run with a synthetic oil for vacuum
pumps with low viscosity according to ISO category VG32. The Oerlikon Leybold
Vacuum oil LV0110 corresponds to these prescriptions.
LV0110 oil: Conditioning Reference
1 l 9 714 50 502
Use only oil LV0110.

9GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Transport and storing
2 Transport and Storing
2.1 Transport and packaging
Sogevac®vacuum pumps pass a rigorous operating test in our factory and
are packaged to avoid transport damages.
Please check packaging on delivery for transport damages.
The outer package bears a shock indicator, turning red at 50 g. Should the
shock indicator have reacted, a transportation damage may have occurred
and the freight forwarder must be advised.
Packing materials should be disposed off according to environmental laws or
re-cycled. These operating instructions are part of the consignment.
The connection ports are blanked off by plastic protective caps or self-
adhesives. Take these caps or self-adhesives away before turning on the
pump.
The necessary oil is supplied in cans beside the pump.
2.2 Mounting orientation
See required space on drawings in paragraph 1.2.
Pumps which have been filled with oil must only be moved in the upright
position (horizontally). Otherwise oil may escape. The angle of slope may not
be over 10° max. Avoid any other orientations while moving the pump.
Only use the lifting lugs which are provided on the pump to lift the pump with
the specified lifting devices.
Make sure that these have been installed safety. Use suitable lifting
equipment. Make sure that all safety regulations are observed.
2.3 Storing
Before stocking the pump for a long time put it back in its original condition
(blank off inlet and exhaust ports with the shipping seals, drain the oil) and
store the pump in a dry place at room temperature.
Storage temperature: - 15°C to + 50°C.
Until the pump is put back in to service again, the pump should be stored
in a dry place, preferably at room temperature (20 °C - 168 °F). Before
taking the pump out of service, it should be properly disconnected from the
vacuum system, purged with dry nitrogen and the oil should be exchanged
too. The gas ballast must be closed and if the pump is to be shelved for
a longer period of time it should be sealed in a plastic bag together with a
desiccant (Silicagel).
If the pump has been shelved for over one year, standard maintenance must
be done and the oil must be exchanged too before the pump is put in to
service once more.
We recommend that you contact the service from Oerlikon Leybold Vacuum.
Caution

10 GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
3 Installation
It is essential to observe the following instructions step by step to ensure safe
start-up. Start-up may only be conducted by trained specialists.
The standard pump is not suitable for installation in explosion hazard ATEX
areas. Please contact us, if you are planning such an application. Before
installing the pump you must reliably disconnect it from the electrical power
supply and prevent the pump form running up inadvertently.
Observe all safety regulations.
3.1 Setting up
The pump must be set up or mounted horizontally on a flat surface. Special
mounting is not required.
The pump must be levelled within a tolerance of ± 2 degrees.
The following ambient operating environment must be observed:
■Pollution degree CSA 2
■Ambient temperature: 12 °C to 40 °C (54 °F to 104 °F),
■Ambient pressure = Atmospheric pressure.
■Rel. humidity ≤ 95 % without condensation
In order to avoid over-heating of the pump, an undisturbed fresh airflow to
the pump is necessary.
Additional warning note : consider changes in ambient temperatures that
might occur when air conditioning is turned down, such as nights and week-
ends.
Inlet connection
See safety instructions page 3.
■The inlet flange can be connected with a vacuum-tight flexible hose
and/or pipe.
■The pipes should cause no stresses on the pump’s flanges. If necessary,
compensators must be open.
■Restriction of the pipes must be avoided in order not to decrease the pumping
speed of the pump. The nominal diameter of the pipes has to be at least the
same as the diameter of pump’s inlet flange.
■When removing condensable vapors, a gas ballast valve must be open
periodically to avoid solvent build up in the oil.
■Additional warning note: additional air flow may be needed during ballast, as
this increases pump temperature.
■The inlet pressure must not be above atm. pressure.
See also indications on the CSA pump nameplate.
Warning
Caution
Warning
Installation

11GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
The electrical installation may only be conducted by a specialist. Local
regulations have to be followed.
Electrical connection work must only be carried out by a qualified electrician
in accordance with the applicable safety rules, see IEC 60204-1.
The motor must be protected by magnetic thermo breaker type GV2 ME14
adjustable from 6 to 10 A from Schneider Electric or similar.
For an operation at 50 Hz the breaker must be set at 8.5 A. For an operation
at 60 Hz the breaker must be set at 10 A.
Therefore, even if the pump is not operating, live voltage is present in the
motor connection box !
Voltage and frequency mentioned on the pump nameplate must agree with
the supply voltage.
.
Connection to exhaust side
■No valve or restricting devices should be installed in the exhaust line of the
pump. If an exhaust line is installed, it must at least have the same diameter as
the exhaust flange. It should be installed in a manner so that no condensate can
enter the pump (siphon, slope).
The maximum exhaust pressure must neither exceed 1.15 bar absolute (0.15
bar relative), nor fall under atmosphere pressure minus 15 mbar.
3.2 Electrical connections
Ensure that incoming power to the pump is off before wiring the motor or
altering the wiring.
Installation
Warning
Stecker des Schalterkabels.
Connection plug of relay cable.
Prise de connexion câble relais.
Leistungschluss am Motorschaltkasten.
Power socket on motor connection box.
Prise de puissance sur boîtier de connexion moteur.
fig. 2
Warning

12 GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
The motor connection box integrates an ON/OFF 24 VDC relay. The pump
operation is commanded with a 24 VDC signal lead through a dedicated
cable.
The final end product must provide a 24 VDC signal (protected by a 3 A fuse) for
the remote control power relay coil. This 24 VDC signal shall be generated by a
power supply complying to IEC 61010-1: 2001 (2nd Edition) double or reinforced
insulation requirements (equivalent standards requirements like IEC60950-1) are
acceptable.
3.3 Oil filling
For SV40 BI, the necessary oil is supplied in cans beside the pump.
To fill in the oil, unscrew the oil fill plug (58) and fill in until the oil level rea-
ches the “MAX” mark beside the oil sight glass. Typically the whole 1 l oil can
is used
Installation
Caution

13GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Operation
4 Operation
4.1 Operation
To avoid overloading the motor, do not start the pump more than 6 times
within one hour. If more than 6 starts per hour are necessary keep the pump
running and mount a valve which opens and closes into the intake line.
Take note of warning labels on the pump.
Pumping of non-condensable gases
If the pump system contains mainly non condensable gases, the pumps
should be operated without gas ballast.
If the composition of the gases to be pumped is not known and if
condensation in the pump cannot be ruled out, run the pump with gas ballast
valve open in accordance with section below.
Pumping of condensable gases and vapors
With the gas ballast valve open and at operating temperature, the Sogevac®
pumps can pump pure water vapor up to the values indicated in the
Technical Data.
The gas ballast valve is open by a hand lever. The running noise of the pump
is slightly louder if the gas ballast valve is open. Before pumping vapors
ensure that the pump has warmed up for approx. 30 min. with closed intake
line and with open gas ballast valve.
Don’t open the pump to condensable vapors until it has warmed to operating
temperature (approximately); pumping process gas with a cold pump results
in vapors condensing in the oil.
For processes with a high proportion of condensable vapors, the intake line
should be open only slowly after reaching the operating temperature.
One sign of condensation of vapors in the pump is a rise of the oil level
during operation of the pump.
When vapors are pumped, the pump must not be switched off immediately
after completion of the process because the condensate dissolved in the
pump oil may cause changes or corrosion. To prevent this, the pump must
continue to operate with open gas ballast valve and closed intake port until
the oil is free of condensate. We recommend operating the pump in this
mode for at least 30 min. after completion of the process.
Daily ballasting is recommended when continuously pumping larger volumes
of condensable vapors.
In cycle operation, the pump should not be switched off between the cycles
but should continue to run with gas ballast valve open and intake port closed
(if possible via a valve). Power consumption is minimal when the pump is
operating at ultimate pressure.
Once all vapors have been pumped off from a process (e. g. during drying),
the gas ballast valve can be closed in order to improve the ultimate pressure.
Note
Caution
Warning
Caution

14 GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
4.2 Working in cycles in / out
We recommend strongly to limit starting of the pump to 5 or 6 per hour.
If the process need it, we recommend utilization of a pneumatic or
electromagnetic valve and to let the pump run continously.
4.3 Switching off / Shutdown
The intake port of the Sogevac®pumps contains an anti-suckback valve
which closes the intake port when the pump is switched off, thus maintaining
the vacuum in the connected apparatus and preventing oil from being
sucked back into the apparatus. The valve’s functioning is not impaired by
gas ballast operation.
If the pump has to be shutdown, drain the oil flush out the pump with
fresh oil and fill in the required amount of clean oil (see § 5.4). Close the
connection ports. Special preservation or flushing oils do not need to be
used.
When the pump has been switched off due to over heating, initiated by the
motor or its temperature detector, the pump must be cooled down to the
ambient temperature, and must only be switched on again manually after
having eliminated the cause.
In order to prevent the pump from running up unexpectedly after a mains
power failure, the pump must be integrated into the control sytem in such a
way that the pump can only be started by a manually operated switch. This
applies equally to emergency cut-off switches.
In case of switching processes in connection with a pump which has warmed
up under operation conditons, the pump must then not be directly switched
on again.
Operation
Caution

15GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Maintenance
5 Maintenance
5.1 Safety Information
Observe all safety regulations.
All work must be done by suitably trained personnel. Maintenance or repairs
carried out incorrectly will affect the life and performance of the pump and
may cause problems when filling warranty claims.
Never mount used seals; always mount new seals.
5.2 Maintenance Intervals
The intervals stated in the maintenance schedule are approximate values for
normal pump operation. Unfavourable ambient conditions and/or aggressive
media may significantly reduce the maintenance intervals.
Maintenance job Frequency Section
Check the oil level Daily A
1st oil change After one year of B
operation
Subsequent oil changes After one year of B
operation
Exhaust filter replacement Annually C
Gas ballast valve Monthly checking D
Inlet flange sifter Annually E
cleaning
Anti-suck back valve checking Annually F
Fan cover cleaning Annually G
Electrical connection Annually
checking (only by a specialist)
In order to simplify the maintenance work we recommend to combine several
jobs.
Warning
Caution

16 GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
5.3 Oerlikon Leybold Vacuum Service
Whenever you send us in equipment, indicate whether the equipment is
contaminated or is free of substances which could pose a health hazard.
If it is contaminated, specify exactly which substances are involved. You must
use the form we have prepared for this purpose.
A copy of the form has been reproduced at the end of these Operating
Instructions: “Declaration of Contamination for Compressors, Vacuum Pumps
and Components”. Another suitable form is available from
www.oerlikon.com →Oerlikon Leybold Vacuum Systems →Documentation
→Download Documents.
Attach the form to the equipment or enclose it with the equipment.
This statement detailing the type of contamination is required to satisfy legal
requirements and for the protection of our employees.
We must return to the sender any equipment which is not accompanied by a
contamination statement.
The pump must be packaged in such a way that it will not be damaged
during shipping, and so that no harmful substances can escape from the
package.
When disposing of used oil, please observe the relevant environmental
regulations.
5.4 Maintenance Work
Checking the oil
A. Oil level
The oil level shall be checked at least once a day and must be, while the
pump is in operation, close to the MAX marks. Should the oil level be below
the MIN mark switch off the pump, check it (see chapter 4) and add the
required amount of oil.
Oil level may drop when pump is operating due to oil distribution in the
pump.
B. Oil Change
Oil must be changed after the first year of service. Further oil changes must
be done annually. If there is considerable pollution, it could be necessary to
change the oil more frequently.
Oil changing must be done with a switched off and still warm pump. Open
the oil drain plug and let the used oil run out into an appropriate container.
Refasten the oil drain plug when oil runs slowly. Switch ON the pump briefly
(5 sec. max.) and switch OFF immediately. Reopen the oil drain plug and
drain the rest of the oil.
Additional warning note: more frequent oil changes may be necessary if the
ambient temperature is above 30 °C.
Before refastening the oil drain plug, inspect the o-ring and verify that it is
free of particulate and is seated properly. Replace if necessary.
The pump should be "flushed" if there is considerable pollution.
Caution
Formulaire
Contamination
Maintenance

17GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Maintenance
To flush the pump, for clean oil up to the minimum level, let the pump run for
a few minutes and drain the oil. Install a full charge of oil, 1 liter.
C. Replacing the exhaust filters
Oil mist escaping from the exhaust during operation indicates that the filter
is probably clogged. Increased energy intake by the motor could also be
the result of a soiled exhaust filter. Open the exhaust hood, take out the filter
and replace it. Also check the gasket of the exhaut flange and change it if
necessary.
D. Gas ballast valve cleaning
To clean the gas ballast valve, disassemble the fan cover and the fan.
Unscrew the lateral pressure screw, remove the plug and the gas ballast
valve by using an appropriate M10 screw screwed in the valve by pulling on
the screw.
Clean the membrane, the seat and the RILSAN tube.
Reassemble in the reverse sequence.
E. Inlet flange sifter cleaning
To clean the inlet flange sifter, disconnect the inlet flange and clean the sifter
with blast air or an appropriate solvent.
F. Anti-suck back valve checking
The anti-suck back valve should be checked at the same time as the inlet
flange sifter and if dirty, be cleaned with an appropriate solvent.
Also check, if there is no damage on the sealing part of the valve.
G. Fan cover cleaning
Soiling of the fan cover may lead to overheating of the motor and the pump.
Put off the cover and clean it with blast air.
Before starting the pump again, be sure that the cover has been
reassembled.
H. Checking the float valve
When replacing the exhaust filter, check the cleanliness and the proper
operation of the float valve. After having disassembled the exhaust flange
and oil casing, remove screw (pos. 57d), pull on the float valve (pos. 57),
clean the nozzle and check that the float itself oscillates free around its
axle and that the valve is tight. Clean the float chamber of the oil casing.
Reassemble in the reverse sequence.

18 GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Troubleshooting
6 Troubleshooting
Fault Possible cause Remedy Reference
section *
Pump does not Pump is connected incorrectly. Connect the pump correctly. 3.3
start. Motor protection switch incorrectly set. Set motor protection switch properly. 3.3
Operating voltage does not match motor. Replace the motor.
Motor is malfunctioning. Replace the motor.
Oil temperature is below 12 °C (54 °F). Heat the pump and pump oil or use 1.4
different oil.
Oil is too viscous. Use appropriate oil grade. 5.4-B
Exhaust filter / exhaust line is clogged. Replace the filter or clean the exhaust line. 5.4-D
Pump does not External leak Repair the pump.
reach ultimate Float valve does not close. Repair the valve. 5.4-H
pressure. Anti-suckback valve is malfunctioning. Repair the valve. 5.4-F
Inadequate lubrication due to:
■unsuitable or contaminated oil, Change the oil (degas it, if necessary). 5.4-C
■clogged oil filter, Replace the oil filter. 5.4-C
■clogged oil lines. Clean the oil casing.
Vacuum lines are dirty. Clean vacuum lines.
Pump is too small. Check the process date; replace the
pump, if necessary.
Pumping speed is Dirt trap in the intake port is clogged. Clean the dirt trap ; 5.4-E/1.2/3.2
too low. Precaution : install a dust filter in intake line.
Exhaust filter is clogged. Install new filter elements. 5.4-D
Connecting lines are too narrow or Use adequately wide and short 3.2
too long. connecting lines.
Anti-suckback valve is hard to open. Check spring free length.
After switching off System has a leak. Check the system.
pump under Anti-suckback is malfunctioning. Repair the valve. 5.4-F
vacuum, pressure
in system rises
too fast.
Pump gets too Cooling air supply is obstructed. Set pump up correctly. 3.1
hot Cooler is dirty. Clean the cooler.
Ambient temperature is too high. Set pump up correctly. 3.1
Process gas is too hot. Change the process.
Oil level is too low. Add oil to reach the correct oil level. 5.4-C
Oil is unsuitable. Change the oil. 5.4-C
Oil cycle is obstructed. Clean or repair the oil lines.
Exhaust filter / exhaust line is obstructed. Replace the exhaust filter, clean the 5.4-D
exhaust line.
Pump module is no longer usable. Replace the pump module. 5.4-K

19GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Troubleshooting
Fault Possible cause Remedy Reference
section *
Oil in intake line Oil comes from the vacuum system. Check the vacuum system.
or in vacuum Anti-suckback valve is obstructed. Clean or repair the valve. 5.4-F
vessel. Sealing surfaces of anti-suckback valve Clean or repair the intake port and valve. 5.4-F
are damaged or dirty.
Oil level is too high. Drain the excess oil. 5.4-B
Pump’s oil Exhaust filters are clogged or damaged. Replace the filters. 5.4-C
consumption too Nozzle of float valve is clogged. Check the valve, clean the nozzle. 5.4
high, oil mist at Oil level is too high. Drain the excess oil. 5.4-B
exhaust.
Oil is turbid. Condensation. Degas the oil or change the oil and clean 4.1/5.4-B
the pump.
Precaution : open the gas ballast valve or
insert a condensate trap.
Clean the gas ballast intake filter. 5.4-G
Pump is Oil level is very low Add oil. 5.4-B
excessively noisy. (oil is no longer visible).
Oil filter is clogged. Change the oil and filter. 5.4-B
Large vacuum leak in system. Repair vacuum leak.
Contact Oerlikon Leybold Vacuum.
* Reference section : This column refers to the section in the Operating Instructions that contains the applicable repair information.
Never mount used seals. Always mount new seals.

20 GA02329_002_03 - 01/2010 - © Oerlikon Leybold Vacuum
Spare parts
7 Spare parts
To guarantee safe operation of the Oerlikon Leybold Vacuum pump, only
original spare parts and accessories should be used. When ordering spare
parts and accessories, always state pump type and serial number. You can
find part numbers in the spare parts list.
Consumables and main spare parts kits for Sogevac®pumps are usually
available on stock at Oerlikon Leybold Vacuum’s service centers. The list of
these parts is given hereafter and in the spare parts table where the contents
of each kit is detailed.
■Exhaust demisters
■Oil
■Service kit
■Set of seals
■Repair kit
We recommend to use these kits which have been defined to allow an
optimal maintenance or repair. Individual spare parts may need longer
delivery time.
