Service Guide OKIPAGE 10e
Chapter 0 Introduction
Introduction
This Service Handbook describes the field maintenance methods for OKIPAGE 10e Digital LED Printer. This manual is
written for use by the maintenance personnel. Please note that you should refer to the Printer Handbook and Printer
Setup for the handling and operating methods of the equipment.
Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)

Page: 2
Service Guide OKIPAGE 10e
Chapter 1 Specifications
1.1 System Configuration
OKIPAGE 10e consists of control and engine blocks in the standard configuration, as shown in Figure 1-1.
In addition, the options marked with asterisk (*) are available.

Figure 1-1

Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)

Page: 3
Service Guide OKIPAGE 10e
Chapter 1 Specifications
1.2 Printer Configuration
The printer unit consists of the following hardware components:
Electrophotographic Processorl
Paper Feederl
Controllerl
Operator Panell
Power Supply Unitl
The printer unit configuration is shown in Figure 1-2.

Figure 1-2
Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)

Page: 4
Service Guide OKIPAGE 10e
Chapter 1 Specifications
1.3 Optional Configuration

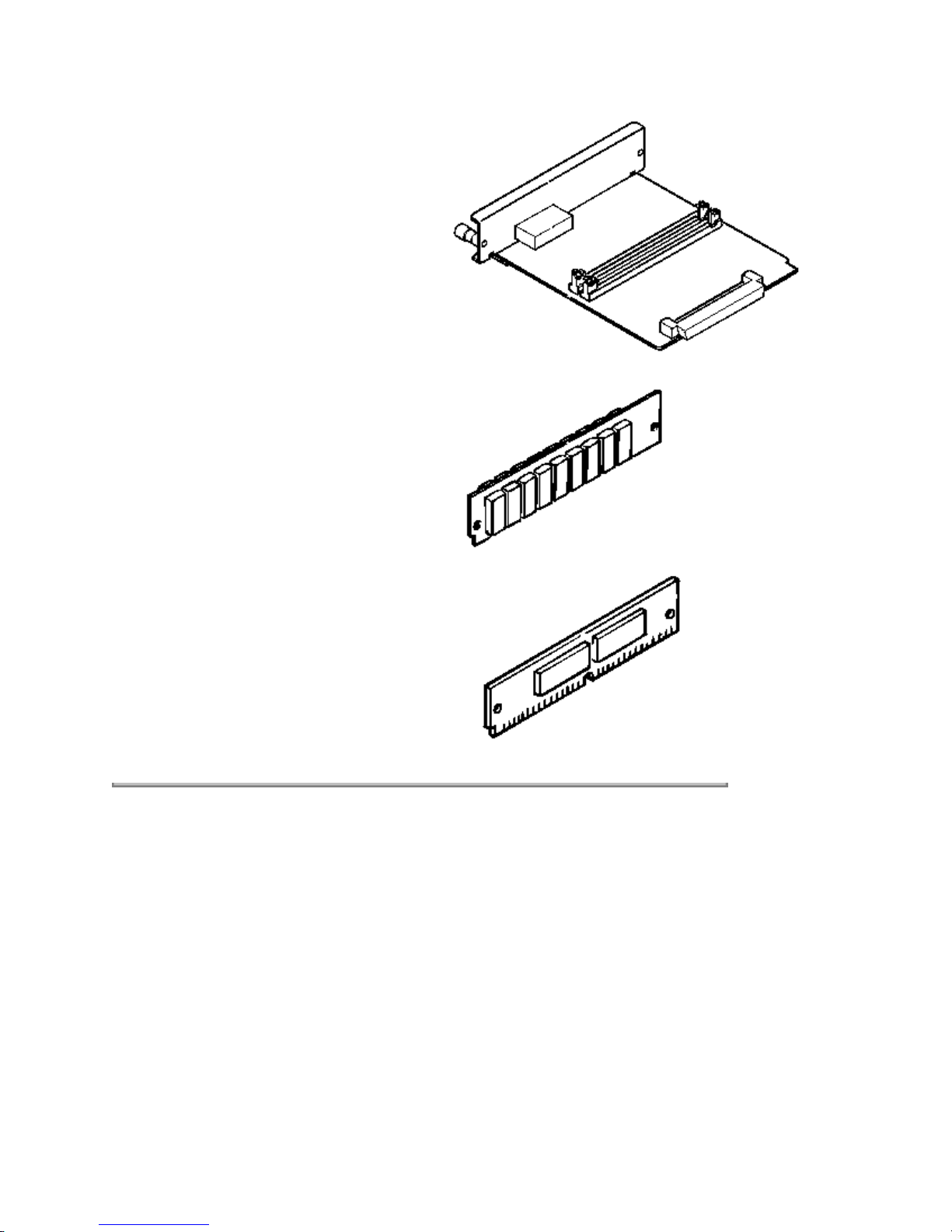

The options shown below are available for use with OKIPAGE 10e. These are available separately from the printer unit.
(1) High Capacity Second Paper Feeder
(2) Multi-Purpose Feeder
(3) 1 MB Memory Expansion Board

(4) RS-232C Serial Interface Board
(5) DRAM SIMM Memory
DRAM SIMM memory is available with
memory of 2, 8, 8, 16 or 32 MB. The access
time of SIMM memories are 60ns, 70ns,
80ns, and 100ns.
(6) Flash SIMM
Flash SIMM is available with memory of 4 MB
and 8 MB.
Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)

Page: 5
Service Guide OKIPAGE 10e
Chapter 1 Specifications
1.4 Specification
(1) Type: Desktop
(2) Outside dimensions Height: 7.9" (200 mm)
Width 13.0" (330 mm)
Depth 15.6" (395mm)
(3) Weight 22 lbs. (10 kg)
(4) Development method
Exposure method Dry electrophotography LED stationary head
(5) Paper used <Type>
Standard paperl
- Xerox 4200 (20 lbs)
Application paper (manual face-up feed)l
- Label
- Envelope
- OHP paper (Transparency)
<Size>
Standardl
Letter
Legal * [*Without Mutli-Purpose Feeder (Option)]
Legal-13*
Executive
-COM-10** [**manual feed and Multi-Purpose Feeder (Option)
only]
Monarch**
DL**
C5**
A4
A5
B5 (JIS)
A6
Applicable sizesl
- Width: 3.87" x 8.5" (116 to 216 mm)
- Length: 5.83" to 14" (148 to 355.6 mm)
<Thickness>
- Automatic feed: 16 to 28 lbs (60 to 135 g/m2)
- Manual feed: Label, OHP paper (transparency), Envelope (24 to
28 lbs.)

(6) Printing speed: Continuous print: 10 pages per minute with Letter size paper.
[Except Second Paper Feeder (8.8 PPM), Multi-Purpose Feeder
(8.3 PPM)]
Warm-up time: 60 seconds typical at room temperature [68oF (20o
C), AC 120/230 V].
First print: 12 seconds typical for the Letter size paper after
warm-up
(7) Paper feeding method Automatic paper feed or manual paper feed
(8) Paper delivery
method Face down/face up
(9) Resolution 300 x 300 dots/inch (true)
300 x 1200 dots/inch (graphics)
(10) Power input 120 VAC + 5.5%, -15%
230 VAC +/- 10%
(11) Power consumption Peak: Approx. 460W
Typical operation: Approx. 215W
Idle: Approx. 61W
Power save mode: Approx. 18W
(12) Temperature and
humidity
In operation Power off mode During Storage Unit
Temperature 50-90
(10-32) 32-110 (0-43) 14-110 (-10-43)
oF
oC
Humidity 20-80 10-90 10-90 %RH
Maximum wet bulb
temperature 77 (25) 80.4 (26.8) ----- oF
oC
Minimum difference
between wet and
dry bulb
temperatures
35.6
(2) 35.6 (2) ----- oF
oC
1. Storage conditions specified above apply to printers in packed condition.
2. Temperature and humidity must be in the range where no condensation occurs.
(13) Noise During operation: 50 dB (A) or less
Standby: 38 dB (A) or less
Quite mode: Back ground level
(14) Consumables Toner cartridge kit - 2,000 (5% duty) ---- 45g cartridge kit
Image drum cartridge - 20,000 (at continuous printing); 14,000 (3
page/job) without Power Save
Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)

Page: 6
Service Guide OKIPAGE 10e
Chapter 1 Specifications
1.5 Safety Standards
1.5.1 Certification Label
1.5.2 Warning Label
1.5.3 Warning/Caution Marking
Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)

Page: 7
Service Guide OKIPAGE 10e
Chapter 1 Specifications
1.5.1 Certification Label
The safety certification label is affixed to the printer in the position described below.
Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)

Page: 8
Service Guide OKIPAGE 10e
Chapter 1 Specifications
1.5.2 Warning Label
The warning labels are affixed to the sections which may cause bodily injury.
Follow the instructions on warning labels during maintenance.
Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)

Page: 9
Service Guide OKIPAGE 10e
Chapter 1 Specifications
1.5.3 Warning/Caution Marking
The following warning and caution markings are made on the power supply/sensor board.
ENGLISH - Heatsink and transformer core present risk of electric shock. Test before touching.
FRENCH - Le dissipateur thermique et le noyau du transformateur présentent des risques de choc électrique. Testez
avant de manipuler.
SPANISH - Las disipadores de color el núcel del transformador pueden producir un choque eléctrico. Compruebe antes
de tocar.
PORTUGUESE - O dissipador de calor e o núcleo do fransiormador apresentam risco de choque elétrico. Teste antes de
focar.
ENGLISH - Circuits maybe live after fuses open.
FRENCH - Il se peut que les circuits soient sous tension une fois que les fusibles ont éfé rerirés.
SPANISH - Las circuitos pueden estar activos una vez que se hayan abierio los fusibles.
PORTUGUESE - Os circuitos podem estar energizados após os fusiveis se queimarem.

Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange
(BPX) for any updates to this material. (http://bpx.okidata.com)
