iv Okipage 10e

English
Setup Guide 1
Safety instructions
This printer has been carefully designed to give years of
safe, reliable performance. As with all electrical equip-
ment, however, there are a few basic precautions that
should be taken to avoid personal injury or damaging
the printer:
• Read this setup guide carefully and save it for
future reference.
• Read and follow all warning and instruction
labels on the printer itself.
• Disconnect the printer before cleaning. Use only
a damp cloth. Do not use liquid or aerosol clean-
ers to clean the printer.
• Place the printer on a firm, solid surface. If the
printer is placed on something unsteady, it may
fall and become damaged or injure someone. If
the printer is placed on a soft surface, such as a
rug, sofa, or bed, the vents may become blocked
causing the printer to overheat.
• Do not put the printer on or near a heat source,
such as a radiator or heat register. Keep it out of
direct sunlight. Allow enough room around the
printer for adequate ventilation and easy access.
• Do not use the printer near water, or spill liquid
of any kind into it.
• Make sure that the power source matches the rat-
ing listed on the back of the printer. If you are not
sure, check with your dealer or with your local
power company.
• This printer has an earthed, 3-pin plug as a safety
feature and will only connect to an earthed outlet.
If this plug cannot be connected to a power outlet,
then it is possible that the power outlet is of the
older, non-earthed type. Contact an electrician to
have the power outlet replaced. Do not use an
adapter to defeat the earthing.
• To avoid damaging the power cable, do not put
anything on it or place it where it will be walked
on. If the cable becomes damaged or frayed,
replace it immediately.
• If an extension cable or power strip is being used
with the printer, make sure that the total of the
amperage rating required by all the equipment is
less than the rating of the extension cable or
power strip. The total ratings of all equipment

2Okipage 10e
plugged into the outlet should not exceed 13
amperes.
• The power outlet into which the printer is con-
nected must remain accessible at all times.
• Opening any cover may expose hot surfaces.
These are clearly labelled. Do NOT touch them.
• Do not insert anything into the ventilation slots
on the printer; you could get a shock or cause a
fire.
• Aside from the routine maintenance described in
this user’s guide, do not try to service the printer
yourself. Opening a cover may expose you to
shocks or other hazards.
• Do not make any adjustments other than those
outlined in this users guide as damaged may be
caused to the printer.
If anything happens that indicates that the printer is not
working properly or has been damaged, disconnect the
printer from the power source and contact your dealer.
These are some of the things to look for:
• The power cable or plug is frayed or damaged.
• Liquid has been spilled into the printer, or it has
been exposed to water.
• The printer has been dropped, or the cabinet is
damaged.
• The printer does not function normally when fol-
lowing the operating instructions.
Toner cartridge & image drum handling
• Leave unused toner cartridges and image drum
units in their packages until needed. When
replacing a toner cartridge or image unit, reuse
the packaging to dispose of the old toner cartridge
or image drum unit.
• Do not expose the toner cartridges and image
drum units to light for more than five minutes.
Never expose the green drum (inside the image
drum unit) to direct sunlight.
• Always hold the image drum unit by the ends -
never by the middle. Never touch the green drum
inside the image drum unit.
• To avoid damage to the image drum unit, always
use original toner cartridges.
• Exercise care when removing the toner cartridge.
Do not let it touch your clothing or porous mate-
rials. The toner powder causes permanent stains.

English
Setup Guide 3
• Small amounts of toner spilled on skin or cloth-
ing can be readily removed with soap and cold
water. Using heated water will make removing
the stain much more difficult.
Emergency first aid
•IF TONER IS SWALLOWED: Induce vomit-
ing and seek medical attention. Never attempt to
induce vomiting or give anything by mouth to a
person who is unconscious.
•IF TONER IS INHALED: Take the person to an
open area for fresh air. Seek medical attention.
•IF TONER GETS IN THE EYES: Flush eyes
with large quantities of cool, NOT cold, water for
a minimum of 15 minutes keeping eyelids open
with fingers. Seek medical attention.

4Okipage 10e
Printer features
• LED 10ppm Page Printer
• 300 dpi LED head with a maximum resolution of
600 × 600 dpi
• HP LaserJet 6p (PCL6) compatible
• Additional emulations for IBM ProPrinter XL
and Epson FX
• 4Mb memory standard
• High speed, bi-directional parallel interface
(IEEE-1284)
• Fast RISC processor for speedy printing (MIPS
R3000)
• Enhanced memory management to print more
graphics with less memory
• Advanced power saving mode; printer idles on
minimum power to save energy
• 45 scalable fonts and 1 bitmap font
• Paper output 150 sheets face down, 50 sheets face
up
• Paper input tray capacity 250 sheets
• Paper weight – 60 to 120g/m²
• Standard manual feed for card stock, envelopes,
transparencies, etc.
• Works with recycled paper
• Duty Cycle – up to 15 000 pages per month
• Printer life – 180,000 pages or five years
Optional accessories
• 500 sheet universal second paper tray
• 100 sheet/50 envelope Multi-Purpose Feeder
• SIMM modules for expanding memory
• RS232C Serial interface card (10BaseT needs to
be removed if already fitted)

English
Setup Guide 5

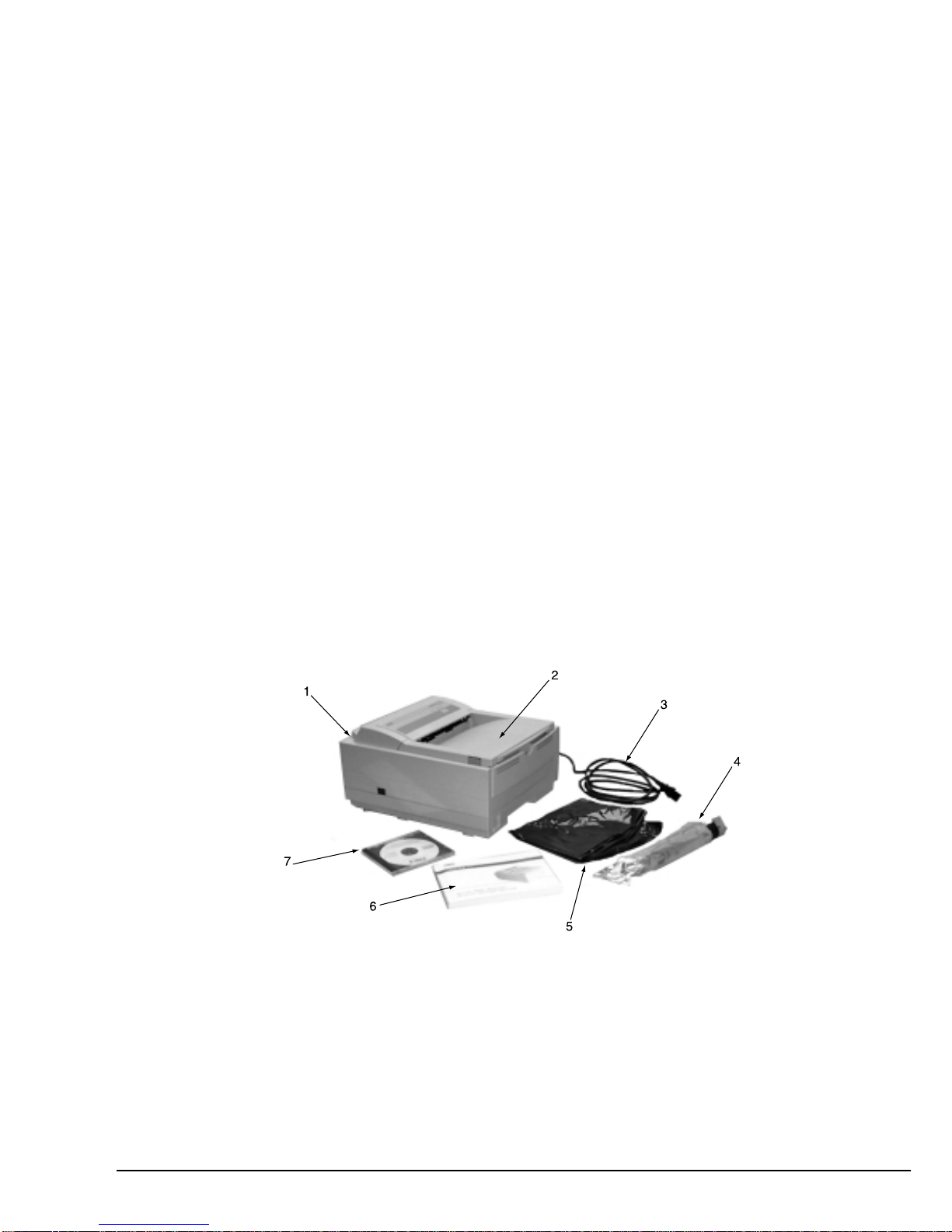

Unpacking
After unpacking the printer and choosing a suitable
place to put it, check that you have all the necessary
parts to continue:
1. Printer
2. Image drum cartridge (already installed inside the
printer)
3. Power cable
4. Toner cartridge
5. Lightproof plastic bag (for storing image drum if
printer must be shipped).
6. Setup guide
7. CD-ROM containing printer drivers and docu-
mentation.
If anything is missing, contact your dealer for a replace-
ment.

6Okipage 10e

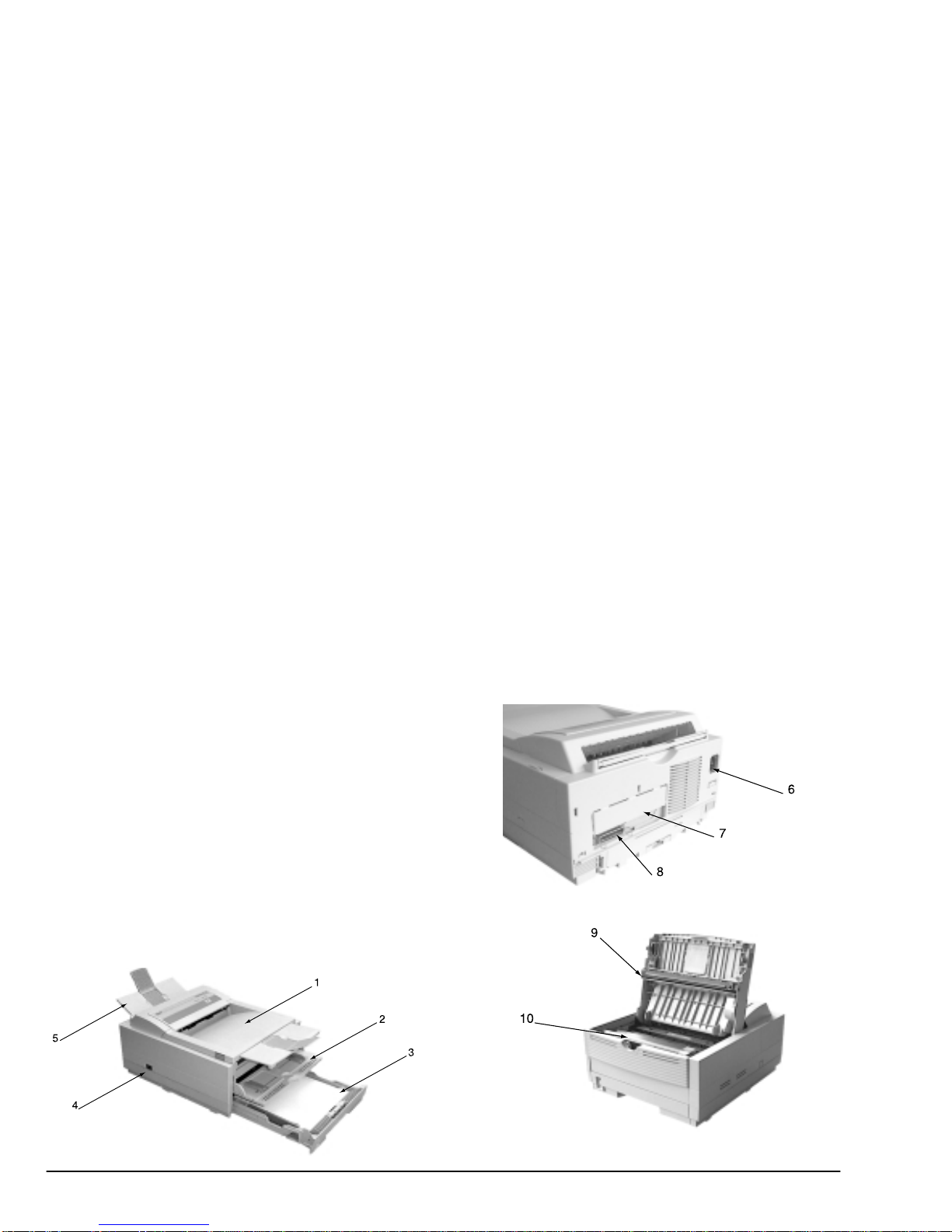

Printer components
1. Top paper exit bin.
2. Manual feed tray.
3. Automatic paper feed tray.
4. Power switch.
5. Rear paper exit tray.
6. Power cable connection.
7. Optional card slot.
8. Bi-directional parallel interface port.
9. LED array.
10. Image drume with toner cartridge installed.

English
Setup Guide 7
Setting up
Before connecting this printer to a PC and power sup-
ply, the toner cartridge must be installed and paper in-
serted in the paper tray.
Protective sheet removal
1. Remove any adhesive tape and packaging from
the printer. Press both release buttons (1) and
open the cover.
CAUTION:
Never expose the image drum unit to light for more than 5
minutes. Never expose the image drum unit to direct sun-
light. Always hold the image drum unit by the ends. Never
touch the surface of the green drum inside the image drum
unit.
2. Remove the image drum (1) from the printer.
3. Remove the protective sheet (1) from the image
drum (2).
4. Replace the image drum.

8Okipage 10e
Toner cartridge installation
WARNING
Be careful when handling the toner cartridge. Do not let
toner spill on your clothing or other porous materials.
1. Remove the sponge packaging (1) from the
image drum and discard.
2. Shake the toner cartridge to evenly distribute
toner.
3. Unwrap the new toner cartridge and carefully
peel off the sealing tape (1).
4. Insert the cartridge into the printer, left end (1)
first as illustrated.
5. Push the coloured tab forward to release the toner
into the toner hopper.
6. Close the printer cover.

English
Setup Guide 9
Paper installation
Note:
Please refer to the user guidefor the types of pa-
per to use in this printer.
1. Remove the paper tray from the bottom of the
printer and place plain paper in the tray, keeping
the level of the paper in the tray below the guide
marks (1).
2. Adjust the rear paper support (2) to the size of
paper you are using by lifting up and sliding for-
wards or backwards as necessary.
3. Adjust the paper guides (3).
4. Replace the tray in the printer. The paper level
indicator (4) provides a visual indication of how
much paper is left in the tray.
Printer connection
CAUTION:
Make sure the printer is disconnected from the power sup-
ply and the computer is turned off.
1. Connect the interface cable into the parallel
socket (1) on the printer.
Note:
The parallel cable should support bi-directional
communication and must be shielded.
2. Connect the power cable into the power socket
(2) on the printer, then into a grounded outlet.
3. Switch the printer on using the main power
switch (3).

10 Okipage 10e
4. All four LED indicators momentarily come on as
the printer initialises. The Power On LED indica-
tor stays on and the Ready LED indicator comes
on when the printer has initialised.

English
Setup Guide 11
Printer driver installation
A printer drive is software which runs on a computer af-
ter installation. It passes data from software programs
and applications suitable formatted so that the printer
can understand and produce a printed page(s). This
printer comes with a CD-ROM that contains printer
drivers for Windows.
Windows users should use the printer drivers that have
been supplied with the printer for best results. These
have been designed specifically for this printer and will
make best use of all its features.
If using other operating systems, select a printer driver
designed for use with HP LaserJet for the best results.
Installation of the printer driver for Windows is as fol-
lows:
1. Insert the CD-ROM supplied with the printer into
your CD-ROM drive.
2. The setup program should Autostart. Follow the
on screen instructions, selecting the components
and drivers for the printer to be installed.
3. If the setup program does not Autostart, click on
Start - Run. In the command line box type
d:\setup and click OK. Then follow the on screen
instructions, selecting the components and drivers
for the printer to be installed.
Note:
It is assumed that your CD-ROM drive is D:\. If
your CD-ROM drive has a different letter as-
signed, then please use that letter.
4. For the latest information, please refer to the
README file on the CD-ROM.

12 Okipage 10e
Printer status monitor
When installing the printer driver, a status monitor is
also installed to indicate what is happening to the print-
er when it is being used. The status monitor is also used
to control and change the printer settings through the
computer that the printer is connected to.

English
Setup Guide 13
Index
C
Connection
Interface cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
F
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
O
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . .4
P
Paper
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Paper types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Printer
Component identification . . . . . . . . . . . . . . . . . . . .6
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . .4
Setting up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Status monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Printer driver
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Windows 95/98. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Windows NT 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . 11
Protective sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
S
Setting up
Paper installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Printer connection. . . . . . . . . . . . . . . . . . . . . . . . . . 9
Protective sheet removal . . . . . . . . . . . . . . . . . . . . 7
Toner cartridge installation . . . . . . . . . . . . . . . . . . 8
Status monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
T
Toner cartridge installation . . . . . . . . . . . . . . . . . . . . . . 8
U
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

14 Okipage 10e
OKI SYSTEMS COMPANIES
Oki Systems (UK) Limited
550 Dundee Road
Slough Trading Estate
Slough
Berks SL1 4LE
Tel: [phone]
Fax: [phone]
http://www.oki.co.uk
Oki Systems (Ireland) Limited
The Square Industrial Complex
Tallaght
Dublin 24
Tel: [phone]
Fax: [phone]
http://www.oki.ie
Hawthorn Business Centre
Adelaide Industrial Estate
Falcon Road
Belfast BT12 6HP
Tel: [phone]
Fax: [phone]
http://www.oki.ie
