Okina USA HD21DX36-K10 User manual

HDC-5_HDC-6
Copyright © 2013. All Rights Reserved. R201310-V22
HD21DX36-K10
HD21DX36-K4
HD SDI 1080p Optical Zoom & Auto Focus
36 IR LED Indoor Dome Camera
USER MANUAL
Auto ZF Camera  Made in Korea
Auto ZF Lens  Made in Korea
FEATURES
•SDI 1080p - 1920 x 1080
•1/3" Panasonic CMOS
•HD21DX36-K10: Auto IRIS Twin Stepping Motorized Lens - 10X Zoom - 5-50mm
•HD21DX36-K4: Auto IRIS Twin Stepping Motorized Lens - 4X Zoom - 2.8~12mm
•36 OSRAM IR LED – IR Distance: 100ft / 30m
•Mechanical IR Cut Filter - ICR
•OSD and RS485
•520mA max @ IR Off; 700mA max @ IR On
•Dual Power 12V DC / 24 V AC
International Patent Registered:
PCT/KR2011/007613 & 7656 & 8080
4x/10x Various Auto DC IRIS Twin stepping Motorized
Varifocal Lens with Dual Filter change mechanism F1.4
Due to the Twin Motorized AF Lens, we recommend to use
12V DC 1.5A / 1500mA for each camera.

2
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union
and other European countries with separate collection systems).
This symbol on the product or on its packaging indicates that this product shall not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the product.
CAUTION
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this may damage the pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling could damage the camera.
3. Requires a proper operating environment
This camera is designed for indoor use. The allowable temperature range for operation of this camera is
between 14°F ~ 144°F / -10°C ~ 60°C.
4. Clean the front face or lens
It is recommended that the surface be cleaned every 3~6 months. Cleaning should be done by using a
chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator and ethanol to carefully remove
any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified range. (Camera must meet the specifications).
Camera must be connected to a surge protector at all times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may touch dangerous voltage points of short out
parts that could result in a fire or electric shock. Never spill any kind of liquid on the video product.
7. Servicing
Do not attempt to service this video product by yourself as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.
Please read the Manual before attempting to use this product.
Specifications and appearance are subject to change without notice.

3
8. Damage requiring service
Unplug this video product from the wall outlet and refer service to qualified servicing personnel under
the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product has been dropped or the cabinet has been damaged.
e. When the video product exhibits a distinct change in performance.
LIMITED WARRANTY
OKINA USA products are covered under warranty for three (3) years from the date of purchase.
The warranty will automatically be voided if any of the following occurs:
1. Camera sticker is removed
If the camera sticker is removed, we will not be able to confirm any information regarding when and
where the product was purchased. We have no other way to verify the purchase record without the
serial number on the camera sticker; therefore, it should not be removed.
2. Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner not described in this manual, the warranty
will be voided immediately. It is the customer’s responsibility to keep the camera in good condition.
3. Video or power cable is cut
The video cable and the power cable should not be tampered with. Cutting or modifying of the cables
will result in termination of the warranty.

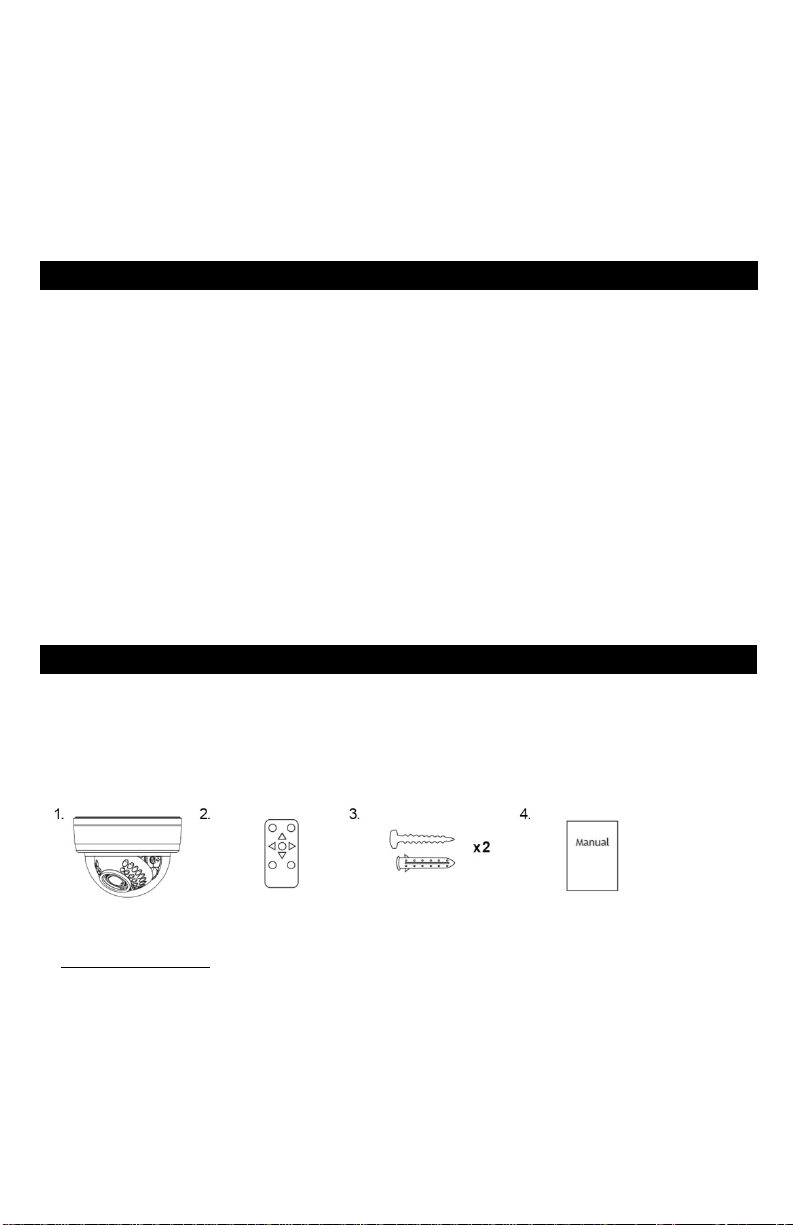

PACKAGE CONTENTS
1. One (1) HD21XD36-K10 / HD21XD36-K4 Camera
2. One (1) RF Remote Control w/ Battery
3. Two (2) Wall Mount Screws w/ Wall Anchors
4. One (1) User Manual
* For any returns, please include all components listed above with original packaging in
Resalable Condition. Absolutely No Returns will be accepted if any component is
missing/damaged.

4
DIMENSIONS (Unit: inches / mm)
#1 HD-SDI (Gold)
#2 POWER (Red)
#3 RS485
Orange (+), White (  )
PELCO D 9600bps connection

5

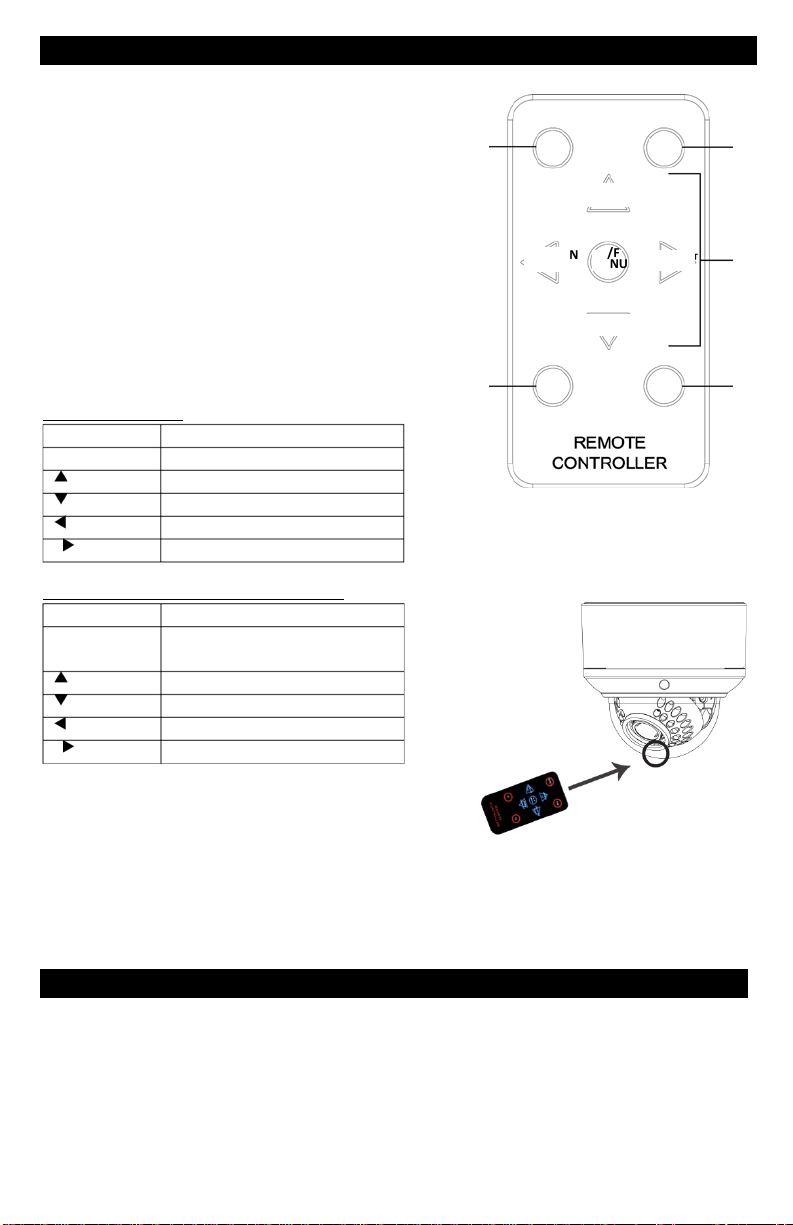

PARTS AND FUNCTIONS
RESET button for lens position
•Optimize AF lens position
•Reset the correct position of zoom & focus
•Fixing malfunction of the lens and the focus
error resolved
OSD Menu Open button (Press 3 seconds)
•Auto, focus & zoom features Stopped
•Automatically changes to OSD Mode,
OSD Menu will show up
•Select ‘EXIT’ on OSD Menu, OSD Mode stopped
HARDWARE RS485 WITH PTZ KEYBOARD SETUP
Default protocol is Pelco-D and default baud rate is 9600 for RS485 communication between
camera and PTZ controller.
NOTE: It is highly recommended that you run an additional cable for your RS485
communication from your camera. Some models may have RS485 setting in menu. Please
leave RS485 baud rate setting at 38400.
LENS (AF) Control Mode – Zoom & Focus
Label Name
Function
A/F MENU
Quick Auto Focus Aiming
Button
Zoom-In (Tele)
Zoom-Out (Wide)
Focus-In (Near)
Focus-Out (Far)

Five Direction Key Operations:
OSD Control Mode
Label Name
Function
A/F MENU
ENTER Button
Up
Down
Left
Right

F1 Function Button
•Locking all control of the camera - Press 5 seconds
•Release from locking function - Press 5 seconds
F2 Function Button
•Only to the special purpose camera



DOWN
ZOOM_OUT
RESET
OSD
ZOOM_IN
UP
FOCUS_IN
UP
A/F
MENU
FOCUS_OUT
UP
F1
F2
Control distance
within 20ft / 6m.

6

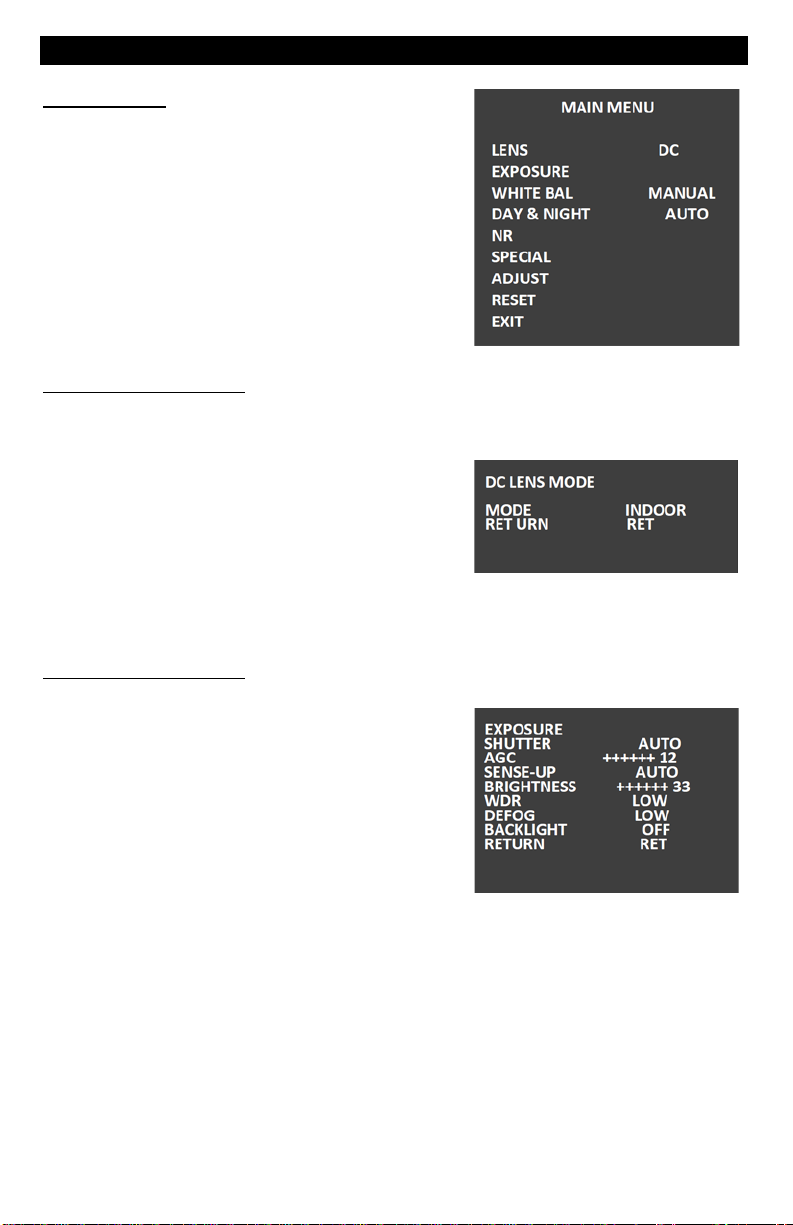

OSD OPERATION
OSD Main Menu
The menu consists of a main menu and sub-menu. Each
menu has a total of seven sub-menus of the camera
functions. Each sub-menu, the sub menu back to the
primary and secondary and tertiary sub-menu consists
of ENTER through the key mark from the primary to the
secondary can be moved to the third sub-menu.
1. LENS: Lens Mode Setting
1. VIDEO: VIDEO IRIS LENS drive is used.
2. MANUAL: MANUAL IRIS LENS mode when
you apply FIXED TYPE lens, it can used,
2.1mm ~ 50mm lens can be applied to a
variety of lens.
3. DC: AUTO DC IRIS lens, if applicable, DC IRIS
MOTOR driven by the Open the aperture is closed. Indoor mode (INDOOR) and
outdoor (OUTDOOR) In the sub-modes can be adjusted.
2. LENS: Lens Mode Setting
1. SHUTTER: AUTO, MANUAL is set to
a. AUTO
b. 1/30(25);1/60(50); 1/120(100);
1/240; 1/500; 1/1000; 1/2000;
1/5000; 1/10000; 1/50000
c. DSS Mode conversion: DSS (Digital
Slow Shutter) to set the value: x2, x4,
x6, x8, x10, x15, x20, x30, x60
2. AGC (Auto Gain Control): -0 ~ 16
*Day / night brightness, clarity and improved noise rise is closely related to the
one using it, will demand attention.
3. SENSE-UP:
a. AUTO
b. MANUAL: - X2, x4, x6, x8, x10, x15, x20, x30, x60.
4. BRIGHTNESS (brightness): - 0 (dark) to 100 (bright)

7
5. WDR (Wide Dynamic Range):
a. Set the backlight compensation function Broadband
b. OFF, b. LOW, c. MIDDLE, d. HIGH
c. *Indicates the degree of exposure of the shutter.
d. The higher the value, the better the show listings, shadow appears
relatively darker.
e. *When WDR is ON, the function of DEFOG will be unable.
6. BACKLIGHT (Back Light Compensation):
a. Backlight compensation function and high-brightness backlight reverse
function
b. OFF: Turn off the backlight compensation function.
c. BLC: BLC function is being used.
d. HSBLC: black against the brightness of the light is reversed.
e. *HSBLC used in the vehicle identification number plate is a function of.
3. WHITE BAL: White Balance Setting
White balance can be manually or automatically
adjusted to fit environmental lighting, e.g., matching
the light source of white object caught in sunlight to
color balance in the camera.
1. MANUAL: (Fig. 3.2)
a. Adjust the white balance manually.
The manual mode enables finer
adjustment. "RED GAIN" and "BLUE
GAIN" can be adjusted to increase
or decrease the desired
concentration:
b. RED GAIN: Adjusts the red value
(0-100 levels).
c. BLUE GAIN: Adjusts the blue value (0-100 levels).
2. ATW (Auto Tracking White balance):
a. Solar and other sources
automatically adjust the white
balance. Used to set current
lighting environment and the most
appropriate white balance to the
light source in order to obtain the
status by pressing the ENTER button once will temporarily adjust.
b. *When the environment changes, it will readjust it.
c. INDOOR: Indoor lighting is used (± 3700° K).
d. OUTDOOR: Used in outdoor environments (± 5100° K).

8

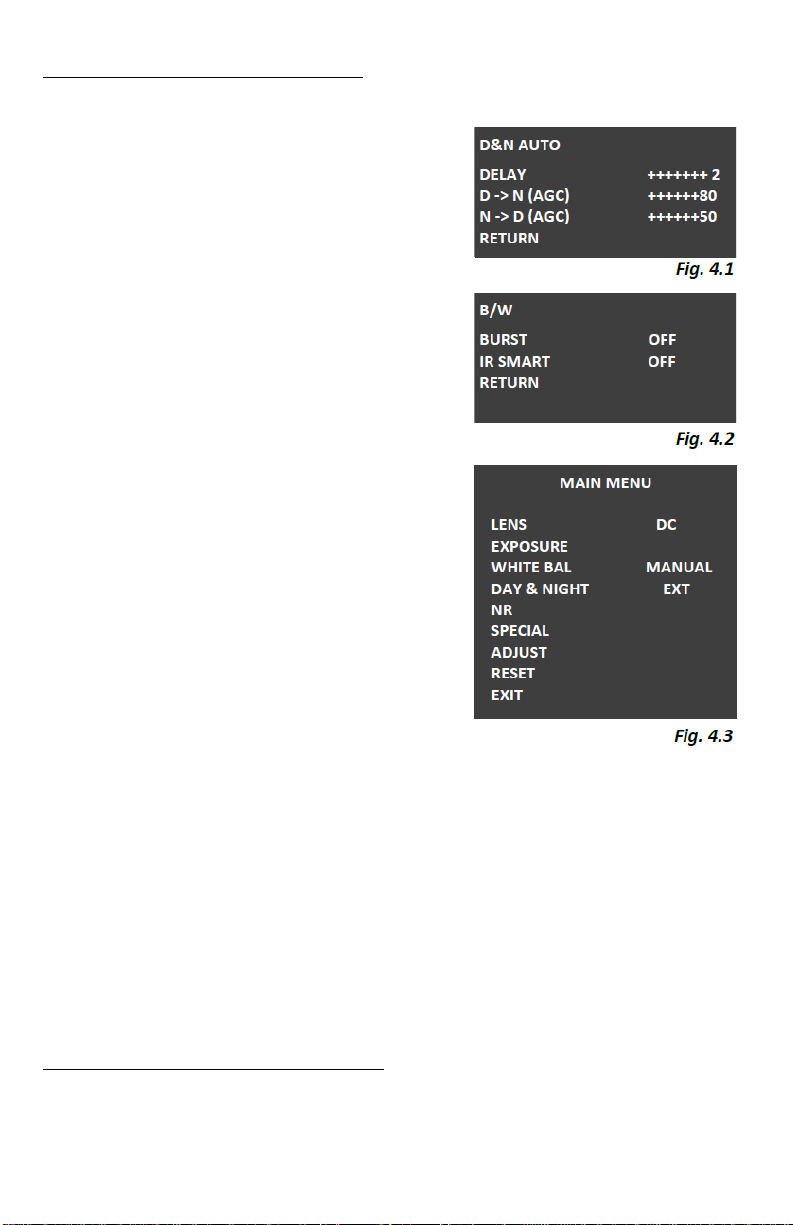

4. DAY & NIGHT: Day & Night Mode Setting
1. D&N AUTO Mode: (Fig. 4.1)
a. DELAY: 0 ~ 255Second. Fast
conversion time, you can adjust
slowly.
b. D-> N (AGC): 0 ~ 100
*AGC value is based on the color
mode (weeks) in the
black-and-white mode (night) to
adjust the time of the conversion.
c. N-> D (AGC): 0 ~ 100
*AGC value is based on the
black-and-white mode (night) in the
color mode (weeks) to adjust the
time of the conversion.
*Change the reference level in the
daytime and night-night in the week
that changes the thickness of the
reference level adjustable one, if the
value is too small hunting (screen
flicker) do occur, please be careful.
2. B/W Mode: (Fig. 4.2)
a. BURST: OFF or ON.
i. Color signal to noise
generated by switching to
black and white mode to
full function is used
b. IR SMART: OFF or ON.
i. IR LED lights up at night or,
if the object is close to the
front of the camera, IR LED to increase visibility for yourself is
to adjust the brightness. LEVEL 15 steps and AREA (area) can
be set.
3. EXT Mode: (Fig. 4.3)
External input to the value of the amount of light control sensor day & night
conversion is performed.
*The case of an infrared camera, EXT mode is set by default.
4. COLOR Mode: (Fig. 4.3)
Color (weeks) only mode is fixed.

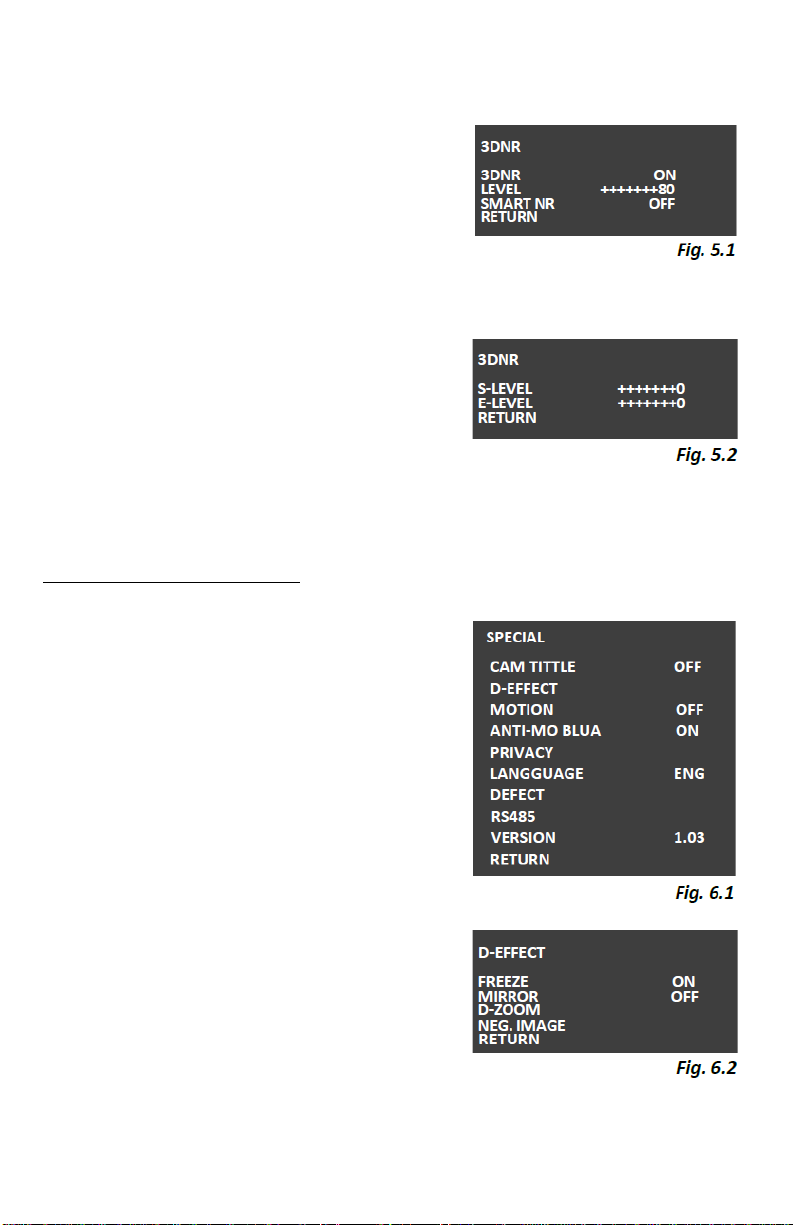

5. NR: Digital Noise Reduction Feature Setting
1. 3DNR, three-dimensional digital noise on the screen (3D image) compression that
reduces the noise significantly functions:

9
a. ON: (Fig. 5.2)
b. S-LEVEL: Indicates where to Start the 3DNR.
c. E-LEVEL: Indicates where to End the
3DNR.
d. OFF: Turn off the function.
2. LEVEL: Increase the level of noise reduction.
*DNR LEVEL increasing, powerful noise
reduction performed by the first, so the
camera's resolution is to take off.
3. SMART NR: Intelligent Noise Reduction
i. ON: Autumnally reduce
noise when a person or
object is motion.
ii. OFF: Function off.
iii. *DNR feature on-screen
Functionality first
performed to remove
noise, so the camera's resolution is closely related to the
decrease in the LEVEL control.
6. SPECIAL: Special Feature Setting
1. CAM TITTLE, the name of the camera:
a. ON: A keyboard layout will pop up in
order to edit the name.
b. OFF: Turn off this function.
2. D-EFFECT: (Fig. 6.2)
a. FREEZE: Freeze Frame function can
be selected.
b. MIRROR: REVERSE mode.
i. OFF: Turn off function.
ii. V-FLIP:
H: vertical (up and down
the screen can be
reversed).
V: right (screen left and
right can be reversed).
iii. ROTATE:
FLIP & ROTATE: up and
down and side to side (the
screen up and down, side
to side, and can be
rotated reverse).
c. D-ZOOM: x2 ~ 32x digital zoom.
d. NEG.IMAGE: Inverts the negative image contrast screen offers.

10
3. MOTION: If motion is detected, objects on screen will move.
a. OFF: Turn off function.

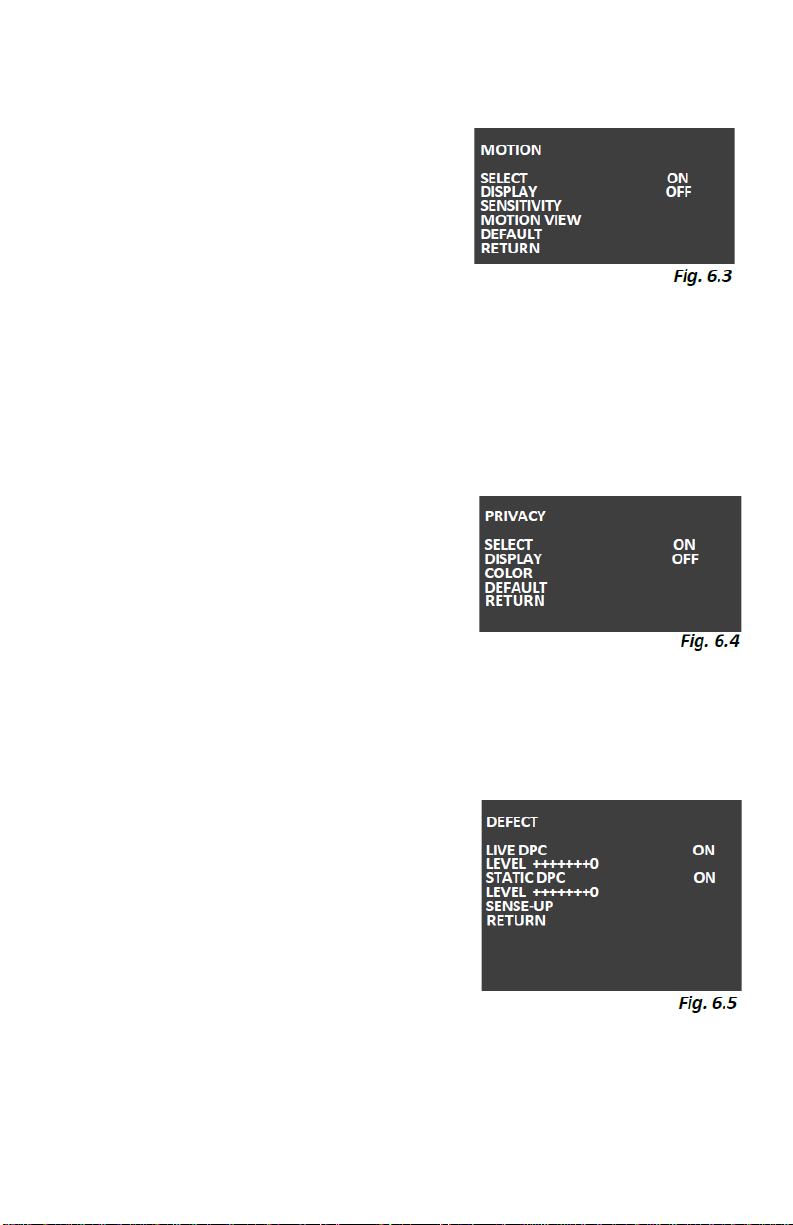

b. ON: (Fig. 6.3) Select motion detection functions.
i. SELECT: Set up AREA 1 ~ 3.
ii. DISPLAY: Motion detection
to adjust the position and
size of the area.
iii. SENSITIVITY: Subtle
movements to adjust the
sensitivity to detect
motion (0 – 60 steps) and
the more steps, the
sensitivity. *If the movement of the object is divided into
multiple zones, the smaller the value. And if movement of
several objects is contained in one area, the larger the value.
iv. MOTION VIEW: A moving object image into a mosaic shows.
v. DEFAULT: Restore to the previous setting.
4. PRIVACY: Mask off certain areas on the screen.
a. OFF: Turn off function.
b. ON: (Fig. 6.4) Select motion
detection functions.
i. SELECT: Set up AREA 1 ~ 8.
ii. DISPLAY: The location and
size of the masked area can
be adjusted.
iii. COLOR: Select a color
masking. (1 – 6 colors)
iv. DEFAULT: Restore to the
previous setting.
5. LANGUAGE (Fig. 6.1): Select different language.
a. ENG, b. JPN, c.CHN1, d.CHN2
6. DEFECT: CMOS sensor caused by heat or other
harmful frequencies on the screen. Defective
pixels (black dots or white point) to calibrate.
a. Selected: (Fig. 6.5)
i. LIVE DPC: 60 steps can be
set to the regular
calibration. *Adjust the
level by set to ON, and the
LEVEL adjustment will show
up on the next line.
ii. STATIC DPC: 60 steps can be
set up & cover the front of the lens, etc. Close the light so that
the effects of bad pixels on the entire screen section disappear.
*Adjust the level by set to ON, and the LEVEL adjustment will
show up on the next line.
iii. SENSE-UP: select the calibration settings are available under
each step.

11
7. RS485: communication camera ID can be set to 0-255. *For all the Auto ZF
Cameras the PELCO 'D' 9600bps fixed PROTOCOL is supported.
a. Selected: (Fig. 6.6)
i. CAMERA ID: can be set to
0-255
ii. ID DISPLAY: the camera ID
of 485 communications.
iii. BAUDRATE: communication
speed of 485
communication.
* For all the Auto ZF
Cameras with the
BAUDRATE 38400 is fixed,
this is because the camera's internal communication and
relationship changes randomly, RS485 communication is not.
To close Auto ZF Cameras, please do not change the
BAUDRATE.
7. ADJUST: Screen Adjustment Function
1. SHARPNESS: display precision (Sharpness)
0 ~ 100 steps to adjust the level.
a. Selected:
i. RESOLUTION: ON / OFF at
the same time, the
resolution will augment.
2. MONITOR: select the type of vide o output
device-optimized video monitoring of the
environment provided.
a. LCD: gamma level (GAMMA) and blue (BLUE GAIN) and red (RED GAIN)
to 100 steps each can be adjusted.
b. CRT: Black Level (BLACK) and blue (BLUE GAIN) and red (RED GAIN) to
100 steps each can be adjusted.
3. LSC: adjust digital Keystone Correction.
a. OFF: Turn off this function.
b. ON: digital Keystone Correction function is selected, and an optimized
digital image to automatically adjust the amount of light that is
optimized for video.
4. NTSC / PAL: select CVBS additional video connection, TV.
8. RESET: Factory Reset Function
FACTORY: The factory, set to default values to initialize the
set of all modes.

12
TROUBLE SHOOTING
If there are failures, check below for possible solutions. If abnormality persists, please
contact us.
Product Status and Action:
If the camera does not function properly:
Connect the power of the camera, and wait until the boot is complete
The screen flashes the boot is complete, ready to use condition.
Nothing appears on the screen:
Please confirm the power is connected.
Please confirm the video signal line is connected.
The screen is dim:
Clean, wipe the lens with a cloth or brush.
The screen is exposed to too strong light; change the camera angle or the
position.
The screen is dark:
Please adjust the contrast of your monitor.
Check that the system is properly terminated.
When used with other equipment, 75 Ω / Hi-z terminals, please confirm the exact
match. Align-Brightness levels.
Motion Detection function does not work:
Check if the motion detection function is enabled.
Check if the motion detection sensitivity is set too low.
WDR function does not work:
Check if the level is set too low.
AE mode is set to Manual. Check if the WDR standing is not working in the AE
manual mode.
Color is not correct:
Check if the camera facing sunlight or fluorescent light.
Day & Night function does not work:
Check if it is auto set to another mode.
DAY-> NIGHT, NIGHT-> DAY LEVEL to adjust the value looks.

13
If the camera cannot auto focus:
When the camera points at a direction where it detects two distances, it will keep
tracking to correct the focusing for objects over 40% of the image area. Check the
camera angle and adjust angle until camera is able to focus.
Example:
Distance #1
Distance #2

14
SPECIFICATION
Model HD21DX36-K10 HD21DX36-K4
Image Sensor Format
1/3" Panasonic 2.1 Megapixel WDR (Wide Dynamic Range)
CMOS - ACCE Technology
Total Pixels
Max.1920 x 1080 (1080P Full HD)
Horizontal Resolution
2.1 Megapixel (1920 x 1080)
IR LED
IR LED Number
OSRAM BLACK Visible 5mm, 200mA POWER IR LED(850nm,
24º) x 36ea
Visibility Range
100 ft / 30m with OSRAM IR LED (Made in Germany)
Day & Night
Performance
True Color at Day time & True B/W at Night time
(TDN - Automatically Burst On/Off )
Filter Change
Dual IR Filter Automatic Exchange Mechanism
(IR CUT Filter for Day time / IR PASS Filter for Night time)
Video output
BT.656/BT.1120/YC16bits/Max.1920 x 1080@30p/1920 x
1080@60i/1280 x 720@60p/CVBS 1.0Vp-p Composite
S/N ratio
More than 58dB (AGC Off, F1.0)
Min. Illumination
(IR LED Off)
0.03Lux/F1.4 - True Day & Night Function(Selectable by OSD)
WDR
WDR (WIDE DYNAMIC RANGE) LOW -MID-HIGH MAX.120dB)
Shutter Speed
Auto / FLK / 1/30 ~ 1/10000
White Balance (HLC)
1800°K ∼12,500°K (ATW, AWC, USER, INDOOR/OUTDOOR,
MANUAL),
High Light Compensation Balance (Selectable by OSD)
MTTF
80,000 hours or more
(TWIN Stepping Motor - Guaranteed 50,000 working hours)
SENS-UP
AUTO / FIXED / OFF (Selectable Limit : LOW(2x) ~ HIGH(512x)
2D+3D-DNR (Digital Noise Reduction)
OFF / ON (Level Adjustable / Max. 512x - 2D + 3D DNR)
Lens
ZOOM Lens Spec.
5~50mm
TWIN Motorized AF Lens
2.8~12mm
TWIN Motorized AF Lens
ZOOM Magnification
Rate
Optical 10X + Digital 14X =
Total 140X
Optical 4X + Digital 14X =
Total 56X
Angle Of View
64.2° ~ 6.9°
124.2° ~ 31.8°
Day & Night
Performance
AUTO (True Day & Night with Dual IR Filter Change) / OFF /
B&W / EXT (Duration/Dwell Time Adjustable)
Power source
12V DC / 24V AC
Power
Consumption
IR ON 700mA max.
IR OFF
520mA max.
Operation Temperature
14°F ~ 144°F / -10°C ~ 60°C
Storage Humidity
Within 95% RH
Net Weight
1 lb / 454g
* Specifications are subject to change without notice.
NOTE: PAL version also available.

15
RELATED PRODUCTS
HD SDI 1080p Optical Zoom & Auto Focus
36 IR LED Vandal Dome Camera
HD21VDX36-K10
HD21VDX36-K4
HD SDI 1080p Optical Zoom & Auto Focus
36 IR LED Bullet Camera
HD21B36-K10
HD21B36-K4
HD SDI 1080p Auto Zoom & Focus
Box Camera
HD21T-K10
HD21T-K4
HD SDI 1080p Optical Zoom & Auto Focus
54 IR LED Bullet Camera
HD21B54-K10

16
www.okinausa.com
MADE IN KOREA
Copyright © 2013. All Rights Reserved. HDC-5_HDC-6
www.okinausa.com R201310-V22
