Oliver 10047VS User manual

READ AND UNDERSTAND ALL INSTRUCTIONS IN THIS MANUAL BEFORE
ATTEMPTING TO ASSEMBLE OR OPERATE THE MACHINE.
FOLLOW THE INSTUCTIONS AND THINK SAFETY!
THE OWNER OF THIS MACHINE IS SOLELY RESPONSIBLE FOR THE SAFETY OF ANYONE USING
THIS MACHINE. SUCH RESPONSIBILITY INCLUDES BUT NOT LIMITED TO:
• PROPER ASSEMBLY, OPERATION, INSPECTION, MAINTENANCE, AND RELOCATION OF
THE MACHINE.
• PROPER TRAINING FOR THE OPERATORS AND ENSURES THIS MANUAL IS AVAILABLE
AT ALL TIMES.
• USAGE AUTHORIZATION.
• USAGE OF SAFETY AND PROTECTION DEVICE.
OLIVER MACHINERY DISCLAIMS ANY LIABILITY FOR MACHINES THAT HAVE BEEN ALTERED OR
ABUSED. OLIVER MACHINERY RESERVES THE RIGHT TO EFFECT AT ANY TIME, WITHOUT PRIOR
NOTICE, THOSE ALTERATIONS TO PARTS, FITTINGS, AND ACCESSORY EQUIPMENT WHICH THEY
MAY DEEM NECESSARY FOR ANY REASON WHATSOEVER.
** SAVE THIS MANUAL FOR FUTURE REFERENCES. **
PROP 65 NOTICE
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust,
and/or other chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Avoid inhaling wood dust and other harmful chemicals. Use a dust mask and/or other safety
devices for personal protection.
For more information go to http://www.P65Warnings.ca.gov/wood

Table of Contents
Introduction············································· 4
Specifications ·········································· 5
Identification ··········································· 8
Safety·····················································10
General Safety Guidelines·························10
Safety Guidelines Specific to Shaper··········12
Electricals ···············································14
Minimum Circuit Size Required for Model
10047VS Shaper ·······································14
Grounding ················································14
Electrical Wiring ·······································14
Setup······················································15
Shop Preparation······································15
Receiving··················································16
Inventory ·················································17
Cleaning ···················································18
Dust Collection ·········································18
Moving / Leveling Machine·······················18
Controls and Operation···························19
Control Panel Overview ····························19
Emergency Stop ··············································19
Magnetic Power Switch···································19
Machine Status Indicator ································19
Rotation Direction Switch ·······························20
Spindle Speed Dial & Indicator························20
Spindle Height Indicator··································20
Spindle Height Adjustment ·······················21
Fence Assembly········································22
Fence Adjustments ···································23
Spindle Assembly Components and
Functionalities ·········································25
Spindle / Cutter Setup ······························26
Lock / Unlock Spindle Arbor····························26
Install / Remove Spindle··································27
Install Shaper Cutter········································29
Installing/Removing Router Collets (Sold
Separately) ······················································31
Test Run···················································32
Preparation for Wood Shaping··················33
Material Selection and Inspection ··················33
Warped Stock··················································33
Support Long Workpiece·································33
Safety Devices ·················································33
Shaping Wood ··········································33
Shaping Long and Straight Pieces····················33
Cross Grain Shaping Tips ·································34
Shaping Tall Workpieces ·································34
Shaping with Collars ········································34
Freehand Shaping············································35
Accessories ············································ 36
Maintenance ········································· 38
Inspect / Adjust Belt Tension ····················39
Replace Drive Belt ····································39
Spindle Elevator Adjustment·····················40
Troubleshooting····································· 41
Wiring Diagram ····································· 44
Parts List················································ 45
Table and Fence ·······································45
Spindle Elevator Assembly························46
Motor and Spindle····································47
Cabinet and Control Panel ························48
Spindle & Miter Gauge ·····························49
Maintenance Record······························ 55
Notes····················································· 56
Warranty and Service····························· 57

4 | Page Oliver Machinery 10047VS Shaper
Introduction
Thank you for choosing Oliver! This manual contains important information on how to safely set up,
operate, and maintain this machine. Please take the time to read through this manual, and make sure you
understand all instructions.
While this manual may provide tips on optimizing the result of your workpiece, the manual is not intended
as a substitute for formal woodworking training. If you need to know how to safely perform an operation,
please consult knowledgeable and qualified sources before proceeding further.
We made every effort to keep this manual up-to-date. Instructions, specifications, drawings, and
photographs in this manual should match the machine delivered. If you find any differences, or anything
that seems confusing in this manual, please check our website for an updated version:
WWW.OLIVERMACHINERY.NET/MANUALS
Alternatively, you can contact our technical support for help:
1-800-559-5065
Before calling, please note down the manufacture date and serial
number of the machine. You can find the information on a
nameplate located on the back of the machine cabinet. This
information is needed to provide proper technical support, and
to determine if an updated manual is available for your machine.
Please let us know how well this manual serves you. If you have
any suggestions, please call the number above or email us at:
info@olivermachinery.net
We love to hear from our customers and make improvements.

10047VS Shaper OLIVERMACHINERY.NET 5|Page
Specifications
Quick View
Model
10047VS Shaper
Stock Number
10047VS.001
Power Requirement
230V, 1Ph, 60Hz
Motor
TEFC 3HP, 230V, 3Ph
Max Spindle Under Nut Capacity
4” with 1-1/4” Spindle
Max Cutter Diameter Allowed
6-1/4” Below Table
7” Above Table
Spindle Speed
5,000-10,000 RPM, Reversible
Dimensions
32-1/4“(W) x 32”(D) x 50”(H)
Footprint
22-3/4”(W) x 22-3/4”(D)
Fully Assembled Weight
396 lbs.
Warranty
1 Year (Motor and electronics)
2 Years (All other parts)
Product Dimensions
Width x Depth x Height (Fully Assembled)
32-1/4“(W) x 32”(D) x 50”(H)
Footprint
22-3/4” (W) x 22-3/4”(D)
Fully Assembled Weight
396 lbs.
Shipment Info
Type
Wood Crate with Pallet Base
Content
Shaper with Included Accessories
Dimensions
36”(L) x 35-1/2”(W) x 56”(H)
Weight
511 lbs.
Approx. Assembly Time
30 Minutes
Must Ship Upright
YES
Stackable
NO
Electricals
Power Requirement
230V, 1Ph, 60Hz
Full Load Current Rating
15A
Recommended circuit size
30A
Power Switch Type
Magnetic Switch with Overload Protection.
Connection Type
NEMA L6-30 Plug with 9.5’ 12AWG Cord
Overload Protection
Equipped

6 | Page Oliver Machinery 10047VS Shaper
Motor
Motor Type
TEFC
Horsepower
3HP
Power Requirement
230V, 3Ph, 60Hz
Full Load Current Rating
9A
Speed
3450 RPM (Max)
Efficiency / Power Factor
81% / 88%
Power Transfer Mechanism
Poly V-Belt and Pulleys
Bearing type
Permanently Sealed Ball Bearing
Spindle and Cutter
Spindle Sizes
1-1/4” (Included)
1/2", 3/4”, 1" (Optional)
Spindle Speed
5,000-10,000 RPM, Reversible
Vertical Spindle Travel
4"
Max Cutter (Under Nut) Capacity:
1/2" Spindle
3/4” Spindle
1” Spindle
1-1/4” Spindle
2-3/4”
3-1/2”
3-1/2”
4”
Max Cutter Diameter
6-1/4” Below Table
7” Above Table
Table
Material
Precision Ground Cast Iron
Table Dimensions
32-1/4“(W) x 26-3/4”(D)
Table Height
34-3/8”
Table Opening Diameter
6-1/4”
Number of Table Inserts
2
Table Insert Opening Diameter:
4-5/16”(Large)
2-1/2” (Small)
Miter Slot Type
T-Slot (Standard Size)
Miter Slot Width
3/4”
Miter Slot Height
3/8”
Power feeder mounting locations
On both rear corners of shaper table.

10047VS Shaper OLIVERMACHINERY.NET 7|Page
Fence
Material
Extruded Aluminum
Fence Length
16”, for each infeed and outfeed fence
Fence Height
4-3/4”
Fence Maximum Travel Distance (Front to Back)
4-3/8”
Maximum Infeed/Outfeed Fence Offset
7/8”
Fence Slot Type
T-Slot
Cutter Guard
Included
Featherboard
Included
Miter Gauge
Angle Range
-60° to 60°, with positive stops at -45°, 0°, 45°
Miter bar Length
18”
Safety
Guard material
Clear Polycarbonate
Maximum Guard Clearance
4-1/16“
Number of Featherboards Included
2
Number of Dust Ports
1
Dust Port Size
4”
Minimum CFM Required
800 CFM
Sound Rating @ 2’ distance
85 dB @ 10000 RPM
75 dB @ 5000 RPM
Others
Measurement Scale
Inch/mm
Serial Number Location
On the back of the machine cabinet.
Country of Origin
Taiwan

8 | Page Oliver Machinery 10047VS Shaper
Identification

10047VS Shaper OLIVERMACHINERY.NET 9|Page

10 | Page Oliver Machinery 10047VS Shaper
Safety
Oliver Machinery has made every attempt to provide a safe, reliable, easy-to-use piece of machinery.
Safety, however, is ultimately depending on the individual machine operator. Before operating this
machine, please become familiar with the following safety labels and guidelines.
DANGER
This indicate an imminent hazardous situation which, if not avoided, WILL cause
death or serious injury.
WARNING This means if the warning is not taken seriously, it CAN cause death or serious injury.
CAUTION This means if the precaution is not taken, it MAY cause minor or moderate injury.
IMPORTANT This is a tip about proper operation of the machine to avoid machine damage.
General Safety Guidelines
1. FAMILIARIZE yourself with all safety instructions found in this manual. Know the limitations and
hazards associated with this machine. Do not operate / service this machine until you are properly
trained.
2. ELECTRICAL GROUNDING, when done properly, reduce the risk of electrocution, shocks and fire.
Make certain that the machine frame is electrically grounded and that a ground lead is included in the
incoming electrical service. In cases where a cord and a plug are used, make certain that the grounding
plug connects to a suitable ground. Follow the grounding procedure indicated in the electrical code
of your area.
3. DISCONNECT the machine from power before performing any service, maintenance, adjustments or
when changing cutters. A machine under repair should be RED TAGGED to show it should not be used
until the maintenance is complete.
4. EYE PROTECTION: Always wear an approved safety face shield, goggles, or glasses that complies with
ANSI Z87.1 and CSA Z94.3 standards. Common eyeglasses are not safety glasses, and may not provide
adequate protection.
5. EAR PROTECTION: Use hearing protective devices where the noise exceeds the level of exposure
allowed in Section 1910.95 of the OSHA Regulations. When in doubt, use it.
6. OTHER PERSONAL PROTECTION: Before operation, remove tie, rings, watch and other jewelry. Roll
up sleeves above elbows. Remove all loose outer clothing and confine long hair. Protective type
footwear should be used. Do not wear gloves unless it is instructed to perform particular step(s) in
the manual.
7. GUARDS: Keep machine guards in place for all applicable operations. If any guards are removed for
maintenance, DO NOT OPERATE machine until all guards are reinstalled. Check clearance between
the guards and the cutter before starting the machine.
8. WORKPLACE SAFETY: Keep the floor around the machine clean. Scrap material, saw dust, oil and other
liquids increase the risk of tripping or slipping. Be sure to clean up the table before starting the

10047VS Shaper OLIVERMACHINERY.NET 11 |Page
machine. Make certain work area is well lighted and that a proper exhaust system is used to minimize
dust. Use anti-skid floor strips on the floor area where the operator normally stands and mark off
machine work area. Provide adequate work space around the machine.
9. ACCESS CONTROL should be enforced so only trained personnel can access the work area and operate
the machine. Use childproof power switch when applicable.
10. STAY ALERT at all times. Do not operate this machine while under the influence of drugs/alcohol, or
when not feeling well.
11. NEVER STAND ON MACHINE. This prevents injuries from tipping related accidents and accidental
contacts to cutters.
12. REPLACEMENT PARTS: Use only genuine Oliver Machinery replacement parts and accessories
recommended for this machine. Generic parts made by other manufacturers may create a safety
hazard, and WILL void the factory warranty and other guarantees.
13. PROPER USE: Do not use this machine for other than its intended use. If used for other purposes,
Oliver Machinery disclaims any real or implied warranty and holds itself harmless for any injury or
damage which may result from that use.

12 | Page Oliver Machinery 10047VS Shaper
Safety Guidelines Specific to Shaper
Before Work Begin:
1. INSPECT CUTTER: Make sure cutters are sharp, clean, balanced and free from damages. Forcing dull
cutters to work invites accidents and impacts finish quality.
2. CUTTER POSITIONING: Whenever possible, position the cutter below the workpiece and make blind
cuts with hold-downs. Doing so reduce operator’s exposure to the cutter.
3. SECURE SPINDLE AND CUTTER: Make sure the spindle and the draw bar are tightened on the arbor.
4. KEYED COLLAR:Never operate the shaper without the keyed collar located
immediately under the spindle washer. Key collar prevents the cutter from coming
loose when the spindle rotates. Do not substitute any other type of washer/spacer in
place of the keyed collar.
5. CUTTER CLEARANCE: Adjust fence plates and guard, and use correctly sized table inserts to create
practically minimal cutter clearance. Never start shaper with workpiece touching the cutter.
6. CHECK SPINDLE SPEED AND SPINDLE-FEED DIRECTION:Always start this shaper at the lowest speed,
and never set rotation speed above the rated RPM of the cutter. Always feed stock against cutter
rotation direction to maintain better control of stock.
7. CHECK STOCK LENGTH: Never shape stock less than 12 inches in length without special fixtures. When
practical, shape longer stock and cut to size.
8. SHAPE ONLY QUALITY WOOD: This machine is designed for wood products only. Do not shape any
material other than wood. Do not attempt to shape workpiece with loose knots or with any other
foreign material. Do not attempt to shape twisted, warped, bowed stock. Use a jointer to flatten stock
prior to shaping.
9. COLLARS: When shaping with collars, the collar must have sufficient bearing surface. The work must
also be fairly heavy in proportion to the cut being made. Do not use short, lightweight stock when
shaping against collars.

10047VS Shaper OLIVERMACHINERY.NET 13 |Page
When Shaping:
1. 6-INCH RULE: To avoid accidental cutter
contact, never allow your hands to come
closer than 6 inches to the cutters. Use push
block, jigs, and hold-downs to safely feed the
workpiece while cutting.
2. NO CLIMB CUT: To prevent kickback, feed
stock opposite to the direction of the cutter
rotation. Never back stock out of the cutter
once the cut has been started. Instead, pull
the stock straight back away from cutter and
begin the cut again.
3. SHAPING SHORT EDGE:When shaping
workpiece with an edge shorter than 6”, use
miter gauge and hold down fixtures for
feeding.
WARNING
When using miter gauge, do not feed
workpiece against the fence. If the fence
is not perfectly parallel to the miter slot,
workpiece can bind and kickback may
occur.
4. FREEHAND SHAPING is for advanced users
only. Always use a starting pin or pivot board
when starting a cut. Never start shaping at a
corner.
5. MAKE LIGHT PASSES: Never force the cutter
to remove too much material in one pass.
Doing so increase the risk of kickback and
impact finish quality. Make several light
passes when applicable.
6. KEEP HANDS SAFE: Do not clear dust and
debris with hands; use a brush or
compressed air instead.
After Operation
1. STOP THE MACHINE when operator leaves the machine for any reason.
2. WAIT until the cutter comes to a complete stop.
3. CLEAN UP before departure.

14 | Page Oliver Machinery 10047VS Shaper
Electricals
WARNING
All electrical work must be done by a qualified electrician, and must meet the
electrical code in your area.
Minimum Circuit Size Required for Model 10047VS Shaper
Stock Number
Minimum Circuit Size Required
10047VS.001
30A
Please ensure the electrical circuit for this machine meets the minimum circuit size requirement.
Minimum circuit size requirement applies to a dedicated circuit which provides power to one 10047VS
Shaper. If more machines are sharing the same circuit, consult a qualified electrician to ensure the
designated circuit is properly sized for safe operation.
If a circuit is available, but not meeting the minimum circuit size requirement listed above, a new circuit
must be installed for this machine.
Grounding
WARNING Improper grounding can cause electric shock, fire, and equipment damage.
Proper grounding reduces the risk to the operator in the event of electrical malfunction or breakdown.
This machine must be connected to the grounding conductor when available, and all grounding
connections must meet or exceed the electrical code requirements in your area. Furthermore, all grounds
must be verified and must meet or exceed the electrical requirement of the machine. If grounding is not
available, consider the use of a GFCI protection device as an alternative, if this complies with the electric
code in your area.
Electrical Wiring
This machine is pre-wired for 230V with a cord and a NEMA L6-30 plug. Use of extension cord is not
recommended. If you need to use an extension cord to connect to a power source, select a durable cord
type with high temperature rating (90C° or above). Use minimum amount of extension cord as needed.
Minimum cord size (AWG) required based on amperage draw and length of the cord:
Amps
Power Cord Length
25 feet
50 feet
75 feet
100 feet
8 to 12
14
14
12
10
12 to 15
12
12
10
10
15 to 20
10
10
10
NR
21 to 30
10
NR
NR
NR
*NR: Not Recommended
WARNING
Use properly sized wires that meet or exceed the power requirement of your
machine. Using undersized wires may cause overheating and increase the risk of fire
and machine damage.

10047VS Shaper OLIVERMACHINERY.NET 15 |Page
Setup
Shop Preparation
Space Requirement
The dimensions of this machine are 32-1/4“(L) x 32”(W).
You will need additional spaces for manipulating your
workpiece, electrical connection and dust collection.
Load Limits
This machine has a shipping weight of 511 lbs., and a net
weight of 396 lbs. Please ensure all lifting tools and building
structures have adequate load capacity, for transporting
and supporting the total weight of this machine, the
operator, and related items.
Electricals
Make sure properly sized circuit and electrical outlet are available near the machine. Please refer to
section “Electricals” on page 14 for details regarding electrical requirements.
Lighting
Adequate lighting is needed for operating this machine. Overhead, non-glare lighting should be installed.
Safety Labels
If this machine introduces a new safety hazard to your work place. Please display proper warning signs in
highly visible location(s).
Dust Collection
Wood dust created by this shaper is a health hazard. Connect this machine to a dust collection system.
Check the air suction regularly to ensure dust and shavings are effectively removed.
Dust masks should be available for using the shaper.
CAUTION
Air resistance and leakage in a dust collection
system impacts its effectiveness.
Use
a dust collection system that is rated above
800 CFM at dust port
. Doing so
improves air quality in the workplace, and
prevents machine from jamming.

16 | Page Oliver Machinery 10047VS Shaper
Receiving
Your shipment should come with one wood crate with pallet base. Upon receiving your shipment, check
for any significant damages before signing the delivery confirmation.
CAUTION
You may need to remove strapping that is used for securing your package.
Strapping may spring back violently when released and cause injury. Always wear
safety goggles and gloves for this task.
Moving Machine into the Shop
Your machine will be delivered by freight service, and it will be left outside of your workshop by default.
On the day of delivery, please be sure help is available to move the machine to its final location.
WARNING
10047VS Shaper has a gross weight of 511 lbs. and a net weight of 396 lbs.
Safe moving techniques and proper lifting equipment required, or serious personal
injury may occur.
WARNING
Your machine may be secured by the straps. Do not lift your shipment by the
strap. They are not designed to hold the total weight of your shipment. They may
snap without warning and cause serious injury and machine damage.
Unboxing
Upon removing the crate cover, you should find a shaper that is mostly assembled, and a paper box that
contains all loose parts and accessories.
IMPORTANT If items are damaged, please call us immediately at 1-800-559-5065

10047VS Shaper OLIVERMACHINERY.NET 17 |Page
Inventory
Carefully unwrap the packaging and make sure all components are included in the shipment. Lay out all
items received and inventory them.
Item
Description
Quantity
1
8mm Hex Key
1
2
Screw driver
1
3
Starting Pin
1
4
1-1/4” Spindle Assembly
1
5
Wrench for spindle nut and spindle draw bar
1
6
Spindle draw bar
1
7
Miter gauge assembly
1
NOTICE: If you cannot find an item in the list above, please check if it is still attached to the packaging or
inside the cabinet. Occasionally the item may have been pre-installed in factory. See section “Parts List”
to check if a component is included or installed.
NOTICE: This machine comes with various standard sized, non-proprietary parts. If any of these parts are
missing, we be happy to deliver them to you. To have the machine up and running as soon as possible,
you can also find these parts at your local hardware store.
Additional Items Needed for Machine Assembly
Item
Purpose
Safety glasses
Protection
Disposable gloves
Protection
Paper Towel
Cleaning
Rust Inhibitor
Cast iron table top rust protection.
When all items are ready for setting up the machine, gently remove the machine from the pallet. Lift the
shaper with its table. If using a forklift or any metal lifting devices, ensure the table is protected by
paddings. Gently lower shaper on the floor to prevent damages to the casters.

18 | Page Oliver Machinery 10047VS Shaper
Cleaning
To prevent rusting, the cast iron tabletop of this shaper
is covered with rust protectant and plastic film.
Remove both fence assembly lock knob to remove the
fence assembly. Then pull out the plastic film and wipe
off rust protectant with paper towels.
Once all rust protectant is removed, routinely coat the
table top with rust preventive such as Boeshield® T-9
or paste wax. Do not use rust preventives that contains
silicon, which is known to interfere with certain
finishes and glues.
Dust Collection
Shaper can generate a lot of wood shavings and dust.
Connect this machine to a dust collection system.
Minimum CFM requirement for this shaper is 800 CFM
at the dust port, which means your dust collection
system should have a rating greater than 800 CFM, as
air friction and leakage reduce effective CFM at the
dust port.
IMPORTANT
Running this shaper without dust collection system, or using a dust collection
system with inadequate suction, will cause dust and shavings to accumulate
inside the cabinet. This can damage the machine and cause other hazardous
situations. Check your dust collection system regularly to make sure it is not
jammed or filled up.
Moving / Leveling Machine
This shaper is equipped with casters so it can be moved easily. To keep the shaper in place, tighten the
caster locking knobs and lower the rubber feet.
If shaper is standing on uneven floors, use rubber feet to level the machine.

10047VS Shaper OLIVERMACHINERY.NET 19 |Page
Controls and Operation
Control Panel Overview
Emergency Stop
Emergency stop button stops the machine and prevents unintentional restarts.
Once pressed, the shaper will stop, and the emergency stop button will have to be
reset before the shaper can be restarted. To reset, rotate the button clockwise until
it pops up.
Magnetic Power Switch
Press this button to power on the shaper so it is ready to run.
NOTICE: This magnetic switch will automatically shut off upon power outage. This
prevents unintentional restarts when power resumes.
To restart the machine after a power outage, set spindle direction switch to OFF
position, and set spindle speed to minimum, then press the power button to power
on the machine.
Machine Status Indicator
Indicates if the motor is ready to run. If the “ALARM” light is
on, motor will not start. Hit STOP button and wait for 1 minute
for the machine to reset.

20 | Page Oliver Machinery 10047VS Shaper
Rotation Direction Switch
This switch allows operator to set spindle rotation direction after the machine is powered on.
Position
Spindle Rotation Direction
“FOR”
Counter-clockwise
“REV”
Clockwise
“OFF”
Spindle does not rotate
IMPORTANT
This machine comes with a safety feature which prevents unintentional startup.
The rotation direction switch must be at OFF position before machine is powered
on, otherwise the alarm light will turn on and machine will have to be reset
before it can start again.
Spindle Speed Dial & Indicator
Controls spindle speed between 5000 and
10000 RPM. Real time spindle RPM is displayed
on spindle speed indicator.
WARNING
Always start this shaper at the lowest RPM and then increase to a safe speed for
operation. NEVER set RPM above the cutter’s rated speed or cutter may
disintegrate. Serious body injury and machine damage may occur.
Spindle Height Indicator
This digital readout shows current position of the spindle relative to a
reference point set by the user. When spindle moves above the
reference point, the Indicator will show a positive value, and vice
versa.
To Set a Reference Point:
Press [0” SET]
To Change Measurement Unit:
Press [mm/in.]
IMPORTANT
Only change spindle rotation direction after the spindle has come to a complete
stop, or machine damage may occur.
Always turn this switch to OFF position when operation completes.
Table of contents
Other Oliver Power Tools manuals

Oliver
Oliver 10044 User manual

Oliver
Oliver 4220 User manual

Oliver
Oliver 10062 User manual

Oliver
Oliver 4240 User manual

Oliver
Oliver 0008 User manual

Oliver
Oliver 4705 User manual

Oliver
Oliver 4275C User manual

Oliver
Oliver 4265C Instruction Manual

Oliver
Oliver 4230 User manual

Oliver
Oliver 7660.002 User manual
Popular Power Tools manuals by other brands

Meister
Meister MFW300 Translation of the original instructions

Craftsman

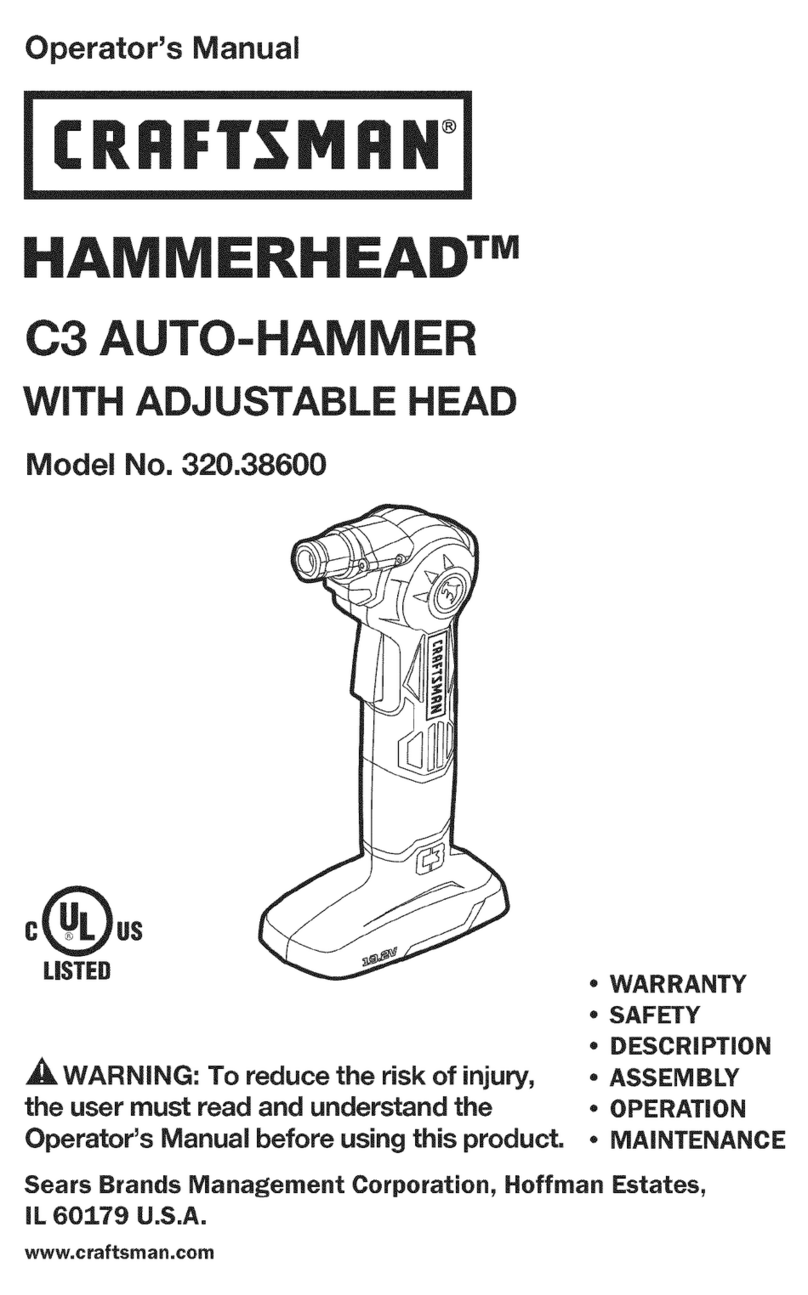

Craftsman Hammerhead 320.38600 Operator's manual

Evolution
Evolution FURY2 Original instructions

DeWalt
DeWalt DDF2120400 Translation of the original instructions

Euro Shatal
Euro Shatal PC1614-50 Operating instructions/spare parts list

Hitachi
Hitachi WH 18DGL Handling instructions
